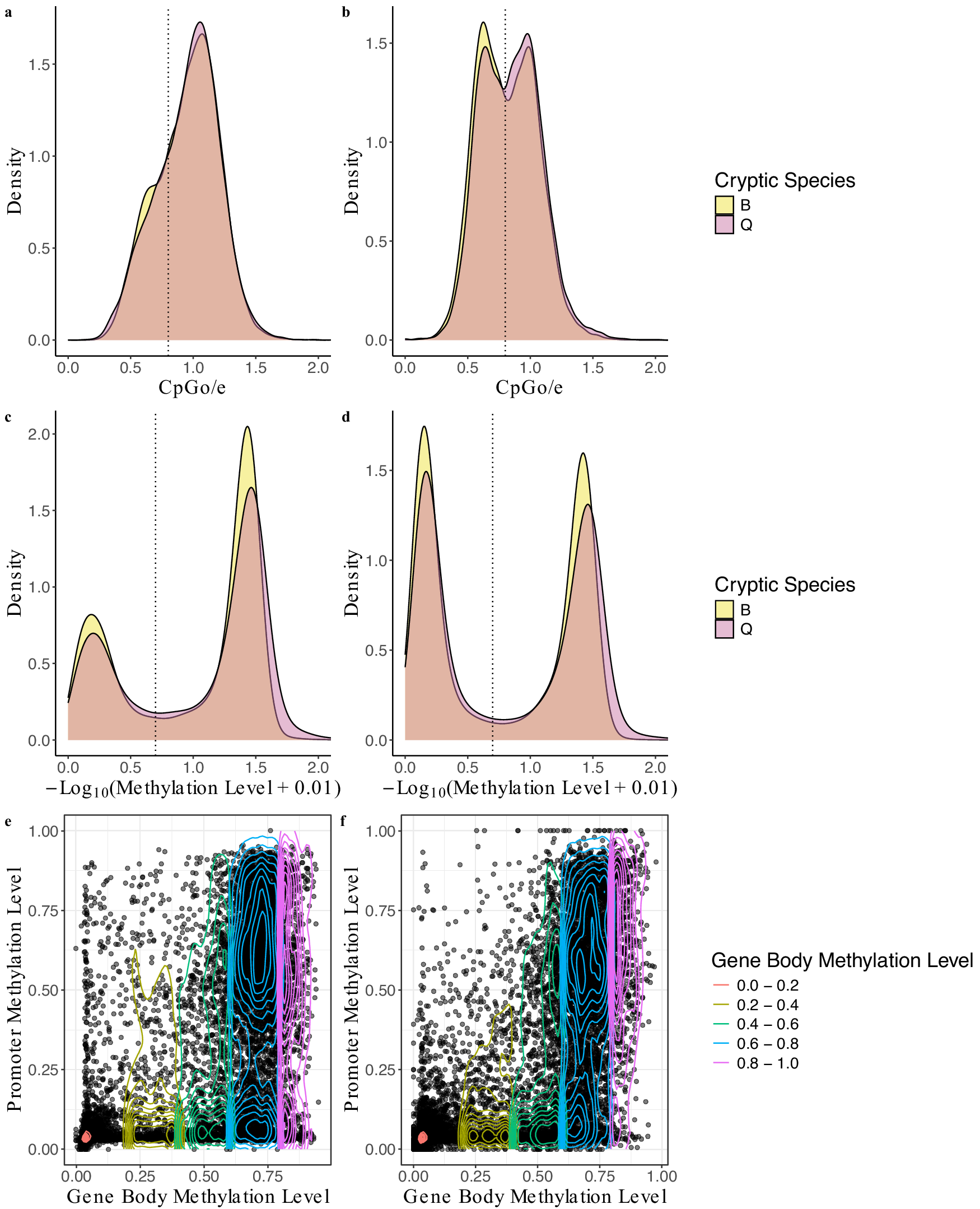

Fig. 2: Distributions of CpGo/e and methylation levels within the promoter regions and gene bodies of Bemisia tabaci B (# of genes = 15,229) and Q (# of genes = 17,416) cryptic species.
From: A plant virus differentially alters DNA methylation in two cryptic species of a hemipteran vector
a The CpGo/e comparison reveals for B and Q, 4190 and 4636 promoters, respectively, were below 0.8 (indicated by the dotted line). b The CpGo/e comparison reveals that for B and Q cryptic species, 7654 and 7816 gene bodies, respectively, were below 0.8 (indicated by the dotted line). c The methylation level analysis shows that for B and Q cryptic species, 5059 and 5353 promoters, respectively, exceeded 20% (marked by the dotted line). d The methylation level analysis shows that for B and Q cryptic species, 7580 and 8240 gene bodies, respectively, exceeded 20% (marked by the dotted line). Contour density plots showing the relationship between gene body methylation levels (x-axis) and promoter methylation levels (y-axis) of (e) B and (f) Q cryptic species. Contour density lines show gene body methylation levels represented by different line types, categorized into distinct, non-overlapping intervals: 0.0–0.2, 0.2–0.4, 0.4–0.6, 0.6–0.8, and 0.8–1.0.
