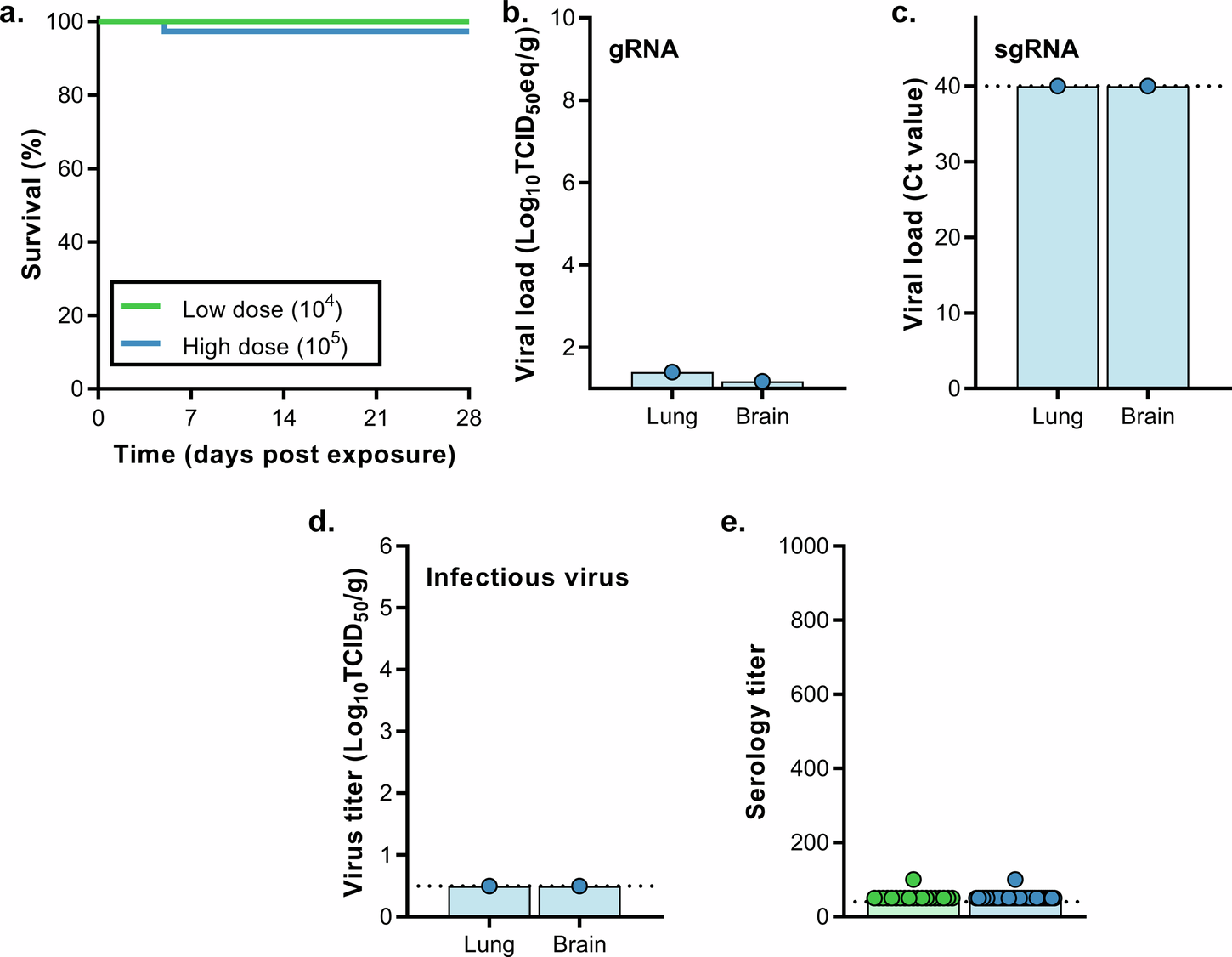

Fig. 5: Transmission of MERS-CoV via direct contact.
From: Transmission dynamics of MERS-CoV in a transgenic human DPP4 mouse model
hDPP4 mice were inoculated intranasally with 104 TCID50 MERS-CoV (N = 20) or 105 TCID50 MERS-CoV (N = 38). a Survival curves of mice directly exposed to donor mice infected with MERS-CoV. Viral gRNA (b) or sgRNA (c) in lung and brain tissue of hDPP4 mice that reached endpoint criteria. d Infectious MERS-CoV detected in lung and brain tissue of hDPP4 mice that reached endpoint criteria. e Serology titers in sera of survivors obtained 28 dpe. ELISA assays were performed using MERS-CoV S1 protein. Dotted line = limit of detection.
