Fig. 11: Tuning magnetic anisotropy of flexible magnetic films through applied strain. | npj Spintronics

Fig. 11: Tuning magnetic anisotropy of flexible magnetic films through applied strain.

From: Flexible magnetic films and spintronic devices

Fig. 11

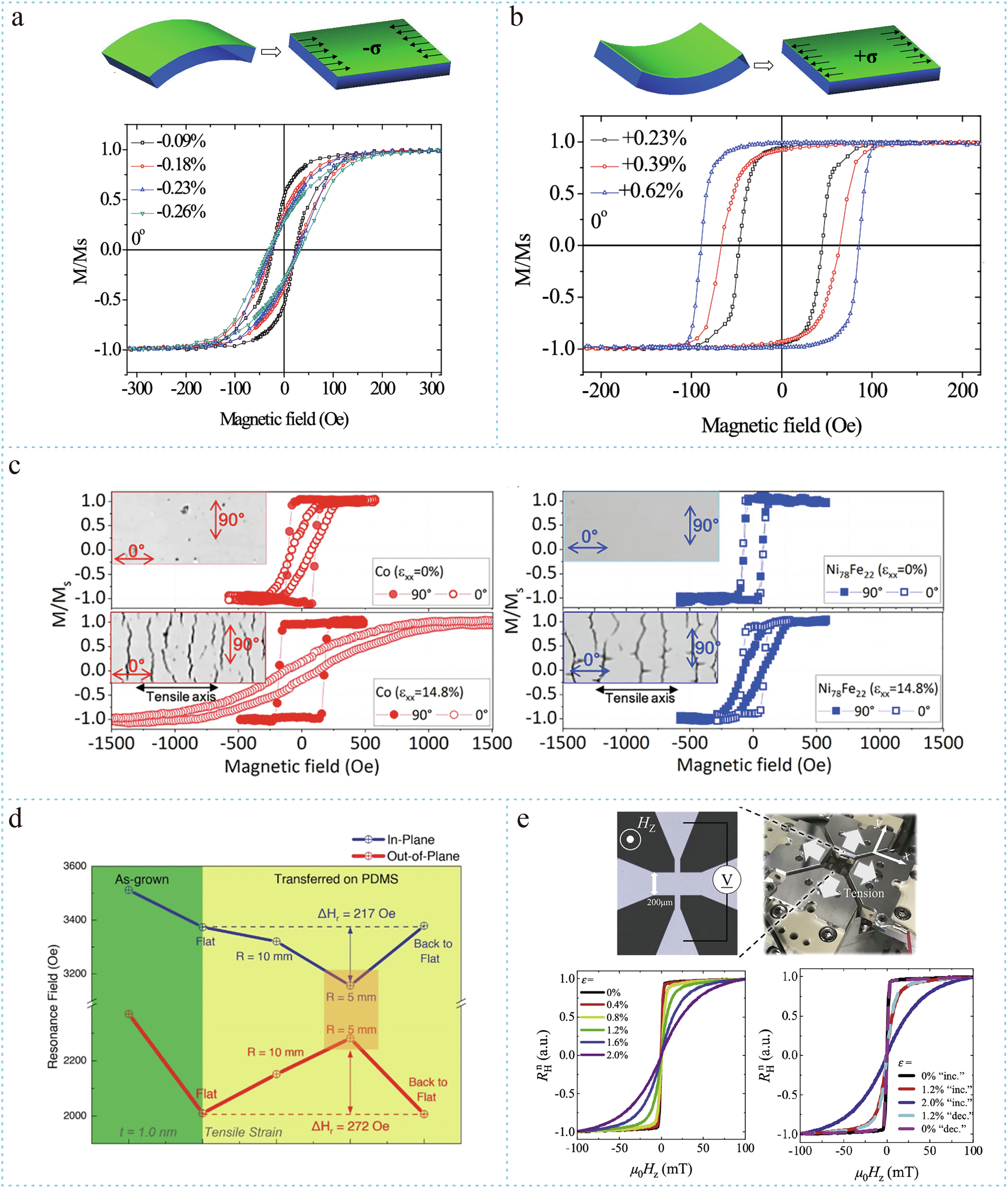

The variation in the hysteresis loops of Fe81Ga19 films under (a) compressive stress and (b) tensile stress. Reproduced with permission74. Copyright 2013, AIP Publishing. c The surface and hysteresis loop changes of Co and Ni78Fe22 films under tensile stress Reproduced with permission75. Copyright 2023, AIP Publishing. d The variation in the resonance field of (Co/Pt)5/BaTiO3 heterostructures under tensile stress. Reproduced with permission78. Copyright 2022, American Chemical Society. e The anomalous Hall resistance curves of Co20Fe60B20 films under different biaxial tensile strains Reproduced with permission79. Copyright 2023, IOP Publishing.
