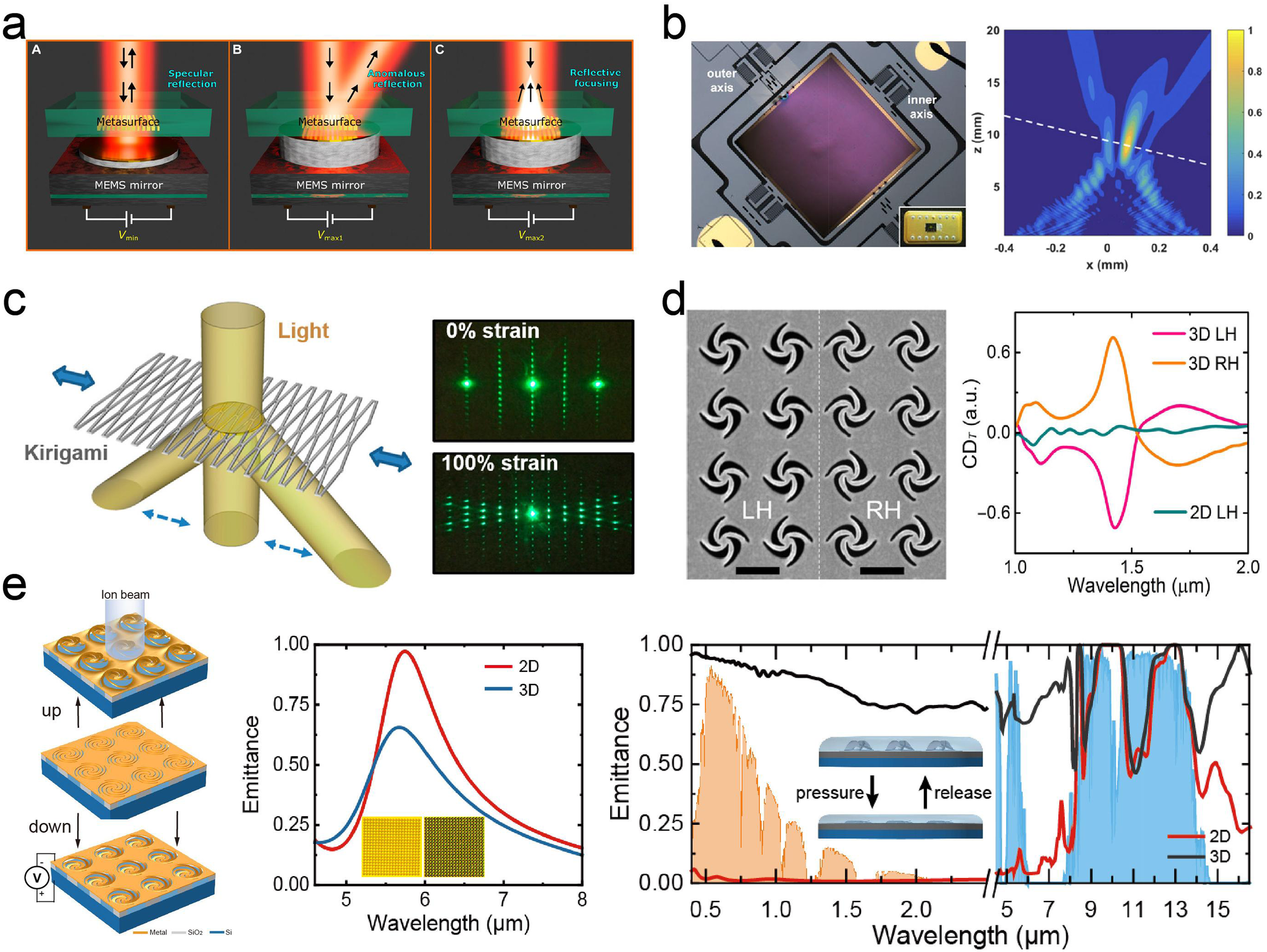

Fig. 7: Applications in other optical reconfigurations.
From: Mechanically reconfigurable metasurfaces: fabrications and applications
a An electrically driven dynamic MEMS-OMS platform that offers controllable phase and amplitude modulation of the reflected light by finely actuating the MEMS mirror79. b A 2D scanning MEMS platform controls the angle of the lens along two orthogonal axes by ±9°, thus enabling dynamic beam steering80. c Kirigami nanocomposites as wide-angle diffraction gratings81. d Close-loop nano-kirigami with giant optical chirality in 3D state84. e A dynamic and multifunctional thermal emitter based on deformable nano-kirigami structures82.
