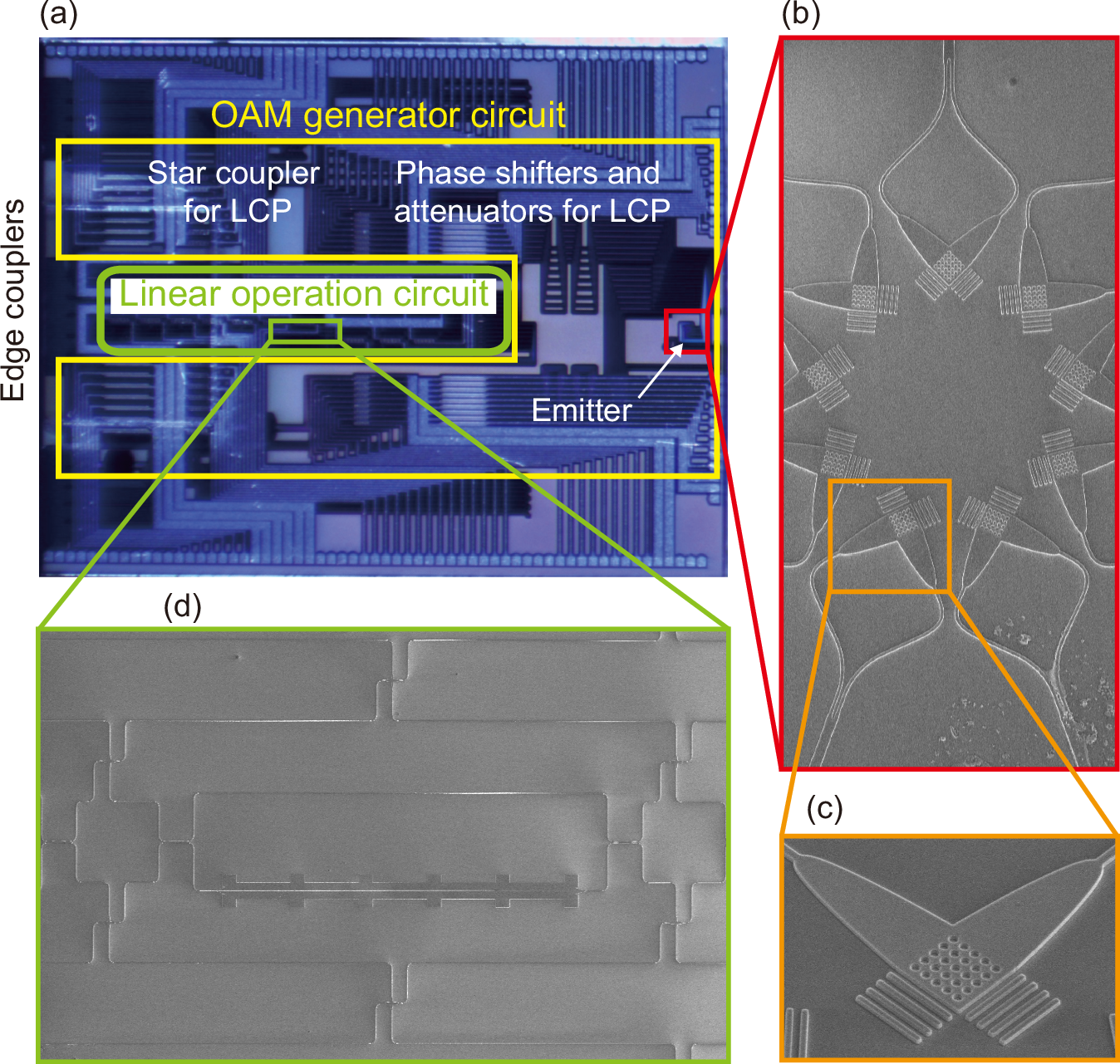

Fig. 2: Fabrication of the mode generator.
From: Reconfigurable spatial-mode generation and multiplexing on a scalable photonic chip
Photo of (a) the fabricated chip, and scanning electron microscope images of (b) the antenna array, c one 2D antenna, and d one MZI and crossings in the LOC.
