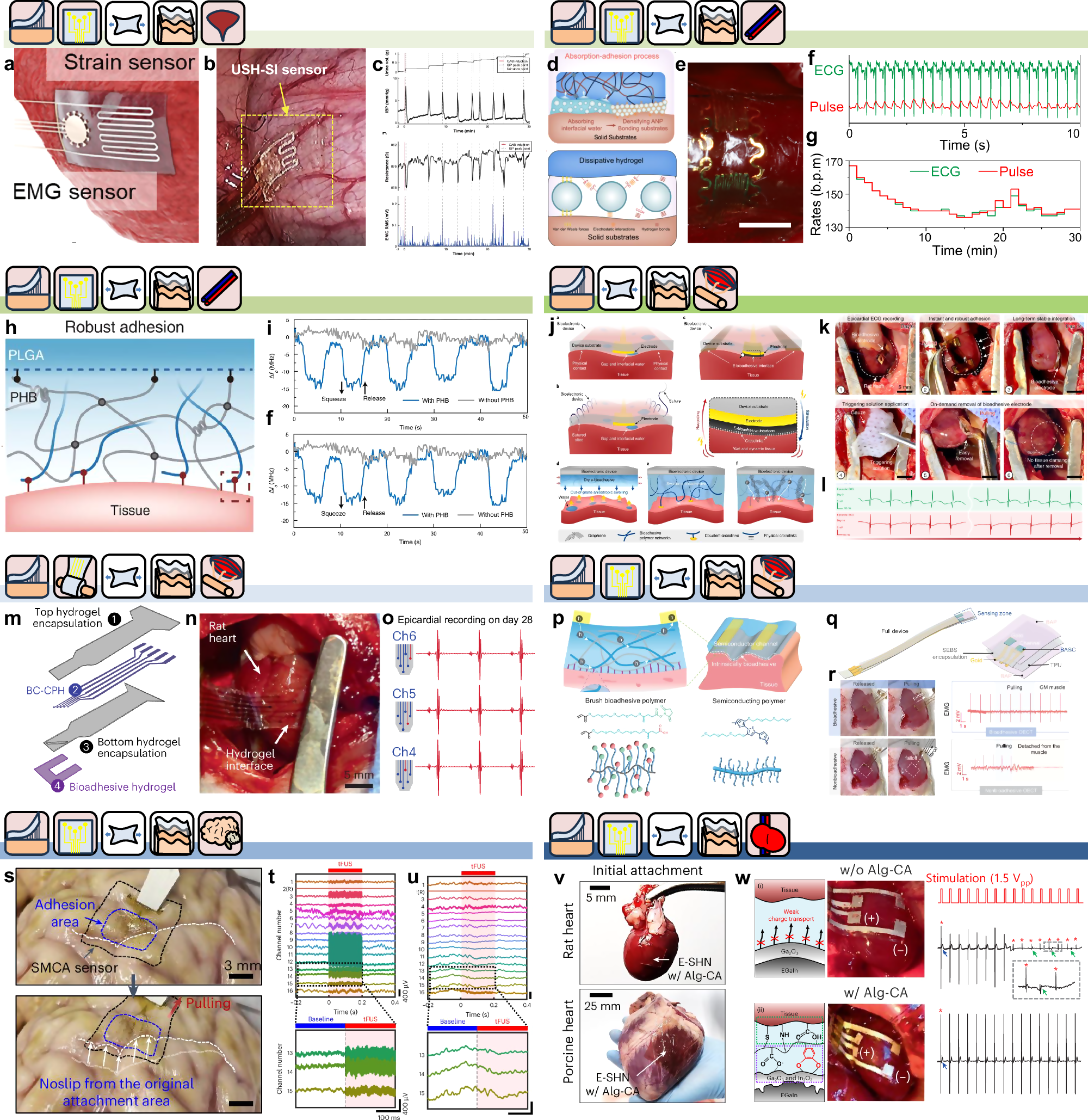

Fig. 5: Examples of bioadhesive devices demonstrating stable tissue interfacing capabilities through various material strategies and manufacturing technologies.
From: Materials strategy and device fabrication for stable closed-loop bioelectronics

a The schematic illustration for in situ diagnosis process of overactive bladder rat model. b Photographs showing the attached ultra-soft hydrogel combined with structurally engineered islets (USH-SI) sensor onto the bladder. (Scale bar = 10 mm) c Plot accumulated urine volume and intra-bladder pressure (IBP), strain sensor resistance and EMG RMS. Reproduced with permission from ref. 189 (a–c). d Schematic illustration of the absorption of the interfacial water by densified activated nanoparticles (ANP) and the formation of nanohesion (top) and the interactions between ANP and surfaces through short-range forces (bottom). e The in vivo fixation procedure of strain sensor. (Scale bar = 2 mm) f Pulse signals acquired by a nanohesive-fixed strain sensor with simultaneous ECG signals. g Comparison of pulse rates from ECG and nanohesive-fixed strain sensors over 30 min. Reproduced with permission from ref. 192 (d–g). h Schematic illustration of the polymer hydrogel bioadhesvie (PHB) enabling robust biointerfaces for wireless sensors. i Measurements of f0 during squeezing and releasing of a rat flank validate the reliability of the PHB-based biointerface. Reproduced with permission from ref. 195 (h, i). j Schematic illustration a bioelectronic device’s physical attachment to tissue. k Images of epicardial ECG recordings at day 0, day 14, and on-demand detachment of bioadhesive electrodes. l Surface ECG signals from needle electrodes compared to epicardial ECG signals recorded by bioadhesive electrodes at day 0 and day 14. Reproduced with permission from ref. 196 (j–l). m Schematic illustration of 3D printing-based fabrication of the adhesive bioelectronic interface. n Images of the implanted all-hydrogel bioelectronic interfaces on rat heart. o Epicardial recordings from hydrogel interfaces at day 28 post-implantation. Reproduced with permission from ref. 170 (m–o). p Adhesive attachment using BASC channels with wet tissues, enabled by semiconducting and adhesive polymers for robust covalent bonding. q Schematic illustration of device structure of the adhesive OECT under strain. Scale bar, 5 mm. r Stable attachment of a adhesive OECT to gastrocnemius medialis (GM) muscle during mechanical agitation, compared to non-adhesive OECT, with corresponding EMG recordings. Reproduced with permission from ref. 197 (p–r). s Images of ultraconformal brain adhesion of shape-morphing cortex-adhesive (SMCA) sensors on curved surfaces of ex vivo bovine cortex. t–u Electrocorticogram recordings comparing PDMS (t) and SMCA (u) sensors under tFUS stimulation. Reproduced with permission from ref. 200 (s–u). v Wet-resistant adhesion of the electrospun self-healing polymer (SHP) network (E-SHN) with Alg-CA on cardiac tissue during washing. w Bidirectional interfacing via Alg-CA coatings between tissues and EGaIn composites, shown with ECG signals during rat heart stimulation. Reproduced with permission from ref. 201 (v–w).
