Fig. 4: Station distribution and probabilities of eigen microstates for Cluster I.
From: Phase transition-like behaviors of propagation of passenger stranding phenomena in subway networks

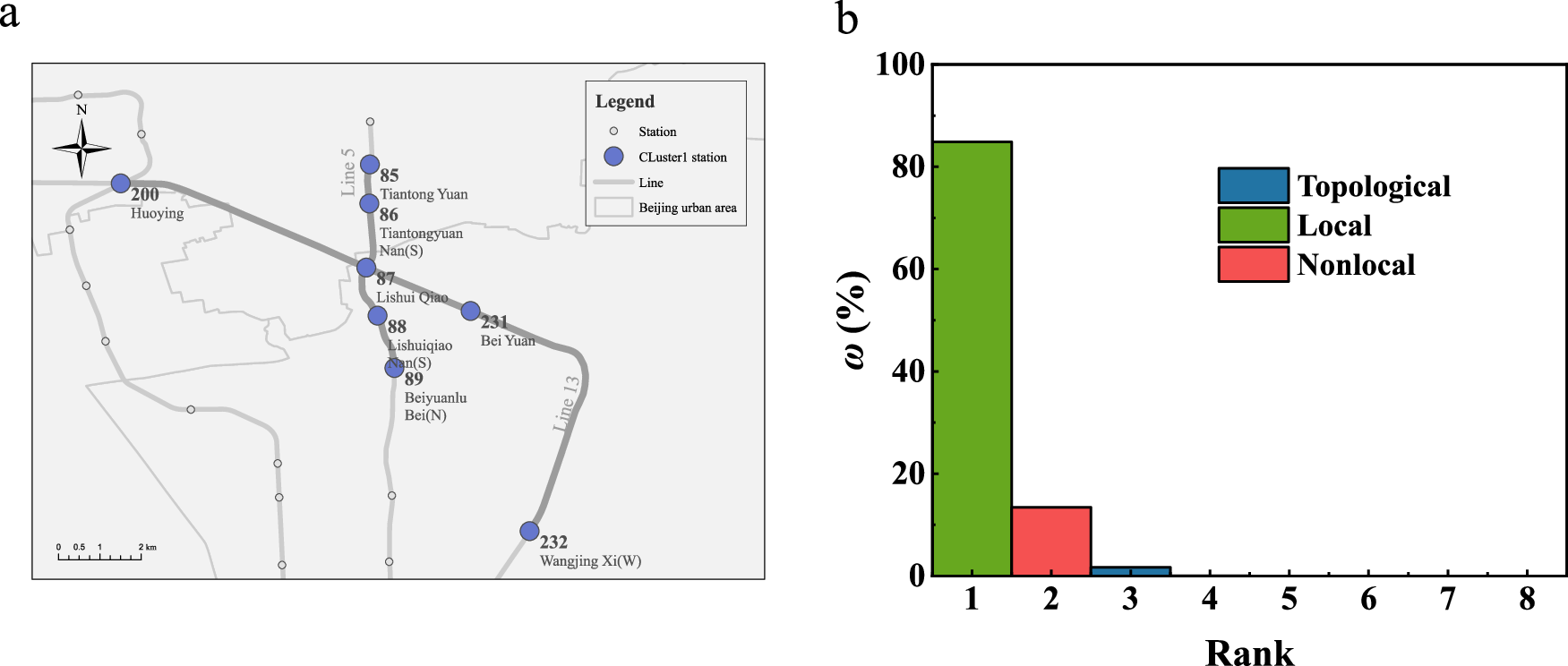

a Distribution of stations and critical stations within Cluster I. The labeled critical stations include Station 200 (Huoying), Station 87 (LisuiQiao), Station 231 (BeiYuan), Station 232 (WangjingXi), Station 86 (Tiantong Yuan), Station 85 (Tiantong Yuan), Station 88 (Lishuiqiao Nan), and Station 89 (BeiyuanluBei). b Probabilities of the first 8-th eigen microstates corresponding to Cluster I during 6:00–13:00.
