Fig. 18: Permeability properties of metallic TPMS lattice structures.

From: Additively manufactured metallic TPMS lattice structures: design strategies, fabrication, multifunctional properties, and applications

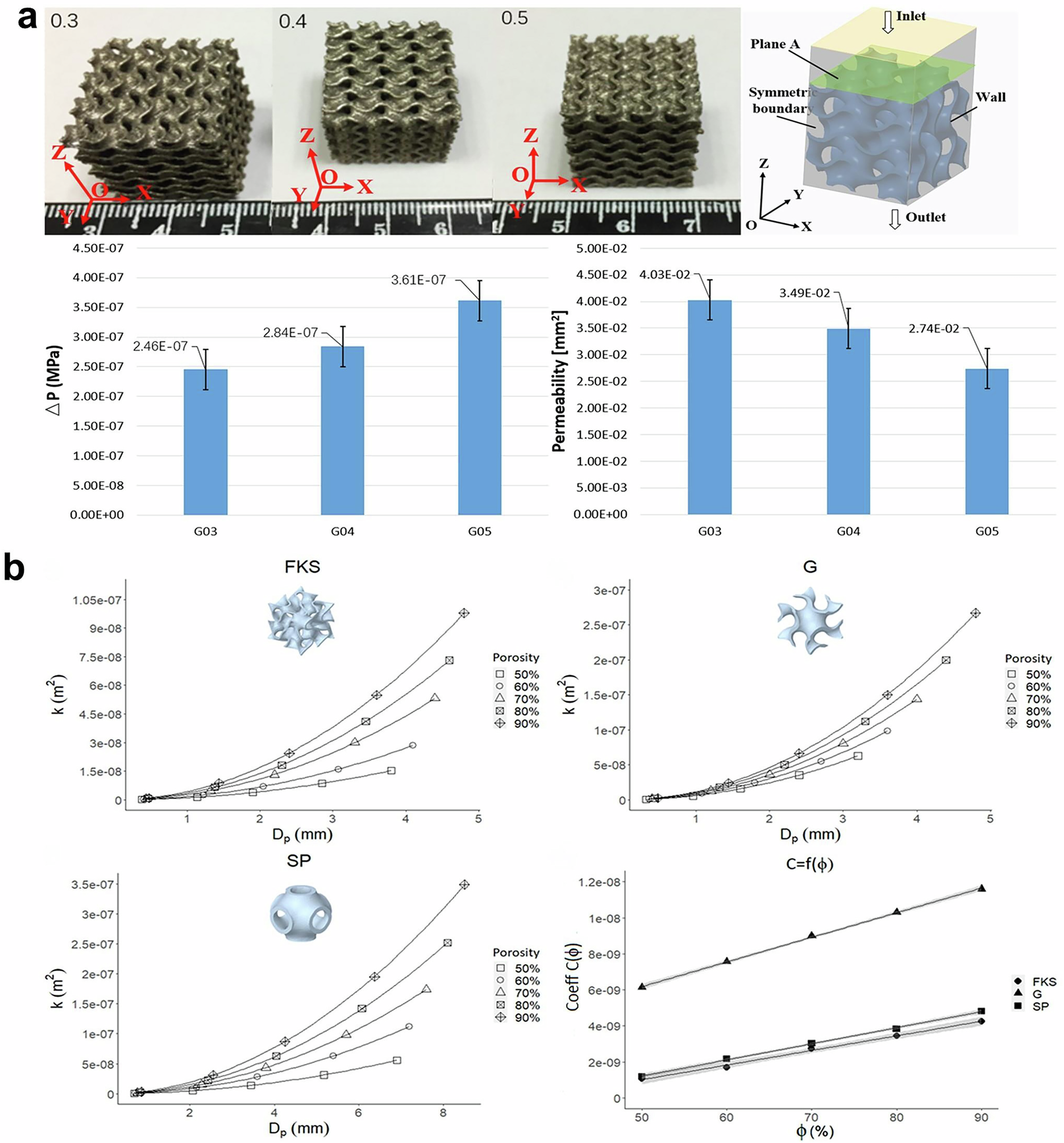

Fig. 18: Permeability properties of metallic TPMS lattice structures.

a The mass transfer characteristics of the bone-mimicking scaffolds of Gyroid structure131. b The Correlation between the permeability k and the pore size for Fisher-Koch S, Gyroid, and Schwarz Primitive and linear fitting of the coefficients of the permeability curves according to porosity ϕ for each architecture134.
