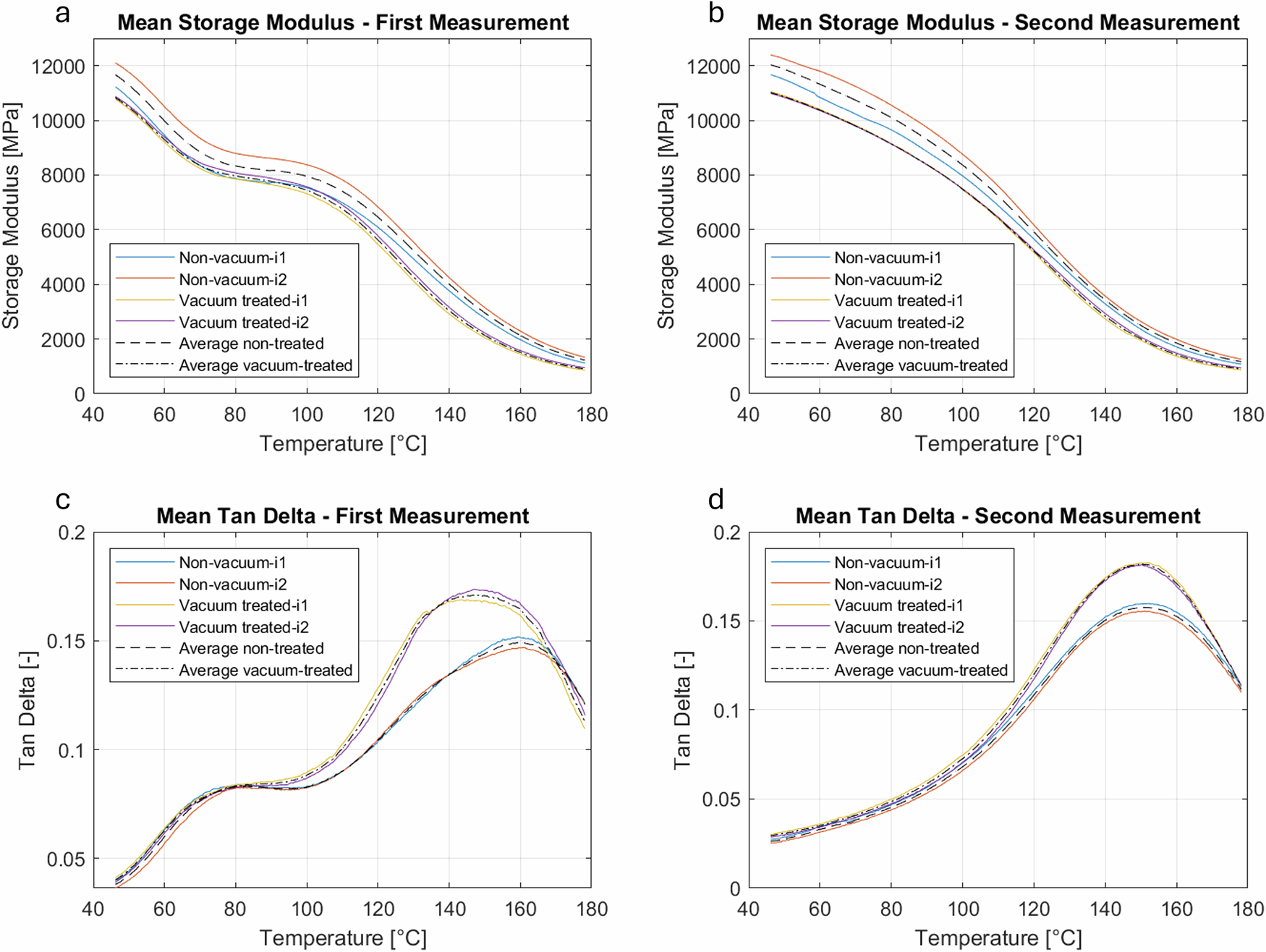

Fig. 6: Temperature-dependent mechanical properties of Delo Katiobond GE680 before and after vacuum exposure.
From: Screening of liquid photopolymer resins exposed to high-vacuum
Panels a and b show the storage modulus for the first and second measurement, respectively, while panels c and d show the corresponding loss factor (tan δ). Solid colored lines represent individual measurements of non-vacuum-exposed and vacuum-exposed samples. Dashed lines indicate the averaged response of non-vacuum-exposed samples, and dash-dotted lines indicate the averaged response of vacuum-exposed samples.
