Achieving interpretable machine learning by functional decomposition of black-box models into explainable predictor effects

Abstract

Machine learning (ML) models are often based on complex black-box architectures that are difficult to interpret. This interpretability problem can hinder the use of ML in fields like medicine, ecology, and insurance, and has boosted research in interpretable machine learning (IML). Here, we propose a novel approach for the functional decomposition of black-box predictions, which is a core concept of IML. This approach replaces the prediction function with a surrogate model consisting of simpler subfunctions, providing insights into the direction and strength of the main feature contributions and their interactions. Our method is based on a concept termed “stacked orthogonality”, which ensures that the main effects capture as much functional behavior as possible. To compute the subfunctions, we combine neural additive modeling with an efficient post-hoc orthogonalization procedure. Our method yielded plausible results in an analysis of stream biological condition in the Chesapeake Bay watershed (United States).

Introduction

Machine learning (ML) has increased greatly in both popularity and significance, driven by an increase in methods, computing power and data availability¹, making it an useful tool in the development of artificial intelligence (AI). On May 29, 2025, a search on Web of Science for publications including the term “machine learning” yielded more than 474,000 results, corresponding to an average annual increase by more than 22% since 2006. ML models are often characterized by their high generalizability, making them particularly successful when used for supervised learning tasks like classification and risk prediction. In recent years, ML models based on deep artificial neural networks (ANNs) have led to groundbreaking results in the development of high-performing prediction models².

The high prediction accuracy of modern ML models is usually achieved by optimizing complex “black-box” architectures with thousands of parameters. As a consequence, they often result in predictions that are difficult, if not impossible, to interpret. This interpretability problem can hinder the use of ML in fields like medicine, ecology, and insurance, where an understanding of the model and its inner workings is paramount to ensure user acceptance and fairness³. In a recent environmental study, for example, we explored the use of ML to derive predictions of stream biological condition in the Chesapeake Bay watershed (CBW) of the mid-Atlantic coast of North America⁴. Clearly, if these predictions are intended to inform future management policies (projecting, e.g., changes in land use, climate, and watershed characteristics), they need to be interpretable in terms of relevant features as well as the directions and strengths of the feature effects. We will return to this example below in order to illustrate our proposed methodology.

Interpretable machine learning

In recent years, the need for understanding ML models has boosted research in the field of interpretable machine learning (IML^3,5,6). In this field, interpretability is commonly defined as “the degree to which a human can understand the cause of a decision”⁷. A related concept considered separately in some works is explainability, which describes “the internal logic and mechanics that are inside a ML system”⁸. Because the methodology presented in this work applies to both concepts, we will not distinguish between the two.

The focus of this paper is on IML for supervised learning tasks, which involve a set of features X = {X₁, …, X_d} to derive predictions of a qualitative or quantitative outcome variable Y. Denoting the model (i.e., the prediction function) by $F(X)\in {\mathbb{R}}$, interpretability can generally be achieved in two ways: The first approach is to impose an interpretable structure on F during the learning process (“model-based” or “by-design” interpretability^5,6). An example of this approach is the least absolute shrinkage and selection operator⁹, which, in its basic form, assumes F to be linear in the features. Consequently, each feature effect is interpretable in terms of a real-valued coefficient. The second approach, which is particularly applicable to black-box models, aims to achieve interpretability by post-processing an already learned prediction model (“post hoc” interpretability^6,10). Here we will consider model-agnostic post-processing methods, which can be applied to a broad range of prediction functions regardless of the ML method applied to the training data³. Popular examples of model-agnostic methods include partial dependence plots (PDP) and accumulated local effects (ALE) plots. The underlying principle of these methods is to measure the variability of the prediction function F with respect to changes in subsets of the features X (an approach that is closely linked to the concept of sensitivity analysis in numerical and nonlinear regression modeling^11,12).

While PDP and ALE plots have become established methods in IML, they are not without limitations. For example, PDP have been criticized for ignoring the correlations between the feature of interest and the other features, relying on data points with a very low probability of being observed. This “extrapolation” issue may result in misleading effect estimates when the features are correlated³. Similarly, PDP may hide possible interaction effects of the features, a problem that can be alleviated by individual conditional expectation plots in some cases^3,13. While ALE plots avoid extrapolation of the data¹⁴, Grömping¹⁵ observed that these plots do not generally identify the linear shapes of the main effects in a linear prediction model. As a consequence, the feature effects depicted by ALE plots may show systematic deviations from the respective effects in the model formula (for which an explanation is sought). The method proposed in this paper is not affected by these issues: It avoids hiding feature interactions by explicitly including these terms in the estimation procedure and is solely based on the multivariate feature distribution to avoid extrapolation. Furthermore, it does not alter the shapes of the main effects in a linear model.

Functional decomposition

The basic idea of our method is to achieve interpretability by decomposing the prediction function F (depending on all features X) into a set of simpler ("better interpretable”) functions depending on subsets of the features only. More specifically, let ϒ = {1, …, d} the set of feature indices and ${\mathcal{P}}(\Upsilon )$ the power set (i.e., the set of all subsets) of ϒ. Then F can be decomposed into a sum of functions

$$\begin{array}{lll}F(X)=\mu \,+\mathop{\sum}\limits _{\theta \in {\mathcal{P}}(\Upsilon ):| \theta | =1}{f}_{\theta }({X}_{\theta })\,+\mathop{\sum}\limits _{\theta \in {\mathcal{P}}(\Upsilon ):| \theta | =2}{f}_{\theta }({X}_{\theta })\\\qquad\qquad+\,\ldots \,+\mathop{\sum}\limits _{\theta \in {\mathcal{P}}(\Upsilon ):| \theta | =d}{f}_{\theta }({X}_{\theta })\,,\end{array}$$

(1)

where $\mu \in {\mathbb{R}}$ is an intercept term and, for any $\theta \in {\mathcal{P}}(\Upsilon )\backslash {{\emptyset}},{X}_{\theta }$ denotes the subset of features with indices θ. For example, if d = 3 and θ = {1, 3}, then X_θ is given by {X₁, X₃}. Accordingly, the intercept term can be defined as $\mu ={f}_{{{\emptyset}}}$. Note that the last sum in Eq. (1) consists of only one summand.

In IML, the main focus is usually on the subset of functions f_θ with ∣θ∣ = 1 ("main effects”, first sum in Eq. (1)) and ∣θ∣ = 2 ("two-way interactions”, second sum in Eq. (1)). For main effects, f_θ depends on only one feature X_j, j ∈ ϒ, allowing for a simple graphical analysis that plots the values of f_θ(X_j) against the values of X_j. For example, in the aforementioned study on stream biological condition, the main effect of 30-year mean annual precipitation shows a positive association between the amount of precipitation and the predicted values of stream condition (see Fig. 3 below). Two-way interactions, on the other hand, can be visualized using heatmaps or contour plots. For example, Fig. 4 below presents a plot of the interaction between the elevation of the sample sites and the percentage of upstream catchment area as developed, showing elevations at which land use for development leads to low biotic integrity. As demonstrated by these examples, both main effects and two-way interactions allow for simple graphical interpretations of the respective feature effects, whereas the functions f_θ with ∣θ∣ > 2 (termed “multivariate feature interactions”) constitute the less interpretable parts of F.

This paper presents a novel approach to specify and compute the functions f_θ, given a fixed (possibly black-box) prediction function F. The proposed method also allows the measurement of the “degree of interpretability” by quantifying the importance of the main and two-way interaction effects in Eq. (1). We emphasize that our methodology is designed to decompose the prediction function F but not to learn it from a set of data. Accordingly, we assume that F is not subject to sampling variability but has been derived previously by the application of some ML method. Our method is based on regularity conditions that are similar to those described by Hooker¹⁶; however, we consider a different type of functional decomposition and also employ a different computational methodology.

Conditions on the features and the prediction function

It is clear from Eq. (1) that the functions f_θ are not uniquely defined. For example, let d = 2, μ = 0, and F(X₁, X₂) = X₁ + X₁ ⋅ X₂. Then the sets of functions {f₁(X₁) = X₁, f₂(X₂) = 0, f₁₂(X₁, X₂) = X₁ ⋅ X₂} and {f₁(X₁) = 0.5 ⋅ X₁, f₂(X₂) = 0, f₁₂(X₁, X₂) = 0.5 ⋅ X₁ + X₁ ⋅ X₂} both satisfy Eq. (1). As a consequence, further assumptions are needed to derive a unique representation of Eq. (1).

Our first set of assumptions is on the features X = {X₁, …, X_d}. In line with Hooker¹⁶, we consider the features as real-valued random variables, assuming that X₁, …, X_d are defined on a joint probability space with probability function P_X. We further assume that each X_j, j ∈ ϒ, has bounded support. Note that these are rather weak assumptions in practice, allowing X to include both continuous and categorical features (the latter encoded by sets of dummy variables).

Regarding the functions in Eq. (1), we assume that each f_θ, and also F, is square integrable with respect to P_X. Again, this is a rather weak assumption, as square integrable functions emerge from many popular ML methods. They include, for instance, the piecewise prediction functions obtained from random forests and tree boosting, and also many ANN predictors after transformation by a sigmoid activation function. Following Hooker¹⁶, we define the variance of ${f}_{\theta },\theta \in {\mathcal{P}}(\Upsilon )\backslash {{\emptyset}}$, by ${\sigma }_{\theta }^{2}=\int{f}_{\theta }^{2}({X}_{\theta })d{P}_{X}$, the variance of F by ${\sigma }_{F}^{2}=\int{(F(X)-\mu )}^{2}d{P}_{X}$, and the covariance of f_θ and ${f}_{{\theta }^{{\prime} }},\theta ,{\theta }^{{\prime} }\in {\mathcal{P}}(\Upsilon )\backslash {{\emptyset}}$, by ${\sigma }_{\theta {\theta }^{{\prime} }}=\int{f}_{\theta }({X}_{\theta }){f}_{{\theta }^{{\prime} }}({X}_{{\theta }^{{\prime} }})d{P}_{X}$. Without loss of generality, we assume that each ${f}_{\theta },\theta \in {\mathcal{P}}(\Upsilon )\backslash {{\emptyset}}$, is centered around zero, i.e., ∫ f_θ(X_θ) dP_X = 0¹⁶ (p. 714). Finally, we assume that the functions ${f}_{\theta },\theta \in {\mathcal{P}}(\Upsilon )\backslash {{\emptyset}}$, are linearly independent. This assumption means that each f_θ forms a closed subspace of the Hilbert space of square integrable functions. In practice, it implies that each f_θ carries unique information about F and that all functions f_θ are non-zero.

Generalized functional analysis of variance (ANOVA)

Next, we define a set of requirements to describe the relations between the functions f_θ. Our main requirement is that the summands in Eq. (1) are well separated, meaning that higher-order effects (i.e., functions with large ∣θ∣) do not contain any components of lower-order effects with small ∣θ∣ (see below for a mathematical treatment). In particular, we require that predictive information explained by a main effect is not contained in the higher-order effects that include the corresponding feature (purity criterion, Molnar³, Section 8.4). A related requirement is optimality, meaning that lower-order functions should capture as much functional behavior as possible¹⁶.

To implement the above requirements, Hooker¹⁶ proposed a decomposition termed generalized functional ANOVA. With this approach, the functions in Eq. (1) are required to be hierarchically orthogonal, satisfying the constraints

$$\begin{array}{rcl}&&\forall \theta \in {\mathcal{P}}(\Upsilon )\backslash {{\emptyset}}\,\,\forall {\theta }^{{\prime} }\subseteq \theta :\\ &&{\sigma }_{\theta {\theta }^{{\prime} }}=\displaystyle\int{f}_{\theta }({X}_{\theta }){f}_{{\theta }^{{\prime} }}({X}_{{\theta }^{{\prime} }})d{P}_{X}=0\,.\end{array}$$

(2)

Hierarchical orthogonality implies that for any given ${\theta }^{{\prime} }$, the effect ${f}_{{\theta }^{{\prime} }}({X}_{{\theta }^{{\prime} }})$ is orthogonal to all higher-order effects f_θ(X_θ) with ${X}_{\theta }\supseteq {X}_{{\theta }^{{\prime} }}$^16,17. It thus provides an implementation of the purity criterion, ensuring that higher-order effects are uncorrelated with lower-order effects. Furthermore, the constraints in Eq. (2) provide an implementation of optimality because, according to Eq. (2), all lower-order effects ${f}_{{\theta }^{{\prime} }}$ are orthogonal projections of the combined effects ${f}_{{\rm{comb}}({\theta }^{{\prime} },\theta )}:= {f}_{{\theta }^{{\prime} }}+{f}_{\theta }$ onto the respective lower-order subspaces. It follows from the Hilbert projection theorem¹⁸ that the lower-order effects ${f}_{{\theta }^{{\prime} }}$ capture as much of the variance of ${f}_{{\rm{comb}}({\theta }^{{\prime} },\theta )}$ (i.e., as much functional behavior of ${f}_{{\rm{comb}}({\theta }^{{\prime} },\theta )}$) as possible.

In his original work on generalized functional ANOVA, Hooker¹⁶ specified conditions for the uniqueness of the functions f_θ. He considered a more general definition of the integral in Eq. (2), allowing for weight functions other than the probability density function of X. Based on the same decomposition, Chastaing et al.¹⁹ studied further assumptions on the feature distribution P_X. The authors also introduced a coefficient to measure the importance of individual feature combinations. For each $\theta \in {\mathcal{P}}(\Upsilon )\backslash {{\emptyset}}$, this coefficient is defined as ${S}_{\theta }=({\sigma }_{\theta }^{2}+{\sum }_{{\theta }^{{\prime} }\ne \theta }{\sigma }_{\theta {\theta }^{{\prime} }})/{\sigma }_{F}^{2}$ (generalized Sobol sensitivity index, Chastaing et al.¹⁹, p. 2427).

Computational challenges

In recent years, functional decomposition has been acknowledged as a key concept in making ML models explainable³. In practice, however, the application of functional decomposition methods remains challenging. This is mainly due to the computational and numerical issues associated with the estimation of the feature effects f_θ. In fact, despite the availability of algorithms to achieve hierarchical orthogonality^16,19,20, state-of-the-art methods still involve systems of equations that are, even for a moderate feature count, “complex and computationally intensive”³. Here we introduce stacked orthogonality, an alternative approach to implement purity and optimality. Based on the conditions of stacked orthogonality, we will present an algorithm to estimate the functions f_θ in a computationally efficient manner.

Functional decomposition with stacked orthogonality

Analogous to generalized functional ANOVA, our method is based on the functional decomposition in Eq. (1). However, instead of the hierarchical orthogonality constraints in Eq. (2), we require the functions f_θ to meet the stacked orthogonality constraints

$$\forall k\in \Upsilon :\int\left(\mathop{\sum}\limits _{{\theta \in {\mathcal{P}}(\Upsilon ):}\atop{| \theta | =k}}{f}_{\theta }({X}_{\theta })\right)\left(\mathop{\sum}\limits _{{{\theta }^{{\prime} }\in {\mathcal{P}}(\Upsilon ):}\atop{| {\theta }^{{\prime} }|} < k}{f}_{{\theta }^{{\prime} }}({X}_{{\theta }^{{\prime} }})\right)d{P}_{X}=0,$$

(3)

where k ∈ ϒ denotes the effect level. Throughout the paper, we will use the terms “order” and “level” interchangeably. Unlike hierarchical orthogonality, which requires the effect of each individual feature combination θ to be uncorrelated with higher-order effects, the conditions in Eq. (3) provide a level-wise implementation of the purity criterion: for each level k, the sum of all level-k effects is required to be uncorrelated with the sum of all lower-level effects (including the intercept with $| {\theta }^{{\prime} }| =0$)—hence the term “stacked orthogonality”. In addition to implementing purity, the constraints in Eq. (3) also provide a level-wise implementation of optimality. This is because, according to Eq. (3), the sum of the “lower-order” effects (with levels <k) is an orthogonal projection of the sum of the “current-order” effects (with levels ≤k) onto the lower-order subspace. It follows from the Hilbert projection theorem that the sum of lower-order effects captures as much of the variance of the sum of the current-order effects (i.e., as much functional behavior at the current level) as possible.

A convenient feature of stacked orthogonality is that the variance of F can be decomposed in a level-wise fashion, giving rise to the calculation of level-wise coefficients of explained variation. More specifically, for each k ∈ ϒ, we define the fraction of ${\sigma }_{F}^{2}$ explained by the k-th level as

$${I}_{k}=\frac{\int{\left({\sum }_{{\theta }^{{\prime} }\in {\mathcal{P}}(\Upsilon ):| {\theta }^{{\prime} }| = k}\,{f}_{{\theta }^{{\prime} }}({X}_{{\theta }^{{\prime} }})\right)}^{2}d{P}_{X}}{{\sigma }_{F}^{2}}.$$

(4)

By definition, it holds that $\mathop{\sum }\nolimits_{k = 1}^{d}{I}_{k}=1$ if the stacked orthogonality constraints in (3) are met. Consequently, by calculating I₁ (fraction of ${\sigma }_{F}^{2}$ explained by the main effects) and I₂ (fraction of ${\sigma }_{F}^{2}$ explained by the two-way interaction effects), it is possible to quantify the degree of interpretability of the prediction model F. We emphasize that the definition in Eq. (4) is different from the generalized Sobol sensitivity indices in ref. ¹⁹, as the latter refer to contributions of individual feature combinations $\theta ,\theta \in {\mathcal{P}}(\Upsilon )$, whereas I_k, k ∈ ϒ, measures the level-wise contributions of all features. For example, in the aforementioned study on stream biological condition, the contribution of the main effects (as measured by I₁) was 80.6%. The contribution of the interaction effects (I₂) was 2.5%, leading to a total of 83.1% model interpretability.

Estimation by neural additive models and post-hoc orthogonalization

As stated above, the application of functional decomposition methods strongly depends on the availability of a user-friendly algorithm to compute the functions f_θ. To arrive at the decomposition in Eq. (1) satisfying the stacked orthogonality constraints, we propose the following three-step procedure:

In the first step, we generate a sample of n data points ${\mathcal{S}}={\{{F}_{i},{X}_{i1},\ldots ,{X}_{id}\}}_{i = 1,\ldots ,n}$, where X_ij, j ∈ ϒ, and F_i = F({X_i1, …, X_id}) denote the j-th feature value and the value of the prediction function, respectively, of the i-th data point. For instance, the data could be sampled from an available set of training data that were used previously for the learning of F. In this case, the probability measure P_X is given by the distribution of the feature values in the training data. Alternatively, one could use a grid of feature values to generate ${\mathcal{S}}$ (corresponding to uniformly distributed features) or some other reference distribution for which an explanation is sought.

In the second step, we use the data generated in Step 1 to obtain initial estimates ${f}_{\theta }^{0}$ of the functions ${f}_{\theta },\theta \in {\mathcal{P}}(\Upsilon )\backslash {{\emptyset}}$. This is done by fitting a neural additive model (NAM²¹) of the form

$$\begin{array}{lll}{F}_{i}=\mathop{\sum}\limits _{\theta \in {\mathcal{P}}(\Upsilon ):| \theta | =1}{f}_{\theta }^{0}({X}_{i\theta })+\mathop{\sum}\limits _{\theta \in {\mathcal{P}}(\Upsilon ):| \theta | =2}{f}_{\theta }^{0}({X}_{i\theta })\\\qquad+\,\ldots \,+\mathop{\sum}\limits _{\theta \in {\mathcal{P}}(\Upsilon ):| \theta | =d}{f}_{\theta }^{0}({X}_{i\theta })\,,\,\,\,i=1,\ldots ,n,\end{array}$$

(5)

where X_iθ are the values of X_θ corresponding to the i-th data point. Model fitting is performed using a backpropagation procedure, with each function ${f}_{\theta }^{0}$ represented by an ANN depending on the respective feature subset X_θ (see Fig. 1 for an illustration). As demonstrated by Agarwal et al.²¹, NAMs allow for modeling a wide range of functional shapes, exploiting the property of ANNs to approximate general classes of functions arbitrarily well^{22,23,24,25,26,27,28,29,30}. Compared to Agarwal et al.²¹, our only additional requirement (needed for Step 3 below) is that all ANNs in Eq. (5) are linear in their output layers. More specifically, we require each vector ${{\bf{f}}}_{\theta }^{0}={({f}_{\theta }^{0}({X}_{1\theta }),\ldots ,{f}_{\theta }^{0}({X}_{n\theta }))}^{\top }\in {{\mathbb{R}}}^{n},\theta \in {\mathcal{P}}(\Upsilon )\backslash {{\emptyset}}$, to be of the form

$${{\bf{f}}}_{\theta }^{0}={{\bf{U}}}_{\theta }{{\bf{w}}}_{\theta }^{0}\,,$$

(6)

where ${{\bf{U}}}_{\theta }\in {{\mathbb{R}}}^{n\times {b}_{\theta }}$ and ${b}_{\theta }\in {\mathbb{N}}$ are the outputs and the number of units, respectively, of the penultimate layer, and ${{\bf{w}}}_{\theta }^{0}\in {{\mathbb{R}}}^{{b}_{\theta }}$ is a vector of weights. Note that Eq. (5) does not contain an intercept term. Accordingly, the initial estimate of μ is given by ${\mu }^{0}={f}_{{{\emptyset}}}^{0}=0$, and we define ${b}_{{{\emptyset}}}=1,{{\bf{U}}}_{{{\emptyset}}}={(1,\ldots ,1)}^{\top }\in {{\mathbb{R}}}^{n\times 1}$, and ${{\bf{w}}}_{{{\emptyset}}}^{0}=0$. Updates of the initial intercept vector ${{\bf{f}}}_{{{\emptyset}}}^{0}={{\bf{U}}}_{{{\emptyset}}}{{\bf{w}}}_{{{\emptyset}}}^{0}\in {{\mathbb{R}}}^{n}$ will be computed during the post-hoc orthogonalization procedure described below. Also note that it is possible to extend the NAM by an additional nonlinear activation function in the output layer. This approach may, for example, be convenient when the prediction space is constrained to an interval (e.g., when predictions are given by a set of probabilities F_i ∈ [0, 1]). In this case, our method would require linearity only for the functions ${f}_{\theta }^{0}$ but not necessarily for the output of the NAM. The latter would then be given by F_i = g(η_i), where g denotes the activation function and η_i is the right-hand side of (5). Accordingly, the stacked orthogonality constraints would not apply to F_i but to η_i, which is analogous to the interpretation of generalized additive models (GAMs³¹, where g takes the role of an inverse “link function”). For notational convenience, we will only consider linear NAM outputs in the remainder of this paper. For details on the specification of the ANNs in Eq. (5), we refer to the “Methods” section.

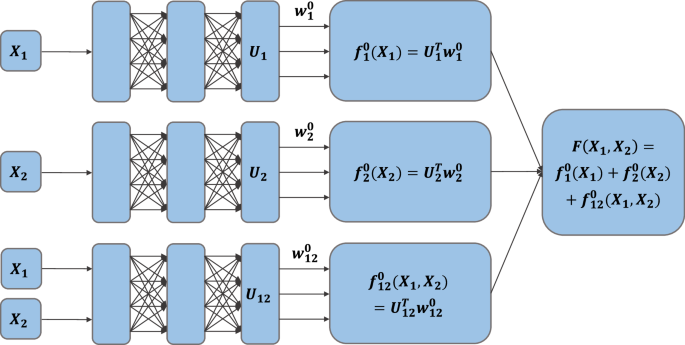

Fig. 1: Illustration of the neural additive model in Eq. (5).

In the example considered here, there are two features X₁ and X₂. Accordingly, the set of functions ${f}_{\theta }^{0},\theta \in {\mathcal{P}}(\Upsilon )\backslash {{\emptyset}}$, is given by the two main effects ${f}_{1}^{0}({X}_{1}),{f}_{2}^{0}({X}_{2})$ and the two-way interaction ${f}_{12}^{0}({X}_{1},{X}_{2})$. Each function is represented by a fully connected artificial neural network (ANN). The units in the penultimate layers of the ANNs are denoted by ${U}_{1}\in {{\mathbb{R}}}^{{b}_{1}},{U}_{2}\in {{\mathbb{R}}}^{{b}_{2}}$ and ${U}_{12}\in {{\mathbb{R}}}^{{b}_{12}}$, where b₁, b₂, and b₁₂ are the widths of the layers. The outputs of the ANNs are given by the dot products ${U}_{1}^{\top }{{\bf{w}}}_{1}^{0},{U}_{2}^{\top }{{\bf{w}}}_{2}^{0}$ and ${U}_{12}^{\top }{{\bf{w}}}_{12}^{0}$, where ${{\bf{w}}}_{1}^{0},{{\bf{w}}}_{2}^{0}$ and ${{\bf{w}}}_{12}^{0}$ are vectors of weights. The prediction function F(X₁, X₂) is given by the sum of the three dot products (hence the term neural additive model). The parameters of the ANNs are estimated jointly by backpropagation. Details on model fitting and the specification of the ANN architectures are given in the “Methods” section.

We emphasize that we do not use NAMs for supervised learning, i.e., to derive the relationship between an outcome variable Y and a set of features X₁, …, X_d. Instead, we consider the predicted values F_i as the outcome of the NAM. Given X_i, these values are deterministic, and hence the right-hand side of Eq. (5) does not include a residual error term. Put differently, the right-hand side of Eq. (5) defines a “surrogate model” for the prediction model F. Importantly, because we want to arrive at an exact decomposition of the form Eq. (1), we do not aim to avoid overfitting the data. Instead, we run the backpropagation procedure until it achieves an (almost) perfect correlation between the left-hand side and the right-hand side of Eq. (5). This is possible due to the approximation properties of ANNs (see the section on experiments with synthetic data). We further note that model fitting can be done very conveniently using established ANN implementations in Python³² and R³³ (see the attached code at https://github.com/Koehlibert/ONAM).

In the third step, we apply a post-hoc orthogonalization procedure to the initial estimates ${f}_{\theta }^{0}$. This is necessary to ensure that the final estimates satisfy the stacked orthogonality conditions in Eq. (3). The post-hoc orthogonalization procedure considered here is an extension of the method by Rügamer³⁴; it proceeds in an iterative manner, starting at the highest interaction level and descending down to the main effects. We describe the first two iterations of the procedure in a non-technical way. A formal definition of the algorithm is given in the “Methods” section.

In the first iteration of the post-hoc orthogonalization procedure, the idea is to achieve orthogonality between the d-way interaction effect and the sum of all lower-order effects (∣θ∣ < d). To this end, the vector of d-way interactions (given by ${{\bf{f}}}_{\Upsilon }^{0}$) is projected onto the column space spanned by the “lower-order” matrices U_θ, ∣θ∣ < d (including ${{\bf{U}}}_{{{\emptyset}}}$, which is a vector of ones). Next, ${{\bf{f}}}_{\Upsilon }^{0}$ is replaced by the vector orthogonal to this space, giving the new vector of d-way interactions ${{\bf{f}}}_{\Upsilon }^{1}$. Note that ${{\bf{f}}}_{\Upsilon }^{1}$ has zero mean, as the lower-order column space contains a column of ones, and as ${{\bf{f}}}_{\Upsilon }^{1}$ is orthogonal to this space. The lower-order functions are updated by adding the projected values of ${{\bf{f}}}_{\Upsilon }^{0}$ to the initial lower-order functions, giving new functions ${{\bf{f}}}_{\theta }^{1},| \theta | < d$ (including a new intercept ${{\bf{f}}}_{{{\emptyset}}}^{1}$).

In the second iteration, the idea is to achieve orthogonality between the sum of the effects of order d − 1 and the sum of all effects with ∣θ∣ < d − 1. Analogous to the first iteration, the effects of order d − 1 are summed up and projected onto the column space spanned by the matrices U_θ, ∣θ∣ < d − 1 (again including ${{\bf{U}}}_{{{\emptyset}}}$). Next, each ${{\bf{f}}}_{\theta }^{1}$ with ∣θ∣ = d − 1 is replaced by its respective vector orthogonal to this column space, giving new estimates ${{\bf{f}}}_{\theta }^{2}$ of the effects of order d − 1. The functions with θ < d − 1 are updated in the same way as in the first iteration, resulting in new estimates ${{\bf{f}}}_{\theta }^{2}$, ∣θ∣ < d − 1, whereas the “higher-order” vector ${{\bf{f}}}_{\Upsilon }^{1}$ is left unchanged (${{\bf{f}}}_{\Upsilon }^{1}\equiv {{\bf{f}}}_{\Upsilon }^{2}$).

Iterating the above procedure (i.e., establishing orthogonality between the sums of the current-order and the lower-order effects while leaving higher-order effects unchanged) ensures stacked orthogonality of the final estimates ${{\bf{f}}}_{\theta }^{d-1}$. As a result, one obtains the desired decomposition of the prediction function F. We emphasize that post-hoc orthogonalization does not require re-fitting the NAM in Eq. (5) but can be performed rather efficiently by multiplying a set of matrices and vectors. In case of a high(er)-dimensional feature set, the number of summands in Eq. (5) can easily be reduced to a subset of “relevant” effects, see Remark 2 below.

Remark 1

NAM fitting is based on ANN layers with prespecified numbers of hidden units. We note that these numbers may not always be sufficient to closely approximate the true underlying functions, especially when the latter are highly non-linear. To address this issue and to “further improve accuracy and reduce the high-variance that can result from encouraging the model to learn highly nonlinear functions”, Agarwal et al.²¹ proposed to compute the final function estimates by an average of multiple NAM fits ("ensemble approach”). In line with this strategy, we stabilize our function estimates by fitting an ensemble of NAMs with different weight initializations and by applying the post-hoc orthogonalization procedure to each member of the ensemble. Afterwards, the orthogonalized estimates are averaged, giving vectors of the form ${\bar{{\bf{f}}}}_{\theta }^{d-1}=\mathop{\sum }\nolimits_{r = 1}^{R}{{\bf{f}}}_{\theta }^{d-1,r}/R$, where R is the size of the ensemble and ${{\bf{f}}}_{\theta }^{d-1,r}$ refers to the post-hoc-orthogonalized estimate of the r-th ensemble member. Note that this procedure does not substantially increase the run time of the algorithm, as NAM fitting with different weight initializations can be parallelized. We further note that the averaged estimates are no longer guaranteed to satisfy the stacked orthogonality constraints in Eq. (3). To overcome this problem, we add a final post-hoc orthogonalization step to our algorithm, replacing the outputs U_θ by the averaged vectors ${\bar{{\bf{f}}}}_{\theta }^{d-1}$ and applying the above procedure to the averaged estimates.

Remark 2

In settings with a large number of features, the number of interaction terms in Eq. (5) is very high ($\mathop{\sum }\nolimits_{l = 2}^{d}(\begin{array}{c}d\\ l\end{array})$, growing exponentially in d). In these cases, one may be interested in the interpretation of only a small subset of effects. For example, in the aforementioned study on stream biological condition, we analyzed all main effects and three two-way interaction effects (instead of all possible 524,268 interaction terms defined by the 19 features, see below). The stacked orthogonality approach can easily be adapted to these settings; all one has to do is to redefine the NAM in Step 2. To this end, let $\Theta \subset {\mathcal{P}}(\Upsilon )\backslash {{\emptyset}}$ represent the effects of interest, and let ${\mathcal{P}}(\Upsilon )\backslash (\Theta \cup {{\emptyset}})$ be the corresponding set of “non-interesting” effects. Then ${\mathcal{P}}(\Upsilon )\backslash (\Theta \cup {{\emptyset}})$ can be removed from the lower-order sums in Eq. (5) and absorbed into the last summand ${f}_{\Upsilon }^{0}$. Post-hoc orthogonalization can be applied to the resulting NAM fit as before.

Remark 3

The coefficient I_k can be computed by replacing the variance terms in Eq. (4) with their respective sample variances obtained from the post-hoc-orthogonalized ensemble average.

A schematic overview of the procedure is given in Algorithm 1. Pseudocode for the post-hoc orthogonalization procedure is presented in Algorithm 2 in the “Methods” section. Our method is implemented in Python and R; all source code and data are publicly available at https://github.com/Koehlibert/ONAM.

Algorithm 1

Schematic overview of the procedure

Input Prediction model F, n, R, Θ

1: Step 1 – Generate ${\mathcal{S}}={\{{F}_{i},{X}_{i1},\ldots ,{X}_{id}\}}_{i = 1,\ldots ,n}$

2: for r in 1, …, R do

3:  Step 2 – Fit NAM to give initial estimates ${{\bf{f}}}_{\theta }^{0,r}$

4:  Step 3 – Apply post-hoc orthogonalization

5:    (Algorithm 2):

6:   for m in 1, …, d − 1 do

7:    o ← d − m + 1

8:    Project current-order effects ${{\bf{f}}}_{\theta }^{m-1,r},| \theta | =o$,

9:     onto lower-order effects ${{\bf{f}}}_{\theta }^{m-1,r},| \theta | < o$

10:    Update current-order effects ${{\bf{f}}}_{\theta }^{m,r},| \theta | =o$,

11:     by vectors orthogonal to projections

12:    Update lower-order effects ${{\bf{f}}}_{\theta }^{m,r},| \theta | < o$,

13:     by adding projections to ${{\bf{f}}}_{\theta }^{m-1,r},| \theta | < o$

14:    Update higher-order effects ${{\bf{f}}}_{\theta }^{m,r},| \theta | > o$,

15:     by ${{\bf{f}}}_{\theta }^{m-1,r},| \theta | > o$

16:  end for

17: end for

18: ${\bar{{\bf{f}}}}_{\theta }^{d-1}=\mathop{\sum }\nolimits_{i = 1}^{R}{{\bf{f}}}_{\theta }^{d-1,r}/R,\theta \in \Theta$

19: Apply post-hoc orthogonalization (Algorithm 2)

20:  to ${\bar{{\bf{f}}}}_{\theta }^{d-1},\theta \in \Theta$

21: Update ${\bar{{\bf{f}}}}_{\theta }^{d-1},\theta \in \Theta$ by post-hoc-orthogonalized

22: estimates

 Output${\bar{{\bf{f}}}}_{\theta }^{d-1},\theta \in \Theta$

Results

Illustration: predictive modeling of stream biological condition

To illustrate our methodology, we analyzed a set of environmental data collected by Maloney et al.⁴. The aim of this study was to analyze the condition of small, non-tidal streams (upstream area ≤200 km²) in the CBW on the mid-Atlantic coast of North America. For this purpose, the authors modeled the relationship between stream biological condition (outcome variable) and a set of 19 landscape measures (feature variables) using data from 4605 sites in the CBW (see Fig. 2). Details on the study design and the collection of samples have been provided in Section 2 of Maloney et al.⁴. Stream biological condition was assessed by the Chesapeake Basin-wide Index of Biotic Integrity (Chessie BIBI), which is a multi-metric index derived from stream benthic macroinvertebrate samples. The Chessie BIBI measures the biological quality of streams and wadeable rivers on a scale ranging from 0 to 100³⁵. The list of features, which includes information on land use, climate, and natural watershed characteristics, is presented in SI Appendix S1.

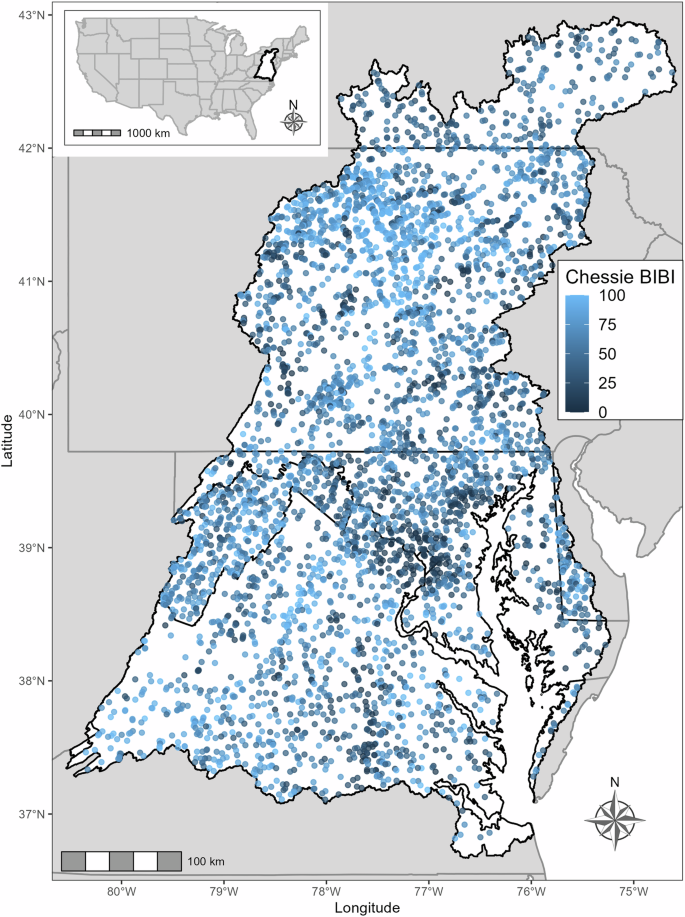

Fig. 2: Map of the Chesapeake Bay watershed with locations of streams sampled to assess biological condition.

Points are colored by Chesapeake Bay Index of Biotic Integrity (Chessie BIBI) score, with 0 indicating very poor biological condition and 100 indicating excellent biological condition. Inset shows the study area in relation to the United States. Basemap data from U.S. Census Bureau, 2022 (https://www.census.gov/geographies/mapping-files/timeseries/geo/tiger-line-file.html), accessed using the tigris package in R: Walker K (2024), tigris: Load Census TIGER/Line Shapefiles. R package version 2.1, https://CRAN.Rproject.org/package=tigris. Geographic coordinate system North American Datum of 1983. Watershed boundary from U.S. Geological Survey, 2022, National Hydrography Dataset (ver. USGS National Hydrography Dataset Best Resolution (NHD) for Hydrologic Unit (HU) 8 – 2022), https://prdtnm.s3.amazonaws.com/index.html?prefix=StagedProducts/Hydrography/NHD/HU8.

Deriving accurate predictions of the Chessie BIBI supports the restoration and conservation of streams in the watershed because this index is used by a key management group as a measure of stream health in meeting its goal to improve stream health of 10% of stream miles above a 2008 baseline³⁶. Accurate predictions are particularly important for streams located at unsurveyed sites, for which the Chessie BIBI cannot be measured directly due to the sheer length of stream kilometers in the watershed (estimated to be over 220,000 km of streams with upstream areas ≤200 km²). At the same time, predictions of the Chessie BIBI need to be interpretable if they are intended to inform future management policies (e.g., projecting changes in land use, climate and watershed characteristics). Maloney et al.⁴ addressed these issues by fitting a random forest model to a training data set of size 3684 and by applying IML techniques (partial dependence and ALE plots, Friedman’s H-statistic, permutation importance, and Shapley values⁴) to the resulting black-box predictions. A descriptive summary of the training data and the random forest predictions is given in SI Appendix S2. Details on model fitting and the evaluation of prediction accuracy have been given in Sections 2.3 and 3, respectively, of Maloney et al.⁴.

Here, we investigate whether our decomposition method is able to yield plausible predictor-response relationships that are in line with Maloney et al.⁴. To this end, we applied our three-step algorithm to the aforementioned random forest model. The effects of interest ($\Theta \subset {\mathcal{P}}(\Upsilon )\backslash {{\emptyset}}$) included the 19 main effects and three two-way interactions (forest × development, forest × elevation, and development × elevation). We analyzed these interactions because the respective features were found to have the highest overall interaction strengths (Maloney et al.⁴, p. 7).

To reduce the impact of outliers on visualization, we excluded data points that exceeded at least one of the 99-th percentiles of the continuous variables. The reduced training data (n = 3114) were used for NAM fitting. The NAM ensemble consisted of 50 models with random weight initializations.

Figure 3 presents the main effects of the percentages of upstream catchment area as forest, developed, and barren, and the main effect of 30-year annual precipitation, along with the respective PDP and ALE plots adapted from Maloney et al.⁴. The contributions of the other features are presented in SI Appendix S3. The value of the summary measure I₁ was 0.806, suggesting that 80.6% of the random forest prediction could be explained by the 19 main effects.

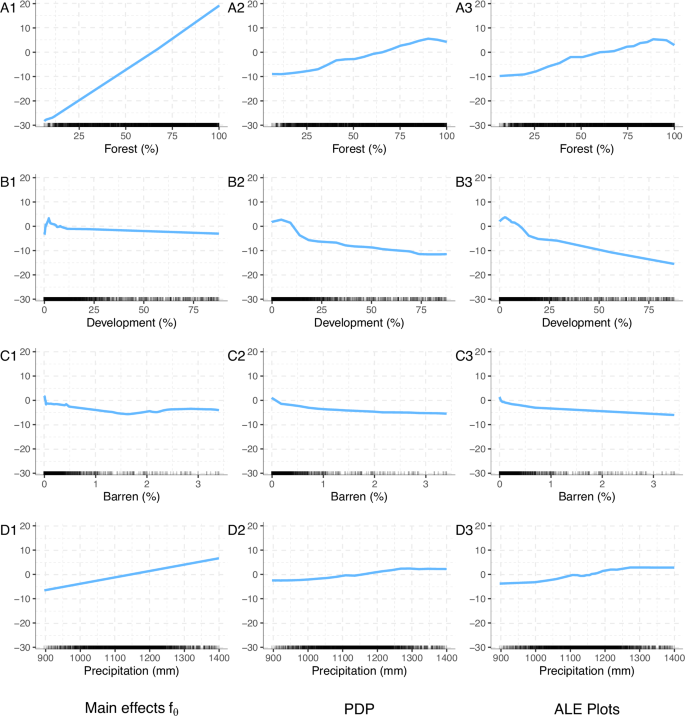

Fig. 3: Predictive modeling of stream biological condition.

The first column of the figure presents the main effects of the percentages of upstream catchment area as forest (A1), developed (B1), and barren (C1), and the main effect of 30-year annual precipitation (D1) on the random forest prediction of the Chessie BIBI. The main effects were obtained by applying the proposed three-step algorithm to the training data of Maloney et al.⁴. Partial dependence plots (PDP) and accumulated local effect (ALE) plots are shown in the second (A2, B2, C2, D2) and third (A3, B3, C3, D3) columns, respectively. The values on the y-axes correspond to deviations of the predicted Chessie BIBI from the mean prediction. Note that PDP were mean-centered to ensure comparability with the main effects and ALE plots.

The main effects obtained from our method suggest that predicted Chessie BIBI scores tend to decrease with increasing development and barren land cover and increase with increasing forest cover and precipitation in upstream catchments, agreeing with the functional relationships in Maloney et al.⁴ and supporting relationships that have been consistently identified in previous studies^37,38,39. Panel A1 of Fig. 3 suggests an almost linear positive trend with upstream catchment area as forest (reflecting lower anthropogenic disturbance), whereas the PDP and ALE plots (Panels A2 and A3) are characterized by (essentially) positive but nonlinear associations. The main effect of upstream catchment area as developed is similar to the respective PDP and ALE plots (Panels B1, B2, B3 of Fig. 3). For the effect of upstream catchment area as barren (Panels C1, C2 and C3), PDP and ALE plots both show nonlinear negative effects on the prediction of the Chessie BIBI. For this feature, the main effect obtained from our method has a different shape, suggesting a slight increase in the predicted Chessie BIBI at about 1.5% of upstream catchment area as barren. The effect of upstream total precipitation shown in panels D1, D2, and D3 of Fig. 3 suggests a positive association of this feature with the prediction of the Chessie BIBI. In contrast to the PDP and ALE plots, which reach a plateau at around 1300 mm, our method indicates an almost linear positive effect across the whole range of upstream total precipitation. Taken together, our method shows similar general patterns as the PDP and ALE plots in Maloney et al.⁴. However, there are also differences in the shapes of the curves, which could be the result of our method shifting predictive information to the main effects and/or due to extrapolation issues affecting the PDPs.

The two-way interaction between development land cover and site elevation is visualized in Fig. 4. It shows how the sum of the two main effects of development land cover and site elevation is altered by the addition of the two-way interaction term, indicating a less negative effect of development land cover on the prediction of biotic integrity at sites with a low elevation. This interaction was also reported in Maloney et al.⁴, who attributed it to elevation being a possible surrogate for stream slope, which has been shown to affect the development and stream biotic integrity relationship⁴⁰; elevation gradient has also been shown to affect species distributional patterns⁴¹, including benthic macroinvertebrates⁴². Overall, we found a rather small interaction effect of development land cover and site elevation. The other two-way interactions are visualized in SI Appendix S3. The value of the summary measure I₂ was 0.025, suggesting that another 2.5% of the random forest prediction could be explained by the three two-way interaction effects (in addition to the 80.6% contributed by the main effects).

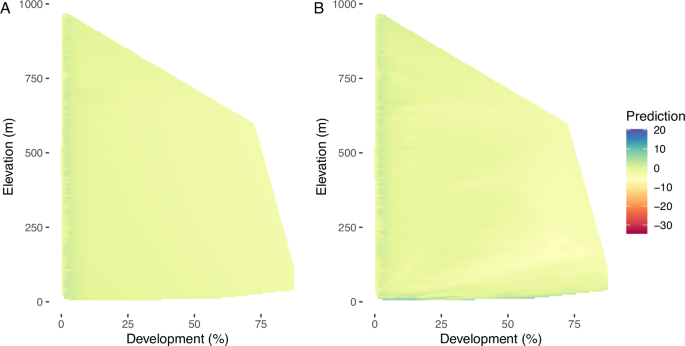

Fig. 4: Predictive modeling of stream biological condition.

The left panel (A) depicts the sum of the two main effects of development land cover and site elevation, visualizing, in particular, the negative effect of development land cover on the prediction of the Chessie BIBI. The right panel (B) was obtained by adding the two-way interaction between development land cover and site elevation to the sum of the two main effects. It suggests a less negative effect of development land cover on the prediction of biotic integrity at sites with a low elevation.

Analysis of data sets from other research domains

We further applied our method to data from the Salt River Pima-Maricopa Indian Community of the Salt River Reservation, Arizona, diabetes study and the Boston Housing study. For the diabetes data⁴³, we considered a gradient boosting machine⁴⁴ that yielded probability predictions for the binary outcome “diabetes” (yes/no). The decomposition of this model involved a logistic activation function in the output layer. For the Boston Housing data⁴³, we considered an XGBoost model⁴⁵ to predict housing prices (measured in USD 1000’s). The results of our analysis, which are presented in SI Appendix S4, demonstrate that the proposed algorithm also works well when combined with other ML methods than random forests. They also show that our algorithm yields plausible associations in other fields than ecology.

Experiments with synthetic data

In addition to analyzing real-world data, we investigated whether our method is able to extract the subfunctions f_θ from a synthetic additive prediction function. To this end, we constructed predictions defined by

$$\begin{array}{lll}{F}_{i}={f}_{1}({X}_{i1})+{f}_{2}({X}_{i2})+{f}_{3}({X}_{i3})\\\qquad\,\, +\,{f}_{12}({X}_{i1},{X}_{i2})+{f}_{13}({X}_{i1},{X}_{i3})+{f}_{23}({X}_{i2},{X}_{i3})\\\qquad\,\, +\,{f}_{1,\ldots ,10}({X}_{i1},\ldots ,{X}_{i10}),\end{array}$$

(7)

where X₁, …, X₁₀ followed a multivariate uniform distribution on [−3, 3]¹⁰. In our experiments, we considered three scenarios with different sets of functional forms for the main and two-way interaction effects (for details, see SI Appendix S5). In order to define the true decomposition that our method should recover, we orthogonalized these functions in a large data set of size n = 100,000 (see the attached code on GitHub). Using the obtained orthogonal functions, we generated 10 independent samples ${\{{F}_{i},{X}_{i1},\ldots ,{X}_{i10}\}}_{i = 1,\ldots ,n}$ of size n ∈ {2000, 5000} to which we applied our method. The feature values were generated by sampling data points ${\{{Z}_{i1},\ldots ,{Z}_{i10}\}}_{i = 1,\ldots ,n}$ from a multivariate normal distribution with zero mean, unit variance, and equicorrelation 0.5, and by applying the univariate standard normal cumulative distribution function Φ(⋅) to give X_ij = 6 ⋅ (Φ(Z_ij) − 0.5), j = 1, …, 10. We used the ANN architecture described in the “Methods” section, setting the number of ensemble members to 10.

Figure 5 presents the estimated main effects obtained in the three scenarios with n = 2000. Despite some variation, which is likely due to differences in the empirical distribution functions of the features, and some tendency to oversmooth the effects in highly nonlinear regions (which could be addressed by increasing the complexity of the NAM architecture), our method performed well in approximating the true main effects. Similar results were obtained for the two-way interaction terms and in the scenarios with n = 5000 (SI Appendix S6). The average values of the summary measures I₁ and I₂ were 0.370, 0.918, 0.983, and 0.605, 0.079, 0.017, respectively, in the scenarios with n = 2000, and 0.389, 0.922, 0.984, and 0.586, 0.075, 0.015, respectively, in the scenarios with n = 5000.

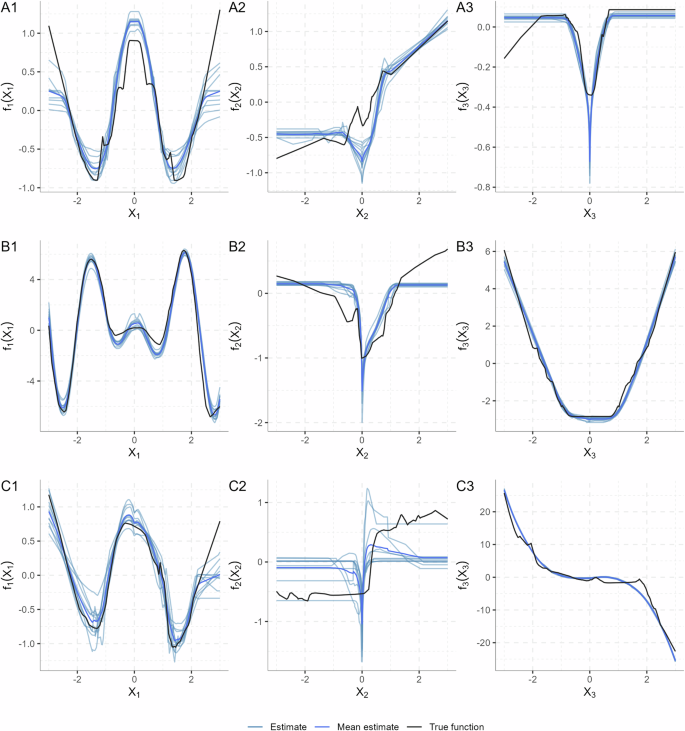

Fig. 5: Experiments with synthetic data.

The blue lines visualize the main effects f₁(X₁), f₂(X₂), f₃(X₃), as obtained by applying the proposed three-step algorithm to samples of size n = 2000 each. The black lines correspond to the true post-hoc-orthogonalized main effects defined in SI Appendix S5 (A1–A3: scenario 1, B1–B3: scenario 2, C1–C3: scenario 3).

Run-time of the algorithm

To analyze the run-time of the proposed algorithm, we extended the experimental setup by additional sets of features and interaction effects. The results of this analysis, which are presented in SI Appendix S7, demonstrate that the run-time of the algorithm is approximately linear in the size of Θ. More than 99% of the computational effort was due to the fitting of the NAMs in Step 2 of the procedure, which is based on established implementations in Python. Further details on the run-time of the algorithm are given in SI Appendix S7.

Discussion

In recent years, techniques to improve the interpretability of black-box models have become a key component of ML methodology. As part of this methodology, functional decomposition is considered a “core concept of ML interpretability”³.

In this paper, we provided support for a novel concept for the decomposition of black-box prediction functions into explainable feature effects. In line with earlier approaches by Hooker¹⁶, the idea of our method is to replace the original prediction function with a surrogate model consisting of simpler, “better interpretable” subfunctions. The latter allows for a graphical representation of the main feature contributions and their interactions, providing insights into the direction and strength of the effects.

Our concept of stacked orthogonality is designed to achieve purity of the subfunctions; it implies that predictive information explained by the main effects is not contained in the higher-order effects. At the same time, stacked orthogonality implies that lower-order functions (offering a high degree of interpretability) capture as much functional behavior as possible. Another contribution of this work is the development of a user-friendly algorithm to estimate the subfunctions from data. It is based on the fitting of a NAM, which allows the approximation of feature effects using ANN architectures, and an efficient post-hoc orthogonalization method to achieve stacked orthogonality. The proposed algorithm yielded plausible feature effects in our application examples. Furthermore, it was able to approximate the true underlying subfunctions in our numerical experiments.

A key requirement for establishing interpretability is that the (black-box) model F does not generate any non-admissible predictions (i.e., predictions “out of range”). For instance, in our application on stream biological condition, all predicted Chessie BIBI values were admissible in the sense that they were included in the support of Y (i.e., in the interval [0, 100], which was guaranteed by the design of the random forest model). Under this assumption, and given that our algorithm achieves perfect correlation between the black-box sample predictions F₁, …, F_n and the decomposed NAM outputs, it is guaranteed that the latter are admissible as well. Importantly, since users of our method are essentially free to decide about the number and locations of the sample points, any sample point of interest could be included in F₁, …, F_n (and thus “forced” to be admissible). Beyond that, it is, of course, possible that out-of-sample points F_new, X_new,1, …, X_new,d (not contained in ${\mathcal{S}}={\{{F}_{i},{X}_{i1},\ldots ,{X}_{id}\}}_{i = 1,\ldots ,n}$ and thus not used for NAM fitting) may result in dissimilarities between the original black-box prediction F_new and the fitted NAM value ${\hat{F}}_{{\rm{new}}}$ (obtained by feeding X_new,1, …, X_new,d into the trained NAM). In this case, a non-admissible value ${\hat{F}}_{{\rm{new}}}$ (e.g., a BIBI value larger than 100 or a probability larger than 1) may be obtained. Thus, if users want to be sure that the algorithm will always produce admissible outputs (regardless of whether the inputs are contained in the sample ${\mathcal{S}}$ or not), they should include an appropriate activation function in the output layer of the NAM, as discussed in the section on Estimation by NAM and post-hoc orthogonalization. For example, in SI Appendix S4 we used a logistic activation function to allow for out-of-sample probability decompositions contained in [0, 1]. Analogously, one may extend the NAM for the Chessie BIBI by an activation function of the form $g({\eta }_{i})=100\cdot {(1+\exp (-{\eta }_{i}))}^{-1}$ (to ensure that out-of-sample decompositions are contained in [0, 100]).

Despite the aforementioned advantages, our method is not without limitations. First, NAM fitting (and thus estimation of the subfunctions) is limited to rather low-dimensional feature sets. It should be emphasized, however, that our method allows users to specify subsets of “effects of interest” and to shift all “uninteresting” effects to the highest-order interaction level. This strategy preserves the practicability of the proposed method even when the overall number of higher-order interactions is prohibitively large. It also contributes to preserving the interpretability of the decomposition as a whole. A second limitation is that our concept of stacked orthogonality is not primarily designed for quantifying the overall contributions of single features. Instead, our summary measures I_k quantify the contributions of the effect levels (e.g., all main effects or all interaction effects considered together), or more generally, the contributions of the aforementioned “effects of interest” to the overall black-box prediction. On the other hand, our method does not preclude users from calculating generalized Sobol sensitivity indices (as defined by Chastaing et al.¹⁹) to summarize the overall contributions of single features.

In addition to the graphical comparisons presented here, the proposed algorithm could be compared to other IML methods in a more quantitative way. To date, however, there is still a lack of consensus on how to best conduct such larger-scale benchmark experiments. This methodological gap, which has been acknowledged in several overview works^3,46,47, is partly due to the fact that IML methods may involve very different objective functions and/or may focus on very different aspects of explainability/interpretability. Consequently, recent benchmark experiments have mainly dealt with specific subclasses of IML methods (like feature importance⁴⁸, GAMs⁴⁹, and counterfactual interpretability⁵⁰), whereas a commonly accepted performance metric applying to more general classes of IML methods is lacking (cf. Kadir et al.⁵¹). Further research could increase understanding of how the absence of such a metric can hinder the conduct of larger-scale IML method comparisons.

The applications considered in this paper are mainly based on black-box predictions derived from tabular data. Since our algorithm is based on ANNs, it could, in principle, be applied to text or image data as well. Although the post-hoc orthogonalization step of our algorithm is largely independent of the structure of the feature data, we note that visualizations of text- or image-based feature effects may require more sophisticated techniques than the 2D plots presented in this work^2,52. In addition to exploring other types of data structures, analyses could be conducted on how sensitive NAM fitting is to changes in the target population (i.e., to changes in the probability measure P_X). Regarding the latter issue, we note that the sampling procedure in Step 1 of our algorithm can be adapted to match the desired distributional characteristics. In particular, the sampling procedure can be adapted to include additional samples from specific feature subspaces (thereby refining the estimates in these regions) or to estimate the subfunctions in “counterfactual” regions not contained in the training data.

Finally, we emphasize that our method is designed to explain the inner workings of a black-box model. It can not be used to evaluate the features’ ability to predict the outcome variable Y. This is a general aspect of post-hoc functional decomposition^3,16,19 and can be deduced from the basic equation in Eq. (1). In fact, since the left-hand side of Eq. (1) is entirely dependent on the prediction function F but not on Y, the decomposition in Eq. (1), and thus also the NAM in Eq. (5), do not incorporate any information on how well Y can be predicted by F and its subfunctions f_θ. Put differently, the subfunctions obtained from our method will only have a meaningful interpretation if the underlying black-box model is useful in predicting the outcome of interest.

Methods

Details on NAM fitting

As stated above, each function ${f}_{\theta }^{0}$ in Eq. (5) is represented by a separate ANN. This representation is generally not restricted to a specific network architecture but can be adapted to the learning task(s) as needed. For our numerical experiments, we used fully connected ANNs with five hidden layers each. The numbers of units were 256, 128, 64, 32, and 8, starting with the first hidden layer. Rectified linear unit activation functions were used in the first four hidden layers; a linear activation function was used in the last hidden layer with b_θ = 8. The NAM was fitted using backpropagation with the mean squared error loss and the Adam optimizer (ref. ⁵³, see the attached code on GitHub). The backpropagation procedure was run until convergence.

Details on post-hoc orthogonalization

In Step 3 of our method, we apply the following algorithm to process the initial intercept estimate ${\mu }^{0}={f}_{{{\emptyset}}}^{0}=0$ and the NAM estimates ${f}_{\theta }^{0},\theta \in {\mathcal{P}}(\Upsilon )\backslash {{\emptyset}}$. The superscript r has been omitted for ease of notation.

Input: Vectors of initial estimates ${{\bf{f}}}_{\theta }^{0}={{\bf{U}}}_{\theta }{{\bf{w}}}_{\theta }^{0}\in {{\mathbb{R}}}^{n},\theta \in {\mathcal{P}}(\Upsilon )$.

For m = 1 to d − 1:

• 11. Define the actual interaction order by d − m + 1.

• 12. Define the actual set of effects by ${\mathcal{A}}=\{\theta \in {\mathcal{P}}(\Upsilon ):| \theta | =d-m+1\}$. Let ${f}_{{\mathcal{A}}}^{m-1}={\{{{\bf{f}}}_{\theta }^{m-1}\}}_{\theta \in {\mathcal{A}}}$ be the set of function estimates of order d − m + 1.

• 13. Define the set of lower-order effects by ${\mathcal{L}}=\{\theta \in {\mathcal{P}}(\Upsilon ):| \theta | < d-m+1\}$. Let ${f}_{{\mathcal{L}}}^{m-1}={\{{{\bf{f}}}_{\theta }^{m-1}\}}_{\theta \in {\mathcal{L}}}$ be the set of function estimates of order lower than d − m + 1.

• 14. Define the set of higher-order effects by ${\mathcal{H}}=\{\theta \in {\mathcal{P}}(\Upsilon ):| \theta | > d-m+1\}$. Let ${f}_{{\mathcal{H}}}^{m-1}={\{{{\bf{f}}}_{\theta }^{m-1}\}}_{\theta \in {\mathcal{H}}}$ be the set of function estimates of order higher than d − m + 1.

• 15. Define the matrix ${\bf{U}}={[{{\bf{U}}}_{\theta }]}_{\theta \in {\mathcal{L}}}$ by concatenating the output matrices ${{\bf{U}}}_{\theta },\theta \in {\mathcal{L}}$ (including the single-column matrix ${{\bf{U}}}_{{{\emptyset}}}={(1,\ldots ,1)}^{\top }$ for the intercept). By definition, U is of dimension n × B, where $B={\sum }_{\theta \in {\mathcal{L}}}{b}_{\theta }$. We assume that the architectures of the ANN terms in Eq. (5) have been specified such that n ≥ B.

• 16. Compute the matrix ${\bf{P}}={\bf{U}}{({{\bf{U}}}^{\top }{\bf{U}})}^{-1}{{\bf{U}}}^{\top }$ (assuming U is of full rank). By definition, multiplication of a vector ${\bf{x}}\in {{\mathbb{R}}}^{n}$ with P is equivalent to projecting x onto the column space spanned by U. In case U is not of full rank, we adapt the algorithm as described below.

• 17. Compute the sum of the actual function estimates by ${{\bf{z}}}_{{\mathcal{A}}}^{m-1}={\sum }_{\theta \in {\mathcal{A}}}{{\bf{f}}}_{\theta }^{m-1}$.

• 18. Update the actual effects ${f}_{{\mathcal{A}}}^{m}$ by projecting ${{\bf{z}}}_{{\mathcal{A}}}^{m-1}$ onto the column space of U and by setting ${f}_{{\mathcal{A}}}^{m}$ equal to the vectors that are orthogonal to this projection. This gives ${f}_{{\mathcal{A}}}^{m}={\{({\bf{I}}-{\bf{P}}){{\bf{f}}}_{\theta }^{m-1}\}}_{\theta \in {\mathcal{A}}}$, where I is the identity matrix of size n.

• 19. Update the lower-order effects ${f}_{{\mathcal{L}}}^{m}$ by adding the projections of ${{\bf{z}}}_{{\mathcal{A}}}^{m-1}$ to ${f}_{{\mathcal{L}}}^{m-1}$. This gives ${f}_{{\mathcal{L}}}^{m}={\{{{\bf{f}}}_{\theta }^{m-1}+{{\bf{U}}}_{\theta }{[{({{\bf{U}}}^{\top }{\bf{U}})}^{-1}{{\bf{U}}}^{\top }{{\bf{z}}}_{{\mathcal{A}}}^{m-1}]}_{\theta }\}}_{\theta \in {\mathcal{L}}}$, where ${[{({{\bf{U}}}^{\top }{\bf{U}})}^{-1}{{\bf{U}}}^{\top }{{\bf{z}}}_{{\mathcal{A}}}^{m-1}]}_{\theta }$ is a vector of length b_θ. It contains those elements of the vector ${({{\bf{U}}}^{\top }{\bf{U}})}^{-1}{{\bf{U}}}^{\top }{{\bf{z}}}_{{\mathcal{A}}}^{m-1}$ that match the positions of the columns of U_θ in U.

• 20. The higher-order effects are not updated, i.e., ${f}_{{\mathcal{H}}}^{m}={f}_{{\mathcal{H}}}^{m-1}={\{{{\bf{f}}}_{\theta }^{m-1}\}}_{\theta \in {\mathcal{H}}}$.

Algorithm 2

Post-hoc orthogonalization

Input Initial estimates ${{\bf{f}}}_{\theta }^{0}={{\bf{U}}}_{\theta }{{\bf{w}}}_{\theta }^{0}\in {{\mathbb{R}}}^{n},\theta \in {\mathcal{P}}(\Upsilon )$

1: for m in 1, …, d − 1 do

2:  1.1 o ← d − m + 1

3:  1.2 ${\mathcal{A}}\leftarrow \{\theta \in {\mathcal{P}}(\Upsilon ):| \theta | =o\},{f}_{{\mathcal{A}}}^{m-1}\leftarrow {\{{{\bf{f}}}_{\theta }^{m-1}\}}_{\theta \in {\mathcal{A}}}$

4:  1.3 ${\mathcal{L}}\leftarrow \{\theta \in {\mathcal{P}}(\Upsilon ):| \theta | < o\},{f}_{{\mathcal{L}}}^{m-1}\leftarrow {\{{{\bf{f}}}_{\theta }^{m-1}\}}_{\theta \in {\mathcal{L}}}$

5:  1.4 ${\mathcal{H}}\leftarrow \{\theta \in {\mathcal{P}}(\Upsilon ):| \theta | > o\},{f}_{{\mathcal{H}}}^{m-1}\leftarrow {\{{{\bf{f}}}_{\theta }^{m-1}\}}_{\theta \in {\mathcal{H}}}$

6:  1.5 ${\bf{U}}\leftarrow {[{{\bf{U}}}_{\theta }]}_{\theta \in {\mathcal{L}}}$

7:  2.1 Compute ${\bf{P}}={\bf{U}}{({{\bf{U}}}^{\top }{\bf{U}})}^{-1}{{\bf{U}}}^{\top }$

8:  2.2 Compute ${{\bf{z}}}_{{\mathcal{A}}}^{m-1}={\sum }_{\theta \in {\mathcal{A}}}{{\bf{f}}}_{\theta }^{m-1}$

9:  3.1 Update

10:  ${f}_{{\mathcal{A}}}^{m}={\{({\bf{I}}-{\bf{P}}){{\bf{f}}}_{\theta }^{m-1}\}}_{\theta \in {\mathcal{A}}}$

11:  3.2 Update

12:  ${f}_{{\mathcal{L}}}^{m}={\{{{\bf{f}}}_{\theta }^{m-1}+{{\bf{U}}}_{\theta }{[{({{\bf{U}}}^{\top }{\bf{U}})}^{-1}{{\bf{U}}}^{\top }{{\bf{z}}}_{{\mathcal{A}}}^{m-1}]}_{\theta }\}}_{\theta \in {\mathcal{L}}}$

13:  3.3 Update

14:  ${f}_{{\mathcal{H}}}^{m}={f}_{{\mathcal{H}}}^{m-1}={\{{{\bf{f}}}_{\theta }^{m-1}\}}_{\theta \in {\mathcal{H}}}$

15: end for

 Update ${\{{{\bf{f}}}_{\theta }^{d-1}\}}_{\theta \in {\mathcal{P}}(\Upsilon )\backslash {{\emptyset}}}$ by mean-centered vectors

 Output${\{{{\bf{f}}}_{\theta }^{d-1}\}}_{\theta \in {\mathcal{P}}(\Upsilon )}$

A schematic overview of the post-hoc orthogonalization procedure is given in Algorithm 2. The updates in Step 3.2 imply that each ${{\bf{f}}}_{\theta }^{m}$ can be written in the form ${{\bf{U}}}_{\theta }{{\mathbf{\beta }}}_{\theta }^{m}$, where ${{\mathbf{\beta }}}_{\theta }^{m}$ is a vector of coefficients of length b_θ. Consequently, one obtains

$$\begin{array}{lll}&&{\left(\mathop{\sum}\limits _{\theta \in {\mathcal{L}}}{{\bf{f}}}_{\theta }^{m}\right)}^{\top }\mathop{\sum}\limits _{\theta \in {\mathcal{A}}}{{\bf{f}}}_{\theta }^{m}\\ &&={\left(\mathop{\sum}\limits _{\theta \in {\mathcal{L}}}{{\bf{U}}}_{\theta }{{\mathbf{\beta }}}_{\theta }^{m-1}+{\bf{U}}{({{\bf{U}}}^{\top }{\bf{U}})}^{-1}{{\bf{U}}}^{\top }{{\bf{z}}}_{{\mathcal{A}}}^{m-1}\right)}^{\top }({\bf{I}}-{\bf{P}})\,{{\bf{z}}}_{{\mathcal{A}}}^{m-1}\\ &&={\left({[{{\mathbf{\beta }}}_{\theta }^{m-1}]}_{\theta \in {\mathcal{L}}}\right)}^{\top }{{\bf{U}}}^{\top }({\bf{I}}-{\bf{P}})\,{{\bf{z}}}_{{\mathcal{A}}}^{m-1}+{{\bf{z}}}_{{\mathcal{A}}}^{m-1,\top }\,{\bf{P}}\,({\bf{I}}-{\bf{P}})\,{{\bf{z}}}_{{\mathcal{A}}}^{m-1}\\ &&=0,\end{array}$$

(8)

where ${[{{\mathbf{\beta }}}_{\theta }^{m-1}]}_{\theta \in {\mathcal{L}}}$ denotes the concatenation of the coefficient vectors ${{\mathbf{\beta }}}_{\theta }^{m-1}$ (i.e., a vector of length B). According to Eq. (8), the sum of the lower-order effects is orthogonal to the sum of actual effects, and the final result of the algorithm satisfies the stacked orthogonality constraints in Eq. (3).

In the final step, we center the vectors ${{\bf{f}}}_{\theta }^{d-1},\theta \in {\mathcal{P}}(\Upsilon )\backslash {{\emptyset}}$, by subtracting their respective means. This ensures that all functions are centered around zero, as assumed in the Subsection “Conditions on the features and the prediction function”. Note that the centering does not affect the above orthogonality proof, as the actual effects ${{\bf{f}}}_{\theta }^{m},\theta \in {\mathcal{A}}$, are left unchanged in later iterations (implying ${{\bf{f}}}_{\theta }^{m}={{\bf{f}}}_{\theta }^{d-1}$ for these effects), and as the sum of the mean-centered actual effects is equal to the sum of the uncentered actual effects ${\sum }_{\theta \in {\mathcal{A}}}{{\bf{f}}}_{\theta }^{m}$ in the first line of Eq. (8). The latter result is due to the fact that the sum ${\sum }_{\theta \in {\mathcal{A}}}{{\bf{f}}}_{\theta }^{m}$ has zero mean, being orthogonal to ${{\bf{U}}}_{{{\emptyset}}}={(1,\ldots ,1)}^{\top }$. By the same argument, the centering does not affect the value of the intercept term.

In case U is not of full rank, we project ${{\bf{z}}}_{{\mathcal{A}}}^{m-1}$ onto a full-rank subspace of the column space of U. More specifically, we consider the pivoted QR decomposition

$${\bf{U}}=\tilde{{\bf{Q}}}\,\tilde{{\bf{R}}}\,{\tilde{{\bf{P}}}}^{\top }\,,$$

(9)

where $\tilde{{\bf{Q}}}\in {{\mathbb{R}}}^{n\times n}$ is a unitary matrix, $\tilde{{\bf{R}}}\in {{\mathbb{R}}}^{n\times B}$ is an upper triangular matrix with diagonal elements r₁₁, …, r_BB, and $\tilde{{\bf{P}}}\in {{\mathbb{R}}}^{B\times B}$ is a permutation matrix arranging the columns of U such that ∣r₁₁∣≥…≥∣r_BB∣. Denoting the rank (i.e., the number of non-zero singular values) of U by r_U, we define $\tilde{{\bf{U}}}\in {{\mathbb{R}}}^{n\times {r}_{{\bf{U}}}}$ by those columns of U corresponding to first r_U diagonal elements of $\tilde{{\bf{R}}}$. The positions of these columns are indicated by the entries of the permutation matrix $\tilde{{\bf{P}}}$. Accordingly, we define the matrices ${\tilde{{\bf{U}}}}_{\theta },\theta \in {\mathcal{L}}$, by those columns of U_θ contained in $\tilde{{\bf{U}}}$, and we perform Steps 2 and 3 of the above algorithm with U and U_θ replaced by ${\tilde{{\bf{U}}}}_{\theta }$ and ${\tilde{{\bf{U}}}}_{\theta }$, respectively.
