Introduction

Beijing, a bustling global metropolis, has achieved an urbanization rate exceeding 87%1. Historical economic growth, industrialization, and urbanization models that neglected environmental considerations have led to increased PM2.5 (particulate matter with an aerodynamic diameter ≤ 2.5 μm) concentrations2. In January 2013, Beijing endured several episodes of severe, persistent haze, adversely affecting human health, causing substantial economic losses, and garnering global attention as the “Airpocalypse”3,4. This episode featured alarmingly high PM2.5 levels, averaging 231 µg m−3 and peaking above 400 µg m−3 5,6. In response, the government launched the Air Pollution Prevention and Control Action Plan7 (https://www.gov.cn/zhengce/content/2013-09/13/content_4561.htm, last access: 15 October 2024) in 2013, the Three-Year Action Plan for Winning the Blue Sky Defense Battle8 (https://www.gov.cn/zhengce/content/2018-07/03/content_5303158.htm, last access: 15 October 2024) in 2018, and the Implementation Plan for Synergizing Reduction of Pollution and Carbon Emission9 (https://www.mee.gov.cn/xxgk2018/xxgk/xxgk03/202206/t20220617_985879.html, last access: 15 October 2024) in 2022. These initiatives included restructuring the energy sector, stricting vehicle emission standards, phasing out obsolete industrial capacities, and closing high-pollution factories10,11. Consequently, Beijing’s air quality has improved significantly over the past decade12,13, with the annual average PM2.5 concentration reduced from 89.5 µg m−3 in 2013 to 30 µg m−3 in 2022, representing a reduction of 67% (https://english.www.gov.cn/news/topnews/202301/04/content_WS63b578d6c6d0a757729e5160.html, last access: 15 October 2024). Furthermore, concentrations of other major pollutants like PM10, SO2, CO, and NO2 have also significantly declined due to structural changes in industry, energy, and transportation14,15. Additionally, since the onset of the COVID-19 pandemic in spring 2020, air pollutants have further decreased, enhancing environmental quality16,17.

Carbonaceous aerosols are the predominant component of ambient PM2.518,19. Among them, light-absorbing carbonaceous aerosols play an important role18,19. Light-absorbing carbonaceous aerosols mainly consist of black carbon (BC) and brown carbon (BrC)20. BC effectively absorbs light across a broad spectral range, from the ultraviolet to the near-infrared spectrum21, while BrC primarily absorbs ultraviolet light22. These particles significantly influence Earth’s climate by scattering and absorbing solar radiation, and they can also indirectly modify cloud reflectivity and precipitation processes23,24,25. The radiative heating effect alters air temperature distribution, which reduces the tropospheric boundary layer’s height, exacerbating pollutant accumulation near the ground and intensifying haze severity, a phenomenon termed as the “dome effect”26. According to the latest IPCC AR6 report27, the effective radiative forcing of BC ranges from -0.28 to +0.41 W m−2, potentially increasing global temperatures by up to 0.1 °C. BrC’s radiative contribution is approximately one-fourth that of BC28,29. A substantial portion of BC and BrC emissions is anthropogenic30, with China playing a significant role in global anthropogenic BC emissions24,31. Reducing emissions can control the concentration and impact of these absorbing particles, thus mitigating global warming32. In this context, studying the light-absorbing properties of these particles can serve as an indicator of the effectiveness of emission reduction measures33.

Light absorption-based techniques, which are widely utilized to measure atmospheric light-absorbing particles, offer a more direct assessment of aerosol optical properties and their radiative effects24,34,35. Common instruments include the Aethalometer (AE), Multi Angle Absorption Photometer (MAAP), and Photoacoustic Spectroscopy (PAS). Each of these instruments has distinct advantages and limitations36. Among them, the AE is commercially available, cost-effective, and easy to operate, enabling simultaneous and continuous measurement of aerosol absorption across multiple wavelengths35. Various commonly used methods for BC source apportionment exhibit unique strengths and weaknesses37. Notably, while the Aethalometer model relies on assumed parameter values (e.g., absorption Ångström exponents, AAE), which introduce uncertainty in source identification and may not account for all BC sources, it provides high temporal resolution and ease of operation37,38. Furthermore, when fixed values are applied, no auxiliary data sources are required. Consequently, this model has been widely adopted in BC source apportionment studies to distinguish between biomass burning (BB) and fossil fuel (FF) sources38,39,40. Studies indicate that in Beijing, the predominant source of BC is FF, particularly during clean days41,42. This pattern is similar in other major urban centers such as Guangzhou43, Shanghai44, Wuhan39, and Milan45, where FF is the dominant source. Conversely, in background atmosphere like the Himalaya46 and Tibetan Plateau47, BB and FF contributions are nearly equivalent. However, comprehensive long-term analyses characterizing these sources in Beijing are lacking, and their corresponding radiative effects have not been considered.

In this study, we measured the mass concentration of BC over a ten-year period using an AE at an urban site of the Peking University Urban Atmosphere Environment Monitoring Station (PKUERS). We performed source apportionment with the Aethalometer model, classifying the sources into BB and FF combustion. Based on these classifications, we examined the annual, seasonal, and diurnal variations. Additionally, we employed the Santa Barbara DISORT Atmospheric Radiative Transfer (SBDART) model to calculate the direct radiative effect (DRE) of BC across different seasons and sources. The results enhance our understanding of long-term BC trends in Beijing and its response to previous air pollution control measures and the COVID-19 lockdown, providing important insights for formulating more effective strategies for BC emission reduction.

Results and discussion

Temporal variations of BC

Figure 1 shows the annual variations of BC, PM2.5, and BC/PM2.5 from 2013 to 2022. It is evident that from 2013 to 2021, the annual average mass concentration of BC exhibited a general declining trend, decreasing from 2.23 ± 1.94 μg m−3 to 0.41 ± 0.40 μg m−3, corresponding to a reduction of approximately 82%. The annual mean value for 2021 may be underestimated due to missing winter data. However, the significant decreases observed in the other three seasons, as identified by the Mann-Kendall trend test (Table S1), confirm a consistent declining trend from 2013 to 2021. This declining trend is analogous to the declining BC mass concentration trends in Beijing reported by Xia et al.48 for the period 2005 to 2017 and Sun et al.49 for the period 2012 to 2020. Also, the annual mean values of PM2.5 and BC/PM2.5 exhibited similarly decreasing trends from 2013 to 2021. These decreasing trends indicate a substantial shift in the structure of primary emission sources, attributed to the implementation of the Air Pollution Prevention and Control Action Plan (2013–2017) and the Three-Year Action Plan for Winning the Blue Sky Defense Battle (2018–2020). These measures have been more effective in reducing BC than PM2.5, likely because BC primarily originates from primary emissions and is directly controlled by emission reduction policies, whereas PM2.5 concentrations are influenced by multiple factors48. The annual average BC concentration is lower than that of several urban monitoring sites during the same period, including those in Wuhan50, Nanjing51, Baoding52, and Chiang Mai53, indicating that Beijing experiences relatively lower BC pollution levels. Besides, comparing the results of this study with those from different background sites during the same period (Table 1), it is evident that the gap between our study and the background sites is gradually narrowing, but our results remain higher. The concentration changes at background sites are relatively minor. For example, the declining trend at Waliguan from 2008 to 2017 was only 2% per year54, indicating that emission reduction measures have had less impact on these areas compared to urban sites. Additionally, the distribution of BC concentration data points in Beijing is becoming more concentrated, with annual variations decreasing, suggesting a reduction in extreme pollution events. BC levels were notably lowest in 2020 and 2021, primarily due to traffic control measures implemented during the pandemic. This period offers a relevant scenario for examining BC trends under restricted traffic conditions.

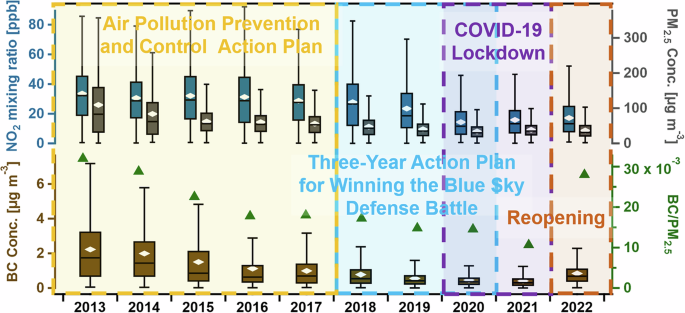

Fig. 1: Annual variations of BC, PM2.5, BC/PM2.5, and NO2.
Fig. 1: Annual variations of BC, PM2.5, BC/PM2.5, and NO2.
Full size image

The median (horizontal line), mean (markers), 25th and 75th percentiles (lower and upper box), and 10th and 90th percentiles (lower and upper whiskers) are also shown.

Table 1 BC concentration [μg m−3] measured in Beijing (BJ, italics) and comparison with different background sites (BG) in China
Full size table

However, in 2022, there was a resurgence in BC levels to 0.84 ± 0.71 μg m−3, approaching the levels observed in 2018, indicating an overall reduction of about 62% from 2013 to 2022. The Mann-Kendall trend test supported that the decrease in BC from 2013 to 2022 was significant (Table S1). The increase of BC concentration in 2022 may be attributed to the relaxation of COVID-19 restrictions, leading to a resurgence of economic activity, especially in transportation, compared to 202155,56,57. In 2022, the volume mixing ratio of NO2 at the same site slightly increased (Fig. 1), partially explaining the rebound in BC due to the recovery of traffic activity. Additionally, PM2.5 is influenced by more complex factors; for example, the reduction of secondary aerosols may have offset the increase in PM2.5 resulting from higher BC concentrations58, leading to no significant change in PM2.5 levels. Similar findings have been reported in other studies on Beijing58. Notably, the 2022 data for this site lack winter measurements, suggesting that the actual annual mean value may be even higher. This finding further indicates that BC concentrations could be reduced beyond 2022 levels through enhanced emission control measures. It underscores the necessity of developing effective BC emission reduction strategies, particularly in light of increasing economic activity and traffic emission.

As illustrated in Fig. 2a, the mass concentrations of BC over different years have exhibited a relatively consistent seasonal pattern, characterized by higher levels in winter and lower levels in summer. This seasonal pattern can be attributed to the relatively stable nature of traffic emissions throughout the year, while BB is at its lowest during summer49. Additionally, increased precipitation in summer facilitated the removal of pollutants59. This pattern is similar to those observed in other urban sites, such as Xi’an60, Nanjing61, and Bhubaneswar62. Moreover, the mass concentrations of BC decreased ubiquitously during all seasons in 2022 compared to 2013. Excluding the rebound effect observed in 2022, which was attributed to increased post-COVID-19 traffic, reductions in BC concentration across the seasons are more pronounced. From 2013 to 2021, the BC mass concentration decreased by 1.32 μg m−3 in spring, 1.44 μg m−3 in summer, 2.51 μg m−3 in autumn, and 2.50 μg m−3 in winter (2013 to 2020). The Mann-Kendall trend test supported that the decrease in BC across all seasons was significant (Table S1). Since 2017, the concentrations have stabilized, showing reduced seasonal variations. Similar seasonal pattern changes have been observed in other studies on Beijing49,63,64. This change is primarily due to the significant decrease in BC mass concentration during the autumn and winter seasons (heating season), which has reduced the disparities among the four seasons. From 2013 to 2016, the reduction in BC mass concentration was similar across all four seasons. However, by 2017, the decrease during autumn and winter was nearly double that observed in spring and summer. The implementation of the Clean Winter Heating Plan for Northern China (2017–2021) has contributed to these decreases (https://www.gov.cn/xinwen/2017-12/21/content_5248986.htm, last access: 15 October 2024). This plan aims to significantly increase the adoption of clean heating systems, with the goal of achieving a substantial transition from coal-based heating to clean heating in smog-affected urbanized areas, including Beijing, within approximately five years. A significant decline was also observed in the spring of 2020, likely due to decreased industrial production and transportation activities associated with COVID-19 pandemic control measures16,17.

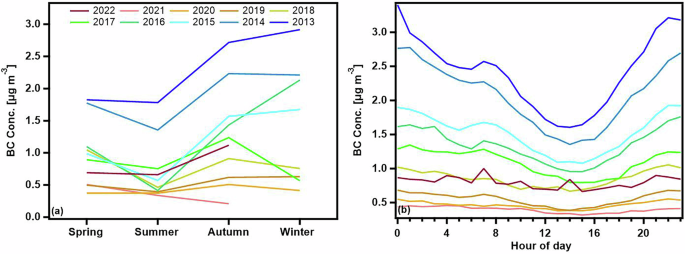

Fig. 2: Variations in the mass concentration of BC.
Fig. 2: Variations in the mass concentration of BC.
Full size image

a Seasonal variations. b Diurnal variations.

As shown in Fig. 2b, the mass concentration of BC exhibits a pronounced diurnal variation, with higher levels observed in the early morning and at night and lower levels in the afternoon. The minimum concentrations are observed in the afternoon, attributed to the increased mixing layer heights and reduced emissions65. The high concentrations observed in the early morning and at night can be explained by a lowering of the boundary layer height and a drop in surface temperature, which create stable temperature inversions during these times66,67. Additionally, increased emissions from heavy-duty vehicles and diesel trucks, permitted in the city only between 23:00 and 06:00, contribute to the high concentrations of BC during this period. Especially, prior to 2016, BC levels exhibited distinct elevations during morning rush hours, as depicted in Fig. 2b. After 2016, this diurnal variation weakened and almost disappeared. Additionally, the most notable reductions occurred at night. This can be attributed to several effective policy interventions aimed at controlling air pollution, including removing older vehicles, improving fuel standards, and increasing the use of cleaner energy12, particularly for diesel vehicles previously restricted to nighttime entry and exit within Beijing. Additionally, the diurnal variations of BC from 2020 to 2021 were much less pronounced, possibly due to a significant reduction in primary emissions, such as those from vehicles, associated with the COVID-19 pandemic55. Another contributing factor is that, since November 2019, diesel vehicles compliant with China III emission standards have been prohibited from operating throughout the entire city of Beijing at all times (https://www.beijing.gov.cn/zhengce/zcjd/201905/t20190523_78871.html, last accessed: 15 October 2024).

Optical properties

Figure S1 illustrates the annual variations of AAE370–950 and single scattering albedo (SSA525) from 2013 to 2022. AAE quantifies the wavelength dependency of aerosol light absorption. Higher AAE values indicate greater absorption at shorter wavelengths20. Over the decade, the lowest annual mean AAE370–950 was 1.29 ± 0.18 in 2022, while the highest was 1.42 ± 0.22 in 2015. The AAE370–950 in 2022 was lower than in the previous two years, indicating that post-COVID-19 reopening saw greater increases in emissions from high-combustion efficiency sources (e.g., traffic) compared to low-efficiency sources (e.g., BB)49. Seasonally, AAE370–950 values were higher in winter and lower in summer, reflecting increased BB for heating during the colder months (Fig. S2). Higher SSA values indicate a greater proportion of scattering aerosols. The lowest annual mean SSA525 was 0.86 ± 0.07 in 2014, while the highest was 0.95 ± 0.04 in 2021 (Fig. S1). All data were statistically analyzed using the Mann-Whitney U test with Bonferroni correction. Significant differences (p < 0.05) were detected across most years and seasons (Tables S2–S4). After 2016, the temporal variation in SSA525 became smaller and more stable decreased and stabilized (Mann-Kendall trend test: p = 0.06), indicating that the relative proportions of absorbing and scattering components in aerosols became more consistent. The SSA525 for 2020 remained consistent with 2019, suggesting that during the COVID-19 lockdown, the reduction in primary emissions (such as light-absorbing particles) was nearly equal to the reduction in scattering, mainly due to secondary aerosols. This finding contrasts with some studies that suggest primary aerosols, including BC and primary organic aerosols, decreased less than secondary aerosols during the pandemic68,69. The discrepancy might be due to the fact that those studies focused on the spring of 2020, whereas this study encompasses data from the entire year.

Influence of the local meteorology

Figure S3 presents the bivariate polar plots of BC across four seasons from 2013 to 2022. Annually, the average wind speed (WS) is low, at 2.26 ± 2.03 m s−1. The weak wind conditions significantly contribute to the high air pollution levels in major Chinese cities70, as low WS promotes the accumulation of pollutants from local sources. Generally, regions with higher BC concentrations correspond to areas with low wind speeds (WS < 3 m s−1). The middle and southern regions show higher BC concentrations, reflecting the combined effects of local emissions and regional transport. During the summer, elevated BC concentrations are primarily observed in a small region close to the sampling site, indicating that local emissions are the primary source58. From 2013 to 2017, BC concentrations consistently show higher levels in regions with lower WS, while seasonal variations revealing the different relative influences of regional transport. Since 2018, the southwest has exerted greater influence. The proportion of high wind speeds (WS > 4 m s−1) from the southwest increased from 18% in 2013–2017 to 33% in 2018–2022, while the proportion of high-concentration (BC mass concentration > 0.5 μg m−3) and high-wind-speed events rose from 48% to 67% over the same periods. Over the years, nearly half of the high-concentration BC originated from the southwest. At the PKUERS, the southwest is adjacent to major traffic arteries, including the West Fourth Ring Road and North Fourth Ring Road, likely amplifying the impact of traffic emissions. From the perspective of urban regional transport, this is consistent with previous studies identifying the southwestern region of Beijing’s surroundings as a major source of BC pollution42,71. The ten-year data indicate that BC concentrations in Beijing are primarily influenced by both local emissions and regional transport, with the influence of regional transport increasing over time.

Sources identified from the Aethalometer model

Sources of BC were apportioned into BB and FF by the method proposed by Sandradewi et al.38 and Zotter et al.72 (Fig. S4). For the study period, the mean contributions of FF and BB to total BC were 76% and 24%, respectively. Other studies in Beijing have also indicated that FF combustion is the predominant source of BC41,42. This pattern is similar in other major urban centers such as Guangzhou43, Shanghai44, the eastern Indo-Gangetic Plain40, and Milan45, where FF is the dominant source. However, at background sites such as the Himalayas (BCBB% > 50%)46, and the Tibetan Plateau (BCBB% = 57%)47, BB and FF contributions are nearly equivalent, with BB sometimes slightly exceeding FF. This difference in the relative proportions of BB and FF partially reflects the disparity between urban and background sites. The annual average concentration of BCBB in Beijing decreased from 0.50 ± 0.60 μg m−3 in 2013 to 0.11 ± 0.15 μg m−3 in 2022, corresponding to an average annual reduction of 0.06 ± 0.01 μg m−3 yr−1. Likewise, BCFF levels declined from 1.73 ± 1.62 μg m−3 to 0.74 ± 0.64 μg m−3 during the same period, with an average annual decrease of 0.13 ± 0.03 μg m−3 yr−1. The BC data from sectoral emissions73,74 related to BB and FF75,76 in the Multi-resolution Emission Inventory model for Climate and air pollution research (MEIC) v1.4, with the most recent data updated to 2020 (http://meicmodel.org.cn, last access: 15 October 2024), further supports the source apportionment results (r = 0.72). From 2013 to 2020, emissions of BC from both BB and FF-related sectors showed a moderate decline (Figs. S5 and S6). Both BCBB and BCBB-MEIC exhibited significant seasonal variations, with higher values in cold seasons and lower values in warm seasons. The correlation between BCBB and BCBB-MEIC (r = 0.80, Fig. S5) was higher than that between BCFF and BCFF-MEIC (r = 0.62, Fig. S6), possibly due to greater traffic impact near PKUERS, while MEIC primarily represents coal-dominated emissions across Beijing. Coal was the dominant contributor to FF emissions in Beijing, a trend that was more pronounced in earlier years (accounting for 48% in 2013–2015 but only 6% in 2016–2020). Correspondingly, the difference between BCFF and BCFF-MEIC was also greater during these periods (Fig. S7b).Additionally, the Aethalometer model used in this study applies fixed classical values to distinguish between FF and BB, which may underestimate FF contributions77. Previous studies have also indicated that this method has limitations in analyzing coal sources40,44, potentially contributing to discrepancies in correlation. The results for BCBB exhibit two plateau periods: 2013–2017 and 2018–2020. The fitting results for both periods are satisfactory, with the first plateau period (r = 0.89) being slightly better than the second (r = 0.83). However, overall, BCBB-MEIC during the second plateau period did not align well with the sharp decline observed in BCBB. The discrepancy may result from the measurement being limited to a single monitoring site, whereas the inventory reflects emissions data for the entire city. Overall, controlling BC pollution from traffic sources remains a critical issue, particularly amid the full recovery and rapid expansion of various activities.

Figures 3a and S7a illustrate the seasonal variations of BCBB% and BCFF% from 2013 to 2022, respectively. From 2013 to 2022, the BCBB% (39% ± 5%) in winter was significantly higher than in spring (22% ± 3%), autumn (17% ± 5%), and summer (12% ± 5%). This is primarily due to the cold weather in winter, during which residence BB such as wood, crop remains and straw for heating, resulting in a substantial increase in BB emissions. However, after 2019, a noticeable decline in BCBB% was observed during autumn. The changes after 2019 can be related to the air quality improvement measures implemented by the Chinese government and the COVID-19 pandemic. Overall, the results emphasize the critical importance of reducing BC emissions and controlling FF sources in Beijing. Additionally, during winter months, it is essential to strengthen regulations on BB. The BCBB% and BCFF% diurnal cycles during the different years are displayed in Figs. 3b and S7b. From 2013 to 2020, BCFF% exhibited distinct morning and evening peaks, which were more pronounced than the bimodal pattern of the total BC mass concentration (Fig. 2b), reflecting the diurnal variation of BC emissions from traffic sources. In 2021 and 2022, the diurnal variation became more random, with no clear morning and evening peaks, which may be related to the traffic control measures during the COVID-19 pandemic. However, the overall BCFF% increased significantly compared to previous years, and the mass concentration values slightly rebounded (Fig. S8), which may be related to the gradual relaxation of the COVID-19 control policies and compensatory travel behavior by the public.

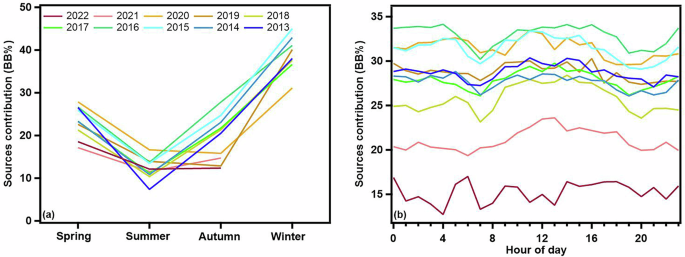

Fig. 3: Variations in the contribution of biomass burning (BB) combustion to total BC.
Fig. 3: Variations in the contribution of biomass burning (BB) combustion to total BC.
Full size image

a Seasonal variations. b Diurnal variations.

Correlation analysis was conducted to further support the identification of BC sources. From 2013 to 2022, the hourly average BC showed significant correlations with CO (r = 0.83), and NO2 (r = 0.74), with high correlation coefficients, and it was followed by SO2 (r = 0.62). The correlation coefficients suggesting that BC had similar sources and experienced similar atmospheric processes as these pollutants78. Furthermore, NO2 is widely recognized as a tracer pollutant for vehicle emissions in urban areas44. In this study, NO2 exhibited a higher correlation coefficient with BC than SO2, suggesting that motor vehicle emissions contributed more significantly to BC concentrations. Tables S5 and S6 present the correlation coefficients between BCBB or BCFF and other air pollutants across different seasons and years, respectively. The correlation between BCBB or BCFF and trace gases, including CO, NO2, and SO2, decreases during the summer for several reasons. First, in summer, the concentrations of NO2 are more influenced by photochemical reactions than by emissions78, whereas BC concentrations are predominantly influenced by emission sources. Second, increased precipitation in summer enhances the wet deposition of BC79, contributing to the mass concentration of BC reaching its lowest levels during this season (Fig. 2a). The impact of wet deposition on other gases is comparatively smaller. Overall, BCFF demonstrates a stronger correlation with NO2 than BCBB. This align with the emission sources of each type of BC and support the results of source apportionment. BCBB exhibits a higher correlation with SO2 than BCFF, possibly due to higher light absorption at lower wavelengths by aerosols generated from sulfur-containing fuel combustion in Beijing, which may influence the source apportionment model40.

Direct radiative effects of BC

DRE is a valuable metric for estimating the radiative impacts of various aerosol components24,80. Previous research on long-term changes in the DRE in Beijing49 used forcing equations81 without accounting for seasonal and source-related variations. In contrast, this study employs the SBDART model, offering a more accurate and reliable approach to radiative forcing studies. Moreover, many prior long-term studies have concentrated exclusively on the effects of BC, overlooking discussions on scattering processes40,50. As a result, these studies have inadequately examined changes in the overall radiative properties of aerosols.

A positive DRE indicates net warming, while a negative DRE reflects net cooling47. To isolate the influence of the COVID-19 pandemic and more precisely evaluate the effectiveness of governmental air quality management measures, we compare the outcomes from 2013 and 2019. Over this period, the overall aerosol DRE increased from -15.04 W m−2 to -10.19 W m−2, suggesting that improvements in air quality have exacerbated climate warming. As illustrated in Fig. 4, while the warming effect of aerosol absorption decreased, the reduction in the cooling effect from scattering was more substantial, underscoring the need for further reductions in light-absorbing aerosols. For BC DRE, the largest reduction occurred in autumn and winter. This finding aligns with the previous observation that the governance effects of BC are more pronounced during the autumn and winter seasons. Overall, the annual average BC DRE value decreased by 80%, from +31.15 W m−2 in 2013 to +6.28 W m−2 in 2019. The heating effect of light-absorbing particulate matter could offset approximately 70% of the cooling effect induced by scattering particles in 2013. However, following years of mitigation efforts, this offset has decreased, particularly in the winter of 2019, when it was reduced to 31%. This suggests the growing significance of non-light-absorbing particulate matter, which may become a key focus in future air pollution control strategies. Although the radiative impact of light-absorbing particulate matter has been declining, it remains significant, with its offsetting effect on scattering particles still notably higher than the global background level of 1.5% to 1.6%28. From a source-based perspective, BCBB contributes more to scattering offset than its share in total BC, indicating its stronger radiative impact. Although BCBB has a lower concentration, its radiative forcing per unit mass is higher. However, BCFF remains the dominant contributor to total DRE, especially in summer. Therefore, for the inherently low concentrations of BCBB, precise regulation of its composition may be more crucial, such as identifying key light-absorbing components. In contrast, controlling BCFF may require a focus on reducing overall emissions.

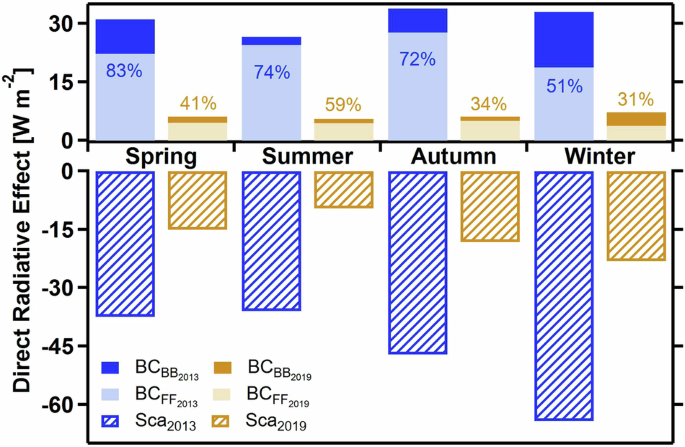

Fig. 4: Average seasonal atmospheric direct radiative effects (DREs) of absorption (BCBB and BCFF) and scattering at the top of the atmosphere (TOA) for 2013 and 2019.
Fig. 4: Average seasonal atmospheric direct radiative effects (DREs) of absorption (BCBB and BCFF) and scattering at the top of the atmosphere (TOA) for 2013 and 2019.
Full size image

The percentages shown on the BC bar represent the fraction of DRE due to carbonaceous aerosol absorption relative to scattering.

The absorption properties of BC reduce surface solar radiation, indirectly causing surface cooling, while directly heating the atmosphere, thereby affecting its vertical structure (Fig. S9). Radiative heating by BC affects the air temperature distribution and decreases the tropospheric boundary layer’s height. BC and other absorbing aerosols influence the planetary boundary layer (PBL) in large cities through the aerosol-radiation-PBL feedback loop26. This change exacerbates the accumulation of pollutants near the surface, increases haze severity, and worsens air pollution. In Beijing, the accumulation of BC may be more pronounced due to weak pressure gradients in the region, which facilitate its buildup within the PBL82. Also, the suppression of the boundary layer also confines a significant amount of O3 precursors below it, which enhances O3 chemical generation83. Nonetheless, the primary effect of BC on O3 is to reduce the photolysis rate84, thereby partially decreasing O3 levels. Numerous studies have demonstrated that BC influences ground-level O3 concentration by absorbing sunlight and regulating the photolysis rate, the so-called aerosol-photolysis interaction84,85,86,87. Studies have also shown that the radiative effects of BC may alter the Empirical Kinetics Modeling Approach (EKMA) curve84. In Beijing, O3 concentrations increased in 2019 compared to 2013, while the negative correlation with BC weakened, indicating that BC’s contribution to O3 reduction partially diminished as its radiative effect lessened (Figs. 4 and S10). Therefore, in the context of increased atmospheric oxidizing capacity and aggravated compound pollution, it is imperative to strengthen our focus on the mechanisms of BC-boundary layer interactions and consider formulating targeted measures to address the increasingly complex and comprehensive new air pollution scenarios. Additionally, the radiative effect driven by aerosols could exacerbate the geographic mismatch between national energy supply and demand by reducing solar and wind energy resources88. Overall, the radiative effects of BC in Beijing have significantly decreased, but there remains a gap compared to cleaner regions. Developing targeted BC reduction strategies in the future may be more effective, as BC plays a dual role in air pollution and climate change.

Implications and limitations

This study analyzed BC mass concentration in Beijing over a ten-year period, quantifying contributions from BB and FF sources. The results indicate that BC mass concentration decreased from 2.23 ± 1.94 μg m−3 in 2013 to 0.84 ± 0.71 μg m−3 in 2022, representing a reduction of 62%. This decline reflects the positive impacts of the Air Pollution Prevention and Control Action Plan (2013–2017) and the Three-Year Action Plan for Winning the Blue Sky Defense Battle (2018–2020), particularly the sharp decrease in concentrations during nighttime and in heating season. However, the resurgence of BC levels in 2022 due to increased post-COVID-19 traffic reveals the ongoing challenges in maintaining low pollution levels. Additionally, regional transport from the southwest has exerted greater influence, emphasizing the need for coordinated regional emission control strategies. Source apportionment analysis shows that FF sources dominate BC emissions in Beijing, while BB exhibits a distinct seasonal pattern. Significant reductions in BC were observed from both FF and BB sources, with average annual reduction rates of 0.13 ± 0.03 μg m−3 yr−1 and 0.06 ± 0.01 μg m−3 yr−1, respectively. Additionally, the annual average BC DRE value decreased from +31.15 W m−2 in 2013 to +6.28 W m−2 in 2019, indicating the broader climate benefits of these air quality interventions. This study aligns with prior research on the long-term trends of BC in Beijing, offering further analyses related to the pandemic and employing the SBDART model for quantitative DRE calculations across different sources and seasons.

However, certain unresolved issues warrant further exploration. For instance, the precision of source apportionment could be improved by incorporating more accurate tracers, such as potassium or levoglucosan. Moreover, the scattering data employed in this study were derived from theoretical equations. Incorporating observational scattering data could improve the precision of radiative calculations. In addition, some emission inventory models may need to account for key policies specific to certain periods to more accurately represent the long-term, non-linear decline in emissions. Overall, the study highlights the necessity for continuous efforts to further reduce BC, especially in light of potential future increases in economic activity and traffic. Effective, targeted BC reduction strategies remain critical to sustaining long-term improvements in both air quality and climate outcomes in Beijing.

Methods

Sampling site

A long-term measurement was conducted at the PKUERS, located on the rooftop of a building on the Peking University campus (39°59′21′′ N, 116°18′25′′ E), approximately 11 km northwest of Beijing’s city center. Further descriptions of this site can be found in earlier publications59,89,90. The study covers an observation period from 2013 to 2022. Data gaps, due to the deployment of instruments for other field observations and maintenance, are detailed in Table S7. In this study, the four seasons are defined as follows: spring (March, April, and May), summer (June, July, and August), autumn (September, October, and November), and winter (December, January, and February of the following year).

Instrumentation

Equivalent black carbon (eBC), is derived by converting the light absorption coefficient into mass concentration using a suitable mass absorption efficient. eBC was measured from 2013 to 2022 using a seven-wavelength Aethalometer (AE31, Magee Scientific) at wavelengths of 370, 470, 520, 590, 660, 880, and 950 nm. For simplicity, eBC is referred to as BC. As AE is filter-based, data acquired from it requires careful correction to account for inherent systemic errors, including the filter matrix effect, scattering effect, and loading effect91,92. The most important of these is the multiple scattering effect, which was corrected using the method proposed by Weingartner et al.93. The raw data (with a 5-minute resolution) obtained from the AE31 was adjusted using the method described by Wu et al.94 with the Aethalometer Data Processor program in the professional data analysis software IGOR Pro (WaveMetrics inc., Version 6.37). The mass concentration obtained at 880 nm was used as the measured BC concentration for this study, as BC is the dominant absorber at this wavelength among major aerosol species in the atmosphere95. The mass concentration of BC is determined using a mass absorption efficiency of 12.6 m2 g−1 at 880 nm96. AAE is calculated97 by fitting the light absorption coefficient (babs) to the seven wavelengths, with AAE being the slope of the least-squares fit of the logarithm of babs (λ) versus the logarithm of these wavelengths98.

Pollutants including SO2, NO2, CO, and O3, were measured simultaneously using commercial instruments from Thermo Fisher Scientific Inc. (Model 43i-TLE, 42i-TL, 48i-TLE, and 49i). Wind direction and WS were monitored by one automatic meteorological station (Met One Instrument Inc.). The mass concentration of PM2.5 was obtained from the air quality monitoring station at Wanliu (39°57′44′′ N, 116°17′39′′ E; one of the National Control Points), approximately 3 km from our sampling site, provided by the Chinese Ministry of Ecology and Environment (https://www.mee.gov.cn/, last access: 15 October 2024).

Source apportionment

The source apportionment of BC is based on the Aethalometer model from Sandradewi et al.38. Here, the BC optical absorption coefficient is assumed to be the sum of BB and FF fractions, with their babs showing distinct wavelength dependencies characterized by AAE. Absorption coefficients at two wavelengths, 470 nm and 950 nm, were used for source apportionment of total BC as described in Zotter et al.72:

$$\frac{{b}_{abs}{({\lambda }_{1})}_{FF}}{{b}_{abs}{({\lambda }_{2})}_{FF}}={\left(\frac{{\lambda }_{1}}{{\lambda }_{2}}\right)}^{-AA{E}_{FF}}$$
(1)
$$\frac{{b}_{abs}{({\lambda }_{1})}_{BB}}{{b}_{abs}{({\lambda }_{2})}_{BB}}={\left(\frac{{\lambda }_{1}}{{\lambda }_{2}}\right)}^{-AA{E}_{BB}}$$
(2)
$${b}_{abs}({\lambda }_{1})={b}_{abs}{({\lambda }_{1})}_{FF}+{b}_{abs}{({\lambda }_{1})}_{BB}$$
(3)
$${b}_{abs}({\lambda }_{2})={b}_{abs}{({\lambda }_{2})}_{FF}+{b}_{abs}{({\lambda }_{2})}_{BB}$$
(4)

According to previous studies, AAE of 0.9–1.1 for FF and 1.8–2.2 for BB have been widely adopted in the Aethalometer model40. As lacking synchronous measurement of potassium or levoglucosan to constrain the AAEFF and AAEBB, we chose AAEFF = 1.0 and AAEBB = 2.0 for source apportionment in this study39,79,99. The original Aethalometer model is designed for traffic and biomass burning emissions; however, several confounding factors may affect its accuracy. The presence of secondary organic aerosols (SOA), particularly biogenic SOA, can deposit on the AE31 filter, altering its absorption characteristics. Since biogenic SOA absorption primarily occurs in the ultraviolet region, this interference can be minimized by replacing the 370 nm absorption coefficient with the 470 nm coefficient, as implemented in this study. Another potential confounding factor is the presence of other FF sources, such as coal, despite the absence of coal-fired power plants near the measurement site. Overall, despite these potential sources of interference, the Aethalometer model’s assumptions remain valid for this study region, and no specific modifications were made to account for possible biases. Previous studies estimate the uncertainty associated with BC mass concentrations apportioned using the Aethalometer model to be approximately 35–42%100,101,102.

Estimations of direct radiative effects

Radiative transfer calculations were performed using the SBDART model103 to compute the DRE for the wavelength from 250 nm to 4 μm at the top of the atmosphere (TOA). The solar zenith angle is calculated using parameters including longitude, latitude, and UTC time. The surface albedo is 0.15104. The aerosol asymmetry factor is 0.65105. Aerosol optical parameters at 525 nm were derived from data calculated by Eqs. (5)–(8), including aerosol light scattering coefficient (bsca), SSA, extinction coefficient (bext), and vertical optical depth of the whole layer aerosols (AOD):

$${b}_{sca}=MSE\,* \,C$$
(5)
$$SSA=\frac{{b}_{sca}}{{b}_{sca}+{b}_{abs}}$$
(6)
$${b}_{ext}={b}_{sca}+{b}_{abs}$$
(7)
$$AOD=\sum _{i=1}^{n}{b}_{ext}\,* \,{D}_{i}\,* \,{F}_{i}$$
(8)

where MSE is the mass scattering efficiency, with the value of 5.88 m2 g−1106 at 525 nm. In the model, the extinction Ångström exponent (EAE) is introduced as 1.12107 to extrapolate bext to wavelengths beyond 525 nm (the user-defined reference wavelength). C is the mass concentration of PM2.5. Di and Fi correspond to different depths and the associated cumulative relative fractions of BC, respectively, based on the vertical profile of the relative cumulative fraction measured by Liu et al.108.

The main outputs of the simulations were downward and upward fluxes at the TOA. The DRE due to scattering (PM2.5), denoted as ΔEsca, is defined as the difference between the net solar radiation balance without BC (EnoBC, let the bext = bsca, with SSA = 1) and without all aerosols (Enoaer)109. The formulas are as follows:

$${E}_{noBC}={E}_{noBC}^{\downarrow }-{E}_{noBC}^{\uparrow }$$
(9)
$${E}_{noaer}={E}_{noaer}^{\downarrow }-{E}_{noaer}^{\uparrow }$$
(10)
$$\Delta {E}_{sca}={E}_{noBC}-{E}_{no{\rm{aer}}}$$
(11)

where ↑ and ↓ indicate upward and downward solar radiation, respectively. In a similar manner, the DRE due to absorption (BC), denoted as ∆EBC, can be calculated by Eq. (13)110:

$${E}_{aer}={E}_{aer}^{\downarrow }-{E}_{aer}^{\uparrow }$$
(12)
$$\Delta {E}_{BC}={E}_{aer}-{E}_{noBC}$$
(13)

where Eaer is the solar radiation with all aerosols.

When the output layer height is set to the surface, the results at the surface (SUR) can be obtained. Furthermore, the results within the atmosphere (ATM) can be derived using Eq. (14).

$$ATM=TOA-SUR$$
(14)

Based on the parameter settings in the Source apportionment section, where AAEFF = 1.0 and AAEBB = 2.0, the DRE for each source was computed using the SBDART model.
