Fig. 2: BC loading for the BD flights and for each examined fire plume. | npj Clean Air

Fig. 2: BC loading for the BD flights and for each examined fire plume.

From: Decoding clues on dominant combustion phase and aerosol chemical regimes via key tracers of fire plumes

Fig. 2

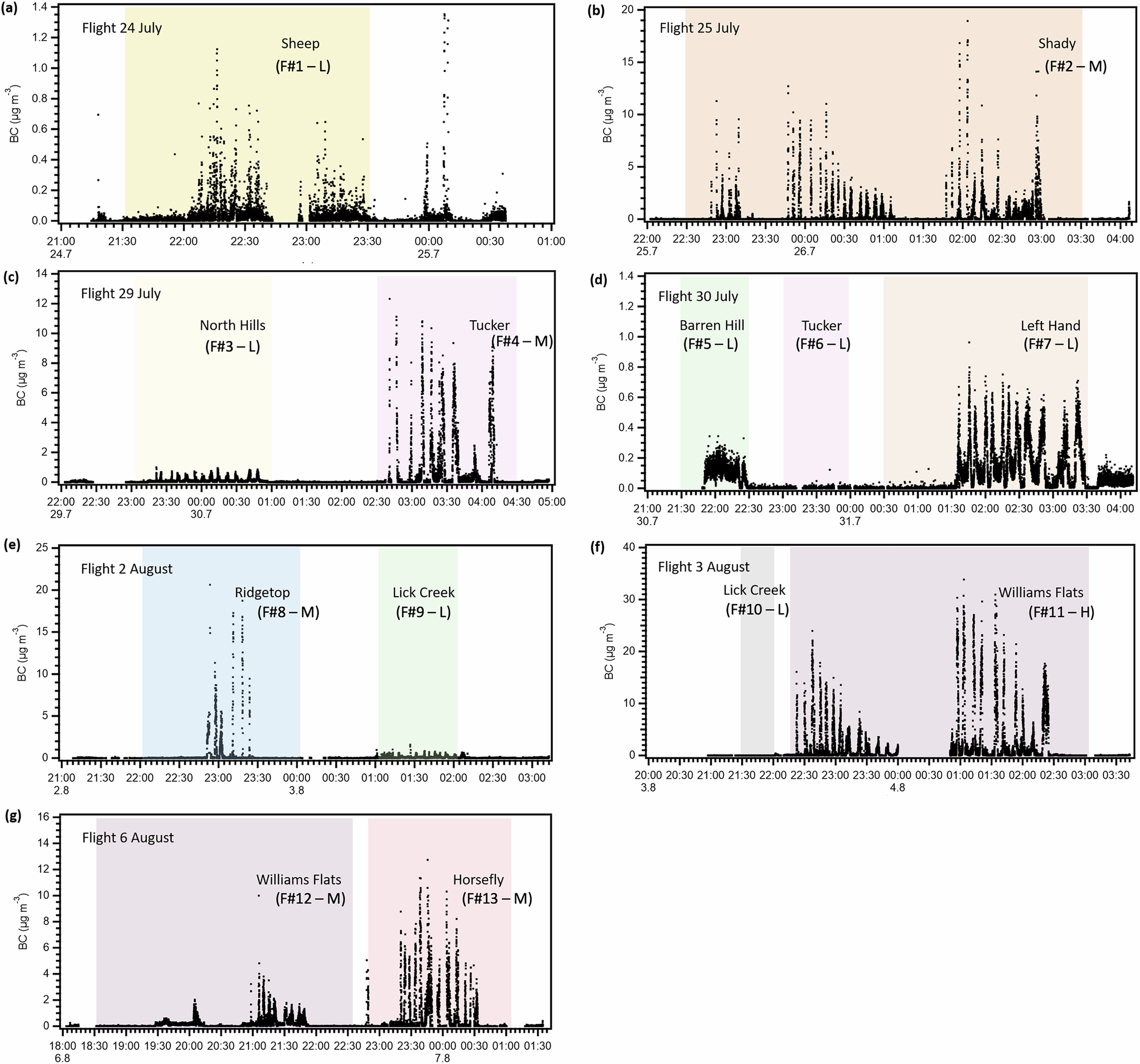

Panel a shows the BC loading for F#1 fire plume, panel b for F#2 fire plume, panel c for the F#3 and F#4 fire plumes, panel d for the F#5, F#6 and F#7 fire plumes, panel e for the F#8 and F#9 fire plumes, panel f for the F#10 and F#11 fire plumes, and panel g for the F#12 and F#13 fire plumes. The shadings correspond to the duration of sampling during the flights. The F# abbreviations refer to the number of flight corresponding to the sampled fire and the shorthand corresponds to low (L), moderate (M) and high (H) BC loading. The different colors represent the corresponding fire plume and are used for direct comparison with the species examined herein. All examined times are in UTC time zone. Note, the y-axes are not the same.
