Fig. 1: Bone remodelling results on femur with fully solid implant.

From: A computational optimisation study of hip implant using density mapping functionally graded biomimetic TPMS-based lattice structures

Fig. 1

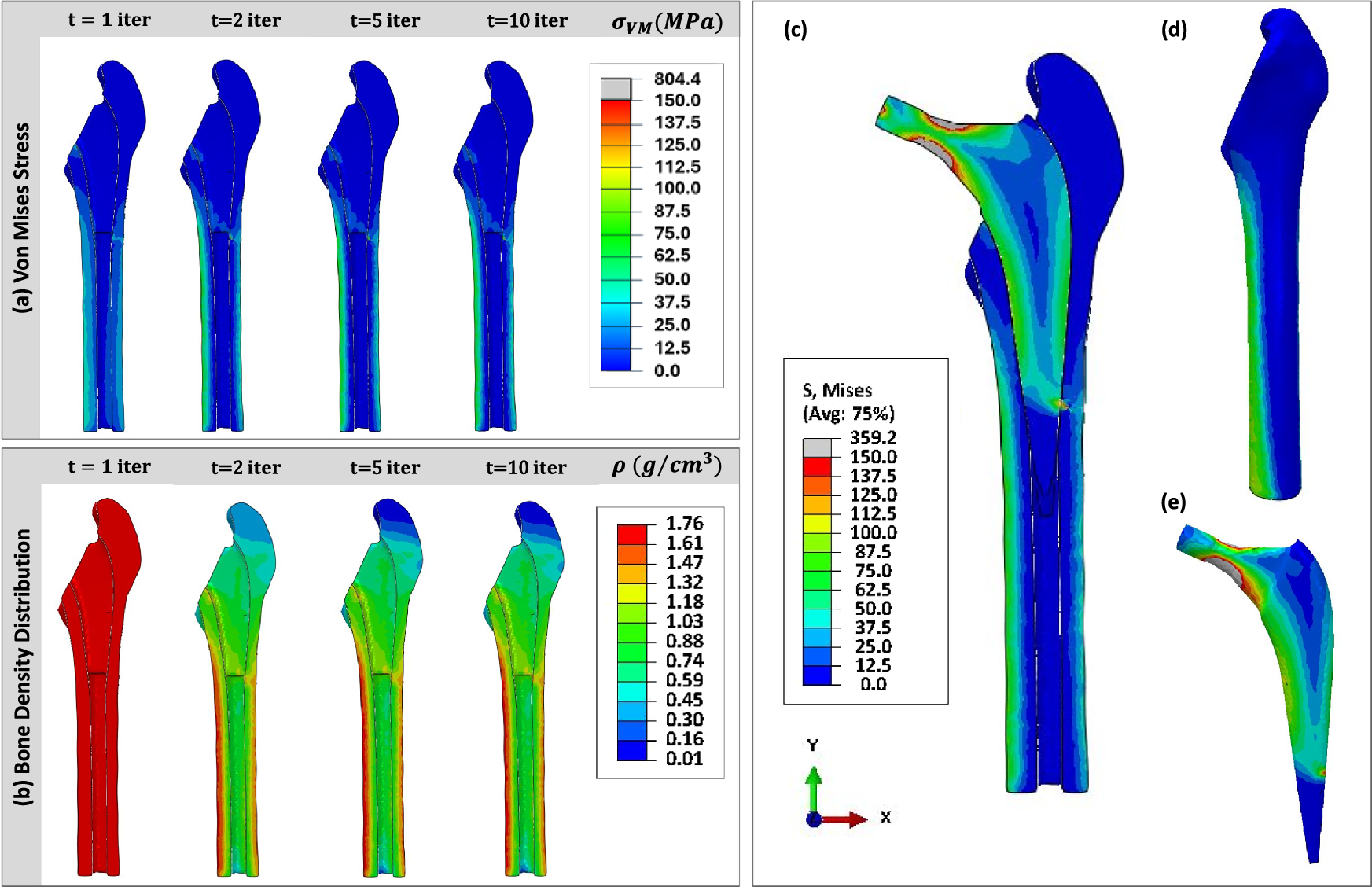

a Development of Von Mises stress distribution, and b bone density variation over time, for the femur with a fully solid implant, under the remodelling algorithm. Final Von Mises stress distribution within c cut view of the femur with fully solid implant assembly, d bone part and e solid implant part.
