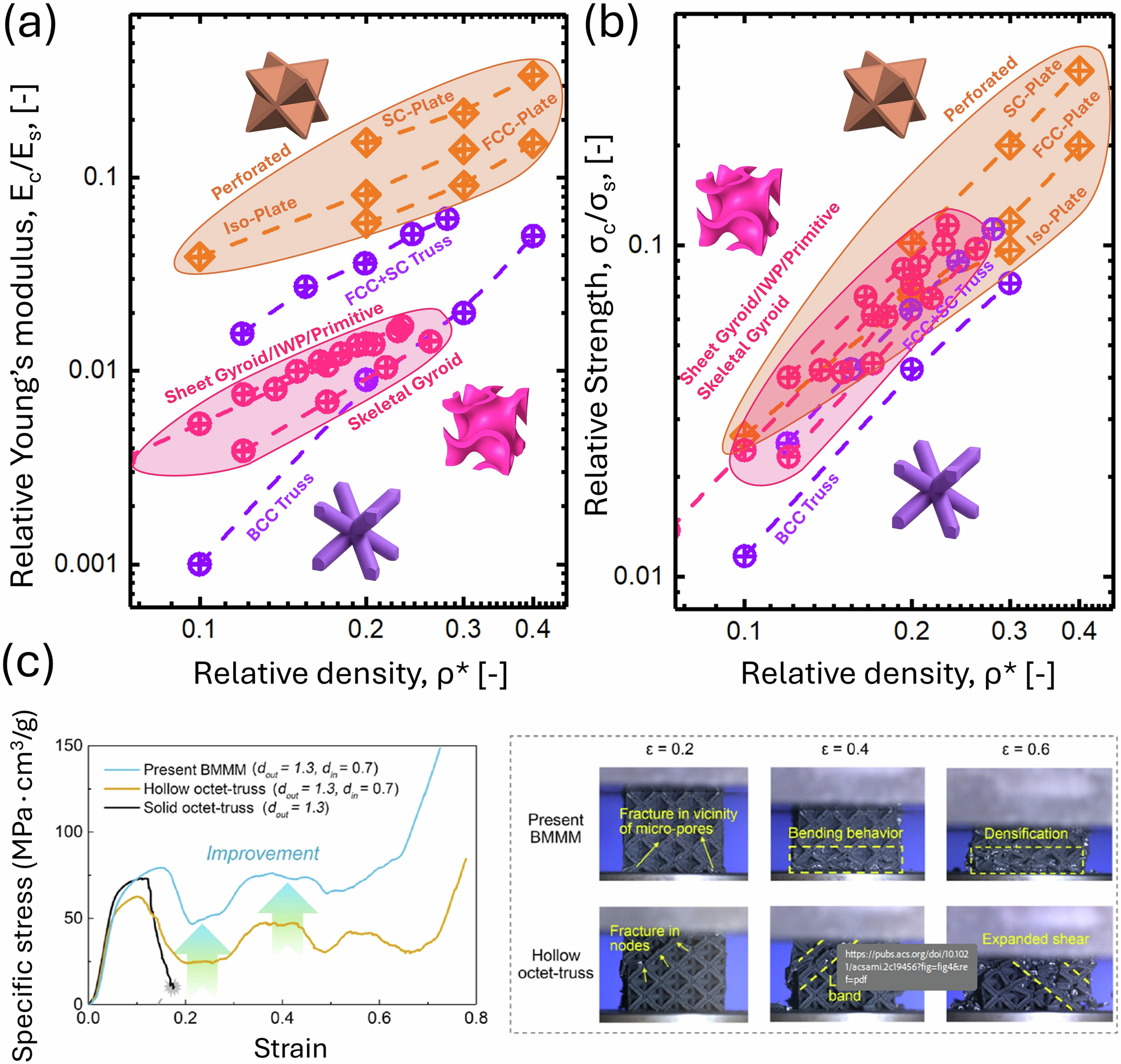

Fig. 2: Overview of mechanical properties across the three classes of lattice structures.
From: Plate lattices: advanced architectures for multifunctionality
Comparison of the (a) relative Young’s modulus and (b) relative strength across the three classes of lattice structures. References used include: perforated SC and FCC plate14, perforated isotropic plate15, sheet gyroid, primitive, I-WP16, skeletal gyroid16, FCC + SC truss17, and BCC trusses18. c Enhanced energy absorption derived from incorporating plate features in truss lattices. Adapted with permission7.
