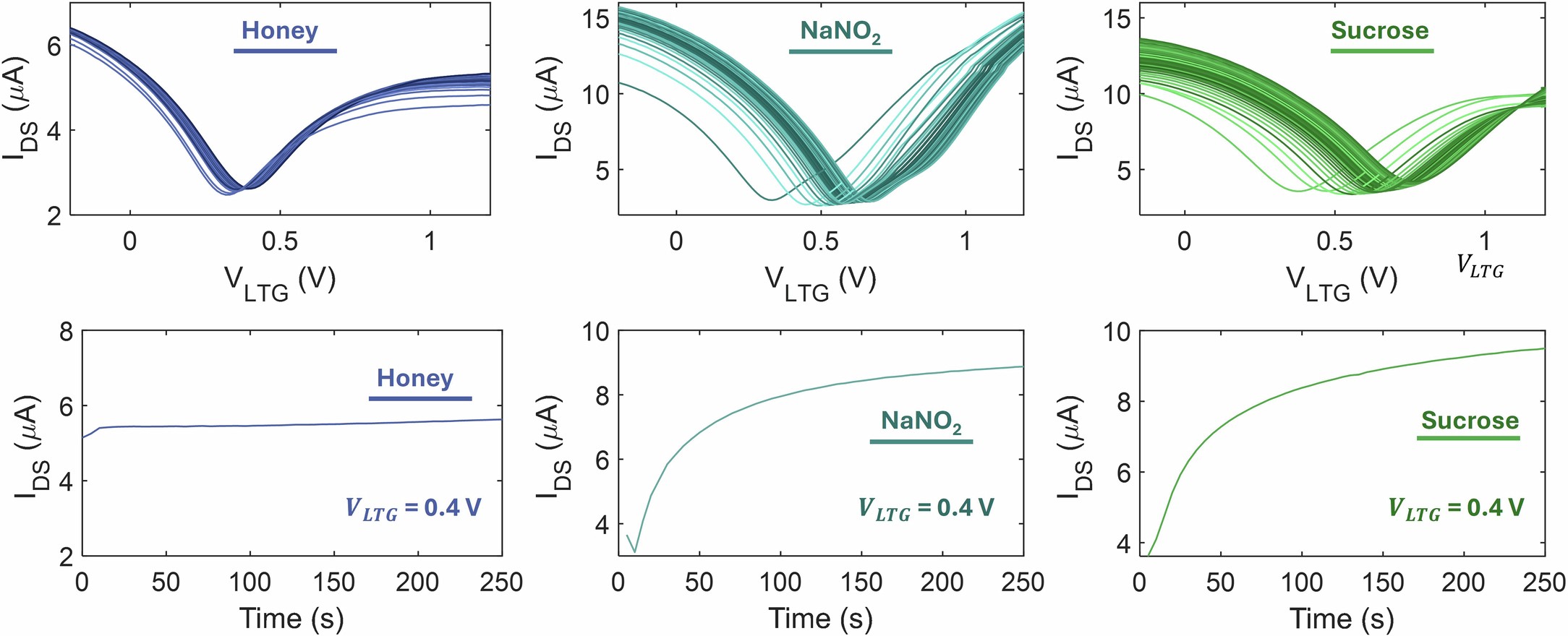

Extended Data Fig. 2: Transient response of graphene ISFET.
From: Self-powered chemical sensing via graphene, MoS2 and silicon integration
Representative transfer curves and corresponding transient responses measured at a given VLTG for several analytes. A finite EDL formation time is observed on the order of one to few minutes, beyond which conductance stabilizes.
