Figure 2: LOD score curves for the QTLs for the ratio of deep rooting in the three F2 populations (see Fig. 1 for designations). | Scientific Reports

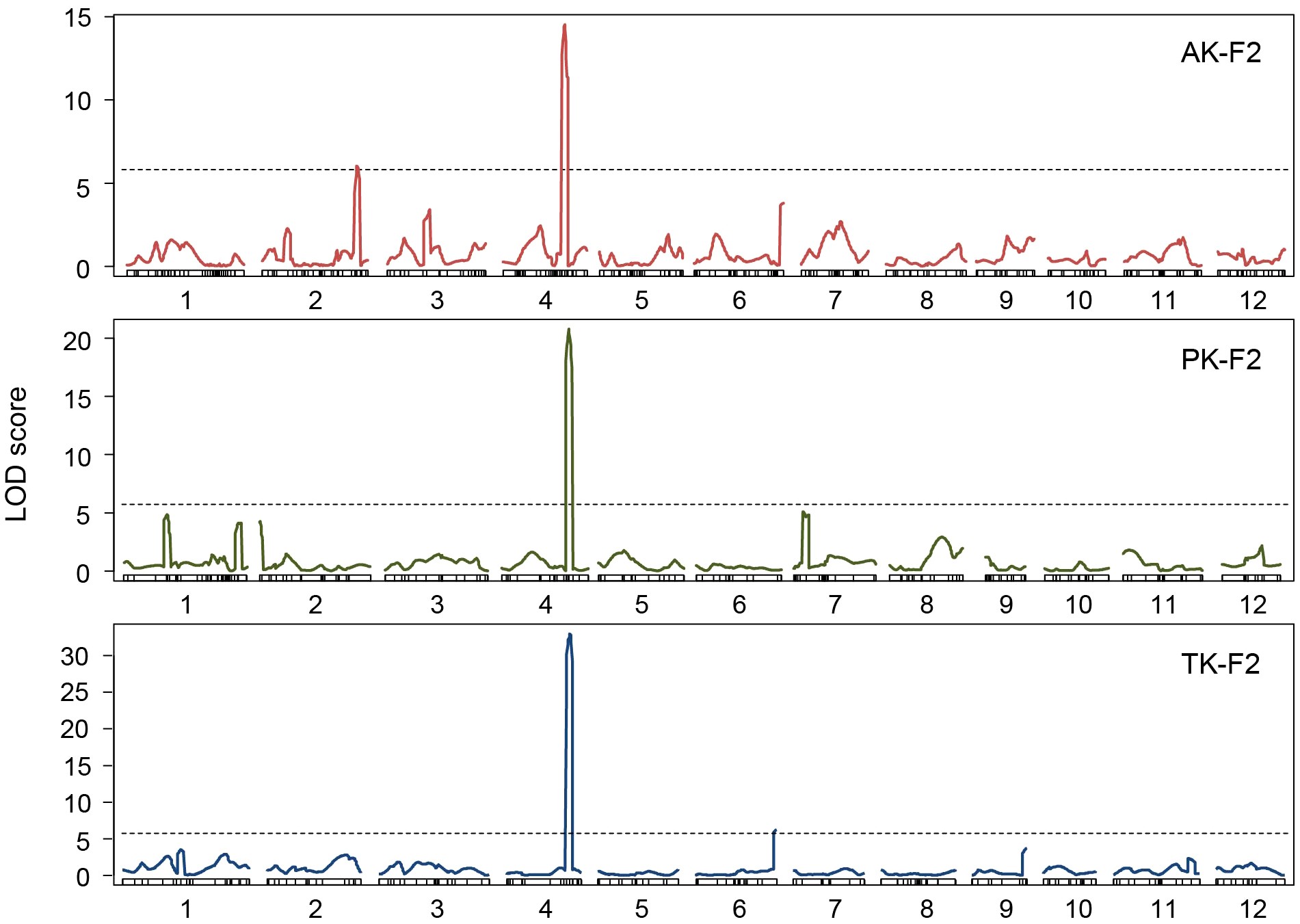

Figure 2: LOD score curves for the QTLs for the ratio of deep rooting in the three F2 populations (see Fig. 1 for designations).

From: A major QTL controlling deep rooting on rice chromosome 4

Figure 2

Rectangles represent linkage maps with DNA marker positions shown as vertical lines. Chromosome numbers are indicated under each linkage map (short arms are on the left). Dotted lines indicate LOD thresholds (AK-F2, 5.96; PK-F2, 5.72; TK-F2, 5.46).
