Introduction

The rare earth hexaborides (RB6) have been studied for their interesting properties for many decades. Magnetic rare earth hexaborides such as CeB6 have been investigated in great detail1,2, whilst LaB6 is of interest for its extraordinary electron emitting properties and use in Electron Microscopes3,4. Of the other rare earth hexaborides, SmB6 is known to be a Kondo insulator and has been a material that has intrigued physicists for many years5,6. Kondo insulators have been known for a long time, and are heavy electron (fermion) materials where the local magnetic moments are screened by the itinerant electrons. The hybridisation of the conduction electrons with the magnetic moments below a certain temperature leads to the formation of an energy gap in the density of states7,8.

Following recent theoretical work by Dzero et al. it has been suggested that SmB6 is a Topological Kondo Insulator exhibiting topological surface properties9,10,11,12,13. As a result, there has been renewed interest in this previously well studied Kondo insulator. SmB6 exhibits an insulator to metal transition at around 50 K and this coincides with the opening of the gap due to the Kondo behaviour14,15,16. At low temperatures (<5 K) the resistivity shows a saturation behaviour unlike in most insulators, where the resistivity continues to rise. At ambient pressures, SmB6 is a mixed valent material exhibiting antiferromagnetic correlations, but no magnetic ordering. When subjected to pressures, SmB6 is known to go into a metallic, magnetically ordered state17,18.

Since the proposal that SmB6 could exhibit topological behaviour, there has been intense activity amongst experimentalists looking for evidence of topological surface states through angle resolved photoemission (ARPES) experiments, and other related surface techniques18,19,20,21,22. An estimation of the Kondo insulating gap has also been attempted by tunnelling techniques23.

In order to observe the topological surface states and perform detailed experiments on these materials, high quality single crystals are a prerequisite. For the crystal growth of hexaborides, two different methods are used: (i) crystal growth by the flux technique, using Al flux, as has been successfully carried out for the whole family of rare earth hexaborides24,25 and (ii) crystal growth by the floating zone technique using either R.F. heating or lamp heating. The rare earth hexaboride materials have very high melting temperatures (~2500°C and above) and therefore melting these materials requires the use of Xenon arc lamps, if using an optical furnace, to reach these high temperatures. The flux-grown crystals are usually very small in size (~1 mm edge) and most of the recent experimental work performed and published on SmB6 has been on crystals produced by this technique.

For many studies however, large, clean, defect free crystals are preferred and the floating zone technique is the ideal route to prepare such samples. Crystals of some hexaborides including SmB6 have been grown from a melt using R.F. heating26. This paper describes the crystal growth and characterisation of large, high quality single-crystals of SmB6 by the floating zone technique using Xenon arc lamps. The crystals obtained are free from any contamination from fluxes or crucibles and are ideal for the crucial experiments necessary to establish the true behaviour of both the surfaces and the bulk of SmB6.

Results

SmB6 is known to melt congruently, similar to LaB6, CeB6 and NdB626. Figure 1(a) shows a photograph of a portion of a crystal boule of SmB6 grown by the floating zone method. The obtained crystals were 7 to 8 mm in diameter and about 20 to 25 mm long. The maximum power of the lamps needed to maintain a stable molten zone throughout the growth was around 70%. Excessive evaporation of the SmB6 prevented us from maintaining a stable molten zone for longer than the 25 to 30 mm of growth. This is unlike the growth conditions encountered by us for the other congruently melting hexaborides, where longer growths were possible27. Growths were also attempted using high gas pressures (up to 0.7 MPa argon gas pressure) to suppress the evaporation, but no improvement in the growth conditions was observed. The lamp power used for the growth of the SmB6 crystals is below the ~ 85% required for the growth of LaB6 using the same furnace and we therefore believe that growth of larger diameter crystals is possible by this technique. The crystal boules developed well defined facets, within the first few millimeters of the growth and the boules obtained had a dark black colour. The X-ray Laue patterns of the as-grown crystal boules indicate that the crystals were of good quality (see Figure 1). The Laue patterns were taken along the length of the boule, from the faceted sides (shown in Fig. 1(a)). Identical patterns were obtained along the whole length of the faceted faces. Laue patterns taken from the cross section of the boule at the tip, show that the crystal growth direction was only a few degrees away from the [110] direction (see Figure 1(b)). Consistent Laue patterns were obtained at several positions on the cross section, two of which are shown in Fig. 1(a).

Figure 1
figure 1

(a) Photograph of a portion of an as-grown boule of SmB6 prepared by the floating zone technique. Also shown below the image of the crystal are the Laue patterns of one of the facets, taken along the crystal length at 4–6 mm intervals. The corresponding Laue patterns taken on the facet at 180 degrees are mirror images of these patterns. Laue patterns taken of the cross section of the boule at the tip, are consistent with one another at several points covering the entire surface. Two patterns corresponding to a scan of the top and bottom of the tip, are shown (on the left). (b) X-ray Laue back reflection photograph of a crystal of SmB6, along the [110] direction.

Full size image

Due to the extreme hardness of the borides in general, the crystals needed to be cut using the spark erosion technique. The cut surfaces, when cleaned with very dilute acid to remove the copper deposits from the spark erosion process, reveal very shiny faces with a deep purple hue. Composition analysis by EDAX of the crystals produced show that the composition sampled over a large area of the crystals averages to 1:6 for Sm:B, despite the observed evaporation during the crystal growth.

The powder X-ray diffraction pattern obtained on a crushed crystal sample cut from the as-grown SmB6 crystal boule is shown in Figure 2. The pattern obtained showed no additional peaks due to any secondary phases, confirming that the crystals were single phase to within the limit of the X-ray diffraction technique. The observed pattern has been analysed using the FullProf software suite28 and the results of the Rietveld refinements show that all the observed peaks could be indexed to the cubic Pm3m space group. The obtained value of 4.1353(1) Å for the lattice parameter is in agreement with the previously published value for SmB629.

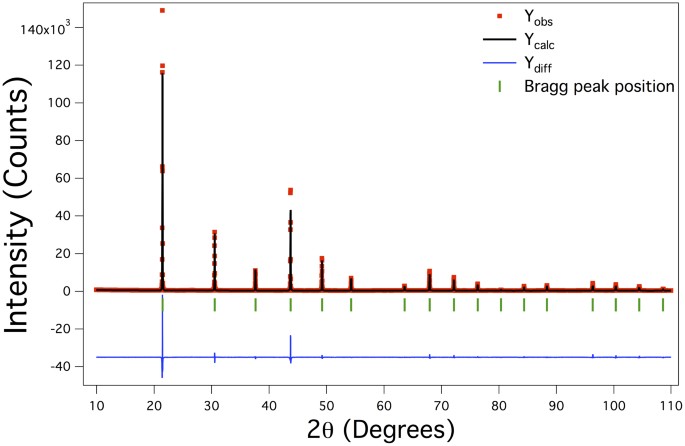

Figure 2: Powder X-ray diffraction pattern of a crushed sample of the as-grown SmB6 crystal.
figure 2

The data obtained (red), the fit to the data using Rietveld refinement (black line), as well as the difference curve (blue line) are shown.

Full size image

Figure 3 shows the resistivity measurements made on a bar shaped sample cut from the SmB6 crystal. The temperature dependence and magnitude of the resistivity, as well the temperature at which there is an upturn in the resistivity indicating the onset of the transition to the insulating state, agree with previously reported data collected on the flux grown crystals30,31. The flattening of the resistance observed at low temperatures (shown in the inset) due to the saturation in the resistivity is attributed to a conducting channel, which is explained as being due to the existence of topologically protected surface states. This saturation is a feature observed in the SmB6 crystals produced both by the flux technique as well as here by the floating zone technique.

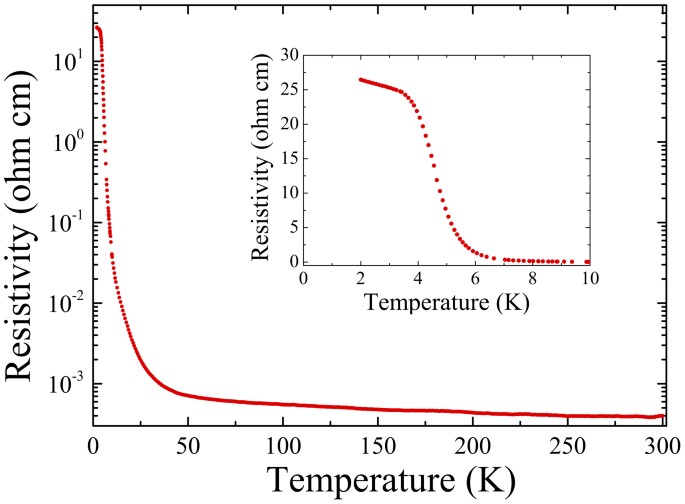

Figure 3: Temperature dependence of the dc resistivity for a single crystal of SmB6.
figure 3

The resistivity increases rapidly below 60 K before flattening at temperatures below 3.5 K (see inset).

Full size image

The temperature dependence of the magnetisation in different applied magnetic fields for a piece of the single crystal is shown in Fig. 4. The increase in the resistivity just below 60 K coincides with a very sharp rise in the susceptibility seen in the measurement made in low field (500 Oe). This is followed by a broad maximum at lower temperature and an upturn at base temperature. Data collected in higher fields (5 and 20 kOe) exhibit only the broad hump, which shifts to higher temperature with increasing field, and the low temperature upturn. The temperature dependence of the susceptibility of our crystals is consistent with what is expected for this Kondo insulator. The features seen in our low field magnetic susceptibility measurements are much sharper than those reported previously32,33,34.

Figure 4: Magnetic susceptibility (M/H) as a function of temperature for a single crystal of SmB6.
figure 4

The data for an applied field of 500 Oe were collected on warming after cooling in zero-field (ZFCW, open symbols) and on cooling in the same field (FCC, closed symbols). No significant hysteresis is seen between these two data sets. Data were also collect in FCC mode in applied fields of 5 and 20 kOe.

Full size image

Discussion

The congruent melting property of SmB6 facilitates the growth of single crystals from the melt. The sizes of the crystals grown by the optical floating zone technique are much larger than those that can be obtained by the flux technique. The crystalline quality of the boules as examined by Laue X-ray diffraction patterns indicate that the faceted faces of the crystal boules exhibit identical patterns, on the two faceted faces, at 180 degrees with respect to each other.

As a comparison, we have also produced SmB6 crystals via the standard aluminium flux technique25. The crystals have well defined shiny faces and the maximum sizes produced are roughly 0.5 to 1 ~ mm edge. Whilst these may be easier to produce with flat surfaces required for some studies, they often have contamination from the flux materials used. The crystals produced by the optical floating zone technique, in addition to being much bigger, are free of any inclusions and of extremely good quality. Another advantage of these large crystals is that specimens aligned along specific crystallographic directions can be cut from the boule for experiments.

To summarise, we have successfully produced large single crystals of the new Topological Kondo Insulator, SmB6, by the floating zone technique using a Xenon arc lamp furnace. Examination of the crystals with X-ray Laue diffraction indicates that the quality of the crystals is good. The crystals obtained are free of any contamination when examined by powder X-ray diffraction on the crushed crystals. They exhibit all the hallmarks of a Kondo Insulator in both resistivity and magnetisation measurements. The crystals produced are ideal for the investigation of both surface as well as bulk properties, to understand the existence of topological surface states in this interesting Kondo insulator. Measurements of the low temperature properties on crystal specimens oriented along specific crystallographic axes can be performed using these large crystals, and these experiments are currently under progress. Crystals can also be obtained by the same route using isotopically enriched 11B as shown previously by us for other members of the hexaboride family27. For neutron scattering investigations, however, in addition to using the 11B isotope, the highly absorbing Sm would also need to be replaced with the less absorbing 154Sm isotope.

Methods

Commercial samarium hexaboride powder (99.9% Cerac, USA) was used as starting material for making the feed and seed rods. The powder was mixed with a small amount of PVA or PVB binder, ground well and pressed into rods of approximately 6 mm diameter and 60 to 70 mm length. The resulting rods were sintered in a furnace in a flow of argon gas at 1550°C for 12 h. Before starting the sintering process, the furnace was evacuated to give a vacuum of ~ 10−5 mbar (~10−3 Pa). The sintered rods were used for the crystal growth. The crystal growth was carried out by the floating zone method, using a Xenon arc lamp furnace (CSI FZ-T-12000-X-VI-VP, Crystal Systems Incorporated, Japan). This furnace has four arc lamps with a total output power of 12 kW and is capable of reaching temperatures close to ~ 2800°C. The crystal growth was carried out in about 3 bars argon gas pressure and a flow of argon gas of up to 10 l/min, using a maximum growth rate of ~ 18 mm/h. Both the feed and the seed rods were counter-rotated at 30 rpm to ensure efficient mixing and homogeneity. Polycrystalline rods were used as seeds for the first growth and the crystals obtained were used as seeds for the subsequent growths.

The crystal boules produced were first examined using X-ray Laue diffraction to check the quality of the grown SmB6 crystals. Spark erosion was used to cut slices from the grown boule for subsequent measurements. Powdered samples of single crystal boules were analysed using X-ray diffraction (XRD) performed at room temperature in a Panalytical X-ray diffractometer using Cu Kα1 radiation (λ = 1.5406 Å). The X-ray data were analysed with the FullProf software suite28. Composition analysis on the crystals grown was carried out by EDAX on a scanning electron microscope.

Temperature dependent magnetisation measurements were made in the temperature range 1.8 to 300 K, and in applied magnetic fields of 500 Oe, 5 kOe and 20 kOe, using a Quantum Design MPMS-5S SQUID Magnetometer. DC resistivity measurements were carried out on rectangular bar shaped samples by the standard four probe technique using a Quantum Design Physical Property Measurement System (PPMS) in the temperature range 1.8 to 300 K.
