Introduction

Pine wilt disease, caused by the pine wood nematode (PWN; Bursaphelenchus xylophilus), is a major threat to global pine forest ecosystems in locations, including Japan, Korea, China, Taiwan, Portugal, and Spain1,2. The global impact of the presence of the PWN and its likelihood of invading different parts of the world are of increasing economic concern1,2. Since its first report in Busan city in 1988, it has spread to several other parts of the Korean peninsula3,4. Most damaged pine trees are red pine (Pinus densiflora) and black pine (P. thunbergii), and P. koraiensis has also recently been identified as a susceptible species in Korea5. P. nigra and P. radiate have also been reported to be susceptible to PWN in Portugal and Spain, respectively2,6. As Pinus species are also a predominant tree species in the Korean forest and are highly susceptible to PWN, the ecological and economic damage is substantial7. PWN is predicted to have severe economic consequences for the conifer forestry industry in the EU8.

Abamectin and emamectin benzoate, which both belong to the family of avermectins, are primarily used as trunk-injection agents for the control of PWN9,10,11. These agents are known to be effective against PWN12 and safe for the environment13. However, resistance of nematodes14 and insect pests15,16 to avermectins has been reported, although PWN has not yet been reported to show resistance. As in the case of other groups of insecticides17, the continuous use of a single pesticide may induce resistance to those agents in PWN. To avoid the development of resistance and to achieve efficient control of PWN, the alternating use of diverse agents is recommended.

Monochamus species are known as efficient vectors of PWN in many countries: M. alternatus and M. saltuarius in Korea and Japan, M. carolinensis in the United States, and M. galloprovincialis in Europe18. Male adults of M. galloprovincialis, M. carolinensis, and M. alternatus produce an aggregation pheromone, 2-(1-undecyloxy)-1-ethanol (monochamol), that attracts both conspecific females and males18,19,20. M. saltuarius is also reported to be attracted to monochamol21,22.

The nematicidal activity of monochamol was found by chance during our experiments on PWN. We were testing the attractiveness of synthetic monochamol to PWN and found the very interesting phenomenon that PWN was killed in monochamol solutions at very low concentration. We have investigated the nematicidal activity of the monochamol and its homologues to find potential alternatives to currently used PWN control agents. This case is the first known instance of B. xylophilus being killed by homologues of 2-(1-undecyloxy)-1-ethanol.

Results and Discussion

The nematicidal activities of 2-(1-alkyloxy)-1-ethanol homologues, undecanol, and abamectin are shown in Table 1. There was a significant difference in nematicidal activities according to chain length. All 2-(1-alkyloxy)-1-ethanol homologues and undecanol showed 100% mortality at a concentration of 1000 mg/L. 2-(1-Alkyloxy)-1-ethanol homologues with C9-C12 chain length in the alkyl group and undecanol exhibited 100% mortality even at a concentration of 100 mg/L. However, other homologues with shorter or longer chain lengths, such as C7OEtOH, C8OEtOH, and C13OEtOH, showed less than 40% of mortality at the same concentration. At a concentration of 10 mg/L, only C11OEtOH and undecanol showed more than 80% nematicidal activity. Undecanol has been reported to show nematicidal activity against PWN23. Our synthetic monochamol also contained 1% undecanol. The mortality of PWN at 100 ppm of C11OEtOH which was containing 1 ppm undecanol was higher than that at 1 ppm of undecanol (40%) (Table 1). Therefore, the mortality of C11OEtOH was mainly due to C11OEtOH itself.

Table 1 Nematicidal activity of 2-(1-alkyloxy)-1-ethanol homologues and undecanol against pine wood nematode, Bursaphelenchus xylophilus.
Full size table

Based on the mortality data (Table 1), LC50 and LC90 values were calculated to compare the toxicity of 2-(1-alkyloxy)-1-ethanol homologues and undecanol in relation to the number of carbon atoms, along with abamectin, which is in practical use in trunk injection9,10,11. The C11OEtOH and undecanol showed significantly higher nematicidal activity (13.30 and 15.78 mg/L, respectively) than the rest in terms of LC90 values, with no significant difference from abamectin (12.53 mg/L) (Table 2), followed by C10EtOH, C12OEtOH and C9OEtOH. The homologues C13OEtOH, C8OEtOH, and C7OEtOH showed weaker nematicidal activities than the rest.

Table 2 LC50 and LC90 values of 2-(1-alkyloxy)-1-ethanol homologues, undecanol and abamectin against pine wood nematode, Bursaphelenchus xylophilus.
Full size table

The nematicidal activity of the test compounds varied with carbon chain length. Alkanols with C8-C11 carbon chain length and alkylamine with C16 showed significantly higher nematicidal activity against PWN than compounds with shorter or longer carbon chain lengths23,24. In this study, too, C11OEtOH showed higher nematicidal activity than other 1-(2-alkyloxy)-2-ethanol homologues with shorter or longer carbon chains.

The relationship between the structure of aliphatic carboxylic acids and their toxicity to nematodes has been sparsely reported. Among linear carboxylic acids with C4-C10 carbon atom chains, octanoic acid (C8 chain length) was the most toxic to two Drosophila species25. The authors suggested that its higher toxicity might be linked to its structural characteristics, allowing an easy transfer of the compounds through the insect cuticle. Li et al. suggested that the steric hindrance of longer-chain analogs affects the toxicity of aliphatic isothiocyanates26. The toxicity of compounds increased when the electron population or electron accessibility (richness) increased27. In our study, C11OEtOH exerted the most effective nematicidal activity, even though its total length is equivalent to tetradecanol (C14OH) which showed weak nematicidal activity in a previous study23. The oxy group (-O-) in the structure of C11OEtOH possibly contributed to the nematicidal activity. The addition of an oxy group to the structure would increase toxicity by increasing the compound’s transferability through insect cuticles. However, the mechanism of nematicidal activity of some homologues of 2-(1-alkyloxy)-1-ethanol remains unknown.

The different susceptibilities of invertebrates and vertebrates to these compounds provide an acceptable therapeutic ratio for pesticide use. In order to overcome resistance development of a pest against pesticides, the activities of the compounds must have different modes of action28. The mode of action of avermectin is related to the GABA-gated chloride channel29. Kang et al.30 estimated the inhibitory activity of C11OH against acetylcholinesterase (AChE) and glutathione S-transferase (GST) of PWN to elucidate the mode of action30. Although C11OH showed relatively high nematicidal activity, it showed no or little inhibition activity against AChE and GST of PWN30. This result suggests that AChE and GST may not be the targets of C11OH. For the safe practical use of C11OEtOH as a nematicide, the mode of action of C11OEtOH should be investigated.

It is unclear why the pheromone of the Monochamus vector species has strong nematicidal activity against PWN, a parasite of Pinus spp. The reasons for PWN to spread through the Monochamus vector species that produce an aggregation pheromone that can kill them are worthy of future study.

For a trunk injection agent to be effective against PWN, it is necessary for the injected agent to be translocated throughout the tree at an effective concentration. For this purpose, the agent should have adequate water solubility and diffuse to every part of the tree. C11OEtOH showed as effective a nematicidal activity as abamectin, which is in practical use as a trunk injection agent. Although C11OEtOH has the advantage of being easily synthesized, it shows very low water solubility. Therefore, to develop C11OEtOH as a commercial trunk injection against PWN, a water-soluble preparation of C11OEtOH should be formulated.

In conclusion, 2-(1-undecyloxy)-1-ethanol (monochamol) can be used as an effective nematicide against pine wood nematode, and water-soluble monochamol formulations are required along with the identification of an effective concentration (dose) for the control of pine wilt disease. Studying the mechanisms of the nematicidal activity of monochamol is also valuable.

Materials and Methods

Collection of pine wood nematodes

PWN was extracted by Baermann funnel method31 from chips of PWN-infected pines collected from Jinju, Korea in 2014. The PWN were cultured as described by Park et al.32 until used for bioassay.

Chemicals

Authentic compounds used for bioassay were synthesized as shown in Fig. 1. Undecanol (99% pure) was obtained from Sigma-Aldrich (St. Louis, MO). Abamectin (1.8% of active ingredient) was purchased from Syngenta (Basel, Switzerland). BFC30, a surfactant, was generously provided by Dongbu Farm Hannon Ltd. (Daejeon, Korea).

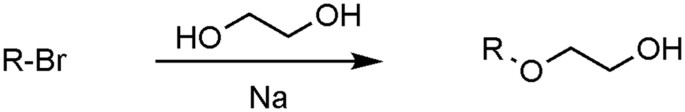

Figure 1: Synthetic scheme of 1-(2-alkyloxyl)-1-ethanol.
figure 1

R is a straight-chain hydrocarbon with 7-13 carbon atoms.

Full size image

Instrumental analysis

Gas chromatography-mass spectrometry (GC-MS) analysis was performed on a GCMS-QP2010 coupled with a GC2010 (Shimadzu, Kyoto, Japan) equipped with a HP-Innowax (30 m × 0.25 mm i.d., 0.25 μm film thickness; J&W Scientific, Folsom, CA). The oven temperature was programmed as 40 °C for 1 min, then raised to 250 °C at 6 °C/min, and the temperature held for 4 min. Purities of synthesized compounds were checked by GC-FID (GC17A: Shimadzu; DB-5MS: J&W Scientific). 1H and 13C NMR (500 and 125 MHz, respectively) analysis was performed with a Bruker DRX-500 spectrometer using TMS in CDCl3 as an internal standard at Center for Research Facilities of GNU.

Synthesis of the monochamol and its homologues

2-(1-Undecyloxy)-1-ethanol (C11OEtOH) and its homologues were synthesized following the method by Loffredo et al. (Fig. 1)33. A general procedure followed was; to a 3-necked round-bottom flask, provided with dropping funnel, a reflux condenser, and inlet for nitrogen was added 80 mmole of ethylene glycol (Daejung, Hwasung, Korea). Sodium (23 mmole, Alfa Aesar) was added in small portion to the ethylene glycol with care under vigorous magnetic stirring and the mixture was heated to 60 °C until added sodium dissolved completely. The appropriate 1-bromoalkane (0.20 mmole, Alfa Aesar/Sigma-Aldrich) was added and the solution was then kept heating at 60 °C for 4–6 h. After cooling and adding water, the solution was extracted with diethyl ether three times. The organic layer was washed with 2N HCl and brine, and dried over MgSO4. After the solvent was removed, the residue was subjected to silica gel column chromatography to obtain desired compounds (35% diethyl ether in hexane fraction). The NMR data of synthesized compounds (data not shown) were in good agreement with literature values19,33. The MS data are listed below. NMR data are available in Supplementary Information.

2-(1-heptyloxy)-1-ethanol (C7OEtOH); Colorless liquid, yield: 72.2%, purity: 99.1%, MS m/z (% relative intensity, ion): 129 (0.9, M+-CH2OH), 115 (0.2), 97 (10.4), 83 (1.0), 70 (10.7), 63 (12.1), 57 (100.0), 45 (45.4), 43 (47.9).

2-(1-octyloxy)-1-ethanol (C8OEtOH); Colorless liquid, yield: 69.0%, purity: 99.7%, MS m/z (% relative intensity, ion): 143 (6.6, M+-CH2OH), 129 (0.8), 112 (18.6), 111 (45.9), 97 (2.5), 84 (38.5), 83 (22.4), 71 (99.3), 63 (48.6), 57 (100.0), 45 (75.0), 43 (88.5).

2-(1-nonyloxy)-1-ethanol (C9OEtOH); Colorless liquid, yield: 59.8%, purity: 96.7%, MS m/z (% relative intensity, ion): 157 (3.5, M+-CH2OH), 127 (1.8), 98 (12.5), 85 (37.5), 71 (58.5), 63 (21.2), 57 (60.9), 45 (59.9), 43 (100.0).

2-(1-decyloxy)-1-ethanol (C10OEtOH); Colorless liquid, yield: 53.5%, purity: 99.4%, MS m/z (% relative intensity, ion): 171 (2.5, M+-CH2OH), 157 (0.2), 140 (5.7), 112 (14.1), 97 (20.0), 85 (65.2), 71 (65.8), 63 (32.2), 57 (100.0), 45 (43.6), 43 (78.8).

2-(1-undecyloxy)-1-ethanol (C11OEtOH); Colorless liquid, yield: 47.0%, purity: 99.0%, MS (%): 185 (4.3, M+-CH2OH), 171 (0.3), 154 (6.7), 126 (12.6), 111 (16.0), 97 (39.9), 85 (50.6), 71 (66.6), 63 (28.0), 57 (100.0), 45 (37.5), 43 (59.2).

2-(1-dodecyloxy)-1-ethanol (C12OEtOH); Colorless liquid, yield: 65.7%, purity: 98.0%, MS m/z (% relative intensity, ion): 199 (4.4, M+-CH2OH), 185 (0.3), 168 (6.3), 140 (12.5), 125 (10.9), 111 (36.8), 97 (47.5), 85 (67.9), 71 (88.4), 63 (46.6), 57 (100.0), 45 (48.9), 43 (82.4).

2-(1-tridecyloxy)-1-ethanol (C13OEtOH); white solid at 20 °C; yield: 45.9%, purity: 98.2%, MS m/z (% relative intensity, ion): 213 (0.6, M+-CH2OH), 182 (0.7), 154 (1.5), 125 (2.7), 111 (6.1), 97 (12.0), 85 (22.2), 71 (38.7), 63 (22.1), 57 (78.3), 45 (60.3), 43 (100.0).

Nematicidal activity

Solutions of 2-(1-alkyloxy)-2-ethanol homologues, undecanol, and abamectin (1.8%) were prepared by serial dilution with distilled water containing BFC30 (200 mg/L). The stock solutions were of 1000 ppm, which were then, diluted by 1/10 times in sequence in each step, if a concentration found somewhat effective to the PWN. Undecanol, which was reported to exhibit nematicidal activity23 was selected as one of the positive controls because of its 1.0% share in the synthetic monochamol. The stock solution of abamectin (1.8%) was 100 ppm (active ingredient: 18 mg/L) which was also serially diluted. Test solutions (1 mL) were introduced into wells of 24-well plates (Falcon, USA). Each well was then inoculated with about 100 mixed stages (male: female: juvenile = 1:1.2:9.5) of PWN in 10 μL of distilled water. Controls were treated only with BFC30 solutions. The well plates were held under the same conditions as used for nematode colony maintenance. Mortality of nematodes was recorded after 24 h under a stereoscopic microscope. Nematodes were considered as dead if their bodies were straight and when they did not move, even after transferring to clean water. Two to four trials with three to four replicates were performed on different days. Data were pooled for analysis.

Statistical analyses

Nematode mortality was corrected using Abbott’s formula34 and corrected mortality was transformed to arcsine square root values for analysis of variance (ANOVA). Treatment means were compared and separated by Tukey-Kramer HSD test. The LC50 value was estimated by probit analysis with dose-response data. Differences in LD50 and LD90 values between treatments were considered significant if the 95% confidence intervals did not overlap. Statistical analyses were performed using JMP ver. 9.0.2 (SAS Institute Inc., Cary, NC, USA). Mean (±SEM) values of untransformed data are reported.

Additional Information

How to cite this article: Kim, J. et al. Bursaphelenchus xylophilus is killed by homologues of 2-(1-undecyloxy)-1-ethanol. Sci. Rep. 6, 29300; doi: 10.1038/srep29300 (2016).
