From: AlGaAs 55Fe X-ray radioisotope microbattery

Figure 4

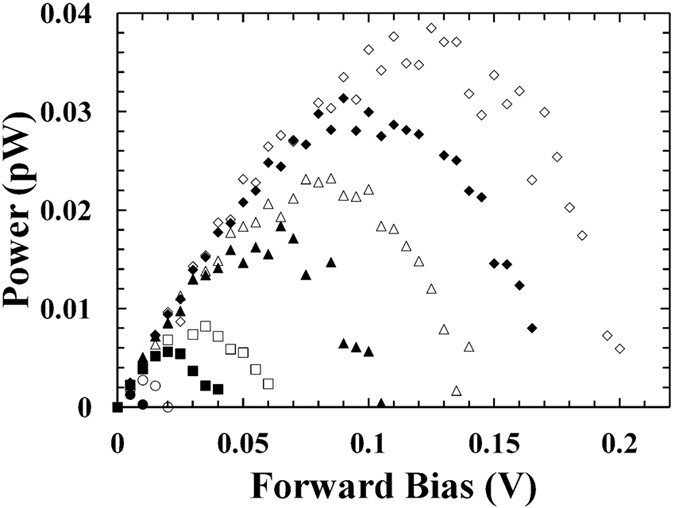

Output power as a function of applied forward bias for D1 at different temperatures.

The temperatures studied were 50 °C (filled circles), 40 °C (empty circles), 30 °C (filled squares), 20 °C (empty squares), 10 °C (filled triangles), 0 °C (empty triangles), −10 °C (filled rhombuses) and −20 °C (empty rhombuses).
