Main

Genetic studies have revealed molecular basis of deficits in auditory function in certain cases.1, 2, 3, 4, 5, 6, 7, 8 However, the entire picture of abnormalities causing auditory deficits is not yet provided. So far, α-tectorin is one of the most studied molecules in relation to auditory function. Mutation of the α-tectorin gene leads to auditory deficits in humans,1, 2 and mice deficient in the α-tectorin gene also exhibit deficits in auditory function.3 α-Tectorin is a major protein of the tectorial membrane in the cochlea, in which the sound-induced movement of the basilar membrane is transmitted to the sensory hair bundles by the tectorial membrane. β-Tectorin is also abundantly expressed in the tectorial membrane.9 α- and β-Tectorins have protein motifs involved in sperm–egg adhesions; the motifs appear to function in the formation of filament-based matrices or gels.9, 10 Although direct evidence of the participation of β-tectorin in auditory function is lacking, its expression is decreased upon thyroid hormone deficiency,11 which causes auditory impairment. Furthermore, β-tectorin is an antigen that causes autoimmune hearing loss.12 Here, we report that mice doubly deficient in midkine (MK) and pleiotrophin (PTN) are impaired in β-tectorin expression and exhibit severe deficits in auditory function.

MK and PTN, also called heparin-binding growth-associated molecule (HB-GAM), are low molecular weight basic proteins with closely related structures and serve as growth/differentiation factors and cytokines.13, 14, 15, 16, 17, 18, 19 The expression of these factors is temporally and spatially regulated; intense expression is usually observed in tissues during the embryonic and perinatal periods.20, 21 Overexpression of these factors, especially MK, in adult tissues is associated with malignancy and inflammatory diseases.16, 18, 22, 23, 24, 25

Both MK and PTN are strongly expressed in the central nervous system during development20, 21 and promote the neurite outgrowth, and migration and survival of neurons.16, 18, 19, 26, 27, 28 Furthermore, PTN promotes differentiation of neural progenitor cells.29, 30 Mice that are deficient in the MK or PTN gene exhibit certain behavioral abnormalities.31, 32 Overexpression studies also indicate that MK promotes neurogenesis in Xenopus and zebra fish embryos.33, 34 In a recent study in zebra fish, which have two species of MK due to gene duplication, it was established that a form of MK plays essential roles in the formation of the medial floor plate, one of the most ventral neural tube structures.35 The factors are also expressed in specific regions during development of the sensory organs, suggesting roles in the developmental process.20, 21 MK and PTN have 45% sequence identity at the protein level, and share many of the in vitro activities.14, 16, 18, 19, 36, 37 Therefore, we inferred that the functions of MK and those of PTN frequently overlap. Thus, to clarify the roles of these factors in vivo, we generated mice doubly deficient in both the MK and PTN genes. As a result of many in vitro activities of these factors to neuronal cells, we focused to the possible abnormalities in the nervous and sensory systems of the doubly deficient mice. Consequently, we were able to demonstrate that expression of growth factors in the cochlea is important in normal auditory function.

Materials and methods

Knockout Mice

Mice deficient in the MK gene (Mdk)24 were generated as described previously. Mice deficient in the PTN gene (Ptn) were also described38 (Muramatsu et al, submitted for publication). After the backcrossing of Mdk+/− or Ptn+/− to C57BL/6J mice for 10 generations, Mdk+/− and Ptn+/− mice were mated with each other to generate wild-type (WT), MK knockout (MKKO) PTN knockout (PTNKO) and double knockout (DKO) mice, which were used in the present study. The female sterility of DKO will be described elsewhere (Muramatsu H et al, submitted for publication).

DNA Microarray Analysis

At day 14 after birth, total RNA from the whole brain was isolated with an RNeasy column (QIAGEN Sciences, Tokyo, Japan) according to the manufacturer's protocol. The gene expression profile was analyzed with a DNA microarray using a CodeLink Expression Bioarray System (Amersham Biosciences) provided by Kurabo (Osaka, Japan).

Preparation of Specimens from Cochleas

Six cochleas from postnatal day (P) 7 or P14 mice were fixed in 4% paraformaldehyde in phosphate-buffered saline (PBS; pH 7.4) for 1 day at 4°C, washed three times with PBS, and decalcified in 0.5 M EDTA (pH 7.5) for 7 days at 4°C. After dehydration through a graded series of ethanol solutions, the specimens were embedded in paraffin. Sections were cut at 5 μm, placed on glass slides coated with 3-aminopropyltriethoxysilane, and then subjected to staining with hematoxylin and eosin (HE), or to in situ hybridization. Total cochlear RNA was isolated from six cochleas of WT, MKKO, PTNKO or DKO mice using Isogen (Wako, Tokyo, Japan) according to the manufacturer's directions.

Reverse Transcription (RT)-PCR

Total cochlear RNA (500 ng) was subjected to RT in a 20 μl reaction mixture containing 40 Us of RNase inhibitor (Invitrogen, Carlsbad, CA, USA) and 0.5 μg of oligo dT primers (Invitrogen). In all, 50 U of SuperScript™ II reverse transcriptase (Invitrogen) was used to synthesize double-stranded cDNA. The 50-μl PCR mixture contained 2 μl of the product of the RT, 5 μl of 10 × PCR buffer, 2 mM dNTP, 2.5 U of ExTaq DNA polymerase (Takara, Kyoto, Japan), and 20 pmol each of the primers. After preincubation at 94°C for 5 min, PCR was performed for 30 cycles of 30 s at 94°C, 40 s at 60°C, and 90 s at 72°C, followed by one extension-cycle for 5 min at 72°C. The oligonucleotides used for amplification were as follows: MK (5′-ATGCAGCACCGAGGCTTCTT-3′ and 5′-CTTTGACTTGGTCTTGGAGG-3′); PTN (5′-ACTGGCGCCGAGTGCAAACAG-3′ and 5′-GAGCTTGCCACAGGGCTTGGA-3′); α-tectorin (5′-AGCAACGACAAGCTTCGGTACTTC-3′ and 5′-TCTTGCAGGGATCCGGTCACACAG-3′); β-tectorin (5′-GAAATCATGCACTCCGAATAAAGC-3′ and 5′-CGAGGGGGTGGCCCAGCAGCTATT-3′); β-actin (5′-GTGGGCCGCTCTAGGCACCA-3′ and 5′-CGGTTGGCCTTAGGGTTCAGGGGG-3′).

Real-Time Quantitative PCR

Real-time quantitative PCR for α-tectorin, β-tectorin and β-actin was carried out using the TaqMan probe and TaqMan Universal PCR Master Mix according to the manufacture’s directions. Expression of each gene was normalized to the amount of β-actin RNA. We calculated relative amounts of each product using the comparative CT method as described in the user bulletin of ABI Prism 7500 Sequence Detection System (Applied Biosystems, Foster City, CA, USA).

In Situ Hybridization

MK cDNA (nucleotides 1-420)39 or PTN cDNA (nucleotides 270-773)40 was inserted into Bluescript KSII+ (Stratagene). The PCR product of α-tectorin (469 bp) or β-tectorin (576 bp) was also subcloned into Bluescript. These plasmids were digested to completion with either HindIII or BamH1. Digoxigenin-labeled antisense RNA probes were transcribed from HindIII cut clones using T7 RNA polymerase and sense RNA probes were transcribed from BamH1 cut clones using T3 RNA polymerase (DIG RNA labeling kit, Boehringer Mannheim, Mannheim, Germany). In situ hybridization was performed as described previously.41

Determination of Thyroid Hormones

Thyroid hormone levels in sera were determined using four mice of each genotype at 8 weeks after birth employing Gamma Coat T3 II and Gamma Coat M Total T4 (DiaSorin Inc, Stillwater, MN, USA).

Determination of Auditory Responses

Auditory brain stem responses (ABRs) were measured in four 8-week-old mice from the WT, MKKO, PTNKO and DKO groups. After the mice were anesthetized using a mixture of ketamine hydrochloride, xylazine, and acepromazine maleate administered subcutaneously, needle electrodes were inserted into the vertex (positive), occiput (negative), and hindpaw (ground). Tone bursts of 4 ms duration with a rise and fall time of 1 ms at frequencies of 8, 12, 16, and 20 kHz were produced using a sound stimulator (DPS-725, Dia Medical System Co., Tokyo, Japan), and a speaker (10TH800, Technics, Osaka, Japan). A total of 512 tone-burst-evoked responses were obtained with amplifier filters set below 100 and above 3 kHz. The amplified responses were averaged by a computer (PowerLab 4/20, ADInstruments, Castle Hill, Australia) and displayed on a monitor. ABRs were obtained by decreasing the stimuli in 5-dB steps from a maximum intensity of 100 dB SPL

Results

DNA Microarray Analysis of the Brain of MK/PTN DKO Mice

In order to detect abnormalities in the brain of 14-day-old DKO mice, which were deficient in both the MK and PTN genes, a DNA microarray analysis was performed. We found that the expression of several genes was severely suppressed in DKO mice as compared to WT mice (Table 1). However, the expression of the majority of such genes was also suppressed in MKKO mice, which lacked only the MK gene (Table 1). On the other hand, in PTNKO mice the number of severely suppressed genes decreased, and the reduced expression was not reproduced in DKO mice. Most probably, expression of PTN in the absence of MK results in disturbed expression of some genes. The gene, the expression of which decreased most dramatically in DKO mice, encoded β-tectorin, which is known to be strongly expressed in the cochlea.9 Thus, we focused our attention on the cochlea.

Table 1 Downregulated genes in the brains of MK/PTN DKO, MKKO or PTNKO mice
Full size table

Expression of MK, PTN, α-Tectorin and β-Tectorin in the Cochlea of WT and DKO Mice

RT-PCR analysis revealed that MK and PTN were strongly expressed in the cochlea of WT mice 1 week after birth, and then the expression decreased and was undetectable by week 8 after birth (Figure 1). The strong expression of MK in the cochlea of newborn mice is consistent with a previous report.42 α- and β-tectorins are known to be strongly expressed during the neonatal period, but they were hardly detectable in the adult.43 In the cochlea of 1-week old DKO mice, β-tectorin expression was undetectable by RT-PCR analysis but that of α-tectorin was unaffected. In mice singly deficient in either MK or PTN, the cochlea tectorin levels were not significantly affected (Figure 1).

Figure 1
figure 1

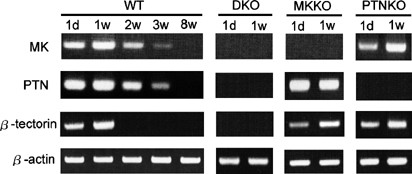

RT-PCR analysis for the gene expression in the cochlea of WT, MKKO, PTNKO or DKO mice from 1day (1d) to 8 weeks (8w) after birth. Total cochlear RNA was isolated from six cochlea of WT, MKKO, PTNKO or DKO mice and PCR products were electrophoresed using 2% agarose gel.

Full size image

Quantitative RT-PCR analysis revealed that the level of β-tectorin mRNA in the cochlea of DKO mice was 8% of that in the WT mice at 1 week after birth (Figure 2). Even by this analysis, α-tectorin levels did not differ between WT and DKO mice. Also, we found a small amount of α- and β-tectorin RNA in the brains of 7-day old and 14-day old WT mice, confirming the finding of the DNA microarray analysis.

Figure 2
figure 2

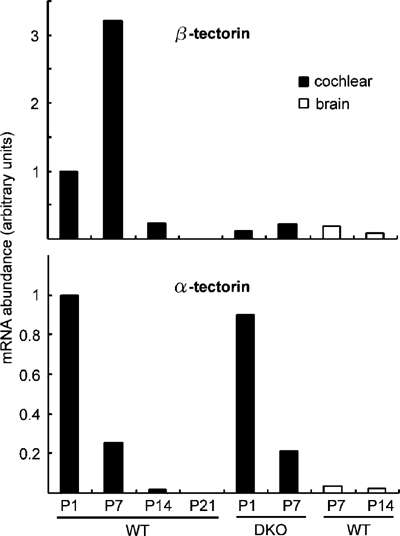

Quantification of mRNA of α- and β-tectorin in the cochlea (closed bars) or brain (open bars) of WT and DKO mice. Abundance is the ratio to β-actin mRNA in the same sample.

Full size image

We performed in situ hybridization to correlate the expression of MK, PTN and tectorins in the cochlea of 1-week old mice (Figure 3). Both MK and PTN were expressed in the striavasularis and the greater epithelia ridge and surrounding structures (Figure 3a, b); these signals were not detected using sense probes. The strongest signal for both α-tectorin and β-tectorin was observed in the greater epithelial ridge (Figure 4). The expression of β-tectorin in this area was abolished in DKO mice, but that of α-tectorin persisted (Figure 4). The overlapping expression of β-tectorin, MK and PTN in the greater epithelia ridge, and their absence in DKO mice strongly suggested that β-tectorin expression was directly regulated by MK and PTN. As thyroid hormone levels are known to affect the expression of β-tectorin,11 we determined the levels of thyroid hormones in sera of 8-week old mice and found that they did not differ between WT and DKO mice: T3 and T4 levels were, respectively, 0.65±0.11 and 2.74±0.44 ng/ml in WT and 0.54±0.17 and 2.49±0.62 ng/ml in DKO mice. Furthermore, the levels of mRNAs for thyroid stimulating hormone (TSH) β-subunit, glycoprotein hormone α-subunit, which serves as TSH α-subunit, TSH releasing hormone and TSH releasing hormone receptor in the brain of 2-week-old mice did not differ between WT and DKO mice as examined by DNA microarray analysis. All mRNAs were expressed in good levels to ensure the accuracy of the analysis. The result indicates that abnormality in the level of TSH did not occur in DKO mice.

Figure 3
figure 3

In situ hybridization to reveal MK and PTN expression in the cochlea of WT C57BL/6J mice one week after birth. Sections were hybridized with antisense (a, b) or sense (c, d) probes for MK (a, c) and PTN (b, d). Positions of the stria vascularis (SV), and cells of the greater (G) and lesser (L) epithelial ridges are indicated in a and b. Bar, 100 μm.

Full size image
Figure 4
figure 4

In situ hybridization to detect expression of α- and β-tectorin in the cochlea of WT or DKO mice 1 week after birth. Staining with the antisense probe is shown. Sense probes gave staining as seen in β-tectorin DKO. Bar, 100 μm.

Full size image

Deficit of Auditory Response in the Knockout Mice

Using 8-week old male mice, we compared the auditory responses of WT, single knockout and DKO mice by measuring ABRs (Table 2). MKKO and PTNKO mice exhibited low to moderate levels of auditory deficits. Although WT animals responded at about 25 dB, MKKO and PTNKO mice generally responded at around 50 dB. On the other hand, DKO mice were found to show a very severe phenotype. None of four DKO mice exhibited a response (shown as 105 dB) to low frequency sound (8–12 kHz). Some DKO mice responded to the strongest (100 dB) high-frequency sound (16–20 kHz), and others did not. Thus, DKO mice with little β-tectorin were severely impaired in their auditory function. Significant morphological difference was not detected between the cochlea of WT mice and that of DKO mice (Figure 5).

Table 2 Deficits in auditory response in MKKO, PTNKO and DKO mice
Full size table
Figure 5
figure 5

HE-staining of sections of the cochlea from WT or DKO mice 8 weeks after birth. Bar, 100 μm.

Full size image

Discussion

Tectorial membranes in the cochlea play a role in transmitting the mechanical signal of a sound to hairy cells. α-Tectorin and β-tectorin are major non-collagenous proteins of tectorial membranes and their mRNAs are expressed strongly in the cochlea of newborn mice, but scarcely in adult mice, probably reflecting the slow turnover of these proteins.43 Expression of β-tectorin was nearly abolished in the cochlea of newborn mice doubly deficient in the MK and PTN genes. An obvious question is whether the loss of expression is a direct consequence of the absence of the factors in the cochlea or is an indirect effect of systemic changes. We believe that the disappearance of β-tectorin is the direct consequence of the loss of the growth factors, since both MK and PTN were expressed where β-tectorin expression was prominent. Even though β-tectorin mRNA level decreases upon thyroid hormone deficiency in the rat, the level of suppression is not as severe as found in the present study.11 We also confirmed that the thyroid hormone level was not different between WT and DKO mice 8 weeks after birth, and that the mRNA levels of TSH, TSH-releasing hormone and the receptor in the brain of 2-week-old mice were not significantly different between WT and DKO mice as shown by DNA microarray analysis.

The reason of the low to moderate levels of auditory deficits in MKKO or PTNKO mice is not clear at the present stage of analysis. In contrast, severe auditory deficit in DKO mice was accompanied by the suppression of β-tectorin. While evidence accumulates for an essential function of α-tectorin in hearing, only indirect evidence is provided for the role of β-tectorin. Upon thyroid hormone deficiency, the β-tectorin level decreases with a concomitant reduction in hearing;11 but one can argue that a possible abnormality in some other part of the ear causes the deficit. Loss of β-tectorin expression is the much likely reason of the severe auditory deficit in DKO mice, while additive effects of MK deficiency and PTN deficiency cannot be completely eliminated. Thus, the results of the present investigation provide further supporting evidence, but not a definitive evidence for the role of β-tectorin in auditory function.

Although MK and PTN have been shown to share many functions in vitro, such as neurite outgrowth, migration of neurons, migration of osteoblasts and clustering of acetylcholine receptors,18, 36, 37 there are few reports demonstrating that the two factors share activities in vivo. Very recently, both MK and PTN have been shown to regulate the renin–angiotensin system.44, 45 The present report also verifies the shared activities.

The present study revealed a novel route leading to auditory deficits, namely deficiency of growth factors and the signaling systems at the cochlea during critical time of development. Although only low to moderate levels of auditory deficit are observed in MK or PTN single deficiency, auditory deficit in DKO mice is at a very severe level. While dual loss of MK and PTN in patients is rather unlikely, abnormality in a signaling receptor for these factors can cause congenital disorder of auditory response. The receptors for MK consists of multiple molecules, namely integrins, low-density lipoprotein receptor-related protein (LRP), proteoglycans such as receptor-type tyrosine phosphatase and probably Alk kinase.46, 47, 48, 49 It is highly likely that the receptor for PTN shares most components with the MK receptor.18, 26, 50, 51, 52 As a candidate causing the receptor malfunction, it may be worthwhile to examine abnormalities of certain sulfotransferases, since oversulfation of glycosaminoglycan chains is required for the receptor activity.53
