Introduction

Archaeological remains are material testimonies of the history, being it social of a particular region, or of the technological evolution used in the past. The Zaghouan-Carthage aqueduct is a witness to Roman construction technique and the excellent work achieved in urban structures since antiquity.

Archaeological finds show that the region of Carthage was already occupied around the 9th century BC1,2. It became a prosperous region, with trade as its main economic source. In this period, Phoenician rule, in addition to the commercial activities established with different peoples of the Mediterranean, was a source of disputes and wars. The Roman occupation began at the time of Emperor Augustus, who ruled Rome between 49 and 44 BC. The main Roman buildings in Carthage, such as the forum and other public buildings, began to be built at this time. Carthage soon became prosperous again and one of Rome’s largest colonies3. Between the 1st and 2nd centuries AD, other public buildings were built, such as the amphitheatre and the circus, as well as new structures to supply the local water needs, such as fountains and cisterns. It is agreed that the visit of Emperor Hadrian to Carthage in 128 AD was the key point for his order to build the aqueduct. In the Roman context, aqueducts were essentially structures built to supply thermal baths, although the water transported could also be used for other purposes, almost always in urban environments4. It is estimated that the aqueduct was completed in 162 AD, the year in which the construction of the Antonine Thermal Baths, supplied by the waters brought by the aqueduct, was also completed1,5.

The aqueduct of Carthage was the largest built in the Roman Empire. It had a total length of 132 km, including the main conduit and some branches3,5,6,7,8,9,10,11,12. The main conduit was just over 90 km long and drew water from a spring on the Zaghouan hill, where the Nymphaeum was built, with the capacity to capture between 30 and 160 l of water per second, depending on the time of year. The Nymphaeum had the function of accumulating water, in a kind of tank, to facilitate the collection for the conduit, in addition to being also a monument in honour of the nymphs10,12,13. A second spring, in the same region known as Aïn Ayed, with the capacity to collect between 29 and 40 l of water per second, was also used as a source of water10. Two other water collection points were connected to the main pipeline in Moghrane by a secondary pipeline southwest of Zaghouan, 33.63 km long, which drew water from the Aïn Djouggar spring, capable of collecting between 38 and 171 l of water per second, and also from the spring known as Aïn ben Saidane, capable of collecting more than 29 l per second8,10,11. Although there is no consensus on water consumption by the population of Carthage, it is estimated that the maximum flow of water transported by the aqueduct per day would be between 17,280 to 25,000 m3,5,12.

Most commonly, Roman aqueducts followed the terrain or were deliberately buried in order to avoid enemy attack, with their construction on pillars and arches being restricted to the needs of the shortest route4,14. In Carthage it was no different. Only 17 km of the aqueduct was in aerial sections, over arcades that crossed depressions in the terrain and the valley of the Miliane River, where the arches reached 38 m in height (Fig. 1a)5,7,11,12. Most of the aqueduct was made up of a stone masonry conduit, underground, where the water flowed by gravity15,16. The Romans built the ducts with a rectangular profile, covered by a semi-circular vaulted roof, large enough for a person to stand inside, thus guaranteeing their maintenance and cleaning when necessary (Fig. 1b)3,12,14,17,18. The base and interior walls of the pipeline would be covered with lime mortar, mixed with ceramic fragments, to make the surface more regular and smoother, thus contributing to the flow of water (Fig. 1c). In addition to waterproofing the duct and preventing leaks, this coating also increased mechanical resistance. As the water occupied a maximum of 2/3 of the duct’s capacity, there was no need to line the entire inside of the duct, leaving the top of the duct unlined4.

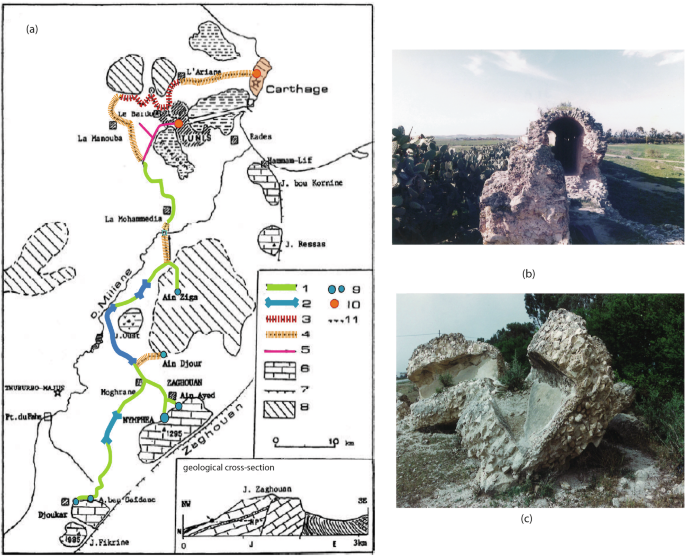

Fig. 1: The aqueduct of Zaghouan-Carthage.
Fig. 1: The aqueduct of Zaghouan-Carthage.
Full size image

a Map of the aqueduct of Carthage: 1-Main and secondary conduits, 2-Tunnel section, 3-Abandoned section, 4-section on arch, 5-Modern conduct, 6-Limestone massif, 7-Major Fault, 8-Quarternary, 9- water collection source, 10-reservoir, 11–13-century deviation. Geological cross-section: N-Marl, J-Jurassic limestone, E-Eocene, NP-piezometric level. (Adapted from Phillipe Leveau, 10, p.510). b Remnants of the water main, where you can see the construction system with its straight base and domed roof. c Remnants of the base of a collapsed conduit, with the mortar coating (images: J.P. Veiga).

Mortars made from ground ceramic fragments were known as Opus signinum or popularly as “coccio-pisto” or “cocciopesto” and were systematically used as a waterproofing coating on structures intended for storing and transporting water or which were subject to the action of rain, such as cisterns, aqueducts, spas and terraces19,20,21,22. The form of preparation of this type of mortar was described by Vitruvius, in his treatise on Architecture, although he specifically suggested the addition of pozzolan for the construction of water-resistant buildings23,24. The addition of ground ceramics, volcanic ash, and some types of silicate rocks as aggregate in a mortar imparts hydraulic properties to the material produced, even if the binder used is an area lime12,20,25,26. Hydraulic mortars have the ability to harden when submerged or in direct contact with water, improving the strength and durability of the material20,26,27.

In addition to their use as render, mortars were also used as a binding and joining element for blocks in construction. When used for this purpose, mortars contribute to improving the strength of the built structure, because in addition to contributing to load distribution, they adapt to the shapes and sizes of blocks and stones, and can even be used as filling material, making them a versatile material for different construction techniques28. In general, despite their different uses, mortars are prepared in a similar way, by mixing the binder and aggregates (usually medium-fine grain sand) with water29. In his treatise, Vitruvius describes both the methods of preparing lime, used as a binder, and indicates which sand would be best to use according to the application of the material. In the case of renders, for example, he recommends the use of river sand to prevent cracking in the mortar23,30. As with mortars used for plastering, in the case of structural mortars, the type of binder, the composition and size of the aggregates, the amount of mixing water, the pore systems, the care taken in preparation and application, and the environmental conditions will be decisive factors for the quality, durability, and efficiency of the material in performing its function28.

Different types of mortar can be found in the ruins of Carthage’s aqueduct today, the result of the construction techniques involved, reconstructions and restoration work carried out over time. Regarding the construction system, in addition to the coating of the water conduits, mortars were used in the construction of the pillars that supported the conduits in the aerial sections, thus performing its structural function as a connecting element between blocks or stones, according to the construction system used29. The Roman technique used was the opus caementicium, in which the pillar was made up of an internal filling core, made of stones of varying sizes soaked in lime and sand mortar, covered externally by blocks of cut stones or bricks, without the use of mortar to join the blocks, although eventually there could be mortar at some points (opus quadratum) (Fig. 2a)3,7,12,19. Also for this case, the preference was given to mortars with pozzolanic behaviour, because they are more resistant19. As far as reconstructions are concerned, some phases are historically recognised, especially those related to the problems caused by wars. The water supply was interrupted during the Vandal occupation, between the years 439 and 533, when it was ruled by the Byzantines, and the aqueduct was repaired3,7,8,31. In 698, Carthage was taken, this time by the Arabs, and once again the aqueduct was destroyed in the aerial sections. According to Phillipe Caillat, the conquistadors themselves restored the aqueduct years later, but with different construction features31. However, the Byzantine period was marked by the abandonment of the aqueduct and the pillaging of the stones for use in other constructions, and it is not known for sure which sections of the aqueduct remained in operation5,9. It is known that new sections were built during the rule of Hafsid Sultan Abu Abdullah Mohammed I, between 1250 and 1267 (Fig. 2b), with the aim of directing water to his palace and to the supply of Tunis, since Carthage was in ruins5,9,11,13. The Spanish occupation around 1570 contributed to the dismantling and reuse of materials for new constructions7,31. It was only in the mid-seventeenth century that work was carried out to recover the aqueduct, with the aim of reestablishing its function, excluding the aerial sections that were already unrecoverable and were replaced by syphons8,18. Some parts of the ruins of the Carthage aqueduct are currently inserted in rural and urban contexts, suffering from the impact of the region’s activities. Therefore, in addition to the historical interventions, various stabilisation, recovery, and reconstruction works are still being carried out on the ruins of the aqueduct (Fig. 2c), which makes this case particularly important for the study of materials used in monuments built over the years.

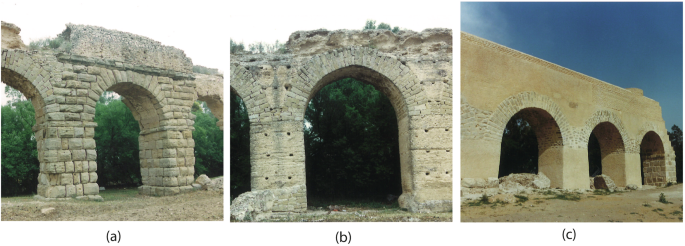

Fig. 2: Different building system.
Fig. 2: Different building system.
Full size image

a Roman building system opus quadratum and opus caementicium inside the pillar. b Medieval reconstruction of the Hafsid period. c Modern Reconstruction (current). (images: J.P. Veiga).

The aim of this study is to characterise mortar samples collected from the ruins of the Carthage aqueduct, in aerial sections, in order to identify the diversity of materials used in construction and in interventions carried out over the years and to try to establish the relationship between the materials produced, the function of the mortars and the historical periods identified or not by archaeologists in preliminary studies7.

Methods

For this study, 40 samples were collected at different points of the aqueduct ruins, to include a characteristic specimen of each type of construction and/or intervention identified and some unclassified samples. The mortars sampled fulfilled two basic functions in the aqueduct: structural, in this case used as filler for the Roman pillar, or used to join blocks, a construction method more representative of more modern historical periods, and render, which could have come from the main water conduit or other areas of coating from collapsed structures that were not clearly identified as conduits. From collapsed structures that were not clearly identified as conduits, being uncertain in these latter cases, the identification according to their function or historical period of manufacture/use. The periods indicated in the samples were referred to by the team of archaeologists and historians, based on in situ visual analysis and previous studies32. The proposed analytical methodology favoured the preservation of samples, whenever possible. It was necessary to prepare them in order to adapt them to the needs of the equipment used, and part of them were manually ground in an agate mortar and, another part, a cohesive fragment, was selected to be assembled in epoxy resin and polished in cross-section. The set of techniques used included20,33:

X-ray fluorescence

Elemental chemical composition was performed on the ground samples, without separation of the binder and aggregates. X-ray fluorescence for chemical analysis was performed using an X-ray fluorescence spectrometer with a wavelength dispersive system (WDXRF) PANalytical–Axios 4.0, with a rhodium X-ray tube (20.21 keV), in conditions optimised for element quantification. The analyzing crystals of LiF220, LiF200, Ge, PE, and PX1 were used for the separation of fluorescent X-ray peaks covering all measurable range, from the element Na. Analysis was performed under He flow and spectra deconvolution using the iterative least-squares method and standardless semiquantitative analysis based on the fundamental parameter approach with the SuperQ IQ+ software package (PANalytical B.V., Almelo, The Netherlands).

X-ray diffraction

The crystalline phases of the minerals were determined in the ground samples, using a PANalytical Xpert PRO MRD diffractometer, with X’Celerator 1D detector and Cu Kα radiation at 45 kV and 40 mA settings, in the 2θ range of 10° to 65°, with a step of 0.02° and an acquisition time of 33 s per step, in continuous scan mode. The identification of crystalline phases was carried out using the X’Pert High Score Plus software. The intensity of the diagnostic peaks was added by comparing the intensities obtained in the same result for the different minerals identified, in order to highlight the clear difference between the main crystalline phases identified.

Micro-Raman

The identification of the minerals that make up the aggregates and binders was carried out in the fragments in cross-section, through the micro-Raman, in direct measurements on the observed grain. The equipment used was the Renishaw inVia Qontor micro-Raman spectrometer equipped with an air-cooled CCD detector and a HeNe laser operating at 32 mW of 633 and 532 nm laser excitation. The spectral resolution of the spectroscopic system is 0.3 cm−1. The laser beam was focused with a 50 x or 100 x Olympus objective lens (N10.6 LMPLAN FL N), and the laser diameter less than 1.0 µm. All the raw data were collected digitally with Wire 5.1 software for processing. The minerals were identified using the Spectral ID database, version 9.2, part of the GRAMS Spectroscopy Software Suite, the RRUFF online database and by comparing the results with the literature.

Optical microscopy (OM)

All samples were observed in cross-section at the Leica DMI5000 M inverted optical microscope, with a built-in motorised platform, in reflected light. The motorised stage, microscope, and digital camera are controlled by Leica Application Suite software, version 4.12.0. The samples were observed in polarised light and dark field mode with the 5.0 and 10.0 x objectives. The study of the morphology of aggregate grains was carried out with the aid of ImageJ software, from different images obtained by OM, always at the same magnification. The apparent contours of the grains and the determination of sizes by Feret diameter were considered.

Colorimetry

The colour study was performed on the cross-section fragments, using the CIE Lab colour space, through the parameters (L*, a*, b*) were determined by a portable colourimeter, TR500 Spectrophotometer Lovibond, with 4 mm aperture diameter, measurements in reflectance. Illuminant D65, observer 10°, data acquisition software OnShade QC v.1.7.2.520.

Thermo-analytical techniques - simultaneous differential thermal analysis (DTA) and thermogravimetry (TG)

Thermal analysis was performed on powder samples and, as it is a micro-destructive test, it was performed on a restricted set of samples. The analyses were performed using a SETARAM 92-16.18 apparatus, incorporating a microbalance with a controlled argon gas flow (inert atmosphere). The samples were dried in an oven at 110 °C for 2 h. About 65 mg of the milled sample were deposited in an alumina (α-Al2O3) crucible. The reference material was alumina powder. Therefore, the DTA-TG assays were performed in a heating temperature range from ambient to 1100 °C at a heating rate of 10 °C min−1.

Results

Chemical composition (WDXRF)

The study of the elemental chemical compositions of the samples, expressed in oxides, was carried out by WDXRF, and presents a great variation in the contents of the main elements, these being the CaO (16.11–85.10%) and SiO2 (6.62–79.93%), with greater expression for the variation in CaO contents. In addition to these, the Al2O3 (1.26–10,50%), the Fe2O3 (0.44–5,52%) and the MgO (0.28–12,08%), among the main components of the samples studied. On the other hand, SO3 and Cl, appear in lower levels, mostly below 2% and Na2O was detected in only three samples of the analysed set, at levels below 2.2%. Other elements identified mainly in concentrations below 0.05% or in only a few samples were added together and are presented in the ‘others’ column. Of the trace elements, the only one identified in all samples was strontium, generally associated with calcium, in average concentrations below 0.14% (Table 1).

Table 1 Elemental composition obtained by WDXRF for mortar samples from the Carthage aqueduct
Full size table

Although it is not possible to identify a regular pattern in the results, considering the function of the mortars, it is possible to see that the greatest variation in these compositions occurs in those with a structural function, in which almost half of the samples show a predominance of SiO2. In the render samples and those that were not identified, the composition also varied greatly, although CaO predominated in this case (Fig. 3).

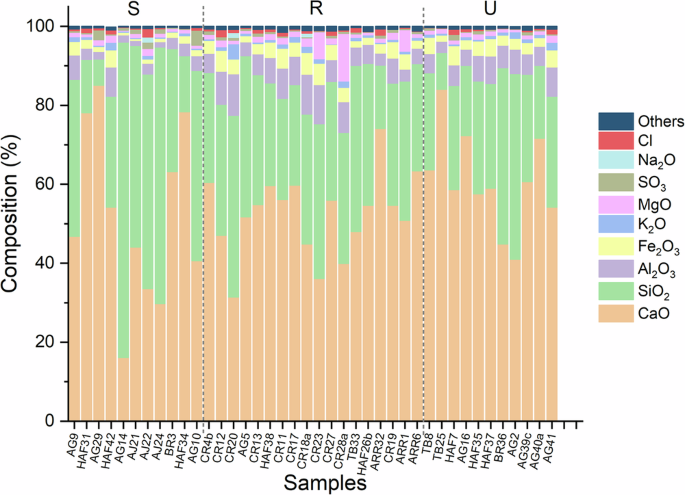

Fig. 3
Fig. 3
Full size image

Elemental composition of the mortar samples from the Carthage Aqueduct, depending on the function of the material, where 'S' is the samples with structural function, 'R' is the rendering mortar and 'U' is the undefined mortar.

Mineralogical phase identification by XRD

Contrary to the variation in compositions observed in these results, the crystalline phases identified by XRD were constant for those considered to be the main ones in all the samples, with the most intense peaks corresponding to calcite and quartz. The other crystalline phases identified corresponded to the common minerals in mortars such as potassium feldspars, clays, micas, and iron oxides, although all these identified mineral phases resulted in low intensity peaks (Table 2). In one of the samples (AC_TB8), larnite, also known as belite, was identified (Ca2SiO4), which is a typical Portland cement mineral. It is noteworthy that the identification of other polymorphous phases of calcium carbonate (CaCO3), such as aragonite and vaterite7,21, the latter being identified in 27% of the samples analysed. The formation of vaterite may also result from the carbonation process of cementitious mortars34. During the carbonation process, calcium carbonate can precipitate in various polymorphous phases, such as calcite, aragonite and vaterite. Vaterite is thus a polymorphous form of calcium carbonate that is considered metastable; however, its formation can occur during the carbonation process and is favoured when the Ca2+/CO32− ratio is low. Furthermore, its conversion into calcite is slow in environments of high CaCO3 supersaturation35. The results obtained are consistent with other studies carried out on different mortar samples from the Carthage aqueduct, published previously7,13.

Table 2 Crystalline phases identified by XRD
Full size table

Thermal behaviour study by TG-DTA

Still considering the overall characteristics of the material (including the binder and aggregate), a thermal study of the samples was carried out using TG-DTA analysis, where it is possible to quantify the variation in the mass of the sample due to chemical and physical changes caused in the material as the temperature rises36,37. In mortar studies, it is relevant to consider the different mass losses related to the water in the sample, as well as the losses of CO2, characteristic of carbonate decomposition. As it is a destructive analysis, between two and three samples of each typology were selected, according to the description of the sampling. The selection criterion was based on the elemental quantification obtained by WDXRF (Table 1), to contemplate more varied elemental compositions. Table 3 shows the percentages of mass loss according to temperature, and:

Table 3 Percentages of mass losses in relation to the temperature ranges of interest, calculated using the results obtained by TG-DTA
Full size table

- up to 120 °C correspond to physically adsorbed water loss.

- between 120 and 200 °C corresponds to the loss of hydration water.

- between 200 and 600 °C correspond to the structural water loss of hydraulic compounds.

- above 600 °C correspond to the loss of CO2 due to the decomposition of carbonates21,38,39,40.

The TG-DTA curves (Fig. 4) show that the endothermic peak corresponding to the decomposition of calcium carbonate occurs mostly between 830 and 930 °C. The ARR1 sample shows the typical dolomite decomposition curve, with endothermic peaks set at 797.77 °C and peaking at 880.73 °C41. This result is consistent with those obtained by XRD, which also identified dolomite in this sample, along with calcite as the main phases. The DTA curves obtained from the results of the water conduit crust samples (CR13, CR28I and CR20) show inflection points at the endothermic peak of calcite decomposition, which indicates that these samples may have different types of binders. This type of result is more common in materials such as cements or hydraulic mortars41.

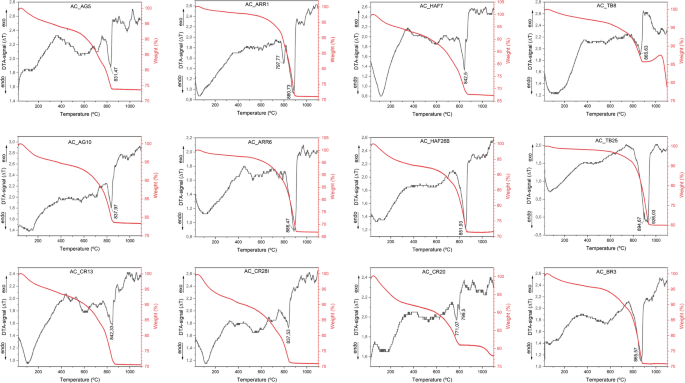

Fig. 4: TG-DTA curves of the samples analysed.
Fig. 4: TG-DTA curves of the samples analysed.
Full size image

All the results show the TG curve defined for the transformation of CO2, but with more subtle inflections in samples AG5, HAF9, CR13, CR28I and BR3. Only sample CR20 showed a clear inflection corresponding to the decompositions that took place between 770 and 800 °C.

By thermal analysis, it is possible to calculate the hydraulicity index of a mortar, through the ratio between the loss of CO2 due to carbonate decomposition and structural water loss, occurring between 200 and 600 °C (Table 3). The ability of a mortar to set in air (aerial mortar) or in water (hydraulic mortars)42 is directly related to the minerals formed during the hardening reaction, which in turn will have an impact on the percentage of structural CO₂ and H₂O loss measured during thermal analysis. The result obtained with the CO2/H2O ratio is inversely proportional to the hydraulic character, i.e. the higher the resultant value, the lower the hydraulic character. Therefore, ratios above 10 correspond to mortars considered aerial, between 5 and 10 are considered mortars with a medium to low hydraulic character, between 3 and 5 are considered hydraulic mortars and below 3 are considered pozzolanic or mortars with a strong hydraulic character21,39,43,44,45. It is important to note that mortars containing calcite aggregates will have an influence on this result, since the decomposition of these minerals is not distinguishable from the decomposition of the binder. Still, it is possible to consider these ratios as a good indicator of the hydraulic character of the mortars. The results obtained indicate that the mortars considered modern or used in more recent restoration interventions, being TB25, ARR1 and ARR6, are those that presented the highest hydraulicity indexes, corresponding to aerial mortars. The second sample of this typology (TB8), which is also considered a more modern material, has a hydraulicity index compatible with a mortar with some hydraulic character. This result is consistent with those obtained in XRD analyses, since the crystalline phase of belite, a typical cement mineral, was identified in this sample. The fact that the hydraulicity index of this sample specifically does not correspond to the characteristic index of pozzolans, may indicate that this material is the result of a mixture of overhead binders with cement, for example. All samples collected from the water conduit (CR13, CR20 and CR28I) showed indices compatible with pozzolans or strongly hydraulic mortars, as expected due to the function they performed in the monument. The samples identified as typical of the Hafsid period (HAF26b and HAF7) or medieval also showed hydraulicity indices compatible with hydraulic mortars, as well as the other samples analysed.

Aggregates mineralogical identification by micro-Raman

The specific aspects related to the aggregates, and the binder were studied in the mortar fragments assembled in resin and polished in cross-section. By micro-Raman, the identification of minerals is done through direct analysis on the observed grain46,47. In this way, it is also possible to identify minerals that are in smaller proportions, the result of which is not detectable or evident by other techniques. Figure 5 shows the main results obtained in this study. As expected, quartz was identified in all samples (SiO2) as the main component of sands and calcite (CaCO3) as the main mineral corresponding to the binder zone (Fig. 5a). The identification of quartz as the main component mineral of the aggregates was expected, since sand is an abundant component, historically indicated and used for the preparation of lime mortars. Quartz is known to be chemically inert. By mixing it with the binder, it plays an important role in containing the retention that occurs in the binder during the hardening phase of the mortar, improving its mechanical strength and the appearance of cracks23,29,48,49. Calcite has also been identified as an aggregate in some samples. The main difference between the results obtained was related to the intensity of the peaks, which were always lower in the case of calcites identified in the binder zone. It is important to note that the size of the grain and the crystal structure of the mineral have an influence on the intensity of the Raman bands, as well as the characteristics of the grain surface and the laser used50,51. Aragonite, one of the polymorphs of calcium carbonate (CaCO3), was identified in at least one sample collected from the water conduit, in which this mineral had not been identified by XRD. Figure 5a shows the differences in the positioning of the vibration bands relative to the two polymorphs identified, and the symmetrical distension band of the carbonate group (CO3)—1087 and 1085 cm−1, is slightly deviated in the aragonite, while the in-plane bending and lattice vibration bands, centred at 705 and at 206 cm−1, respectively, they present more evident deviations when compared to the analogous vibration bands observed in the calcite result52. In addition to these minerals, potassium feldspars and iron oxides, such as haematite and magnetite, were frequently identified (Fig. 5a)53,54,55. Carbonaceous particles (Fig. 5b) were identified in some results. In fact, some samples showed charcoal-like fragments when observed under light microscopy. Charcoal and ash can be incorporated into the mortar as aggregates or as additives to change the final colour of the prepared material, making it darker; however, these are relatively common impurities resulting from furnaces and calcination processes56. Identification of typical cement minerals, such as alite (3CaO·SiO2 or C3S), larnite (belite) (2CaO·SiO2 or C2S), and ferrite (4CaO·Al2O3·Fe2O3 or C4AF)52 it was more common in the results of samples referenced as Hafsid and also in samples of the conduits, although they were identified in a few samples. These minerals are the result of the calcination process of the raw materials used to manufacture cement, such as limestone, clays, sands, and iron minerals, all of which are calcined at high temperatures (above 1400 °C). Finding them in a mortar means that the material was certainly produced after the 19th century, since the cement resulting from this calcination process was only developed in this period or that it is part of the set of samples corresponding to the most recent interventions. Two results were isolated cases, being talc identified in a coating sample referred to as Hafsid (AC_HAF26) and gypsum, also identified in a coating sample collected in the water conduit (AC_CR23), which was also identified in the XRD result of this sample.

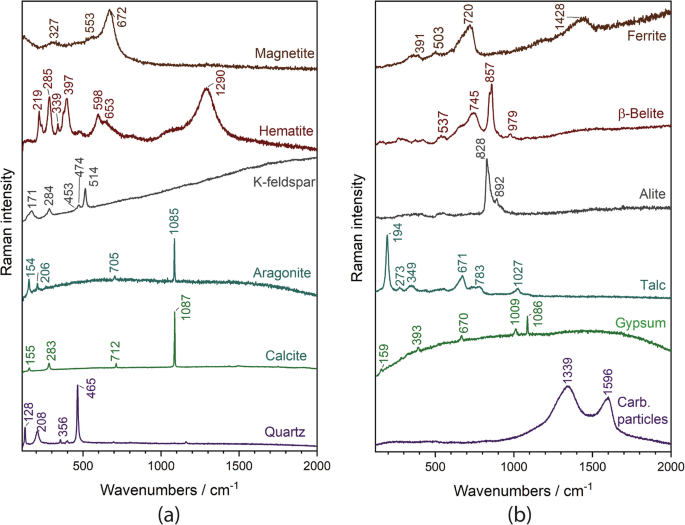

Fig. 5: Main results obtained by micro-Raman analyses.
Fig. 5: Main results obtained by micro-Raman analyses.
Full size image

a More frequent results, with quartz and calcite being observed in all samples. b Less frequent results or minerals identified only once from the sample set.

Other characteristics observed by OM and colorimetry

The study of the colour and the main characteristics observed in relation to the size, abundance and distribution of the grains is presented in Table 4. Considering the total set of samples, it was not possible to determine an evident pattern, neither by observing the samples according to the function performed, nor by considering them according to the reference indicated by the team at the time of sampling. Even so, it is possible to see that the materials used with structural function tended to be darker and those used in the coatings tended to be lighter, although this is not true for all the samples observed. Figure 6 illustrates some examples of the variation of the samples observed in OM, according to the function. Regarding the variation of grain size, it is also possible to see that the duct coating mortars are those that have the smallest grains, when compared to samples with structural functions, although it is also not possible to determine a standard. In this case, it is important to mention that the coating of the pipeline was made in different layers, in which the size of the grains was greater in the innermost layers, applied next to the substrate. The shape of the grains also varies between samples; however, in general, there is a predominance of sub-angular, sub-rounded and rounded grains57, without a defined pattern observed. In general, these samples have well-graded aggregates and a mostly heterogeneous distribution. The samples with coating function were those that showed fragments of ground ceramic (cocciopesto), especially in the samples from the water conduits. Samples with a coating function also showed charcoal-like fragments (see ARR32, Fig. 6). This type of mortar also presented more cohesive fragments, i.e. without disintegration between binder and aggregate, with less porosity or apparent cracks. On the other hand, the mortars used with structural function showed apparent porosity and cracks of both a mechanical nature and those possibly caused by shrinkage in all the samples observed. In these cases, no fragments of pottery or charcoal were observed. Bioclasts were observed in some samples, the most frequent being those with an elongated structure, greyish-white in colour, similar to the fragment observed in the upper right corner of the image referring to the HAF42 sample, shown in Fig. 6.

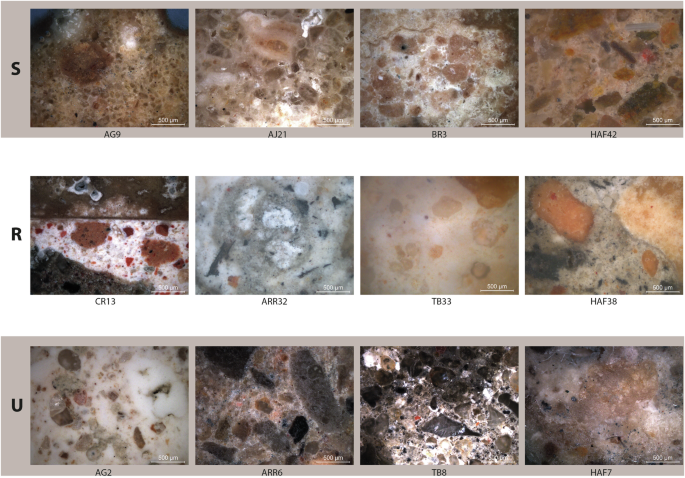

Fig. 6: Some of the mortar samples from the Carthage aqueduct, observed in cross-section, by OM.
Fig. 6: Some of the mortar samples from the Carthage aqueduct, observed in cross-section, by OM.
Full size image

It is possible to perceive the variation in relation to the colours, size, shape, and distribution of the grains between the samples, including when considering the nomenclature established by the work team. (S – structural, R – render, U – unclassified).

Table 4 Summary of the main characteristics observed by OM and colorimetry, according to the function of the mortars
Full size table

Discussion

As previously mentioned, the addition of ground ceramics to lime mortars was intended to impart hydraulic properties that, in addition to resulting in a mechanically stronger material, contributed above all to the waterproofing of the area where it was applied. In the case of water conduits, this property was essential to preserve them from possible leaks. These results prove the care in the adequacy between raw materials and preparation of the material, depending on its application and use. In addition, the fact that the most cohesive fragments were also observed only in the cases of samples used as coating may be related to the application technique of this type of mortar. To ensure the quality of the coating, it is important to pay attention to the amount of water added to the mix, the mixing of all the components and the compression of the mortar against the substrate. All these factors will have an impact on the contraction of the mortar during setting and also on the resistance of the material to cracking44,48. The presence of pores and cracks in render mortars may also be related to the size of the aggregate grains used, and finer sands tend to require a greater volume of water at the time of kneading, which also implies a greater volume of evaporated water, which will contribute to a larger pore system, especially on the surface. In addition, lime binders also tend to require a higher volume of kneading water, due to the specific surface of the lime, which will impact the shrinkage of the material during the mortar hardening process57,58,59. Therefore, it is important to compress the coating at the time of application in order to minimise the formation of cracks and larger pores on the surface.

Mortars with a structural function also consist of mixtures of lime-based binders, sand and water. The results of this study indicated that mortars used for structural purposes generally had a similar average particle size to that observed for render mortars; however, cracks and porosity were observed more frequently in the structural samples. This fact may be directly related to the way structural mortars are applied, since, in this case, it does not involve the same type of compression as that observed in the application of coatings, which may favour the formation of cracks resulting from both water evaporation during setting and those of a mechanical nature.

Considering the set of samples from collapsed areas of the aqueduct, whose function was not clearly identified, considering the characteristics observed in OM and the other results presented in this study, it is possible to suggest that most of this set corresponds to the mortars used as coating.

The importance and extension of the Carthage aqueduct make this monument a unique opportunity to study the variations that characterise the mortars used for different functions. It is important to note that these are composite materials, resulting from the mixture of the binder with sand and water, regardless of the period in which this material was prepared. Still, ensuring the functional performance of the material is a priority, so it is expected that it will be possible to identify trends regarding the function of the mortars. When used with a structural function, either as a block junction or as a pillar filler, in general, they presented higher silicon contents, with quartz being identified as the main crystalline phase. This result is consistent with mortars rich in siliceous sand, which guarantee volumetric stability and confer chemical and mechanical resistance to the mortar. These characteristics are important for the material to perform its function. Naturally, other factors such as the shape and size of the grains will also play an important role in the performance of the mortars; however, when considering these aspects of the aggregates, it was not possible to identify a typical pattern depending on the function of the mortar. In the case of materials used as coatings, the use of ceramic fragments and charcoal was observed more frequently. This result was also consistent with the function of the mortar, especially when considering its use as a coating of the water conduit, since this type of aggregate confers hydraulic properties to the material60. Regarding the identification of cement minerals, when identified, they corresponded to samples classified as modern materials, which confirms the indication made in situ.

Although it was not possible to identify a characteristic pattern in the samples according to the historical classification, it was possible to realise that, in this case, the general construction characteristics were more evident for this classification. However, it should be borne in mind that various factors will have an influence on the characteristics observed in the mortars and the way in which this material has come down to the present day, such as the origin of the raw materials, work phases, production technology, application and the very history of use and reconstruction of the monument, which can make it difficult to directly relate the material to the historical period.
