Fig. 7: Intelligent SCSM workflow.

From: Intelligent single-cell manipulation: LLMs- and object detection-enhanced active-matrix digital microfluidics

Fig. 7: Intelligent SCSM workflow.The alternative text for this image may have been generated using AI.

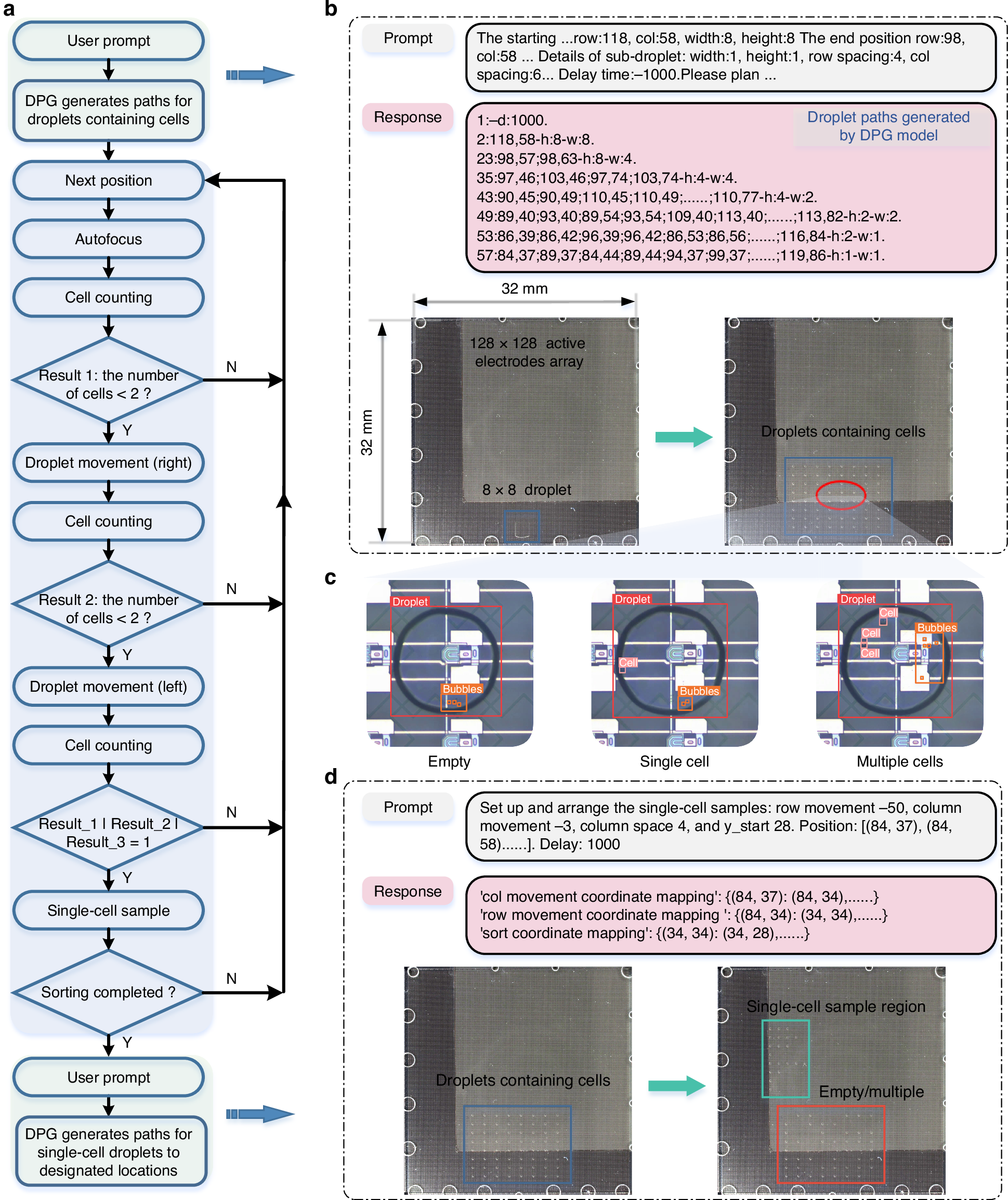

a A fully automated algorithmic flowchart for SCSM. b The droplet path generated with 8 × 8 subdroplets by the DPG model on the AM-DMF chip (128 rows × 128 columns). c The process of sorting the droplets containing one cell by combining the three-class method with the droplet movement method. d The path for the assigned single-cell sample to their designated locations is generated by the DPG model
