Fig. 5
From: Aptamers-based wearable electrochemical sensors for continuous monitoring of biomarkers in vivo

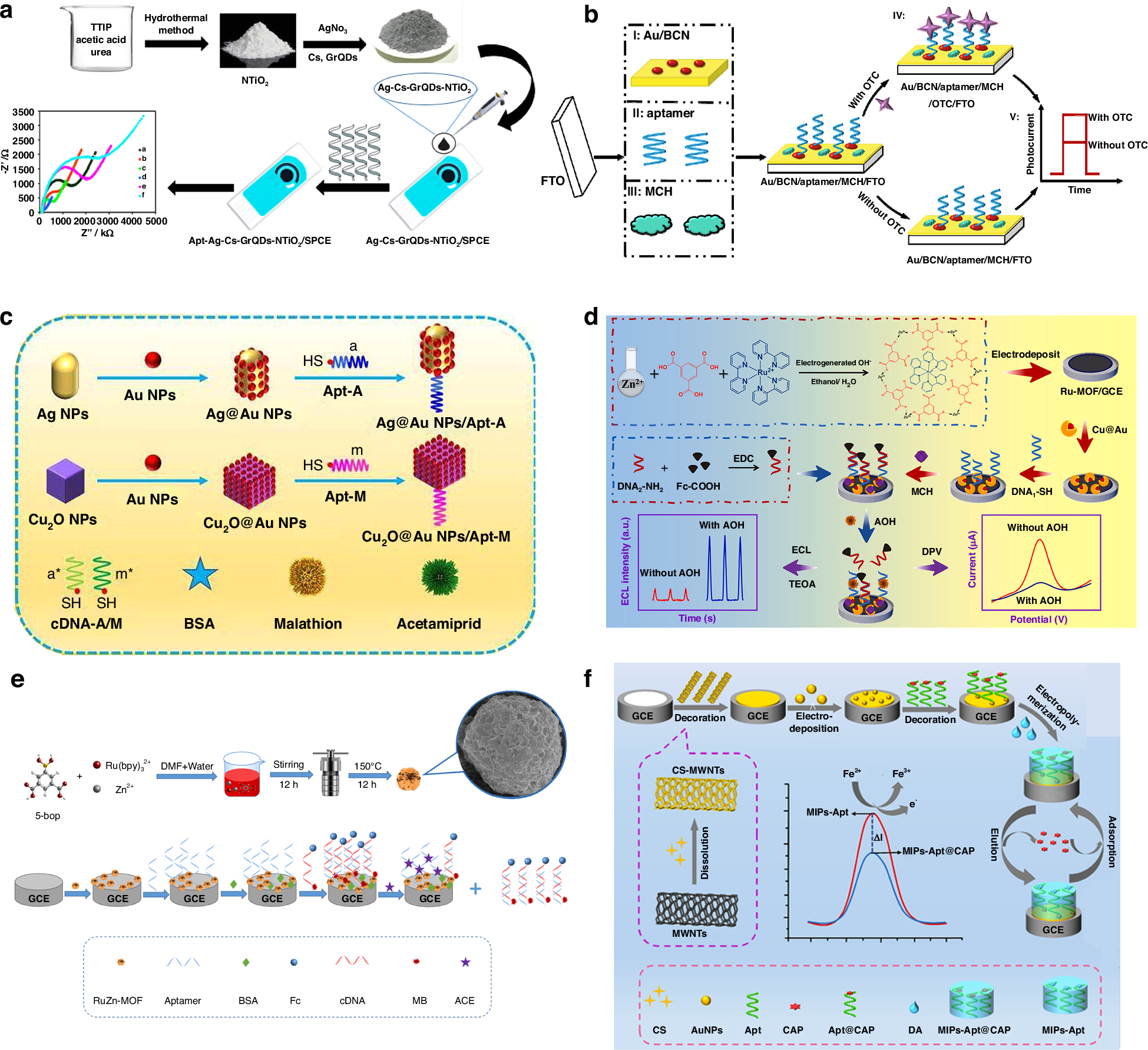

Application of aptamers-based electrochemical sensor. a Constructing aptamers-based electrochemical sensor for the analysis of Staphylococcus aureus by modifying the screen-printed carbon electrode with aptamer/Ag-Cs-Gr QDs/TiO2. Reproduced with permission from Elsevier (2022)78. b Photoelectrochemical sensor of oxytetracycline based on Au-decorated nitrogen-deficient boron-doped carbon nitride (Au/BCN) nanocomposites. Reproduced with permission from Elsevier (2023)85. c Electrochemical aptamer sensor based on core-shell nanomaterial labeling for simultaneous detection of imidacloprid and malathion. Reproduced with permission from Elsevier (2023)75. d Constructing an aptamers-based electrochemical sensor for the analysis of AOH by modifying electrode with Ru MOF/ Cu@Au. Reproduced with permission from Elsevier (2023)71. e Electrochemical and electrochemiluminescent dual-mode aptamer sensor based on self-enhancing bimetallic luminescent MOF. Reproduced with permission from Elsevier (2024)72. f Molecularly imprinted polymers-aptamer electrochemical sensor based on double recognition strategy for chloramphenicol detection. Reproduced with permission from Elsevier (2024)87
