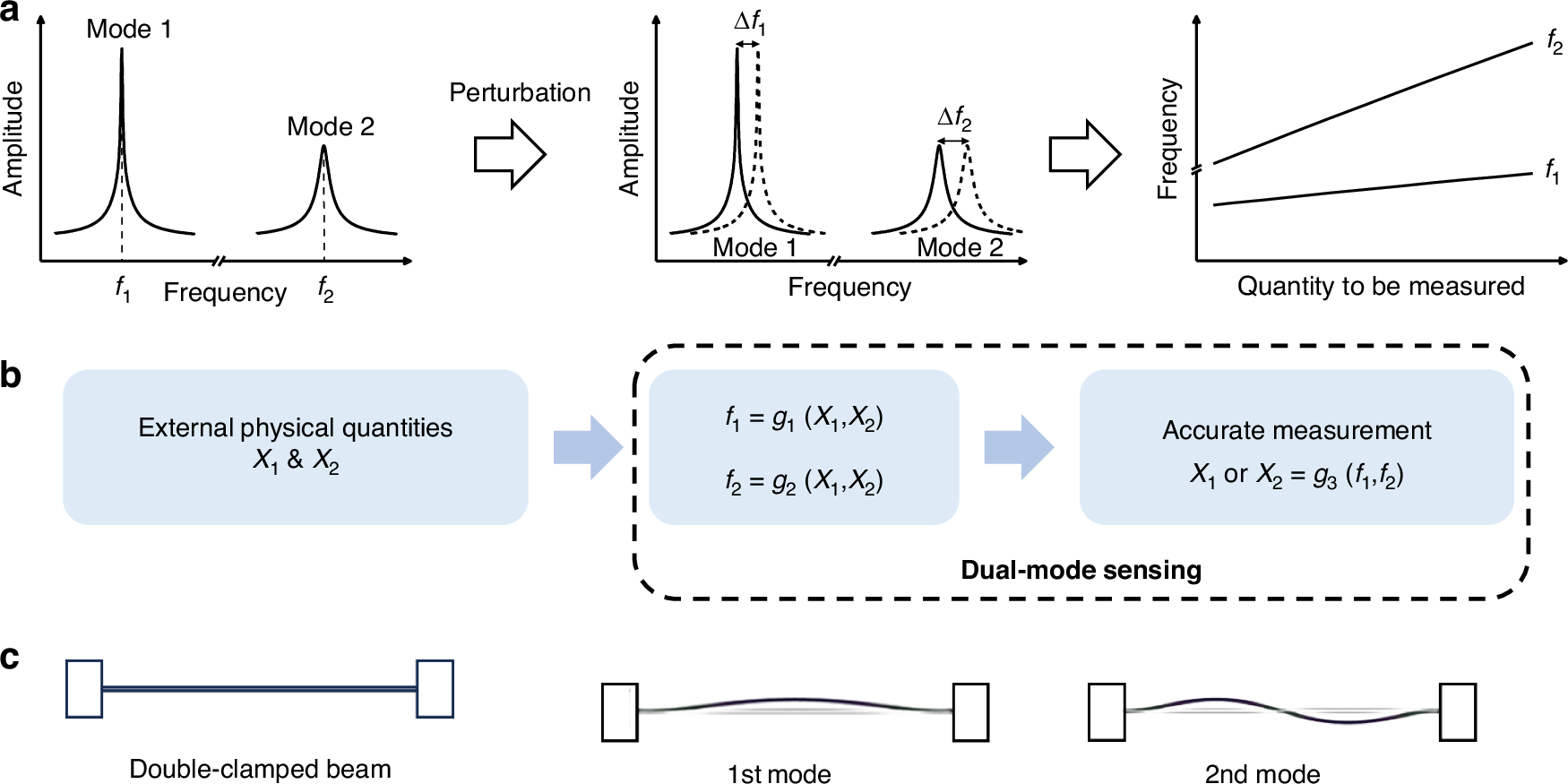

Fig. 1: Schematic diagram of dual-mode sensing.
From: Dispersive coupling and dual-mode sensing of a micromechanical resonator
a Frequency responses of the resonator’s first two modes versus external quantity to be measured. b The principle of dual-mode sensing. c Double-clamped beam and its first two modal shapes
