Fig. 12: Demonstration diagram of Fano resonance-GO SPR sensor.

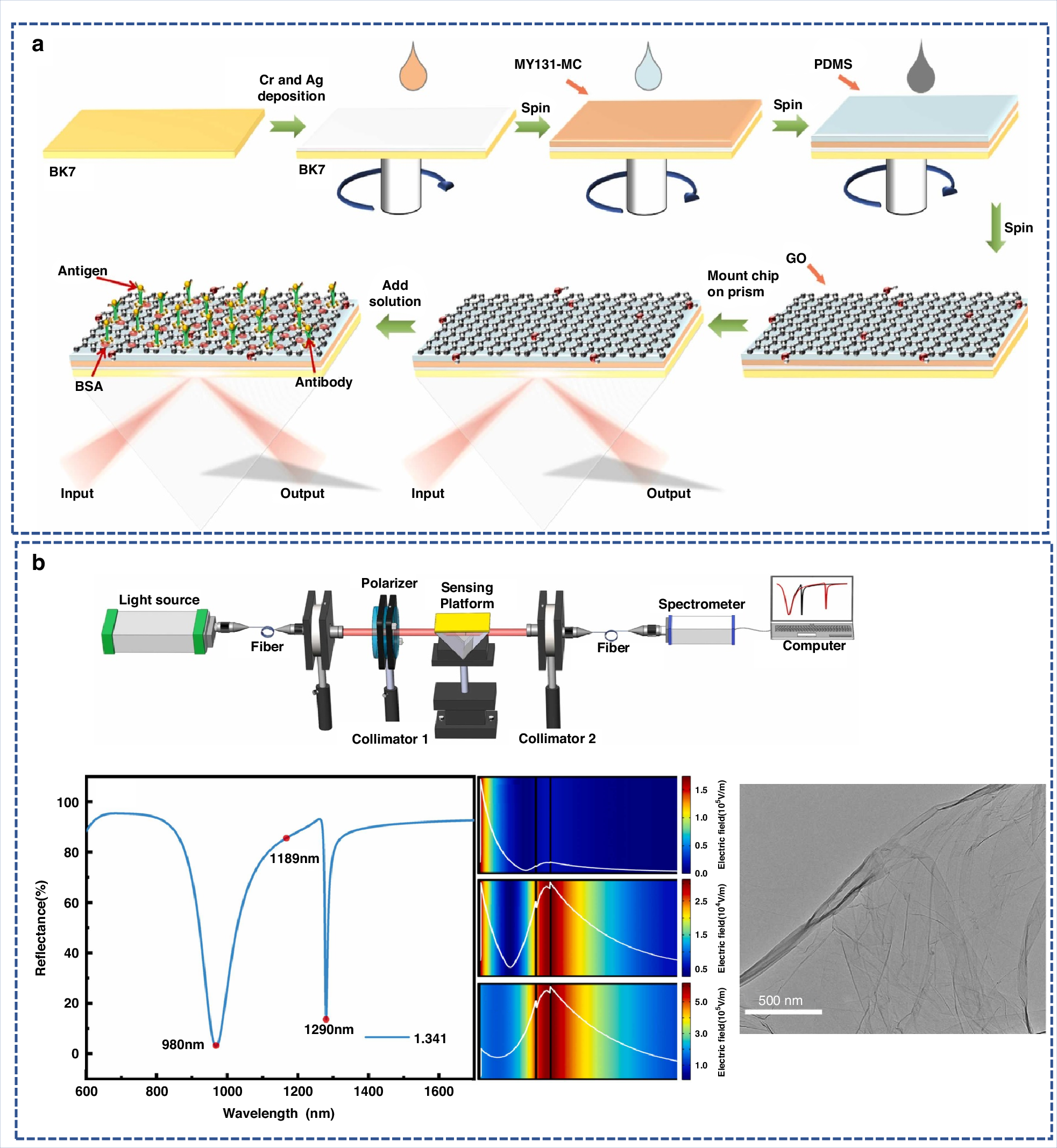

a Diagrammatic representation of the fabrication procedure for the FR-GO sensor chip. b Structural schematics of the Fano resonance sensor and Fano resonance-GO sensor, together with their corresponding reflection spectra²¹⁶. Copyright 2025 Elsevier B.V
