Fig. 9: SPR biosensors based on Metal film and 1D material.

From: Sensitivity enhancement of surface plasmon resonance biosensors based on versatile nanostructures: principle, fabrication, and illustrative applications

Fig. 9

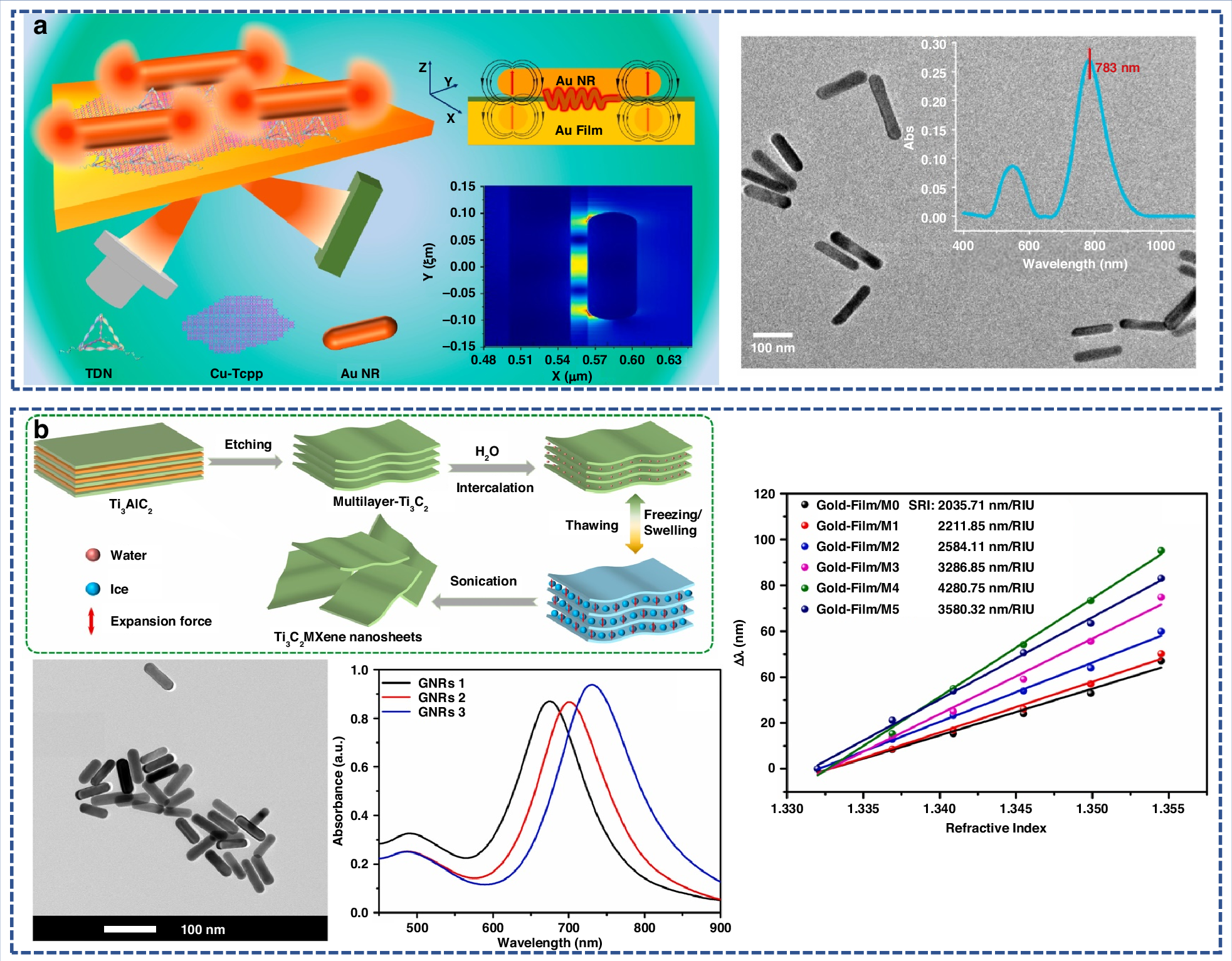

a Operational mechanism of the gap plasmon resonance strategy mediated by Cu-TCPP/TDN208. Copyright 2023 Elsevier B.V. b Diagrammatic illustration of the fabrication of Ti3C2 MXene nanosheets using the freeze-thaw and ultrasonic method209. Copyright 2025 Elsevier B.V
