Introduction

Preterm birth is associated with various adverse outcomes, which tend to be less severe with increasing gestational age.1 The most acute complications of preterm birth include respiratory distress syndrome, apnoea of prematurity, metabolic immaturity, difficulty feeding and a predisposition to various infections.2 Preterm infants are also at risk of neurological complications including germinal matrix haemorrhage, intraventricular haemorrhage (IVH) and white matter injury (WMI).3

IVH occurs in about 25% of preterm infants with very low birthweight.3 Blood accumulation from IVH may damage adjacent structures. When significant and associated with post-haemorrhagic ventricular dilatation, it can lead to further damage through mass effect and increased intracranial pressure, impairing brain perfusion.4 Higher grades IVH are associated with increased rates of cerebral palsy (CP), neurosensory impairment, impaired cognitive ability, blindness and hearing loss.3

WMI in preterm infants is subdivided into focal cystic necrosis, focal microscopic necrosis and diffuse non-necrotic lesions. While the first is strongly associated with the development of CP, the latter two are associated with impaired academic performance and lower IQ.3

Extremely preterm infants, with and without brain injury, also have increased rates of disabilities including CP, deafness, cognitive impairment and blindness. Moreover, they show higher rates of behavioural difficulties and executive dysfunction or attention deficit hyperactivity disorder.5,6,7,8 Early detection of brain injury or the potential for adverse neurodevelopment is essential for effective management. The diagnosis and management of IVH may prevent the progression of brain injury and improve outcomes.9 Furthermore, early developmental interventions have been shown to improve motor and cognitive development in preterm infants.10 Reliable early markers of brain injury and increased risk of neurodevelopmental impairment in the neonatal period are needed to allow better risk classification and potential early interventions.

Heart rate variability (HRV) describes the changes in heart rate (HR) over time, reflecting the activity of the autonomic nervous system, combining the opposing influences of the sympathetic and parasympathetic nervous systems.11,12 In adult patients, decreased HRV has been associated with increased all-cause mortality.13 HRV has been shown to decrease in pathological states including severe infection and inflammation.11,14 In neonatal populations, there is evidence that decreased HRV correlates with late-onset sepsis,15 necrotising enterocolitis16 as well as poor long-term outcomes in hypoxic ischaemic encephalopathy.17 HRV has also been used to assess autonomic nervous system maturation.18

A wide range of HRV metrics is currently in use. The standards of measurement, use and interpretation have been described by The Task Force of The European Society of Cardiology and The North American Society of Pacing and Electrophysiology.12 HRV can be characterised in the long-term (up to 24-h recordings), short-term (around 5 min) or ultra-short-term (<5 min).12,19 HRV metrics can be categorised into time domain, frequency domain and non-linear measurements. Time domain measurements quantify the variability in the time interval between successive heartbeats using simple equations. The main time domain metrics include the standard deviation of the R-to-R interval (SDNN), the standard deviation of the average R-to-R interval calculated over a given segment (SDANN) or the square root of the mean squared differences of successive N-to-N intervals (RMSSD).12 Frequency domain measurements focus on the distribution of absolute or relative power into different frequency bands. Those are the ultra low, very low, low and high-frequency bands.12 A further commonly used metric is the total power measurement describing the variance of the N-to-N intervals. Non-linear metrics allow the quantification of unpredictability or self-similarity of the trace.20,21 Non-linear metrics commonly used in the literature include the α1 and α2 components obtained by the detrended fluctuation analysis,22 SD1 and SD2 parameters obtained by the Poincare analysis, skewness or kurtosis.21 Common HRV metrics of all three domains are summarised in Supplementary Material Table 1. An additional metric, heart rate characteristics (HRC), was developed specifically for the detection of neonatal sepsis.23 It incorporates multiple other HRV metrics including standard deviation of the inter-heartbeat (RR) intervals, sample asymmetry, sample entropy, and skewness of HR towards frequent large decelerations and few accelerations. These are used to calculate the HeRO score or HRC index, a multivariate logistic regression expression representing the fold increase in risk of sepsis-related clinical deterioration. Low HRV, high sample asymmetry and low entropy result in a higher HeRO score.23

Acute and long-term neurological outcomes in preterm infants can be predicted with variable success using different predictive models.24,25,26,27,28,29 At the moment, however, these models rely on MRI findings or patient demographics and circumstances surrounding birth.27,30,31 Information on HR and HRV, despite being easily available, is not clinically used for outcome prediction. The present scoping review examines the utility of HRV measurements in the prediction and diagnosis of short-term and long-term neurological outcomes in preterm neonates. The aim of this review is to summarise the available evidence and identify areas in need of further research.

Methods

A systematic literature search was carried out to identify relevant literature.

Eligibility

Studies were considered for inclusion only if they included neonates born preterm, defined as <37 weeks of gestational age. Studies that included both term and preterm neonates were only eligible if analysis for both cohorts was separate. Studies focusing on infants with significant congenital defects or chromosomal abnormalities were excluded. Furthermore, studies were only included if a measure of HRV was recorded in the neonatal intensive care unit and during the neonatal period, defined as the first 4 weeks of life. Any measure of HRV allowed inclusion. The last criterion for inclusion was the evaluation of a neurological outcome. Any neurological outcome was considered for inclusion and could be evaluated at any age. Any human observational studies or clinical trials were considered for inclusion. Case reports and case series were excluded.

Information sources

Medline, Embase, Web of Science and the Cochrane Library were searched on the 3rd of October 2023. No limits were imposed on the date of publication. The search strategy was developed together with the librarian team at the University of Cambridge School of Clinical Medicine and included variations on the term ‘preterm infant’ and ‘heart rate variability’. Neurological outcomes were not explicitly specified in the search strategy. A search strategy used for Embase can be found in the Supplementary Material. Reports were only eligible for inclusion if they were published in the English language to allow for accurate data extraction. Both peer-reviewed articles and conference abstracts were considered for inclusion to minimise the effect of publication bias. All publications citing an included report, and any publications cited by an included report have also been considered for inclusion.

Data handling

Duplicates were removed manually using Zotero,32 a reference manager, and Rayyan,33 a software designed to simplify screening for systematic reviews. Initial screening was carried out independently by M.S., S.S. and S.H.K. using Rayyan to identify papers suitable for full-text screen. Full-text screen to select papers for inclusion was carried out by S.S. and M.S., with S.H.K. resolving any disagreements. For each study excluded during a full-text screen, a reason is given in the PRISMA 2020 flow chart (Fig. 1).34 Data extraction was carried out independently by M.S. and S.S. using a previously piloted data extraction form. All conflicts were settled through discussion or review by S.H.K. or J.S.

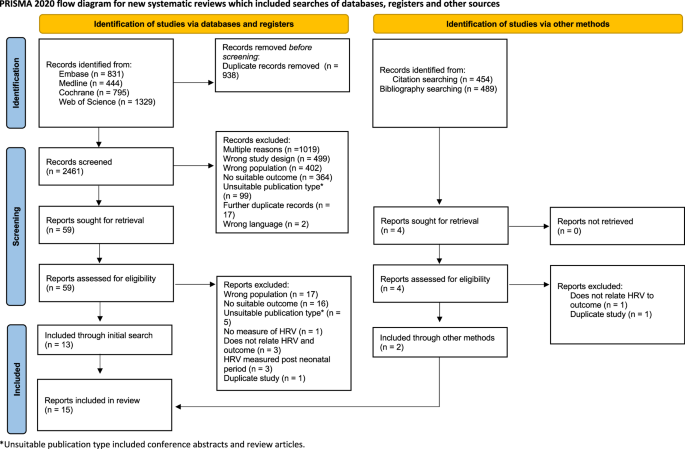

Fig. 1: PRISMA 2020 flow diagram for systematic reviews describing the information sources and screening process of the present scoping review.
figure 1

* Unsuitable publication type included conference abstracts and review articles.

Full size image

Litmaps35 software was used to identify further eligible reports amongst the citation network of included reports. Data extraction from these additional papers was carried out independently by SHK and MS.

The following items were extracted from each paper:

Report characteristics:

  • Title, author, journal, year of publication, publication type, country of origin, conflict of interest, and sources of funding.

Methods:

  • Specific aims of the study, setting, study design.

  • Age at HRV collection, infant state during HRV collection, duration of HRV collection, HRV metric used.

  • Exclusion and inclusion criteria, number of participants, male to female ratio, gestational age at birth, birth weight, interventions/treatment offered to infants, prevalence of other neonatal conditions.

  • Age at outcome assessment, specified neurological outcome, definition of neurological outcome, method of outcome assessment, masking.

  • Method of analysis.

Findings:

  • Specific findings, missing information, conclusion.

A risk of bias assessment was carried out using the QUADAS-2 tool for the assessment of diagnostic accuracy.36

HRV metrics were further classified based on Chiera et al.21 as time domain, frequency domain, or non-linear with HRC also being a separate category. Due to the heterogeneity of the data, results were summarised in narrative form.

Results

After screening 2461 original records, 59 reports were selected to be screened by full text. Thirteen reports were included following the initial search (Fig. 1). Two further reports were identified using Litmaps,35 an online tool used to visualise citation links amongst existing literature.

Characteristics, including subject sample size, HRV metrics used, and neurological outcomes, of the included studies are summarised in Table 1. Details of data recording and infant state during recording are shown in Table 2. Eight of the studies were conducted in the United States, and one in each of Finland, Ireland, Australia, Israel, Germany, Japan and the Netherlands. Most studies were prospective cohort or case-control studies. Six studies were retrospective and there were no randomised clinical trials.

Table 1 Characteristics of included studies.
Full size table
Table 2 Description of data recording used by each study.
Full size table

Four studies measured HRC, seven studies focussed on time domain metrics, four studies on frequency domain metrics, and three on non-linear metrics of HRV. Three studies independently used multiple domains of HRV.

A risk of bias assessment for each study can be found in Supplementary Table 2.

IVH development may be preceded by a decrease in HRV

Nine studies investigated the relationship between HRV and brain injury, most commonly IVH or WMI.37,38,39,40,41,42,43,44,45 Of these nine studies, all but three studies found an association. This is summarised in Table 3. Six studies revealed a significant decrease in HRV in the context of IVH while two studies found a significant decrease in HRV in infants with WMI. Tuzcu et al.43 reported a significant increase in the short-range scaling exponent, a non-linear metric, towards one in infants with IVH. Gronlund et al.37 found no association of HRV with IVH or WMI, and van Ravenswaaij-Arts et al.44 showed the decrease in HRV in infants with IVH was not statistically significant. Furthermore, three out of the four studies that investigated the temporal relationship between HRV change and brain injury onset found that HRV change preceded visible changes on cranial ultrasound. Prietsch et al.40 suggested HRV changes might not precede the development of IVH, but this was based on anecdotal evidence from one patient.

Table 3 Findings relating to short-term neurological outcome.
Full size table

Decreased HRV correlates with impaired long-term neurodevelopmental outcomes

Eight studies related the long-term neurodevelopmental outcome of infants with recorded HRV.38,45,46,47,48,49,50 All eight papers found an association between abnormal HRV measurement and the development of neurological impairment later in life. This is summarised in Table 4. Associations were found between various domains of neurological function and various metrics of HRV. In general, HRV was lower or failed to increase in infants who went on to develop neurological impairment.

Table 4 Findings relating to long-term neurological outcomes.
Full size table

Other outcomes investigated

Hadas et al. investigated the relationship between HRV and motor outcomes at 35 weeks and 4 months corrected age.51 Using time domain and frequency domain metrics, they found that decreased HRV correlated with suboptimal motor outcomes at both ages.

Discussion

The present evidence suggests an association between HRV and short-term and long-term neurological outcomes in preterm infants.

Utility of HRV monitoring in brain injury detection and prediction

Seven out of nine studies suggest an association between decreasing HRV and brain injury. The brain injury most commonly studied was IVH with all nine studies including IVH as an outcome. Three studies also considered the diagnosis of WMI.

In terms of metrics used, studies were able to detect an association with HRC, time domain, non-linear and frequency domain metrics. Interestingly, studies that failed to find an association all relied on time domain metrics. Amongst the four studies using time domain, only half detected an association. This may suggest that time domain is less well suited for the detection of brain injury. A similar phenomenon has been proposed by the authors of the HeRO score, who found the frequency domain to be less useful than other metrics in the prediction of neonatal sepsis.23

Furthermore, there was great variation in the time intervals used for HRV analysis. Studies that found no association between HRV and brain injury, including Gronlund et al.,37 and van Ravenswaaij-Arts et al.,44 all relied on shorter HRV segments than every other study. The time intervals used in this case were 2 and 3 min, respectively. Time intervals used by studies that found a significant difference in HRV ranged from over 15 min to over 24 h (Table 2). The length of the recording was not specified by Shiono et al.41 This implies that short-term and long-term HRV may be better predictors of brain injury than ultra-short-term HRV.

Moreover, HRV changes were more closely associated to higher grade IVH. Shiono et al.41 and Fairchild et al.45 found HRV changes in infants with high-grade IVH but not infants with grades 1–2. Gronlund et al.37 and van Ravenswaaij-Arts et al.44 both investigated infants with IVH of all grades and failed to find a significant difference in HRV. Other studies that specified IVH grade seem to have focused on high-grade IVH (Table 3). This suggests that HRV monitoring may not be sensitive enough to detect low-grade IVH.

Four studies specifically investigated the temporal relationship between the onset of brain injury. All four of those studies were able to detect a change in HRV prior to the detection of brain injury on cranial ultrasound. This suggests that HRV monitoring may be useful in very early prediction and might allow for preventive measures that can reduce the risk of injury.52

Fewer studies overall investigated the relationship between HRV and WMI. Fairchild et al.45 reported an increase in HRC in moderate-to severe WMI, Gronlund et al.37 found no association and Hanna et al.38 reported an increase in HRV (as opposed to a decrease seen in infants with IVH). Overall, there does not seem to be a clearcut relationship between HRV and WMI in preterm infants.

All in all, the data suggests that HRV has potential role in the early prediction of IVH, especially higher grades, in preterm infants.

Utility of HRV monitoring in the prediction of long-term neurodevelopmental outcomes

Eight studies, utilising time domain, frequency domain, non-linear and HRC metrics of long-term, short-term and ultra-short-term variability, all found an association between decreased HRV and adverse neurodevelopmental outcomes. Outcomes were most commonly assessed using The Bayley Scales of Infant and Toddler Development—third edition (BSID-III)53 or second edition (BSID-II) scores. Some studies used the presence and absence of CP, visual or hearing impairment, or questionnaires. Amongst the questionnaires used were the Child Behavioural Checklist,54 Kaufman Assessment Battery for Children,55 Parenting Stress Index56 and California Preschool Social Competency Scale.57 In these studies, a decrease in HRV has been correlated with poor psychomotor development, mental development, social development and increased rates of intellectual disability. There seems to be no domain that is better correlated than other. This suggests that HRV during the neonatal period may be an indicator of impending global developmental delay.

Limitations of the literature

One of the main limitations of the present review derives from the large diversity in the HRV metrics and the large diversity in the reporting of neurodevelopmental outcomes. While many studies use predefined scales, several studies used ambiguous neurological outcomes as defined by the neurologist or neonatologist. The length of recording and specific setting of HRV recording also differs greatly between the studies with the shortest recordings being just 2 min while the longest are over 168 h. Furthermore, the state of the infant at recording, which determines a large proportion of HRV at any given moment, is often omitted in the methods sections or only loosely defined as ‘sleep’ or ‘no movement artefacts’.58 The effect of infant state is minimised by using long-term variability measurements spanning across multiple sleep–wake cycles. This was however not the norm amongst the studies included. Moreover, the limited number and categories of metrics used by each study prevented valid comparisons between metrics.

Limitations of the present review

The present review was carried out and reported in line with the PRISMA Extension for Scoping Reviews Guidelines.34 The entire body of work was completed within 9 months of the literature search to capture all the relevant literature. Moreover, the search strategy was designed to capture a greater body of literature by not limiting it to records mentioning neurological outcomes. This allowed us to assess the outcomes of any screened study individually and likely resulted in more eligible studies being identified.

Due to a large variability in reporting of neurological outcomes and HRV metrics, we do not believe it is currently possible or useful to conduct a systematic review or meta-analysis on the topic. This also means we were unable to carry out any quantitative analysis of the results.

Nonetheless, we believe our search strategy captured most of the available papers as we were only able to identify two further studies through secondary search methods.

Further work

Current literature supports a strong association between changes in HRV and IVH development. Importantly, HRV can be extracted from ECG traces which are obtained routinely for preterm neonates. No further intervention to the infant would therefore be required to implement HRV screening on the NICU. Because of this, further research has the potential to have a significant impact on patient care. In order for HRV to be used clinically, the relationship between IVH and HRV needs to be further evaluated to determine which metrics have the most prognostic value. It would also be useful to determine the length of trace required for analysis. The next important step would be to determine whether early detection or even prediction of IVH and intervention in preterm infants with brain injury using HRV monitoring has the potential to improve outcomes. Further studies focusing on the detection of WMI in preterm infants using HRV would be beneficial, as the relationship remains unclear.

In summary, while the present data suggest reduced HRV correlates with brain injury and long-term neurodevelopmental impairment, more research is required to confirm and further quantify this relationship.
