Fig. 5

From: Sequential forward and reverse transport of the Na+ Ca2+ exchanger generates Ca2+ oscillations within mitochondria

Fig. 5

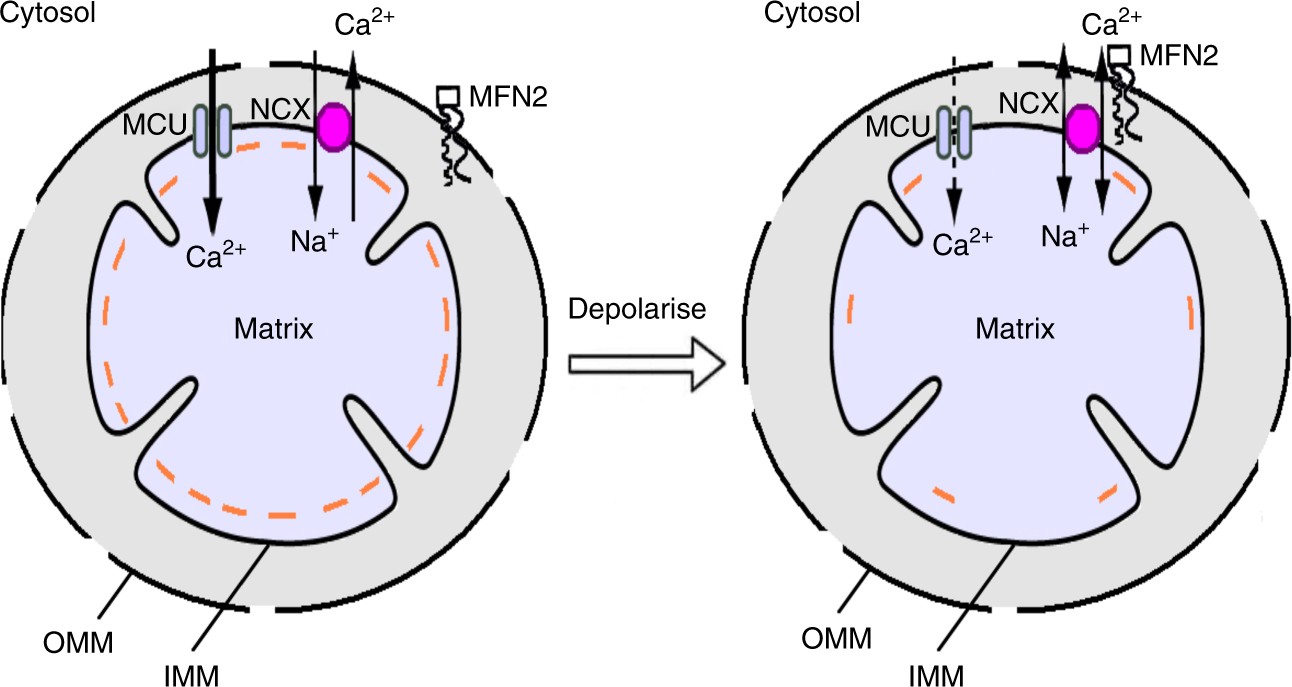

Cartoon summarises Na+–Ca2+ exchanger transport in mitochondria under the conditions shown The left-hand panel depicts the situation in energised mitochondria. The exchanger operates in forward mode, transporting cytosolic Na+ into the matrix in exchange for matrix Ca2+, which has entered through the MCU. Mitofusin 2 is located in the OMM and functionally detached from the exchanger. After mitochondrial depolarisation (right-hand panel), the exchanger is now functionally coupled to mitofusin 2 and can operate in both forward and reverse modes. OMM denotes outer mitochondrial membrane, IMM inner mitochondrial membrane
