Addendum: Fermiology and electron dynamics of trilayer nickelate La₄Ni₃O₁₀

Addendum to: Nature Communications https://doi.org/10.1038/s41467-017-00777-0; published online 26 September 2017

Supplementary Note 4 | Structural information of the DFT calculation

The DFT calculations in the main text use crystal structure information determined by x-ray diffraction (XRD) measurements of La₄Ni₃O₁₀. The room temperature XRD measurements on all samples were consistent with mixed phases of orthorhombic and monoclinic symmetry. However, the in-plane lattice constants of these two phases differ by <1%, leading to minimal influence on band structure calculations. Furthermore, any impact on the experimental Fermi surface attributable to such deviations would be obscured by broadening of the bands measured by ARPES. Therefore, the DFT calculations adopt the higher symmetry orthorhombic crystal structure with space group Cmca and lattice constants a = 5.417 Å, c = 5.468 Å, b = 27.962 Å, with some additional relaxation of the internal coordinates. The detailed atomic coordinates are presented in Supplementary Table 1.

Table 1 Supplementary Table 1 | The detailed atomic coordinates from the DFT calculation

A comprehensive plot of the DFT results for this orthorhombic structure is shown in Supplementary Figure 4.

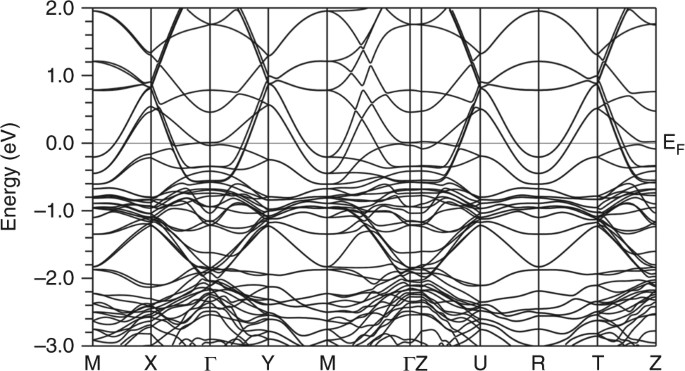

Supplementary Figure 4 | DFT band structure of orthorhombic La₄Ni₃O₁₀ along more directions and over a wider energy range than is shown in the main text
