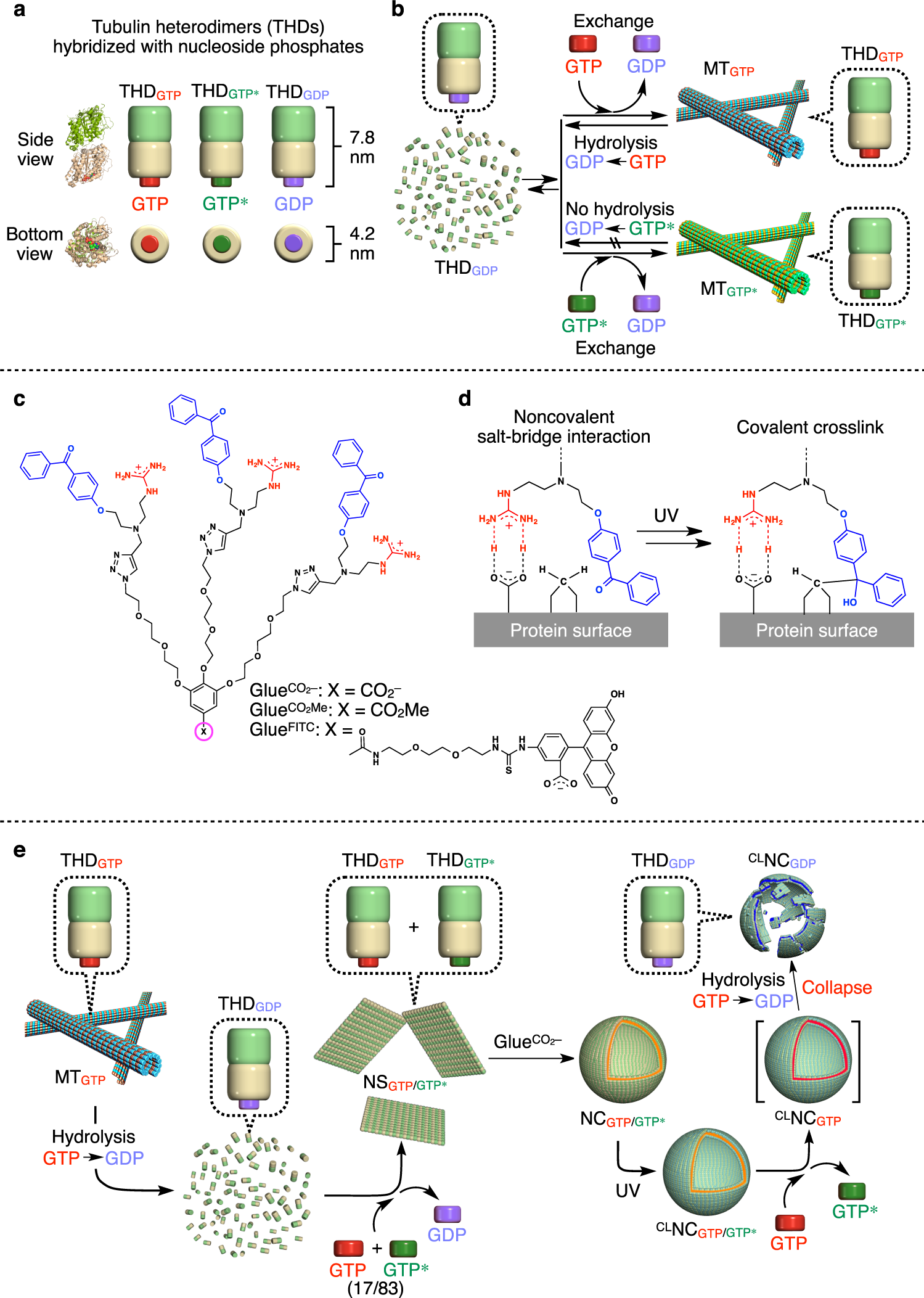

Fig. 1: Strategy used to prepare THD-based GTP-responsive CLNCGTP/GTP*.
From: Reconstitution of microtubule into GTP-responsive nanocapsules

a Schematic illustrations of tubulin heterodimers (THDs) hybridized with GTP (THDGTP), its nonhydrolysable analogue GTP* (THDGTP*), and GDP (THDGDP) at its β-tubulin unit. b Schematic illustration of two self-assembling modes of THD into microtubules (MTs). MTGTP depolymerizes into THDGDP upon GTP hydrolysis. THDGDP rehybridizes with GTP after a GTP treatment, facilitating the formation of MTGTP. In contrast, MTGTP* does not undergo depolymerization. c Molecular structures of photoreactive molecular glues (\({{{\mathrm{Glue}}}}^{{{{\mathrm{CO}}}}_2-}\), \({{{\mathrm{Glue}}}}^{{{{{\mathrm{CO}}}}_{2}-}{\mathrm {Me}}}\), and GlueFITC) bearing three guanidinium ions (Gu+) and benzophenone (BP) groups at their periphery and \({{{{\mathrm{CO}}}}_2-}\), CO2 Me, and FITC groups at the focal core. d The molecular glue covalently binds to the protein surface at its photoexcited BP groups after the noncovalent adhesion via a Gu+/oxyanion multivalent salt-bridge interaction. e Schematic illustration of the multistep procedure for the synthesis of crosslinked nanocapsules (CLNCGTP/GTP*) from MTGTP. MTGTP is depolymerized into THDGDP, which is incubated with a mixture of GTP* (83 mol%) and GTP (17 mol%) to form nanosheet NSGTP/GTP*. Upon treatment with \({{{\mathrm{Glue}}}}^{{{{\mathrm{CO}}}}_2-}\), NSGTP/GTP* is transformed into spherical nanocapsules (NCGTP/GTP*), which are further exposed to UV light, affording CLNCGTP/GTP*. Upon addition of GTP, CLNCGTP/GTP* collapses through the conformational change of the THD units induced by GTP hydrolysis.
