Fig. 2: Design, CFD-based optimization, and fabrication of gas-liquid flow device (GLD) including highly permeable membrane and staggered baffle channel. | Nature Communications

Fig. 2: Design, CFD-based optimization, and fabrication of gas-liquid flow device (GLD) including highly permeable membrane and staggered baffle channel.

From: Ex-situ generation and synthetic utilization of bare trifluoromethyl anion in flow via rapid biphasic mixing

Fig. 2

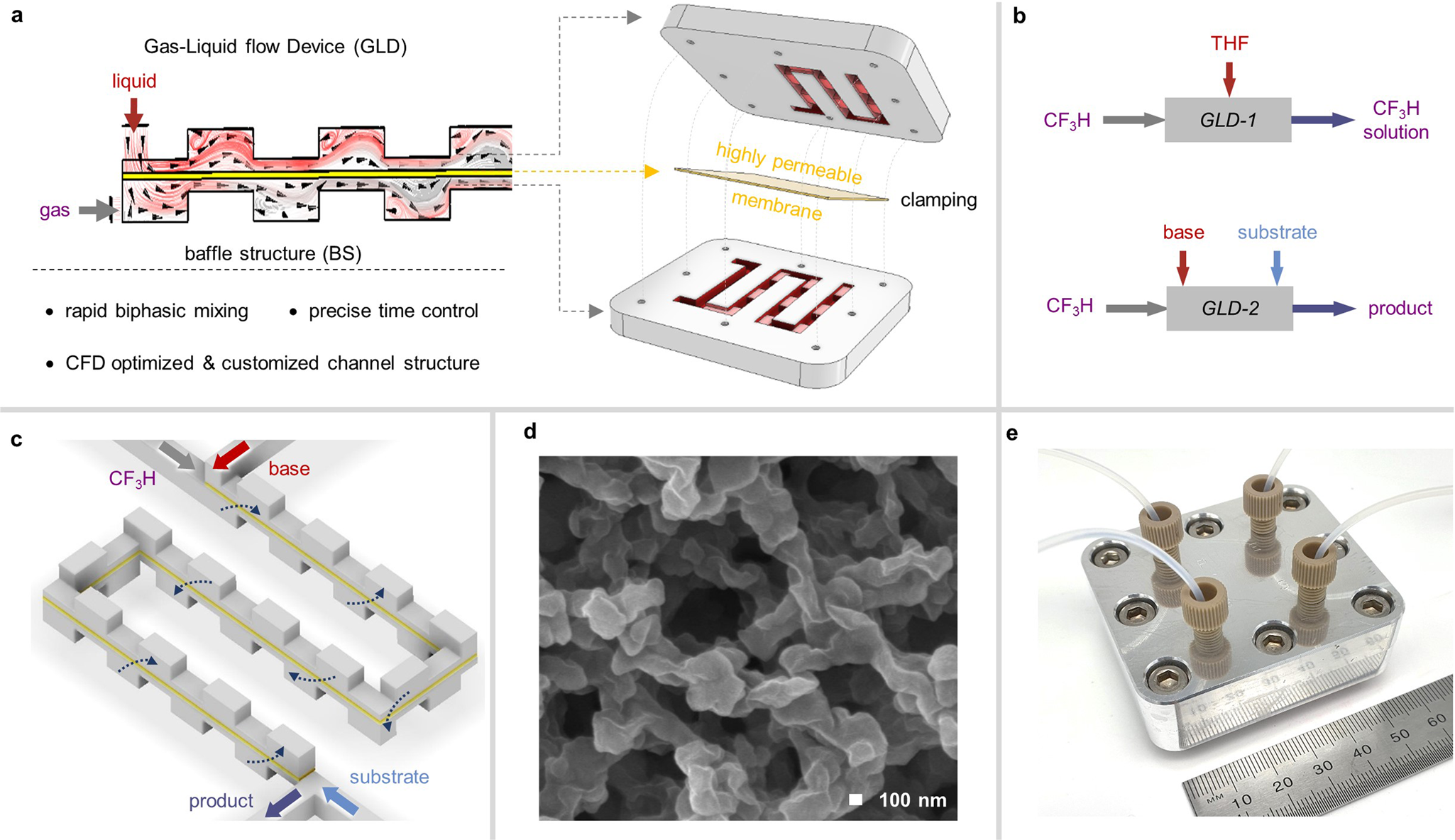

a A schematic concept and fabrication of gas-liquid flow device (GLD) via highly permeable membrane and staggered baffle channels. b A schematic concept of GLD-1 and GLD-2. c A detailed scheme in a fast gas-liquid reaction space in the GLD-2 device with three inlets. d An optical SEM image of the 800 nm of pore size of nano-porous membrane (scale bar, 100 nm). e An optical image of GLD-2 assembly with in- and outlet tubes.
