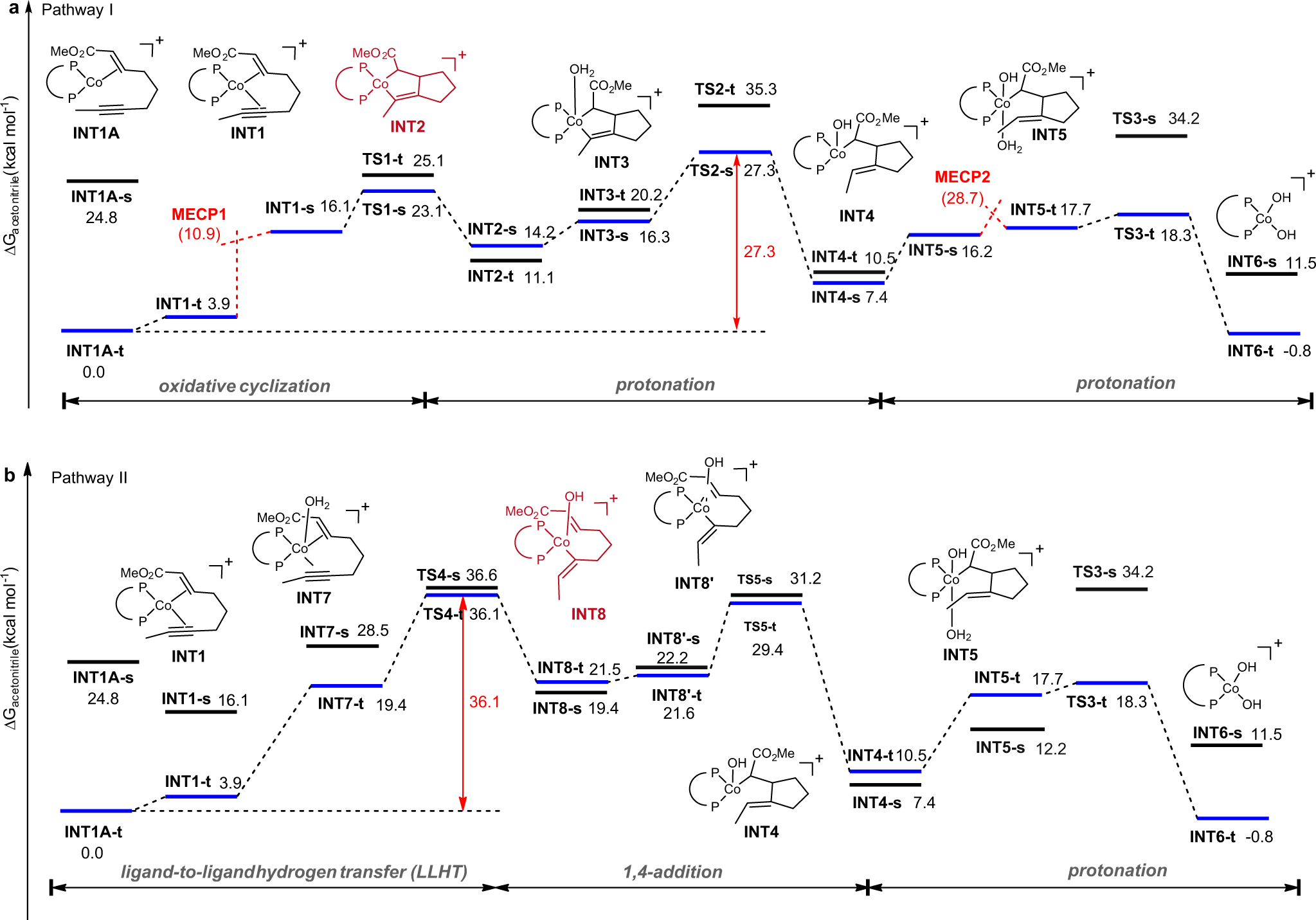

Fig. 5: Gibbs energy profile for Pathway I and Pathway II.
From: Cobalt-catalyzed enantioselective intramolecular reductive cyclization via electrochemistry
All calculations were performed at the SMD(acetonitrile)-M06L/6-311 + G(d,p)-SDD(Co)//M06L/6-31G(d)-SDD(Co) level. a Gibbs energy profile for Pathway I. b Gibbs energy profile for Pathway II.
