Abstract
Transition-metal catalyzed asymmetric cyclization of 1,6-enynes has emerged as a powerful method for the construction of carbocycles and heterocycles. However, very rare examples worked under electrochemical conditions. We report herein a Co-catalyzed enantioselective intramolecular reductive coupling of enynes via electrochemistry using H2O as hydride source. The products were obtained in good yields with high regio- and enantioselectivities. It represents the rare progress on the cobalt-catalyzed enantioselective transformation via electrochemistry with a general substrate scope. DFT studies explored the possible reaction pathways and revealed that the oxidative cyclization of enynes by LCo(I) is more favorable than oxidative addition of H2O or other pathways.
Similar content being viewed by others
Introduction
The stereoselective synthesis of optically active functionalized carbo- and heterocycles receives significant attention in organic synthesis due to the prevalence of these chiral scaffolds in the core structures of numerous bioactive natural products and pharmaceuticals. To this end, 1,6-enynes have emerged as versatile substrates in catalytic reactions to prepare cyclic skeletons with a broad range of functional moieties, which enable the direct transformation of a linear substrate to a cyclic product1,2,3,4,5,6,7,8,9. In these methods, noble metals have been most widely explored as the foremost studied catalyst10,11,12,13,14,15,16.
Recently, cobalt has emerged as a cost-effective alternative in the enantioselective cyclization-coupling reaction of 1,6-enynes and reveals unique reactivity patterns (Fig. 1a). Known methods include [3 + 2] cyclization17,18, hydrosilylation19, homo-ene cyclization20, hydroarylative21 and hydroacylative cyclization22, depending on the functional groups and the experimental conditions. Most of these reactions are proposed to be initiated by the formation of low-valent cobalt species, which promotes the alkyne/alkene oxidative cyclization to form a cobaltacyclopentane intermediate, followed by the subsequent transformation. Despite these advances, cobalt-catalyzed asymmetric intramolecular reductive coupling of 1,6-enyne has rarely been realized, which, if successful, would provide a protocol for stereoselective construction of ring systems decorated with exocyclic trisubstituted C = C bonds23.

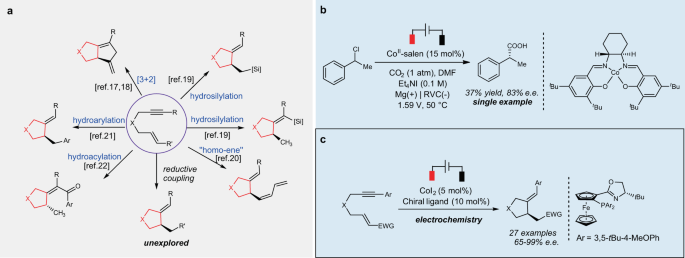

a Asymmetric synthetic approaches involving 1,6-enynes by cobalt. b Precedent enantioselective carboxylation via electrochemistry by cobalt. c This work: enantioselective reductive cyclization of 1,6-enynes via electrochemistry by cobalt.
Different from the known transformations shown in Fig. 1a, where the catalytic amount of reductant is used to initiate the catalytic cycle, reductive couplings are generally achieved via the use of stoichiometric amount of metallic reductants24,25,26, organo- metallic reagents27 or photocatalysis28. Recently, electrosynthesis has been revived as a reliable alternative to the conventional methods and could be utilized to replace hazardous reductants by electric current29,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50. Because the reduction potential and current can be adjusted, electrochemistry offers precise, selective formation of reactive species, thus avoids designing a new reagent. Such tuning is impossible in the use of organic reductants or photocatalysis. These advantages render electrochemistry a sustainable, economical technique for chemical synthesis. However, rare examples have been realized in the field of asymmetric electrosynthesis51,52,53,54,55. To our best knowledge, there is only one enantioselective report involving cobalt via electrochemistry, in which moderate enantioselectivity was reported with one single example (Fig. 1b)56.
Herein, we report our progress on the cobalt-catalyzed asymmetric intramolecular reductive coupling of enynes, affording chiral five-membered cyclic compounds, which represents the rare progress on the cobalt-catalyzed enantioselective transformation via electrochemistry with a general substrate scope (Fig. 1c).
Results and discussion
Optimization of the reaction conditions
Prompted by the precedents on Co-catalyzed electroreduction of aryl halides57,58,59, we initiated the present study with the exploration of enyne 1a as starting material in the presence of CoI2 and phosphine ligand with Zn as sacrificial anode and Ni foam as cathode in CH3CN at 80 oC (Table 1). Et4NI is employed as the supporting electrolyte. Inspired by the good performance of bisphosphine ligands in cobalt catalysis, we first examined different chiral bisphosphine ligands. The use of (S)-BINAP ligand (L1) led to the reductive product 2a in 19% yield with 53% ee. Quinoxp-type ligand (L2) improved the yield slightly, but resulted in poor enantioselectivity. Segphos (L3) delivered trace product. Sadphos ligands, such as PC-Phos (L3) and Ming-Phos (L4) were also tested, delivering lower yields and enantioselectivities. To our delight, the desired product could be obtained in 70% yield with 83% ee when Phosferrox ligand L6 was employed. Evaluation of a series of Phosferrox ligands showed that the use of L9 gave the best results, affording 2a in 83% yield with 92% ee. The counterion on the cobalt has a significant effect. Replacement of CoI2 to CoCl2 or CoBr2 resulted in lower reaction efficiency, which may be attributed to reduction potential difference of cobalt complex (Table 1, entries 2-3). Not only the counterion on cobalt, the electrolyte also affected the reactivity and enantioselectivity significantly. Extensive screening indicated that the Et4NI gave better performance than other ammonium salts (Table 1, entry 4, for details, see Supplementary Table 4 and 5). It could be rationalized that the produced ZnI2 may work as Lewis acid to activate the acrylate and remove the iodide from the LCo(I)I complex, thereby generating a more active cationic cobalt complex25. Furthermore, the effect of the electrodes was also examined. Replacing the Zn anode with Al or Mg led to lower yields and enantioselectivities (Table 1, entries 5, 6). As for the cathode, C felt and Pt cathode also promoted the transformation with retention of the enantioselectivity, albeit with lower yield (Table 1, entries 7, 8). The choice of solvent is crucial to the reaction. CH3CN, DMA, and THF were not effective for this reaction (Table 1, entries 9-11). Furthermore, constant current showed better performance than constant voltage (Table 1, entry 12). Regarding to the hydride source, it is gratifying to find that water could be used as the environmentally benign choice60,61,62. Finally, control experiments confirmed that the cobalt catalyst, ligand, and electric current are all essential for this transformation. None or trace amount of cyclization product was formed in the absence of these reaction components (Table 1, entries 13–15).

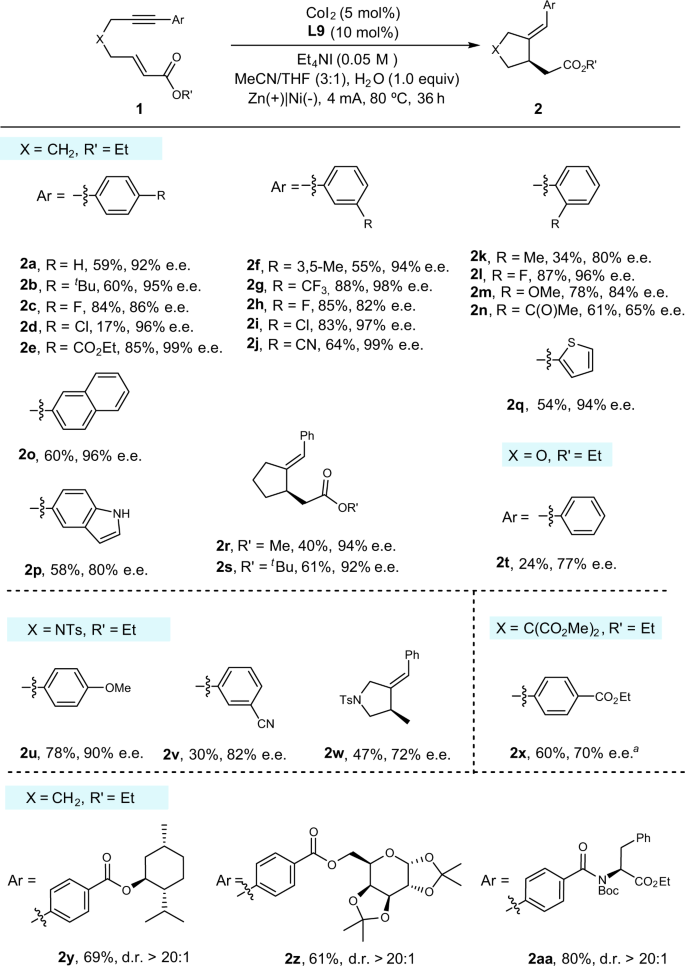

Scope of the reaction
With the optimal conditions established, the substrate scope was next explored to probe the generality and to identify the limitation of this transformation. As depicted in Fig. 2, carbon tethered enynes with a wide range of aromatic alkyne bearing electron-rich and electron-deficient group at the para-, meta- and ortho-position were suitable to this Co-catalyzed electrosynthesis system (2a-2n). Fluoro (2c), ester (2e), cyano (2j), and trifluoromethyl group (2g) were well tolerated in the reaction, delivering the desired product in good yields with good to excellent enantioselectivities. However, the reaction was found to be sensitive to steric influence on the benzene ring because the ortho-substitutents have negative effects on the enantioselectivities. Moreover, the para-chloro group (2d) on alkyne were not well compatible, probably due to their sensitivity to Co(I) species63,64. Besides the chloride, the ketone group (2n) is also not well tolerated in the current electrosynthesis system, as it may tend to undergo cathode reduction65.
The reaction was performed on a 0.4 mmol scale under the conditions in Table 1, entry 1. aL8 was used as ligand.
Gratifyingly, heterocycle-substituted alkyne, such as indole (2p) and thiophene (2q), proceeded in a generally efficient manner. Apart from the carbon-tethered enynes, oxygen-tethered enyne also participated in the reaction, though resulting in low yield and moderate enantioselectivity (2t). Pleasingly, nitrogen-tethered ones also underwent reductive coupling to afford substituted tetrahydropyrroles in good yield and enantioselectivity (2u-2v). Unactivated alkenes were also examined, however, the lower yield and enantioselectivity was obtained under standard conditions (2w). The absolute configuration of 2w was determined by its single crystal X-ray analysis, and those of the others were assigned analogously66. Furthermore, to demonstrate the synthetic utility of this electrosynthesis protocol, it was subjected to the late-stage modification of natural products and derivatives. For example, bioactive alkynes containing menthol, glucose, and amino acid underwent the desired coupling to afford the desired products with good yields and excellent diastereoselectivities (2y-2aa).
Mechanistic study
To understand the role of water and gain insight into the mechanism, an isotope labelling experiment using D2O (4.0 equiv) to replace normal water was conducted. The expected product was obtained with substantial deuterium incorporation into both the vinyl and α-carbonyl position (70% and 65%) (Fig. 3a). In addition, when using the enyne with modest alkene Z/E ratio as starting materials, the product with poor enantioselectivity (46% ee) was obtained. This result revealed that the stereochemistry of the alkene has significant effect on the enantio- control (Fig. 3b)67,68.

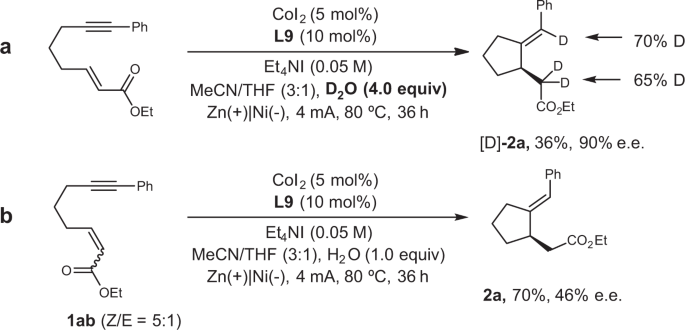

a Deuterium labelling experiment. b Control experiment on geometry of the alkene.

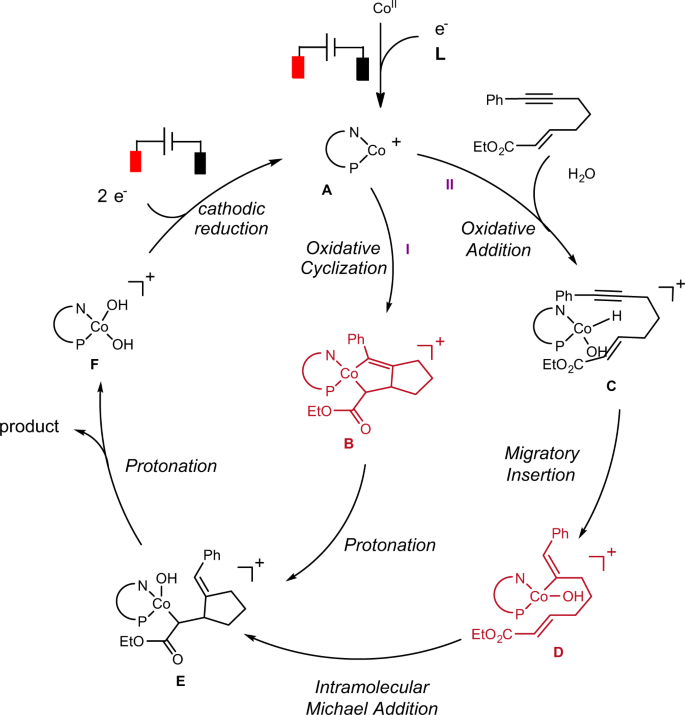

On the basis of the above results and previous studies24,25,26, we proposed the putative pathways for the reaction (Fig. 4). Initially, the cathode reduction allows the LCo(II) to afford the LCo(I) species A, which then undergoes the oxidative cyclization to produce cobaltacyclopentene intermediate B. Then double protonation of B gives the product and LCo(III)(OH)2 species F. Finally, cathode reduction of LCo(III)(OH)2 regenerates the LCo(I) species A. Alternatively, it is also speculated that LCo(I) species A may react with H2O to afford LCo(III)H(OH) intermediate C, which undergoes alkyne migratory insertion to produce the vinyl Co(III) species D. Subsequent intramolecular 1,4-addition delivers species E, followed by the protonation to give the product and LCo(III)(OH)2 species F.
Two plausible different reaction pathways for reductive cyclization of 1,6-enynes.
Both pathways well explained the isotope labelling experiment and the observed regioselectivity of alkynes. In order to better understand the reaction pathway, particularly which pathway is more favorable, DFT calculations were carried out to probe the proposed mechanism. To reduce the computational cost, the calculations were performed on a model reaction using carbon tethered enyne: methyl (E)-non-2-en-7-ynoate and (dppe)Co(I) (singlet or triplet) as the starting complex17,18,20,21,22.

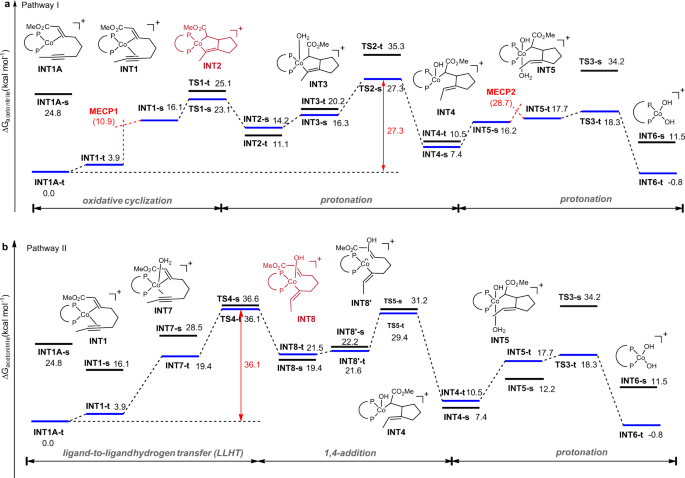

Reaction pathways and energy diagrams for the pathway I and pathway II are summarized in Fig. 5a and b, respectively. Note that the suffixes s and t on the structure numberings refer to the singlet and triplet states, respectively. The cationic [(dppe)Co]+ prefers to form the mono-binding complex. The calculation shows that the alkene-binding complex (INT1A) is more stable than the alkyne-binding complex (INT1B) and enyne-binding complex (INT1) by 2.9 and 3.9 kcal mol−1 (for details, see Supplementary Fig. 4). The singlet species INT1A-s was calculated to be less stable than triplet counterparts INT1A-t (ΔG = 24.8 and 0 kcal mol−1, respectively). With the alkyne coordination to the cobalt, it forms enyne-binding complex INT1. Furthermore, the singlet species INT1-s was calculated to be less stable than triplet counterparts INT1-t (ΔG = 16.1 and 3.9 kcal mol−1, respectively). INT1-s may be connected to the corresponding triplet intermediate INT1-t by minimum energy crossing point (MECP1) with ΔG of 10.9 kcal mol−1. The subsequent oxidative cyclometalation to form cationic Co(III) metallacycle INT2-s was found to take place with an energy barrier of 23.1 kcal mol-1 (via TS1-s). Next, after the binding of H2O, protonation of the Co(III) metallacycle INT3-s afforded an C-enolate Co(III) species INT4-s. Here, the singlet TS (TS2-s, ΔG = 27.3 kcal mol−1) was found to be lower in energy than the triplet TS (TS2-t, ΔG = 35.3 kcal mol−1). Before the second protonation occurs, there is another MECP2 with ΔG of 28.7 kcal mol−1 to connect the triplet state (INT5-t, ΔG = 17.7 kcal mol−1) and singlet state (INT5-s, ΔG = 16.2 kcal mol−1), as the following protonation preferentially occurs in triplet state (TS3-t, ΔG = 18.3 kcal mol−1) than the singlet state (TS3-s, ΔG = 34.2 kcal mol−1), forming the product complex INT6-t (ΔG = −0.8 kcal mol-1). Overall, the first protonation was found to be the step of the highest activation barrier (ΔG# = 27.3 kcal mol−1). Alternatively, the first protonation might also afford an alkenyl Co(III) species (INT10-t). However, this pathway showed the higher activation barrier (ΔG# = 29.8 kcal mol−1, see Fig. S5 for details).
All calculations were performed at the SMD(acetonitrile)-M06L/6-311 + G(d,p)-SDD(Co)//M06L/6-31G(d)-SDD(Co) level. a Gibbs energy profile for Pathway I. b Gibbs energy profile for Pathway II.
Besides the oxidative cyclization pathway (Fig. 5a), we also probed the oxidative addition and migratory insertion of the enyne into the Co-H bond, which converges to INT8-t (Fig. 5b). However, our attempts to locate a H2O oxidative addition TS in both singlet and triplet state failed and the C-H bond cleavage was found to take place favorably through a ligand-to-ligand hydrogen transfer (LLHT) transition state69,70,71,72,73,74,75,76, where the Co-OH bond, Co-alkenyl bond, and the vinyl C-H bond form in a concerted approach with an overall energy barrier of 36.1 kcal mol-1. Next, the intramolecular 1,4-addition preferentially occurs in the triplet state (TS5-t, ΔG = 29.4 kcal mol-1). Overall, the LLHT step was found to require the highest activation energy (ΔG# = 36.1 kcal mol−1). Alternatively, the LLHT to afford the C-enolate Co(III) species INT9-t was also explored and the result showed that it required even higher activation energy (ΔG# = 48.2 kcal mol−1, see Fig. S5 for details). As a result, the energy gap of the two pathways suggests that the present reaction is likely to occur initially by oxidative cyclization rather than the stepwise oxidative addition−migratory insertion or LLHT mechanism.
In summary, we have successfully developed a Co-catalyzed enantioselective intramolecular reductive cyclization of enynes via electrochemistry. The products are generated in a highly stereocontrolled fashion in good yields and represent a powerful platform to access five-member ring-bearing exocyclic trisubstituted C=C bonds. Mechanistic studies by DFT shed light on the potential reaction pathway, indicating that the oxidative cyclization is more favorable than ligand-to-ligand hydrogen transfer pathway. Given the increasing interests in electrosynthesis and cobalt catalysis, we believe this report will stimulate further investigations in asymmetric organoelectrochemistry.
Methods
Representative procedure for cobalt-catalyzed enantioselective intramolecular reductive cyclization via electrochemistry
Under a nitrogen atmosphere, an oven-dried electrochemical cell with two stir bars was added enyne (0.4 mmol, 1 equiv), CoI2 (0.02 mmol, 5 mol%), ligand (0.04 mmol, 10 mol%), Et4NI (0.2 mmol, 0.5 equiv), H2O (1.0 equiv), 3 mL of CH3CN and 1 mL of THF. The tube was installed by a Ni foam (2.5 cm × 0.5 cm) as cathode and Zn flake (2.5 cm × 0.5 cm) as sacrificial anode. The distance of the electrodes is around 1 cm. The mixture was stirred at r.t. for 15 min. The reaction mixture was electrolyzed under a constant current of 4 mA at 80 °C until the complete consumption of the starting materials which was monitored by TLC (about 36 hours). The solvent was removed in vacuo, and the crude residue was purified via column chromatography to afford the desired product.
Data availability
The authors declare that all the data supporting this study, including the experimental details, data analysis, and spectra for all unknow compounds, see Supplementary Files. All data underlying the findings of this work are available from the corresponding author upon reasonable request. Crystal data and structure refinement for 2w is available in Supplementary Data 1. Energy data (hartrees) for the calculated structures is available in Supplementary Data 2. The X-ray crystallographic coordinates for structures reported in this study have been deposited at the Cambridge Crystallographic Data Centre (CCDC), under deposition numbers 2184064 (2w). These data are provided free of charge by the joint Cambridge Crystallographic Data Centre and Fachinformationszentrum Karlsruhe Access Structures service www.ccdc.cam.ac.uk/structures.
References
Ojima, I., Tzamarioudaki, M., Li, Z. & Donovan, R. J. Transition metal-catalyzed carbocyclizations in organic synthesis. Chem. Rev. 96, 635–662 (1996).
Aubert, C., Buisine, O. & Malacria, M. The behavior of 1,n-Enynes in the presence of transition metals. Chem. Rev. 102, 813–834 (2002).
Michelet, V., Toullec, P. Y. & Genêt, J.-P. Cycloisomerization of 1,n-Enynes: Challenging metal-catalyzed rearrangements and mechanistic insights. Angew. Chem. Int. Ed. 47, 4268–4315 (2008).
Lee, S. I. & Chatani, N. Catalytic skeletal reorganization of enynes through electrophilic activation of alkynes: double cleavage of C–C double and triple bonds. Chem. Commun. 28, 371–384 (2009).
Watson, I. D. G. & Toste, F. D. Catalytic enantioselective carbon-carbon bond formation using cycloisomerization reactions. Chem. Sci. 3, 2899–2919 (2012).
Yamamoto, Y. Transition-metal-catalyzed cycloisomerizations of α,ω-Dienes. Chem. Rev. 112, 4736–4769 (2012).
Hu, Y., Bai, M., Yang, Y. & Zhou, Q. Metal-catalyzed enyne cycloisomerization in natural product total synthesis. Org. Chem. Front. 4, 2256–2275 (2017).
Marinetti, A., Jullien, H. & Voituriez, A. Enantioselective, transition metal-catalyzed cycloisomerizations. Chem. Soc. Rev. 41, 4884–4908 (2012).
Gillbard, S. M. & Lam, H. W. Nickel-catalyzed arylative cyclizations of alkyne- and allene-tethered electrophiles using arylboron reagents. Chem. Eur. J. 28, e202104230 (2022).
Trost, B. M., Frederiksen, M. U. & Rudd, M. T. Ruthenium-catalyzed reactions—a treasure trove of atom-economic transformations. Angew. Chem. Int. Ed. 44, 6630–6666 (2005).
Zhang, L., Sun, J. & Kozmin, S. A. Gold and platinum catalysis of enyne cycloisomerization. Adv. Synth. Catal. 348, 2271–2296 (2006).
Jiménez-Núñez, E. & Echavarren, A. M. Gold-catalyzed cycloisomerizations of enynes: a mechanistic perspective. Chem. Rev. 108, 3326–3350 (2008).
Fürstner, A. Gold and platinum catalysis—a convenient tool for generating molecular complexity. Chem. Soc. Rev. 38, 3208–3221 (2009).
Michelet, V. in Comprehensive Organic Synthesis (Second Edition) (ed Paul Knochel) 1483–1536 (Elsevier, 2014).
Morimoto, T. in Rhodium Catalysis in Organic Synthesis 161–182 (2019).
Wong, V. H. L. & Hii, K. K. in Silver Catalysis in Organic Synthesis 85–181 (2019).
Da Concepción, E., Fernández, I., Mascareñas, J. L. & López, F. Highly Enantioselective cobalt‐catalyzed (3+2) cycloadditions of alkynylidenecyclopropanes. Angew. Chem. Int. Ed. 60, 8182–8188 (2021).
Xiao, X. & Yu, Z.-X. Co-catalyzed asymmetric intramolecular [3+2] Cycloaddition of Yne-Alkylidenecyclopropanes and its reaction mechanism. Chem. Eur. J. 27, 7176–7182 (2021).
You, Y. E. & Ge, S. Asymmetric cobalt‐catalyzed regioselective hydrosilylation/cyclization of 1,6‐Enynes. Angew. Chem. Int. Ed. 60, 12046–12052 (2021).
Wu, C. & Yoshikai, N. Cobalt-catalyzed intramolecular reactions between a vinylcyclopropane and an alkyne: switchable [5+2] cycloaddition and homo-ene. Pathw. Angew. Chem. Int. Ed. 57, 6558–6562 (2018).
Whyte, A. et al. Cobalt-catalyzed enantioselective hydroarylation of 1,6-Enynes. J. Am. Chem. Soc. 142, 9510–9517 (2020).
Whyte, A., Bajohr, J., Torelli, A. & Lautens, M. Enantioselective cobalt-catalyzed intermolecular hydroacylation of 1,6-Enynes. Angew. Chem. Int. Ed. 59, 16409–16413 (2020).
Stathakis, C. I., Gkizis, P. L. & Zografos, A. L. Metal-catalyzed cycloisomerization as a powerful tool in the synthesis of complex sesquiterpenoids. Nat. Prod. Rep. 33, 1093–1117 (2016).
Jeganmohan, M. & Cheng, C. H. Cobalt- and nickel-catalyzed regio- and stereoselective reductive coupling of alkynes, allenes, and alkenes with alkenes. Chem. Eur. J. 14, 10876–10886 (2008).
Chang, H. T., Thiruvellore, T. J., Wang, C. C. & Cheng, C. H. Cobalt-catalyzed reductive coupling of activated alkenes with alkynes. J. Am. Chem. Soc. 129, 12032–12041 (2007).
Wei, C. H., Mannathan, S. & Cheng, C. H. Enantioselective synthesis of β-substituted cyclic ketones via cobalt-catalyzed asymmetric reductive coupling of alkynes with alkenes. J. Am. Chem. Soc. 133, 6942–6944 (2011).
Chen, M., Weng, Y., Guo, M., Zhang, H. & Lei, A. Nickel-catalyzed reductive cyclization of unactivated 1,6-enynes in the presence of organozinc reagents. Angew. Chem. Int. Ed. 47, 2279–2282 (2008).
Rai, P., Maji, K. & Maji, B. Photoredox/cobalt dual catalysis for visible-light-mediated alkene–alkyne coupling. Org. Lett. 21, 3755–3759 (2019).
Jutand, A. Contribution of electrochemistry to organometallic catalysis. Chem. Rev. 108, 2300–2347 (2008).
Yoshida, J.-i, Kataoka, K., Horcajada, R. & Nagaki, A. Modern strategies in electroorganic synthesis. Chem. Rev. 108, 2265–2299 (2008).
Francke, R. & Little, R. D. Redox catalysis in organic electrosynthesis: basic principles and recent developments. Chem. Soc. Rev. 43, 2492–2521 (2014).
Ogawa, K. A. & Boydston, A. J. Recent developments in organocatalyzed electroorganic chemistry. Chem. Lett. 44, 10–16 (2015).
Horn, E. J., Rosen, B. R. & Baran, P. S. Synthetic organic electrochemistry: an enabling and innately sustainable method. ACS Cent. Sci. 2, 302–308 (2016).
Yan, M., Kawamata, Y. & Baran, P. S. Synthetic organic electrochemical methods since 2000: on the verge of a renaissance. Chem. Rev. 117, 13230–13319 (2017).
Ma, C., Fang, P. & Mei, T. S. Recent advances in C-H functionalization using electrochemical transition metal catalysis. ACS Catal. 8, 7179–7189 (2018).
Yoshida, J. I., Shimizu, A. & Hayashi, R. Electrogenerated cationic reactive intermediates: the pool method and further advances. Chem. Rev. 118, 4702–4730 (2018).
Sandford, C. et al. A synthetic chemist’s guide to electroanalytical tools for studying reaction mechanisms. Chem. Sci. 10, 6404–6422 (2019).
Wang, H., Gao, X., Lv, Z., Abdelilah, T. & Lei, A. Recent advances in oxidative R1-H/R2-H cross-coupling with hydrogen evolution via photo-/electrochemistry. Chem. Rev. 119, 6769–6787 (2019).
Xiong, P. & Xu, H.-C. Chemistry with electrochemically generated N-centered radicals. Acc. Chem. Res. 52, 3339–3350 (2019).
Yuan, Y. & Lei, A. Electrochemical oxidative cross-coupling with hydrogen evolution reactions. Acc. Chem. Res. 52, 3309–3324 (2019).
Ackermann, L. Metalla-electrocatalyzed C–H activation by earth-abundant 3d metals and beyond. Acc. Chem. Res. 53, 84–104 (2020).
Chen, H. et al. Fundamentals, applications, and future directions of bioelectrocatalysis. Chem. Rev. 120, 12903–12993 (2020).
Jiao, K.-J., Xing, Y.-K., Yang, Q.-L., Qiu, H. & Mei, T.-S. Site-selective C–H functionalization via synergistic use of electrochemistry and transition metal catalysis. Acc. Chem. Res. 53, 300–310 (2020).
Pollok, D. & Waldvogel, S. R. Electro-organic synthesis – a 21st century technique. Chem. Sci. 11, 12386–12400 (2020).
Röckl, J. L., Pollok, D., Franke, R. & Waldvogel, S. R. A decade of electrochemical dehydrogenative C,C-Coupling of Aryls. Acc. Chem. Res. 53, 45–61 (2020).
Siu, J. C., Fu, N. & Lin, S. Catalyzing electrosynthesis: a homogeneous electrocatalytic approach to reaction discovery. Acc. Chem. Res. 53, 547–560 (2020).
Wang, F. & Stahl, S. S. Electrochemical oxidation of organic molecules at lower overpotential: accessing broader functional group compatibility with electron−proton transfer mediators. Acc. Chem. Res. 53, 561–574 (2020).
Yamamoto, K., Kuriyama, M. & Onomura, O. Anodic oxidation for the stereoselective synthesis of heterocycles. Acc. Chem. Res. 53, 105–120 (2020).
Novaes, L. F. T. et al. Electrocatalysis as an enabling technology for organic synthesis. Chem. Soc. Rev. 50, 7941–8002 (2021).
Malapit, C. A. et al. Advances on the merger of electrochemistry and transition metal catalysis for organic synthesis. Chem. Rev. 122, 3180–3218 (2022).
Chang, X., Zhang, Q. & Guo, C. Asymmetric electrochemical transformations. Angew. Chem. Int. Ed. 59, 12612–12622 (2020).
Chakraborty, P., Mandal, R., Garg, N. & Sundararaju, B. Recent advances in transition metal-catalyzed asymmetric electrocatalysis. Coord. Chem. Rev. 444, 214065 (2021).
Dhawa, U. et al. Enantioselective palladaelectro-catalyzed C-H olefinations and allylations for N-C axial chirality. Chem. Sci. 12, 14182–14188 (2021).
Long, C. J. et al. Merging the non-natural catalytic activity of lipase and electrosynthesis: asymmetric oxidative cross-coupling of secondary amines with ketones. Angew. Chem. Int. Ed. 61, e202203666 (2022).
Xiong, P., Hemming, M., Ivlev, S. I. & Meggers, E. Electrochemical Enantioselective Nucleophilic α-C(sp3)-H alkenylation of 2-Acyl Imidazoles. J. Am. Chem. Soc. 144, 6964–6971 (2022).
Chen, B.-L. et al. Asymmetric electrocarboxylation of 1-phenylethyl chloride catalyzed by electrogenerated chiral [CoI(salen)]− complex. Electrochem. Commun. 42, 55–59 (2014).
Gomes, P., Gosmini, C., Nédélec, J.-Y. & Périchon, J. Cobalt bromide as catalyst in electrochemical addition of aryl halides onto activated olefins. Tetrahedron Lett. 41, 3385–3388 (2000).
Le Gall, E., Gosmini, C., Nédélec, J.-Y. & Périchon, J. Cobalt-catalyzed electrochemical cross-coupling of functionalized phenyl halides with 4-chloroquinoline derivatives. Tetrahedron Lett. 42, 267–269 (2001).
Gomes, P., Gosmini, C. & Périchon, J. Cobalt-catalyzed direct electrochemical cross-coupling between Aryl or Heteroaryl halides and allylic acetates or carbonates. J. Org. Chem. 68, 1142–1145 (2003).
Flinker, M. et al. Efficient water reduction with sp3-sp3 Diboron(4) Compounds: Application to hydrogenations, H–D exchange reactions, and carbonyl reductions. Angew. Chem. Int. Ed. 56, 15910–15915 (2017).
Gaydou, M., Moragas, T., Juliá-Hernández, F. & Martin, R. Site-selective catalytic carboxylation of unsaturated hydrocarbons with CO2 and water. J. Am. Chem. Soc. 139, 12161–12164 (2017).
Kong, W., Wang, Q. & Zhu, J. Water as a hydride source in palladium-catalyzed enantioselective reductive heck reactions. Angew. Chem. Int. Ed. 56, 3987–3991 (2017).
Gosmini, C., Rollin, Y., Nédélec, J. Y. & Périchon, J. New efficient preparation of arylzinc compounds from aryl halides using cobalt catalysis and sacrificial anode process. J. Org. Chem. 65, 6024–6026 (2000).
Gomes, P., Gosmini, C. & Périchon, J. Cobalt-catalyzed electrochemical vinylation of aryl halides using vinylic acetates. Tetrahedron 59, 2999–3002 (2003).
Hu, P. et al. Electroreductive Olefin-Ketone coupling. J. Am. Chem. Soc. 142, 20979–20986 (2020).
CCDC 2184064 (2w) contains the supplementary crystallographic data for this paper. These data can be obtained free of charge from The Cambridge Crystallographic Data Centre.
Cao, P. & Zhang, X. The first highly enantioselective Rh-Catalyzed enyne cycloisomerization. Angew. Chem. Int. Ed. 39, 4104–4106 (2000).
Deng, X. et al. Enantioselective rhodium-catalyzed cycloisomerization of (E)-1,6-enynes. Angew. Chem. Int. Ed. 55, 6295–6299 (2016).
Guihaumé, J., Halbert, S., Eisenstein, O. & Perutz, R. N. Hydrofluoroarylation of alkynes with Ni Catalysts. C–H activation via ligand-to-ligand hydrogen transfer, an alternative to oxidative addition. Organometallics 31, 1300–1314 (2012).
Bair, J. S. et al. Linear-selective hydroarylation of unactivated terminal and internal olefins with trifluoromethyl-substituted arenes. J. Am. Chem. Soc. 136, 13098–13101 (2014).
Fallon, B. J. et al. C–H activation/functionalization catalyzed by simple, well-defined low-valent cobalt complexes. J. Am. Chem. Soc. 137, 2448–2451 (2015).
Okumura, S. et al. Para-selective alkylation of benzamides and aromatic ketones by cooperative nickel/aluminum catalysis. J. Am. Chem. Soc. 138, 14699–14704 (2016).
Xiao, L.-J. et al. Nickel-catalyzed hydroacylation of styrenes with simple aldehydes: reaction development and mechanistic insights. J. Am. Chem. Soc. 138, 2957–2960 (2016).
Eisenstein, O., Milani, J. & Perutz, R. N. Selectivity of C–H activation and competition between C–H and C–F bond activation at fluorocarbons. Chem. Rev. 117, 8710–8753 (2017).
Tang, S., Eisenstein, O., Nakao, Y. & Sakaki, S. Aromatic C–H σ-bond activation by Ni0, Pd0, and Pt0 alkene complexes: concerted oxidative addition to metal vs ligand-to-ligand H transfer mechanism. Organometallics 36, 2761–2771 (2017).
Wang, C.-S. et al. Cobalt/Lewis acid catalysis for hydrocarbofunctionalization of alkynes via cooperative C–H activation. J. Am. Chem. Soc. 142, 12878–12889 (2020).
Acknowledgements
We gratefully acknowledge the funding support of the National Key R&D Program of China (2021YFF0701600, J. Y. and J. Z.), NSFC (21901043, J. Y.; 21921003, J. Z.; 22031004, J. Z.), STCSM (21ZR1445900, J. Y.) and Shanghai Municipal Education Commission (20212308, J. Z.).
Author information
Authors and Affiliations
Contributions
J.Y. conceived the project, analyzed the data. J.Y. and J.Z wrote the manuscript. S.G. performed the most of experiments. J.Y. did the DFT calculations and C.W. gave valuable suggestions on DFT calculations. All authors discussed the results and commented on the manuscript.
Corresponding authors
Ethics declarations
Competing interests
The authors declare no competing interests.
