Ruthenium-cobalt single atom alloy for CO photo-hydrogenation to liquid fuels at ambient pressures

Abstract

Photothermal Fischer-Tropsch synthesis represents a promising strategy for converting carbon monoxide into value-added chemicals. High pressures (2-5 MPa) are typically required for efficient C-C coupling reactions and the production of C₅₊ liquid fuels. Herein, we report a ruthenium-cobalt single atom alloy (Ru₁Co-SAA) catalyst derived from a layered-double-hydroxide nanosheet precursor. Under UV-Vis irradiation (1.80 W cm⁻²), Ru₁Co-SAA heats to 200 °C and photo-hydrogenates CO to C₅₊ liquid fuels at ambient pressures (0.1-0.5 MPa). Single atom Ru sites dramatically enhance the dissociative adsorption of CO, whilst promoting C-C coupling reactions and suppressing over-hydrogenation of CH_x* intermediates, resulting in a CO photo-hydrogenation turnover frequency of 0.114 s⁻¹ with 75.8% C₅₊ selectivity. Owing to the local Ru-Co coordination, highly unsaturated intermediates are generated during C-C coupling reactions, thereby improving the probability of carbon chain growth into C₅₊ liquid fuels. The findings open new vistas towards C₅₊ liquid fuels under sunlight at mild pressures.

Introduction

Efficient utilization and capture of solar energy is critical to meeting the energy needs of future societies¹. Recently, photo-driven Fischer–Tropsch synthesis (FTS) reactions have attracted a lot of attention as an energy-efficient route towards value-added chemicals^2,3. A number of reported works have demonstrated that efficient photothermal CO hydrogenation to alkanes and alkenes is possible using UV-Vis lamps or concentrated direct sunlight as the heating source^4,5,6,7,8. To date, most of these works have only yielded light hydrocarbons (typically C₁-C₅ alkanes or C₂-C₄ alkenes). A prized yet challenging target of FTS research is the synthesis of value-added C₅₊ hydrocarbon liquid fuels. Further, both thermal and photothermal FTS demand relatively harsh conditions, typically high pressures (2-5 MPa)^{9,10,11,12,13,14,15,16,17,18}. Economic incentives therefore exist to discover photo-driven CO hydrogenation catalysts that deliver C₅₊ hydrocarbon liquid fuels at near ambient pressures (below 0.5 MPa).

FTS reactions are complex multi-step processes, involving CO adsorption and hydrogenation to CH_x* intermediates followed by C-C coupling and further hydrogenation steps. Product selectivity is largely controlled by the probability of C-C coupling reactions relative to over-hydrogenation reactions. Supported Co, Ru, Fe and Ni nanoparticles are commonly used as metal catalysts in FTS, each of which differs in its electronic structure, CO hydrogenation activity, FTS product selectivity and stability. Co-based and Ru-based catalysts show good activity for C-C coupling reactions at high pressures, and therefore are used in conventional thermal FTS to produce liquid fuels (including gasoline: C_5-12 hydrocarbons, jet fuel: C_8-16 hydrocarbons, and diesel: C_13-20 hydrocarbons)^19,20,21. However, if FTS reactions are carried out at low pressures using the same catalysts, the chain growth probability is significant reduced, resulting in the poor C₅₊ selectivity²². Recently, combining Co-based catalysts with Ru, Pt, Pd, and Rh to create bimetallic catalysts has proved effective in promoting CO conversion whilst hardly enhancing C₅₊ selectivity^{14,15,23,24,25}. However, alloy composition and element distribution in alloy nanoparticles are critical. The low energy barrier of H₂ dissociation on Ru-rich domains can lead to the over-hydrogenation of CH_x* intermediates, resulting in CH₄ production rather than C-C coupling reactions at near ambient pressures^{26,27,28,29,30}. The low intrinsic C-C coupling ability of traditional Co-based, Ru-based and RuCo-alloyed catalysts necessitates operation at high pressures to increase the coupling probability. Therefore, novel Co-Ru alloy designs which precisely regulate the balance between C-C coupling and methanation processes are essential for achieving a high selectivity towards C₅₊ liquid fuels during CO photo-hydrogenation at near ambient pressures.

Single atom alloys (SAAs), a novel bimetallic subset of metal single atom catalysts (SACs), contain isolated metal atoms of one metal dispersed in the surface of another metal (the host)^31,32. SAAs offer unique catalytic properties compared to single metal catalysts or conventional binary alloy catalysts in selective hydrogenation and C-C coupling reactions, including improved activity, selectivity, and resistance to deactivation via coke formation^33,34. Layered-double-hydroxide (LDH) nanosheets due to their 2D structure and compositional flexibility are now widely used in the fabrication of novel SACs for the energy sector^35,36,37,38. We hypothesized that the topological structural transformation of LDH nanosheets with heating in the hydrogen atmosphere should allow the rational design of alumina-supported SAA catalysts (e.g. Co nanoparticles with surface atomically dispersed Ru atoms). The Ru₁ coordination should lessen the strong hydrogenation ability of Ru-rich domains at low pressures (<0.5 MPa), thus allowing CO photo-hydrogenation to C₅₊ hydrocarbons under extremely mild conditions.

Herein, we report the successful fabrication of an alumina-supported RuCo single atom alloy catalyst (Ru₁Co-SAA) with atomically dispersed Ru sites in face-centered cubic (fcc) Co nanoparticles. Ru₁Co-SAA is synthesized by hydrogen reduction of Ru₁CoAl-LDH nanosheets at 650 °C, and demonstrates outstanding performance for the CO photo-hydrogenation to C₅₊ liquid fuels under ultraviolet-visible (UV-Vis) irradiation. Isolated Ru atoms on the surface of the metallic Co nanoparticles are confirmed by the transmission electron microscopy (TEM) and Ru K-edge X-ray absorption spectroscopy (XAS) characterization studies. Under UV-Vis light irradiation (1.80 W cm⁻²) and near ambient pressures (0.5 MPa), Ru₁Co-SAA offers a CO conversion of 58.6% (CO turnover frequency, TOF, of 0.114 s⁻¹) and a remarkable C₅₊ selectivity of 75.8%, significantly outperforming catalysts based on alumina-supported Co nanoparticles (Co-NP) or RuCo nanoalloys (Ru_nCo-NA). Impressively, the performance of Ru₁Co-SAA at low pressures is comparable to state-of-the-art Co-based, Ru-based and RuCo-alloyed FTS catalysts that operate at much higher pressures (normally above 2 MPa). Chemisorption experiments and density functional theory (DFT) calculations reveal that the unique Ru-Co coordination in Ru₁Co-SAA promotes CO activation and the C-C coupling reactions of CH_x* intermediates, thus enabling efficient CO photo-hydrogenation activity and C₅₊ selectivity. Moreover, the formation of C₂* intermediates with high unsaturation over Ru₁Co-SAA is conducive to C-C coupling to long-chain hydrocarbons (compared to reference catalysts containing Co-NP or Ru_nCo-NA). To the best of our knowledge, this is the first study to report CO photo-hydrogenation to C₅₊ liquid fuels with high selectivity at ambient and near ambient pressures (0.1-0.5 MPa).

Results

Synthesis and characterization of the Ru₁Co-SAA catalyst

To prepare Ru₁Co-SAA and Ru_nCo-NA (Fig. 1), Ru₁CoAl- and Ru_nCoAl-LDH nanosheets were firstly synthesized as catalyst precursors using the same one-pot hydrothermal method as CoAl-LDH reported in our previous work⁸. The Ru/Co molar ratios in the precursors and catalysts were measured by inductively coupled plasma-optical emission spectroscopy (ICP-OES, Supplementary Table 1). Powder X-ray diffraction (XRD) results showed that the crystallinity of LDH precursors decreased with increasing Ru loading (Supplementary Fig. 1). Hydrogen temperature-programmed reduction (H₂-TPR, Supplementary Fig. 2) profiles guided the selection of temperature to reduce the LDH precursors to obtain the Co-NP, Ru₁Co-SAA and Ru_nCo-NA catalysts. To ensure that all the cobalt in the precursors was reduced to metallic Co nanoparticles, the LDH precursors were then heated at 650 °C for 5 h in a H₂/N₂ (10/90) atmosphere.

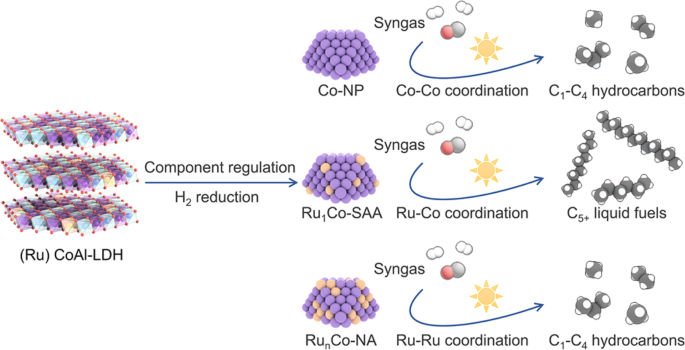

Fig. 1: Schematic illustration of the fabrication of the catalysts and the main products of CO photo-hydrogenation.

The left illustration shows the structure of LDH precursors. The middle illustration shows nanostructures of active nanoparticles in Co-NP, Ru₁Co-SAA and Ru_nCo-NA catalysts derived from LDHs. The right illustration shows that Ru₁Co-SAA contributes to C₅₊ liquid fuels owing to the dominant Ru-Co coordination while Co-NP and Ru_nCo-NA lead to C₁-C₄ hydrocarbons due to the pure Co-Co coordination and partial Ru-Ru coordination, respectively.

The crystallinity of the as-obtained catalysts was studied by powder XRD (Supplementary Fig. 3). The XRD patterns for each sample contained dominant diffraction peaks at around 52° and 61°, corresponding to the (111) and (200) planes of fcc metallic Co. No diffraction peaks due to Ru or RuO₂ were observed in the XRD patterns of either Ru₁Co-SAA or Ru_nCo-NA, indicating that all Ru species were highly dispersed in these materials. Further structural analysis of the catalysts (Supplementary Fig. 4 and Table 2) revealed that Ru₁Co-SAA, Ru_nCo-NA and Co-NP catalysts possessed generally similar structures (primarily metallic Co nanoparticles supported on 2D amorphous alumina sheets). High-resolution transmission electron microscopy (HRTEM) images revealed that the Co nanoparticles in Ru₁Co-SAA possessed an average diameter of 9.8 ± 1.8 nm (Fig. 2a and Supplementary Fig. 5). High-angle annular dark-field scanning transmission electron microscopy (HAADF-STEM) images and energy-dispersive spectroscopy (EDS) element maps (Fig. 2b, c) further confirmed the highly uniform dispersion of Co nanoparticles on amorphous alumina sheets with no Ru nanoparticles present. The lattice fringe spacing on the metal nanoparticles in Ru₁Co-SAA was 0.20 nm (Fig. 2d), in good accord with the lattice spacing of Co (111). Aberration-corrected high-angle annular dark-field scanning transmission electron microscopy (AC-HAADF-STEM) was able to distinguish single Ru atoms from Co atoms due to differences in the Z-contrast of these elements^39,40,41,42. Figure 2e verified the uniform dispersion of isolated bright Ru atoms in the Co nanoparticles. Furthermore, Fig. 2f, g showed that the single Ru atoms took the place of Co atoms in the lattice. The X-Y line profile over a metal nanoparticle in Ru₁Co-SAA (Fig. 2h) conclusively proved the presence of Ru atoms in the Co metal lattice, with the Ru atoms having stronger intensity (the 4^th and 7^th atoms in nine consecutive atoms marked from Fig. 2f)^43,44. The diameters of Co nanoparticles in the control catalysts (Co-NP and Ru_nCo-NA, Supplementary Figs. 6-7) were similar to those in the Ru₁Co-SAA catalyst, though the distribution of Ru in Ru_nCo-NA was quite different to Ru₁Co-SAA. For Ru_nCo-NA, the higher Ru content resulted in a higher Ru coverage on the surface of the Co nanoparticles (Supplementary Fig. 7). A line scan across two adjacent nanoparticles showed that the signals for Ru and Co overlapped, evidence for the formation of a binary RuCo nanoalloy.

Fig. 2: Morphology of the Ru₁Co-SAA catalyst.

a HRTEM image of Ru₁Co-SAA at low magnification. Scale bar, 50 nm. b HAADF-STEM image of the Ru₁Co-SAA catalyst. Scale bar, 50 nm. c EDS element maps for Co, Ru, Al and O in the dotted-box area. Scale bar, 10 nm. d HRTEM image of Ru₁Co-SAA at high magnification. Scale bar, 5 nm. e AC-HAADF-STEM image of Ru₁Co-SAA at low magnification. Scale bar, 5 nm. f, g AC-HAADF-STEM image and its color-coded intensity map of Ru₁Co-SAA at atomic-resolution high magnification. Scale bar, 1 nm. h X-Y line profile for Ru and Co atoms, measured from f.

Ru K-edge and Co K-edge X-ray absorption spectroscopy (XAS) was next performed to further probe the local structure of the metal nanoparticles in Ru₁Co-SAA and Ru_nCo-NA. As shown in Fig. 3a, the Ru K-edge near-edge features of Ru₁Co-SAA and Ru_nCo-NA were similar to those of the Ru reference foil, confirming the presence of metallic Ru in the Co nanoparticles. Further analysis in Supplementary Fig. 8 indicated the average oxidation state of Ru in Ru₁Co-SAA and Ru_nCo-NA were +0.6 and +1.3, respectively, indicating intra-atomic charge re-distribution in the alloy catalysts. Fourier-transformed k²-weighted extended X-ray absorption fine structure (EXAFS) in R-space allowed elucidation of the coordination environments of Ru atoms in the Co nanoparticles (Fig. 3b). For Ru₁Co-SAA, a peak at 2.0 Å was observed and assigned to a Ru-Co scattering path (first coordination shell). This feature was conspicuously shorter than the first Ru-Ru coordination shell feature in Ru foil (2.4 Å)^39,45. No peaks corresponding to the Ru-Ru scattering were observed for Ru₁Co-SAA, confirming the dominant Ru-Co coordination (i.e. isolated Ru atoms) in the catalyst. In contrast, a distinct shoulder peak at 2.4 Å due to the Ru-Ru scattering was observed for Ru_nCo-NA. Together with the a weaker Ru-Co coordination than Ru₁Co-SAA, this indicated the presence of Ru clusters in the RuCo alloy nanoparticles of Ru_nCo-NA. Wavelet transformed EXAFS (WT-EXAFS) Ru K-edge spectra in k-space and R-space further revealed the distinct differences between Ru₁Co-SAA and Ru_nCo-NA. Ru₁Co-SAA showed one intensity maximum at the wavenumber 6.5 Å⁻¹ in the contour plot (Fig. 3c). In contrast, Ru_nCo-NA showed another intensity maximum at 9.4 Å⁻¹, corresponding to the Ru-Ru region (Supplementary Fig. 9). The Co K-edge XAS data (Supplementary Fig. 10) for the Ru₁Co-SAA, Ru_nCo-NA and Co-NP catalysts were similar, revealing a dominant Co-Co scattering path similar to the metallic Co reference foil (evidence for the presence of Co0 nanoparticles rather than oxide phases).

Fig. 3: Structural characterization of the Ru₁Co-SAA catalyst.

a Ru K-edge XANES for Ru₁Co-SAA and Ru_nCo-NA. b EXAFS spectra in R-space for Ru₁Co-SAA and Ru_nCo-NA. c WT analysis of Ru₁Co-SAA. d EXAFS fitting curves in R-space for Ru₁Co-SAA. e The optimized structure of Ru₁Co-SAA. Color code: Ru (orange), Co (violet).

Quantitative chemical configuration analysis of Ru₁Co-SAA and Ru_nCo-NA were carried out through the least-squared EXAFS fitting. The R-space fitting was performed to estimate the coordination environment of Ru atoms in the first shell (Fig. 3d, Supplementary Fig. 11, and Supplementary Table 3). For Ru₁Co-SAA, the Ru atoms had an average coordination number of 8.9 and a mean bond length of 2.53 Å between the center Ru atom and surrounding Co atoms. For Ru_nCo-NA, the Ru-Co coordination number was lower (5.4), whilst the Ru-Ru coordination number was 2.6, demonstrating the existence of metallic Ru-Ru bond (likely as Ru clusters) in Ru_nCo-NA. The curve-fits in k and q space revealed a high accuracy of fitting (Supplementary Fig. 12). In the optimized DFT structure for Ru₁Co-SAA (Fig. 3e), the Ru-Co bond length (2.53 Å) was the same as that determined from the EXAFS fitting, similar to that of Co-Co bond length due to the confinement effect of the fcc Co lattice^31,32. Furthermore, the results of EXAFS analysis and atomic-resolution AC-HAADF-STEM images for the Ru₁Co-SAA catalyst were highly consistent, confirming the uniform incorporation of single Ru atoms in the alumina-supported Co nanoparticles.

CO photo-hydrogenation performance under ambient pressures

CO photo-hydrogenation tests were carried out in a flow-type system (see Methods for experimental details) to investigate the impact of the RuCo atomic structure on the catalytic performance. The Co-NP, Ru₁Co-SAA and Ru_nCo-NA catalysts were all black colored and exhibited strong light absorption across the UV-Vis region (Supplementary Fig. 13). This enabled each catalyst to efficiently convert the photon energy into local heating for driving CO hydrogenation reactions without requiring external heating sources. Under UV-Vis irradiation at a light intensity of 1.80 W cm⁻², the temperature of Ru₁Co-SAA catalyst surface rapidly increased to reach 200 °C within 15 min (Supplementary Fig. 14). In order to investigate the photo-hydrogenation activity of catalysts in the flow-type reaction chamber (CO/H₂/N₂ = 20/40/40, the gas hourly space velocity, GHSV = 2400 mL g⁻¹ h⁻¹, 0.1 MPa), the CO conversion was measured at temperature ranging from 170-220 °C (Supplementary Fig. 15). In the measured temperature range, Ru₁Co-SAA maintained the highest CO conversion amongst the catalysts tested (8.7% at 170 °C to 57.7% at 220 °C). Figure 4a shows apparent activation energies for CO conversion over Co-NP, Ru₁Co-SAA and Ru_nCo-NA were 88.64, 75.64, and 83.99 kJ mol⁻¹, respectively. Results demonstrate that Ru₁Co-SAA catalyst had the best activity to drive CO photo-hydrogenation. The C-C coupling of intermediates is an essential process to obtain long-chain liquid fuels in CO hydrogenation. Of particular interest in this context is the C₅₊ selectivity. For the Co-NP catalyst, the CO conversion at 200 °C with atmospheric-pressure syngas was only 17.7%. The main products were C_1-4 hydrocarbons (68.7% selectivity) and some C₅₊ hydrocarbons (29.5% selectivity), as shown in Fig. 4b and Supplementary Table 4. By introducing the Ru single atom into Co nanoparticles, the C₅₊ selectivity was greatly improved. For Ru₁Co-SAA, the CO conversion reached 31.8% with a C₅₊ selectivity as high as 60.2%, representing truly outstanding FTS performance under ambient pressure (0.1 MPa). Although Ru_nCo-NA showed enhanced CO photo-hydrogenation performance compared to the Co-NP catalyst, the promoting effect of Ru was far less pronounced than the Ru₁Co-SAA catalyst. Results suggest that the Ru-Co coordination in Ru₁Co-SAA was critical for achieving a high C₅₊ selectivity at low pressures. In addition, the temperature-selectivity relationship for Ru₁Co-SAA was explored (Supplementary Fig. 16), with a temperature of 200 °C offering the best overall performance in terms of CO conversion with good C₅₊ selectivity. Next, CO photo-hydrogenation experiments at 0.3 and 0.5 MPa were carried out. With the elevation of syngas pressure, the CO conversion over Ru₁Co-SAA increased to 58.6%, with a TOF of 0.114 s⁻¹ and a C₅₊ selectivity of 75.8%. It should be noted that the CO photo-hydrogenation performance of Ru₁Co-SAA at 0.5 MPa was comparable to best Co-based, Ru-based and RuCo-alloy catalysts operated at much higher pressures (normally above 2 MPa). As illustrated in Fig. 4c and Supplementary Table 5, the performance of Ru₁Co-SAA ranks superior to all FTS catalysts reported to date when considering six crucial FTS reaction parameters (temperature, pressure, TOF, C₅₊ selectivity, CO₂ selectivity and chain growth probability α). In particular, Ru₁Co-SAA exhibited the special advantages of a high TOF, high C₅₊ selectivity and low operating pressure^{8,9,10,11,12,13,14,15,16,17}. Gas chromatograph (GC) profiles of the gaseous and liquid products formed during CO photo-hydrogenation over Ru₁Co-SAA are shown in Supplementary Figs. 17, 18. The specific product distributions at various pressures conformed to Anderson-Schulz-Flory (ASF) distributions (Fig. 4d). The α value at reaction pressure of 0.1, 0.3 and 0.5 MPa were determined to be 0.75, 0.78 and 0.81, respectively, indicating that the C-C coupling ability of the Ru₁Co-SAA catalyst improved as the syngas pressure increased. The comparative thermo-catalytic experiment using only electric heating was performed over Ru₁Co-SAA, illustrating that the CO photo-hydrogenation followed a photothermal reaction mechanism (Supplementary Fig. 19). The stability of the Ru₁Co-SAA catalyst was next investigated, with steady CO photo-hydrogenation tests showing no obvious performance losses over 100 h of continuous operation (Fig. 4e). XRD and HADDF-STEM results showed that the structure of the Ru₁Co-SAA catalyst was unchanged following the stability test (Supplementary Figs. 20, 21).

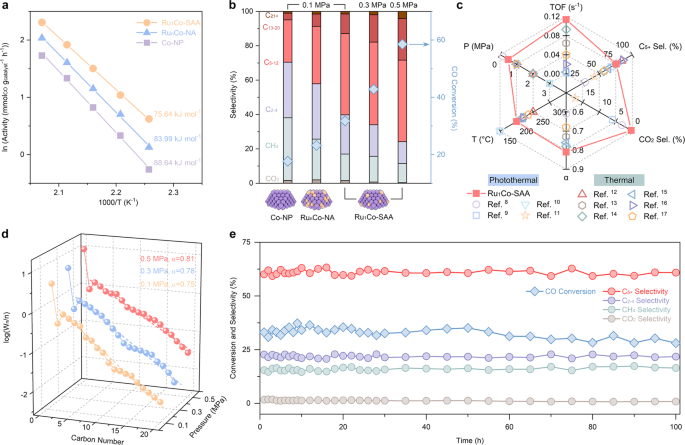

Fig. 4: CO photo-hydrogenation performance with different catalysts and reaction conditions.

a Arrhenius plot for CO conversion activity over Co-NP, Ru₁Co-SAA and Ru_nCo-NA. b CO photo-hydrogenation performance of Co-NP, Ru₁Co-SAA and Ru_nCo-NA (reaction conditions: 50 mg catalyst, 1.80 W cm⁻² UV-Vis irradiation for 10 h, T = 200 °C, CO/H₂/N₂ (20/40/40) as feed gas, GHSV = 2400 mL g⁻¹ h⁻¹). c Comparison of FTS performance of Ru₁Co-SAA with other state-of-the-art Co-based, Ru-based and RuCo-alloyed catalysts. P pressure, T temperature, α ASF chain growth probability, Sel selectivity, TOF turnover frequency. d The hydrocarbon product distribution obtained over Ru₁Co-SAA under UV-Vis irradiation. e Durability test on Ru₁Co-SAA under 1.80 W cm⁻² UV-Vis irradiation.

In order to better understand the catalytic properties of the Co-NP, Ru₁Co-SAA and Ru_nCo-NA catalysts, temperature programmed desorption (TPD) measurements were performed. CO-TPD profiles (Supplementary Fig. 22) were collected at a heating rate of 10 °C min⁻¹ following CO pre-adsorption at room temperature. The total amounts of adsorbed CO on the Co-NP, Ru₁Co-SAA and Ru_nCo-NA catalysts were 2.47, 5.71 and 4.68 mmol g⁻¹ respectively, indicating that the addition of Ru significantly enhanced the CO adsorption properties of the Co nanoparticles. The CO desorption peaks at high temperatures originate from the recombinative desorption of surface C* and O* species adsorbed on the metal sites, signifying the strong chemisorption of CO on Ru₁Co-SAA¹³. The H₂-TPD profiles (Supplementary Fig. 23) showed that H₂ adsorption on Ru₁Co-SAA and Co-NP were very similar, indicating that the single atom Ru sites did not alter the H₂ adsorption feature of the Co nanoparticles. In contrast, both physical and chemical adsorption of H₂ were promoted by RuCo alloy nanoparticles in Ru_nCo-NA. Results demonstrate the addition of atomically dispersed Ru enhanced the chemisorption of CO whilst having negligible impact on H₂ adsorption.

In addition to the surface adsorption of reactants (CO and H₂), their dissociation on active sites is also an important consideration for efficient CO photo-hydrogenation. To explore this aspect, we conducted pulse chemisorption experiments using both CO pulses and H₂/D₂ pulses to evaluate the dissociation ability of the catalyst for CO and H₂, respectively (with the schematic mechanism shown in Supplementary Fig. 24). All experiments were conducted at 200 °C and ambient pressure (0.1 MPa). Results of the CO pulse experiments are shown in Fig. 5a, which evaluated the ability of the catalysts to activate CO and form C* and O* species on the catalyst surface. The Ru₁Co-SAA catalyst performed the strongest CO₂ signal (m/z = 44), indicating that C* and O* species were formed in high coverage from the dissociation of CO⁴⁶. Accordingly, amongst the catalyst studied, Ru₁Co-SAA offered the best ability for CO conversion. Combining the results of CO-TPD and CO pulse experiments, it can be concluded that the strong interaction between CO and active Ru₁Co-SAA metal sites (resulting in a long residence time of C* species on the catalyst surface) would promote C-C coupling of CH_x* intermediates^13,47. The HD signals (m/z = 3) arising from the H₂/D₂ pulse provided valuable information about the hydrogen activation ability of the different catalysts. An excessively high hydrogen activation ability is considered detrimental to the carbon chain growth into C₅₊ liquid fuels in FTS. As shown in Fig. 5b, Ru₁Co-SAA exhibited a similar HD signal (m/z = 3, representing the hydrogen dissociation ability) to Co-NP, whereas Ru_nCo-NA showed the strongest HD signal compared to the other catalysts. The strong hydrogen dissociation ability of Ru_nCo-NA would lead to the over-hydrogenation of CH_x* intermediates and limit long-chain hydrocarbon growth through C-C coupling reactions²². The chemisorption studies demonstrate that atomically dispersed Ru sites in Co nanoparticles enhance the formation of surface C* species without affecting the activation of H₂, this benefitting C-C coupling reactions and preventing the over-hydrogenation of CH_x* intermediates.

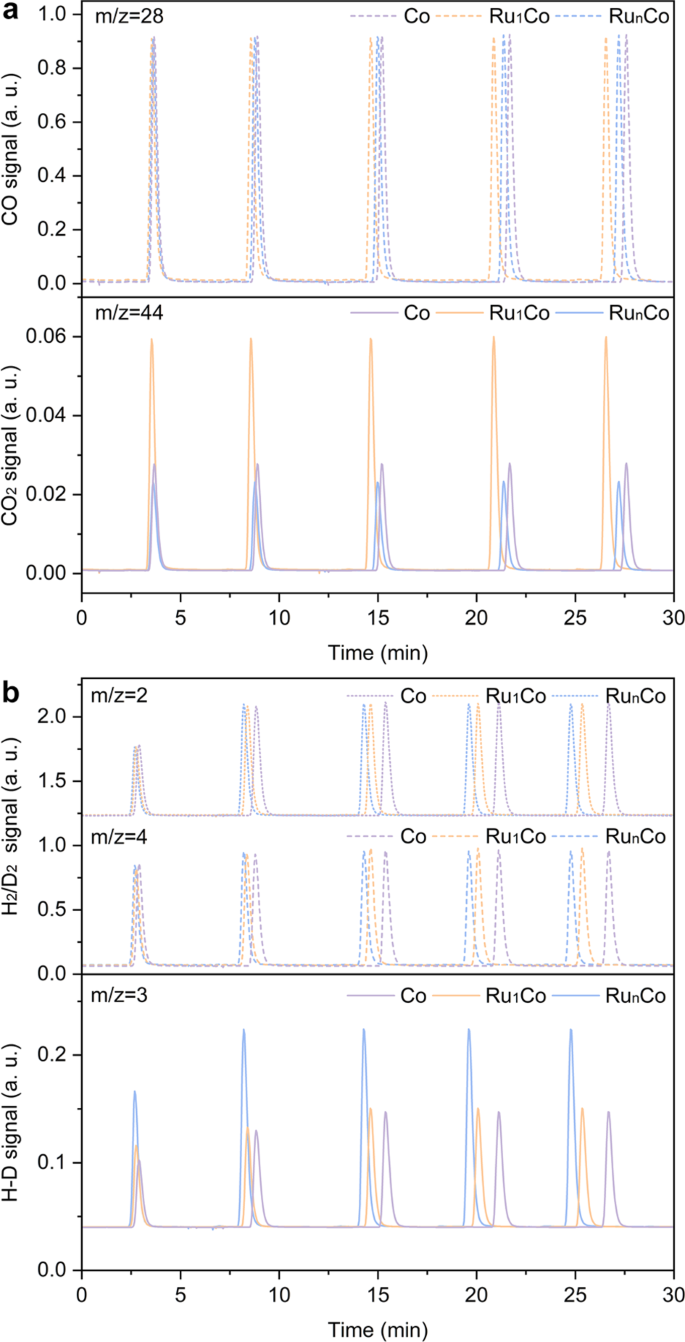

Fig. 5: Pulse chemisorption experiments using different catalysts.

a CO pulse profile with CO (m/z = 28) and CO₂ (m/z = 44) signals. b H₂ isotopic pulse profile with H₂ (m/z = 2), D₂ (m/z = 4) and HD (m/z = 3) signals.

DFT studies of CO dissociation, hydrogenation and C-C coupling of CH_x* intermediates

To better understand the mechanism by which Ru single atoms promoted CO activation and enhanced long-chain hydrocarbon production, DFT calculations were carried out. The calculation details are provided in the Methods section, with the simulation models shown in Supplementary Fig. 25. According to previous studies, the CO activation via H-assistant path (CO* + H* → HCO* → CH* + O*) is more favorable than direct CO dissociation and other H-assistant pathways^5,48. Figure 6a shows that the CO adsorption strengths were −2.19 eV on Co (111), −2.34 eV on Ru₁Co (111), and −2.32 eV on Ru_nCo (111). The rate determining step in CO activation is the hydrogenation of CO* to form HCO* (CO* + H* → HCO*). The energy barriers (E_a) for this step were similar on the Co (111) and Ru_nCo (111) surfaces were 1.32 eV and 1.39 eV, respectively, whilst a much lower energy barrier (1.17 eV) existed on the Ru₁Co (111) surface. From a thermodynamics viewpoint, the H-assistant dissociation of CO* on the Co (111), Ru₁Co (111) and Ru_nCo (111) surfaces were exothermic processes, releasing reaction energies (E_r) of −1.85 eV, −2.05 eV, and −1.87 eV, respectively. Therefore, in terms of both kinetics and thermodynamics, CO* dissociation was more favorable on the Ru₁Co (111) surface compared to the other surfaces. This is consistent with the higher CO conversion over the Ru₁Co-SAA catalyst by experiment. For the further hydrogenation of CH_x* intermediates, the Ru₁Co (111) surface showed similar properties to the Co (111) surface comprehensively considering thermodynamics and kinetics for the steps from CH* to CH₄ (CH* + 3H* → CH₂* + 2H* → CH₃* + H* → CH₄, see Supplementary Fig. 26 and Supplementary Tables 6-8 for details). In contrast, the Ru_nCo (111) surface showed lower E_a and E_r values compared with the other two catalyst models in almost every step from CH* to CH₄, demonstrating that Ru-Ru coordination environments in Ru_nCo-NA caused over-hydrogenation of CH_x* intermediates.

Fig. 6: Reaction paths and energy barriers based on DFT calculations.

a Potential energy profile of CO* dissociation. b Potential energy profile of eight C-C coupling paths for C₂* intermediates. c Correlation analysis between the unsaturation of C₂* intermediates relative to ethane (Ω) and the energy barrier reduction (∆E_a) of Ru₁Co-SAA minus Co-NP. d Linear correlation between unsaturation of C₂* intermediates relative to ethane (Ω) and energy barrier reduction (∆E_a) of Ru₁Co-SAA minus Co-NP. e Proposed products from intermediates with different unsaturation over Ru₁Co-SAA and Ru_nCo-NA through CO photo-hydrogenation at ambient pressures.

For C-C coupling reactions on the three surface models, eight possible paths for producing C₂* intermediates were considered (Fig. 6b and Supplementary Fig. 27). The E_a and E_r values for these different paths were summarized in Supplementary Tables 9–11. For five paths (in which C₂* species of CC*, CCH*, CCH₂*, CHCH* and CHCH₂* were generated), the Ru₁Co (111) surface offered the lowest C-C coupling E_a (Supplementary Fig. 28). For two paths (those leading to CHCH* and CCH₃*), the Ru₁Co (111) surface offered the lowest C-C coupling E_r. Considering that the CO photo-hydrogenation tests in the current work were performed at ambient and near ambient pressures, E_a is the main metric of interest since there was no requirement to apply high pressures to overcome the C-C coupling energy barriers (as is often the case in thermal FTS reactions to higher liquid hydrocarbons). In comparison, the Ru_nCo (111) surface offered the second lowest E_a in five C-C coupling paths (leading to CC*, CCH*, CCH₂*, CHCH₂*, and CHCH₃*), whilst the Co (111) surface had the highest E_a in four C-C coupling paths (leading to CC*, CCH*, CCH₂*, and CHCH₂*). The low E_a values for C-C coupling reactions on the model Ru₁Co (111) surface suggested that Ru-Co site coordination possessed higher intrinsic C-C coupling ability compared to Co-Co and Ru-Ru coordination environments.

Discussion

For deeper statistical analysis of C-C coupling processes on the various catalytic surfaces, four factors were considered to obtain the Pearson correlation coefficients: the difference in energy barriers relative to Co-NP (∆E_a), the difference in reaction energy relative to Co-NP (∆E_r), the unsaturation of C₂* intermediates relative to ethane (Ω, see the detailed calculation in Methods) and Ru/Co ratio of the model surfaces. The results of correlation analysis are shown in Fig. 6c and Supplementary Table 12. The correlation coefficient between ∆E_a and Ω (−0.75, approaching −1) indicated a strong and negative correlation. The p-value (0.0008) between ∆E_a and Ω was much lower than 0.05, indicating the significance of their correlation coefficient. In contrast, the absolute value of the other correlation coefficients was no higher than 0.21, demonstrating that the influence of Ω and Ru/Co ratios on ∆E_r were not significant. Moreover, the C₅₊ selectivity in CO photo-hydrogenation experiments correlated with the kinetics of C₂* intermediate formation. This suggests that E_a represents an important index when evaluating the intrinsic C-C coupling ability of FTS catalytic surfaces. As shown in Fig. 6d, ∆E_a decreased linearly with an increase in unsaturation, Ω. The negative ∆E_a values reflect the lower E_a of C-C coupling paths for C₂* intermediates with high Ω (CC*, CCH*, CCH₂*, CHCH* and CHCH₂*) on Ru₁Co (111) relative to Co (111). In contrast, the formation for C₂* species with low Ω (CHCH₃*, CH₂CH₂*, and CCH₃*) are inhibited, as indicated by the more positive ∆E_a relative to Co (111). Considering that the hydrogenation and C-C coupling of unsaturated intermediates can be regarded as competitive reactions, C₂* species with low Ω tend to be over-hydrogenated and desorb as light hydrocarbons, whereas C₂* intermediates with high Ω are more likely to undergo carbon chain growth to produce long-chain products. Combining the hydrogenation and coupling processes of CH_x* species, highly unsaturated C₂* intermediates were generated over Ru₁Co-SAA for further C-C coupling to C₅₊ liquid fuels (Fig. 6e). By comparison, relatively saturated intermediates over Ru_nCo-NA limited the C-C coupling and were easily over-hydrogenated to light hydrocarbons. Hence, Ru₁Co-SAA exhibited an unusually high selectivity for long-chain hydrocarbons at atmospheric pressure, whereas Co-NP and Ru_nCo-NA tended to produce light hydrocarbons under the same testing conditions.

In summary, an atomically dispersed Ru₁Co-SAA catalyst was obtained from an LDH precursor which demonstrated outstanding activity for CO photo-hydrogenation to C₅₊ liquid fuels at ambient pressures. The presence of atomically dispersed Ru atoms on the Co nanoparticles in Ru₁Co-SAA catalyst enhanced CO activation and lowered the energy barrier for C-C coupling reactions without adversely promoting H₂ activation and the further CH_x* over-hydrogenation. Owing to these attributes, Ru₁Co-SAA exhibited an outstanding CO conversion (58.6%), TOF (0.114 s⁻¹), C₅₊ selectivity (75.8%) and remarkable stability (100 h with no deterioration) in flow-type CO photo-hydrogenation reaction at ambient pressures. CO and H₂ chemisorption experiments and density functional theory calculations further confirmed the key role of Ru single atoms (Ru-Co coordination) in promoting CO activation and C-C coupling reactions, whilst suppressing CH_x* hydrogenation processes that yield light hydrocarbons. This work illustrates the untapped potential of single atom alloy catalysts in photothermal FTS, whilst providing a framework for the rational future design of FTS catalysts that yield valuable liquid fuels at extremely mild pressures (including atmospheric pressure).

Methods

Materials

Co(NO₃)₂·6H₂O, Al(NO₃)₃·9H₂O and hexamethylenetetramine (HMT) were obtained from Beijing Chemical Works (Beijing, China). RuCl₃·3H₂O was obtained from Beijing Innochem Science & Technology Co., Ltd. Syngas (mole ratio CO/H₂/N₂ = 20/40/40) was purchased from Beijing SIDADE RM Science and Technology Co., Ltd. All materials were used without further purification. Deionized water was used in the synthesis of all catalysts.

Synthesis of LDH precursors

Ru₁CoAl-LDH and Ru_nCoAl-LDH were synthesized via a simple one-pot hydrothermal method. Briefly, Co(NO₃)₂·6H₂O (0.005 mol), Al(NO₃)₃·9H₂O (0.005 mol), HMT (0.013 mol) and RuCl₃·3H₂O (amount used depending on the desired Ru/Co molar ratio in the LDH product) were dissolved in deionized water (40 mL). Then the mixed metal-salt solution was heated at 120 °C for 24 h in a Teflon-lined stainless-steel autoclave. After cooling to room temperature naturally, the obtained precipitate was centrifugated and washed 3 times with deionized water. After drying at 60 °C for 12 h, the LDH products were ground to fine powders with a mortar and pestle. CoAl-LDH was prepared by the same method without adding RuCl₃·3H₂O.

Synthesis of Ru₁Co-SAA, Ru_nCo-NA and Co-NP catalysts

The LDH powders were reduced in a H₂/Ar (10/90 v/v) flow at 650 °C for 300 min, using a heating rate of 5 °C min⁻¹. The products obtained from Ru₁CoAl-LDH, Ru_nCoAl-LDH and CoAl-LDH are denoted herein as Ru₁Co-SAA, Ru_nCo-NA and Co-NP, respectively. Following the reduction step, the catalysts were allowed to cool naturally to room temperature in the H₂/Ar flow, then stored at room temperature under a N₂ atmosphere.

Characterization

XRD patterns were collected on a Bruker DAVINCI D8 ADVANCE diffractometer. Sample morphologies (HRTEM, HAADF-STEM and EDS element maps) were examined using a JEOL-2100F. Aberration-corrected HAADF-STEM images were conducted on a Titan Themis G2 instrument. Nitrogen adsorption-desorption isotherms were collected at 77 K on a Quantachrome Quadrasorb SI-MP instrument. Brunauer-Emmett-Teller specific surface areas, total pore volumes and average pore diameters and pore size distributions were calculated from the N₂ physisorption isotherms. UV-Vis diffuse reflectance spectra were collected on a Cary 7000 instrument equipped with an integrating sphere attachment. Inductively coupled plasma-optical emission spectroscopy (ICP-OES, Varian 710) was used to quantify the amounts of Co and Ru in the samples. X-ray absorption spectroscopy (XAS) measurements were performed at the Beijing Synchrotron Radiation Facility (Beamline 1W1B). H₂-TPR, CO-TPD and H₂-TPD data were acquired on a Micromeritics AutoChem II 2920 instrument equipped with a thermal conductivity detector (TCD). Pulse chemisorption experiments were conducted on a Micromeritics AutoChem II 2920 instrument equipped with a TCD and a Hiden QIC-20 mass spectrometer.

CO photo-hydrogenation tests

CO hydrogenation tests were carried out in a flow-type reaction chamber with a quartz window at the top for catalyst irradiation^{5,6,7,8,49,50}. Briefly, 50 mg of catalyst was uniformly spread as a thin layer in the reaction chamber, covering the temperature probe. Before UV-Vis irradiation, syngas (2 mL min⁻¹, CO/H₂/N₂ = 20/40/40) was flowed through the reaction chamber for 30 min to remove any air. Subsequently, the flow-type CO photo-hydrogenation reaction was initiated by light irradiation (300 W Xe lamp, Beijing Perfectlight Technology Co. Ltd, PLS-SXE300D, 200 nm < λ <800 nm). The gas products (C₁ to C₆) were detected and quantified every hour by a GC (Shimadzu GC-2014C, Shimadzu Co. Japan) equipped with three columns and three detectors used for product analysis (see our previous work for full details)^{5,6,7,8,49,50}. The liquid products were detected and quantified by a GC (Shimadzu GC-2014) equipped with a flame ionization detector (FID) and an HP-5 column. The CO conversion (CO Con.) was calculated as follows:

$${{{{{\rm{CO}}}}}}\,{{{{{\rm{Con}}}}}}.=\frac{{{{{{{\rm{CO}}}}}}}_{{{{{{\rm{in}}}}}}}-{{{{{{\rm{CO}}}}}}}_{{{{{{\rm{out}}}}}}}}{{{{{{{\rm{CO}}}}}}}_{{{{{{\rm{in}}}}}}}}\times 100 \%=\frac{\frac{{{{{{{\rm{A}}}}}}}_{{{{{{\rm{CO}}}}}},{{{{{\rm{in}}}}}}}}{{{{{{{\rm{A}}}}}}}_{{{{{{\rm{N2}}}}}},{{{{{\rm{in}}}}}}}}-\frac{{{{{{{\rm{A}}}}}}}_{{{{{{\rm{CO}}}}}},{{{{{\rm{out}}}}}}}}{{{{{{{\rm{A}}}}}}}_{{{{{{\rm{N2}}}}}},{{{{{\rm{out}}}}}}}}}{\frac{{{{{{{\rm{A}}}}}}}_{{{{{{\rm{CO}}}}}},{{{{{\rm{in}}}}}}}}{{{{{{{\rm{A}}}}}}}_{{{{{{\rm{N2}}}}}},{{{{{\rm{in}}}}}}}}}\times 100 \% $$

(1)

where CO_in and CO_out are the moles of CO at the reactor inlet and the outlet, respectively; A_{CO, in} and A_{N2, in} are the chromatographic peak areas of CO and N₂ detected by TCD in the feed gas, and A_{CO, out} and A_{N2, out} are the chromatographic peak areas of CO and N₂ detected by TCD in the product gas stream.

The CO conversion rate (in units of mmol g_cat⁻¹ h⁻¹) was calculated as:

$${{{{{\rm{CO}}}}}}\,{{{{{\rm{conversion}}}}}}\,{{{{{\rm{rate}}}}}}=\frac{{{{{{\rm{GHSV}}}}}}\times {{{{{\rm{CO}}}}}}\,{{{{{\rm{Con}}}}}}.\times {{{{{\rm{CO}}}}}}\,{{{{{\rm{concentration}}}}}}}{22.4}$$

(2)

where GHSV is the gas hourly space velocity (2400 mL g⁻¹ h⁻¹) and CO concentration is 20.15% in the feed gas.

The TOF (in units of moles CO per mole of metal at the surface per second, abbreviated to s⁻¹) was determined using the following equation¹⁹:

$${{{{{\rm{TOF}}}}}}=\frac{{{{{{{\rm{F}}}}}}}_{{{{{{\rm{CO}}}}}}}\times {{{{{\rm{CO}}}}}}\,{{{{{\rm{Con}}}}}}.}{{{{{{{\rm{n}}}}}}}_{{{{{{\rm{s}}}}}}}}$$

(3)

where F_CO is the moles of CO in flow gas per second; n_s is the number of active sites on the catalyst surface measured using hydrogen chemisorption^19,51.

The product selectivity to C_nH_m and CO₂ were calculated as:

$${{{{{{\rm{C}}}}}}}_{{{{{{\rm{n}}}}}}}{{{{{{\rm{H}}}}}}}_{{{{{{\rm{m}}}}}}}\,{{{{{\rm{Sel}}}}}}.=\frac{{{{{{{\rm{nC}}}}}}}_{{{{{{\rm{n}}}}}}}{{{{{{\rm{H}}}}}}}_{{{{{{\rm{m}}}}}}}}{{{{{{{\rm{CO}}}}}}}_{2}+{\sum }_{{{{{{\rm{n}}}}}}=1}^{{{\max }}}{{{{{{\rm{nC}}}}}}}_{{{{{{\rm{n}}}}}}}{{{{{{\rm{H}}}}}}}_{{{{{{\rm{m}}}}}}}}\times 100 \% $$

(4)

$${{{{{{\rm{CO}}}}}}}_{2}\,{{{{{\rm{Sel}}}}}}.=\frac{{{{{{{\rm{CO}}}}}}}_{2}}{{{{{{{\rm{CO}}}}}}}_{2}+{\sum }_{{{{{{\rm{n}}}}}}=1}^{{{\max }}}{{{{{{\rm{nC}}}}}}}_{{{{{{\rm{n}}}}}}}{{{{{{\rm{H}}}}}}}_{{{{{{\rm{m}}}}}}}}\times 100 \% $$

(5)

where C_nH_m is the moles of hydrocarbons generated in the 10-hour CO photo-hydrogenation reaction, in which n refers to the carbon number from 1 to 20+ detected by FID; CO₂ refers to the moles of CO₂ detected by TCD in the off-gas. The carbon balance calculated for all catalysts under different reaction conditions was greater than 90% in this study. Specifically, the carbon balance was 96.20% over Ru₁Co-SAA at 0.5 MPa, calculated from the consumption rate of CO (12.54 mmol_C g_cat⁻¹ h⁻¹) and the measured production rate of carbon in the products (12.07 mmol_C g_cat⁻¹ h⁻¹ including 4.30 mmol_C g_cat⁻¹ h⁻¹ of C_1-6 products and 7.77 mmol_C g_cat⁻¹ h⁻¹ of C_7-30 products).

The Anderson-Schulz-Flory (ASF) chain growth probability (α) for the FTS were calculated according to the following equation^13,52:

$${{{{{{\rm{W}}}}}}}_{{{{{{\rm{n}}}}}}}={{{{{\rm{n}}}}}}\times {\alpha }^{{{{{{\rm{n}}}}}}-1}\times {(1-\alpha )}^{2}$$

(6)

where n is the carbon number of each product from C₁ to C₂₀; W_n is the weight fraction of products containing n carbon atoms; and 1 − α is the probability of chain termination¹⁴.

CO pulse and H₂ isotopic pulse experiments

Typically, the as-obtained catalysts (Ru₁Co-SAA, Ru_nCo-NA and Co-NP, 100 mg) were heated to 650 °C at a rate of 10 °C min⁻¹ under a H₂/He (10%/90%) atmosphere for 1 h to pre-reduce the catalysts. Then, the temperature was decreased to 200 °C and any remaining H₂ purged using a high-purity He gas flow until the baseline was stable. CO pulses using a CO/He (10%/90%) gas mixture were then performed 5 times, with the CO (m/z = 28) and CO₂ (m/z = 44) signals being monitored using a TPD-MS detector. The CO₂ signal originated from the recombination of *C and *O species which were generated by the chemisorption of CO on catalysts at 200 °C. For the H₂/D₂ pulse experiments, the same pre-reduction process was performed, followed by H₂/D₂ pulses using a H₂/D₂/He (5%/5%/90%) gas mixture for 5 times. The H₂ (m/z = 2), HD (m/z = 3) and D₂ (m/z = 4) signals were monitored using a TPD-MS detector. The HD signal originated from the recombination of *H and *D species arising from the chemisorption of H₂ and D₂ on the catalysts at 200 °C.

Computational models

A four-atom-layer Co (111) with a (4 × 4) supercell was used to represent the Co-NP catalyst model (Supplementary Fig. 25). For the Ru₁Co-SAA and Ru_nCo-NA catalyst models, nonadjacent and adjacent surface cobalt atoms were replaced with ruthenium atoms, respectively (Supplementary Fig. 25). The Co (111) model contained 64 Co atoms, the Ru₁Co (111) model contains 4 Ru atoms and 60 Co atoms, whilst the Ru_nCo (111) model contained 8 Ru atoms and 56 Co atoms. In geometrical optimization calculations, the bottom two layers were fixed, and the top two layers were allowed to relax. A Gamma-centered (2 × 2 × 1) K mesh was used for all slab models. A vacuum layer of 15 Å was applied to avoid the interactions between slabs in the z direction.

Computational methods

Spin-polarized calculations were performed using the Vienna Ab Initio Simulation Package (VASP) and employing the frozen-core projector-augmented wave (PAW) method. The generalized gradient approximation in the Perdew-Burke-Ernzerhof (GGA-PBE) function was used for the exchange-correlation energy. A cutoff energy of 400 eV was selected for the plane-wave expansion. The convergence criteria for the force and electronic self-consistent iteration were set to 0.05 eV/Å and 10⁻⁴ eV, respectively. In all calculations, adsorption energies (E_ads) were calculated based on E_ads = E_x/slab – [E_slab + E_x], where E_x/slab is the total energy of the slab with adsorbents after full relaxation, E_slab is the total energy of the bare slab, and E_x is the total energy of the free adsorbents in the gas phase. Therefore, the more negative the E_ads, the stronger the adsorption. Reaction energies (E_r) were defined as E_r = E_final − E_initial, where E_final and E_initial represents the final state energy and initial state energy, respectively. Therefore, a negative E_r represents an exothermic process. The energy barrier (E_a) was calculated by E_a = E_trans − E_initial, where E_trans and E_initial represents the transition state energy and initial state, respectively. All transition states were calculated using the climbing image nudged elastic band method (CI-NEB), with the stretching frequencies analyzed in order to characterize whether a stationary point is a minimum state without an imaginary frequency or a transition state with only one imaginary frequency.

The unsaturation of C₂* intermediates relative to ethane (Ω) was calculated according to the following equation:

$$\Omega=6-{{{{{\rm{y}}}}}}$$

(7)

where y is the hydrogen number of C₂* intermediates. For the saturated C₂ product (ethane, C₂H₆), Ω is 0.
