Introduction

Artificial photosynthesis is a system that uses artificial materials to mimic the conversion of solar energy to chemical energy in nature. As solar energy is the most abundant energy source on Earth, using water as a raw material to produce hydrogen with solar energy is an ideal approach to obtaining renewable fuels, known as the solar fuel pathway1,2,3. Developing efficient, stable, and low-cost water-splitting devices is one of the key scientific challenges to achieving large-scale electrolysis and photolysis of water for hydrogen production. Currently, there are two main artificial photosynthesis approaches for converting solar energy into fuels: one is the indirect approach, which uses the electricity generated by a photovoltaic (PV) device to drive an electrochemical (EC) reaction to produce hydrogen; the other is the direct approach which takes inspiration from the working principles of natural photosynthesis, and converts solar energy into hydrogen and oxygen through the photoelectrochemical (PEC) water splitting without external power4.

Figure 1c lists the band structure of typical materials for PEC water splitting. Although visible (vis.) light-absorbing materials, including WO3, BiVO4, and Fe2O3, have been extensively studied due to favorable band edge positions, their limited charge separation/transport properties remain major obstacles to achieving commercially viable performance5. Most PEC cells with single-junction semiconductor photoelectrodes, even those made from wide band gap (Eg) semiconductor materials such as TiO2 and WO3, show high current onset potential due to the high thermodynamic requirements and the multi-proton and electron transfer processes involved in water oxidation reactions. As such, the development of a perfect semiconductor that is stable, low-cost, has suitable band structures, high charge carrier mobility, and high absorption coefficient remains a considerable challenge. At the same time, better water oxidation catalysts, as well as reliable, stable, and economical catalyst loading techniques, are also highly desired to prepare high-efficiency water oxidation photoanodes.

Fig. 1: Comparing band structures and photoanode performance.
Fig. 1: Comparing band structures and photoanode performance.
Full size image

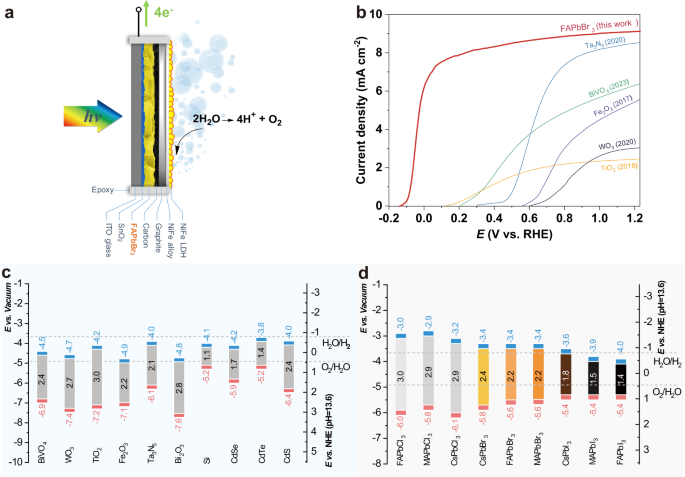

a Schematic illustration of FAPbBr3 photoanode for oxygen evolution. b Comparison of the linear sweep voltammetry (LSV) curves between the FAPbBr3 photoanode and the best-reported photoanodes made from a single junction absorber layer, including TiO2, WO3, Fe2O3, BiVO4, and Ta3N5, with catalysts layer. The LSV data was extracted from the corresponding literature. Band positions of (c) typical PEC and (d) lead halide perovskite semiconductors in the pH 13.6 aqueous electrolyte compared with the energy potential for water splitting reaction. red=valence band edge; blue=conduction band edge. Tabulated values are retrieved from references7,18,61.

Alternatively, the PV material (Si, GaAs, GaInP) with excellent optical and electronic properties can be arranged as an absorber layer in an integrated solar hydrogen device, analog as the semiconductor layer in traditional PEC configuration. Among PV absorbers, lead halide perovskite (ABX3) materials have emerged as a promising alternative to overcome the limitations of metal-oxide-based photoelectrodes due to their exceptional optoelectronic properties6. These materials offer several advantages over traditional metal-oxide-based photoelectrodes, including higher light absorption coefficients, facile exciton dissociation ability, and longer carrier diffusion lengths7. Additionally, their unique crystal structure enables facile tuning of their electronic properties through compositional variations, making them an attractive platform for the development of high-performance photoelectrochemical systems. As such, perovskite materials are a subject of intense research and development in the field of solar fuel production8,9,10. Lead halide perovskite materials with iodine components have a high theoretical saturation current due to their narrow band gap (Fig. 1d). However, it is challenging for a single cell to generate enough photoelectric voltage for water oxidation. Therefore, when used as a single junction photoanode, their onset potential is typically greater than 0.5 V vs. reversible hydrogen electrode (RHE) (Supplementary Fig. 2). Meanwhile, the performance of chloride perovskites is limited by their wide band gap, which leads to extremely low visible light absorption. Therefore, bromide perovskites with suitable energy band structures are ideal components for the preparation of low-onset potential photoanodes. Out of the three mono-cation bromide perovskites, cesium lead bromide (CsPbBr3) has the larger band gap at 2.4 eV, i.e., the lowest theoretical saturation current. Additionally, its inorganic counterparts require high-temperature annealing over 300 °C for stabilization, which makes it difficult to obtain high-crystallinity films11. On the other hand, methylammonium lead bromide (MAPbBr3) components have poor thermal stability and are not suitable for long-term high-temperature operations. Therefore, after a comprehensive consideration of the preparation difficulty, band structure, and material stability, formamidinium lead bromide (FAPbBr3) is selected in this study to be the top choice for producing low-onset potential photoanodes. The photovoltaic materials-based photoelectrochemical (PVM-PEC) cell can immerse in an electrolyte after coating with waterproof layers12. Among the strategies reported, Poli et al. utilize a mesoporous carbon/graphite sheet structure as protective layers on a CsPbBr3-based photoanode13. This simple, cost-effective encapsulation method provides stable protection of the absorptive layer against moisture, while maintaining high conductivity. This approach offers promising opportunities for the use of water-sensitive perovskite materials in integrated PEC cells.

Herein, we present the first efficient and stable FAPbBr3-based photoanode for solar water oxidation. This FAPbBr3 absorber was initially employed in mesoporous carbon solar cells, yielding efficiencies of 9.16% and open-circuit voltages of up to 1.4 V. Furthermore, the FAPbBr3 absorber, after encapsulated with graphite and resin/epoxy, was utilized to produce a photoanode for water oxidation (Fig. 1a). The optimized photoanode with integrated carbon/graphite/alloy interlayers and electrodeposited NiFe layered double hydroxide (LDH) catalyst subsequently demonstrates a remarkable performance and stability: the device outperforms oxide photoanodes by exhibiting an ultralow onset potential below 0 V vs. RHE and achieving a maximum applied bias photon-to-current efficiency (ABPE) of 8.5%. The performance of FAPbBr3 system far exceeds that of the best-reported single-junction absorber photoanodes to date (Fig. 1b), including TiO214, WO315, Fe2O316, BiVO417, and Ta3N518. Additionally, it maintains 95% of its performance for 100 h of operation, surpassing that of all known reported perovskite photoanodes. We further discuss the ultraviolet (UV) degradation of the perovskite interface and emphasize the feasibility of utilizing the photothermal effect to enhance cell performance. The as-fabricated FAPbBr3 photoanode is produced without the need for high temperature, inert atmosphere, or high vacuum evaporation techniques, providing promising opportunities for the development of large scale high-performance, low-cost perovskite photoanodes for water oxidation.

Results

Photoanode preparation and characterization

As illustrated in Fig. 2a, the wide band gap FAPbBr3 perovskite photoanode consists of two parts, the light-absorbing part (ITO/SnO2/FAPbBr3/carbon) and the water oxidation catalyst (WOC) part (graphite sheet/NiFe alloy/NiFe LDH); the edge of the device is sealed with epoxy resin to prevent water degradation of FAPbBr3 material (Supplementary Fig. 1). The light-absorbing part, which is a hole transport material (HTM)-free FAPbBr3 solar cell, exhibits outstanding performance with a power conversion efficiency (PCE) of 9.16%, a high open-circuit voltage (Voc) of 1.38 V, a short-circuit current density (Jsc) of 8.69 mA cm−2, and a fill factor (FF) of 76.04% (see Supplementary Note 1 for details). Inspired by the work of Poli et al. 13, a commercially available 160 μm self-adhesive graphite sheet (GS) was placed on top of the FAPbBr3/carbon layer to prevent water penetration into the light-absorbing part. As demonstrated in Supplementary Fig. 17, for the epoxy resin-encapsulated device with solely the mesoporous carbon layer, notable degradation was observed after just 5 min of water immersion. Conversely, the device protected by the GS layer exhibited minimal alterations even after 100 h of water immersion. The compact and stacked GS separator offers excellent thermal (350 W m−1 K−1) and electrical conductivity while also providing more efficient protection for the perovskite from liquid water percolation. Moreover, the self-adhesive and commercially available characteristics of the GS simplify the device fabrication process, making it an ideal water separator component for the assembly of a perovskite photoanode. By utilizing facile electrodeposition methods, the WOCs could be attached to the conductive GS layer, which also allows individual optimization of the WOC component on the indium tin oxide (ITO)/GS substrate. The overpotential requirements of the as-fabricated GS/NiFe alloy/NiFe LDH electrode to reach a constant current density of 10 mA cm−2 is only 228 mV; the overpotential shows only an increment of 19 mV after 100 h of catalysis (see Supplementary Note 2 for details).

Fig. 2: Assessing and comparing FAPbBr3 photoanode performance.
Fig. 2: Assessing and comparing FAPbBr3 photoanode performance.
Full size image

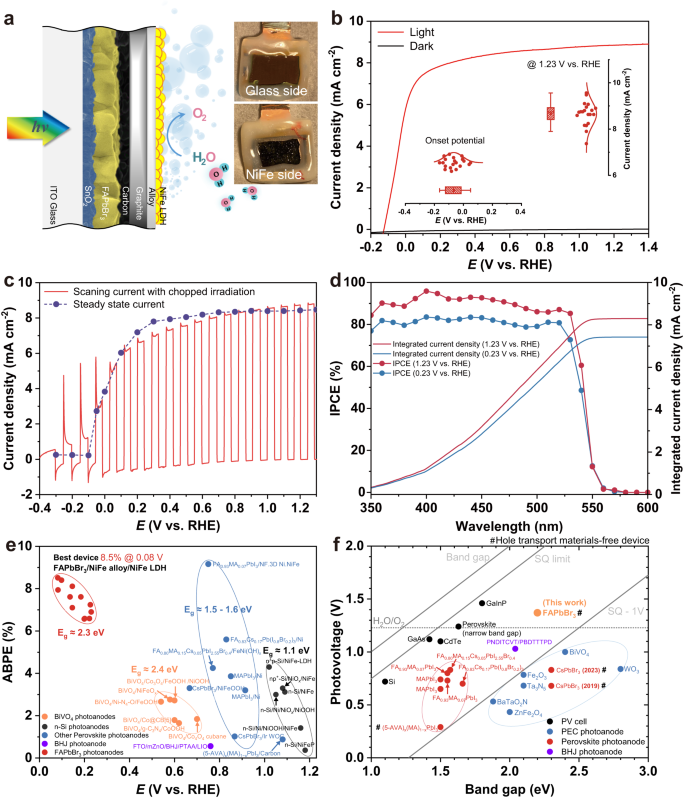

a Device structure of FAPbBr3 photoanode in this work. Inset: digital images of as-prepared photoanode. b LSV curve of FAPbBr3 photoanode in 1.0 M KOH (scan rate: 50 mV s−1). Inset: statistical photoelectrochemical parameters (20 devices) of the onset potential and saturated catalytic current density at 1.23 V vs. RHE. c LSV curve of FAPbBr3 photoanode under chopped irradiation (red curve) and current density-voltage response of FAPbBr3 photoanode obtained under steady-state current conditions (blue dots) in 1.0 M KOH. d IPCEs and corresponding integral current densities (AM 1.5 G) of FAPbBr3 photoanode at 1.23 V and 0.23 V vs. RHE. e ABPE benchmarks of as-prepared FAPbBr3 photoanodes and other perovskite, BiVO4, BHJ and silicon-based photoanodes. Tabulated values and literature references for listed photoanodes are provided in Supplementary Table 4. f Photovoltage benchmarks for PEC and PV materials as a function of the optical band gap. Diagonal lines represent the band gap, the Shockley-Queisser (S-Q) photovoltage limit, and the S-Q limit minus 1 V. Tabulated values of PV cells and PEC anodes were retrieved from reference21; Tabulated values and literature references for other perovskite and BHJ anodes are provided in the Supplementary Tables 5 and 6.

Photoelectrochemical performance of photoanode

After conducting detailed studies on the performance, stability, morphology, and structure of the WOC part, highly active GS/NiFe alloy/NiFe LDH layers were applied to the light-absorbing part to construct a photoanode with an architecture of ITO/SnO2/FAPbBr3/carbon/GS/NiFe alloy/NiFe LDH (i.e., FAPbBr3 photoanode). The digital images of FAPbBr3 photoanode are illustrated in Fig. 2a. Fig. 2b shows the LSV curve of the as-fabricated FAPbBr3 photoanode; the photocurrent sharply rose from −0.12 V vs. RHE and reached a saturated photocurrent density over 8.5 mA cm−2 at 1.23 V vs. RHE. The inset figures provide statistical data of 20 devices, indicating that the average onset potential is −0.066 V vs. RHE, and the average photocurrent density at 1.23 V vs. RHE is approximately 8.7 mA cm−2. The photoanode exhibits a hysteresis effect similar to a solar cell, with a decay of about 50 mV on the back scanning of the onset potential; additionally, the cyclic voltammetry (CV) curves show almost no scan rate dependency (Supplementary Fig. 18). As shown in Fig. 2d, the incident photon-to-current efficiencies (IPCEs) of FAPbBr3 photoanode were measured and calculated under different potentials. The IPCE values are approximately 80 % and 90 % at 0.23 and 1.23 V vs. RHE, respectively. Integrating the IPCE curves over the AM 1.5 G solar spectrum, the theoretical photocurrent densities are estimated to be 7.4 mA cm−2 at 0.23 V vs. RHE and 8.3 mA cm−2 at 1.23 V vs. RHE. These calculated values are consistent with the measured data in Fig. 2b, which are 7.8 mA cm−2 at 0.23 V and 8.5 mA cm−2 at 1.23 V. The FAPbBr3 photoanode exhibits an ultralow overpotential and over 8 mA cm−2 saturation current, making it a perfect match with photocathodes, such as CuO or GaInP2, which have a saturation current of around 10 mA cm−219,20. When subjected to chopped-light illumination, the photoanode exhibits notable current spikes around onset potentials in both LSV and chronoamperometry current due to the slow water oxidation kinetics induced carrier recombination on the surface (Fig. 2c and Supplementary Fig. 19). The excess charge may be dissipated through radiative recombination, which can be detrimental to the device’s lifetime. The spikes are surpassed when the potential increases to 0.2 V vs. RHE, indicating that only a subtle additional driving force is needed for the FAPbBr3 photoanode to improve charge separation and catalytic efficiency, which greatly decrease the onset potential requirements of the counter photocathodes in Z-scheme PEC cells. The steady-state current density of the FAPbBr3 photoanode is also consistent with LSV current density; under the applied potentials of 0.2 and 1.2 V vs. RHE, steady current densities of 7.20 and 8.46 mA cm−2 were achieved, respectively (Supplementary Fig. 19). The amount of photogenerated O2 in the headspace was quantified using a pressure transducer. The number of electrons passing through the electrode agreed well with the amount of O2 detected, representing Faradaic efficiencies of 94.7% and 96.2 % at the potential of 0.23 and 1.23 V vs. RHE, respectively (Supplementary Fig. 20).

The ABPE was calculated from the corresponding LSV curve in a three-electrode system (Supplementary Fig. 21). A maximum ABPE of 8.52 % is achieved at 0.082 V vs. RHE. This ABPE value is compared to those reported systems in Fig. 2e. To the best of our knowledge, the value is one of the best of those reported photoanodes, including metal oxide, perovskite, polymer bulk heterojunction (BHJ), and silicon-based photoanodes. Compared to bismuth vanadate-based photoanodes, which have a similar wide Eg, the FAPbBr3 photoanode is far superior in terms of maximum ABPE. Moreover, considering the ultralow potential at which the maximum ABPE value is achieved, the FAPbBr3 photoanode is one of the most promising candidates for realizing efficient photo-driven total water splitting. Fig. 2f summarizes the best-reported photovoltages for representative PEC and PV devices with varying band gaps. The photovoltage of PV devices is presented as the open circuit potential, whereas the photovoltage of photoanodes is calculated as the difference between the photocurrent onset potential and the Nernstian potential for water oxidation (1.23 V vs. RHE)21. Analog to trends of PV devices, a wide band gap absorber (>2.0 eV) should be capable of photovoltages approaching >1.4 V when considering a free energy loss of 0.6 eV21, while it is clear that traditional oxide or nitride wide band gap absorbers have significant room for photovoltage improvement to reach the goal. To the best of our knowledge, the wide band gap, HTM-free FAPbBr3 photoanode presented in this work has achieved the lowest onset potential (around −0.12 V) and record photovoltage (around 1.35 V) among single junction photoanodes to date, which brings the photovoltage much closer to the optimal value (>1.6 V). The ultralow onset potential greatly reduces the requirements of the counter photocathode, making it more feasible to construct a low-cost Z-scheme water-splitting system with over 5% solar-to-hydrogen efficiency. Supplementary Fig. 22 shows the values of solar cell Voc, photovoltage, and corresponding voltage loss of various perovskite photoanodes for water oxidation. Compared to all other reported photoanodes based on solar cell architecture, which exhibit a voltage loss of over 0.2 V, the FAPbBr3 photoanode shows a significantly lower voltage loss of only 0.05 V. This low voltage loss suggests good internal contact and well-matched band structure in the device.

To gain deep insight into the origin of the ultralow onset potential, ultraviolet photoelectron spectroscopy (UPS) was used to explore the band alignments in devices (Fig. 3a). The Fermi level of the FAPbBr3 film is measured to be approximately −3.7 eV vs. vacuum, and the valence band energy of the film was found to be 1.9 eV lower than the Fermi level (i.e., −5.6 eV vs. vacuum), indicating an n-type semiconductor feature of the FAPbBr3 absorber layer. Density functional theory (DFT) calculations were performed to gain a detailed understanding of the energy states and n-type features of the as-fabricated FAPbBr3 materials. The lattice parameters and band gap of pristine FAPbBr3 were calculated to be 6.02 Å and 2.41 eV, respectively, which agreed well with the reported experiment values (6.01 Å and 2.3 eV)22,23,24. As perovskite is made through a two-step process, the vacancy state was considered to dominate the band structure due to non-stoichiometric components. Calculations were performed for both the pristine structure and possible vacancy structures, including A-site vacancy (VFA), B-site vacancy (VPb), X-site vacancy (VBr), B anti-site X (PbBr), and X anti-site B (BrPb). Fig. 3b presents the calculated total density of states (TDOS) of pristine and X-site vacancy perovskite to reveal the energy band structure. Specifically, the projected density of states (PDOS) in Supplementary Fig. 23 revealed that the conduction band minimum (CBM) mainly consists of Pb 6p orbitals, while Br 4p orbitals contribute to the valence band maximum (VBM); moreover, the trap state energy level of VBr is close to the CBM, as it is composed of the Pb 6p orbitals. The Fermi energy level is found to be shifted to the CBM, indicating the n-type property of Br vacancy due to the presence of donor states within the band gap. The TDOS of other vacancy and anti-site structures were also calculated accordingly. As shown in Supplementary Fig. 24, VPb, VFA, and BrPb will reduce the Fermi level into the VBM, while PbBr will shift the Fermi level penetrating into CBM. The defect formation energies (DFEs) for the aforementioned defect types were calculated according to the procedures in Supplementary Note 3. As detailed in Supplementary Table 7, the DFE for PbBr was found to be 0.78 eV, which is higher than the −0.51 eV for the Br vacancy, which implies that PbBr is less stable in comparison to VBr. These theoretical results provide valuable insight into the effect of vacancy and anti-site structures on the Fermi level of FAPbBr3 materials. Based on the results, it is suggested that the vacancy structure of Br leads to an n-type property of the FAPbBr3 film.

Fig. 3: Band structure analysis of FAPbBr3 photoanode.
Fig. 3: Band structure analysis of FAPbBr3 photoanode.
Full size image

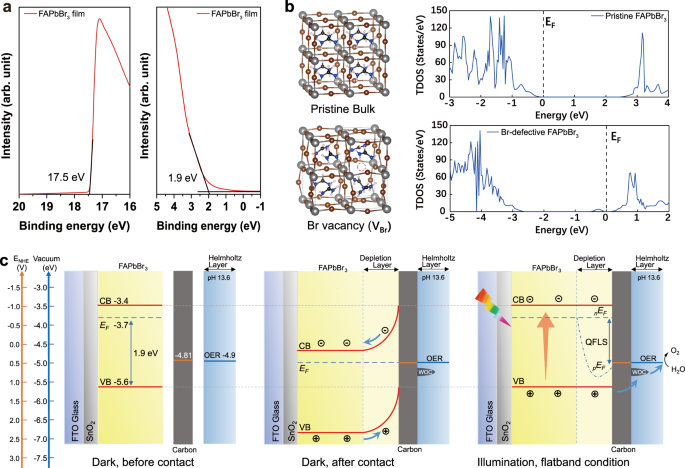

a UPS spectrum of FAPbBr3 film. b Geometric structures and calculated TDOS of pristine and Br-defective FAPbBr3 perovskites. c The band alignment structures of FAPbBr3 photoanode under specific conditions.

The energetic situations at the n-type FAPbBr3/electrolyte interface are presented in Fig. 3c. After the contact of the semiconductor surface with the electrolyte, the thermodynamic equilibrium on both sides of the interface is established with the formation of the depletion layer. After light illumination, the quasi-Fermi level for electrons is consistent with the Fermi level at equilibrium; in contrast, the quasi-Fermi level of holes shifts downwards to the vicinity of the valence band edge. In a PV device, the corresponding quasi-Fermi level splitting (QFLS) is directly related to the open circuit potential25. In this context, the QFLS of the FAPbBr3 perovskite layer should not be less than 1.4 eV, as the perovskite layer can generate an open circuit potential of about 1.4 V in the carbon-based PV device. In the FAPbBr3/electrolyte system, the flat-band potential is estimated to be the Fermi level of the FAPbBr3 film, which is −3.7 V vs. vacuum. The onset potential of photocurrent can be considered to coincide with the flat-band potential when the band bending is less pronounced26. In our case, the theoretical onset potential is Eonset = (3.7 − 4.5) + 0.059 × 13.6 = 0.02 V vs. RHE. Meanwhile, with an QFLS over 1.4 eV, the oxidation potential of holes reaches over 1.42 V, which could offer a sufficient overpotential of 0.19 V for apparent water oxidation reaction. The theoretical value of Eonset coincides with the measured Eonset of −0.2 to 0.1 V vs. RHE in Fig. 2b, which confirms that the ultralow onset potential in the FAPbBr3 photoanode is derived from the shallower Fermi level and higher photovoltage (see Supplementary Note 4 for detailed discussions). The above analysis highlights the crucial role of the Fermi level and band structure alignment of semiconductor materials in constructing high-performance, low-overpotential photoanode devices.

Stability of photoanode

Although the NiFe alloy/NiFe LDH-based catalysts as well as HTM-free FAPbBr3 solar cells have already shown good stability under operation conditions, achieving long-term stability using integrated photoelectrodes remains a challenging task due to the harsh electrolyte environment of water splitting. To investigate the long-term stability of FAPbBr3 photoanodes, chronoamperometry with a constant applied potential was conducted in 1.0 M KOH solutions. As shown in Fig. 4a and Supplementary Fig. 27, the initial photocurrent exceeds 8.8 mA cm−2 under the applied potential of 1.23 vs. RHE. The device exhibits a current half-life of over 55 h, which is better than other reported systems listed in Fig. 4a. Notably, the current shows no decay in the initial 12 h of illumination and remains at around 95% of its initial current after 24 h of operation. During the measurement, light-soaking-induced photocurrent enhancement is observed, where the photocurrent gradually increased with the initial 5 h of illumination13,27. The stability of the FAPbBr3 photoanode was also examined under a lower applied potential of 0.3 vs. RHE. The current shows almost no decay after 18 h of illumination with an initial current density of 7.7 mA cm−2 (Supplementary Fig. 28). The inset images in Fig. 4a show photographs of the PEC cell after 24 and 55 h of photo-electrolysis. With time increasing, the orange active area of the photoanode gradually turns white with the decayed photocurrent, indicating the gradual degradation of the perovskite layer inside the sealed PEC cell (not due to seal failure) since the degradation was only observed at the light illumination area (Supplementary Fig. S29a). The following investigation aimed to reveal possibilities for improving the stability of degraded photoanodes. To this end, deactivated photoanodes were disassembled to study the degradation mechanism. As shown in Fig. 4d, the tested sample could be easily separated into two parts, with the graphite/carbon layer peeled off from the glass substrate (see Supplementary Fig. 30 for details). Scanning electron microscope (SEM) was employed to observe the interface of the two peeled parts. As shown in Fig. 4c, the perovskite layer tightly adheres to the carbon layer; in contrast, only a small portion of perovskite crystal is attached to the ITO glass substrate (Fig. 4e). For the pristine sample, the ITO glass substrate should be an orange color with the growth of FAPbBr3 layer. However, after stability tests, the FAPbBr3 layer detached from the substrate, resulting in a transparent glass substrate. The detachment of the perovskite layer from the ITO substrate under working conditions was further confirmed in SEM analysis of selectively exposed photoanode (Supplementary Fig. 29c). The functional groups of the pristine and degraded FAPbBr3 films were investigated using Fourier transform infrared (FT-IR) spectroscopy. As presented in Supplementary Fig. 31, a sharp peak at around 1716 cm−1 is observed in the pristine FAPbBr3 film, which is attributed to the antisymmetric C-N vibration; as a reference, the antisymmetric C-N peak of pure FABr is broad and centered at 1697 cm−1. The antisymmetric C-N peak of degraded FAPbBr3 film is found to be blue-shifted and broader than that of the pristine sample, indicating the evolution of ITO-SnO2/FAPbBr3 interface under light irradiation, with the possibility that the perovskite degrades into a corresponding monomer (i.e., FABr).

Fig. 4: Stability assessment of FAPbBr3 photoanode.
Fig. 4: Stability assessment of FAPbBr3 photoanode.
Full size image

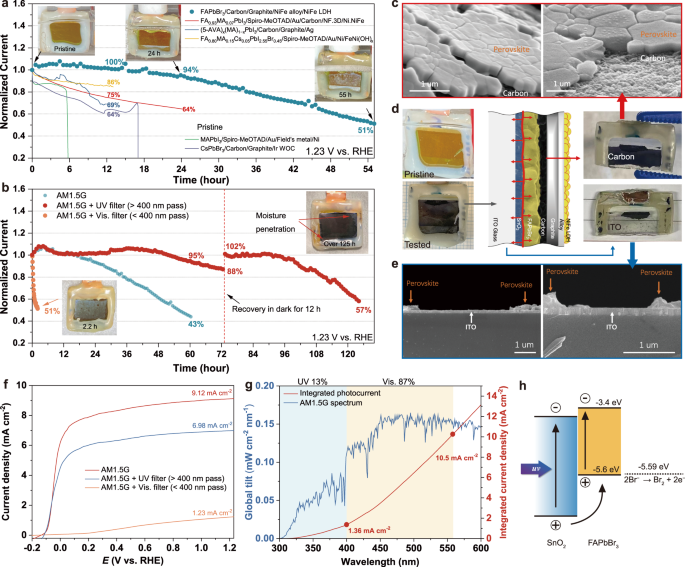

a Normalized chronoamperometric measurement of FAPbBr3 photoanode at 1.23 V vs. RHE in 1.0 M KOH solutions (AM 1.5 G, 100 mW cm−2). Inset: digital images of photoanode at different light-exposed times. b Normalized chronoamperometric measurement of FAPbBr3 photoanode at 1.23 V vs. RHE with different filters in 1.0 M KOH solutions (AM 1.5 G + UV or Vis. filter). Inset: digital images of photoanode at different light-exposed conditions. c SEM images for the carbon part of tested FAPbBr3 photoanode in oblique view. d Schematic diagram of the photoanode degradation process and digital images of pristine and tested FAPbBr3 photoanode. e SEM images for the glass part of tested FAPbBr3 photoanode in cross-section view. f LSV curves of FAPbBr3 photoanode with different filters in 1.0 M KOH (scan rate: 50 mV s−1). g AM 1.5 G spectrum and corresponding integral current densities for UV (< 400 nm) and maximum absorption edge (<560 nm) regions. h Schematic diagram of the proposed mechanism for UV degradation of FAPbBr3 photoanode.

The stability of lead halide perovskite solar cells is influenced by several factors, including heat, moisture, voltage, and UV light. Among these factors, the stability upon UV light exposure is particularly problematic due to the photocatalytic effect of electron transport materials like TiO2 and SnO2, which are considered to be the main reasons for perovskite degradation28. The theoretical oxidation potential of bromine anion (Br−) is 1.087 V vs. normal hydrogen electrode, which is equivalent to −5.59 eV vs. vacuum level29. The potential is almost the same as the VBM of FAPbBr3 perovskite. Thus, under visible light irradiation, oxidation of Br− by excited holes is less likely to occur on FAPbBr3 because such the reaction requires a certain additional driving force. However, as indicated in Fig. 4h, highly oxidative holes would accumulate close to the SnO2/perovskite interface when UV light exposure. These charges could extract electrons from the Br− in the SnO2/FAPbBr3 junction, compromising the perovskite interface structure and producing FABr or PbBr230. To further confirm the negative impact of UV light, stability tests were conducted using a long-pass UV filter with a cut-off wavelength of >400 nm and a bandpass visible light filter with a range of 200–400 nm (Supplementary Fig. 32). As shown in Fig. 4f, the photocurrent of the FAPbBr3 photoanode decreased by approximately 25% under UV-filtered light, reducing to about 7.0 mA cm−2 at 1.23 V vs. RHE. When the cut-off absorption edge is set at 560 nm, the energy of UV light in AM 1.5 G spectrum accounted for 13%, delivering a maximum photocurrent density of 1.36 mA cm−2 (Fig. 4g). When a visible light filter was applied, the photocurrent of FAPbBr3 photoanode is limited to 1.23 mA cm−2 at 1.23 V vs. RHE, and the onset potential dramatically increased under UV light. This observation could be explained by the fact that UV light cannot penetrate deep into the perovskite film, leading to the insufficient driving force for the carriers to flow to the HTM side. The stability measurements with filtered light are presented in Fig. 4b and Supplementary Fig. 33. It was found that the FAPbBr3 photoanode degraded rapidly under UV light, with a current half-life of only 2.2 h, confirming the sensitivity of the perovskite photoanode system to UV light. The color of the FAPbBr3 layer also turns white, indicating the rapid degradation of the ITO-SnO2/FAPbBr3 interface. In contrast, under UV-free illumination, the photoanode is much more stable under operating conditions for 50 h, retaining almost 100% of the initial photocurrent and gradually decaying to 88% of the initial photocurrent for an additional 24 h. More importantly, the photocurrent can be restored to the initial level after resting in the dark for 12 h at open circuit conditions, as commonly observed in regularly structured perovskite solar cells with n-i-p architectures31,32,33,34. The reversible losses and dark recovery phenomenon are typically attributed to ion and defect migration within the perovskite layer and at the interfaces between perovskite and selective contacts32. The system demonstrates remarkable operational stability, with no current decay even after cumulative 96 h of electrolysis. Eventually, the photocurrent density retains more than 57% of its initial level even after 125 h. As revealed in Supplementary Fig. 34 and the inset image in Fig. 4b, the current reduction should be due to a sealing failure in the electrolyte, which led to moisture penetration on the edges. Nevertheless, the center of the perovskite layer does not turn white, indicating its intrinsic stability toward water oxidation catalysis under visible light, which also implies that further improvements in sealing materials and processes can further enhance device stability. To the best of our knowledge, the as-fabricated FAPbBr3 photoanode is the first lead halide perovskite-based photoanode with a stability of more than 100 h to date (Table 1). Although the use of a UV filter would cause an additional performance penalty, the saturation current of 7 to 8 mA cm−2 is still superior to oxide-based photoanodes like BiVO4 and WO3, making FAPbBr3 perovskite a competitive candidate for low-cost photoanode materials.

Table 1 Stability of the reported perovskite photoanodes for water oxidation
Full size table

Photothermal effect of photoanode

While it has been demonstrated that increased electrolyte temperatures can enhance the PEC performance of oxide-based photoanodes35,36, the effect of temperature on perovskite photoanode performance remains uncertain. Introducing the photothermal effect into the catalytic process has an evident advantage, as increased temperature can accelerate the kinetics of electrochemical reactions. However, in the view of charge separation, higher temperatures are detrimental to the performance and stability of perovskite solar cells37,38, which presents a challenge for balancing these two competing factors. Therefore, investigating the photothermal effects on perovskite-based photoanodes is crucial. The question to be addressed in this section is whether high temperatures have a positive or negative impact on photoanode performance.

Prior to examining the catalytic performance, the photothermal characteristics of HTM-free FAPbBr3 solar cell and photoanode were evaluated by recording the time-dependent temperature variation in ambient air (Supplementary Fig. 35). As shown in Fig. 5c, when FAPbBr3 solar cell is exposed to simulated AM 1.5 G light (100 mW cm−2), the temperature rises by 14 °C within 60 s and reaches 45 °C within 470 s, indicating a pronounced photothermal effect. The infrared image presented in Fig. 5a implies that the heated region is primarily concentrated in the central area covered by the carbon layer, indicating that the carbon conduction layer can serve as a photothermal layer. Moreover, the photothermal performance of the FAPbBr3 photoanode is enhanced after encapsulation with a graphite sheet and epoxy resin, as the temperature immediately rises upon illumination and the temperature increases at 470 s are found to be 30 °C (Fig. 5c). As shown in Fig. 5b, the heat generated by the photoanode is primarily concentrated in its central region, while the surrounding epoxy resin functions as a competent insulator, inhibiting heat dissipation. The photothermal effect of the FAPbBr3 photoanode in electrolyte was also assessed using the infrared camera. As presented in Fig. 5d, the surface temperature of the photoanode reaches over 30 °C after 300 s continuous illumination in 1.0 M KOH, implying that light can heat the interior of the photoanode even in the electrolyte. The temperature profile reveals that the photoanode surface is evenly heated, with a temperature differential of 10 °C between the photoanode surface and the electrolyte (Fig. 5e).

Fig. 5: Photothermal performance of FAPbBr3 photoanode.
Fig. 5: Photothermal performance of FAPbBr3 photoanode.
Full size image

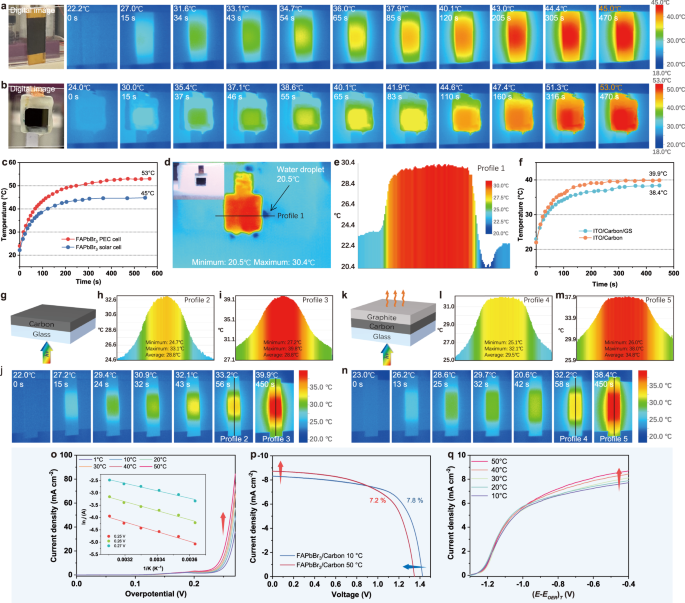

Thermal images of (a) FAPbBr3/carbon solar cell and (b) FAPbBr3 photoanode under continuous light illumination (AM 1.5 G, 100 mW cm−2). c Corresponding heating curves of FAPbBr3/Carbon solar cell and FAPbBr3 photoanode. d Thermal image and (e) corresponding temperature profile of FAPbBr3 photoanode heated by continuous light illumination in the electrolyte (AM 1.5 G, 100 mW cm−2). f Heating curves of ITO/carbon and ITO/carbon/GS under continuous light illumination (AM 1.5 G, 100 mW cm−2). g Structure diagram of carbon-coated ITO glass. h, i Temperature profiles and (j) thermal images of ITO/carbon film under continuous light illumination (AM 1.5 G, 100 mW cm−2). k Structure diagram of GS/carbon-coated ITO glass. l, m Temperature profiles and (n) thermal images of ITO/carbon/GS film under continuous light illumination (AM 1.5 G, 100 mW cm−2). o Temperature-dependent LSV curves of GS/NiFe alloy/NiFe LDH catalyzed OER in 1.0 M KOH (scan rate: 5 mV s−1). Inset: Arrhenius plots under different overpotentials (p) Temperature-dependent density-voltage (J-V) curves of FAPbBr3/Carbon solar cell under light illumination (AM 1.5 G, 100 mW cm−2). q Temperature-dependent LSV curves of FAPbBr3 photoanode under light illumination (scan rate: 50 mV s−1, AM 1.5 G, 100 mW cm−2).

Carbon and carbon/graphite layers were coated on the ITO glass to investigate the photothermal conversion properties of carbon and graphite components separately (the structures are shown in Figs. 5g and 5k). Under AM 1.5 G irradiation, the ITO/carbon film exhibits a considerable photothermal conversion, with an 18 °C temperature increase after 300 s of exposure. Conversely, after attaching the graphite sheet, the temperature rises of the ITO/carbon/GS film decreased by 1.5 °C compared to that of the ITO/carbon film (Fig. 5f). This decrease in temperature could be attributed to the enhanced surface heat dissipation in the carbon/GS film, as graphite sheet are widely employed as thermal pads in diverse industries due to their superior heat dissipation characteristics. Fig. 5j and Fig. 5n show the thermal images of the ITO/carbon and ITO/carbon/GS films, respectively, under continuous light illumination. The graphite sheet, which exhibits excellent thermal conductivity, shows a uniform temperature distribution. As illustrated in Fig. 5h, i, the heat primarily accumulates in the center of the ITO/carbon film, producing parabolic temperature profile curves. In contrast, ITO/carbon/GS film exhibits uniform heat distribution on the surface, resulting in trapezoidal-shaped temperature profile curves (Fig. 5l, m). Based on this analysis, it can be concluded that the carbon layer primarily generates the photothermal effect in the device; moreover, the graphite layer utilized for conductive sealing also functions as a thermal pad layer, facilitating the rapid and uniform heat conduction toward the catalyst layer to mitigate the accumulated heat damage to the perovskite layer.

The use of a GS separator also allows for the individual investigation of the temperature effect on electrochemical water oxidation catalysis of the ITO/GS/NiFe alloy/NiFe LDH electrode. Temperature (T)-controlled electrocatalysis was conducted in 1.0 M KOH to determine the temperature dependency for the electrode. In an electrochemical reaction, the activation overpotential (η) is the potential difference from the equilibrium value required to produce a current, which depends on the activation energy of the redox event. Hence, the catalytic rate, as indicated by the current densities, should be compared at the same overpotential in order to accurately assess the catalytic activity (see Supplementary Note 5 for the calculation of overpotential). After calibration with driven force, the corresponding Arrhenius plots of the current at various potentials against 1/T are calculated and shown in the inset figure of Fig. 5o. At an overpotential of 250 mV, the apparent activation energy is calculated to be 16.2 kJ mol−1. The activation energy at zero overpotential is derived from the intercept of apparent activation energy vs. overpotential plots at η = 0 (Supplementary Fig. 38)39. The obtained value (65 kJ mol−1) is smaller than that of other nickel-based catalysts, such as NiTe (100.2 kJ mol−1) > Ni2Si (98.6 kJ mol−1) > Ni (94.0 kJ mol−1) > NiAs (86.3 kJ mol−1) > NiP (78.4 kJ mol−1)40, indicating faster intrinsic OER kinetics for the electrodeposited NiFe alloy/NiFe LDH catalysts.

The temperature effect on the FAPbBr3 solar cell is studied using a lab-made setup (Supplementary Fig. 39). As shown in Fig. 5p, an increase in temperature will cause a decrease in the Eg of the semiconductor material, resulting in a slight increase in the short-circuit current38. However, this increase in Jsc is not enough to compensate for the loss of FF and Voc values due to higher recombination probabilities, which ultimately leads to a reduced PCE at higher temperatures41. On one hand, for photoanode devices with perovskite-based light-absorbing layer, the decrease in voltage is certainly detrimental to the performance of photoanode devices, particularly in terms of onset potential and maximum ABPE. On the other hand, the reduction in Eg, as well as the increase in Jsc, can lead to a higher saturated current under higher applied potential. Additionally, an increase in temperature can significantly decrease the theoretical potential of the water oxidation reaction while greatly increasing the catalytic current under the same driven force. These competing effects make it uncertain how temperature affects the performance of photoanode devices, and thus, it is necessary to study the temperature effect on complete perovskite photoanodes. Fig. 5q shows the photocurrent density-overpotential curves of FAPbBr3 photoanode at different temperatures. The results indicate that changes in temperature do not significantly affect the onset potential under the same driving force for the reaction, which suggests that the decrease in voltage for light-absorbing perovskite material and the reduction in overpotential requirements for the catalytic process offset each other, resulting in a consistent apparent onset potential for FAPbBr3 perovskite photoanode. Furthermore, the increased short-circuit current in the light-absorbing portion and the increased catalytic current in the catalytic portion leads to a significant improvement in the saturated catalytic current of the photoanode. Based on the above analysis, it can be concluded that the increase in temperature has a positive effect on the photoanode performance. Utilizing photothermal effect can be an effective strategy to further enhance the performance of perovskite-based photoanodes, provided that stability is not compromised. Moreover, the FAPbBr3 material exhibits superior thermostability compared to other candidates, such as MAPbBr3 and MAPbI3, making it an ideal building block for highly efficient photoanodes that can fully leverage the photothermal effect without suffering from thermal degradation.

Solar hydrogen can be produced using a variety of methods, including the use of PV cells, PEC cells, and hybrid systems that combine both technologies. Our work demonstrates that PVM-PEC configuration can fully utilize the photothermal effect, like PEC, to maximize solar energy utilization (see summary in Supplementary Note 6). As-fabricated FAPbBr3 photoanode can be synthesized with remarkable accessibility without requiring high temperature, inert atmosphere, or vacuum evaporation techniques. The carbon/GS protection strategy effectively prevents water corrosion from damaging the sensitive perovskite, and the photothermal properties of the carbon material allow for extended spectral utilization. Meanwhile, this HTM-free and precious metal-free structure dramatically reduces fabrication costs. The scalable electrodeposition preparation of catalyst layers enables facile fine-tuning of the composition, structure, and morphology of electrocatalysts using electrochemical technologies. We believe that these findings have significant implications for the development of cost-effective, high-performance integrated photoelectrodes for solar energy conversion applications.

Discussion

In summary, this work has demonstrated a FAPbBr3-based photoanode featuring a photocurrent density around 8.5 mA cm−2 at 1.23 V vs. RHE, an onset potential below 0 V vs. RHE, and half-life stability over 55 h using a FAPbBr3 absorber, a carbon/graphite conductive protection layer and NiFe alloy/NiFe LDH catalysts under alkaline conditions. Due to its fast catalytic kinetics, high photovoltage, and rational band structure, a high ABPE of 8.5% was reached at 0.08 V vs. RHE. Further stability studies and post-characterizations revealed that the perovskite interface was damaged by UV light, resulting in a detached absorber layer and performance loss. Accordingly, by applying a UV filter, the device achieved record stability of over 100 h in 1.0 M KOH under constant simulated solar illumination, with currents around 7.5 mA cm−2 at 1.23 V vs. RHE. More importantly, this work has conducted a detailed investigation of the photothermal effect on FAPbBr3 photoanode, confirming that the photoanode based on photovoltaic materials can also take full advantage of the photothermal effect and improve catalytic performance. In the design structure of ITO/SnO2/FAPbBr3/carbon/GS/NiFe alloy/NiFe LDH, the carbon layer serves as both the hole transport layer and the photothermal layer, while the graphite layer functions not only as a waterproof and conductive layer but also efficiently transfers heat, serving as a thermal homogenization layer. Meanwhile, the dense electrodeposited alloy layer provides a robust substrate for high-performance LDH catalyst loading, ensuring efficient electrical and thermal conductivity. The compact and multifunctional design endows the monolithic device with high performance and excellent stability. These observations, along with the ultralow onset potential and the facile processability of FAPbBr3 photoanode, demonstrate the potential of lead halide perovskite-based PEC as a promising approach to achieving efficient, cost-effective, and scalable photoelectrochemical solar fuel production.

Methods

Chemicals

Colloidal tin oxide solution (SnO2, 15% in H2O) was purchased from Alfa Aesar. Sodium hydroxide (semiconductor grade, 99.99%), potassium hydroxide (semiconductor grade, 99.99%), tri-Sodium citrate dihydrate (99%), Ammonium sulfate (99.0%), sodium hypophosphite monohydrate (99.0%), Nickel(II) sulfate hexahydrate (99.99%), Iron(II) sulfate heptahydrate (99.0%), Nickel(II) chloride hexahydrate (99.9%), Iron(III) chloride (anhydrous, 99.99%), Nickel(II) nitrate hexahydrate (99.999%), Iron(III) nitrate nonahydrate (99.95%), dimethylformamide (DMF, anhydrous, 99.8%), dimethyl sulfoxide (DMSO, anhydrous, 99.9%), acetonitrile (HPLC), chlorobenzene (anhydrous, 99.8%) methanol (HPLC, 99.9%), bis(trifluoromethanesulfonyl)imide lithium (Li-TFSI) and 4-tert-butylpyridine (TBP) were purchased from Sigma-Aldrich and used as received without further purification. 2,20,7,70-tetrakis [N, N-di(4-methoxyphenyl) amino]−9,90-spirobifluorene (SpiroOMeTAD) was purchased from Borun. PbBr2 (99.99%, trace metals basis) was purchased from TCI Chemicals. FK209 [tris(2-(1Hpyrazol-1-yl)−4-tert-butylpyridine)-cobalt (III) tris(bis(trifluoromethylsulfonyl)imide) and FABr were provided by Greatcell solar. Carbon pastes (DN-CP01) were purchased from Dyenamo. 160 um graphite thermal sheet (794–3973) was purchased from RS components. High-purity deionized water (18.2 MΩ cm−1), supplied with a Milli-Q system (Millipore, Advantage A10), was used in all experiments. Indium tin oxide (ITO) glass substrate and epoxy adhesive (Loctite 9466) were purchased from a local company. All other reagents were commercially available and used as received. Organic solvents were of analytical reagent grade and used without further purification.

Fabrication of FAPbBr3 solar cell

The structure of hole transport materials-free FAPbBr3 solar cell is glass/ITO/SnO2/FAPbBr3/carbon. ITO glass was cleaned with detergent, acetone, isopropanol, and water for 20 min, respectively. UV/ozone (UVO) treatment was then applied for 30 min before use. SnO2 film was deposited on the ITO substrate by spin-coating method using the commercial SnO2 colloidal solution (diluted with deionized water, the volume ratio of water to SnO2 is 4:1) at 3000 rpm for 30 s, followed by annealing treatment at 150 °C on a hotplate for 30 min. After cooling down, UV/ozone treatment was conducted on SnO2 film for 20 min before further use. The FAPbBr3 film was prepared using a two-step spin coating method. PbBr2 precursor solution was prepared by dissolving 1.3 M of PbBr2 in a mixture of DMF and DMSO with a volume ratio of 9:1 and stirred at 70 °C overnight. Then the PbBr2 precursor solution was spin-coated onto SnO2 substrates at 3000 rpm for 30 s, followed by annealing treatment in the ambient conditions at 70 °C for 1 min. Next, 0.065 g FABr was dissolved in 1.0 ml methanol and spin-coated on top of PbBr2 precursor film (3000 rpm, 30 s), followed by annealing treatment in the ambient conditions at 150 °C for 25 min. Finally, A carbon paste (DN-CP01) was doctor-bladed as the top contact on FAPbBr3 film. Devices were further annealed at 100 °C for 30 min in the air for the formation of a solid carbon layer. The reference solar cell with structure of glass/ITO/SnO2/FAPbBr3/spiro-MeOTAD/Au was fabricated using same procedure. The HTM layer was prepared by spin coating method: 70 mM Spiro-OMeTAD was dissolved in chlorobenzene with additives of TBP, Li-TFS (1.8 M in acetonitrile), and FK209 (0.25 M in acetonitrile). The Molar ratio of Spiro-OMeTAD: TBP: Li-TFSI: FK209 was 1: 3.3: 0.5: 0.0542. The Spiro-OMeTAD solution was spin-coated on the perovskite films (4000 rpm, 30 s) and 80 nm Au layer was then deposited via vacuum evaporation on top of spiro-OMeTAD as a contact electrode. The devices were stored in a dry box overnight before the J-V measurement.

Fabrication of NiFe catalysts

The structure of catalyst layers is glass/ITO/GS/NiFe alloy/NiFe LDH. The self-adhesive GS layer was stuck onto the ITO glass. The NiFe alloy layer was electrodeposited on the GS layer (1.0 × 1.0 cm) using a reported method with subtle modification43. In brief, sodium citrate dihydrate (20.0 mmol, 6.00 g), ammonium sulfate (45.0 mmol, 6.00 g), and sodium hypophosphite monohydrate (57.0 mmol, 6.00 g) were dissolved in 100 mL water at ambient temperature. Nickel sulfate hexahydrate (10.0 mmol, 2.62 g) and iron(II) sulfate heptahydrate (2.0 mmol, 0.54 g) were added into the solution with stirring. The pH of the solution was adjusted to 10.0 using 10 M NaOH solution. The deposition process was performed using a three-electrode electrochemical cell (platinum mesh as the counter electrode and an Ag/AgCl (saturated KCl) as the reference electrode) filled with 15 mL electrodeposition solution at an applied potential of −1.10 V vs. Ag/AgCl for 1600 s. The alloy film was rinsed with deionized water and then dried under an N2 atmosphere before further use. The NiFe LDH layer was electrodeposited on the alloy layer using a modified reported method44. The electrolyte bath contained 5 mM nickel(II) nitrate hexahydrate and 5 mM iron(III) nitrate nonahydrate. The electrodeposition was then carried out at −1.0 V vs. Ag/AgCl for 900 s. NiFe LDH was also electrodeposited onto the GS electrode following the same procedures. The LDH film was rinsed with deionized water and dried under an N2 atmosphere before further use.

Fabrication of FAPbBr3 photoanode

Following Poli’s methods13, after the FAPbBr3 solar cell part was prepared, the above-mentioned 160 um self-adhesive GS layer was stuck onto the carbon film (step 2, Supplementary Fig. 1). The bottom edge part of the attached GS was further covered by carbon paste to ensure conductivity. Then copper tape and copper wire were stuck on the ITO and GS parts, respectively (step 3, Supplementary Fig. 1). Latterly, the photoanode was sealed by chemical-resistant epoxy resin Loctite 9466 (step 4, Supplementary Fig. 1) and hardened at 60 °C for 30 min. The devices were stored in a dry box overnight before subsequent use. The catalyst layers were deposited on GS using the same procedure and conditions as above. In particular, the deposition process was performed using a three-electrode electrochemical cell with the working electrode connected to copper wire. After the preparation is complete, the copper wire should be cut short to prevent possible corrosion in the electrolyte.

Electrochemical measurements

All electrochemical characterizations were carried out in a standard three-electrode cell connected to a CHI 660E electrochemical workstation, using the prepared films as the working electrode, a Pt mesh as the counter electrode, and Hg/HgO (1.0 M KOH) as the reference electrode. The temperature was controlled at 25 °C by a thermostatic water bath unless otherwise noted. All measured potentials were converted to values relative to RHE by a commercialized RHE reference electrode (HydroFlex of Gaskatel) at 25 °C45. All linear sweep voltammetry curves were measured in a three-electrode configuration with iR correction (95%) unless otherwise noted. Chronopotentiometry was recorded under the same experimental setup with iR-correction. All the correction was done manually according to the equation Ecorr = Emeas – iRu, where Ecorr is iR-corrected potential, Emeas is the experimentally measured potential, and Ru is the equivalent series resistance extracted from Nyquist plots (~2.3 Ω in 1 M KOH). Tafel slopes were calculated based on polarization curves by fitting to the following equation η  =  b × log(j)  +  a, where j is current density (mA cm−2), η is overpotential (mV), and b is Tafel slope.

Photoelectrochemical measurements

All photoelectrochemical measurements were carried out at room temperature by using a CHI 660E electrochemical workstation. The photoelectrochemical performances of photoanodes were measured with a three-electrode configuration, using the prepared photoanodes as the working electrode, a Pt mesh as the counter electrode, and Hg/HgO (1.0 M KOH) as the reference electrode. All measured potentials were converted to values relative to RHE by a commercialized RHE reference electrode (HydroFlex of Gaskatel) at 25 °C. The simulated solar illumination was obtained by a NEWPORT LCS-100 solar simulator (type 94011A-ES, a 100 W Xenon arc lamp with an AM 1.5 G filter). The incident light power intensity was calibrated to 100 mW cm−2 by a Thorlabs S401C photometer (190 nm −20 µm). J-V curves were obtained by LSV without iR-correction. The chopped light was controlled using an electronic shutter and corresponding driver (type 76995) provided by Newport. The long-term electrolysis was carried out with a constant potential under the same experimental setup. The ABPE was calculated from the J-V curves (in a three-electrode system) under illumination according to the following equation:

$${{{{{\rm{ABPE}}}}}}\left(\%\right)=\frac{\left(1.23-{V}_{{RHE}}\right)\times \left({j}_{{light}}-{j}_{{dark}}\right)}{{P}_{{light}}}\times 100\%$$
(1)

where Plight was the light intensity of incident illumination, VRHE indicated the applied potential in RHE scale, jlight and jdark were photocurrents and dark current, respectively. The IPCE values of photoanodes were calculated using the following equation:

$${{{{{\rm{IPCE}}}}}}\left(\%\right)=\frac{1240\times \left({j}_{{light}}-{j}_{{dark}}\right)}{\lambda \times {P}_{\lambda }}\times 100\%$$
(2)

The monochromatic light was produced using a monochromator. The light intensity (Pλ) at each wavelength (λ) was determined by a photometer; jlight and jdark were photocurrents and dark current, respectively, measured by an electrochemical workstation. The onset potential (Eonset) for photoanode was defined as the intersection point of the J-V curve with the x-axis. The corresponding photovoltage (Vph) was calculated according to the following equation:

$${V}_{{ph}}=1.23-{E}_{{onset}}\left(25^\circ {{{{{\rm{C}}}}}}\right)$$
(3)

It’s worth noting that this approach neglects catalytic overpotentials, resulting in a potential underestimation of the photovoltage for PEC devices.

Computational details

All the DFT calculations were performed using the Vienna Ab-initio Simulation Package (VASP)46. The projector-augmented wave (PAW) pseudopotentials method46,47 was utilized to describe the electron-ion interactions with the plane-wave basis expansion cut-off energy set to be 500 eV. The generalized gradient approximation (GGA) was used with Perdew–Burke–Ernzerhof (PBE)48 to perform the exchange-correlation potential. The valence states of the potential chose 5d106s26p2 for the lead (Pb) atom, 4s24p5 for the bromine (Br) atom, 2s22p2 for the carbon (C) atom, 2s22p3 for the nitrogen (N) atom, and 1s1 for the hydrogen (H) atom. The Hubbard-type correction was set on Pb 6p and Br 4p orbitals with a U-J value of 9 eV and 8 eV, respectively49,50. The p(2 × 2 × 2) supercell of FAPbBr3, consisting of 96 atoms, is considered for the defect study. A 5 × 5× 5 Monkhorst–Pack k-point mesh sampling for Brillouin-zone integration was used for the bulk optimization, while it was 2 × 2 × 2 for all defective structures. The equilibrium was reached when the forces on the relaxed atoms became less than 0.02 eV/Å. The van der Waal (vdW) interaction was described by the DFT-D3 method51,52. Note that, due to the presence of heavy atoms, spin-orbit coupling (SOC) is also included through all calculations53.
