Introduction

Optical anisotropy holds great promise for modern photonics by virtue of supporting various physical effects and important applications, including polarization control1,2,3,4, ultra-confined light coupling5,6, nonlinear and quantum optics7,8,9. The large birefringence parameter Δn (n is the refractive index), which indicates the difference in the speed of light between two crystallographic axes, is essential in achieving these important applications. Despite large birefringence is very essential, the currently commercial birefringence crystals such as YVO410, MgF211 and CaCO312 have relatively small birefringence, with values below 0.213. Some liquid crystals have shown an increase in birefringence, but typically fall below 0.414. The uncovering of the quasi-one-dimensional crystal BaTiS3 raises the record of the birefringence in nature to 0.7615. Although continuous efforts have been devoted to explore large birefringent materials, recently reported values in crystalline borates such as Ba3Mg3(BO3)3F316, K5Ba2(B10O17)2(BO2)17 and LiBO218 are still moderate. By artificially manipulating the crystal structure, researchers have achieved a colossal birefringence in Sr9/8TiS3 (~2.1)19. However, the relatively large volume of these bulk materials is not applicable to compact integrated photonic applications. The latest researches have suggested layered van der Waals (vdW) materials exhibit inherent large birefringence, as the weak interlayer bonding leads naturally to considerable out-of-plane birefringence (e.g., MoS2 (~3)20,21, WS2 (~2)22 and hBN (~0.7)23). Compared to the bulk crystals, layered vdW materials highlight with atomic flat smooth surfaces, strong light-matter interactions, good flexibility and compatibility with the current silicon photonic technology24,25,26,27, which makes them the promising candidates for next generation on-chip compact nanophotonic applications28,29. However, the optic axis of these layered materials is typically out of the plane, and thus their utility in conventional optical systems is limited by the difficulty to funnel light into the small nanoscale area that parallels to its out-of-plane optical axis. Instead, in-plane birefringence is more conducive to the practical applications2,30, but the realization of large in-plane birefringence in these layered materials remains challenging.

Currently, vdW materials explored with in-plane optical anisotropy such as FePS330, α-phase molybdenum trioxide (α-MoO3)31, rhenium diselenide (ReSe2)32, and black phosphorus32 display a low in-plane birefringence. Achieving large in-plane optical birefringence is expected to require much larger structural anisotropy. Among various vdW materials with anisotropic structure, a ternary biaxial crystal Ta2NiS5 has reignited research interests recently33,34,35. This anisotropic crystal possesses layered orthorhombic structures, in which tetrahedral NiS4 and octahedral TaS6 units run along different in-plane directions, naturally revealing a distinct in-plane structural anisotropy, which is larger than the most investigated vdW materials (Supplementary Table 1). Particular attention should also be given to the different effective electronic polarizability along two in-plane principal directions of Ta2NiS5 in which Ta4+ ions along the two axes is almost identically distributed, whereas Ni2+ and S2− are preferentially distributed along a-axis and c-axis, respectively. As is known, the electronic polarizability of Ni2+ (1.107 Å3) is almost the lowest among bivalent metal ions36, and S2− (10.2 Å3) is much higher15. This distinct polarizability difference would cause a large anisotropy in optical property between the a-axis and c-axis15, providing a clue for the large in-plane birefringence in Ta2NiS5.

Here, we propose and experimentally demonstrate the presence of both significant in-plane and out-of-plane optical anisotropy in Ta2NiS5, spanning the ultrawide-band from visible to mid-infrared (MIR) range (0.3–16 µm). Specifically, we find the in-plane birefringence Δn ≈ 2 and 0.5 in the visible and MIR ranges is one of the highest among vdW materials known to date. Meanwhile, the superior out-of-plane birefringence (Δn > 1.6) in the MIR region makes Ta2NiS5 as one of the excellent anisotropic vdW materials. Furthermore, combining with the near-field real-space nanoimaging, we reveal that the large refractive index, in-plane birefringence, and low extinction coefficient of Ta2NiS5 enable it a promising in-plane anisotropic and low-loss dielectric waveguide across an ultrabroadband range from 633 nm to 11.111 µm. The large optical anisotropy exhibited by Ta2NiS5 makes it a strong contender for advancing the pioneering field of nanophotonic and integrated optics and enabling an unique platform for the study of optical anisotropy.

Results

Giant birefringence of Ta2NiS5

Figure 1a illustrates the crystal structure of Ta2NiS5, a ternary vdW material. Ta2NiS5 has layered orthorhombic structures where Ni and Ta atoms link with the surrounding S atoms to form tetrahedral NiS4 and octahedral TaS6 units within the layer plane. These units run along different crystallographic directions with armchair or zigzag chain arrangements, respectively33,34. In light of the distinct chain structures along the a-axis and c-axis, considerable in-plane anisotropic optical properties could be expected in Ta2NiS5. The crystallographic orientation of the exfoliated Ta2NiS5 flakes was determined by angle-resolved polarized Raman spectroscopy. The results reveal that the long-axis of the exfoliated flakes was aligned with the a-axis of the Ta2NiS5 crystal (Supplementary Note 1).

Fig. 1: Giant and ultra-broadband birefringence in Ta2NiS5 crystal.
Fig. 1: Giant and ultra-broadband birefringence in Ta2NiS5 crystal.
Full size image

a Crystal structures of Ta2NiS5. The red dash region represents the unit cell of Ta2NiS5. b The experimental (unfilled symbols) and fitted (dashed lines for point-by-point method; solid lines for Lorentz method) data of spectroscopic ellipsometry parameters Psi and Delta along the a-axis and c-axis of Ta2NiS5 flake. c The Fourier transform infrared spectroscopy (FTIR) experimental (unfilled symbols) and calculated (red line) reflectance spectra of a 5.58-μm-thick Ta2NiS5 sample on CaF2 substrate. d, e Extracted complex refractive-index values of Ta2NiS5 for the a-, b-, and c-axis in the visible and mid-infrared (MIR) range. The material shows a birefringence value as large as Δn ≈ 2.8 in the visible and persists Δn > 1.6 in the MIR range (red shaded region). f Comparison of the absolute birefringence values of Ta2NiS5 with other anisotropic materials from previous works in the literature10, 11, 15, 18, 20, 23, 30, 31, 45, 62,63,64,65,66,67,68. || represents in-plane birefringence of vdW crystal, \(\perp\) represents out-of-plane birefringence of vdW crystal. The measurement wavelength range is currently limited by the capability of our equipment.

The in-plane optical constant of the Ta2NiS5 crystal in the visible range was measured by the spectroscopic ellipsometry. Spectroscopic ellipsometry has been widely used in recent years to investigate the optical properties of vdW materials37,38. To overcome the limitation of the lateral dimensions of the mechanically exfoliated nanosheets, the spectroscopic ellipsometer was coupled with a focused beam of spot size as small as 60 × 25 µm2. Here, we focus on investigating the in-plane (ac-plane) anisotropy of Ta2NiS5 nanosheets by rotating the in-plane azimuth angles of the samples (see Methods). The measured ellipsometric parameters Psi (Ψ) and Delta (Δ) show pronounced differences specialized in the range of 600–800 nm (Fig. 1b), clearly indicating the large optical anisotropy. To extract the complex refractive indices from the measured Psi and Delta data, a four-phase model consisting of the Si/SiO2/Ta2NiS5/air is considered (Supplementary Note 2). The optical constants of Si and SiO2 were taken from the literature39 and were validated through a pre-test using spectroscopic ellipsometry on the pristine substrate. The in-plane refractive indices of Ta2NiS5 layer were firstly extracted by the point-by-point method40, which is a mathematical inversion method that accurately derives complex refractive indices but requires the prior knowledge of the thickness taken from the atomic force microscope (AFM) measurements. To verify the Kramers-Kronig consistency of the point-by-point result, the multi-oscillator Lorentz model was also applied (Supplementary Note 2). Both methods fit the Psi and Delta curves very well (Fig. 1b). To extract the complex refractive indices in MIR range, Fourier transform infrared spectroscopy (FTIR) was performed on a Ta2NiS5 sample on CaF2 substrate to obtain the reflection spectra from 2.5 μm to 16 μm (Fig. 1c). A genetic algorithm41 was used for fitting the reflection spectrum (Supplementary Note 3). The fitted reflectance spectrum (red line in Fig. 1c) achieves good consistency with the experiment data. This good agreement was further verified in multiple flakes with the same model parameters (Supplementary Fig. 6).

The anisotropic refractive indices of Ta2NiS5 in visible and MIR range were then plotted in Fig. 1d, e, respectively. As expected, the in-plane refractive index of Ta2NiS5 exhibits significant anisotropy, especially when the wavelength is greater than ~580 nm. In the visible range, the dominant peak ~600 nm on the extinction coefficient k along the c-axis is assumed to be the interband transition from valence band of Ni 3d orbitals to the conduction band of Ta 5d orbitals42,43,44. However, this peak is absent for crystallographic direction along the a-axis. Besides, the extinction coefficient k in the MIR range is negligible. Worthy of attention is that the in-plane birefringence values of Δn ≈ 2 and 0.5 in the visible and MIR ranges, which are much larger than other in-plane anisotropic vdW materials reported, such as FePS3 (~0.2 at visible)30, GeSe (0.85 at 620 nm)45 and α-MoO3 (~0.17 at MIR)31 as shown in Fig. 1f. On the other hand, Ta2NiS5 also exhibits a significant out-of-plane birefringence Δn ≈ 2.8 in visible range and Δn > 1.6 in the MIR range (the out-of-plane refractive indices were confirmed by the near-field experiment discussed in the following part). Compared with bulk birefringent crystals and vdW materials (Fig. 1f), Ta2NiS5 has giant in-plane and out-of-plane birefringence in both the visible and MIR region making it as one of the promising anisotropic vdW materials. Meanwhile, the in-plane dichroism of Ta2NiS5 also reaches a high value of ~2.0 in visible range, and 0.357 in the MIR range (Supplementary Note 4). However, one should also be aware of the non-negligible absorption induced losses in the visible spectrum may impose possible limitations on future device design. To further verify the anisotropic optical properties of Ta2NiS5, we have also performed density functional theory (DFT) calculations to reproduce the experimental values (Supplementary Note 5). The DFT results can well match the experimental optical properties, further validating high optical anisotropy of Ta2NiS5.

Real-space nanoimaging of anisotropic waveguide modes

Notably, the absolute values of refractive indices of Ta2NiS5 are very high, especially the in-plane components. These extracted large refractive indices and giant birefringence indicate its potential application in compact nanophononics. To verify this, we analyzed the anisotropic propagation of planar waveguide modes in Ta2NiS5 flakes, using a scattering-type scanning near-field optical microscope (s-SNOM)46,47,48. According to previous studies21, the transverse electric (TE) and transverse magnetic (TM) waveguide modes along a-axis in Ta2NiS5 film can be introduced as:

$$\sqrt{{n}_{c}^{2}{k}_{0}^{2}-{q}_{wm}^{2}}d= {\tan }^{-1}\left(\frac{\sqrt{{q}_{wm}^{2}-{k}_{0}^{2}{n}_{1}^{2}}}{\sqrt{{n}_{c}^{2}{k}_{0}^{2}-{q}_{wm}^{2}}}\right)\\ +{\tan }^{-1}\left(\frac{\sqrt{{q}_{wm}^{2}-{k}_{0}^{2}{n}_{s}^{2}}}{\sqrt{{n}_{c}^{2}{k}_{0}^{2}-{q}_{wm}^{2}}}\right)+m\pi$$
(1)
$$\sqrt{\frac{{n}_{a}^{2}}{{n}_{b}^{2}}({n}_{b}^{2}{k}_{0}^{2}-{q}_{wm}^{2})}d= {\tan }^{-1}\left(\frac{{n}_{a}^{2}\sqrt{{q}_{wm}^{2}-{k}_{0}^{2}{n}_{1}^{2}}}{{n}_{1}^{2}\sqrt{\frac{{n}_{a}^{2}}{{n}_{b}^{2}}({n}_{b}^{2}{k}_{0}^{2}-{q}_{wm}^{2})}}\right)\\ +{\tan }^{-1}\left(\frac{{n}_{a}^{2}\sqrt{{q}_{wm}^{2}-{k}_{0}^{2}{n}_{s}^{2}}}{{n}_{s}^{2}\sqrt{\frac{{n}_{a}^{2}}{{n}_{b}^{2}}({n}_{b}^{2}{k}_{0}^{2}-{q}_{wm}^{2})}}\right)+n\pi$$
(2)

where k0 represents the incident wavevector in free space, qwm represents the wavevectors of in-plane propagation waveguide mode, n1 and ns correspond to the refractive indices of air and substrate respectively, na, nc and nb correspond to the tensor of refractive indices of the Ta2NiS5 crystal along different crystallographic direction, m and n are the order number of TEm and TMn, respectively. Apparently, the wavevectors of TE and TM mode are related with the tensor of refractive indices, which provides an extra way to verify the extracted large optical anisotropy from the far-field experiments.

The schematics of the near-field experiment was shown in Fig. 2a. The Ta2NiS5 flakes were exfoliated onto standard silicon wafer with 290-nm-thick SiO2. The angle of the incident light (k0) relative to the sample surface (x–y plane) is defined as α (α is fixed at 30° in our experiments), and the angle between the projection of the incident light in the x−y plane (kxy) and the sample’s edge (a-axis) is defined as β. The p-polarized laser beam with different excitation wavelengths is focused onto the apex of the AFM tip to excite waveguide modes in the Ta2NiS5 flakes. The excited waveguide modes then propagate in the Ta2NiS5 flakes as cylindrical waves and get scattered into the far-field as free-space light at the sample edges and interfere with the tip-scattered light at the detector. Since the in-plane wavevectors are closer to the free space wavevector than those of the graphene surface plasmon polaritons49,50 and phonon polariton in hBN51 and α-MoO35, the waveguide modes tend to scatter into air thereby the back reflected portion is negligible and the relevant interference fringe pattern is not observed here (Supplementary Note 6). Instead, the tip-launched waveguide modes interfere with the tip scattered light and form interference fringe patterns depending on the incident angle. The relationship between different rotation angles, the interference fringe wavevectors qobs, and the in-plane wavevectors qwm can be expressed as52

$${q}_{obs}={q}_{wm}\,\cos \gamma+{k}_{0}\,\sin \beta \,\cos \alpha$$
(3)

where \(\gamma={\sin }^{-1}((\frac{{k}_{0}}{{q}_{wm}})\cos \alpha \,\cos \beta )\). Thereby, the wavevector qwm can be extracted from the complicated interference patterns.

Fig. 2: Real-space nanoimaging of waveguide modes in Ta2NiS5 flakes.
Fig. 2: Real-space nanoimaging of waveguide modes in Ta2NiS5 flakes.
Full size image

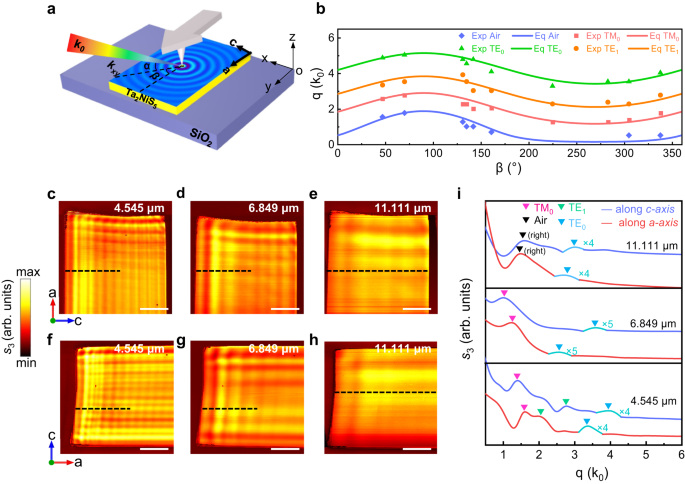

a Three-dimensional schematic of the near-field experimental setup. α is the angle between the incident light wavevector (k0) and sample surface (x–y plane), β is the angle between the projection of the incident light in the x−y plane (kxy) and the sample’s edge (a-axis). b Experimental data points overlaid on the data calculated through theoretical analysis of an 881-nm-thick Ta2NiS5 sample on SiO2 substrates under different rotating angles β. TE0 and TE1 represent zero-order and first-order transverse electric modes, TM0 represents zero-order transverse magnetic modes and air represents air modes. c–h Near-field amplitude images of a 1002-nm-thick Ta2NiS5 flake under various excitation wavelengths, labeled in the upper right corner of each image. The sample edge on the left corresponds to a-axis of Ta2NiS5 flake in (c–e), while the edge on the left corresponds to c-axis in (f–h). scale bar: 10 μm. i Fourier transform (FT) analysis of (c–h). The fringe profiles of FT are extracted along the black dotted lines in (c–h) and different modes are marked by the colored inverted triangles. The label ‘(right)’ indicates the FT peak excited by the right edge.

To study the waveguide modes inside the Ta2NiS5 sample, we conducted a near-field research of the sample-edge-orientation dependence of the fringe patterns through the s-SNOM. The near-field images of Ta2NiS5 under different rotation angles β are shown in Supplementary Figs. 10 and 11. Accordingly, we show that the fringe patterns vary systematically with β, and the theoretical calculation of each mode (solid line) is consistent with the experimental results (point) in Fig. 2b. This means that the interference fringes in Ta2NiS5 originate from the interference of dielectric waveguide modes and the incident light. Figure 2c–h show the oscillating fringes inside the Ta2NiS5 flake along two orthogonal crystallographic orientations when irradiated by various MIR excitation wavelengths. It can be clearly seen that the oscillating fringes occur inside all the sample flakes and show distinct behavior along two orthogonal crystallographic orientations (near-field amplitude images of another flake are shown in Supplementary Fig. 12). Moreover, the fringes spacing increases as the excitation wavelength is longer, which performs as the dispersion behavior of a dielectric waveguide mode.

In order to quantitatively analyze these complicated fringe profiles, we performed Fourier transform (FT) on the real-space fringe profiles. The results plotted in Fig. 2i show the FT intensities of the line profiles in Fig. 2c–h. The FT analysis data are extracted along the dash line in Fig. 2c–h. The results plotted show that the FT intensities are dominated by multiple peaks, whose types are verified by the calculated results with Eqs. (1), (2) and (3) (the refractive indices \({n}_{b}\) was set to a fixed value 2.45 + 0.02i to get a consistent result and the constant value is also agreed with the DFT calculation result). As shown in Fig. 2i, the difference in FT intensity along different axis is apparent, which suggests the existence of anisotropic waveguide mode inside Ta2NiS5 flakes. (Experimental dispersion data points and theoretical dispersion relations are shown in Supplementary Fig. 13).

Anisotropic waveguide modes from visible to MIR

To further study the anisotropic waveguide modes in Ta2NiS5, we conducted a study on their dispersion relationships. Figure 3 shows the anisotropic waveguide dispersion relationships under visible excitation wavelengths. The near-field images and the corresponding fringe profiles (red lines) of an 83-nm-thick Ta2NiS5 with a-axis on the left and c-axis on the left under 633 nm and 785 nm excitation wavelength were plotted Figs. 3a, b, respectively. We conducted FT analysis of line profiles in Fig. 3a, b, and the corresponding waveguide modes points superimposed on the theoretical dispersion curves are shown in Fig. 3c, d. The theoretical dispersion curves of the waveguide modes were calculated by solving the transcendental Eqs. (1) and (2). Notably, the dispersion of TE mode shows a larger difference along the two orthogonal directions a/c than that of TM mode. For clarity, we plot the wavevector of TM and TE modes in a polar coordinate under 633 and 785 nm excitation wavelength in Fig. 3e–h. It is explicitly to see the distinct isofrequency contours of TM and TE mode in Fig. 3e–h. At the excitation wavelength of 633 nm, the TM mode along the a/c direction has a ratio of 1.93k0/2.07k0. Conversely, the TE mode along the a/c direction has a ratio of 3.62k0/2.07k0. Meanwhile, we extracted the visible in-plane birefringence based on the near-field results, which is in good agreement with the spectroscopic ellipsometry results (Supplementary Note 8).

Fig. 3: In-plane anisotropic dispersion of the waveguide modes at visible range.
Fig. 3: In-plane anisotropic dispersion of the waveguide modes at visible range.
Full size image

Near-field images of Ta2NiS5 flake with a-axis on the left and c-axis on the left under (a) 633 nm (b) 785 nm excitation wavelengths, labeled in the upper right corner of each image. The white dash line represents the edge of the sample. The corresponding fringe profiles of the images are represented by the red lines. Scale bar: 1 μm. c, d Experimental dispersion data (points) and theoretical dispersion relations of TM and TE polarized waveguide modes along c-axis and a-axis, respectively. Polar plots of wavevector q along different in-plane crystallographic directions of the TM and TE modes under excitation wavelengths of (e, f) 633 nm and (g, h) 785 nm. The error bars were determined from the half of the full-width at half-maximum (FWHM) of the peak in the Fourier transform (FT) analysis69.

Figure 4 shows the dispersion relationships of anisotropic waveguide mode in a 1785-nm-thick Ta2NiS5 flake on CaF2 substrate under MIR excitation wavelength (real-space fringe profiles and FT analysis see Supplementary Note 9). The dispersion relation of the waveguide modes was calculated via the imaginary part of the Fresnel reflectivity coefficients Im(rs) and Im(rp) with the transfer-matrix method52,53,54 as shown in Fig. 4a–d. Figures 4a, b represent the dispersions of TM and TE modes along the c-axis respectively, and Fig. 4c, d represent the dispersions of TM and TE modes along the a-axis respectively. The different color branches corresponding to different order of TM and TE modes. As the wavevector of TM mode related with the out-of-plane refractive indices, a varied nb was used to fit the experiment data, which finally determined as a constant value of 2.45 + 0.02i and achieved a consistent result with experimental observations. To better support the extracted refractive index nb, we provided error bars in the near-field experimental dispersion data points and calculated the error of the out-of-plane refractive index nb. The extracted refractive index nb shows a small error within 10%, which indicates that the value of nb is reliable (Supplementary Note 10).

Fig. 4: In-plane anisotropic dispersion of the waveguide modes at MIR band.
Fig. 4: In-plane anisotropic dispersion of the waveguide modes at MIR band.
Full size image

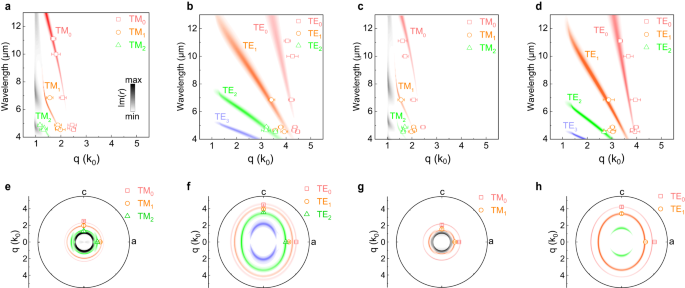

Experimental dispersion data (points) and theoretical dispersion relations of TM and TE polarized waveguide modes along (a, b) c-axis and (c, d) a-axis, respectively. The Ta2NiS5 sample is on CaF2 substrate and the thickness is 1785 nm. Im(r) represents the imaginary part of the Fresnel reflectivity coefficients. The error bars were determined from the half of the full-width at half-maximum (FWHM) of the peak in the Fourier transform (FT) analysis69. Polar plot of wavevector q along different in-plane crystallographic directions of the TM and TE modes under excitation wavelengths of (e, f) 4.545 μm and (g, h) 6.849 μm. The error bars were determined from the half of the FWHM of the peak in the FT analysis69.

The discrete and clear dispersion features indicate low-loss waveguide modes propagating in the Ta2NiS5 flake. According to Fig. 2c–h, the fringes propagation over the image, which imply the propagation length would probably over 20 μm at the MIR range. Such a propagation length is larger than the reported propagation length ~4 μm of dielectric waveguide mode found in the PtSe2 at MIR range52 (Supplementary Table 4) and is also consistent with the numerical results of 20 μm (a-axis) and 25 μm (c-axis) for TM mode, respectively (Supplementary Note 11). The thicknesses-dependence of dispersion relation in Ta2NiS5 is shown in Supplementary Fig. 17–19. The TE and TM wavevectors and modes numbers increase as the Ta2NiS5 flake thickness increases, and the trend is the same for samples on different substrates. Meanwhile, we plot the wavevector of TM and TE modes in a polar coordinate under the exciting wavelength of 4.545 and 6.849 µm in Fig. 4e–h. It is clearly to see a nearly circular shape of isofrequency contour of TM mode in Fig. 4e, g, otherwise TE mode exhibits an elliptical shape of isofrequency contour in Fig. 4f, h, which is consistent with the phenomenon under visible excitation wavelength. Hence, the TE waveguide modes in Ta2NiS5 show a significant potential to the directional control of light for nanophotonic applications.

Discussion

Combining far- and near-field optical studies through the spectroscopic ellipsometry, FTIR and s-SNOM measurements, we have revealed that the layered ternary chalcogenides Ta2NiS5 presents both a giant in-plane and out-of-plane birefringence across visible to MIR wavelength ranges, which is highly beneficial for compact and integrated nanophotonic devices. Specifically, Ta2NiS5 exhibits superior in-plane birefringence and out-of-plane birefringence among vdW materials, showing a potential application for ultra-thin polarizer, waveplates, beam splitters, and phase-matching elements in MIR wavelengths. Through near-field nanoimaging, we demonstrate ultrawide-band incident light from visible to MIR region can be effectively localized and guided in the Ta2NiS5 flakes, and the dispersion relations of the waveguide modes are highly anisotropic. Such a broadband, large refractive index, in-plane giant birefringence opens the door for lossless anisotropic dielectric waveguide modes transmission, which suggest great potential to directional control of light for on-chip compact nanophotonic applications. Moreover, we anticipate synthesizing vdW materials that support broadband giant birefringence and in-plane anisotropic waveguiding modes by changing the proportion or constituent of the elements in layered chalcogenides. For instance, the electronic polarizability of Se2- (10.5 Å3) is slightly higher than S2- (10.2 Å3)15, and a large structural and polarizability anisotropy is expected to exist in ternary chalcogenides Ta2NiSe5 as well (Supplementary Table 1). We also found similar near-field propagating fringes in Ta2NiSe5 flakes (Supplementary Note 13). Our findings pave the way for utilizing layered biaxial chalcogenides as broadband giant birefringent material to develop subwavelength integrated optics in the future.

Methods

Sample preparation and characterization

Thin flakes of Ta2NiS5 were exfoliated from a bulk crystal (HQ graphene) onto SiO2/Si (Si wafers with 290-nm-thick SiO2 on top layer) or CaF2 substrate using the mechanical exfoliation method.

Spectroscopic ellipsometry

Spectroscopic ellipsometry measurements were performed with a commercial spectroscopic ellipsometer (J. A. Woollam, Inc. M2000X-FB-300XTF) at room temperature. The ellipsometric data Psi and Delta were collected from 300 to 800 nm at the incident angle of 65°. Considering the small lateral dimensions of the Ta2NiS5 flakes, they were measured by the focusing probes with a spot size of 60 × 25 µm2 on the sample. The in-plane anisotropy of the Ta2NiS5 was measured by rotating the in-plane azimuth angles of the samples with a step of 10° from 0° to 360°.

FTIR spectroscopy

MIR reflectance measurements were undertaken using a Bruker microscope coupled to a Bruker LUMOS II FTIR spectrometer (Bruker Optics GmbH, Ettlingen, Germany) equipped with a broadband MCT detector (600–4000 cm−1). Off-normal (25° average incidence angle) polarized reflection were obtained from the crystals. The spectra were collected with a 1 cm−1 spectral resolution and the aperture size was set to 20 × 20 μm2. All measurements were performed in reference to a gold film. All measurements were taken at room temperature and ambient pressure.

Computational methods

All calculations are performed by using the Vienna Ab initio simulation package with the projector-augmented wave method55. The Perdew–Burke–Ernzerhof exchange–correlation functional and van der Waals corrections of DFT-D3 method are used for the geometry optimization and electronic properties calculations of Ta2NiS556,57. GGA + U methods are applied to describe the strong correlation effects in the localized d states with 5 eV for Ta atoms and 6 eV for Ni atoms, respectively58. The plane-wave cutoff energy is set as 500 eV and the separation of k-sampling for the first Brillouin zone is set as 0.025 Å−1. The convergence of force and total energy is set as 0.01 eV Å−1 and 10−6 eV, respectively.

Near-field experiments

Near-field nanoimaging of the waveguide modes was performed with a commercial scattering-type scanning near-field optical microscope (NeaSNOM, NeaSpec GmbH). The samples were illuminated by monochromatic visible lasers of 633 or 785 nm and MIR quantum cascade lasers (QCL) (www.daylightsolutions.com) with tunable operating wavelengths from 4.545 to 11.111 µm (900–2200 cm–1). The near-field images were obtained by pseudo-heterodyne interferometric detection module with tip-tapping frequency of about 270 kHz, the tip-tapping amplitudes are ∼40 nm for the 633 and 785 nm wavelengths and ∼80 nm for the MIR wavelengths. By demodulating the optical signal at the higher harmonic nΩ (n ≥ 3), the noise from the background can be greatly suppressed, yielding near-field amplitude and phase images.

Dispersion calculation

The imaginary part of the Fresnel reflectivity coefficients Im(r) of the air/Ta2NiS5/CaF2 multilayers (air/Ta2NiS5/SiO2/Si in Supplementary Information) were calculated to study the anisotropic waveguide modes in Ta2NiS5, where the peaks of Im(r) in the colormaps correspond to the maximum optical loss of incident light coupled to the waveguide modes. The in-plane refractive indices \({n}_{a,c}\) of Ta2NiS5 was obtained from the far-field spectroscopic ellipsometry and FTIR measurements, and the out-of-plane refractive indices \({n}_{b}\) was set to 2.45 + 0.02i to fit a consistent result with experimental dispersion data extracted from the near-field experiments. The dielectrics of the CaF2 and SiO2/Si substrates were obtained from the previous literatures59,60,61.
