Introduction

Macrocyclization plays a crucial role in the innovation of molecular nanohydrocarbon (MNHCs)1,2,3, host-guest systems4,5, mechanically interlocked molecules6,7, covalent/metal-organic frameworks8,9,10, as well as nanoporous materials11. Especially, MNHCs with strains, such as carbon nanohoops1, nanobelts2 and nanocages3, have been recently created with distinctive electronic structures and diverse applications in nanoscience and materials science1,12 thanks to the development of effective closure methodologies. However, due to the strain energy, extended π-conjugation and intense intermolecular π-π interactions, these MNHCs face challenges in achieving ultraviolet (UV) luminescence, limiting their application in the field of UV optoelectronic devices13,14,15,16. To the best of our knowledge, the utilization of MNHCs in efficient UV organic light-emitting diode (OLED) (emission peak <400 nm) has not yet been reported, with only a limited number of acyclic aromatic hydrocarbons having been demonstrated for UV-OLEDs15,16. Additionally, the competition between linear polymerization and macrocyclization has also made the synthesis of MNHCs more challenging. These provide numerous opportunities for developing efficient macrocyclization strategies to synthesize MNHCs with specific properties, especial for extending their application in organic optoelectronics.

Differing from the the conventional macrocyclization methods employed in the construction of covalent organic frameworks8,9,17, two-dimensional materials18, and classical macrocycles19, gridization represent an unique macrocyclization approach to building organic semiconductors. This method offers advantages such as flexibility, simplicity, and scalability, providing benefits not found in traditional macrocyclization and fusion cyclization. Until now, the achievement of gridization involves the sophisticated utilization of the 2/9-position of fluorene, thereby creating nanogrids that enable the potential linkage of 7-position sites. Significantly, through the application of the Friedel-Crafts gridization (FCG) strategy, various Csp3-linked nanogrids20,21,22, multi-grids23, and even organic nanopolymer material systems24,25,26 have been successfully synthesized. However, the introduction of molecular fragments containing thiophene and carbazole, leads to the fluorescence emission of the nanogrid primarily into the visible light range. Conversely, the direct connection of all carbon-based strained sub-nanometer nanogrids through the 2,9-positions functionalization of fluorene is anticipated to realize the robust UV emission. Furthermore, nanogrids, characterized by the presence of chiral carbons, offer promising avenues for chiroptical investigations27,28,29 including circular dichroism (CD), circularly polarized luminescence (CPL), and luminescent dissymmetry factors (gPL). However, despite the successful stereoselective control of diazafluorene-based drawing hand nanogrids achieved by superelectrophile-assisted FCG30, accomplishing stereoselective synthesis of all carbon-based strained nanogrids via FCG remains a challenge. Therefore, exploring effectively stereoselective Csp2-Csp3 coupling methods is a highly sought-after goal for the UV-luminescent MNHCs by cooperative multiple Csp2-Csp3 gridization.

Metal-catalyzed C-C coupling reactions are a powerful tool not only for the Csp2-Csp3 gridization31, but also for achieving stereoselective control. This is particularly achievable by flexibly tuning the metal species and ligands, specifically employing chiral transition metal32/ligand33-controlled C-H activation reactions. However, compared to expensive chiral transition metals/ligand, achieving chirality control using achiral transition metals/ligand catalyzed C-H activation is more challenging. Herein, we employed achiral transition metal-ligand-catalyzed C-H gridization reactions for the diastereoselective synthesis of all carbon-based dimeric and trimeric windmill-type nanogrids (DWGs and TWGs) from bromo-substituted H1B1-type synthons (Fig. 1). Each DWGs and TWGs have two diastereomers, with maximum molecular strain energies (MSE) of ~21.4 kcal/mol. This strategy enabled the synthesis of cis-trans-TWGs with high diastereoselectivity, ranging from 4.3:1 to >99:1d.r. Our results demonstrate that the achiral Pd-PPh3-controlled C-H gridization provides an effective strategy for synthesizing strained DWGs and TWGs, with the metal Pd and PPh3 playing crucial roles in the diastereoselectivity of the strained nanogids. We also analyzed, calculated, visualized, and revealed their molecular strains origins through space repulsion, attraction interactions and diastereomeric effects through computational and experimental methods. The investigations of photophysical properties suggested that these nanogrids exhibit UV emission, and DWGs show gridization-induced and crystal-induced luminescence enhancement features. At the same time, TWGs only display crystal-induced luminescence enhancement. Additionally, cis-trans-TWG1 exhibits a high |gPL | (0.012) compared to other chiral organic small-molecules. Notablely, the non-doped UV-OLED based on the traditional fluorescence emission mechanism of cis-trans-TWG1 not only demonstrates a high external quantum efficiency (EQE) of 4.17% but also has an emission peak wavelength in the UV region at 386 nm with a Commission Internationale de L’Eclairage (CIE) of (0.17, 0.04), representing the pioneering UV-OLED based on macrocycles.

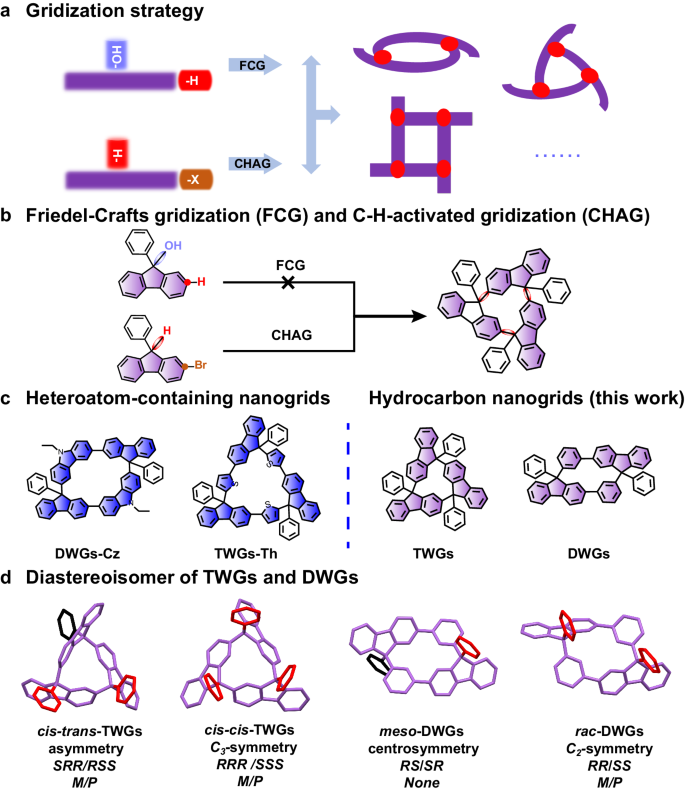

Fig. 1: Gridization strategy and nanogrid structures.
Fig. 1: Gridization strategy and nanogrid structures.
Full size image

a A cartoon of the gridization strategy. (Ellipses indicate other multicomponent nanogrid homologues). b Gridization strategy of fluorene-based nanogrid. c The nanogrid sructures of the previous work and this work. d Diastereoisomers of TWGs and DWGs. (The phenyls marked as red and black exhibit phenyl at the same side or at the other side, respectively).

Results

Investigation of gridization rules

We commenced our investigation based on our previous work34 by using H1B1-type substrate 2-bromo-9-phenylfluorene (1a) and Pd(dba)2 catalyst in toluene at 100 oC (Fig. 2a, Supplementary Table 1). Through optimization (Supplementary Table 1, entries 1–9), we found that a concentration of 40 mM resulted in a 32% yield of TWG1 with 82:18 cis-trans-TWG1/cis-cis-TWG1 selectivity (Fig. 2b and Supplementary Figs. 1, 2). This suggests that the palladium complexes can eliminate the effect of strains during the gridization process. Notably, we also observed linear by-products, such as the debrominated product (2a, 17%), dimerized product (3a, 10%), trimerized product (4a, 7%), and linear polymer (LP1, 33%, Fig. 2b), but without trimeric nanogrid. Furthermore, other ligands, such as dppf, PCy3, or P(t-Bu)3 (Supplementary Table 1, entries 10–12) resulted in ungridized products, indicating that PPh3 was the most effective ligand and played an essential role in the formation of TWGs. Substituting t-BuOK with KN(SiMe3)2 did not significantly affect the yield and selectivity of TWG1(Supplementary Table 1, entry 13), while no TWG1 was observed by using KOH (Supplementary Table 1, entry 14).

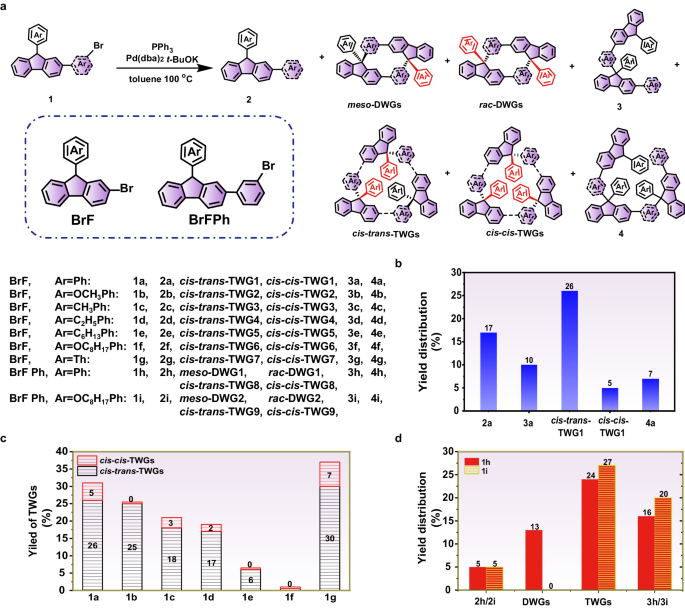

Fig. 2: Characteristics on the C-H-activated gridization.
Fig. 2: Characteristics on the C-H-activated gridization.
Full size image

a Corresponding formula for C-H-activated gridization of 1a-1i. b C-H-activated gridization yield distribution of 1a. c Effect of substituents on aryl groups on TWGs yield and TWGs selectivity. d C-H-activated gridization yield distribution of 1 h and 1i.

Given the chain-length effect on macrocyclization35,36, we examined the chain- and arm-length effect of substrates on the yield and diastereoselectivity of Csp2-Csp3 gridization under optimized conditions (Fig. 2c). As the chain-length of substituents at 4-position of phenyl (1a, 1c, 1d and 1e) increased, the yield of TGWs decreased from 31% to ~0%. In contrast, the cis-trans-TWGs/cis-cis-TWGs selectivity increased from 82:18 to >99:1. These results indicate that the long alkyl chain on an aryl group is unfavorable for the formation of strained nanogrids. Despite an increase in chain-length caused by introducing an oxygen atom, the yield of TGW2 increased to 25% with a cis-trans-TWG2/cis-cis-TWG2 selectivity of >99:1 compared to 1c. These results suggest that the oxygen atom of a methoxyl group plays an essential role in the gridization process. However, when an octyloxyl group was used, the reaction gave the trimerized product (4 f, 13%) rather than TWGs, indicating that the steric hindrance effect of the octyloxyl group is not conducive to the formation of TWGs. Furthermore, when the aryl groups were transformed from phenyl to thienyl, the yield (37%) and cis-trans-TWG7/cis-cis-TWG7 selectivity (83:17) of TWG7 still followed the chain-length effect. As for arm-length effect (Fig. 2d), we introduced m-phenyl into the 2-position of fluorene (BrFPh). As a result, substrate 1 h without a substituent group yielded strained DWG1 and TWG8 in 13% (31:69 meso-DWG1/rac-DWG1 selectivity) and 24% (32:68 cis-trans-TWG8/cis-cis-TWG8 selectivity) yields, respectively, and even larger size gridization products. These indicate that extending the arm-length can reduce the minimum nanogrids from trimer to dimer and promote the formation of larger size nanogrids, including TWGs. Moreover, when an octyloxy group (1i) was introduced, strained nanogrid DWG2 was not observed, but a higher yield of TWG9 was obtained at 27%, consistent with the chain- and arm-length effects. Overall, the chain- and arm-length significantly affect the yield and selectivity of strained nanogrids.

Stereoselective origin

To investigate the origin of diastereoselectivity, we monitored the reaction. We observed that the trimerized intermediate (TPhFBr) gradually disappeared while TWGs formed (Supplementary Fig. 3) during the gridization process. This suggests the TPhFBr undergoes oxidation addition, C-H activation, and reduction elimination to form TWGs (Fig. 3a). Importantly, during this reaction process, there may exist four transition states, namely TWG-TS1, TWG-TS2, TWG-TS3, and TWG-TS4, which constitute a cyclic molecular entity composed of three phenyl-substituted fluorenes and palladium coordinated with two PPh3 as shown in the proposed buildup scheme (Supplementary Fig. 4). We conducted density functional theory (DFT) calculations on two crucial transition states (TWG-TS1, TWG-TS2) at the B3LYP/6-31 G(d) level. The results indicate that the single-point energy of TWG-TS2 was 23.1 kcal mol−1 lower than that of TWG-TS1 due to the stronger π-π interaction between the phenyl at 9-position of fluorene and one of the phenyl rings of PPh3 (Fig. 3b). In this context, irrespective of the single-point energies of TWG-TS3 and TWG-TS4, the reaction would preferentially produce cis-trans-TWG1 rather than cis-cis-TWG1. Moreover, the π-π interaction on TWG-TS2 is significantly enhanced by the C-H⋯O interaction between the oxygen atom of the methoxybenzyl and the phenyl of PPh3. When the substrate 2-bromo-9-octylfluorene was examined, no TWG was observed (Fig. 3c), indicating that aromatic rings at the 9-position of fluorene affected cis-trans-TWGs selectivity but also served as an essential prerequisite for generating TWGs. However, the transition states of larger than trimeric nanogrids may be difficult to form due to the significant steric hindrance within the molecules. Thus, the formation of tetrameric and larger nanogrids cannot be observed. Increasing the arm-length may help reduce steric hindrance in the transition states and promote the formation of larger nanogrids.

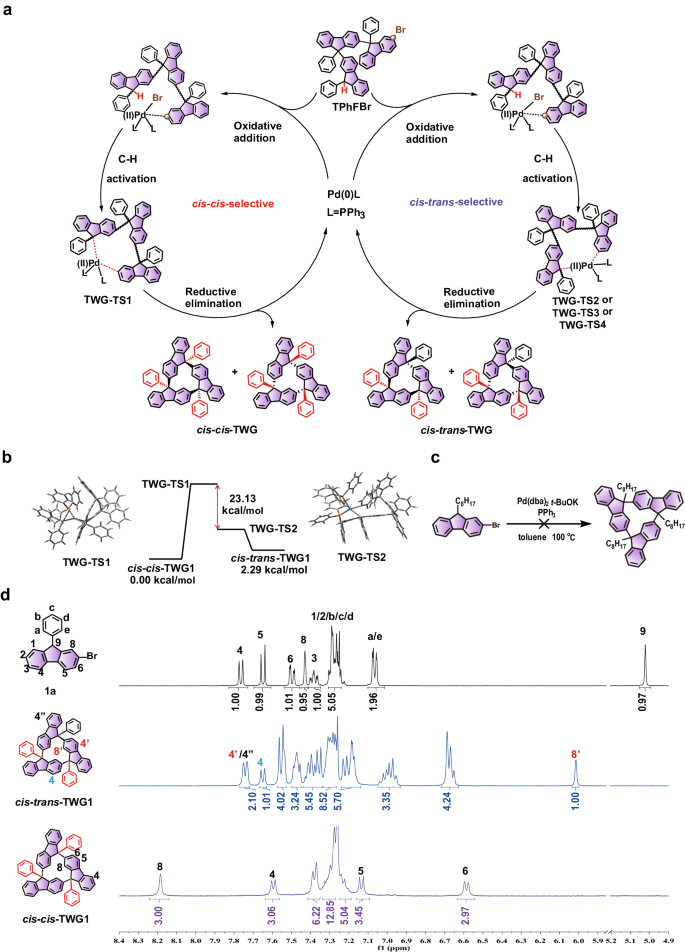

Fig. 3: Mechanistic investigations and the 1H NMR characterization.
Fig. 3: Mechanistic investigations and the 1H NMR characterization.
Full size image

a Proposed mechanism diagram of TWGs. b Intermediate diagram of theoretical calculation. c Corresponding formula for C-H gridization of 2-bromo-9-octylfluorene. d The 1H NMR spectra of 1a, cis-trans-TWG1 and cis-cis-TWG1.

Structural characterization of DWGs and TWGs

The structures of diastereomers of DWG1 and TWG1 were demonstrated by high resolution mass spectrum (HRMS), (Supplementary Figs. 5, 6), NMR spectra (Fig. 3d, Supplementary Figs. 9–13). The disappearance of the peak at 5.03 ppm in the 1H NMR spectra and the signal at 54.4 ppm in the 13C NMR spectra confirmed substrate conversion into DWGs and TWGs via gridization. Interestingly, a distinctive phenomenon was observed in the 1H NMR spectra of cis-trans-TWG1 and cis-cis-TWG1. In the 1H NMR spectrum of cis-trans-TWG1, the chemical shift of H(8’) shifted to high-field (singlet peak at 6.00 ppm) due to the strong shielding of adjacent fluorene. Conversely, the chemical shift of proton H(8) in the 1H NMR spectrum of cis-cis-TWG1 dramatically shifts to 8.19 ppm due to the double deshielding of two adjacent fluorenes and two phenyl groups linked at the 9-position (supported by the 1H-1H NOESY cross-peak H(8)/H(a), H(e) in Fig. 4a), as well as van der Waals interactions (H⋯H delta (Δ)-attraction interaction, see below) that are similar to those observed in cis-trans-TWG1 with the cross-peak H(8)/H(8”) (Fig. 4a). Substituting the phenyl at the 9-position with 2-thiophenyl caused the chemical shift of proton H(8) to shift even further to 8.51 ppm due to the S⋯H interaction between H(8) and thiophene (Supplementary Fig. 14). This characteristic signal was not observed in other fluorene-based nanogrids and macrocycles. The chemical shift of H(8) in these compounds typically fell within the range of 6.73 to 8.11 ppm (Supplementary Fig. 15)13,20,21,22,36,37,38,39. It should be noted that this unique signal could only be achieved through the combined effect of deshielding and van der Waals interactions, as only one of these effects alone would not produce the same result. For instance, the same signal was not observed in the 1H NMR spectra of meso-DWGs and rac-DWGs, where only one of these factors was present. Specifically, the structure of meso-DWGs had only an H⋯H -attraction interaction, while the structure of rac-DWGs had only a deshielding effect (Supplementary Fig. 16).

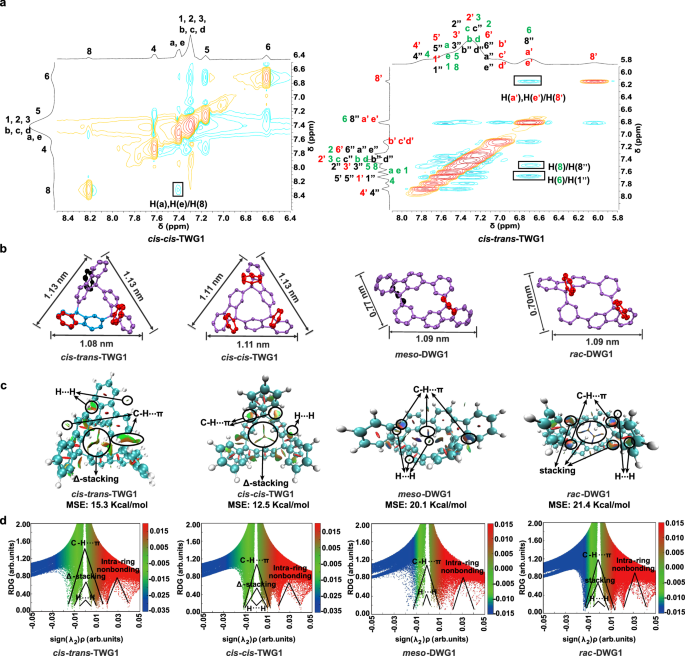

Fig. 4: Structural characterization and non-colvant interaction analysis of TWGs and DWGs.
Fig. 4: Structural characterization and non-colvant interaction analysis of TWGs and DWGs.
Full size image

a 2D 1H-1H NOESY spectra of cis-cis-TWG1 and cis-trans-TWG1. (Arabic numerals and letters of the same color represent hydrogen protons located within the same 9-phenylfluorene unit.) b The single-crystal crystallography of cis-trans-TWG, cis-cis-TWG, meso-DWG1 and rac-DWG1. (The red and black lines represent phenyl at the same side or the other side, respectively). c The non-covalent interactions (NCI) isosurfaces for cis-trans-TWG1, cis-cis-TWG1, meso-DWG1 and rac-DWG1. d Plots of the reduced density gradient (RDG) of DWG1 and TWG1.

Noncolvant interaction and strain analysis of DWGs and TWGs

To further elucidate the precise structures, weak interactions and molecular strains of DWGs and TWGs, we used single-crystal X-ray diffraction and non-covalent index visualization techniques. Fortunately, we obtained single crystals via slow evaporation in dichloromethane/isopropanol (cis-trans-TWG1) or dichloromethane/n-hexane (cis-cis-TWG1, meso-DWG1 and rac-DWG1) (Fig. 4b). Co-crystals of cis-trans-TWG1/cis-cis-TWG1 was also obtained in tetrahydrofuran/water (Supplementary Fig. 17). Specifically, the diastereoisomers had similar geometric sizes, with cis-trans-TWG1 and cis-cis-TWG1 measuring 1.08 nm, 1.13 nm, and 1.13 nm, and 1.11 nm, 1.11 nm, and 1.13 nm, respectively. Similarly, meso-DWG1 and rac-DWG1 exhibited geometric sizes of 0.77 nm and 1.09 nm and 0.70 nm and 1.11 nm, respectively. Moreover, considering the effect of weak interaction on the luminescence properties, we also measured the distances between H⋯H, π⋯π, and C-H⋯π to elucidate the variations in weak intramolecular interactions among the diastereoisomers of DWGs and TWGs. Firstly, within the H⋯H interaction range of 0.74–3.04 Å40, H⋯H interactions mainly exist between H(4) and H(5) of a fluorene unit (cis-trans-TWG1: 2.69 Å, 2.70 Å and 2.71 Å; cis-cis-TWG1: 2.72 Å, 2.75 Å and 2.70 Å) and the adjacent hydrogen of 8-position among fluorenes (cis-trans-TWG1: 2.18 Å; cis-cis-TWG1: 2.19 Å, 2.19 Å and 2.31 Å) in single crystal (Supplementary Table 8). In cis-cis-TWG1, a symmetric H⋯H delta (Δ)-attraction interaction was observed with three H⋯H interactions among the adjacent hydrogen at the 8-position of fluorenes (Supplementary Fig. 18). Similarly, in the single-crystal structures of meso-DWG1 and rac-DWG1 (Supplementary Table 9), H⋯H interactions mainly exist between 1-position of fluorene and 15-position of phenyl on the backbone (rac-DWG1: 2.24 Å, 2.25 Å; meso-DWG1: 2.14 Å, 2.14 Å) and the adjacent hydrogen of 8-position among fluorenes and 11-position phenyl on the backbone (rac-DWG1: 2.07 Å, 2.26 Å; meso-DWG1: 2.24 Å, 2.24 Å, 2.20 Å, 2.20 Å). In meso-DWG1, a symmetric H⋯H -attraction interaction was observed with four H⋯H interactions among the adjacent hydrogen at the 8-position of fluorenes and 11-position phenyl on the backbone (Supplementary Fig. 16). Besides, a π⋯π Δ-repulsion interaction was observed with π⋯π stacking interactions on the vertexes between adjacent fluorenes (Supplementary Fig. 18) for both cis-trans-TWG1 (3.18 Å, 3.04 Å and 3.08 Å) and cis-cis-TWG1 (3.06 Å, 3.06 Å and 3.05 Å, Supplementary Table 10) in a single crystal. In addition to these H⋯H interactions, diastereomers also exhibited other weak intermolecular interactions, including C-H⋯π and π⋯π interactions (Supplementary Tables 10–12). Finally, these weak interactions were demonstrated by 3D reduced density gradient (RDG) isosurfaces with blue-green-red (BGR) color scales representing the sign(λ2)ρ values and the scatter plot of sign(λ2)ρ versus RDG (Fig. 4c, d, and Supplementary Figs. 19, 20).

Compared to other nanogrids, nanorbelt and [18]CPP30,41,42,43,44,45, the DWGs and TWGs have higher MSE values, but lower than [12]CPP45(Supplementary Fig. 21). Here, the strains of DWGs and TWGs were analyzed in detail, including angle strain, bending strain and torsion strain, using a single crystal. Firstly, the angle of Csp3 is an important parameter to describe the angle strain (Supplementary Tables 13, 14). The results show that the angle strain of meso-DWG1 and cis-cis-TWG1 (average angle strain: 3.54° and 3.77°, respectively) is slightly larger than that of rac-DWG1 and cis-trans-TWG1 (1.76° and 1.44°, respectively). The angle strain of DWGs and TWGs is generally the same, but much smaller than that of cyclopropane (49.5°)46. Secondly, the bending strain was analyzed by measuring the out-of-plane distortion, which is the distance of a backbone unit (Supplementary Tables 15, 16). The result of single crystal XRD for meso-DWG1, rac-DWG1 and cis-cis-TWG1 show that all the backbone units are stretched. However, two fluorene units are stretched, and one is bent in the backbone units of cis-cis-TWG1. Furthermore, the bending strain of meso-DWG1 and rac-DWG1(average out-of-plan distortion: 0.16 Å and 0.19 Å, respectively) is more significant than that of cis-cis-TWG1 and cis-trans-TWG1 (0.06 Å and 0.01 Å, respectively). The bending strain of DWGs is nearly the same as [4]C-diBu-F (0.19 Å) and [5] C-diBu-F (0.1 Å)36. Thirdly, the torsion strain is measured by the external torsion angle between two adjacent units of the nanogrid (Supplementary Tables 17, 18). Here, the torsion strain of cis-trans-TWG1 (average external torsion angle: 61.82°) is more significant that of cis-cis-TWG1, meso-DWG1 and rac-DWG1 (33.13°, 37.58° and 35.37°, respectively.). Moreover, another torsion strain exists between fluorene and phenyl on the backbone unit for DWG1 (average external torsion angle: meso-DWG1, 35.12° and rac-DWG1, 35.15°).

Ultraviolet emission properties of hydrocarbon nanogrids

After confirming the molecular structure, we investigated optical properties of DWGs and TWGs in solution and film states (Fig. 5a, b, Supplementary Table 19). In diluted solution, the absorption spectra of DWG1 and TWG1 indicated that their optical bandgap (3.70, 3.59, 3.63 and 3.74 eV for meso-DWG, rac-DWG1, cis-cis-TWG1 and cis-trans-TWG1, respectively) were slightly lower than that of ungridized 3 h (3.71 eV) and 4a (3.80 eV) (Supplementary Figs. 24, 28), respectively, and the photoluminescence spectra of these nanogrids exhibit redshift compared with the corresponding linear molecules (Supplementary Figs. 25, 29). These trends can be attributed to the strained feature47 and spiroconjugation of DWG1 as well as TWG1, and also indicate that the gridized backbone enhances the behaviors of excitonic delocalization25. However, the emission peaks of DWG1 and TWG1 (361, 372, 393 and 372 nm for meso-DWG1, rac-DWG1, cis-cis-TWG1 and cis-trans-TWG1, respectively) are still in the UV-region in film state with the CIE coordinate of (0.17, 0.05), (0.16, 0.01), (0.16, 0.02) and (0.16, 0.03) (Supplementary Table 19), respectively, owing to their non-conjugated linkage, which is different from conjugated nanohoops1 that exhibit redshifting to the visible region. Notably, both DWG1 and TWG1 showed gridization-induced luminescence enhancement feature, with higher photoluminescence quantum yield (PLQY) in the nanogrids (21% for meso-DWG1, 17% for rac-DWG1, 25% for cis-trans-TWG1, 17% for cis-cis-TWG1) than in the corresponding linear molecules (8% for 3 h, 9% for 4a) (Fig. 5b). This may be because the robust and steric multi-dimensinal topological structure to suppress intermolecular interactions of strained nanogrids and further inhibit the non-radiative relaxation48. After that, the aggregate behaviors make a correlation with the UV emission behaviors. Specifically, the crystal of meso-DWG1 displayed red-shifted luminescence (from 361 to 374 nm) with the CIE coordinates of (0.16, 0.09) (Supplementary Table 19) when compared to the amorphous films, while rac-DWG1 showed no change. However, the crystals of both cis-cis-TWG1 and cis-trans-TWG1 exhibited blue-shifted emission (from 393 to 373 nm for cis-cis-TWG1, and from 372 to 356 nm for cis-trans-TWG1) compared to the amorphous films (Fig. 5a). The differences in the aggregated emission between DWG1 and TWG1 may be attributed to their different molecular packing modes in the crystalline state (Supplementary Figs. 32, 33)49. Additionally, compared to amorphous films, the PLQY of single crystals increased from 21 to 26% for meso-DWG1 and from 17 to 28% for rac-DWG1. In comparison, it decreased from 25 to 8% for cis-cis-TWG1 and from 17 to 13% for cis-trans-TWG1 (Fig. 5b). These observations suggested that DWG1 exhibited crystal-induced luminescence enhancement feature50,51,52,53, while TWG1 did not, probably due to its tighter arrangement in the crystalline (the density of single crystals: 1.335 gcm−3, 1.296 gcm-3, 1.238 gcm-3 and 1.081 gcm-3 for meso-DWG, rac-DWG1, cis-cis-TWG1 and cis-trans-TWG1, respectively) and strong intermolecular interactions, effectively suppressing the non-radiative relaxation process. Interestingly, these results contradict the phenomenon of red-shifted and quenched emission observed in most luminescence due to exciton coupling, orbital overlap, and π–π aggregation as pressure increases54.

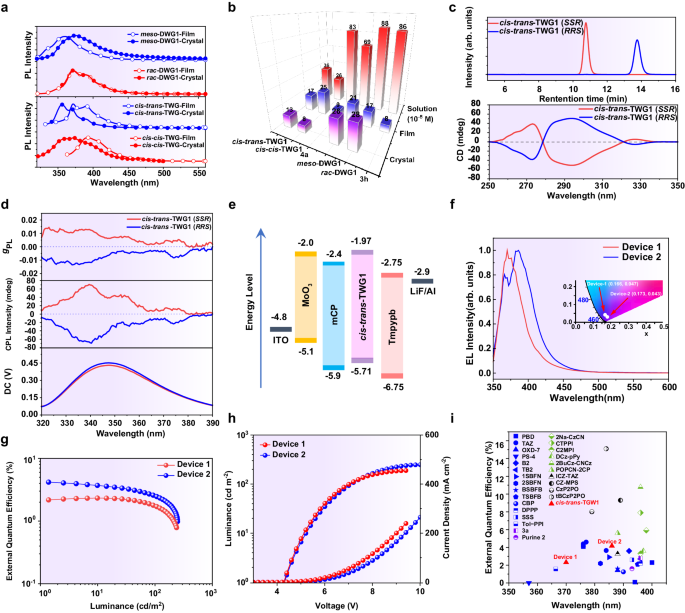

Fig. 5: Ultraviolet emission properties of hydrocarbon nanogrids.
Fig. 5: Ultraviolet emission properties of hydrocarbon nanogrids.
Full size image

a PL spectra of TWG1 and DWG1 in film and crystal. b PLQY of 3 h, 4a, TWG1 and DWG1 in the THF solution (C = 10-5 M), film and crystal states. c Chiral HPLC analysis of cis-trans-TWG1 eluted by MeOH/DCM (4:1) using CHIRALPAK IJ column and circular dichroism spectra of the first peak (cis-trans-TWG1 (SSR)) and the second peak (cis-trans-TWG1 (RRS)) in toluene solution (C = 5 × 10−6 M). d CPL spectra of cis-trans-TWG1 (SSR) and cis-trans-TWG1 (RRS) in toluene solution (C = 5 × 10−6 M) under an excitation wavelength of 290 nm. e Configuration of the cis-trans-TWG1-based UV OLED. f EL spectrum of Device 1 and Device 2 based on cis-trans-TWG1. Inset shows the corresponding coordinates on CIE1931 chromaticity plane. g External quantum efficiency-current density curve and h the current density-voltage-luminance (J-V-L) characteristics of Device 1 and Device 2 based on cis-trans-TWG1 UV OLED. i External quantum efficiency summary of the representative UV OLEDs (EL Peak ≤400 nm). Blue represents non-doped traditional fluorescence OLED; Purple represents doped traditional fluorescence OLED; Green represents hybridized local and charge-transfer (HLCT) based OLEDs; Black represents thermally activated delayed fluorescence (TADF) OLED.

Considering the fact that the nanogrid itself contains chiral carbon at 9-postion of fluorene units, there is research value in studying its chiroptical properties after separating enantiomers. Fortunately, we successfully separated cis-trans-TWG1 using chiral high-performance liquid chromatography (HPLC) with MeOH/DCM = 80/20 (V/V) as the mobile phase, resulting in two distinct peaks (P1 and P2). Comparative analysis based on measured CD spectra and simulated data (Supplementary Fig. 46) indicates that P1 corresponds to cis-trans-TWG1 (SSR), while P2 corresponds to cis-trans-TWG1 (RRS) (Fig. 5c and Supplementary Fig. 47). Considering the fluorescence properties of cis-trans-TWG1, we further characterized the CPL properties of the enantiomers cis-trans-TWG1 (SSR) and cis-trans-TWG1 (RRS) in toluene solution (Fig. 5d). The results reveal strong CPL signal at 340 nm for both cis-trans-TWG1 (SSR) and cis-trans-TWG1 (RRS). Notably, the |gPL| value of cis-trans-TWG1 was calculated to be 0.012 (Fig. 5d)55, surpassing the majority of organic chiral small molecules (typically at the 10-4−10-3 level)27,28,29.

In general, our steric hydrocarbon nanogrids present pure UV emission behavior in solid states. Especially, their intrinsically multi-dimensional steric interactions may be beneficial for the suppression of intermolecular π-interaction to obtain robust emission behavior, which are useful to manufacture the efficient non-doped UV-OLEDs. As discussion above, TWG1 coated films had a relatively high UV emission efficiency than those of the DWG1 ones, so we set cis-trans-TWG for optoelectronic application. Therefore, to verify their high potential application for use in electroluminescent (EL) device, non-dopded OLEDs are fabricated with a configuration of ITO/ MoO3/ mCP/Nanogrids EML/ETL/LiF/Al (120 nm) (Fig. 5e). Here, molybdenum oxide (MoO3) serves as the hole injection layer, 9,9’-(1,3-phenylene)bis-9H-carbazole (mCP) and 1,3,5-tris(3-pyridyl-3-phenyl) benzene (Tmpypb) are employed as the hole and electron transport layers (HTLs and ETLs), respectively, and lithium fluoride (LiF) acts as a buffer layer to enhance the device’s electron injection capability. cis-trans-TWG1 is utilized as the emitting layer (EML). Interestingly, device (1) based on cis-trans-TWG1 achieved the excellent color purity with a pure UV maximum EL emission peaked at 370 nm with narrow full width at half maximum (FWHM) as small as 34 nm, and corresponding to the ideal CIE coordinate of (0.17, 0.05), locate at the near-UV edge of the chromaticplane (Fig. 5f). These results also effectively confirmed the promising applicaiton of our steric hydrocarbon nanogrids in UV non-doped OLEDs.

Meanwhile, we further optimized cis-trans-TWG1-based OLEDs structure trying to improve the device efficiency, observed that the ETL can slightly change the EL peak wavelength and FWHM, further slightly change the color purity, due to the optical microcavity effect (Fig. 5f)56. The device efficiency is signficantly influence by the electron affinity of the ETL and emitter materials, which may modulate the charge injection and reconbination in the EML. According to the energy level as displayed in the Fig. 5e, the selection of mCP and Tmpypb as HTL and ETL nearly equal to cis-trans-TWG1 is beneficial for enhancing the barrier-free hole/electron injection and transportation. Besides, we tuned the film thickness of mCP, such as 45 nm (Device 1), and 55 nm (Device 2), as displayed in Fig. 5f, the EQE value of device are increasing from 2.32%, to 4.17% (Fig. 5g). Large recombination zone may be observed for a thicker HTL layer in the OLEDs to induce this enhancement of device efficiency (EQE). And correspoding the turn-on voltages (Von) are estimated about 4.4 V, and 4.6 V with a maximum brightness of 189 cd/m2, and 248 cd/m2 (Fig. 5h), respectively. Therefore, as we discussion above, the cis-trans-TWG1 endowed its UV non-doped OLEDs with the state-of-the-art EQE up to 4.17% (Fig. 5g). The record EQE may be attributed to the synergistic effect of its improved out-coupling ratio and suppressed intermolecular interaction, exciton utilization efficiency, and suitable energy levels. We also believed that the efficiency of OLEDs based on steric hydrocarbon nanogrids can be further improved via systematically optizing device structure and doping strategy. More interesingly, deivce efficiency (EQE) of typical UV-OLEDs (EL peak <400 nm) are summaried in Fig. 5i and Supplementary Table 22. Surprisingly, TAZ type molecules is few UV fluorescent emitter for the efficient non-doped OLED (EQE > 3.6%, CIE: 0.17, 0.04)57, which can further improve to EQE > 4.14% need to introduce special hole injection layers for the realization of the balance between hole and electron injection/transpoortation58,59,60. Therefore, the EQE of our cis-trans-TWG1-basd OLEDs is the record value achieved by traditional non-doped fluorescence UV-OLEDs based on the hydrocarbons compounds, which is the pioneering UV-OLEDs based on macrocycles (Fig. 5i).

Discussion

In conclusion, we present an achiral Pd-PPh3-controlled diastereoselective Csp2-Csp3 gridization, allowing the efficient one-pot synthesis of strained TWGs and DWGs. This approach provides high diastereoselectivity in synthesizing TWGs, attributed to the stronger π-π interaction between the benzene ring at 9-position of fluorene and one of the benzene rings of PPh3 in the transition states. Additionally, we also observed unique intramolecular steric H…H Δ()-attraction, π…π Δ-repulsion in TWGs and DWGs, and a shift of one of the fluorene protons to low-field in 1H NMR spectrum, not observed in other fluorene-based compounds. Moreover, these nanogrids exhibit diverse photophysical behaviors, including the CPL property (|gPL | = 0.012). More interestingly, efficient UV-OLEDs based on cis-trans-TWG1 with a narrowband emission at 386 nm are also fabricated with a highest EQE of 4.17%, representing the pioneering UV-OLEDs based on macrocycles. Ongoing studies on these nanogrids are focused on their potential applications in UV-OLEDs.

Methods

General information

All reactions’ progress was monitored using thin-layer chromatography to ensure they had reached completion. Gas chromatographic analyses were conducted on a Varian GC 2000 gas chromatography instrument equipped with an FID detector, using biphenyl as the internal standard. Some products underwent purification through column chromatography over silica gel (200–300 mesh) obtained from Nanjing Wanqing Chemical Instruments Company, while others were purified via recrystallization. Prior to use, all solvents were dried and distilled following standard methods. Cycle preparation liquid chromatography (CPLC) was performed on LaboACE LC-5060, while high-performance liquid chromatography (HPLC) was conducted using Agilent technologies. Unless specifically stated, materials were acquired from commercial suppliers and used without additional purification. Circularly Polarized Luminescence data were collected using a JASCO CPL 300. Magnetic circular dichroism spectrum data were obtained using JASO Corp, J-810.

Materials

The synthetic procedures and details of the Grignard reaction, dehydroxylation reaction, alkylation reaction and Pd-PPh3-controlled gridization are described in the Supplementary Methods. The synthetic procedures of substrates are detailed in the Supplementary Methods as well.

Structural characteristics via NMR technologies

The bruker 400 MHz Fourier Transform NMR spectrometer was used to obtain 1H and 13C NMR spectra at a frequency of 400 MHz and 100 MHz, respectively, at 20 °C. The coupling constants are expressed in Hz as a J value. The 90° pulses and a relaxation delay of 1 s were employed to record 1H NMR spectra with a spectral width of 12.02 ppm and 128 scans. 13C NMR spectra were recorded using 45° pulse sequence with power-gated decoupling for suppression of the scalar couplings with protons, a spectral width of 236 ppm, 1024 scans, and a relaxation delay of 1 s. The values of chemical shifts are represented by δ in units of parts per million (ppm) relative to an internal standard [1H NMR: tetramethylsilane (TMS) = 0.00 ppm] or relative residual peaks (1H NMR: 7.26 ppm for CDCl3; 13C NMR: 77.0 ppm triplet for CDCl3). Briefly, the multiplicities of each signal peak are represented as s (singlet), d (doublet), t (triplet), q (quartet), dd (doublet of doublets), dt (doublet of triplets), and m (multiplet). Two-dimensional nuclear Overhauser effect spectroscopy (2D ge-NOESY) [https://doi.org/10.1016/j.molliq.2022.120525; https://doi.org/10.1016/j.molliq.2022.120481] experiments were conducted with pulsed filtered gradient techniques [https://doi.org/10.1006/jmra.1996.0222], utilizing a phase-sensitive mode with 2048 points in the F2 direction and 512 points in the F1 direction, a mixing time value of 0.30 s, and 24 scans with a relaxation delay of 2 s.

Measurements of molar mass with mass spectrometry

Molecular mass of substrates was determined using Matrix-assisted laser desorption/ionization time-of-flight mass spectrometry (MALDI-TOF-MS). High-resolution mass spectra (HRMS) were recorded on Bruker solanX 70 FT-MS.

Single-crystal crystallography

Data of cis-trans-TWG1, cis-trans-TWG1/cis-cis-TWG1, meso-DWG1, and rac-DWG1 single-crystal crystallography was recorded at around 100 K using a Bruker 2000 CCD area detector and graphite-monochromated Mo Kα radiation (λ = 0.71073 Å).

DFT calculations

All the quantum chemical calculations were performed using Gaussian 09 Program package. Hybrid-density functional theory (DFT) calculations with the B3LYP and 6-31 G(d) basis set were used to explore the geometrical structure of all of the stationary points (the isomers and transition states) and electronic properties(noncolvant interaction and molecular strain energy) of Ph, meso-DWG1, rac-DWG1, DPh, DF, TF, SWG-F, Th, DTh, TWG-Th, 2, 3, cis-trans-TWG1, cis-cis-TWG1, TWG-TS1 and TWG-TS2. Non-covalent interaction analysis (NCI) was performed using Multiwfn [https://doi.org/10.1002/jcc.22885] and VMD software [https://doi.org/10.1016/0263-7855(96)00018-5] to observe the weak intramolecular interactions. The fluorescence emission spectrum of TWGs was calculated by time-dependent density functional theory (TD-DFT) under the SMD continuum solvent model for tetrahydrofuran. The geometric structure optimization of cis-trans-TWG1(SSR) and cis-trans-TWG1(RRS) was performed using the Cam-B3LYP/6-31 g method in Gaussian 09 suite of programs, while the circular dichroism spectra of cis-trans-TWG1(SSR) and cis-trans-TWG1(RRS) were computed via TD-DFT at Cam-B3LYP/TZVP level.

Photophysical behaviors

Photoluminescence quantum yields of cis-trans-TWG1, cis-cis-TWG1, 4a, meso-DWG1, rac-DWG1, 3 h were recorded on Hamamatsu C9920-02G. UV absorption spectra of cis-trans-TWG1, cis-trans-TWG1, cis-cis-TWG1, 4a, meso-DWG1, rac-DWG1, 3 h were recorded on LAMBDA 35 spectrophotometer. Fluorescence emission spectra of cis-trans-TWG1 were recorded on RF-6000 Plus spectrophotometer.

Fabrication of OLEDs

The ITO substrates were successively cleaned in ultrasonic bath of acetone, isopropanol, detergent and deionized water, respectively. After totally drying in a 70 °C oven, the ITO substrates were treated by O2 plasma to improve the hole injection ability. The vacuum-deposited OLEDs were fabricated under a pressure of less than 5 × 10-4 Pa in the Fangsheng OMV-FS380 vacuum deposition system. The organic layers, LiF and Al were deposited at rates of 1–2, 0.1, and 5 Å s-1, respectively.

Measurement of OLEDs

The active area of each device was 3 mm × 3 mm. The L-V-J characteristics and EL spectra of UV OLEDs were measured by a Konica Minolta CS-200 Color and Luminance Meter and an Ocean Optics USB 2000+ spectrometer, along with a Keithley 2400 Source Meter. For OLEDs, the L-V-J characteristics, EL spectra were obtained via a PhotoResearch PR670 spectroradiometer, with a Keithley 2400 Source Meter. The EQEs were estimated assuming that the devices are Lambertian emitters. All characterizations were done at room temperature under ambient conditions without any encapsulation.
