Introduction

Optical atomic clocks based on single trapped ions and on ensembles of thousands of optical-lattice-trapped neutral atoms have both achieved 10−18 fractional frequency accuracy and precision1, surpassing the microwave atomic clocks that underpin international atomic time (TAI) by three orders of magnitude, and enabling new technological applications such as relativistic geodesy2 as well as tests of the fundamental laws of physics3. For any particular application, trapped-ion and optical-lattice clocks based on optical atomic transitions have complimentary advantages and limitations. Optical lattice clocks use simultaneous measurements of thousands of atoms to quickly average down quantum projection noise (QPN), a fundamental limit to clock precision, speeding up both characterizations of systematic effects and clock measurements, and increasing the bandwidth of sensing applications. However, they suffer from larger systematic frequency shifts due to blackbody radiation and interactions between atoms that are difficult to control. Clocks based on one or a few trapped ions suffer from larger QPN, but offer exquisite control of environmental perturbations and interactions, high-fidelity universal quantum control at the individual ion level, and a wide variety of atomic, molecular, and highly charged ions to choose from with different sensitivities to environmental perturbations and proposed extensions of the Standard Model of particle physics.

Recently, a wide variety of new optical clock platforms, which overcome some of the limitations of conventional lattice and ion clocks, have been proposed and demonstrated. Composite optical clocks combining an ensemble of lattice-trapped atoms that provides high stability, together with a single trapped ion that provides high accuracy have been proposed4,5, and the fundamental building blocks have been demonstrated6. Ion trap arrays have been built and shown to be capable of supporting clock operation with around 100 ions and sub-10−18 accuracy7. Clocks based on arrays of optical-tweezer-trapped atoms offer the prospect of individual-atom-resolved quantum control, and have demonstrated coherence times exceeding 40 s and operation with up to 150 atoms8. Three-dimensional optical lattice clocks greatly suppress the interactions between atoms present in current lattice clocks based on one and two-dimensional optical lattice traps and have demonstrated operation with up to 105 atoms9. Finally, recent demonstrations have shown that it is possible to build clocks based on highly charged ions which can have lower sensitivity to environmental perturbations and higher sensitivity to physics beyond the Standard Model10,11,12,13.

Three-dimensional Coulomb crystals of thousands of ions in linear RF Paul traps have been studied for many years for other applications14,15,16,17,18,19; however they were thought to be impractical for high accuracy atomic clocks because ions located off of the trap axis, along which the RF trapping electric field is zero, suffer from driven motion called micromotion that leads to large time-dilation systematic frequency shifts. Berkeland et al.20 pointed out that for clock transitions with a negative differential polarizability, the negative micromotion time-dilation shift could be almost perfectly canceled out by a positive differential Stark-shift caused by the same RF trapping field that drives the micromotion, provided that the trap is driven at a “magic” value of the RF frequency. Building on this, Arnold et al.21 proposed that many-ion clocks could be built based on three-dimensional Coulomb crystals of ions with negative-differential-polarizability clock transitions, which at the time was known to include B+, Ca+, Sr+, Ba+, Ra+, Er2+, Tm3+, and Lu+. Lu2+22 and Pb2+23 were later added to this list, and Kazakov et al.24 performed a detailed analysis of micromotion shifts in these systems and proposed active optical clocks based on negative-differential-polarizibility transitions. In contrast with earlier theoretical predictions, it was later experimentally determined that the 1S0 ↔ 3D1 clock transition of Lu+ actually has a very small but positive differential polarizability. The alternative 1S0 ↔ 3D2 clock transition of Lu+ was determined to have a negative but larger differential polarizability25. Of the remaining candidates for Coulomb-crystal clocks, Ca+, Sr+, Ba+, Ra+, Er2+, Tm3+, Lu+ 1S0 ↔ 3D2, and Lu2+ have comparatively short excited-state lifetimes and suffer from inhomogenous broadening due to quadrupole and tensor polarizibility shifts22. Beloy et al.23 proposed doubly ionized group-14 elements with I = J = F = 0 such as Pb2+ as ideal trapped-ion clock candidates because their 1S0 ↔ 3P0 transitions are completely immune to these nonscalar perturbations.

B+ and Pb2+ have doubly-forbidden intercombination clock transitions with > 103 s lifetimes, but do not have transitions suitable for direct state readout. In B+ the Γ = 2π × 2 Hz decay rate of the 1S0 ↔ 3P1 transition is prohibitively slow, and in Pb2+ the wavelength of this transition is 155 nm. The latter is below the low-wavelength cutoffs for generation of UV laser light by nonlinear frequency conversion in workhorse materials β-BaB2O4 (BBO, 182 nm phase matching cutoff26), CsLiB6O10 (CLBO, 180 nm transparency cutoff27), and LiB3O5 (LBO, 160 nm transparency cutoff28). New candidate materials such as KBe2BO3F2 (KBBF, 150 nm transparency cutoff29) and BaMgF4 (BMF, 125 nm transparency cutoff30) are difficult to grow and therefore unavailable commercially with sufficiently high quality. Scaling indirect quantum-logic readout31 to large Coulomb crystals remains an open challenge32.

In this article, we propose Coulomb-crystal clocks based on of the order of one thousand Sn2+ ions (see Fig. 1). We present a theoretical calculation of the differential polarizability of the 1S0 ↔ 3P0 clock transition, showing it to be both small and negative, meaning that the systematic shift due to blackbody radiation is small, and there is a magic trap frequency of 225(5) MHz at which the trap Stark shift cancels the micromotion time-dilation shift. Although this is a high trap frequency, previous experiments have operated in this range33. Similar to Pb2+, in addition to having zero electronic angular momentum in the two clock states, there are several isotopes of Sn2+ that have zero nuclear spin, and thus the clock transition is completely immune to nonscalar perturbations23. Furthermore, for these nuclear-spin-zero isotopes, the clock transition is an extremely forbidden intercombination transition with a zero-magnetic-field excited state lifetime on the order of years, but the lifetime can be tuned to an experimentally convenient value by applying a magnetic field34,35. However, unlike Pb2+, Sn2+ has a laser-accessible 181 nm 1S0 ↔ 3P1 transition suitable for direct laser cooling and state readout, enabling many-ion clock operation. We present calculations of the Sn2+ atomic properties relevant for the evaluation of the systematic frequency shifts as well as calculations of the motion of ions in large Coulomb crystals that lead to imperfect cancellation of the micromotion time-dilation and trap Stark shift, and imperfections in the spectroscopic lineshape. It may be possible to simultaneously achieve 9.0 × 10−20 total fractional inaccuracy and 4.4 × 10−18/τ1/2 fractional imprecision, where τ is the measurement duration in seconds. We conclude by discussing prospects for fifth force searches using isotope shift measurements, as well as other tests of fundamental physics with Sn2+.

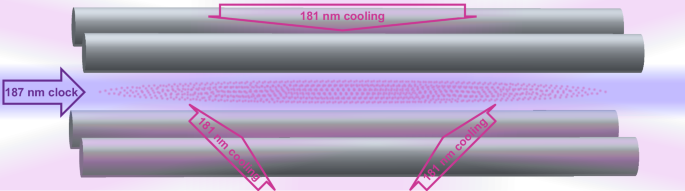

Fig. 1: Schematic of a many-ion optical atomic clock based on Sn2+ ions.
figure 1

A three-dimensional Coulomb crystal of 1000 Sn2+ ions (small dots) is confined in a linear RF Paul trap (gray cylindrical electrodes). For single-ion secular motional frequencies 1.15 MHz, 0.85 MHz, and 0.10 MHz, the diameters of the ellipsoidal ion crystal are 19 μm, 44 μm, and 909 μm. Sn2+ is laser-cooled using three orthogonal lasers (shown in pink) red-detuned from the 181 nm 1S0 ↔ 3P1 transition. Spectroscopy of the 187 nm 1S0 ↔ 3P0 clock transition is performed using a laser aligned with the axial trap direction (shown in purple), and readout is based on state-dependant photon scattering on the 1S0 ↔ 3P1 transition.

Full size image

Results

Sn2+ atomic properties

Figure 2a shows an energy level diagram of Sn2+. We carried out calculations of Sn2+ atomic properties using a high-accuracy relativistic method combining configuration interaction (CI) with the linearized coupled-cluster approach (CI+all-order method)36. To evaluate uncertainties of the results, we also carried out the same calculations using a combination of CI and many-body perturbation theory (CI+MBPT method37). Since CI is essentially complete for a divalent system, the main source of the uncertainty is the treatment of the core, which is estimated as the difference between the results obtained by these two methods38. The results of the calculations given in Tables 1 and 2 are used to design and evaluate the performance of the Sn2+ clock schemes.

Fig. 2: Sn2+ atomic properties.
figure 2

a Energy level diagram showing the states and transitions relevant for clock operation using a nuclear-spin-zero isotope of Sn2+ at a magnetic field of 15 G. Thick horizontal black lines indicate eigenstates of the magnitude of the orbital, spin, and total angular momentum labeled by the term symbols 2S+1LJ, where the quantum number S ∈ {0, 1} is the magnitude of the spin angular momentum, L ∈ {S, P} is the magnitude of the orbital angular momentum (where S denotes 0 and P denotes 1), and J ∈ {0, 1, 2} is the magnitude of the total angular momentum. Thin black lines indicate Zeeman splittings of the states with different values of the m quantum number, which denotes the projection of the total angular momentum on the quantization axis. b Lifetime of the excited clock state and the laser power required to drive the clock transition as a function of the applied magnetic field. At zero magnetic field, the clock transition is highly forbidden, leading to a spontaneous emission lifetime of the excited clock state of many years. As the magnetic field is increased, the 3P0 state is weakly mixed with the 1,3P1 states, leading to a reduced 3P0 lifetime and laser intensity required to drive the transition. The laser power required to drive the clock transition with a Rabi frequency Ω/(2π) = 1 Hz is shown for driving the transition with a single 187 nm photon, and for driving it with two 374 nm photons, assuming a 100 μm 1/e2 laser beam diameter. c Systematic frequency shifts and estimated uncertainties due to the second-order Zeeman effect caused by the applied magnetic field and the Stark effect caused by the laser used to drive the clock transition, as a function of the applied magnetic field.

Full size image
Table 1 Reduced matrix elements of the electric multipole Ek operator (in \(e{a}_{0}^{k}\)), magnetic multipole Mk operator (in \({\mu }_{0}\,{a}_{0}^{k-1}\)), and the transition rates, W (in s−1), from 5s5p 3P1,2 and 5s5p 1P1 to the lower-lying states, calculated in the CI+all-order+RPA approximation
Full size table

The 5s5p 3P1 state mostly decays through the 3P1 ↔ 1S0 transition, which will be used for cooling and readout. We found this transition rate to be 7.04 × 106 s−1 and, respectively, the lifetime of the 3P1 state to be \({\tau }_{{}^{3}{P}_{1}}\approx 142\) ns. This lifetime scales like the transition wavelength cubed and is significantly shorter than other divalent atoms used for clocks primarily because of the shorter wavelength.

The 3P0 ↔ 1S0 clock transition is forbidden by single-photon-transition selection rules, but it can be opened in the presence of the magnetic field due to the admixture of the 3,1P1 states to 3P0 by the μ ⋅ B operator (where μ is the magnetic dipole moment operator and B is the static magnetic field).

Restricting ourselves to the admixture of the two nearest to 3P0 states of the same parity, 5s5p 3P1 and 5s5p 1P1, we arrive at the following expression for the 3P0 ↔ 1S0 transition rate:

$$W \, \approx \, \frac{2{\omega }^{3}}{27{\varepsilon }_{0}h{c}^{3}} \times \left| \sum\limits_{n={}^{3}{P}_{1},{}^{1}{P}_{1}}\frac{\langle {}^{1}{S}_{0}\| d\| n\rangle \left\langle n\|\mu \|{}^{3}{P}_{0}\right\rangle }{E(n)-E({}^{3}{P}_{0})}\right|^{2}\,{B}^{2},$$
(1)

where ω is the 3P0 ↔ 1S0 transition frequency, d is the electric dipole operator, E is a state energy, and ε0, h = 2π ℏ, and c are the vacuum permittivity, Planck’s constant, and speed of light, respectively. The matrix elements of the electric and magnetic dipole operators expressed in ea0 and μ0 (where e is the elementary charge and a0 and μ0 are the Bohr radius and magneton) are given in Table 1. Using Eq. (1), we find the 3P0 lifetime to be \({\tau }_{{}^{3}{P}_{0}}\approx \, 3.4\times 1{0}^{8}\,({{{{{{{\rm{s}}}}}}}}\,{{{{{{{{\rm{G}}}}}}}}}^{2})/{B}^{2}\), where 1 G = 10−4 T. The CI+all-order values of the matrix elements and experimental energies39 are used to compute all transition rates.

Static and dynamic polarizabilities at the clock wavelengths λ0 ≈ 186.75 nm and λ = 2λ0 ≈ 373.5 nm, needed for the evaluation of the blackbody radiation shift and the ac Stark shifts, are listed in Table 2. The blackbody radiation shift is mostly determined by the differential static polarizability of the 5s5p 3P0 and \(5s^{2}{}^{1}{S}_{0}\) clock states, \(\Delta \alpha \equiv \alpha ({}^{3}{P}_{0})-\alpha ({}^{1}{S}_{0})\approx -0.96(4)\,{a}_{0}^{3}\). Based on the difference between the CI+all-order and CI+MBPT values, we determined the uncertainty of Δα. For the static polarizabilities it was found at the level of 4%.

Table 2 Static and dynamic polarizibilities of the 3P0 and 1S0 states and their differential polarizabilities Δα (in \({a}_{0}^{3}\)), calculated in the CI+MBPT and CI+all-order (labeled as “CI+All”) approximations
Full size table

Micromotion driven by the rf-trapping field leads to ac Stark and second-order Doppler shifts. As predicted by Berkeland et al.20 and demonstrated by Dubé et al.40, if the differential static polarizability Δα for the clock transition is negative, there is a “magic” trap drive frequency Ωm given by

$${\Omega }_{m}=\frac{{Q}_{i}}{{M}_{i}c}\sqrt{-\frac{\hslash \omega }{\Delta \alpha }}$$
(2)

(Qi and Mi are the ion charge and mass), at which the micromotion shift vanishes. All even isotopes of Sn2+ are equally suitable for clock operation, and different choices will have slightly different magic drive frequencies and laser cooling dynamics. The calculations throughout this article use Mi ≈ A mp with A = 118 (where mp is the proton mass), resulting in Ωm/(2π) = 225(5) MHz.

Calculations of other atomic properties relevant for clock operation are described in the Methods.

Sn2+ clock operation

Each cycle of basic Sn2+ clock operation consists of four steps. First, the ions are laser cooled on the 181 nm 1S0 ↔  3P1 transition. The Γ/(2π) = 1.1 MHz natural linewidth of this transition is sufficiently narrow for Doppler cooling to sub-mK temperatures, at which the fractional time-dilation shift due to secular (i.e., thermal) motion of the ions is at or below the 10−18 level, and can be characterized such that the uncertainty is significantly better. It is also likely to be sufficiently broad to achieve the high cooling rates necessary for the crystallization of ions initially loaded into the trap at above room temperature in a delocalized cloud phase41. For many-ion crystals with a spectrum of secular-motion normal mode frequencies spanning from tens of kHz to above 1 MHz, efficient Doppler cooling of all modes will require driving above saturation to power broaden the transition to significantly more than the motional mode bandwidth, and the use of three laser beams with k-vectors that have significant overlap with all spatial directions. In the calculations below, we assume a saturation parameter of 20, such that the transition is power broadened to a linewidth of 5 MHz.

Second, spectroscopy is performed on the 1S0 ↔ 3P0 clock transition. This transition can be driven either as a single-photon transition using a laser at 187 nm or as a two-photon transition using a laser at 374 nm (see Fig. 2b and c). The two-photon option has the advantages that it can be driven at or near zero applied magnetic field, which minimizes the second-order Zeeman shift, and using a photon from each of two counter-propagating beams, which eliminates motional sideband transitions, but the disadvantage that it requires high laser intensity with an associated Stark shift of order 10−13, and it may not be possible to reduce the uncertainty to below 10−18. The single-photon option has the advantage that the required laser intensity can be reduced by increasing the magnetic field, but this comes at the cost of an increased second-order Zeeman shift. We estimate that at magnetic fields around 15 G, the quadrature sum of the uncertainties due to the probe-laser Stark shift and the second-order Zeeman shift can be minimized as shown in Fig. 2c. With 15 μW of laser power focused to a 100 μm 1/e2 beam diameter polarized parallel to the magnetic field direction, the single-photon Rabi frequency Ω/(2π) = 1 Hz and the Stark shift is 2.0 × 10−16. We conservatively estimate that this can be characterized with an uncertainty of 2.0 × 10−20 by using hyper-Ramsey42 or auto-balanced Ramsey43 interrogation protocols. The second-order Zeeman shift is − 3.7 × 10−15, and by measuring the clock transition frequency at a significantly higher magnetic field, it should be possible to characterize this shift to an uncertainty of 2.3 × 10−20. For 1000 Sn2+ ions in a trap with single-ion secular frequencies 1.15 MHz, 0.85 MHz, and 0.10 MHz, the diameters of the ellipsoidal ion crystal major axes are 19 μm, 44 μm, and 909 μm. Magnetic field inhomogeneity of 1 mG over this volume is sufficient to suppress inhomogeneous broadening due to the second-order Zeeman shift to a negligible level. Although it would be difficult to apply a 15 G quantization field with such a 10−4/mm fractional magnetic field gradient using standard Helmholtz coils, gradients as small as 10−6/mm are routinely achieved using solenoids together with shim coils44. The ion trap should be designed to minimize the capacitance between electrodes in order to to minimize the contribution to the second-order Zeeman shift due to the ac magnetic field at the trap drive frequency45 (see Methods).

Third, the number of ions in the ground and excited states is read out by driving the 1S0 ↔ 3P1 transition and counting the total number of photons scattered into a photomultiplier tube (PMT) or other detector. During a \({\tau }_{\det }=1\) ms detection period and assuming a total detection efficiency ϵ = 0.3%, up to \(\epsilon \Gamma {\tau }_{\det }/2=10\) photons will be detected per ion that remains in the ground state after clock interrogation. This is sufficient to suppress detection-photon shot noise below the QPN limit. The fraction of excited state ions is used to determine the frequency offset between the clock laser and the atomic transition frequency, and frequency feedback is applied to the clock laser to keep it on resonance.

Fourth, the ions that are in the excited state after clock interrogation are repumped to the ground state by driving the 379 nm 3P0 ↔ 1P1 transition. The 1P1 state quickly decays to 1S0, with negligible branching ratios for decay to 3P1 and 3P2. Optionally, the total number of ions can be determined by performing readout again after repumping. Subsequently, the next cycle of clock operation can begin.

Many-ion clock considerations

Three-dimensional Coulomb crystals of many ions can be confined in a single linear RF Paul trap14. For large Coulomb crystals of a fixed number of ions, there are multiple local minima of the total zero-temperature energy consisting of the Coulomb energy due to repulsion of the ions from each other, the time-averaged Coulomb energy of the ions interacting with the trapping fields, and the time-averaged kinetic energy of the micromotion (i.e., the pseudopotential). These local minima correspond to stable geometric crystal configurations, in which each ion is spatially localized and oscillates about its equilibrium position due to micromotion and secular motion. Distinct crystal configurations have different sets of equilibrium ion positions. Different configurations are observed both theoretically46 and experimentally16,47 when ions are laser cooled to a crystalline state starting from a non-localized cloud state with identical initial thermal properties, for example after loading the trap or a collision with a background gas molecule, and the number of configurations grows exponentially with the number of ions48. We perform molecular dynamics calculations of the ion motion in two steps. First, similar to Refs. 21,24, we calculate the equilibrium ion positions by time-evolving the equations of motion in the pseudopotential approximation starting from random initial positions and including a viscous damping force that qualitatively represents laser cooling. For each set of trap parameters and number of ions investigated, we generate up to 36 configurations in parallel using a high-performance computer cluster. For ion numbers up to 1000, this takes < 1 week. The strength of the damping force is such that the cooling time constant is roughly 100 μs, which is a typical experimental cooling time constant, and we have verified that reducing this strength by an order of magnitude does not reduce the number of distinct configurations. Once the equilibrium ion positions are known, it is straightforward to compute the frequencies and eigenvectors of the normal modes of secular motion and their Lamb-Dicke parameters49,50, and the spectrum of the clock transition51. Second, we calculate the amplitude and direction of the micromotion of each ion and verify the stability of the ion crystal by time evolving the full equations of motion (i.e., without taking the pseudopotential approximation, similar to refs. 52,53), starting from the ion positions computed in the first step.

Figure 3a, b show the fractional frequency shifts due to secular motion, micromotion, and the Stark shift due to the trapping fields, averaged over all of the ions, and estimates of the uncertainties with which these shifts can be characterized. For these calculations, the trap is assumed to be driven at the magic RF frequency with voltages such that the secular frequencies of a single ion in the trap are 1.15 MHz, 0.85 MHz, and 0.10 MHz. The number of ions varies from 50–1000. The magnitude of the average micromotion time-dilation shift increases with the number of ions as ions are pushed further away from the trap axis, along which the AC electric field is zero, reaching 3.7 × 10−14 for 1000 ions. The time-dilation shift due to micromotion at exactly the magic trap drive frequency is perfectly canceled by the Stark shift due to the electric field that drives the motion, as indicated in Fig. 3d. There is also a time-dilation shift due to micromotion at twice the trap drive frequency, which is not canceled by the corresponding Stark shift, and this motion prevents perfect cancellation of micromotion time dilation40. We define the net micromotion shift to be the sum of the time dilation shift and Stark shift caused by the trap electric field in the reference frame of the ion due to ion motion at integer multiples of the trap drive frequency. The net micromotion shift after this imperfect cancellation for 1000 ions is 2.8 × 10−19, and it should be possible to characterize this shift to achieve an uncertainty that is at least one order of magnitude smaller. Figure 3c shows a histogram of the net micromotion shifts of each ion individually; the sub-10−18 inhomogeneous broadening of this distribution will not limit spectroscopic coherence within the foreseeable future. The net secular motion shift (defined as the sum of the time dilation shift and Stark shift due to ion motion at the secular frequencies) for 1000 ions is −2.4 × 10−19, and we conservatively estimate that this can be characterized with an uncertainty of 7.2 × 10−20. Importantly, the differences of these shifts for different ion crystal configurations are smaller than our estimated uncertainties, so Sn2+ clocks will be robust to ion loss and background gas collisions that cause the crystal to melt and recrystallize in a different configuration.

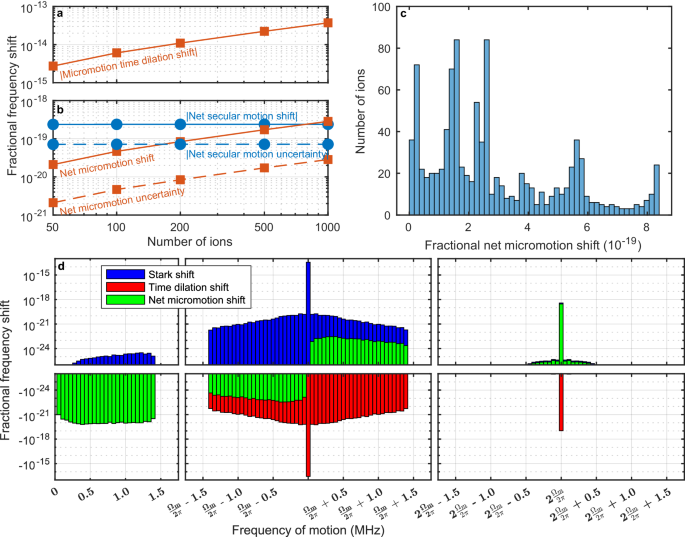

Fig. 3: Systematic frequency shifts due to ion motion.
figure 3

a Absolute value of the time-dilation shift due to micromotion, averaged over all of the ions, as a function of the number of ions in the trap. As the number of ions increases, some of the ions are located further away from the trap axis, leading to an increase in the average micromotion time-dilation shift. b Absolute value of the net micromotion and secular motion shifts, averaged over all of the ions, as a function of the number of ions in the trap. The net secular motion (micromotion) shift is defined as the sum of the negative time-dilation shift and the positive Stark shift caused by the electric field of the ion trap due to ion motion at the secular motional frequencies (integer multiples of the trap drive frequency). Also shown are estimated uncertainties in how well these shifts can be characterized. The secular motion temperature here and in panel d is assumed to be 120 μK. c Histogram showing the number of ions out of a 1000 ion Coulomb crystal with a net micromotion shift within each bin. Each ion is located at a different position within the trap and thus experiences different micromotion and Stark shifts, but the inhomogeneous broadening associated with these shifts is below 10−18 fractionally and should not impact spectroscopic coherence within the foreseeable future. d Histogram of motional frequency shifts as a function of the frequency of the ion motion, for a 1000 ion Coulomb crystal. All 3000 secular modes have frequencies below 1.5 MHz. For motion at these frequencies, the magnitude of the time-dilation shift is much larger than the Stark shift due to trapping fields and the green bars indicating the net shift are covering up the red bars indicating the time-dilation shift. At the magic trap drive frequency Ωm/(2π) ≈ 225 MHz, the micromotion time-dilation shift is exactly canceled by the corresponding trap Stark shift, but at secular motion sidebands of the trap drive frequency this cancellation is imperfect. At the second harmonic of the trap drive frequency, the Stark shift is much larger than the time-dilation shift and dominates the net shift.

Full size image

Ion motion leads to motional sidebands on the clock transition and an inhomogeneous reduction of the Rabi frequency for driving the carrier transition due to the Debye-Waller factors of each ion51,54. Micromotion is dominantly along the radial trap directions and its effect on the clock transition spectrum can be nearly eliminated by probing along the axial trap direction. Figure 4a shows the spectrum of the secular motional mode frequencies for a 1000 ion crystal with the same trap parameters as above. The distribution of Debye-Waller factors of each ion for axial probing due to secular motion at a temperature of 120 μK, corresponding to the Doppler cooling limit with a 5 MHz power broadened linewidth, is shown in Fig. 4b. The contrast for Rabi spectroscopy of the clock transition is maximized by setting the laser intensity and pulse duration such that ions with the median value of the Rabi frequency undergo a π-pulse when the laser is on resonance. Figure 4c shows the spectrum of the clock transition under these conditions. The contrast is limited to 79 % due to the inhomogeneous reduction of the Rabi frequency by the Debye-Waller effect, and a broad band of overlapping motional sideband transitions surrounds the carrier transition which is at zero detuning. The lowest frequency motional sideband transitions are above 14 kHz for any of the generated crystal configurations, and should not lead to significant line-pulling due to off-resonant excitation for probe times longer than about 10 ms.

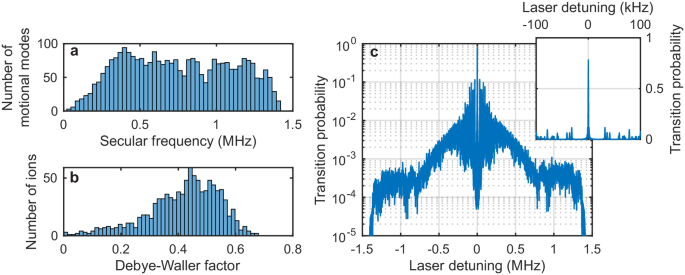

Fig. 4: Effects of ion motion in a 1000 ion Coulomb crystal at a motional temperature of 120 μK on spectroscopy of the clock transition.
figure 4

a Histogram showing the number of collective motional normal modes binned by the motional mode frequency, which ranges from a minimum of 32 kHz up to a maximum of 1.419 MHz. b Histogram showing the number of ions binned by the Debye-Waller factor due to secular motion, which relates the Rabi frequency for driving the clock transition in an ion at rest with the Rabi frequency for an ion undergoing secular motion. c Calculated spectrum of the clock transition probed using Rabi spectroscopy with a probe duration of 1 ms and a laser intensity that maximizes the on-resonance transition probability, averaged over all of the ions. The inset is an enlargement of the region near the atomic transition frequency, showing the carrier at zero detuning and a few discrete motional sidebands. For larger detunings shown in the main plot, the motional sidebands overlap in frequency to form broad bands.

Full size image

The trap parameters can be optimized to minimize the net micromotion shift, minimize the size of the ion crystal and thus inhomogeneous broadening due to magnetic field gradients as well as required laser beam diameters, maximize the lowest secular frequency, maximize the spectroscopy contrast, or for other goals. Furthermore, the number of ions can be selected to balance systematic shifts and inhomogeneous broadening that increase with the number of ions versus the QPN stability limit that decreases with increasing numbers of ions. Figure 5 shows a limited subset of this trade space. The lowest normal mode secular frequency for trap parameters such that the single-ion secular frequencies are 1.15 MHz, 0.85 MHz, and 0.10 MHz decreases as the number of ions increases, reaching a mean value of 32 kHz for 1000 ions with a distribution spanning from 15 kHz – 56 kHz for different crystal configurations. For axial single-ion secular frequencies that are too low or too high relative to the radial single-ion secular frequencies, the spectroscopy contrast is reduced. The two radial single-ion secular frequencies must be different in order to avoid a zero-frequency mode in which the ion crystal rotates about the trap axis, and more generally low frequency motional modes should be avoided becuase they have higher heating rates due to electric field noise55. A more complete molecular dynamics model incorporating the details of the laser cooling can be used to optimize the cooling parameters and is likely necessary to provide a rigorous constraint on the corresponding Doppler shift uncertainty of the clock. Single-ion secular frequencies of 1.15 MHz, 0.85 MHz, and 0.10 MHz represent a trade-off of the aforementioned optimization goals that enable both high accuracy and high stability clock performance.

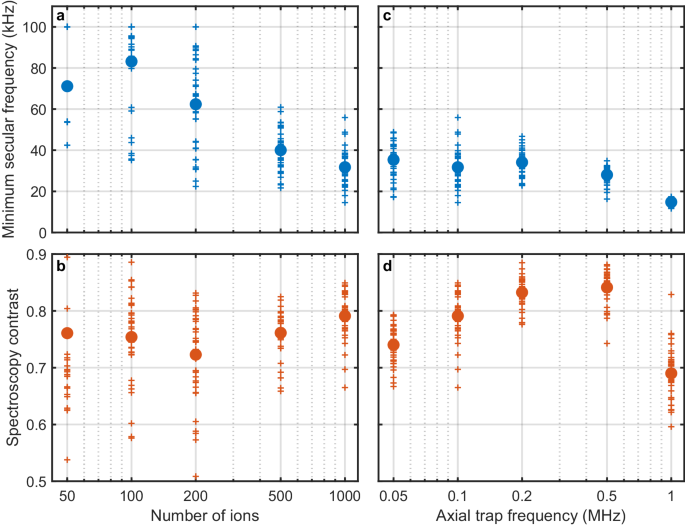

Fig. 5: Minimum secular frequency and maximum possible spectroscopic contrast at a motional temperature of 120 μK for different Coulomb crystal configurations.
figure 5

a Minimum secular frequency and (b) average spectroscopy contrast as a function of the number of trapped ions for trap parameters such that the secular frequencies of a single Sn2+ ion are 1.15 MHz, 0.85 MHz, and 0.10 MHz. For Coulomb crystals containing many ions, there are multiple local minima of the total Coulomb energy corresponding to distinct stable geometric crystal configurations. For each number of ions, 36 configurations were generated by numerically integrating the equations of motion including a damping term which qualitatively represents laser cooling starting from randomized initial ion positions. Each of the configurations that were generated is plotted as a small cross, while the average of all of the generated configurations is plotted as a large circle. As the number of ions increases, the minimum secular frequency decreases but the spectroscopy contrast remains relatively constant. Off-resonant driving of low-frequency motional sideband transitions can lead to detrimental line pulling of the clock transition carrier. c Minimum secular frequency and (d) average spectroscopy contrast as a function of the single-ion axial secular frequency for 1000 ions and single-ion radial secular frequencies 1.15 MHz and 0.85 MHz. As the single-ion axial secular frequency nears degeneracy with the single-ion radial secular frequencies, the minimum secular frequency and the average spectroscopy contrast go down.

Full size image

These secular frequencies correspond to Mathieu parameters of ∣qx,y∣ = 0.0127, ax = 2.33 × 10−5, and ay = − 2.41 × 10−5, and can be achieved by differentially driving a trap with 500 μm ion-to-electrode distance with 970 V amplitude of rf. This smaller-than-typical q parameter offers several advantages for Coulomb crystal clocks. Molecular dynamics simulations show that rf heating of large ion crystals, which arises due to the breakdown of the pseudopotential approximation q ≪ 1, scales roughly like q6 at low temperatures56. Care must be taken, however, to minimize anharmonicity of the trap potential as this can lead to additional rf heating57. Ion heating due to background gas collisions is also reduced for smaller q parameters58.

Discussion

Performance of a 1000 ion Sn2+ clock

We estimate that the total systematic uncertainty of a 1000 ion Sn2+ clock operated under the conditions specified above could be suppressed to the 9.0 × 10−20 level or beyond (see Table 3). The largest shift at 15 G magnetic field is the quadratic Zeeman shift at − 3.7 × 10−15, but this can be controlled and characterized very well. Performing a measurement of the quadratic Zeeman shift at 100 G field with a fractional frequency uncertainty of 10−18 would determine the atomic coefficient such that the corresponding uncertainty of the shift at 15 G is 10−18/(100 G/15 G)2 = 2.3 × 10−20. Characterization of the magnetic field with 10 μG uncertainty would reduce the associated uncertainty of the quadratic Zeeman shift to 4.9 × 10−21. This could be accomplished in-situ by measuring the splitting of the extreme Zeeman sublevels of the metastable 3P2 state with 84 Hz uncertainty, via two-photon excitation from the ground state using lasers detuned from the 181 nm 1S0 ↔ 3P1 and 2481 nm 3P1 ↔ 3P2 transitions. The next-largest shift is the probe laser Stark shift for single-photon spectroscopy, but the uncertainty of this shift can be suppressed to a negligible level using hyper-Ramsey42 or auto-balanced Ramsey43 interrogation protocols. The 5.2 × 10−18 Stark shift due to blackbody radiation (BBR) at 300 K can be characterized with an uncertainty of 3.4 × 10−20 by measuring the static differential polarizability following Dubé et al.40 and the dynamic correction using a few far-IR lasers25,59 (these measurements can be done with a single ion for simplicity), and characterizing the temperature of the BBR with an uncertainty of 500 mK60. Alternatively, the BBR shift can be suppressed to a negligible level by cooling the vacuum chamber and thus the BBR to cryogenic temperatures61,62,63. It may, in fact, be necessary to use a cryogenic vacuum chamber to suppress the uncertainty due to background gas collisions to a negligible level (see Methods). The electric quadrupole shift is negligible because the total electronic angular momentum of both clock states is zero, so it is only sourced by mixing of 3P0 with other states64. The largest uncertainty in our estimate is due to secular motion time dilation, and it may be possible to reduce this by cooling to lower temperatures or characterizing the motional temperature better than our conservative assumption of 30%. It may be possible to achieve a smaller secular motion and thus total systematic uncertainty by reducing the number of ions, but this would come at the cost of degraded stability.

Table 3 Fractional systematic shifts and estimated uncertainties of a 1000 ion Sn2+ clock, operating at a magnetic field of 15 G in a room temperature ion trap with a blackbody radiation temperature of 300.0(5) K
Full size table

The stability of the 1000 ion clock is fundamentally limited by QPN at 4.4 × 10−18/τ1/2 where τ is the measurement duration in seconds, assuming a conservative 1 s probe duration and 80 % duty cycle. This is nearly two orders of magnitude better than the best clock-comparison stability achieved with an ion clock6,65 and one order of magnitude better than the best stability comparison of independent lattice clocks66. At this level, it is possible to perform frequency measurements with a total uncertainty of 10−19 in under 3 h, measure the time-dependent gravitational effects of solid-Earth tides with high signal-to-noise ratio67, and search for ultralight bosonic dark matter (DM) candidates over a broad range of particle masses68.

It may be possible to achieve yet higher performance than discussed here by co-trapping a second ion species such as Sr+ together with Sn2+ in the trap. Due to their higher mass-to-charge ratio, the Sr+ ions experience a weaker radial restoring force from the trap and thus fill the Coulomb crystal lattice sites further from the trap axis, causing the Sn2+ ions to reside in a cylindrical volume of lattice sites closer to the trap axis69 where the micromotion shift is smaller. Sr+ could be used to perform sympathetic laser cooling of the two-species Coulomb crystal70 both with a higher cooling rate on the 422 nm S1/2 ↔ P1/2 transition before clock interrogation and to a lower temperature continuously during clock interrogation using the 674 nm S1/2 ↔ D5/2 transition. The magnetic field could be characterized by measuring the splitting of the Zeeman sublevels of the D5/2 state. Using these techniques, it may also be possible to increase the ion number beyond 1000 and achieve even higher precision while maintaining sub-10−19 inaccuracy.

Sensitivity to beyond Standard Model physics

Precision measurements of frequency differences between different isotopes of two or more atomic transitions71,72,73 can be used to search for hypothetical new bosons in the intermediate mass range that mediate interactions between quarks and leptons74,75. Such isotope shift data are analyzed using a King plot, where mass-scaled frequency shifts of two optical transitions are plotted against each other for a series of isotopes76. The leading standard model contributions to the isotope shift (IS), mass and field shifts, give a linear relationship between two electronic transitions with respect to different IS measurements. New spin-independent interactions will break this relation, and thus can be probed by looking for a non-linearity of the King plot74,75. Data for at least four even isotopes are needed to detect the non-linearity. In addition to the 1S0 ↔ 3P0 clock transition that we focus on in this article, Sn2+ also has a 1S0 ↔ 3P2 two-photon clock transition, which can be driven with the 181 nm Doppler cooling laser together with a 2481 nm laser, that is capable of supporting very high accuracy and precision spectroscopy.

Higher-order standard model contributions could break the linearity of the King plot as well75 and must either be calculated with high accuracy77, which is very difficult, or eliminated together with uncertainties of the isotope mass differences using more transitions and/or isotopes in a generalized analysis78,79. In particular, nuclear structure properties such as the quadrupole deformation and higher order nuclear moments can cause a non-linearity in the King plot. Sn2+ is unique in that it is the element with the greatest number of stable isotopes: in particular, there are seven stable isotopes with zero nuclear spin (112Sn2+, 114Sn2+, 116Sn2+, 118Sn2+, 120Sn2+, 122Sn2+, and 124Sn2+), an additional nuclear-spin-zero isotope with a lifetime of 230,000 years (126Sn2+), and ten more nuclear-spin-zero isotopes with a lifetime > 1 s that could be studied at rare isotope facilities. Additional transitions in other charge states could also be measured: the 583 nm 3P0 ↔ 1S0 intercombination transition in Sn, the sub-Hz linewidth 2352 nm 2P1/2 ↔ 1P3/2 magnetic dipole transition in Sn+, and perhaps more. Therefore, Sn2+ is particularly well-suited for new physics searches with the generalized analysis78,79 where nuclear structure uncertainties are removed by using data from more isotopes in order to separate higher order Standard Model effects in the nucleus and the signal due to a hypothetical new boson72,73. This is especially important in light of recent experiments in neutral Yb and Yb+ that detected the non-linear effects that may be caused by higher-order contributions within the standard model71,72,73.

Hypothesized ultralight bosonic DM candidates would behave as a highly-coherent classical field that oscillates at the Compton frequency corresponding to the DM particle mass fϕ = mϕc2/h, where mϕ is the mass, and c is the speed of light. This field is predicted to couple to atomic transition frequencies and would be detectable by measuring the ratio of two atomic transition frequencies or the difference between an atomic transition frequency and a Fabry-Perot resonator that have different sensitivities to the DM coupling68. Many-ion clocks can be sensitive to a broad range of DM particle masses due to their high stability at short measurement durations discussed above. Although in standard clock operation the upper limit to the measurement bandwidth and thus DM particle mass is given by the reciprocal of the probe duration, dynamical decoupling can be used to extend sensitivity up to much higher frequencies68. The high stability of Sn2+ clocks also makes them competitive with lattice clocks for proposed space tests of general relativity80.

Summary and outlook

We have proposed Coulomb-crystal optical atomic clocks based on many Sn2+ ions confined in a linear RF Paul trap as a candidate for a new metrological platform that offers the possibility of accuracy and precision better than any present-day optical lattice or single-ion clock. Sn2+ is unique among candidates for Coulomb-crystal clocks because it has a highly forbidden intercombination clock transition between two states with zero electronic angular momentum, a spin-zero nucleus that eliminates nonscalar perturbations, a negative differential polarizability that enables cancellation of the micromotion time-dilation shift by the associated Stark shift, and an accessible direct laser cooling and readout transition. Beyond applications in timekeeping, this platform has the potential to find applications in relativistic geodesy, searches for physics beyond the Standard Model, and more.

Methods

Quadrupole moment

The quadrupole moment Θ of an atomic state \(\left\vert J\right\rangle\) is given by

$$\Theta=\langle \, J,{M}_{J}=J| {Q}_{0}| \, J,{M}_{J}=J\rangle=\sqrt{\frac{J(2J-1)}{(2J+3)(J+1)(2J+1)}}\langle \, J| | Q| | \, J\rangle,$$
(3)

where 〈 J∣∣Q∣∣ J〉 is the reduced matrix element of the electric quadrupole operator.

For the 5s5p 3P2 state, we find

$$\langle {}^{3}{P}_{2}\left\| Q\right\|^{3}{P}_{2}\rangle \, \approx -6.9\,e{a}_{0}^{2}$$
(4)

and

$$\Theta ({}^{3}{P}_{2})\, \approx -1.7\,e{a}_{0}^{2}.$$
(5)

Zeeman shift

Since we consider the ion with J = I = 0, there is no linear Zeeman shift. The second-order Zeeman shift, ΔE, is given by81

$$\Delta E\equiv \, \Delta {E}^{(1)}+\Delta {E}^{(2)}=-\frac{1}{2}{\alpha }^{{{{{{{{\rm{M}}}}}}}}1}{B}^{2}+\frac{{\mu }_{0}^{2}\,m}{2{\hslash }^{2}}\mathop{\sum }_{i=1}^{Z}\langle 0| {({{{{{{{\bf{B}}}}}}}}\times {{{{{{{{\bf{r}}}}}}}}}_{i})}^{2}| 0\rangle,$$
(6)

where αM1 is the magnetic-dipole static polarizability, μ0 is the Bohr magneton, m is the electron mass, and ri is the position vector of the ith electron. For a state \(\left\vert J=0\right\rangle\), the polarizability can be written as

$${\alpha }^{{{{{{{{\rm{M}}}}}}}}1}=\frac{2}{3}\mathop{\sum}_{n}\frac{| \langle n| | \mu | | J=0\rangle {| }^{2}}{{E}_{n}-{E}_{0}}.$$
(7)

To estimate the shift for the clock transition due to this term, we note that the \({\alpha }^{M1}({}^{1}{S}_{0})\) polarizability is negligibly small compared to \({\alpha }^{M1}({}^{3}{P}_{0})\), so we have

$$\Delta {\nu }^{(1)}\equiv \frac{\Delta E({}^{3}{P}_{0})-\Delta E({}^{1}{S}_{0})}{h} \, \approx \, \Delta E({}^{3}{P}_{0})/h.$$

For an estimate of \({\alpha }^{M1}({}^{3}{P}_{0})\), we take into account that the main contribution to this polarizability comes from the intermediate state 5s5p  3P1. Then, from Eq. (7), we obtain

$${\alpha }^{{\rm{M}}1}({}^{3}{P}_{0}) \, \approx \, \frac{2}{3}\frac{\langle {}^{3}{P}_{1}\left\| \mu \right\|^{3}{P}_{0}\rangle {}^{2}}{{E}_{{}^{3}{P}_{1}}-{E}_{{}^{3}{P}_{0}}}.$$
(8)

We found the matrix element \(| \langle {}^{3}{P}_{1}\| \mu \|^{3}{P}_{0}\rangle |\) to be 1.4064 μ0 and 1.4053 μ0 in the CI+all-order and CI+MBPT approximations, respectively. These values differ by 0.07 %. According to our calculation, the next (after 3P1) intermediate state in Eq. (7), 1P1, contributes to \({\alpha }^{{\rm{M}}1}({}^{3}{P}_{0})\) at the level of 0.06 % compared to the contribution of the 3P1 state. Conservatively, estimating the contribution of all other intermediate states as 2 × 0.06 %, we arrive at the uncertainty of Δν(1) at the level of 0.2 %.

Using it and the experimental value of the energy difference \({E}_{{}^{3}{P}_{1}}-{E}_{{}^{3}{P}_{0}} \, \approx \, 1648\,\,{{{{{{{{\rm{cm}}}}}}}}}^{-1}\), we arrive at

$$\Delta {\nu }^{(1)}=-26.16(5)\,\,\frac{{{{{{{{\rm{mHz}}}}}}}}}{{{{{{{{{\rm{G}}}}}}}}}^{2}}\,{B}^{2},$$

where the magnetic field B is expressed in G.

One can show81 that the contribution of the second term in Eq. (6) to the second-order Zeeman shift of the clock transition can be written as

$$\Delta {\nu }^{(2)}\equiv \frac{(2\pi {\mu }_{0})^{2}m}{3{h}^{3}}{B}^{2} \times \sum\limits_{i=1}^{Z}\left\{\langle {}^{3}{P}_{0}| {r}_{i}^{2}|^{3}{P}_{0}\rangle -\langle {}^{1}{S}_{0}| {r}_{i}^{2}|^{1}{S}_{0}\rangle \right\},$$
(9)

where the matrix elements are expressed in \({a}_{0}^{2}\).

The calculation, carried out in the framework of our approach, leads to

$$\sum\limits_{i=1}^{Z}\left\{\langle {}^{3}{P}_{0}| {r}_{i}^{2}|^{3}{P}_{0}\rangle -\langle {}^{1}{S}_{0}| {r}_{i}^{2}| {}^{1}{S}_{0}\rangle \right\} \, \approx \, 1.7\,{a}_{0}^{2}.$$
(10)

To check this result, we made another calculation, reconstructing the basis set and using the pure CI method, where all 48 electrons were placed in the valence field, and several of the most important configurations were included into consideration. We obtained the same value \(1.7\,{a}_{0}^{2}\).

Using this result, we find

$$\Delta {\nu }^{(2)}=0.17(2)\,\,\frac{{{{{{{{\rm{mHz}}}}}}}}}{{{{{{{{{\rm{G}}}}}}}}}^{2}}\,{B}^{2}.$$

We estimate the uncertainty of this term at the level of 10 %.

Finally, we find the quadratic Zeeman shift as

$$| \Delta \nu |=| \Delta {\nu }^{(1)}+\Delta {\nu }^{(2)}|=25.98(5)\,\,\frac{{{{{{{{\rm{mHz}}}}}}}}}{{{{{{{{{\rm{G}}}}}}}}}^{2}}\,{B}^{2}.$$
(11)

Rabi frequency

The Rabi frequency of the one-photon 1S0 −  3P0 transition is determined as

$${\Omega}=\left| \left\langle \widetilde{{}^3P_0} |{\bf{d}} \cdot {\mathcal{E}}|^{1}S_0 \right\rangle \right|/\hbar,$$
(12)

where \({{{{{{{\boldsymbol{{{{{{{{\mathcal{E}}}}}}}}}}}}}}}}\) is the electric field of the laser wave and we designate

$$\left| \widetilde{{}^{3}P_0} \right\rangle \equiv \left| {}^{3}P_0 \right\rangle - \sum\limits_n \frac{\left|n\right\rangle \langle n |{{{{{{\boldsymbol{\mu}}}}}}} \cdot {\bf{B}}|^{3}P_0 \rangle}{E_{{}^{3}P_0}-E_n} .$$
(13)

Substituting Eq. (13) to Eq. (12), we arrive after simple transformation at

$$\hslash \Omega=\frac{{\bf{B}}\cdot {\boldsymbol{\mathcal{E}}}}{3}\left| \sum\limits_{n}\frac{\langle {}^{3}{P}_{0}\| \mu \|n\rangle \langle n\|d\|^{1}{S}_{0}\rangle }{E_{n}-{E}_{{}^{3}{P}_{0}}}\right| .$$
(14)

Leaving (for an estimate) in the sum of Eq. (14) only two intermediate states, 5s5p  3P1 and 5s5p  1P1, and using our calculated values \(|\langle {}^{3}{P}_{0}\| \mu \|^{3}{P}_{1}\rangle | \approx 1.406\,{\mu }_{0}\) and \(|\langle {}^{3}{P}_{1}\| d\|^{1}{S}_{0}\rangle | \, \approx \, 0.249\,e{a}_{0}\), we find

$$| \Omega | /(2\pi ) \, \approx \, 3.4\,\frac{{{{{{{{\rm{mHz}}}}}}}}}{{{{{{{{\rm{G}}}}}}}}\sqrt{{{{{{{{\rm{mW}}}}}}}}/{{{{{{{{\rm{cm}}}}}}}}}^{2}}}\,\sqrt{I}B\cos \theta,$$
(15)

where I is the laser intensity and θ is the angle between B and \({{{{{{{\boldsymbol{{{{{{{{\mathcal{E}}}}}}}}}}}}}}}}\).

The clock transition can also be driven as the two-photon E1 + M1 transition. The respective formalism was developed in Ref. 23. The E1 + M1 Rabi frequency, Ω2, is given by

$${\Omega }_{2}=\frac{4\pi }{3{\varepsilon }_{0}h{c}^{2}}\sqrt{{I}_{1}{I}_{2}}\,\Lambda,$$
(16)

where Λ can be written in terms of dominant contributions as

$$\Lambda \, \approx \, \left| \sum\limits_{n={}^{3}{P}_{1},{}^{1}{P}_{1}}\frac{\langle {}^{3}{P}_{0}\| \mu \| n\rangle \langle n\| d\|^{1}{S}_{0}\rangle }{{E}_{n}-{E}_{{}^{3}{P}_{0}}/2}\right|$$
(17)

and I1 and I2 are the intensities of two probe laser waves. Using the experimental energies and the values of the matrix elements given in Table 1, we find

$$\frac{{\Omega }_{2}}{2\pi } \, \approx \, 0.27\frac{{{{{{{{\rm{Hz}}}}}}}}}{{{{{{{{\rm{kW}}}}}}}}/{{{{{{{{\rm{cm}}}}}}}}}^{2}}\,\sqrt{{I}_{1}{I}_{2}}.$$
(18)

Second-order Zeeman shift due to the ac magnetic field at the trap drive frequency

We estimate the size of this effect with the following simple model. We assume that the ion trap has a 500 μm ion-to-electrode distance and is driven differentially with an RF voltage amplitude of 970 V, as is necessary to achieve the secular frequencies proposed here. Standard linear RF Paul traps constructed with cylindrical rods or blade electrodes that are electrically driven from one end have current running down the electrodes due which is sunk by a capacitance at the far ends of the electrodes of order 100 fF. At the center of the trap, symmetry dictates that the RF magnetic field should be zero. At the edge of the ion crystal, 22 μm away from the trap center, this model predicts that there is an AC magnetic field of 50 mG, which causes an inhomogeneous frequency shift of 4 mHz. It should be possible to characterize the average over all ions of this shift sufficiently well as described in the text, and this is compatible with probe durations up to about 100 s. To achieve longer probe durations it will be necessary to design traps with less capacitance or more symmetric current distributions.

Background gas collision shift

A detailed analysis of the background gas collision shift and uncertainty for many ion clocks requires computationally intensive Monte Carlo simulations and is beyond the scope of this article, but in the following we provide a simple estimate based on scaling an analysis of the uncertainty for single-ion clocks82. The total rate of Langevin collisions between a Coulomb crystal and background gas molecules scales linearly with the number of ions and linearly with the charge of the ions, so for a 1000 ion Sn2+ clock the background gas collision rate will be ~2000 times larger than in single-ion clocks. As a conservative upper bound, we suppose that the systematic uncertainty due to background gas collisions scales linearly with the collision rate. A more detailed model would take into account that only the Doppler shift component of the uncertainty scales with the total collision rate while the phase shift component of the uncertainty (which dominated the collision shift uncertainty in Ref. 82) scales with the collision rate per ion. Current state-of-the-art single-ion clocks operating in room temperature ultrahigh vacuum (UHV) chambers with background gas pressures of roughly 10−10 torr have systematic uncertainties due to background gas collisions of order 10−19 59,83. Although according to this conservative estimate background gas collisions may contribute of order 10−18 uncertainty for 1000 ion Sn2+ clocks in room temperature UHV chambers with pressures of at best 10−12 torr, Monte Carlo simulations will likely be able to constrain the uncertainty to be much smaller.

Alternatively, pressures below 10−16 torr have been achieved for ion traps operated in cryogenic vacuum chambers84. An even more conservative upper bound can be obtained by considering the rate of collisions as follows. For 10−16 torr of He background gas at 10 K, the total rate of Langevin collisions with any of the ions in a 1000 Sn2+ ion crystal is 1 × 10−4/s. For a 1 s probe time, this amounts to one collision every 104 probes. At most, this could result in a fractional shift of the measured transition frequency of 10−4 relative to the spectroscopic linewidth, which in this case is 1 Hz. Thus, the background gas collision shift can be straightforwardly upper bounded to be below 10−19 for Sn2+ clocks operating in cryogenic vacuum chambers. In practice, collisions that deposit a significant amount of kinetic energy to the ion crystal will not contribute to the clock spectroscopy signal due to the Debye-Waller reduction of the Rabi frequency82, so the actual shift and its uncertainty will be much smaller.
