Abstract
Cyclopropanes are among the most important structural units in natural products, pharmaceuticals, and agrochemicals. Herein, we report a manganese-catalyzed cyclopropanation of allylic alcohols with sulfones as carbene alternative precursors via a borrowing hydrogen strategy under mild conditions. Various allylic alcohols and arylmethyl trifluoromethyl sulfones work efficiently in this borrowing hydrogen transformation and thereby deliver the corresponding cyclopropylmethanol products in 58% to 99% yields. Importantly, a major benefit of this transformation is that the versatile free alcohol moiety is retained in the resultant products, which can undergo a wide range of downstream transformations to provide access to a series of functional molecules. Mechanistic studies support a sequential reaction mechanism that involves catalytic dehydrogenation, Michael addition, cyclization, and catalytic hydrogenation.
Similar content being viewed by others
Introduction
Cyclopropanes are ubiquitous structural units that exist widely in natural products, pharmaceuticals, and agrochemicals. The incorporation of cyclopropanes into biologically active molecules can allow fine-tuning of metabolic stability, enhancement of their potency, and reduction of off-target effects (Fig. 1a)1,2,3. Moreover, cyclopropyl fragments are also commonly used as versatile building blocks in organic synthesis and as radical clocks in mechanistic investigations3,4,5,6.

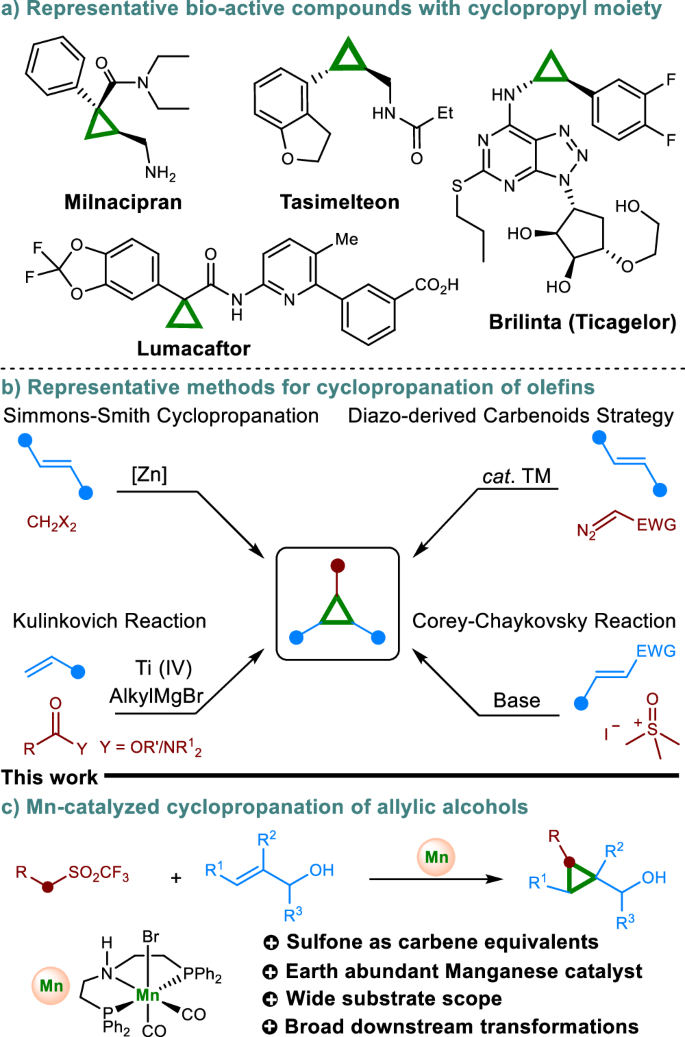

a Biologically active compounds containing a cyclopropyl moiety. b Representative methods for cyclopropanation of olefins. c This work: manganese-catalyzed cyclopropanation of allylic alcohols.
Traditional methodologies for the synthesis of cyclopropanes from olefins mainly rely on carbene-based strategies7,8,9,10,11,12, including Simmons-Smith reaction13,14 and catalytic diazo-derived carbenoid transformation15,16,17, Kulinkovich reaction18 and Corey-Chaykovsky reaction (Fig. 1b)19. The typical Simmons-Smith protocol requires a stoichiometric amount of highly reactive zinc reagents to form zinc carbenoids from often difficulty-available 1,1- and 1,2-dihaloalkanes. The metal-catalyzed diazo-derived carbenoids procedure is powerful and straightforward as well. Unfortunately, the highly energetic diazo compounds are potentially explosive, and low yields were furnished with allylic alcohols due to undesired O–H insertion. In addition, the Kulinkovich reaction typically occurs with alkyl Grignard reagents and stoichiometric titanium alkoxide, and the noncarbenoid approach Corey-Chaykovsky reaction is limited to electron-deficient alkenes.
To this end, the development of readily available and bench-stable cyclopropanation reagents for the practical and broadly applicable cyclopropanation of olefins remains exceedingly required and scientifically interesting. In particular, the cyclopropanation of allylic alcohols for synthesizing cyclopropylmethanol20,21,22,23,24, as these compounds would readily undergo downstream transformation to a series of valuable synthons and complex molecules by the utilization of the free hydroxide group.
On the other hand, sulfone is one of the most important building blocks in organic synthesis. For example, Julia-type olefination is a well-known method starting from α-H-containing sulfones for synthesizing alkenes, in which sulfonyl moiety is applied as the leaving group25,26,27. We envisioned that such sulfones could also be employed as carbene alternative precursors28,29,30 for the cyclopropanation of allylic alcohols in the presence of a transition metal catalyst. Our hypothesis is that α, β-unsaturated carbonyl compounds could be formed by dehydrogenation of allylic alcohols under transition metal catalysis, and then undergo Michael addition with α-H-containing sulfones, followed by the intramolecular nucleophilic substitution to afford cyclopropane carboxaldehyde31,32,33,34,35,36. Finally, the borrowed hydrogen returns to the carbonyl group to provide the cyclopropylmethanol product.
Based on our continuous research interest37,38,39 in pincer ligand-based manganese-catalyzed borrowing hydrogen (BH) transformation40,41,42,43,44 and inspired by the recent advancements in the transition metal-catalyzed functionalization of allylic alcohols via borrowing hydrogen, including anti-Markovnikov hydroamination45,46,47,48,49,50 and hydrocarbonation51,52,53,54. Herein, we report pincer ligand-based manganese-catalyzed55,56,57,58,59,60,61 borrowing hydrogen cyclopropanation of allylic alcohols with sulfone as a carbene alternative precursor for the synthesis of valuable cyclopropylmethanol (Fig. 1c).
Results
We started our investigations by testing the cyclopropanation of allyl alcohol (2a) with sulfones containing different substituents in the presence of PNP-Mn catalyst (PNP-Mn = phosphine-nitrogen-phosphine tridentate manganese). To our delight, the desired cyclopropanation product was obtained in 23% yield using phenyl arylmethyl sulfone (1a) as the coupling partner (Table 1, entry 1). The hydrocarbonation product 3a was isolated in a 64% yield and assigned as the major side product of the reaction. We then examined different substituted sulfonyl as the leaving group. When applying 4-trifluoromethylphenyl and tert-butyl sulfonyl as the leaving groups, comparable yields of 3 were obtained (Table 1, entries 2 and 4). When employing methyl arylmethyl sulfone (1c) as the cyclopropanation reagent, only a trace amount of cyclopropanation product was detected by GC-analysis (Table 1, entry 3). The yield of the desired product could be enhanced to 34% by using trifluoromethyl sulfonyl as the leaving group (Table 1, entry 5). Subsequently, different solvents, including THF, tAmOH, and 1,4-dioxane, were tested with 1e as the cyclopropanation reagent, and tAmOH was found to be the optimal solvent (Table 1, entries 6–8). Other bases, such as NaOtBu, KOMe, and KOH, either yielded 3 comparable or provided a lower yield (Table 1, entries 9–11). A slightly higher yield was obtained by increasing the loading amount of the base (Table 1, entry 12). We observed that the yield of the desired product could also be improved by decreasing the concentration of the reaction mixture, where 0.05 M concentration gave 88% isolated yield of 3 (Table 1, entries 13–15). The cyclopropanation process could not occur in the absence of a base or manganese catalyst, which demonstrated the critical role of the catalyst and base (Table 1, entries 16 and 17). Furthermore, we reexamined the substrates with different substituted sulfonyl as the leaving group (1a-1e) under the optimized conditions. The trifluoromethyl group again demonstrated the highest reactivity among the tested leaving groups (Supplementary Table 1). Additionally, the iPr-MACHO (MACHO = bis [(2-phosphino)ethyl]amine) manganese complex exhibited reactivity comparable to the Ph-MACHO catalyst, and other scaffold PNP-Mn complexes afforded only a trace amount or lower yields of the desired product under the standard conditions (Supplementary Table 2).

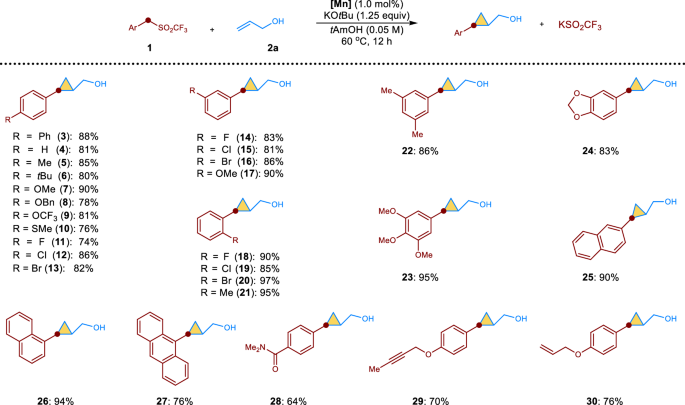

With the optimized conditions in hand, we explored the scope of trifluoromethyl sulfone-based substrates 1 in this manganese-catalyzed cyclopropanation reaction. As shown in Fig. 2, the desired cyclopropylmethanol products were furnished in 64% to 97% yields with over 20:1 diastereomeric selectivity. A series of electron-donating groups on the benzene ring of benzyl trifluoromethyl sulfone 1, such as phenyl (3), methyl (5, 21, and 22), tert-butyl (6), methoxy (7, 17, and 23), benzyloxy (8), trifluoromethoxy (9), methylthio (10), and methylenedioxy (24), were well tolerated and furnished the desired cyclopropanation products in high efficiency. Substrates bearing labile halogen groups, including fluoro (11, 14, and 18), chloro (12, 15, and 19), and bromo (13, 16 and 20), irrespective of their location at the para-, meta- or ortho- position, exhibited high efficiency as well and afforded the corresponding cyclization products. The BH cyclopropanation process also proceeded smoothly with sulfone reagents containing π-extended aromatic substituents, such as 2- and 1-naphthalene (25 and 26) and 9-anthracene (27). Notably, amide, alkyne and olefin, which are normally sensitive to reduction, remained untouched in this manganese-catalyzed BH system (28, 29, and 30). However, the reaction with alkyl trifluoromethyl sulfones, such as (2-(trifluoromethanesulfonyl)ethyl)benzene and (3-(trifluoromethanesulfonyl)propyl)benzene, afforded the corresponding cyclopropanation products in yields below 10%. Additionally, employing trifluoro(methylsulfonyl)methane as the substrate did not yield the desired cyclopropanation product, as confirmed by GC-MS analysis (Supplementary Fig. 1).
Reaction conditions: 1 (0.25 mmol, 1.0 equiv), 2a (0.3 mmol), [Mn] (1.0 mol%). Isolated yields are reported. d.r. > 20:1 in all cases.

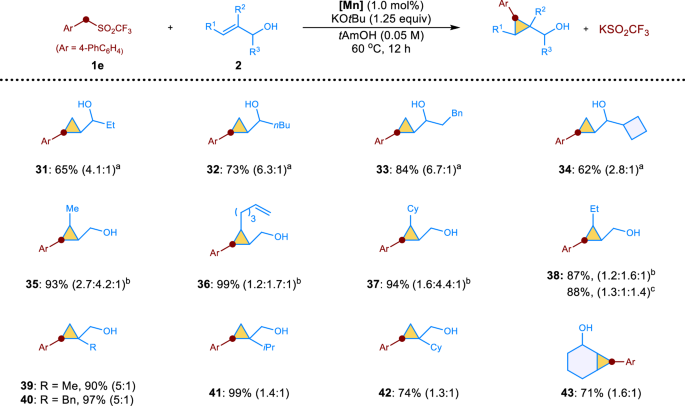

We then explored various substituted allylic alcohols 2 to demonstrate the generality of this transformation (Fig. 3). We found that in addition to allyl alcohol, a range of substituted allylic alcohols were also suitable substrates, affording the corresponding desired substituted cyclopropanes with high efficiency. For example, secondary allylic alcohols proceeded smoothly in the BH cyclopropanation reaction to furnish cyclopropyl-substituted secondary alcohols (31–34). Moreover, applying β- and α-substituted allylic alcohols as the substrates provided 1,2,3- and 1,1,2-trisubstituted cyclopropanes with yields between 74% and 99% (35–42). It should be noted that the cyclopropanation process selectively occurred on the allylic alcohol unit while the other alkenyl group in the substrate remained intact (36). Either trans- or cis- allylic alcohol underwent BH cyclopropanation smoothly to give the desired product in 87% and 88% yields, respectively. However, one pair of dr ratio is opposite, which indicated one pair of stereoselectivity of the cyclopropane comes from the configuration of internal allylic alcohol (38). Interestingly, 2-cyclohexenol was also suitable in the transformation to provide the bicyclic alcohol product with a good yield (43).
Reaction conditions: 1e (0.25 mmol, 1.0 equiv), 2 (0.3 mmol), [Mn] (1.0 mol%). Isolated yields are reported. d.r. was determined by 1H NMR analysis. aKOtBu (2.0 equiv), 20 h, d.r. was induced by the alcohol moiety. btrans-allylic alcohols were used as the substrates. ccis-allylic alcohol was used as the substrate.

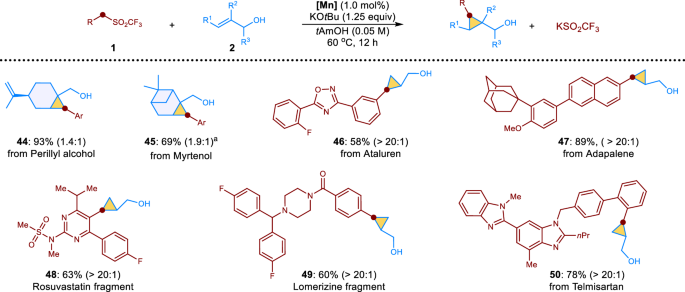

We were particularly delighted to find that this manganese-catalyzed cyclopropanation could also be applied to naturally occurring allylic alcohols and sulfones derived from bio-active compounds, which reveal its broad applicability (Fig. 4). Specifically, perillyl alcohol and myrtenol, which are monoterpenes derived from the essential oils of botanicals, could successfully undergo cyclopropanation to furnish the corresponding cyclopropane products (44 and 45). As mentioned above, the cyclopropanation process selectively took place on the allylic alcohol unit while the other alkenyl group remains untouched in the case of perillyl alcohol (44). Delightfully, trifluoromethyl sulfones derived from bio-active Ataluren (46), Adapalene (47), Rosuvastatin (48), Lomerizine (49) fragment, and Telmisartan (50) were successfully applied as cyclopropanation reagents and furnished the desired corresponding products in 58% to 89% yields.
Reaction conditions: 1 (0.25 mmol, 1.0 equiv), 2 (0.3 mmol), [Mn] (1.0 mol%), KOtBu (1.25 equiv), and tAmOH (5.0 mL), 60 oC, 12 h. Isolated yields are reported. d.r. was determined by 1H NMR analyses. Ar = 4-Ph-C6H4. a KOtBu (2.0 equiv), 20 h.

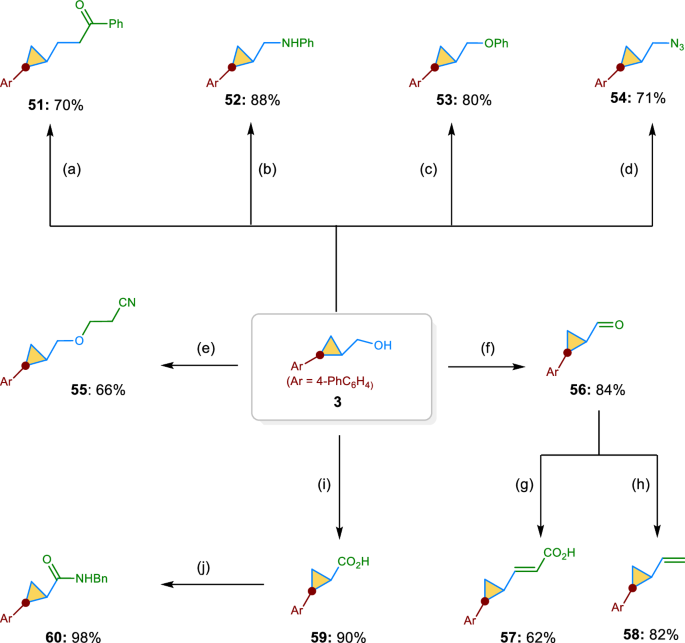

To demonstrate the synthetic utility of the cyclopropyl-methanol products, we investigated their late diversification (Fig. 5). Compound 3 could react with acetophenone and aniline through a manganese-catalyzed BH transformation to afford β-cyclopropyl ketone (51) and α-cyclopropyl aniline (52), respectively, which again highlighted the powerful ability of BH transformations with manganese catalysis. Furthermore, the hydroxy group could be easily converted to an aryl ether through a Mitsunobu reaction (53), an azide in two steps involving a nucleophilic substitution (54), and a nitrile-containing ether through a Michael addition reaction (55). In addition, cyclopropylmethanol (3) could be oxidized with PCC to deliver the corresponding aldehyde (56) in high yield, which could be further transformed to β-cyclopropyl acrylic acid (57) and vinylcyclopropane (58). Cyclopropanecarboxamide (60) could be successfully synthesized from 3 through oxidation and amide formation.
Reagents: (a) PhCOMe, cat. [Mn], Cs2CO3. (b) PhNH2, cat. [Mn], KOtBu. (c) Phenol, DEAD, PPh3. (d) TsCl, DMAP, Et3N; then NaN3. (e) acrylonitrile, KOtBu. (f) PCC. (g) HO2CCH2CO2H, piperidine. (h) Ph3PCH3Br, KOtBu. (i) RuCl3, NaIO4. (j) (COCl)2, cat. DMF; then BnNH2, Et3N. DEAD = diethyl azodicarboxylate, PCC = pyridinium chlorochromate.
Due to the ability of the pincer ligand-based manganese catalyst for the BH cyclopropanation of allylic alcohols, we were interested in exploring the mechanism of this transformation. Firstly, we conducted the experiment with benzyl-protected allylic alcohol (61) and tertiary allyl alcohol (63) to replace 2a as the substrates, and no cyclopropanation product was observed. From these results, it was clearly demonstrated that the reaction proceeds via BH catalysis. Control experiments applying α, β-unsaturated aldehyde (64) as the substrate delivered the corresponding cyclopropane carbaldehyde (65) in comparable high yields both with or without the manganese catalyst (Fig. 6a). These results supported that the α, β-unsaturated carbonyl compound might be a reaction intermediate, and the addition step does not require the manganese catalyst. On the basis of the above observations, a plausible reaction pathway is proposed for this manganese-catalyzed BH cyclopropanation of allylic alcohols. First, an α, β-unsaturated carbonyl compound was generated from allylic alcohol through manganese-catalyzed dehydrogenation62,63,64,65,66,67,68,69,70. Then, base-promoted addition between the α, β-unsaturated carbonyl compound and an α-H containing sulfone, followed by intramolecular nucleophilic substitution, afforded cyclopropane carbaldehyde31,32,33,34,35,36, simultaneously generating KSO2CF3, which was confirmed by 19F NMR. Finally, the borrowed hydrogen returns to the carbonyl group to provide the desired cyclopropanation product (Fig. 6b).

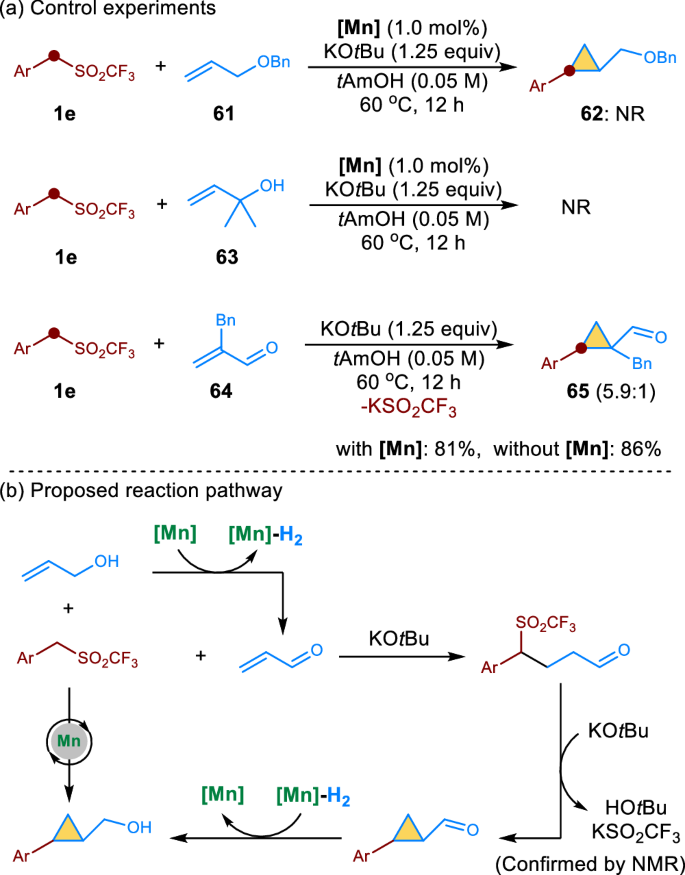

a Control experiments. b Proposed reaction pathway.
Discussion
In summary, a manganese-catalyzed cyclopropanation of allylic alcohols using sulfone as carbene equivalents via a borrowing hydrogen strategy for the synthesis of cyclopropylmethanol is demonstrated. Various substituted allylic alcohols and functionalized arylmethyl trifluoromethyl sulfones are suitable in this borrowing hydrogen transformation, which allows access to a range of cyclopropylmethanol products in 58% to 99% yields. Importantly, the free alcohol groups in the products allow further derivatization to a series of functional molecules, which include ketone, aniline, ether, azide, aldehyde, alkene, carboxylic acid and amide. Mechanistic studies suggest the reaction proceeds sequentially, consisting of catalytic dehydrogenation, Michael addition, cyclization and catalytic hydrogenation.
Methods
Representative procedure for the synthesis of compound 3
In a nitrogen-filled glove box, an oven-dried Schlenk pressure tube (25 mL) containing a stirring bar was charged with [Mn] (1.0 mol%), KOtBu (125 mol%) and degassed tAmOH (1.0 mL), and stirred at room temperature for 5 min. Then trifluoromethyl sulfones 1e (0.25 mmol), allyl alcohol 2a (0.3 mmol) and tAmOH (4.0 mL) were added in sequential. The tube was brought out of the glove box and stirred vigorously at 60 oC for 12 h. After completion, the reaction mixture was concentrated under reduced pressure. The residue was then filtered through Celite and washed with dichloromethane. Finally, it was purified by silica gel column chromatography using ethyl acetate/petroleum ether as eluent to afford the desired products 3 (49 mg, 88%).
Data availability
The data reported in this paper are available within the article and its Supplementary Information files. All data are also available from the corresponding author upon request.
References
Taylor, R. D., MacCoss, M. & Lawson, A. D. G. Rings in drugs. J. Med. Chem. 57, 5845–5859 (2014).
Talele, T. T. The “cyclopropyl fragment” is a versatile player that frequently appears in preclinical/clinical drug molecules. J. Med. Chem. 59, 8712–8756 (2016).
Ebner, C. & Carreira, E. M. Cyclopropanation strategies in recent total syntheses. Chem. Rev. 117, 11651–11679 (2017).
Wessjohann, L. A., Brandt, W. & Thiemann, T. Biosynthesis and metabolism of cyclopropane rings in natural compounds. Chem. Rev. 103, 1625–1648 (2003).
Schneider, T. F., Kaschel, J. & Werz, D. B. A new golden age for donor–acceptor cyclopropanes. Angew. Chem. Int. Ed. 53, 5504–5523 (2014).
Pirenne, V., Muriel, B. & Waser, J. Catalytic enantioselective ring-opening reactions of cyclopropanes. Chem. Rev. 121, 227–263 (2021).
Zhu, S., Xu, X., Perman, J. A. & Zhang, X. P. A general and efficient cobalt(II)-based catalytic system for highly stereoselective cyclopropanation of alkenes with α-cyanodiazoacetates. J. Am. Chem. Soc. 132, 12796–12799 (2010).
Costantini, M. & Mendoza, A. Modular enantioselective synthesis of cis-cyclopropanes through self-sensitized stereoselective photodecarboxylation with benzothiazolines. ACS Catal 11, 13312–13319 (2021).
Ni, J., Xia, X., Zheng, W.-F. & Wang, Z. Ti-catalyzed diastereoselective cyclopropanation of carboxylic derivatives with terminal olefins. J. Am. Chem. Soc. 144, 7889–7900 (2022).
Sakurai, S., Inagaki, T., Kodama, T., Yamanaka, M. & Tobisu, M. Palladium-catalyzed siloxycyclopropanation of alkenes using acylsilanes. J. Am. Chem. Soc. 144, 1099–1105 (2022).
Palomo, E. et al. Generating Fischer-type Rh-carbenes with Rh-carbynoids. J. Am. Chem. Soc. 145, 4975–4981 (2023).
Berger, K. E., Martinez, R. J., Zhou, J. & Uyeda, C. Catalytic asymmetric cyclopropanations with nonstabilized carbenes. J. Am. Chem. Soc. 145, 9441–9447 (2023).
Charette, A. B. & Beauchemin, A. Simmons-Smith cyclopropanation reaction. Org. React. 58, 1–415 (2004).
Kim, H. Y. & Walsh, P. J. Efficient approaches to the stereoselective synthesis of cyclopropyl alcohols. Acc. Chem. Res. 45, 1533–1547 (2012).
Maas, G. Ruthenium-catalysed carbenoid cyclopropanation reactions with diazo compounds. Chem. Soc. Rev. 33, 183–190 (2004).
Ford, A. et al. Modern organic synthesis with α-diazocarbonyl compounds. Chem. Rev. 115, 9981–10080 (2015).
Chen, Z.-L., Xie, Y. & Xuan, J. Visible light-mediated cyclopropanation: recent progress. Eur. J. Org. Chem. 2022, e202201066 (2022).
Cha, J. K. & Kulinkovich, O. G. The Kulinkovich cyclopropanation of carboxylic acid derivatives. Org. React. 77, 1–160 (2012).
Beutner, G. L. & George, D. T. Opportunities for the application and advancement of the Corey–Chaykovsky cyclopropanation. Org. Process Res. Dev. 27, 10–41 (2023).
Zimmer, L. E. & Charette, A. B. Enantioselective synthesis of 1,2,3-trisubstituted cyclopropanes using gem-dizinc. Reagents. J. Am. Chem. Soc. 131, 15624–15626 (2009).
Wang, T., Liang, Y. & Yu, Z.-X. Density functional theory study of the mechanism and origins of stereoselectivity in the asymmetric Simmons–Smith cyclopropanation with charette chiral dioxaborolane. Ligand. J. Am. Chem. Soc. 133, 9343–9353 (2011).
Lévesque, É., Goudreau, S. R. & Charette, A. B. Improved zinc-catalyzed simmons–smith reaction: access to various 1,2,3-trisubstituted cyclopropanes. Org. Lett. 16, 1490–1493 (2014).
Taillemaud, S., Diercxsens, N., Gagnon, A. & Charette, A. B. Mechanism-Driven Elaboration of an Enantioselective Bromocyclopropanation Reaction of Allylic Alcohols. Angew. Chem. Int. Ed. 54, 14108–14112 (2015).
Phipps, E. J. T. & Rovis, T. Rh(III)-catalyzed C–H activation-initiated directed cyclopropanation of allylic alcohols. J. Am. Chem. Soc. 141, 6807–6811 (2019).
Srimani, D., Leitus, G., Ben-David, Y. & Milstein, D. Direct catalytic olefination of alcohols with sulfones. Angew. Chem. Int. Ed. 53, 11092–11095 (2014).
Waiba, S., Das, A., Barman, M. K. & Maji, B. Base metal-catalyzed direct olefinations of alcohols with sulfones. ACS Omega 4, 7082–7087 (2019).
Landge, V. G. et al. Iron-catalyzed direct julia-type olefination of alcohols. J. Org. Chem. 85, 9876–9886 (2020).
Gai, Y., Julia, M. & Verpeaux, J.-N. Nickel-catalyzed cyclopropanation of alkenes via methylene transfer from lithiated tert-butyl methyl sulfone. Synlett 1991, 56–57 (1991).
Gai, Y., Julia, M. & Verpeaux, J.-N. Conversion of non-activated alkenes into cyclopropanes with lithiated sulfones under nickel catalysis. Bull. Soc. Chim. Fr. 9, 817–829 (1996).
Johnson, J. D., Teeples, C. R., Akkawi, N. R. & Wilkerson-Hill, S. M. Efficient synthesis of orphaned cyclopropanes using sulfones as carbene equivalents. J. Am. Chem. Soc. 144, 14471–14476 (2022).
Hendrickson, J. B., Giga, A. & Wareing, J. Triflones (CF3SO2C). Survey of reactivity and synthetic utility. J. Am. Chem. Soc. 96, 2275–2276 (1974).
Sodoyer, R., Abad, E., Rouvier, E. & Cambon, A. Synthese de nouvelles sulfones F-alkylées saturees et α,β-insaturees. J. Fluor. Chem. 22, 401–419 (1983).
Cid, M. B., López-Cantarero, J., Duce, S. & Ruano, J. L. G. Enantioselective organocatalytic approach to the synthesis of α,α-disubstituted cyanosulfones. J. Org. Chem. 74, 431–434 (2009).
Coulibali, S., Deruer, E., Godin, E. & Canesi, S. A stereoselective arylative-cyclopropanation process. Org. Lett. 19, 1188–1191 (2017).
Chang, M.-Y., Chen, Y.-C. & Chan, C.-K. One-pot synthesis of multifunctionalized cyclopropanes. Tetrahedron 70, 2257–2263 (2014).
Hsueh, N.-C., Wang, Y.-H. & Chang, M.-Y. Sequential condensation and double desulfonylative cyclopropanation of 1,2-bis(sulfonylmethyl)arenes with 3-arylacroleins: access to biscyclopropane-fused tetralins. Org. Biomol. Chem. 21, 1206–1221 (2023).
Tang, J., He, J., Zhao, S.-Y. & Liu, W. Manganese-catalyzed chemoselective coupling of secondary alcohols, primary alcohols and methanol. Angew. Chem. Int. Ed. 62, e202215882 (2023).
Sun, F., Huang, J., Wei, Z., Tang, C. & Liu, W. Divergent synthesis of alcohols and ketones via cross-coupling of secondary alcohols under manganese catalysis. Angew. Chem. Int. Ed. 62, e202303433 (2023).
Sun, F. et al. Borrowing hydrogen β-phosphinomethylation of alcohols using methanol as C1 source by pincer manganese. Complex. J. Am. Chem. Soc. 145, 25545–25552 (2023).
Irrgang, T. & Kempe, R. 3d-metal catalyzed n- and c-alkylation reactions via borrowing hydrogen or hydrogen autotransfer. Chem. Rev. 119, 2524–2549 (2018).
Kwok, T., Hoff, O., Armstrong, R. J. & Donohoe, T. J. Control of absolute stereochemistry in transition-metal-catalysed hydrogen-borrowing reactions. Chem. Eur. J. 26, 12912–12926 (2020).
Reed-Berendt, B. G., Latham, D. E., Dambatta, M. B. & Morrill, L. C. Borrowing hydrogen for organic synthesis. ACS Cent. Sci. 7, 570–585 (2021).
Das, K., Barman, M. K. & Maji, B. Advancements in multifunctional manganese complexes for catalytic hydrogen transfer reactions. Chem. Commun. 57, 8534–8549 (2021).
Gao, Y., Hong, G., Yang, B.-M. & Zhao, Y. Enantioconvergent transformations of secondary alcohols through borrowing hydrogen catalysis. Chem. Soc. Rev. 52, 5541–5562 (2023).
Ma, W. et al. Iron-catalyzed anti-Markovnikov hydroamination and hydroamidation of allylic. Alcohols. J. Am. Chem. Soc. 141, 13506–13515 (2019).
Xu, R. et al. Anti-Markovnikov hydroamination of racemic allylic alcohols to access chiral γ-amino alcohols. Angew. Chem. Int. Ed. 59, 21959–21964 (2020).
Pan, Y. et al. Asymmetric synthesis of γ-secondary amino alcohols via a borrowing-hydrogen cascade. Org. Lett. 22, 7278–7283 (2020).
Duarte de Almeida, L., Bourriquen, F., Junge, K. & Beller, M. Catalytic formal hydroamination of allylic alcohols using manganese PNP-pincer complexes. Adv. Synth. Catal. 363, 4177–4181 (2021).
Das, K., Sarkar, K. & Maji, B. Manganese-catalyzed anti-markovnikov hydroamination of allyl alcohols via hydrogen-borrowing catalysis. ACS Catal 11, 7060–7069 (2021).
Li, F. et al. Manganese-catalyzed asymmetric formal hydroamination of allylic alcohols: a remarkable macrocyclic ligand effect. Angew. Chem. Int. Ed. 61, e202202972 (2022).
Zhang, X. et al. Asymmetric ruthenium-catalyzed hydroalkylation of racemic allylic alcohols for the synthesis of chiral amino acid derivatives. Angew. Chem. Int. Ed. 61, e202203244 (2022).
Chang, X. et al. Stereodivergent construction of 1,4-nonadjacent stereocenters via hydroalkylation of racemic allylic alcohols enabled by copper/ruthenium relay catalysis. Angew. Chem. Int. Ed. 61, e202206517 (2022).
Thiyagarajan, S., Sankar, R. V., Anjalikrishna, P. K., Suresh, C. H. & Gunanathan, C. Catalytic formal conjugate addition: direct synthesis of δ-hydroxynitriles from nitriles and allylic alcohols. ACS Catal. 12, 2191–2204 (2022).
Wang, S. et al. Manganese catalyzed cross-coupling of allylic alcohols and nitriles: an elegant route for access to δ-hydroxynitriles. Green Chem. 25, 357–364 (2023).
Mukherjee, A. & Milstein, D. Homogeneous catalysis by cobalt and manganese pincer complexes. ACS Catal 8, 11435–11469 (2018).
Kallmeier, F. & Kempe, R. Manganese complexes for (de)hydrogenation catalysis: a comparison to cobalt and iron catalysts. Angew. Chem. Int. Ed. 57, 46–60 (2018).
Gorgas, N. & Kirchner, K. Isoelectronic manganese and iron hydrogenation/dehydrogenation catalysts: similarities and divergences. Acc. Chem. Res. 51, 1558–1569 (2018).
Filonenko, G. A., van Putten, R., Hensen, E. J. M. & Pidko, E. A. Catalytic (de)hydrogenation promoted by non-precious metals - Co, Fe and Mn: recent advances in an emerging field. Chem. Soc. Rev. 47, 1459–1483 (2018).
Alig, L., Fritz, M. & Schneider, S. First-row transition metal (de)hydrogenation catalysis based on functional pincer ligands. Chem. Rev. 119, 2681–2751 (2019).
Wang, Y., Wang, M., Li, Y. & Liu, Q. Homogeneous manganese-catalyzed hydrogenation and dehydrogenation reactions. Chem 7, 1180–1223 (2021).
Das, K., Waiba, S., Jana, A. & Maji, B. Manganese-catalyzed hydrogenation, dehydrogenation, and hydroelementation reactions. Chem. Soc. Rev. 51, 4386–4464 (2022).
Peña-López, M., Piehl, P., Elangovan, S., Neumann, H. & Beller, M. Manganese-catalyzed hydrogen-autotransfer C−C bond formation: α-alkylation of ketones with primary alcohols. Angew. Chem. Int. Ed. 55, 14967–14971 (2016).
Fu, S., Shao, Z., Wang, Y. & Liu, Q. Manganese-catalyzed upgrading of ethanol into 1-butanol. J. Am. Chem. Soc. 139, 11941–11948 (2017).
Nguyen, D. H. et al. Manganese pincer complexes for the base-free, acceptorless dehydrogenative coupling of alcohols to esters: development, scope, and understanding. ACS Catal. 7, 2022–2032 (2017).
Freitag, F., Irrgang, T. & Kempe, R. Mechanistic studies of hydride transfer to imines from a highly active and chemoselective manganate catalyst. J. Am. Chem. Soc. 141, 11677–11685 (2019).
Kaithal, A., Gracia, L.-L., Camp, C., Quadrelli, E. A. & Leitner, W. Direct synthesis of cycloalkanes from diols and secondary alcohols or ketones using a homogeneous manganese catalyst. J. Am. Chem. Soc. 141, 17487–17492 (2019).
Borghs, J. C., Lebedev, Y., Rueping, M. & El-Sepelgy, O. Sustainable manganese-catalyzed solvent-free synthesis of pyrroles from 1,4-diols and primary amines. Org. Lett. 21, 70–74 (2019).
Schlagbauer, M., Kallmeier, F., Irrgang, T. & Kempe, R. Manganese-catalyzed β-methylation of alcohols by methanol. Angew. Chem. Int. Ed. 59, 1485–1490 (2020).
Zhang, G., Irrgang, T., Schlagbauer, M. & Kempe, R. Synthesis of 1,3-diketones from esters via liberation of hydrogen. Chem. Catal. 1, 681–690 (2021).
Wang, Y. et al. Structure, reactivity and catalytic properties of manganese-hydride amidate complexes. Nat. Chem. 14, 1233–1241 (2022).
Acknowledgements
The authors acknowledge the financial support from the National Natural Science Foundation of China (22371039), and the Fundamental Research Funds for the Central Universities (2232022A-09).
Author information
Authors and Affiliations
Contributions
W. Liu. and K. Yu conceived and designed the experiments. K. Yu and Q. Nie performed the experiments and analyzed the data. Q. Chen participated in the discussions. W. Liu supervised the research and wrote the manuscript with the assistance of other authors.
Corresponding author
Ethics declarations
Competing interests
The authors declare no competing interests.
Peer review
Peer review information
Nature Communications thanks Torsten Irrgang, Chao Wang and the other, anonymous, reviewer(s) for their contribution to the peer review of this work. A peer review file is available.
Additional information
Publisher’s note Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Supplementary information
Rights and permissions
Open Access This article is licensed under a Creative Commons Attribution-NonCommercial-NoDerivatives 4.0 International License, which permits any non-commercial use, sharing, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if you modified the licensed material. You do not have permission under this licence to share adapted material derived from this article or parts of it. The images or other third party material in this article are included in the article’s Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article’s Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by-nc-nd/4.0/.
About this article
Cite this article
Yu, K., Nie, Q., Chen, Q. et al. Manganese-catalyzed cyclopropanation of allylic alcohols with sulfones. Nat Commun 15, 6798 (2024). https://doi.org/10.1038/s41467-024-51188-x
Received:
Accepted:
Published:
Version of record:
DOI: https://doi.org/10.1038/s41467-024-51188-x
