Fig. 6: Comparison of ecosystem processing post-fire before and after terrestrial and aquatic connectivity.

From: Longitudinal propagation of aquatic disturbances following the largest wildfire recorded in New Mexico, USA

Fig. 6

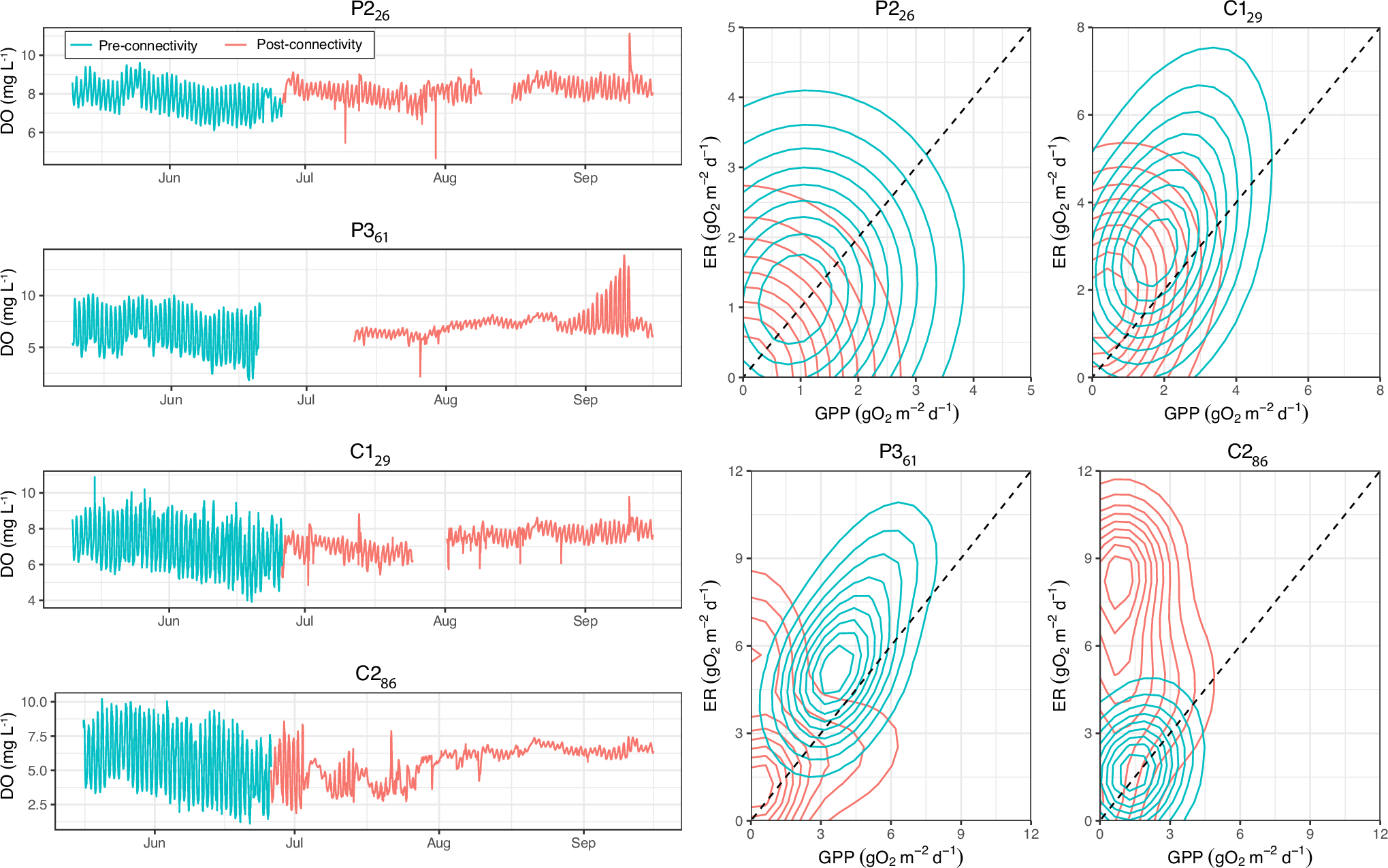

Dissolved oxygen (DO) time series and metabolic fingerprints for upstream and mid-network sampling locations in the Pecos (P226 and P361) and Canadian (C129 and C286) watersheds. The connectivity period began when Monsoon rainfall connected burned terrestrial and aquatic subsystems. Longitudinal sampling locations are identified with subscripts indicating distance from the headwaters in kilometers.
