Fig. 7: Example of the longitudinal propagation of water quality disturbances.

From: Longitudinal propagation of aquatic disturbances following the largest wildfire recorded in New Mexico, USA

Fig. 7

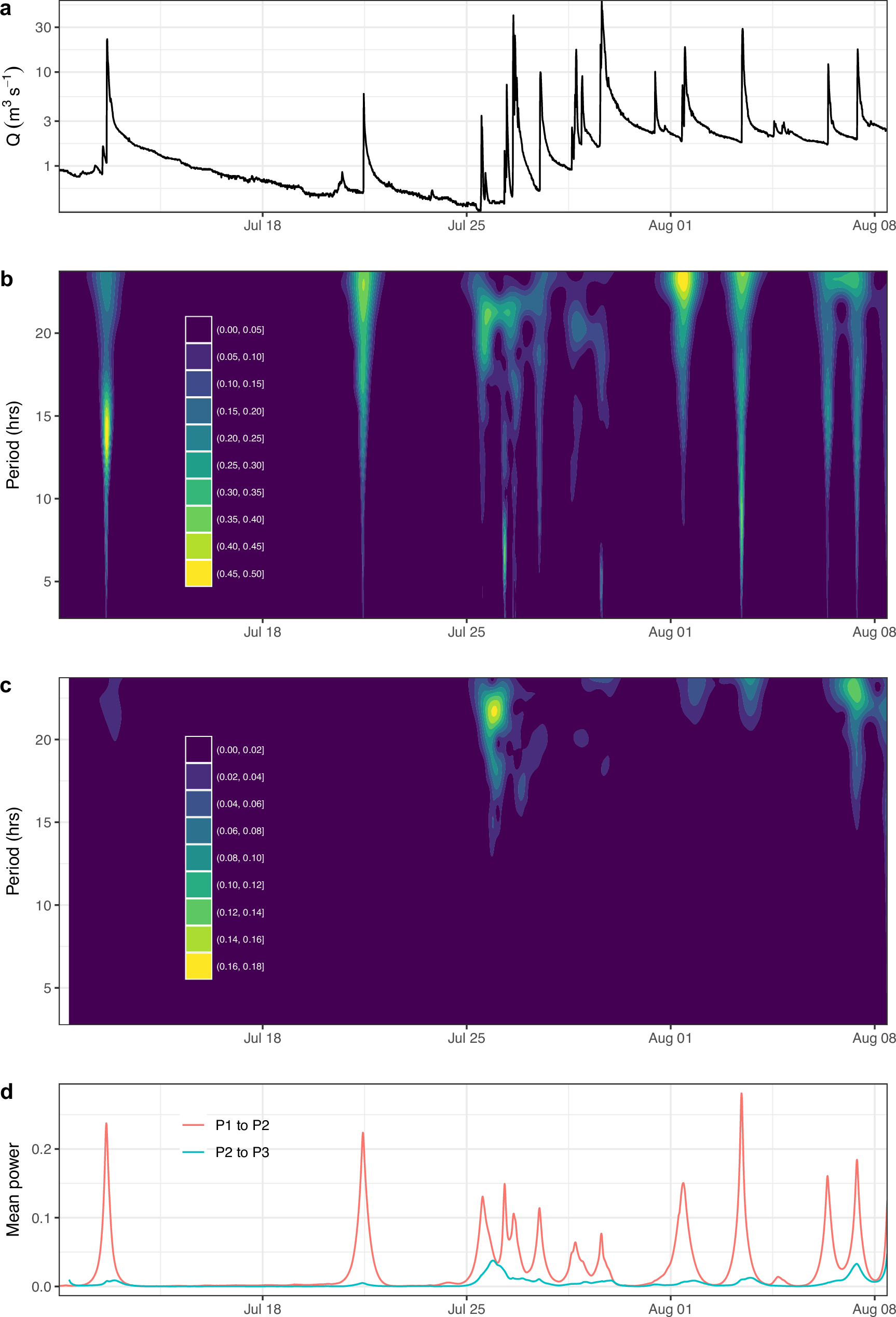

a Discharge data from sampling location P226, b wavelet coherence analysis of pH from sites P120 to P226 and c from sites P226 to P361, where colors depict coherence power (localized correlation coefficients between two time series), and d the mean coherence power in the Pecos watershed after Monsoon rainfall connected burned terrestrial and aquatic subsystems. Longitudinal sampling locations are identified with subscripts indicating distance from the headwaters in kilometers.
