Introduction

Grid-level energy storage is important for addressing climate change and realizing a sustainable future1,2 since it can stabilize intermittent power generation from renewable solar and wind energy3. Long-duration energy storage (LDES) with an operational period over one day is of particular importance as it enables stable power output under extreme conditions and leverages seasonal variations4,5,6. However, LDES is highly challenging due to the demanding requirement on low cost7, since it is operated for a limited number of cycles8, such as ~1500 times for weekly operation and ~ 400 times for monthly operation in 30 years, which is much less than short-term energy storage with everyday cycling and thus ~ 10,000 cycles in 30 years9,10.

Na/S and K/S batteries are promising for LDES since all elements involved are earth-abundant and inexpensive11,12,13,14. High-temperature (HT) Na/S batteries operated at 300–350 oC have been commercialized, which use β″-alumina solid electrolytes (BASE) to separate the sulfur cathode and the Na anode15,16. The full cell reaction is 2 Na + x S → Na2Sx (x = 3–5) with an average voltage of 2.0 V17,18. Although the HT Na/S battery offers a high theoretical energy density and a long cycle life19, its high operating temperature causes substantial challenges such as corrosion and thermal management20. On the other end, room-temperature (RT) Na/S and K/S batteries use liquid organic electrolytes to mitigate these issues21,22,23, but encounter new challenges such as strong polysulfide shuttling, metal dendrites, and poor sulfur utilization24,25,26,27,28. The cell voltage also decreases to 1.2–1.5 V29.

Intermediate-temperature (IT) Na/S and K/S batteries, which function at 100–150 oC, are receiving increasing attention because they take advantage of their HT and RT counterparts30,31. IT Na/S and K/S batteries use BASE to fully prevent polysulfide shuttling and greatly suppress metal dendrites, and organic liquid electrolytes (e.g., tetraglyme/TEGDME) at the cathode side to enhance kinetics17,32.

A common challenge for all HT/IT/RT Na/S and K/S batteries is the formation of solid M2S2 and M2S (M = Na, K) with ultralow ionic diffusivity in discharge33, which limits the specific capacity of the cathode to only ~ 500 mAh g−1 for Na/S and ~ 400 mAh g−1 for K/S, which corresponds to only M2S4/M2S331,34,35. Limited outliers report initial capacities at 600-800 mAh/g, but they either use excessive matrix such as polyacrylonitrile (PAN)36 or show fast capacity decay37 (Supplementary Note 1). To address this issue and substantially enhance discharge capacity, here we propose a new family of amide electrolytes that show reasonable solubility of M2S2/M2S (e.g., 1-2 M), which drastically enhances ionic diffusivity and reaction kinetics on the cathode side. We apply this new design principle to IT K-Na alloy/S batteries (K-Na/S for short) in this work because 1) BASE in IT can eliminate the shuttle effect caused by such a high solubility, and 2) IT K-Na/S batteries have a higher average voltage of ~ 2.1 V than 1.2–1.5 V in RT Na/S and K/S batteries. 3) The high solubility can also substantially lower the operation temperature from 150 °C in reported IT Na/S and K/S batteries to 50–100 °C.

Specifically, an acetamide/ɛ-caprolactam (CPL) eutectic solvent is used, which can dissolve K2S up to 1.43 M at 75 °C and has a lower melting point (− 8 °C) than acetamide (82 °C) and CPL (71 °C)38. With such a new electrolyte, a K-Na alloy/ K+-conducting BASE (K-BASE)/1 M [S] battery can reach a nearly theoretical discharge capacity of 1655 mAh g−1 sulfur at 75 oC. When [S] reaches 4 M, the specific capacity still remains at 830 mAh g−1 sulfur at 2 mA cm−2 with a capacity retention of 71 % after 1000 cycles. A discharge capacity of 703 mAh g−1 sulfur is also achieved at [S] of 8 M. Note that [S] counts sulfur from all polysulfides and sulfides inside the solution. These values correspond to specific energies of 150–250 Wh kg−1 at the cell level with BASE and packaging considered. Given the earth abundance of all elements involved, this system has the potential to achieve attractive cost and performance for LDES.

Results

Design principle of K-Na/S batteries with soluble sulfides and disulfides

The cathode is polysulfide dissolved in a mixture of CPL and acetamide (with 1:1 molar ratio, Fig. 1a, since it has the lowest melting point). Therefore, the cathode reaction in the range of S32−/S2− is 2S32− (l) + 2e− → 3S22− (l) and S22− (l) + 2e− → 2S2− (l) instead of 2S32− (l) + 2e− + 6 K+ → 3K2S2 (s) and K2S2 (s) + 2e− + 2 K+ → 2K2S (s) in conventional ether electrolytes. Such soluble redox significantly boosts reaction kinetics as the sluggish diffusion in solids is avoided. This catholyte is separated from a K-Na liquid alloy anode (1:1) by a commercial K-BASE, which does not conduct Na+[,31. The liquid alloy anode is used to reduce the anode/K-BASE interfacial impedance39,40,41. Therefore, the full cell reaction is S + 2 K → K2S.

Fig. 1: The proposed K-Na/S battery with its specific energy.
Fig. 1: The proposed K-Na/S battery with its specific energy.
Full size image

a A schematic of the proposed K-Na/S battery. The liquid K-Na alloy anode wets K-BASE well, leading to low anode/solid electrolyte interfacial impedance. K-BASE only conducts K+ but not Na+, so the mechanism is of K/S batteries. The acetamide/CPL solvent dissolves K2Sx (x = 1–8), which promotes ionic transport in K2S2 and K2S, and thus reaction kinetics and specific capacity. The synergy of these two strategies leads to K/S batteries with high energy density even at 75 oC. b The concentration dependence of theoretical (dash line) and practical energy densities of the proposed K-Na/S battery. Blue and red lines are for discharge times of 1 week and 1 day, respectively.

The energy density of such a system depends on the concentration of sulfur. Based on the theoretical specific capacity of sulfur (1675 mAh g−1) and K (687 mAh g−1), the theoretical specific energy reaches 95.8, 295, and 452 Wh kg−1 at 1 M, 4 M and 8 M sulfur, respectively, with the mass of sulfur, liquid electrolyte and anode considered (Fig. 1b). When masses of BASE and packaging are included, the cell-level specific energy is expected to reach 136 and 186 Wh kg−1 at 4 M and 8 M sulfur, respectively (24 h discharge), and 179 and 276 Wh kg−1 at 4 M and 8 M sulfur (one week discharge), respectively. It should be noted that the calculation is only for materials themselves and the N/P ratio of 1, while the dependence of energy density on the N/P ratio is shown in Supplementary Fig. 1. Details can be found in Supplementary Note 2.

Dissolution behavior in the CPL/acetamide mixture

To validate our new design, we first test the solubility of K2Sx in CPL/acetamide. This mixed solvent readily dissolves K2S8, K2S4, K2S2, and K2S with 1.2 M [S] at 25 °C (Fig. 2a), meanwhile being transparent and allowing light to pass straightly (Fig. 2b). In contrast, the solubility of K2S in a conventional TEGDME electrolyte is less than 0.1 M at 25 °C, as reflected by the milky appearance of its suspension (Fig. 2b). Further temperature-dependent solubility tests show that the solubilities of K2S2/K2S are 1.44 M/1.40 M at 60 °C, 1.50 M/1.43 M at 75 °C, 1.64 M/1.47 M at 100 °C and 1.72 M/1.50 M at 120 °C, respectively (Fig. 2c). As the length of polysulfide increase, the solubility even goes higher (Fig. 2d). The solubility for CPL/acetamide with other mixing ratios are also tested and shown in Supplementary Fig. 2. Such high solubilities suggest that the electrochemical reaction in discharge involves soluble sulfide (S22−) and polysulfide ions (Sx2−) instead of solid K2S and K2Sx, which is expected to significantly enhance ionic diffusion and reaction kinetics42.

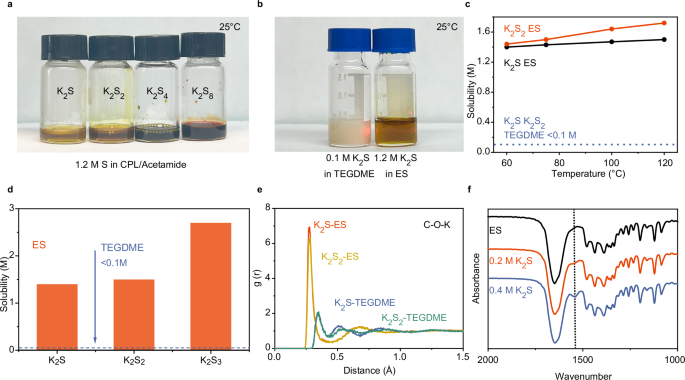

Fig. 2: Solubility tests and dissolution mechanisms of disulfides and sulfides in the CPL/acetamide mixed solvent.
Fig. 2: Solubility tests and dissolution mechanisms of disulfides and sulfides in the CPL/acetamide mixed solvent.
Full size image

a The dissolution behavior of K2Sx (x = 1, 2, 4, 8) in CPL/acetamide at 25 oC. The concentrations of sulfur in all samples are 1.2 M. b Tyndall effect tests for 1.2 M K2S in CPL/acetamide eutectic solvent (ES) and 0.1 M K2S in TEGDME, excluding the possibility of forming colloids in ES. c Solubilities of K2S and K2S2 in ES and TEGDME from 60 oC to 120 oC. d Solubilities of K2S, K2S2, and K2S3 in ES and TEGDME in 75 oC. e Calculated radial distribution function of molecular dynamics (MD) simulations of K2S and K2S2 in ES and TEGDME. The larger peak height in ES indicates stronger bonding between K+ and ES. f Fourier Transform Infrared Spectroscopy (FTIR) spectra of pure ES and 0.2 M/0.4 M K2S in ES. A peak representing K+ – solvent interaction shows up at 1550 cm−1 with an increasing concentration of K2S.

Molecular dynamics (MD) simulations were conducted to better understand the different dissolution behaviors of K2S in CPL/acetamide and TEGDME (Supplementary Fig. 3 and Supplementary Note 3). MD results show that the free energy of K+ and S2- when dissolved in CPL/acetamide is – 5.2 kJ mol−1 compared to the state where these ions are in a vacuum, while in TEGDME, this value is 199.6 kJ mol−1. This clearly indicates that K2S is significantly more soluble in CPL/acetamide than TEGDME. To explore the molecular level origin of this trend, we compared radial distribution functions (RDF) of the dissolved ions around the polar groups in CPL/acetamide and TEGDME. The K-O peak in CPL/acetamide exhibited a much higher first peak compared to that in TEGDME, and the position of the first peak in CPL/acetamide is at a shorter distance (~ 0.27 Å) than in TEGDME (~ 0.36 Å). This indicates that the C = O group in CPL/acetamide has a stronger interaction towards K+ and can attract more K+ ions closer to the O atom in CPL/acetamide than in TEGDME (Fig. 2e), which contributes to the dissolution of K2S.

Such simulation results are also consistent with FTIR results (Fig. 2f). As the concentration of K2S increases, a characteristic peak appeared at 1550 cm−1, next to the C = O bond at 1650 cm−1. This peak arises from the interaction between K+ and the C = O bond43. Furthermore, MD RDF for other ion/polar group pairs also shows stronger interaction in CPL/acetamide than TEGDME (Supplementary Fig. 4).

K-Na/S Batteries with 1 M [S] in CPL/acetamide

To demonstrate that high solubilities of K2S2/K2S in CPL/acetamide can enhance the discharge capacity, we assembled K-Na alloy/K-BASE/polysulfide catholyte coin cells with carbon fiber papers as the cathode current collector. The CPL/acetamide solvent is stable between 1.3 and 3.0 V vs. K+/K-Na (1:1) (Supplementary Fig. 5). The amount of catholyte corresponds to 1.41 mAh cm−2 at 1 M [S], 5.64 mAh cm−2 at 4 M [S] and 11.3 mAh cm−2 at 8 M [S] with the theoretical capacity of sulfur assumed.

On the anode side, 1.25 wt% carbon black (CB) was added to the K-Na alloy (1:1), which reduces the interfacial impedance of K-Na alloy/BASE from ~ 21 ohm without CB to ~ 7 Ω with CB (Supplementary Figs. 6 and 7a). In K-Na/BASE/K-Na symmetric cells, the overpotential reduces from ~ 40 mV without CB to ~ 20 mV with CB at 2.6 mA cm−2 (Fig. 3a), and the critical current density increases from 40 mA cm−2 without CB to 70 mA cm−2 with CB (Supplementary Fig. 7b and Supplementary Note 4).

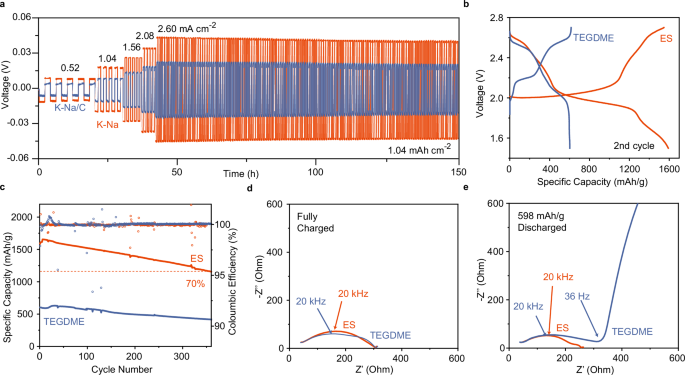

Fig. 3: Electrochemical performance of K-Na/S batteries with 1 M sulfur in catholytes.
Fig. 3: Electrochemical performance of K-Na/S batteries with 1 M sulfur in catholytes.
Full size image

a Cycling of K-Na/BASE/K-Na symmetric cells with carbon black (blue) and without carbon black (orange) at different current densities. b Charge/discharge voltage profiles of 1 M [S] cells in CPL/acetamide eutectic solvent (ES) and TEGDME electrolyte, respectively. The initial composition is Na2S8, with K+ ions passing BASE. c Cycling performance of cells with ES and TEGDME electrolytes at 0.5 mA cm−2. Electrochemical impedance spectroscopy of cells at (d) the fully charged state, and (e) discharged to 598 mAh g−1 sulfur, corresponding to M2S2.8. The range of frequency is 1 MHz – 1 mHz. All tests are done at 75 oC in an oven.

We first test cells with 1 M [S] catholyte where K2S2/K2S are fully soluble. At 0.5 mA cm−2 (0.35 C, 1 C = 1675 mA g−1), the first discharge plateaus (2.1 – 2.7 V) in both CPL/acetamide and TEGDME electrolyte overlap well, reflecting good kinetics of S/S42− in both electrolytes (Fig. 3b). However, a sudden drop was observed in TEGDME at ~ 600 mAh g−1 sulfur, due to formation of solid K2S2/K2S with low diffusivity and poor kinetics. The capacity reaches 630 mAh g−1 in cycle 33, and 567 mAh g−1 in cycle 100, which corresponds to a capacity retention of 90% or 99.84 %/cycle from cycle 33 to 100.

On the other hand, the cell with CPL/acetamide shows high discharge specific capacities of 1591 mAh g−1 sulfur in cycle 2 and 1655 mAh g−1 in cycle 7, which are almost the same as the theoretical value of 1675 mAh g−1 (Fig. 3c). The capacity remains at 1263 mAh g−1 after 300 cycles, corresponding to a capacity retention of 76.3%, or 99.91%/cycle (Fig. 3c). These results obviously reflect that the soluble nature of K2S2/K2S in CPL/acetamide dramatically improves reaction kinetics and thus enhances the discharge capacity.

We further performed electrochemical impedance spectroscopy (EIS) to understand how solubility affects electrochemical performance. At full charge (Fig. 3d), impedances of cells with TEGDME and CPL/acetamide are both low, since the redox of high-order polysulfides is kinetically fast. Moreover, the diffusion tails are both negligible, indicating fast diffusion in the liquid phase. On the other side, at 598 mAh g−1, which corresponds to M2S2.8 and 99.1 % of the full discharge capacity in TEGDME, the cell with TEGDME shows a long diffusion tail with a diffusivity of ~ 8 × 10−16 cm2 s−1, validating poor ionic transport in solid K2S2/K2S. However, the diffusion tail in CPL/acetamide is still negligible (Fig. 3e). Further ionic conductivity measurements indicate that the diffusivity is ~ 3 × 10−7 cm2 s−1 in the liquid phase (Supplementary Note 5).

To verify the absence of solid precipitation in CPL/acetamide, several characterization methods were applied to elucidate the precipitation dynamics. First, ex-situ scanning electron microscope (SEM) images of the cathode at 1.5 V revealed a smooth carbon surface without noticeable solid precipitates in CPL/acetamide (Fig. 4a). Moreover, S and K signals are very weak in Energy Dispersive Spectroscopy (EDS) spectrum, and their ratio corresponds to K2S1.0, proving the full transformation from sulfur to K2S. In contrast, in TEGDME cells, there are plenty of micron-sized particles, and EDS indicates that their compositions are K2S2.8 (Fig. 4b and Supplementary Fig. 8), corresponding to the discharge ending capacity of 562 mAh g−1 (K2S3.0). The same results are also observed by ex-situ Synchrotron-based X-ray Absorption. Near Edge Structure (XANES) mapping of sulfur shows that the intensities of sulfur signals in CPL/acetamide after 1 and 10 cycles are less than 1/10 of those in TEGDME, indicating no or very little solid precipitation (Fig. 4c).

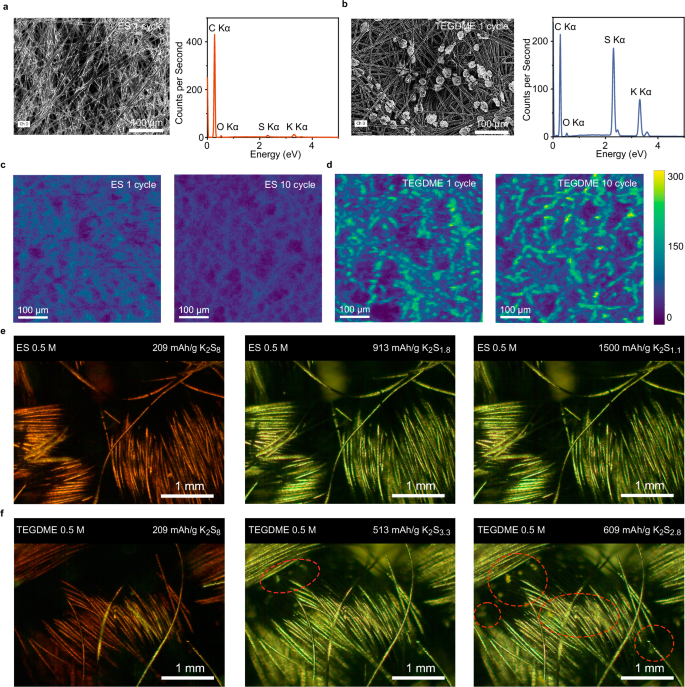

Fig. 4: Observation of K2Sx particles in cathode side of K-Na/S batteries.
Fig. 4: Observation of K2Sx particles in cathode side of K-Na/S batteries.
Full size image

a, b Scanning Electron Microscope (SEM) imaging and Energy Dispersive Spectroscopy (EDS) spectrum results of carbon paper from cells after the first cycle with 1 M [S] CPL/acetamide eutectic solvent (ES) (a) and TEGDME (b). c, d X-ray Absorption Near Edge Structure (XANES) mapping of sulfur element for carbon paper from cells after 1 or 10 cycles with ES (c) and TEGDME (d). e, f Operando optical microscope imaging of catholyte at room temperature in (e), ES where no precipitation is observed even at the end of discharge and (f), TEGDME where precipitation starts to appear in the middle of discharge. Precipitates are marked by red dashed circles. [S] in the catholyte and temperature are 1 M and 75 oC, respectively, for (a–d), and 0.5 M and 25 oC, respectively, in (e) and (f).

Operando optical imaging further supports that there is indeed no solid precipitation with the CPL/acetamide catholyte even at the end of discharge at 25 °C (1500 mAh g−1, Fig. 4e and Supplementary Video 1 and 3). In contrast, in TEGDME, precipitation begin to appear as early as 513 mAh g−1 (K2S3.3, Fig. 4f and Supplementary Video 2), and granular solid precipitates exist everywhere over carbon fibers at the end of discharge (609 mAh g−1, K2S2.8, Fig. 4f and Supplementary Video 4). These imaging results clearly show that high solubility of K2S2 and K2S can avoid solid precipitation and greatly extend the discharge range of sulfur cathode in K-Na/S batteries.

K-Na/S Batteries with 4 M and 8 M [S] in CPL/acetamide

We further test samples with 4 M and 8 M [S] to enhance the energy density of K-Na/S batteries. As [S] is higher than the solubility of K2S2 and K2S, the cathode reaction involves solid formation such as 2S32− (l) + 2e− + 6K+ → 3K2S2 (s) and K2S2 (l) + 2e− + 2 K+ → 2K2S (s), which further contributes to cell capacity in parallel with liquid/liquid transformation among S32−/S22−/S2−.

At 0.5 mA cm−2 (0.09 C), the 4 M [S] cell in CPL/acetamide shows an initial discharge capacity of 913 mAh g−1, which increases gradually to 1106 mAh g−1 at cycle 46 and remains at 1086 mAh g−1 (98.2%) after 100 cycles. Such capacity corresponds to ~ 3.9 mAh cm−2 (Fig. 5 a, b). The average coulombic efficiency (CE) is 100.2% from cycle 1 to 100, indicating no shuttle effect or noticeable side reactions. The gradual capacity increase in CPL/acetamide upon cycling probably comes from better wetting between the catholyte and the carbon substrate, which is supported by decreasing charge transfer resistance upon cycling (Supplementary Fig. 9). In contrast, 4 M [S] in TEGDME only gives an initial discharge capacity of 467 mAh g−1, which remains at 439 mAh g−1 after 100 cycles (94.0 %). The corresponding average CE is 100.1%.

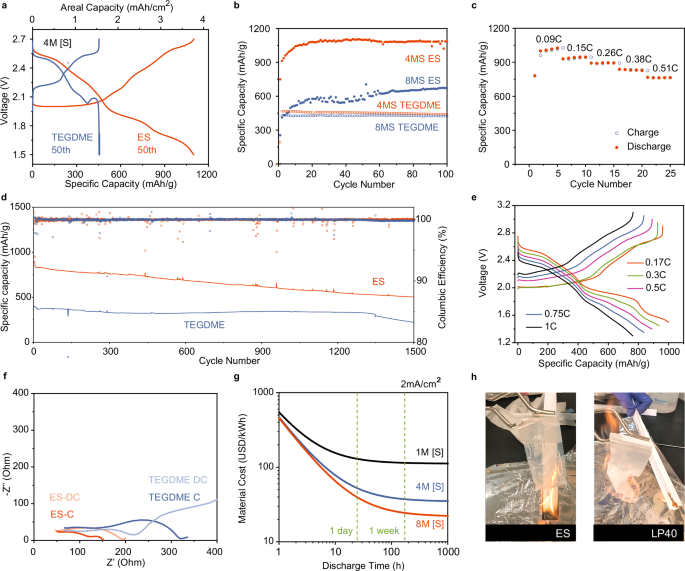

Fig. 5: Electrochemical performance of K-Na/S batteries with 4 M and 8 M sulfur in catholytes.
Fig. 5: Electrochemical performance of K-Na/S batteries with 4 M and 8 M sulfur in catholytes.
Full size image

a Charge/discharge voltage profiles of cells with 4 M sulfur in CPL/acetamide eutectic solvent (ES) and TEGDME catholyte. The current densities are 0.5 mA cm−2 (0.09 C). b Cycling performance of cells with sulfur concentrations of 4 M and 8 M [S] in the cathode. The current densities are 0.5 mA cm−2. c Rate performance of cells with 4 M sulfur in ES electrolyte and TEGDME electrolyte. d Cycling performance of cells with 4 M sulfur in the cathode at 2 mA cm−2. The first 5 cycles are at 0.5 mA cm−2. e Charge/discharge voltage profiles of cells with various C-rates. f Electrochemical impedance spectroscopy of cells with 4 M sulfur in the cathode at the fully charged state (C) and at a discharge capacity of 460 mAh g−1 sulfur (DC). The electrolytes are ES and TEGDME, respectively. g The discharge time dependence of material cost for K-Na/S battery with 1 M [S] /4 M [S] /8 M [S] at 2 mA cm−2. h Eutectic solvent with a separator (ES, left) and conventional Li-ion battery electrolyte with a separator (LP40, right) on fire. Samples with polysulfides inside can be found in Supplementary Video 5. All electrochemical tests for a–f are done in a 75 °C oven.

When [S] further increases to 8 M, the cell in CPL/acetamide shows an initial discharge capacity of 411 mAh g−1, which gradually increases to 672 mAh g−1 after 100 cycles (Fig. 5b). The average CE is 100.5 % from cycle 1 to 100. The increasing capacity is likely a result of improved wetting during cycling since 8 M [S] in ES is viscous. The increasing capacity is probably the reason for CE exceeding 100%, as more and more capacity can be utilized during cycling. On the other hand, 8 M [S] in TEGDME only gives an initial discharge capacity of 432 mAh g−1, which remains at 424 mAh g−1 after 100 cycles.

Such results also echo with impedance data. Again, no significant diffusion tail is observed at full charge due to fast kinetics (Fig. 5f). However, a long diffusion tail is observed at the end of discharge in TEGDME with an estimated diffusivity of 9 × 10−14 cm2 s−1. This higher diffusivity than that number in Fig. 3f may arise from a lower discharge capacity with 4 M sulfur, which corresponds to a higher order of polysulfides. On the other hand, the diffusion tail remains negligible in CPL/acetamide, indicating that even if solid K2S2/K2S is formed in CPL/acetamide, the presence of soluble K2S2/K2S still helps enhance ionic diffusion and discharge capacity significantly.

We further demonstrate long-term cycling at 2 mA cm−2 (0.38 C) in 4 M [S] cells, which corresponds to a discharge time of 1.3 h. The initial discharge capacity is 830 mAh g−1, which remains at 712 mAh g−1 (86%) after 500 cycles, 593 mAh g−1 (71%) after 1000 cycles, and 505 mAh g−1 (61%) after 1500 cycles. The variation in CE comes from environment disturbance, which happens averagely once every ~ 50 cycles (10 days, Supplementary Fig. 10). In contrast, the TEGDME cell only has an initial specific capacity of 378 mAh g−1 at 2 mA cm−2, which remains at 343 mAh g−1 after 1000 cycles. The reason for better retention of TEGDME cells is discussed in Supplementary Note 6. Such superior capacity further confirms that the high solubility of K2S2/K2S in CPL/acetamide helps enhance kinetics and increase energy density even at a concentration of sulfur beyond solubility. The cycling performance of cells with CPL/acetamide is also promising for practical LDES.

The K-Na/S cell with 4 M [S] in CPL/acetamide also shows reasonable power capability. At 0.5 mA cm−2 (0.09 C), the discharge capacity is 1025 mAh g−1, and it remains at 895 and 765 mAh g−1 at 1.5 mA cm−2 (0.26 C) and 2.5 mA cm−2 (0.51 C), respectively (Fig. 5c and e). For comparison, the specific capacities of TEGDME catholyte counterparts are around 430 mAh g−1 between 0.5–2.5 mA cm−2. Impedance data show that the contribution from BASE, K-Na/BASE interface, and cathode are 15 Ω, 19 Ω, and 122 Ω at the end of discharge, respectively (Fig. 5f). This suggests that cathode impedance is the main limiting factor for power capability, which can be further reduced by increasing the surface area of current collector, or surface modifications to enhance wetting between K2S2/K2S and the carbon substrate.

Besides electrochemical performance, we also further perform preliminary experiments to understand the thermal stability of CPL/acetamide electrolytes. Acetamide and CPL have melting points of 80 and 69 °C, respectively, indicating that they both have low vapor pressure compared to common carbonate and ether electrolytes and reasonable thermal stability at 60–120 °C. We also put CPL/acetamide on fire from ignited paper with and without polysulfides inside (Fig. 5h and Supplementary Video 5 and 6), and these liquids did not catch fire in both cases. These results indicate that such electrolytes have reasonable thermal stability and are promising for grid-scale energy storage.

Discussion

We further estimate the cost at the cell level, including all components (electrolytes, BASE, electrode materials, and packaging), and the details can be found in Supplementary Note 744. Based on 2 mA cm−2 and a discharge time of 24 h, the materials costs are $54 and $41 kWh−1 for 4 and 8 M sulfur, respectively. When the discharge time increases to one week, the cell-level materials costs are further reduced to $39 and $26 kWh−1 for 4 and 8 M sulfur, respectively (Fig. 5g). With a higher current density of 5 mA cm−2, the material cost can be further reduced by 3–8% (Supplementary Fig. 11). Such low costs are attributed to inexpensive active materials45.

In addition, manufacturing costs should also be considered. Although this is difficult to evaluate, it is likely to be on pair with or less than Li-ion batteries46. This is because no slurry coating or drying is needed for alkaline metal sulfur batteries, which count for the majority part of manufacturing cost in Li-ion batteries47. On the other hand, Na and K need to be handled in an air-free environment.

Beside K-Na/S batteries, the same design principle can also be applied to Na/S batteries as Na2S and Na2S2 also have solubilities of 1.85 M and 2.80 M in CPL/acetamide at 75 °C, respectively. We also see a high discharge capacity of 940 mAh/g in the first cycle (Supplementary Fig. 12). The cycling performance needs to be improved due to poor interfaces between Na metal and BASE at 75 °C. We will report this in the future.

In summary, we developed a new acetamide/CPL-based eutectic solvent electrolyte with high solubilities over 1 M for all polysulfides and sulfide (K2Sx, x = 1–8) between 60 and 120 °C. Such high solubilities remarkably enhance ionic diffusion and reaction kinetics of K2S2 and K2S, leading to AMS batteries with high energy density and low cost. Experimentally, a nearly theoretical discharge capacity of 1655 mAh g−1 is achieved with 1 M sulfur in the catholyte at 75 oC, 2.6 times that with conventional TEGDME electrolytes. When the sulfur concentration further increases to 4 M, a high capacity of 830 mAh g−1 is still delivered with 71 % capacity retention after 1000 cycles at 2 mA cm−2 and 75 oC. Further energy density and economic analysis show that this new design has the potential to achieve a specific energy of 150–250 Wh kg−1 at the cell level, and materials cost as low as ~$30 kWh−1 under weekly operation. Such performances are promising for long-duration energy storage.

Methods

Materials preparation

All chemicals were of analytical grade purity. For the CPL/acetamide mixture, one mole each of ε-caprolactam (CPL, 99% purity, Sigma Aldrich) and acetamide (99% purity, Sigma Aldrich) were dried at 50 °C within an argon-filled glovebox overnight prior to use. Subsequently, the two compounds were mixed and stirred at 50 °C for 30 min. Then, it was rested in a vacuum oven at 60 °C overnight to eliminate any trapped gas.

To form a catholyte, 0.125 M/0.5 M/1 M of anhydrous Na2S (98%, Sigma Aldrich), 0.5 M potassium bis(trifluoromethanesulfonyl)imide (KTFSI, 97%, Sigma Aldrich), and 1.25 wt% (of solvent) Super C65 carbon black were mixed with CPL/acetamide and stirred at 80 °C until a homogeneous mixture was formed. Then a suitable amount of sulfur was added and stirred at 80 °C to form CPL/acetamide-based catholyte with different concentrations of [S]. TEGDME catholytes were prepared by the same procedure except that TEGDME was used instead of CPL/acetamide.

For the K-Na alloy anode, 0.01 mol potassium (98%, Sigma Aldrich) was mixed with 0.01 mol sodium (99.8%, Sigma Aldrich) in an aluminum container in an argon-filled glovebox. The liquid alloy was then combined with 1.25 wt% C65 carbon black, followed by stirring for 20 min.

Solubility test

The solubility of K2Sx in electrolytes was evaluated using the following procedure: First, K2S (Thermal Fisher Scientific) was mixed with sulfur with a 1:x molar ratio in a glass vial containing 500 µL of solvent. The mixture was then stirred on a hot plate set to a specific temperature. If the solution became clear, then additional K2S and sulfur would be added in the 1:x molar ratio. Otherwise, an additional amount of solvent was added. This process was repeated until the following conditions were met: first, a certain concentration, C0, of K2Sx was found to be soluble, as defined by the absence of solid in the vial after at least 2 h of sedimentation; second, C0 + 0.05 M was not soluble, as indicated by the presence of solid precipitates after 2 hours. Once these conditions were satisfied, the solubility of K2S2 at the given temperature was considered to be C0.

Cell assembly

CR2032 coin cells were used for cell assembly. Potassium-β″-alumina (K-BASE) with 1 mm thickness was purchased from Ionotec Inc. and cut into disks with 15 mm diameter. For Na-K symmetric cells, stainless steel foil was cut into round disks to fit the size of O rings. Then a thin layer of K-Na alloy with carbon black was coated on it. The components were then stacked in the following order: Anode case, 0.2 mm SAE-316L stainless steel spacer, wave disk spring, stainless steel foil, PTFE O-ring, K-BASE disk, PTFE O-ring, stainless steel foil, wave disk spring, 0.2 mm stainless steel spacer and cathode case. Finally, the assembled cell was compressed at 800 psi using a hydraulic press.

For K-Na/BASE/S full cells, carbon paper (Fuel Cell Earth) was cut into round disks to fit the size of the O-rings. During the assembly process, 26.7 μL cm−2 of catholyte was dispensed onto two layers of carbon paper. The components were then stacked in the same order as the K-Na symmetric cell, except that one K-Na electrode was replaced by catholyte-soaked carbon paper. The corresponding configuration is shown in Supplementary Fig. 13.

Electrochemical measurement

Galvanostatic cycling electrochemistry measurement was performed on Landt battery tester CT3002A. Electrochemical impedance spectroscopy test (EIS) was performed on Bio-logic VMP3, with frequency ranged from 0.01 Hz to 1 MHz and voltage amplitude of 10 mV. All cells were kept at 75 oC in convection drying ovens (MTI Corp.).

Molecular dynamics simulation

To assist in validating the experimental data we utilized Molecular Dynamics (MD) simulation to calculate relative free energy of different solutes (e.g., K2S & K2S2) in the key solvents (e.g., CPL/acetamide solvent & TEGDME) and to examine the radial distribution function (RDF) for key atoms. Using the Maginn Force Field Archive (MAFFA)48 we assigned the Generalized Amber Force Field (GAFF) parameters for each molecule and generated atomic charges using the Restrained Electrostatic Potential (RESP) method48. We then created an equidistant box with significantly more solvent molecules than the analyte. We then began an MD simulation using the Groningen Machine for Chemical Simulations (GROMACS) package49.

In GROMACS, we set up a series of simulations that slowly add interaction between the solute and solvent using a coupling factor, λ. We started with a separated system with no interaction (λ = 0) and eventually reached a fully interacting environment (λ = 1). Once this simulation series was complete, we would have the available data to calculate the relative free energy difference and RDF for key atoms in the solution. Using a type of program called alchemical analysis we calculated Thermodynamic Integration (TI) and Multistate Bennett Acceptance Ratio (MBAR) values50,51. Similarly, we ran a GROMACS code to produce RDF values. More details can be found in Supplementary Note 3.

Scanning electron,microscope (SEM) imaging and energy dispersive spectroscopy (EDS) element mapping

K-Na/S coin cells containing 0.125 M K2S8 (1 M sulfur) in either CPL/acetamide or TEGDME solvent were assembled and cycled in a 75 °C oven. K2S8 catholyte was formed by mixing K2S (Thermal Fisher Scientific) and S (Sigma Aldrich) with the stoichiometric ratio in either CPL/acetamide or TEGDME and stirred at a 75 °C heat plate overnight. KTFSI and carbon black were not added to the catholyte. After the cycling process, the cell was dissembled to retrieve carbon paper in the cathode side for characterization. For TEGDME cells, the carbon paper was washed in the sequence of TEGDME and acetone and then dried inside the glovebox. For CPL/acetamide cells, Kimwipe paper was used to absorb the remaining liquid. The sample was sealed in an aluminum pouch during transportation to the facility. The SEM imaging with EDS mapping was done by Zeiss Sigma VP SEM with a voltage of 15 eV.

X-ray Absorption near edge structure (XANES) element mapping

K-Na/S coin cells containing 0.125 M K2S8 (1 M sulfur) in either CPL/acetamide or TEGDME solvent were assembled and cycled in a 75 °C oven. KTFSI and carbon black was not added to the catholyte. After cycling process, the cell was dissembled to retrieve carbon paper in the cathode side for characterization. The sample was sealed in aluminum pouch during transportation to the facility.

The XANES mapping was done in Brookhaven National Lab (BNL) with the 8-BM technique. 200 pixels * 200 pixels 2D scanning was done and the data was then analyzed and turned into 2D image by PyXRF software.

Operando optical microscopy and Fourier transform infrared (FTIR) spectroscopy

K-Na/S coin cells containing 0.0625 M K2S8 (0.5 M sulfur) in either CPL/acetamide or TEGDME solvent were assembled. O-shaped cathode cases (MTI Corp.) were employed to allow light transmission. For the cathode side, Kapton tape O-rings (Digikey) were used to replace PTFE O-rings. The cell images and videos were captured using NMM800TR metallurgical microscope in dark field and reflective modes. The discharge process for the cells was conducted by Bio-logic SP-5.

A Nicolet iS 5 FTIR Spectrometer was used to conduct FTIR experiments. The scanning range was from 400 to 4000 cm−1, and the spectrum resolution was 4 cm−1.
