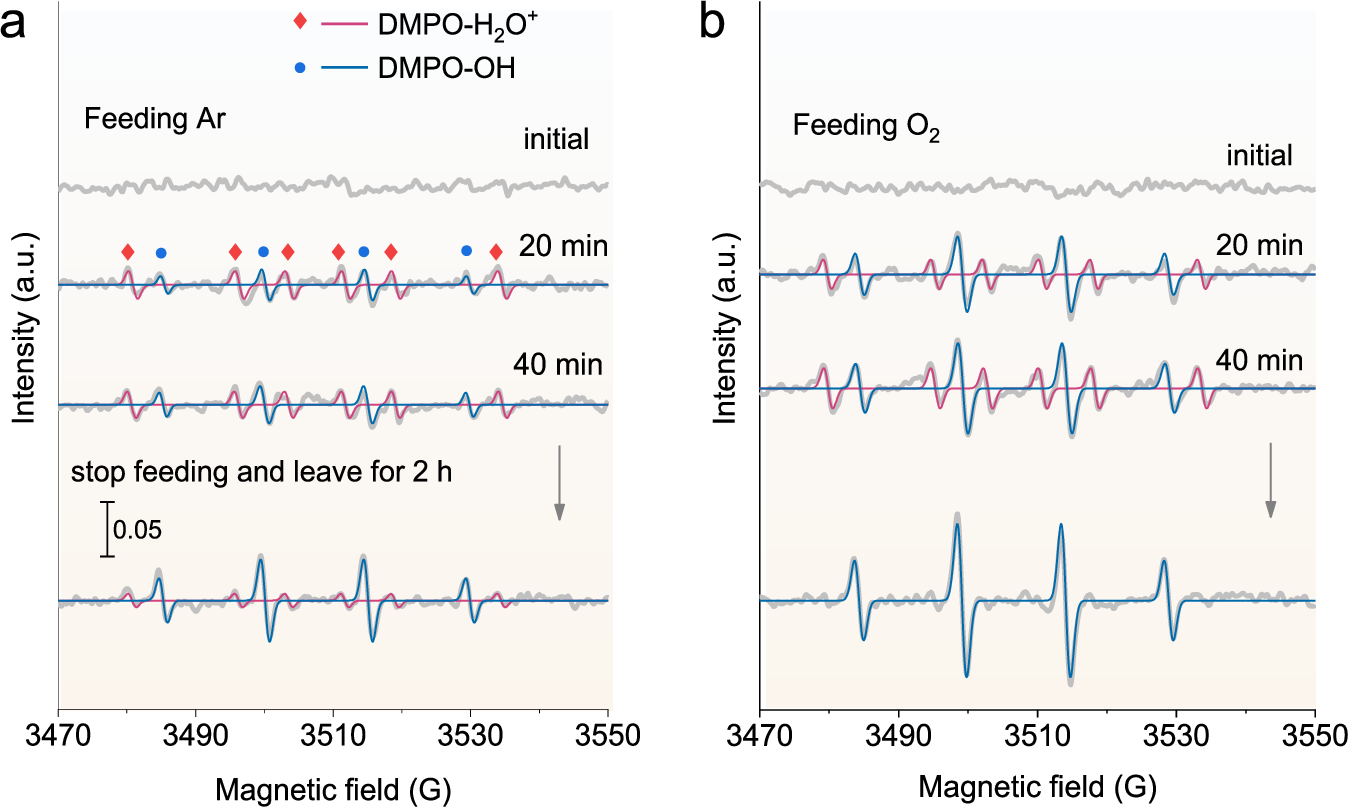

Fig. 3: EPR spectra of DMPO-H2O+ and DMPO-OH.
From: Spontaneous formation of reactive redox radical species at the interface of gas diffusion electrode
a Ar and b O2 feeds through a Janus hydrophobic/hydrophilic porous carbon substrate. After 40 min of operation, the gas feed was stopped and left for 2 h.
