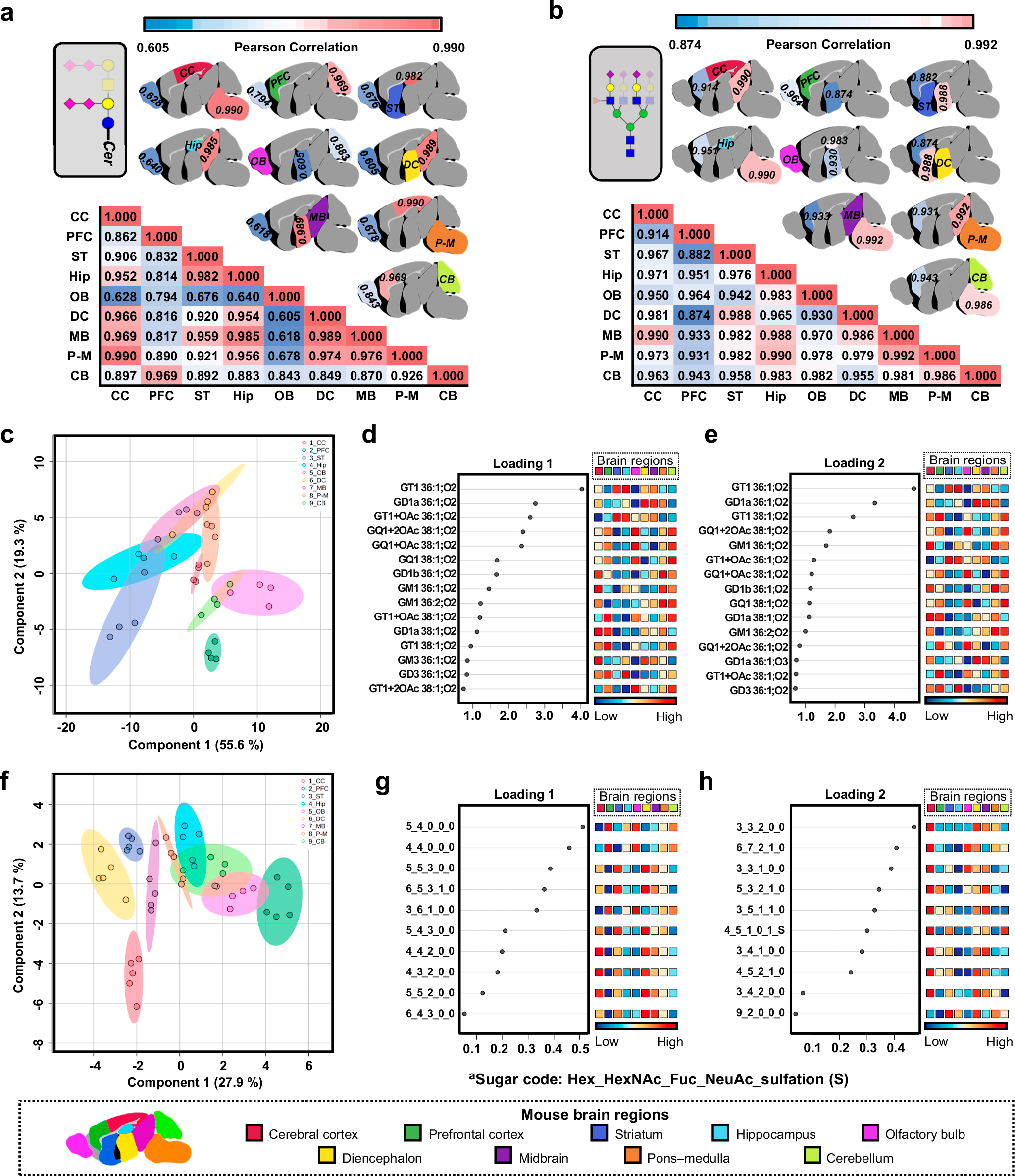

Fig. 6: Glyco-centric omics approach.
From: Deciphering mouse brain spatial diversity via glyco-lipidomic mapping
a, b Two-sided Pearson correlation analyses using NAPI values of statistically significant gangliosides (a) and N-glycans (b) across samples from 9 mouse brain regions (p < 0.001, two-sided one-way ANOVA). The brain regions with the highest and lowest correlations for each of the 9 brain areas are indicated by their corresponding heatmap colors on the brain illustration. c PLS-DA score plots of mouse brain samples by gangliosides across nine brain regions. d, e Gangliosides according to loading 1 (d) and loading 2 (e) values in the PLS-DA. f sPLS-DA score plots of mouse brain samples by N-glycans across nine brain regions. g, h N-glycan species according to loading 1 (g) and loading 2 (h) values in the sPLS-DA. Source data are provided as a Source Data file.
