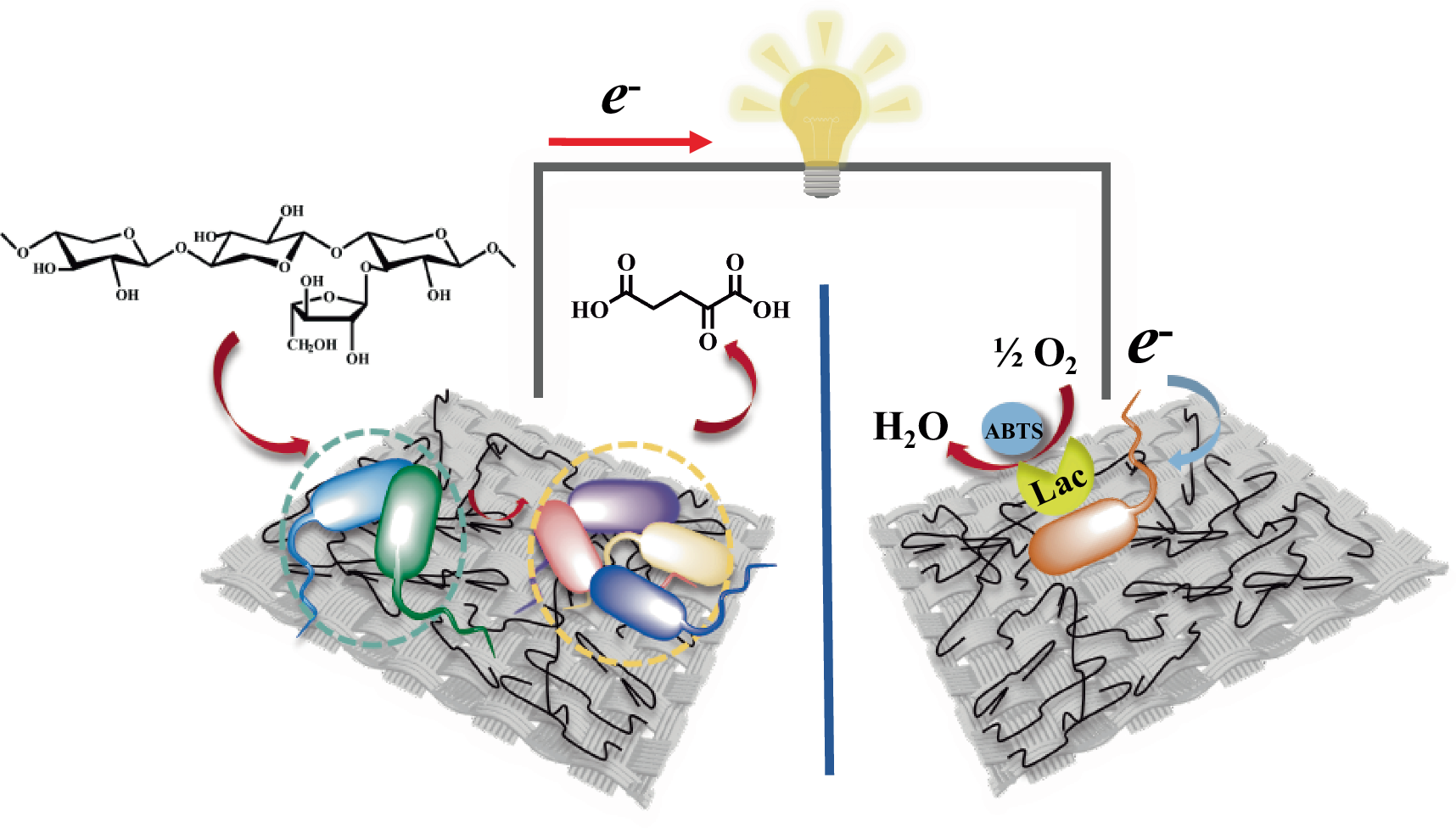

Fig. 3: Schematic drawing of electron transfer route and catalytic reactions in the proposed two-compartment xylan/O2 MFC.
The system was composed of the enzyme-engineered bacterial consortia-based bioanode and E. coli-Lac-based biocathode.
