Introduction

The significance of drinking water security for sustaining civilization and maintaining human health cannot be overstated, given that 3.6 billion people worldwide currently face a shortage of safe drinking water, with this likely expanding to 5.7 billion by 20501,2. Chlorination, UV irradiation, and ozonation are common water disinfection techniques used in industry3,4. However, these techniques suffer from either carcinogenic residues (e.g., toxic trihalomethanes, haloacetic acids, and bromate from chlorination) or low processing efficiency (e.g., UV and ozonation)5. Therefore, there is an urgent need to explore residue-free and highly efficient techniques for industrial use in drinking water disinfection.

Hydrogen peroxide (H2O2) and other reactive oxygen species (ROS)6 are commonly used as residue-free and broad-spectrum disinfectants due to their strong oxidative ability, which leads to green disinfection by the formation of oxygen and water7,8. Although the direct use of preformed H2O2 is a straightforward approach for water disinfection, it requires storage and transportation at the point of use and the use of stabilizers to prevent H2O2 degradation, with the side effect being lowering the antimicrobial efficacy of H2O29,10. Thus, this method is inconvenient and inefficient. Alternatively, the catalytic in situ production of ROS by electrochemical or photochemical systems can overcome the drawbacks of preformed H2O2, with the electrocatalytic route being more advantageous than the photocatalytic one considering the poor penetration of light in water11 and relatively slow photocatalytic kinetics12. For instance, Kim’s group developed a series of self-powered (i.e., supercoiling-mediated rotational triboelectric nanogenerator) ROS-assisted electroporation disinfection systems with both nanowire-enhanced localized electric field and oxidative species to terminate the microbes and achieved high disinfection performance without additional energy input or disinfection byproducts13,14. However, current ROS-directed water disinfection techniques are limited by low disinfection efficiency, largely due to the spread of generated ROS into the bulk water stream6. Moreover, the requirements of such techniques in terms of the ultrahigh production of ROS and the ultrafast diffusion of ROS into bulk water streams made their practical application impossible9. This dilemma has raised two questions: What are the criteria for an ideal water disinfection technique? How can an excellent disinfection technique be designed? Deciphering the water disinfection process reveals six standards for an ideal technique: safe operation, no health risks, high efficiency, low cost, good durability, and adaptable decentralized application for underdeveloped regions. Developing a technique that meets several of these criteria is quite challenging, let alone fulfilling all of them simultaneously.

Regarding the design of an optimal water disinfection system, our hypothesis was that using an electrocatalytic ROS-directed water disinfection system with specific features would help us achieve this goal. We identified three essential features that the electrode material must possess: (i) efficient capture of microbes from the water stream using electrostatic interactions or other driving forces15,16,17,18,19, ensuring that ROS and microbes encounter each other for efficient disinfection and avoiding the low disinfection efficiency caused by ROS diffusion; (ii) in situ production of ROS by the electrode material without damaging its catalytic activity or inherent antimicrobial properties, leading to the ultrahigh antimicrobial efficacy achieved by the high localized concentration of ROS and antimicrobial electrode materials; and (iii) avoidance of high-cost metals such as Au and Pd to keep the system affordable. Therefore, the key to realizing this optimal water disinfection method lies in the rational design of a multifunctional material that can fulfil the abovementioned criteria. Progress in the development of ultrasmall metal nanoclusters (NCs, <2 nm) presents an opportunity to design desirable electrode materials20. Metal NCs are novel functional nanomaterials with unique physicochemical properties, including atomically precise structures, tailorable surface chemistry, and molecule-like features such as strong luminescence, chirality, and HOMO–LUMO transitions21,22,23,24,25,26,27,28,29. For instance, precise Ag NCs can be used both as a model electrode material for the catalytic production of ROS for microbial killing and as intrinsic antimicrobial agents20,30. Configuring Ag NC-based electrode materials into an electrosorption device could ensure fast microbe capture for efficient water disinfection.

Herein, we present a capacitive-charging induced electrochemical water disinfection (CEWD) system that uses atomically precise Ag28(GSH)20 NCs as electrode materials (GSH denotes glutathione). These NCs are locked within the metal–organic framework (MOF) ZIF-67. This configuration not only improves the stability of Ag28(GSH)20 NCs but also provides sufficient electrosorption sites, which ensures high-efficiency dual-mode microbial killing through the in situ electrocatalytic production of ROS and the inherent antimicrobial activity of Ag28(GSH)20 NCs. In addition, the system design enables efficient capture of microbes in the bulk water stream onto the surface of the anode material, creating highly localized concentrations of ROS and microbes, as well as additional contact with antimicrobial electrodes for microbe killing. The system is broadly effective (>99.99% antimicrobial rate), ultrastable (an efficiency reduction of only 0.75% over 40 cycles), durable (99.90% bacterial killing efficiency for over 5 h of continuous operation), versatile (i.e., other NCs can be used), scalable (productivity of 213.33 L h m−2), energy efficient (energy consumption of 1.04 Wh m−3), and practicable. This work may provide a paradigm for the design of ROS-directed water disinfection systems featuring the electrocatalytic in situ formation of residue-free ROS with concurrent microbe capture through capacitive charging, which may promote the translation of this water disinfection technique in the water industry.

Results

Material characterizations

In this study, ultrasmall Ag28(GSH)20 NCs were selected as the electrocatalyst model and were further locked inside the framework of ZIF-67 for enhanced catalytic durability (denoted Ag NCs@ZIF-67). Afterwards, Ag NCs@ZIF-67 was assembled as the CEWD anode for highly efficient water disinfection based on the combined actions of the in situ production of residue-free ROS and concurrent microbe capture (Fig. 1).

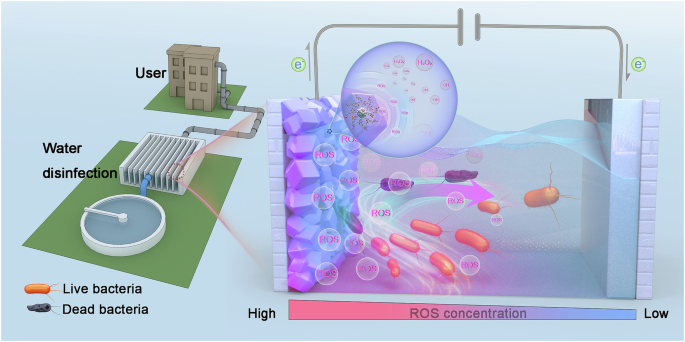

Fig. 1: Schematic illustrations of CEWD.
figure 1

Schematic illustration of the application scenario and the working principle of CEWD for bacterial killing.

Full size image

Ag NCs@ZIF-67 synthesized via a two-step procedure (Fig. 2a). Specifically, Ag28(GSH)20 NCs were first prepared by a conventional NaBH4 reduction method31 and subsequently immobilized inside ZIF-67 via “coordination-assisted self-assembly”32. As the active component of Ag NCs@ZIF-67, Ag28(GSH)20 NCs were first characterized by UV-visible absorption spectrometry (UV-vis), electrospray ionization mass spectrometry (ESI-MS), and transmission electron microscopy (TEM). The UV-vis spectrum shows a dominant peak at 485 nm (Fig. 2b), indicating the formation of ultrasmall Ag NCs with molecule-like optical absorption. ESI-MS demonstrates peaks at m/z = 1305, 1527, 1834, and 2292, which correspond to the 7, 6, 5, and 4 charges of Ag28(GSH)20 NCs, respectively (Fig. 2c and Supplementary Fig. 1). The TEM image confirms the presence of ultrasmall Ag NCs with a core size of ~1.1 nm without the presence of large Ag nanoparticles (Fig. 2d).

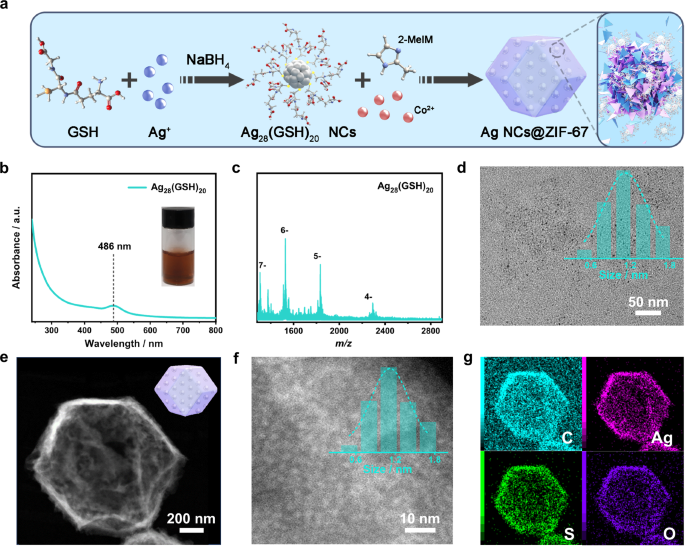

Fig. 2: Structural characterizations of the Ag28(GSH)20 NCs and Ag NCs@ZIF-67.
figure 2

a Schematic illustration of the synthesis of Ag NCs@ZIF-67, b UV-vis absorption spectrum, c ESI-MS results, and d TEM image of Ag28(GSH)20 NCs; e–f HAADF-STEM images and g elemental maps (i.e. C, Ag, S, and O) of Ag NCs@ZIF-67. The insets in b,  d, and  f are digital photographs of Ag28(GSH)20 NC solutions under visible light, the particle size distribution of Ag28(GSH)20 NCs, and the particle size distribution of Ag28(GSH)20 NCs within ZIF-67, respectively.

Full size image

Ag28(GSH)20 NCs were accommodated inside ZIF-67 to create Ag NCs@ZIF-67 (Fig. 2e). To highlight the advantages of the Ag NCs@ZIF-67 configuration, ZIF-67@Ag NCs was also prepared as a reference by in situ formation of Ag NCs on the surface of preformed ZIF-67 (Supplementary Fig. 2a). The size, morphology, and elemental distributions of both hybrids were examined using high-angle annular dark-field scanning transmission electron microscopy (HAADF-STEM) and TEM (Fig. 2e–g and Supplementary Fig. 2b–d). Figure 2e, f shows that in Ag NCs@ZIF-67, Ag28(GSH)20 NCs are uniformly embedded inside the ZIF-67 matrix without any change in size (inset of Fig. 2f), which was further supported by the X-ray diffraction (XRD) results (see Supplementary Fig. 3 and Supplementary Note I). This structure exhibits the catalytic activity of the Ag28(GSH)20 NCs, as ZIF-67 prevents aggregation and reinforces the structure with space confinement. In comparison, the morphology and size of the ZIF-67@Ag NCs (Supplementary Fig. 2b, c) are similar to those of the Ag NCs@ZIF-67.

Furthermore, the elemental maps of both Ag NCs@ZIF-67 and ZIF-67@Ag NCs confirm the uniform distribution of Ag and S throughout ZIF-67 (Fig. 2g and Supplementary Fig. 2d). Both hybrids have comparable loading amounts of Ag NCs, 2.90 wt% for Ag NCs@ZIF-67 and 2.87 wt% for ZIF-67@Ag NCs, as determined by inductively coupled plasma-mass spectrometry (ICP-MS). In addition, the oxidation states of Ag species in the Ag NCs and the Co species in the Ag NCs@ZIF-67 were also investigated by X-ray photoelectron spectroscopy (XPS, see Supplementary Figs. 4–6 and Supplementary Note I).

Disinfection evaluations

To assess the water disinfection efficiency, Ag NCs@ZIF-67 was assembled into a CEWD system as the anode (Fig. 3a) with surface-loaded ZIF-67@Ag NCs (right item on the right side of Fig. 3a) for comparison purposes. The CEWD system had an asymmetrical cell architecture and utilized activated carbon (AC) as the cathode. The configuration and parameters for the CEWD system are shown in Supplementary Fig. 7 and Supplementary Table 1. Before commencing the water disinfection experiments, we optimized the loading amount of Ag28(GSH)20 NCs inside Ag NCs@ZIF-67 to 2.90 wt% and the operating voltage of the CEWD system to 1.4 V for experimentation, as shown in Supplementary Figs. 8–15. The model solution consisting of three typical microbes found in natural water sources, namely, gram-negative E. coli (abbreviated as Escherichia coli), gram-positive B. subtilis (abbreviated as Bacillus subtilis), and the fungus C. albicans (abbreviated as Candida albicans), was pumped into the CEWD system through single-pass mode. As shown in Fig. 3b–d, Supplementary Fig. 11, and Supplementary Figs. 16–20, the Ag NCs@ZIF-67-based CEWD system displayed ultrahigh antimicrobial activity against all three microbes, with kill percentages of 99.99–99.9999% against E. coli, 99.90–99.999% against B. subtilis, and 99.90–99.999% against C. albicans, respectively. These antimicrobial activities were 1.86–2.2 orders of magnitude (based on log reduction) increment than that of the ZIF-67@Ag NCs-based CEWD system (i.e., 99.80–99.96% against E. coli, 99.60–99.80% against B. subtilis, and 99.50–99.80% against C. albicans), highlighting the unique ability of Ag28(GSH)20 NCs within ZIF-67 to enhance antimicrobial efficiency.

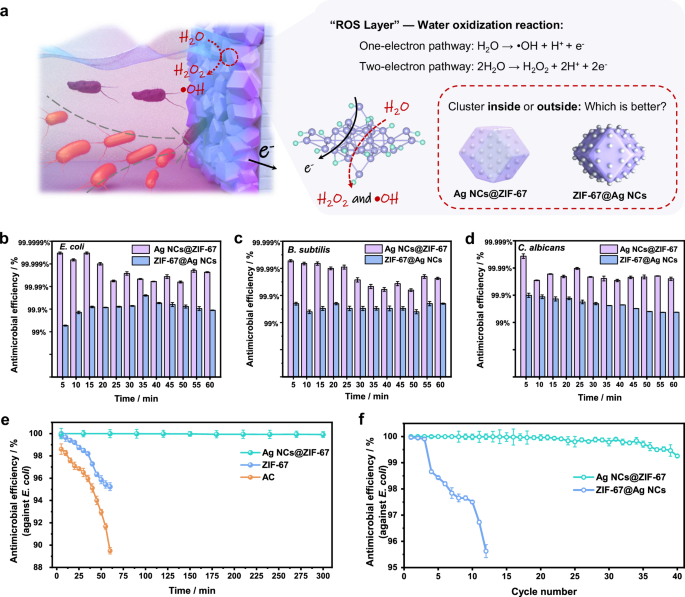

Fig. 3: Disinfection evaluations of the Ag NCs@ZIF-67 and ZIF-67@Ag NCs-based CEWD systems.
figure 3

a Schematic illustration of the anode interface of the CEWD system for the electrocatalytic production of ROS for microbe killing and its key electrode components (Ag NCs@ZIF-67 and ZIF-67@Ag NCs); kill percentage against b E. coli, c B. subtilis, and d C. albicans achieved with Ag NCs@ZIF-67 and ZIF-67@Ag NCs-based CEWD during the first 60 min; e durability test performed on the AC, ZIF-67, and Ag NCs@ZIF-67-based CEWD systems against E. coli for 5 h; f long-term cyclic stability evaluation performed on the Ag NCs@ZIF-67 and ZIF-67@Ag NCs-based CEWD systems. Note: The feeding concentrations of E. coli, B. subtilis, and C. albicans were set to 106 CFU mL−1.**Error bars = s.d. (n = 3).

Full size image

Interestingly, we observed a significantly greater killing efficiency against E. coli than against B. subtilis and C. albicans, which should be due to the thinner cell membrane (see Supplementary Table 2), as well as the enhanced driving force for E. coli capture in the electric field due to its having a more negative ζ-potential than did its counterparts (E. coli: −55.9 mV; B. subtilis: −39.4 mV; and C. albicans: −35.6 mV, 106 CFU mL−1; Supplementary Table 3). The detailed antimicrobial mechanisms are discussed later. Nevertheless, only a trace amount of Ag ions was detected in the effluent (3.350 μg L−1, Supplementary Table 4), an amount that is much lower than the guideline value (100 μg L−1) for drinking water reported by the World Health Organization (WHO). In contrast, a higher concentration of released Ag ions (20.650 μg L−1, Supplementary Table 4) was detected in the effluent of the CEWD system equipped with surface-loaded ZIF-67@Ag NCs than in that of the Ag NCs@ZIF-67. These results demonstrate that our strategy of embedding Ag28(GSH)20 NCs inside ZIF-67 can effectively protect Ag28(GSH)20 NCs from decomposition and prevent secondary water pollution without releasing Ag species into water.

Durability, cycling stability, and water safety are among the most important factors affecting the practical application of any water disinfection technique. Therefore, long-term (over 5 h) and multicycle (40 cycles) disinfection experiments were conducted (Fig. 3e–f and Supplementary Figs. 21–26). As shown in Fig. 3e, killing efficiency against E. coli of over 99.90% remains even after 5 h of continuous operation without any regeneration for our CEWD system, while the disinfection efficiency of the AC- and ZIF-67-based systems rapidly decreased to below 90% within 60 min. These results show the superior durability of the Ag NCs@ZIF-67-based CEWD system and its potential for continuous water disinfection in practical applications. Moreover, this outcome contradicts the “adsorption and termination” mechanism of conventional capacitive disinfection since the electrosorption equilibrium state should have long been reached (as seen in the AC-based system in Fig. 3e) and indicates that other dynamic processes must occur to trigger this ultradurable disinfection process, which is discussed in detail in the following section. Regarding cycling stability, only a 0.75% reduction (still greater than 99.90%) is found in the antimicrobial ratio for the Ag NCs@ZIF-67-based CEWD system after 40 disinfection/regeneration cycles (Fig. 3f and Supplementary Figs. 25–26), revealing its excellent cycling stability; however, the disinfection efficiency against E. coli with the ZIF-67@Ag NCs electrode rapidly decreases to below 99% within the first 5 cycles. This result was further supported by post-disinfection characterization using STEM, and ICP-MS. As shown, the structure of Ag NCs@ZIF-67 was well maintained after 40 disinfection/regeneration cycles (Supplementary Fig. 27), and the Ag content in Ag NCs@ZIF-67 barely changed according to the ICP-MS results (Supplementary Table 5), demonstrating the excellent structural stability of Ag NCs@ZIF-67. Moreover, the Ag content in the ZIF-67@Ag NCs decreased from 2.87% to 1.61% (Supplementary Table 5), and few Ag NCs were observed in the HAADF-STEM images of the ZIF-67@Ag NCs after cycling (Supplementary Fig. 28). These distinct differences demonstrate the effectiveness of encapsulating Ag28(GSH)20 NCs within ZIF-67 in improving their structural stability and ensuring their durability and cycling stability. Furthermore, the Ag NCs@ZIF-67-based CEWD system was confirmed to have excellent biocompatibility through the LIVE/DEAD viability assay and cell proliferation kit (MTT) test (Supplementary Figs. 29 and 30 and Supplementary Note II). This validation highlights the exceptional ability of these systems to ensure water safety.

Antimicrobial mechanism

The excellent water disinfection performance of the Ag NCs@ZIF-67-based CEWD system calls for further investigation of its antimicrobial mechanism. As depicted in Fig. 4a, the antimicrobial mechanism can be elaborated upon in three aspects. First, the Ag28(GSH)20 NCs in the electrode of the CEWD system first electrocatalytically generate abundant ROS in situ (see illustration in the upper right part of Fig. 3a)33,34,35,36, forming a ROS layer for microbial killing (upper left part of Fig. 4a). These ROS are highly toxic to microbes, such as bacteria and fungi, triggering their effective elimination. The experimental findings demonstrated that these ROS were mainly produced at the anode of the CEWD system (Fig. 4b, Supplementary Figs. 31–34, and Supplementary Note III), with the majority being H2O2 (244.83 μM) and a minority being hydroxyl radicals (•OH, 3.39 µM). Although less •OH was produced than H2O2, •OH is known to possess 108 times greater antimicrobial activity than H2O2 and plays a crucial role in killing bacteria and fungi9,37. Consequently, the CEWD system, with its •OH production, exhibits superior antimicrobial capabilities compared to conventional catalytic H2O2 production-based systems.

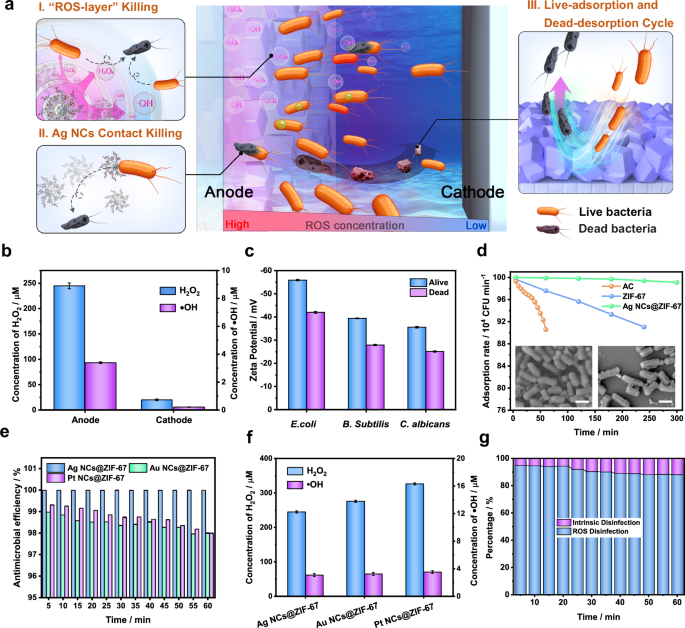

Fig. 4: Antimicrobial mechanism explorations of the Ag NCs@ZIF-67-based CEWD system.
figure 4

a Schematic illustration of the water disinfection mechanism of the Ag NCs@ZIF-67-based CEWD system: (I) in situ production of ROS for microbial killing, (II) microbial killing by the Ag28(GSH)20 NCs with inherent antimicrobial activity, and (III) smart alive microbe capture–killing–dead microbe desorption circulation; b comparison of ROS (H2O2 and •OH) generation at the cathode and anode of the Ag NCs@ZIF-67-based CEWD system; c ζ-potentials of live and dead E. coli, B. subtilis, and C. albicans; d time-course bacteria adsorption rate of the Ag NCs@ZIF-67, ZIF-67, and AC-based CEWD systems; e disinfection efficiency and f ROS (H2O2 and •OH) production of Ag NCs@ZIF-67, Au NCs@ZIF-67, and Pt NCs@ZIF-67-based CEWD systems with a feeding E. coli concentration of 106 CFU min−1; g contribution analysis of the intrinsic disinfection of Ag NCs and ROS disinfection of the Ag NCs@ZIF-67-based CEWD system. Error bars = s.d. (n = 3). The insets in Fig. 4d are the SEM images of live (left, scale bar: 100 nm) and dead (right, scale bar: 100 nm) E. coli.

Full size image

Second, the CEWD system, as shown in Fig. 4a (lower left part), employs Ag28(GSH)20 NCs with inherent antimicrobial activity to enhance its antimicrobial activity on the anode surface. However, relying solely on in situ-generated ROS and the inherent antimicrobial property of Ag28(GSH)20 NCs is not sufficient for efficient water disinfection. This is because ROS are not easily accessible to microbes in the bulk stream, and the encapsulated Ag28(GSH)20 NCs cannot reach microbes in the bulk stream. Consequently, the diffusion of ROS from the electrode surface into the bulk stream for microbial killing is hampered by the sharp decrease in the ROS concentration gradient and the susceptibility of ROS to decomposition during the diffusion process. Fortunately, the CEWD system overcomes these challenges by utilizing electrostatic attraction to capture negatively charged microbes from the bulk stream onto the anode surface (right part of Fig. 4a). This strategy creates high local concentrations of both ROS and microbes near the anode surface, maximizing the antimicrobial efficiency of the in situ-produced ROS and Ag28(GSH)20 NCs on the anode surface of the CEWD system.

To confirm the microbial capture ability of the CEWD electrode materials, we tested the ζ-potentials of bacteria and fungi. Both bacteria and fungi had negative charges, with values of −55.9 mV for E. coli, −39.4 mV for B. subtilis, and −35.6 mV for C. albicans (Fig. 4c and Supplementary Table 3). The negative charge of the microbes facilitates the use of charge attraction in the CEWD system for microbial enrichment. Moreover, when microbes are effectively killed on the surface of the anode, their ζ-potentials change accordingly. In particular, the negative charges of dead microbes are significantly reduced (−42.0 mV for E. coli, −27.9 mV for B. subtilis, and −25.1 mV for C. albicans), which facilitates their detachment from the anode surface. A detailed discussion of the cyclic “alive microbe capture–killing–dead microbe desorption” mechanism on the electrode is presented in Supplementary Note IV (Supplementary Figs. 35–37). Furthermore, we examined the electrosorption behaviour of microbes on the electrode surface. As depicted in Fig. 4d, the Ag NCs@ZIF-67-based CEWD system demonstrated a high bacterial adsorption rate, reaching as high as 1 × 106 CFU min−1 (the detailed calculation method can be found in Supplementary Fig. 38 and Supplementary Note V). The absorption rate remained steady at 9.91 × 105 CFU min−1 even after 300 min of continuous operation, confirming our initial assumption that microbes can be continuously trapped on the anode surface of the Ag NCs@ZIF-67-based CEWD system. Notably, this result is in stark contrast to that of AC electrode- or pure ZIF-67-based CEWD systems, which exhibit a rapid decrease in microbial adsorption rate after 1 h despite having a much larger surface area for electrosorption (Fig. 4d). Such a drastic contrast contradicts the law of electrosorption equilibrium, further strengthening the evidence for a cyclical “alive microbe capture–killing–dead microbe desorption” process that sustains continuous water disinfection. This process ensures that the CEWD system has efficient yet long-term antimicrobial activity. Moreover, the real-time removal of pathogens was assessed by a LIVE/DEAD assay through inverted fluorescence microscopy to determine how quickly the pathogens were terminated. Specifically, the disinfection experiment was carried out for different durations (1 min, 2 min, 3 min, and 4 min), followed by short-circuiting of the device to flush out both live and dead bacteria. As shown in Supplementary Fig. 39a–f, 91.18%, 96.58%, 97.64%, and 98.15% of the bacteria were terminated at 1 min, 2 min, 3 min, and 4 min, respectively. Remarkably, the antimicrobial efficacy reached 91.18% in just 1 min, indicating the rapid disinfection capability of our CEWD system. The disinfection efficacy could be much greater (as shown in Supplementary Fig. 39g through the plate counting method) under real operational conditions (not short-circuited) since the bacteria could be trapped on the surface of the electrode through electrosorption and could subsequently enable a much longer time for termination. Taken together, the CEWD system achieves efficient microbial enrichment and subsequent water disinfection through the electrostatic capture of microbes, as well as in situ-produced ROS and the intrinsic antimicrobial activities of the Ag28(GSH)20 NCs38, respectively.

Two interesting issues may arise: (1) Does the intrinsic antimicrobial activity of Ag28(GSH)20 NCs contribute to microbial killing via physical contact? (2) Can other metal NCs or other materials be used as CEWD electrodes for antimicrobial application? To validate these issues, two similar electrode materials (i.e., Au NCs@ZIF-67 and Pt NCs@ZIF-67 fabricated by encapsulating Au NCs and Pt NCs in ZIF-67), and one electrode equipped with non-metallic covalent organic framework (COF) were employed for water disinfection test (Supplementary Figs. 40–42). While the loading amounts of Au NCs and Pt NCs in the ZIF-67 were adjusted to be similar to that of Ag NCs inside the ZIF-67 (Supplementary Table 6), the loading amount of COF in the model COF electrode was optimized to make its ROS production level comparable to the Ag NCs@ZIF-67 one. As shown in Fig. 4e–f and Supplementary Fig. 43, the local ROS concentration of Ag NCs@ZIF-67-based CEWD was relatively lower than that of the Au NCs@ZIF-67- and Pt NCs@ZIF-67-based CEWD systems, and exactly comparable to that of the model COF-based CEWD system. However, Ag NCs@ZIF-67 displayed greater antimicrobial efficiency against E. coli than its three counterparts (Fig. 4e–f and Supplementary Figs. 44–46), indicating that physical contact between Ag28(GSH)20 NCs and microbes (intrinsic disinfection of Ag NCs) also plays an important role in enhancing the antimicrobial activity of the CEWD system. To confirm the physical contact between Ag NCs@ZIF-67 and the bacteria, scanning electron microscopy–energy dispersion spectrometry (SEM‒EDS) was conducted to construct surface element maps of the Ag NCs@ZIF-67. The results, as depicted in Supplementary Fig. 47, revealed the presence of Ag on the surface of ZIF-67, suggesting that effective contact could be established between Ag NCs and the bacteria and confirming our hypothesis of a dual-mode disinfection mechanism. To analyse the contributions of ROS and the intrinsic disinfection of Ag NCs to the total antimicrobial efficacy, the antimicrobial efficacy of the model COF electrode-based and Ag NCs@ZIF-67-based CEWD systems was specifically compared (Supplementary Fig. 48). The model COF electrode demonstrated the ability to eliminate ~90% of bacteria, which means that the ROS contributed ~90% antimicrobial efficacy in the Ag NCs@ZIF-67-based CEWD system because of the same amount and types of ROS production by the Ag NCs@ZIF-67. Accordingly, the intrinsic antimicrobial activity of Ag NCs was found to enhance the overall antimicrobial efficiency by an additional ~10% in the Ag NCs@ZIF-67-based CEWD system (Fig. 4g), since COF has negligible intrinsic disinfection properties in this scenario. Consequently, the predominant factor influencing the antimicrobial efficacy of CEWD is ROS, with the intrinsic disinfection of Ag NCs further enhancing the antimicrobial efficacy. The preliminary success of applying different metal NCs (e.g., Ag, Au, and Pt) and other nanomaterials (e.g., COF) as the core materials for CEWD has proven the versatility of this strategy. This could establish a universal platform for various oxidation-based applications (e.g., bacterial killing, selective microreactors, advanced oxidation).

Theoretical exploration

Why could Ag NCs@ZIF-67-based CEWD produce substantial amounts of ROS? This should be correlated with the molecular structure of the Ag28(GSH)20 NCs39. Therefore, we first optimized the structure of Ag28(GSH)20 NCs based on first-principles calculations via structural optimization, a static self-consistent field (SCF), density of state calculations, and charge calculations using VASP-6.1.0 via density functional theory (DFT). The cross-section of Ag28(GSH)20 NCs is shown in Fig. 5a. Specifically, Ag28(GSH)20 NCs contain an Ag20 core (Td symmetry with a geometric symmetry of D2h (Fig. 5a), capped by two Ag3S3 motifs (i.e., type i), two Ag1S1 motifs (i.e., type ii), and twelve S terminals (i.e., two S terminals of type iii and ten S terminals of type iv). Upon acquiring the structure and the wavefunction of the Ag28(GSH)20 NCs (Supplementary Fig. 49 and Supplementary Note VI), we searched for the GSH ligands on the Ag28(GSH)20 NCs to identify potential active absorption sites for water molecules to facilitate ROS production, considering the lowest free energy on the potential energy surface. Through this analysis, we identified a total of eight adsorption sites for water molecules (Fig. 5b). Additionally, we provided the atomic coordinate parameters of the water molecules adsorbed by Ag28(GSH)20 NCs in the Supplementary File, while the adsorption-free energies of each site are presented in Supplementary Table 7. Notably, sites #2, #4, and #8 have the lowest free energy among all the active sites, implying that they are the most likely active sites for adsorbing water molecules for water oxidation.

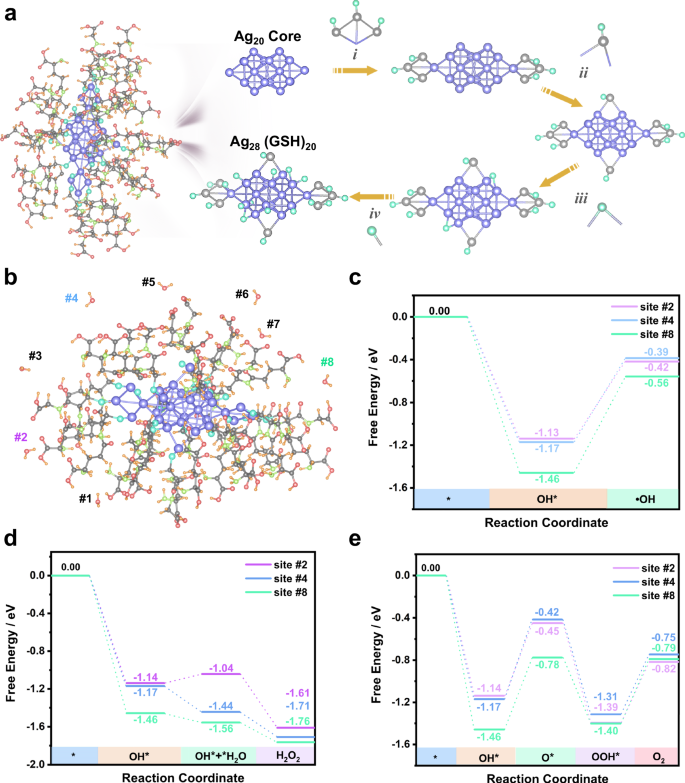

Fig. 5: Theoretical exploration of the Ag28(GSH)20 NCs catalyst for ROS generation.
figure 5

a Ag28(GSH)20 NCs and its structural dissection. Colour codes: red = oxygen atom; white = hydrogen atom; dark blue = nitrogen atom; purple/grey = Ag atom; wathet blue = sulfur atom; black = carbon atom. b Active H2O adsorption sites of Ag28(GSH)20 NCs; c–e free energy diagrams of •OH, H2O2, and O2 production pathways on the active adsorption sites of Ag28(GSH)20 NCs.

Full size image

To explore the detailed water oxidation pathway for ROS production, we constructed energy maps of different water oxidation pathways at these three active sites (#2, #4, and #8), including one-electron (to generate •OH, H2O → •OH + H+ + e−, Fig. 5c), two-electron (to generate H2O2, 2H2O → H2O2 + 2H+ + 2e−, Fig. 5d), and four-electron (to generate O2, 2H2O → O2 + 4H+ + 4e−, Fig. 5e)40,41,42 routes. Among them, OH* can desorb from the active site to generate free •OH via the one-electron route (Fig. 5c)43, yet the desorption of OH* requires excess energy to overcome the energy barrier of ~0.5–1.1 eV37. In addition, the two-electron oxidation of water to form H2O2 is thermodynamically favourable (Supplementary Fig. 50 and Supplementary Note VII) based on the following facts: (1) the active site first adsorbs a water molecule to generate OH*, and the decrease in free energy is approximately 1.1–1.5 eV; (2) OH* recombines with another water molecule to form H2O2, and the free energy further decreases in this step (Fig. 5d). For the four-electron oxygen evolution reaction (OER, Fig. 5e), the elementary OER steps include the formation of OH* by dissociative adsorption of H2O molecules, the formation of O* by deprotonation of OH*, O* oxidation to OOH*, and O2 formation and release. Obviously, the rate-determining step in the OER is O* oxidation to OOH*, which requires excess energy to overcome the energy barrier of ~0.62–0.94 eV. Therefore, the water molecules adsorbed on the active site preferentially undergo two-electron oxidation to generate H2O2 instead of one- or four-electron oxidation. To further verify that H2O2 is generated from H2O through two-electron water oxidation, we repeated the ROS generation experiment in D2O and conducted a 2H nuclear magnetic resonance (NMR 2H) test to determine whether D2O2 could be generated. As shown in Supplementary Fig. 51, while D2O shows a single peak at ~4.8 ppm in its NMR 2H spectrum, two obvious peaks at ~4.8 ppm and ~3.8 ppm were found in the NMR 2H spectrum of the reacted D2O solution after electrocatalytic treatment. This result indicates that D2O2 was generated from the oxidation of D2O molecules, confirming that the water molecules underwent a two-electron oxidation process to generate H2O2.

Practical application

Scalability, energy efficiency, and adaptability are three crucial factors that impact the practical application of water disinfection devices. Therefore, we conducted initial tests to assess the scalability and applicability of the Ag NCs@ZIF-67-based CEWD system (Fig. 6a–b). First, we investigated the flow rate tolerance of the CEWD modules by increasing the electrode size and examining the disinfection rate at various flow rates (1–100 mL min−1; Fig. 6c). The results show that the disinfection rate decreases with increasing flow rate for all electrode sizes, but the largest module (with an electrode size of 281.25 cm2) maintains a high disinfection rate of 99.90%, even at 100 mL min−1. Additionally, the water productivity increased exponentially with increasing module size, reaching 213.33 L h−1 m−2 for the 281.25 cm2 module (Fig. 6d). We also analysed the relationship between water productivity and energy consumption at various module sizes and found that energy consumption decreases exponentially with increasing productivity (Fig. 6e). The energy consumption of the module with size × 5 was 4.91 Wh m−3 (1.04 Wh m−3 without pumping cost), with corresponding water productivity of 213.33 L h−1 m−2, demonstrating its excellent energy efficiency. The high energy efficiency of our system could be attributed to the precise targeting of microbes and the continuous operation mode. Specifically, unlike conventional ROS antimicrobial techniques that need to generate a large amount of ROS to release into the microbe stream (the current to generate such an amount of ROS would be high), our CEWD system could trap microbes on the surface of the anode, while only a high local ROS concentration is needed to kill bacteria. Therefore, the current for ROS generation could be largely reduced (the current transients are shown in Supplementary Fig. 52). Moreover, the operational energy cost (e.g., pumping cost) could be reduced since our CEWD system operates in continuous mode and no additional energy is required for its regeneration.

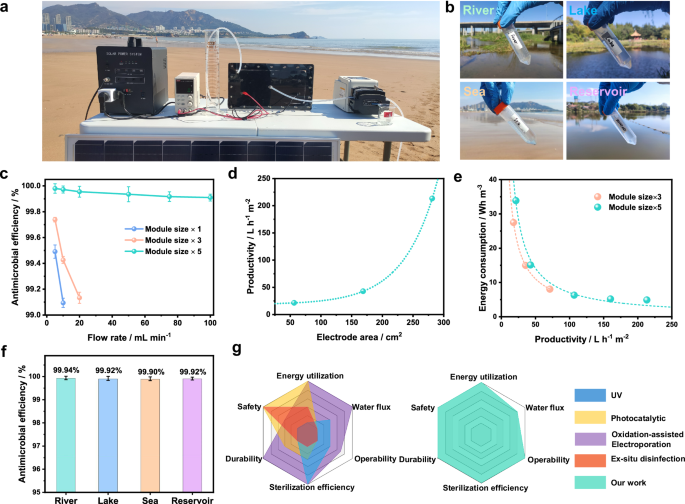

Fig. 6: Scalability, energy efficiency, and adaptability evaluations of the CEWD system.
figure 6

Digital photos of a the practical-scale testing setup of the Ag NCs@ZIF-67-based CEWD system (the solar panel is used to provide electricity only) and b water samples collected from four natural sources; c maximum allowable flow rate of the three devices assuming that the antimicrobial efficiency is greater than 99.0%; d relationship between the maximum water productivity of the CEWD system and the electrode area; e energy consumption of the CEWD system as a function of water productivity; f antimicrobial performance of the CEWD system for four water samples; and g radar charts of the CEWD system in comparison with other water disinfection techniques in the literature7,45,46,47. Error bars = s.d. (n = 3).

Full size image

Building on this promising energy efficiency, we evaluated the disinfection performance of the CEWD system for various real water samples, including those from rivers, lakes, seas, and reservoirs (Fig. 6b). Notably, the real water samples analysed in this study contained a mixture of ions and organic pollutants, posing potential challenges to the disinfection performance of the CEWD system. Total organic carbon (TOC) levels in these samples were assessed before and after disinfection treatment (refer to Supplementary Table 8), indicating the effectiveness of the CEWD system in removing TOC. The reduction in TOC can be attributed to the oxidation facilitated by the ROS generated during the disinfection process. Impressively, our CEWD system demonstrated exceptional efficacy in eliminating pathogens, achieving a greater than 99.90% killing rate across all water samples containing TOC (Fig. 6f). In addition, no detectable disinfection byproducts (DBPs), such as carcinogenic residues, were found in the treated water samples, as indicated in Supplementary Table 9, underscoring the broad application scope, safety, and tolerance of the CEWD system to various salinity levels and organic pollutants (see Supplementary Figs. 53–54, Supplementary Table 10, Supplementary Movies 1–4, and Supplementary Note VIII). These results demonstrate that the CEWD system can adapt well to decentralized areas where water disinfection remains a great threat to public health but where large-scale water plants cannot be built, which is highly important for ensuring water security. Furthermore, we compared our CEWD system with other disinfection techniques from the literature, such as ex situ disinfection, UV, photocatalytic, and oxidation-assisted electroporation, in terms of energy utilization, safety, durability, disinfection efficiency, operability, and water flux (Fig. 6g and Supplementary Table 11). Our CEWD system exhibited outstanding disinfection performance without apparent limitations, demonstrating its potential for practical applications.

In summary, we designed a CEWD system equipped with an atomically precise Ag28(GSH)20 NC electrode for water disinfection. By integrating the in situ ROS production and the inherent antimicrobial activity of Ag28(GSH)20 NCs with smart microbe capture on the electrode surface, this water disinfection system was efficient against broad-spectrum microbes (with a >99.99% antimicrobial rate), ultrastable (with only a 0.75% efficiency reduction over 40 cycles), durable (with 99.90% antimicrobial efficiency for over 5 h of continuous operation), versatile (i.e., other NCs can be used), scalable (with water productivity of 213.33 L h m−2), energy efficient (with a low energy consumption of 4.91 Wh m−3; 1.04 Wh m−3 without the pumping cost), and practically applicable for various real water samples. The brilliance of this study is the concurrent in situ formation of a high local ROS concentration via electrocatalysis and the inherent antimicrobial activity of Ag species with intelligent microbe enrichment on the electrode surface; ultimately, a continuous, highly efficient, and safe water disinfection strategy was established, which could provide new possibilities for global water hygiene.

Methods

Synthesis of Ag28(GSH)20 NCs

Reduced L-glutathione (GSH, 375 μL, 20 mM) and AgNO3 (125 μL, 20 mM) were added to deionized (DI) water (4.4 mL) with vigorous stirring at room temperature to form an Ag(I)–GSH complex solution. Then, freshly prepared NaBH4 (50 μL, ~112 mM) was added dropwise to the Ag(I)–GSH complex solution to form a deep-red clear solution, and the solution was then incubated at room temperature for ~3 h until the solution became colourless. Next, NaBH4 (50 μL, ~112 mM) was added to the solution with stirring for 30 min and then aged at room temperature for 7 h. Finally, monodisperse Ag28(GSH)20 NCs were obtained by purifying the as-synthesized solution with a PD-10 desalting column, and the concentration of the Ag28(GSH)20 NCs was adjusted to 5 mM through rotary evaporation.

Synthesis of ZIF-67

The 2-methylimidazole (2-MeIM) was added to a (CH3COO)2Co∙4H2O solution with a Co2+ to 2-MeIM molar ratio of 1:40 under vigorous stirring at room temperature for 6 h. Then, the solution was aged at room temperature for 12 h. The resulting material was centrifuged (8000 rpm), washed repeatedly with DI water, and dried under vacuum at 80 °C for 48 h.

Synthesis of Ag NCs@ZIF-67

2-MeIM and (CH3COO)2Co∙4H2O (molar ratio: 37:1) were added to the as-synthesized Ag28(GSH)20 NC solution with a Co2+ to Ag+ molar ratio of 8:1 under vigorous stirring at room temperature for 6 h. Then, the solution was aged at room temperature for 12 h. The resultant precipitate was centrifuged (8000 rpm), washed with DI water, and dried under vacuum at 30 °C for 72 h.

Synthesis of ZIF-67@Ag NCs

GSH (375 μL, 20 mM), AgNO3 (125 μL, 20 mM), and the as-synthesized ZIF-67 (5 mg) were added to 4.4 mL of DI water with vigorous stirring at room temperature. Then, freshly prepared NaBH4 (50 μL, ~112 mM) was added dropwise to the above solution for 5 min and aged at room temperature for 3 h. Afterwards, additional NaBH4 (50 μL, ~112 mM) was added to the solution with stirring for 30 min, and the mixture was then aged at room temperature for 8 h. Finally, the ZIF-67@Ag NCs were obtained by centrifuging (8000 rpm), washing repeatedly with DI water, and drying under vacuum at 30 °C for 72 h.

Synthesis of Au25(GSH)18 NCs

HAuCl4 (500 μL, 20 mM) and GSH (400 μL, 50 mM) were added to a mixed DI water (2.3 mL) and ethanol (6 mL) solvent with vigorous stirring at room temperature to form a GSH–Au(I) complex solution. Then, NaOH (200 μL, 1 M) and freshly prepared NaBH4 (100 μL, ~112 mM) were added to the mixture with stirring for 3 h. Finally, the solution was centrifuged (8000 rpm) and redispersed in DI water to form a 5 mM Au25(GSH)18 NC solution.

Synthesis of GSH-protected Pt NCs

H2PtCl6 (200 μL, 100 mM) and GSH (400 μL, 50 mM) were added to DI water (9.5 mL) with vigorous stirring at room temperature to form the Pt(I)–GSH complex solution, and the pH of the solution was adjusted to 12.0 by adding NaOH (~150 μL, 1 M). Then, the Pt(I)–GSH complexes were reduced by bubbling CO into the solution for 5 min and sealing airtight with stirring for 24 h at room temperature. Finally, the concentration of the GSH-protected Pt NCs was adjusted to 5 mM through rotary evaporation.

Synthesis of COF

The 1,3,5-triformylphloroglucinol at a concentration of 0.30 mM and benzidine at 0.45 mM were each dissolved in 20 mL of ethanol. The resulting solutions were subsequently combined in a 100 mL flask and stirred at room temperature. After a stirring duration of 30 min, the resulting light brown suspension was subjected to centrifugation at 10,000 rpm for 5 min, followed by a thorough washing with ethanol. The resultant COF was refluxed with dimethylformamide (DMF) for 4 h to eliminate any unreacted residual, followed by a 2 h exchange with ethanol to replace the DMF. Ultimately, the synthesized COF was dried in a vacuum at room temperature overnight44.

Detailed material characterizations, and antimicrobial evaluations are provided in the Supplementary Information.

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.
