Road fragment edges enhance wildfire incidence and intensity, while suppressing global burned area

Abstract

Landscape fragmentation is statistically correlated with both increases and decreases in wildfire burned area (BA). These different directions-of-impact are not mechanistically understood. Here, road density, a land fragmentation proxy, is implemented in a CMIP6 coupled land-fire model, to represent fragmentation edge effects on fire-relevant environmental variables. Fragmentation caused modelled BA changes of over ±10% in 16% of [0.5°] grid-cells. On average, more fragmentation decreased net BA globally (−1.5%), as estimated empirically. However, in recently-deforested tropical areas, fragmentation drove observationally-consistent BA increases of over 20%. Globally, fragmentation-driven fire BA decreased with increasing population density, but was a hump-shaped function of it in forests. In some areas, fragmentation-driven decreases in BA occurred alongside higher-intensity fires, suggesting the decoupling of fire severity traits. This mechanistic model provides a starting point for quantifying policy-relevant fragmentation-fire impacts, whose results suggest future forest degradation may shift fragmentation from net global fire inhibitor to net fire driver.

Introduction

Human land use change (LUC) affects a third of the terrestrial surface¹, and the resulting alteration of land continuity-known as fragmentation² -can result in biodiversity loss^3,4, habitat degradation⁵, changes to the surface energy balance^6,7,8,9,10 and biogeochemical cycling¹¹, leading to around one-third of global carbon (C) emissions^12,13. LUC is forecast to increase substantially by 2100, with expansions in agricultural and settlement areas across all future climate-SSP scenarios of +12–83%¹⁴ and +54–111%¹⁵, respectively, over a 2015 baseline. Fire is a key component of earth system biogeochemical and ecological dynamics^16,17,18,19, however human-driven perturbations to global atmospheric and hydrologic circulations may alter existing fire regimes, changes that are expected to increase the future frequency and severity of fire events^{16,20,21,22,23,24}, the global area prone to frequent fire (+~30%)²⁵, and their attendant economic costs²⁶, hampering the ability of biological -and implicitly social -systems to respond to broad -scale environmental change^27,28.

Fire and LUC interact at differing space-time scales via weather and vegetation²⁹ through fuel structure and landscape fragmentation, “the division of habitat into smaller and more isolated fragments”³⁰. Human land fragmentation has existed for at least 10,000 years b.p.³¹, encompassing a spectrum of forms, rationales, and cultural specificities³². The increasing yet spatially varying extent of fragmentation may have wide-ranging consequences for the fire regimes that present and future human activity embeds in its surrounding environment, which may differ substantially across ecosystems and timescales. However, the underlying processes linking fragmentation and fire, and whether it drives or inhibits fire activity, remains largely unknown.^{16,20,21,22,23,24,25,26,33,34,35,36} This uncertainty hampers the capacity of economic and infrastructural policy to consider its implications²⁸ for fire hazard, and hobbles understanding and forecasting of fire behaviour²⁹. Context-specific studies have demonstrated both negative and positive interactions of fragmentation with fire probability^{21,33,34,35,36}, with meta-analyses suggesting on average that fragmentation tends to decrease landscape-scale burned area in grassland savannahs^37,38, and increase it in forest ecosystems^33,38,39. However, these are limited in scope, scale, and number²⁴, and do not directly determine the drivers of these associative relationships.

The ‘fragments’ that make up fragmentation can be considered as isolated vegetation patches, each with an interior and an ‘edge’. The edge of a fragment is subject to a diverse range of environmental impacts through their contact with the edge’s sparsely vegetated space, affecting plant and animal ecology^{40,41,42,43,44,45,46}, microclimate^{9,47,48,49,50,51,52}, and plant physiology^7,53. A fragment’s edge limit represents the point where the fragment’s interior vegetation is at a minimum, whereas the edge area represents the area between the fragment limit and interior that is subject to a gradient of ‘edge effects’ (SI Text S3 for context). Fragments may influence fire probability and behaviour through edge effects, which might include soil and fuel drying (increasing ignition probability and fire intensity near fragment edges), wind infiltration (increasing spread rate near edges), and ignition risks associated with the combination of fragment edges and the presence of human populations (Methods).

Real-world fragmentation today is predominantly driven by large-scale investment in LUC and access infrastructure (i.e., roads)^1,54,55,56 -the latter the direct cause of many of the LUC effects described by the above studies^30,57,58. Recent statistical evidence demonstrates that RD is the strongest predictor for the lower annual burned area at a global scale⁵⁹, suggesting a fire-inhibiting effect in some places. Direct measurement of fire-fragmentation impacts is difficult because it is an exercise in the counterfactual, asking: what would fire outcomes be if fragmentation was/wasn’t here given that it isn’t/is here? Addressing this under controlled unfragmented plot-scale conditions is possible, but may require removing key processes. Land surface modelling is a powerful tool in this context for handling the integration of fragmentation-fire feedback and experimentation with worlds where fragmentation does and doesn’t affect fire. This enables the isolation of these effects in a way that is impractical to achieve at in situ scales and conditions.

Bridging these issues, this study is built around conceptualising and developing the process-based links between the edge effects of land fragmentation on observed land surface and human ignition variables that can conceivably affect fire probability and behaviour. These were implemented in a global land surface model, ORCHIDEE-MICT-SPITFIRE^60,61,62, a commonly-used and fire-representing^63,64 terrestrial branch of the [CMIP6] IPSL earth system model (Fig. S1b; see Methods and SI Text S11 for detail).

Modelling global fragmentation effects requires a global land fragmentation dataset. To our knowledge, current fragmentation datasets only cover forest biomes⁶⁵, whereas most of the world’s fires occur in grassland savannahs. Here, fragmentation extent is proxied through road density (RD) (SI Text S1). This is the only global-scale satellite-derived data available that might capture fragmentation extent across biomes, and simplify analysis because roads are a fixed infrastructural feature in the medium term. Roads are used to define the edges of fragments because LUC and subsequent fragment generation require overland access and represent a form of fragment boundary. Roads act, on the one hand, as a physical barrier to individual fire size and spread^59,66,67, while on the other, exposing vegetation to increased human contact, edge effects, and potential fire^68,69,70,71.

For modelling purposes, fragments can be simplified to a single shape and size in a grid cell, given that grid cell’s RD (see SI Text S5). Doing so enables a ‘bottom-up’ representation of fragmentation’s impact on the state of environmental variables that affect fire probability and behaviour–the aforementioned ‘edge effects’ (Figs. 1 and  S1, S2). The radii of our synthetic circular fragments provide the average Euclidean distance from patch edge to interior, also known as the Average Edge Distance (AED, Fig. 2a). AED is input as a map to the ORCHIDEE model (Fig. 2a) and defines the relationships between land surface variables and fire phenomena (Fig. 1a–c, Methods, Table 1, Fig. S1b).

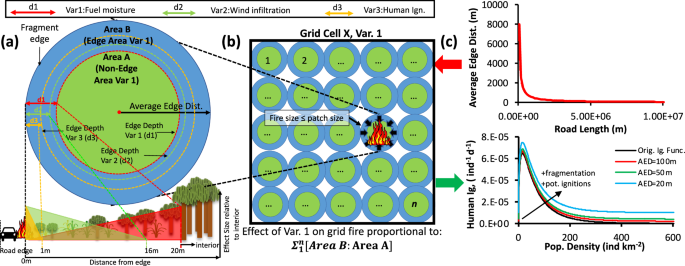

Fig. 1: The conceptual implementation of road fragmentation in ORCHIDEE-SPITFIRE.

a Fragments are conceived of as circles whereby edge effects on fuel moisture, wind infiltration, and human ignition (v1-3) are defined by the ‘edge depth’ through which there is a gradient from fragment edge to interior. This is shown in the transect at the bottom, where each gradient decreases /increases towards the fragment interior, and values for the edge depth are shown. b The ratio of the total ‘edge area’ (blue shading) versus the ‘non-edge area’ (green) is defined by the edge depth and the surface area of the individual patch, which depends on fragmentation extent and so the number of patches per grid cell. This surface area also limits the maximum size of any individual non-extreme fire. Note that grid cell surface area varies with latitude, affecting AED (see Eq. 1, Methods). c (top) Fragmentation extent is proxied by road length to generate average circular patch area and radius (‘average edge distance’), determining the size and number of fragment patches in a grid cell. (bottom) The result of these conceptual implementations alters a given variable (var1-3) in direct proportion to the edge area entailed by a–c. See Figs. S1 and S2 for greater detail on how these implementations affect the sequence of processes represented in the model.

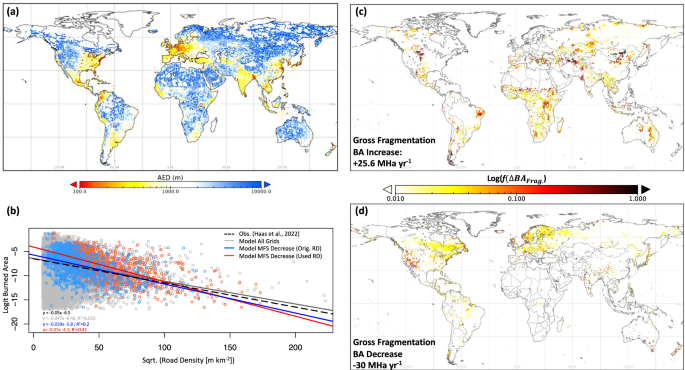

Fig. 2: Land surface model input, fire-relevant output, and the relationship between them.

a Log-scale global map of grid cell mean ‘average edge distance’ (AED, m), as used as model input in this study and interpretable as the average Euclidian distance from an average patch edge to its interior and calculated as described (Methods, Fig. S1) to remove the urban proportion of road area. b Regression of logit link-transformed monthly mean BA against the square root of RD (m km⁻²). Dashed black line: Observation-based regression model between BA and road density from ref. (Haas et al.⁵⁹). Grey line: all simulated grid cells. Blue line and circles: only the simulated grids where fragmentation explicitly decreases mean fire size, plotted against the original road density data used in Haas et al. Red line and circles: only the simulated grids where fragmentation explicitly decreases mean fire size, plotted against road density where urban road length is removed. For detail on how explicit size size limitation is filtered here, see Figure Generation in Methods. c, d Gross fractional increase (c) and decrease (d) in simulated mean annual burned area [f$(\Delta {{{\rm{BA}}}}_{{{{\rm{Frag}}}}.})$, where (f) refers to ‘fractional’] versus a control simulation without fragmentation (log-scale). Grid cells where the absolute change in area burned <0.2% of a grid cell (~5 km² yr⁻¹) were masked out. Aggregate annual increases and decreases in BA (Ha yr⁻¹) due to fragmentation are included in million hectares (Mha). This is discussed in detail in SI Text S10.

Table 1 Fragmentation-fire model parameters, description, and their rationale

As fragmentation increases and AED decreases: (1) Individual fire size is restricted by patch size unless threshold conditions for crown fire spread and fuel limitation in forests and grasslands⁷², respectively, are surpassed (Methods)⁶⁴ (2) Vegetation is more exposed to human contact and hence ignitions-potential through machinery, smoking, trash burning, etc.^73,74 (Methods). (3) Fuel moisture and threshold fuel ignition moisture at the patch edge decreases due to edge drying^{47,48,49,50,51}, increasing fire occurrence and propagation potential; (4) Wind infiltration and hence speed at patch edges increases in forests only⁷² due to decreased surface roughness^75,76

Simulated fragmentation-fire impacts are benchmarked to observational data through comparison with remotely sensed statistical relationships of road fragmentation with respect to burned area, which is the primary unit of account in global-scale fire ecology studies. Any correlation between the two is the emergent result of modelled relationships at grid-average edge scale, not of model parameter ‘tuning’ towards observations (see Methods, SI Text S1, S2, S5). Our model implementation results in first-order reproduction of observed fragmentation impacts on burned area (Results), enabling examination of emergent fragmentation impacts on other fire behaviour attributes, such as fire intensity -a measure of the combustion rate of fuel per unit land surface area. Fire intensity may change because of fragmentation due to changes in the average state of fuel and rate of spread characteristics, such as wind speed, which are dynamically calculated by ORCHIDEE. Intensity also benchmarks the area-specific vegetation carbon emissions of fires, which is calculated in ORCHIDEE, and which represents net global emissions of ~1 billion tons CO₂-C yr^−1 77 (equivalent to ~10% of annual anthropogenic emissions). Here, we substitute area and vegetation-specific fire CO₂ emissions (gC m⁻² d⁻¹) for ‘fire radiative power’ (MW), a commonly-used intensity metric, as they are conceptually equivalent⁷⁸ (SI Text S8) and ORCHIDEE does not resolve the latter.

Global-scale ORCHIDEE fire simulations were conducted at 0.5° grid-resolution over 2000-2013 with all fragmentation functions activated, in addition to a ‘control’ (‘CTRL’) simulation, with fragmentation deactivated (Methods). A separate suite of ten sensitivity simulations, in which fragmentation was varied globally for all grid cells at decreasing two-fold increments of AED of 10,000 m, 5000 m … ~39 m (AED_F2), were performed to study the incremental effects of fragmentation-doubling on the burned area at global and biome scale. These simulations were run from 2001-2003, straddling weak or neutral El Niño/La Niña years. The context and definitions used in this study are summarised in SI Text S3, and study aims, rationale, and hypotheses are provided in SI Text S4. We stress that this study does not seek to account for land use (fragment patch interior) impacts of fragmentation (e.g., deforestation, plantation), but the impact of fragment edges in isolation.

Results

Simulated global-scale fragmentation-induced fire impacts

Fragmentation caused both decreases and increases in simulated time-averaged burned area (BA_Frag–BA_CTRL = ΔBA_Frag) depending upon the region considered. The sum of gross ($\Delta {{{\rm{BA}}}}_{{{{\rm{Frag}}}}.}^{-}$) decreases amounted to −30 MHa yr⁻¹, while gross increases ($\Delta {{{\rm{BA}}}}_{{{{\rm{Frag}}}}.}^{+}$) were +25.6 MHa yr⁻¹, equivalent to −3.25–6.5% and +2.25–5.5% of satellite-observed annual burned area⁷⁹ (2001–2019), respectively (Fig. 2c, d)^80,81. Burned area changed by >±10% in 17%, and by >±25% in 7%, of burned grid cells, respectively. Areas with high levels of both fragmentation (Fig. 2a) and population density, simulated the largest proportionate burned area decreases in response to fragmentation (Fig. 2c, d), such as in north-west Europe, California, and northeast-USA. Conversely, burned area and vegetation combustion (Fig. S6) increases were simulated in areas with moderate fragmentation and population densities (Fig. S5a–c), e.g., Indonesia, eastern Brazil, the north Mediterranean, and parts of Africa (e.g. the Eastern Congo Basin). Interestingly, in Mediterranean areas already prone to summer fire activity, e.g., Greece, the Balkans, southern Italy, northern Algeria, and western Turkey, fragmentation causes substantial increases in simulated fire activity, which we suggest is the result of exacerbated human ignition potential, and enhanced propagation from fuel desiccation and powerful wind fields in these regions.

We evaluated the simulated statistical relationship between burned area and RD (solid lines, Fig. 2b) against the observationally derived relationship from ref. ⁵⁹ (dashed black line, Fig. 2b), who found that RD was the greatest predictor for lower annual burned area values at global scale. This linear regression comparison shows the simulated relationship replicates the observed slopes and intercept. However, the R² coefficient is low when (i) considering all grid cells (black line, Spearman’s rho (ρ) = −0.07, R² = 0.05, p < 0.001), but it is improved in (ii) grid cells where road-fragmentation actively decreases individual fire sizes (see Methods for model code-based filtering of attribution)⁶⁴, as shown by the regression statistics for the red and blue regression lines in Fig. 2b.

We attribute this low R² to intrinsic differences between models and observations: (1) ORCHIDEE simulates large numbers of small fires that can aggregate to low levels of annual burned area (bottom-left grey dots in Fig. 2b). Where realistic, these small fires generally aren’t detected by existing satellite (e.g. MODIS) retrieval/processing mechanisms⁸². (2) Urban roads were not removed in ref. ⁵⁹, potentially reflecting non-fragmentation related factors that co-correlate with RD (e.g. fire suppression, large fire-retardant surface areas like concrete). (3) Comparing histograms of observed fire patch and fragment patch sizes (Fig. S4a–c) shows that in general, fragment patches are much larger than observed maximum, minimum and mean fire patch sizes (other colours), meaning fire sizes physically-limited by the size of fragments can only occur in a small minority of grid cells. Counts of small fragment patches are about two orders of magnitude lower than counts of small fire (areas A vs. B, Fig. S4c), and fragmentation are only likely to constrain large fires (>1500 Ha). Twenty percent of terrestrial grid cells have no meaningful level of fragmentation, implying that fragmentation will have no meaningful fire impact in these grid cells. This exposes the limits of fragmentation as a physical constraint to fire size, although there may be other nonphysical constraints that we exclude.

Simulated regional-scale fragmentation-fire impacts

General patterns in simulated regional ΔBA_Frag are discernible in Fig. 2c, d, but robust evaluation requires an observational dataset that removes and adds fragmentation while holding population density, vegetation, and climate constant–which is implausible. It is difficult to validate model outputs with observations in places where modelled fragmentation decreases burned area, due to a lack of long-term burned area and/or any historical RD (or fragmentation) data. Further, in one of the world’s most fragmented landscapes, north-western Europe (Fig. 2a), fragmentation largely decreases simulated fire activity (Fig. 2c), but we cannot validate against this given much of European fragmentation predates the satellite era. However, we can compare observed and modelled fire activity in areas over which large-scale increases in fragmentation have occurred during the period for which satellite fire observations exist (post-2000).

This period coincides with the ‘boom’ years of globalisation^83,84, in which lowered regulatory power and multinational corporate demand⁸⁵ incentivised large-scale supply of cheap commodities for global markets⁸⁶. Large swathes of the global South¹, most notably the forests of Indonesia and Brazil^87,88, were given over to clearing, logging and plantation/mining establishment^89,90 that have been associated with systematic increases in fire activity^30,91,92,93. This provides a ‘before-after’ comparison of fire behaviour with fragmentation. We thus focus the grid cell-specific validation of simulation results on the tropics (SI Text S9), which also happen to be amongst the biomes most prone to future fire-mediated systematic change^45,94 (along with boreal systems^27,28–see Discussion for boreal fragmentation-fire intensity impacts), recognising the potential validation bias this presents.

Figure 3a plots f$(\Delta {{{\rm{BA}}}}_{{{{\rm{Frag}}}}})$ in northern S. America, overlaid with data from ref. ⁹⁵ that identified where the running mean of burned area and a fragmentation proxy experienced significant [+/−] trends over 2003–2018. That study suggested Amazon rainforest-interior burned area rose with fragmentation, but either fell or was unresponsive to fragmentation increases in the cerrado. Model output replicates a similar dynamic, whereby large $\Delta {{{\rm{BA}}}}_{{{{\rm{Frag}}}}.}^{+}$ values follow the ‘Trans-Amazonian highway’⁹⁶ into the Amazon rainforest interior (Figs. 3a, S5c), while the cerrado region sees burned area decreases.

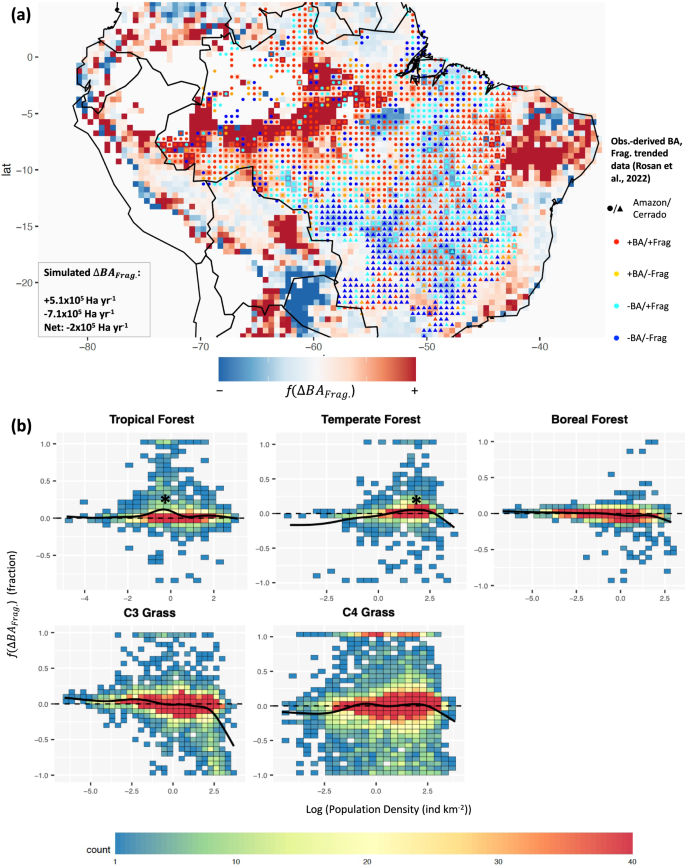

Fig. 3: Biome-specificity of fragmentation-fire impacts and the influence of human populations on them.

a Simulated fractional changes in burned area due to fragmentation in northern S. America (f$(\Delta {{{\rm{BA}}}}_{{{{\rm{Frag}}}}.})$, colour-bar), overlaid with BA and fragmentation-proxy trend data from Rosan et al.⁹⁵, which were aggregated for Brazil’s Amazonian (circular points) and Cerrado regions (triangles), as comparison. Note that the latter data only covers these regions, not Brazil’s national borders nor the entire Amazon. Where both BA and fragmentation increased (+BA/+frag) over 2003–2018, points are coloured red and [(+BA/-frag) = orange; (−BA/+frag) = light blue; (−BA/ = frag)=dark blue]. Note the comparison is not entirely commensurate (see text). Simulated gross BA changes due to fragmentation over the Figure region are shown inset. b Binned frequency density scatter of fractional mean changes in burned area per grid cell due to fragmentation relative to the Control (f$(\Delta {{{\rm{BA}}}}_{{{{\rm{Frag}}}}.})$, y axis) where this was >±1%, against the logarithm of population density (x axis) of that grid cell, plotted globally across five biome types. A generalised additive model (GAM, black line) is included for interpretation. Asterisk(*) mark the PopD level at which $f(\Delta {{{\rm{BA}}}}_{{{{\rm{Frag}}}}.})$ is maximum in tropical and temperate biomes (~0.5 and ~50 individuals km⁻², respectively).

Figure 3a’s model-data comparison is not entirely commensurate as ref. ⁹⁵ identify temporal trends in fragmentation and total burned area to approximate if and where they are correlated, whereas our fragmentation input is static. Thus, in cerrado areas that are subject to large climate-driven interannual variations in drought and fire extent, aggregate burned area trends may overwhelm fragmentation burned area effects. The inverse may prevail in the wet Amazon, where fragmentation can dominate fire causation^34,39. Large simulated $\Delta {{{\rm{BA}}}}_{{{{\rm{Frag}}}}.}^{+}$ in the deep interior Amazon where ref. ⁹⁵ find no significant trends (no data points) reflect large fractional increases in simulated fire over a low baseline -fires not detectable by MODIS sensors.

A similar comparison was performed for Indonesia and Malaysia (Figs. S7 and S5b), where deforestation and fragmentation have been rampant in recent decades. Comparing grid cells where simulated and observed burned area increased between 2000–2019 over a 1982–1999 baseline^97,98 and identifying where model and observation agreed, these were overlaid with markers identifying where significant deforestation⁹⁹ and plantation inception¹⁰⁰ occurred since 2000 (Figs. S7, S8, S9, S5b). In highly-fragmented Borneo/Kalimantan and Sumatra, model-data agreement was found for 58% of grid cells that experienced an observed increased of burned area, of which 67% were areas of known significant deforestation and/or plantation establishment. This broadly agrees with ref. ¹⁰¹, which found that human activity had amplified (but may not dominate) drought-related fires there. Model-data disagreement was more pronounced in fire-susceptible drained peatland regions^{102,103,104,105}, an expected result given ORCHIDEE does not represent tropical peat or soil burning (itself a loose model validation). Simulated average gross $\Delta {{{\rm{BA}}}}_{{{{\rm{Frag}}}}.}^{+}$ values in the Amazon and Indonesia are equivalent to ~27% and 24% of observed average annual burned area⁸¹, respectively, suggesting fragmentation is a powerful driver of fire activity in these two regions. Road fragmentation may thus describe the linkage between initial deforestation and dry season severity¹⁰⁶ to promote fires that would otherwise not have spread^107,108.

Fragmentation’s relationship with population density, carbon emissions and intensity, and regional-scale fire vulnerability

We look at how simulated biome-specific response of fire to fragmentation as population density (PopD) levels change, to provide broad insight into fire regime evolution with increasing human landscape encroachment. The relationship of simulated fragmentation-derived fractional burned area f$(\Delta {{{\rm{BA}}}}_{{{{\rm{Frag}}}}.})$ changes with population density for each global biome, as well as the corresponding generalised additive model (GAM) trend for each is shown in Fig. 3b. Tropical forest exhibits a clear hump-shaped increase in simulated fragmentation burned area at low-to-moderate population levels, reaching a maximum at ~0.5 individuals km⁻² (asterisk, Fig. 3b)) before decreasing toward zero, and is the only biome where a fragmentation-related increase in burned area is more important than a decrease. In temperate forests, fragmentation decreases burned area at low and high population density and increases it at moderate levels (max = 50 individuals km⁻²). Boreal forests appear relatively unaffected by changes in population, although this may be because they generally hold low population densities¹⁰⁹. Temperate grassland fragmentation slightly increased burned area at low PopD levels, and decreased dramatically at high levels.

One of the central goals of integrating a fire model with a land surface model is to quantify the effects of fire on the terrestrial carbon (C) cycle. Globally, the impact of fragmentation on simulated fire C-emissions is similar to that of simulated burned area, with a net reduction of ~−1% (−0.02 PgC yr⁻¹) of global emissions. Conversely, fragmentation’s impact on the fire emissions of specific biomes (Fig. S6) suggests that it tends to increase them in tropical, temperate, and boreal forests, despite a net-negative impact at the global scale (see Fig. 2c, d; SI Text S10). This is highlighted in Fig. 4a, which shows substantial areas of forested biomes where simulated area-specific fire C-emissions -a proxy for fire intensity-increase due to fragmentation even where it causes burned area decreases (SI Text S8). This is particularly true of boreal (per ref. ⁷¹) and to a lesser extent, tropical forests. This model result implies that fragmentation can reduce burned area while increasing the intensity of the fires that do burn, as suggested by ref. ¹⁰⁹ regarding human impacts on fire activity in boreal Russia, and is also of relevance to observed increases in global fire intensity over the last 20 yrs¹¹⁰. Understanding high-intensity fires is important because they are (a) harder to extinguish, (b) consume more fuel and, as such cause more immediate damage to terrestrial ecosystems, (c) are of importance to understanding the potential carbon cycle impacts of fragmentation-induced fire behaviour,

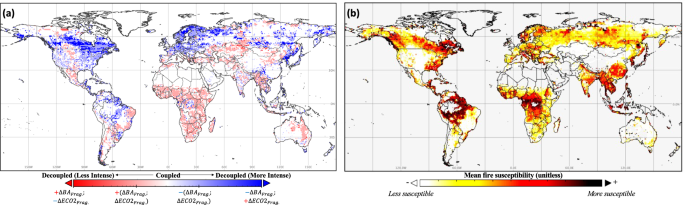

Fig. 4: Emergent modulation of fire properties by fragmentation.

a Time-averaged map showing where fragmentation relative to the control simulation without fragmentation leads to coupled (increasing or decreasing in the same direction) changes in burned area (ΔBA_Frag, Ha yr⁻¹) and fire carbon emissions intensity (ΔECO2_Frag, gC m⁻² yr⁻¹), shown in light colours, or decoupled changes (one increasing, the other decreasing), in dark colours. Blue depicts areas where ΔBA_Frag is negative, and red where it is positive. b Global spatial sensitivity of fire to hypothetical fragmentation levels: AED_F2 simulation ensemble-averaged spatial distribution of fragmentation-doubling effects on fire burned area (unitless colour scale). All grid cells show a mean decrease in BA over the 9 simulations, but because of the differential direction of change between simulations, we show in dark colours those grid cells where the average AED_F2 impact is least likely to decrease BA (highest fire susceptibility due to fragmentation) and in light colours where it is most likely to decrease BA (see Methods for further description of Figure construction).

To understand how different regions respond to fragmentation independent of contemporary RD distributions, ten global sensitivity simulations were run where the AED of all grid cells was set to equal 9 factor-of-two values (F2) of AED from 10,000 m to 39 m (AED_F2, see Methods). We compared the fractional change in burned area of grid cells between each sequential level of fragmentation f$(\Delta B{A}_{\Delta F2})$ as a measure of biome-scale fire sensitivity to fragmentation. Burned area declined everywhere as fragmentation increased when averaged over all AED_F2 levels (Fig. S11), however burned area decreases were lowest in tropical and boreal forest regions of the world (Fig. 4b, S11). We aggregated these burned area changes to a biome-scale average for each simulation. Fragmentation doubling caused simulated biome-specific burned area decreases f$(\Delta B{A}_{\Delta F2})$ of −7.5% (Tropical forest); −15% (Temperate forest); −19% (Boreal forest); −30% (C3 grasslands); −22% (C4 grasslands). On average, burned area decreased monotonically for almost all biomes with two-fold increases in fragmentation level (Figs. S11 and S12). Simulated burned area begins to decrease at different AED levels for different biomes (Fig. S11), implying differential biome-average fire sensitivities to land fragmentation. For example, to reach the same fractional decrease in burned area (−5%) due to fragmentation, an average tropical forest grid cell requires an additional road length (RL) of 2.5 km km⁻² (~6000 km grid⁻¹), highlighting the higher resistance of the tropical biome to fragmentation-associated burned area reductions (Fig. S11).

Discussion

This study has hypothesised (SI Text S4) that simple treatment of four model processes by globally averaged parameters and by a proxy for fragmentation would be sufficient to broadly reproduce its statistically-observed burned area effects. In rejecting the null, this study provides tentative model-based inference of fragmentation theory, by identifying and quantifying the central drivers of the fragmentation-fire link. While our fragmentation representation relies on empirical and mathematical/probabilistic constraints to test these hypotheses, and outputs appear to correspond well to available empirical data, the conceptual and hypothetical nature of its construction means that there is substantial uncertainty inherent to parameterisations used (SI Text S5), the vegetation and biome-specificity of fragmentation effects and the completeness of relevant process representations. As a result, caution should be taken in their interpretation, particularly with respect to policy. We suggest that the absolute changes in model outputs here are to be treated as highly uncertain, while the relative changes, at least in sign if not necessarily precise value, are reasonable by global modelling standards (see SI Text S6 for further discussion).

Our universal modelling approach may neglect culture-specific interactions with fragmentation and fire that result in managed fire ecology outcomes^31,111,112. However, roads are both result and instrument of financial capital, a known driver of cultural homogenisation¹¹³: While cultural diversity is correlated with biodiversity¹¹⁴, the strongest negative predictor of culture globally is RD¹¹⁵. Places where road fragmentation and its impacts are high are thus those least likely to host the forms of local cultural attunement that are best suited to their environment, and are likely of limited relevance to this study (see SI Text S7).

Model representation could be improved by discriminating between road-types, although the empirical impact of these on edge effects is currently unknown. The extent of fragmentation estimated here is likely substantially underestimated in some places due to (a) input RD low bias; (b) omission of other fragmentation sources in the AED proxy (SI Text S1). This may bause underestimation of fragmentation fire effects, particularly in tropical forests where bias may be particularly high. Because the AED input map is static, year-by-year interpretation of output is problematic, and provides impetus for the production of higher resolution and better-identified gridded RL timeseries maps. In some areas fragmentation may result in significant decreases in standing vegetation biomass, relative to historical ‘equilibria’, thereby reducing fuel load, potential area-specific fire intensity, and so spread potential. Thus, the dampening effect of fragmentation on burned area may in some places have more to do with biomass/fuel diminishment than the patch area-determined fire breaks represented here. In this vein, we caution there being no direct equivalence between the observed and modelled finding that fragmentation reduces aggregate fire activity, and socio-ecosystem-level management considerations. Taken to its extreme, the aim of reducing fire risk in this way could justify wiping out most vegetation in an area.

This study’s parsimonious representation of land fragmentation based on RD enables a simplified first estimate of its impact on fire probability and behaviour in a land surface model. This reproduced observed relationships between land fragmentation and fire probability at global and regional scales. Fragmentation has globally significant impacts on burned area, and may be a major driver of fire activity at regional scale. While reproducing the observed decreasing relationship of burned area with RD, our analysis highlights that this physical fragment constraint remains largely limited to dampening larger fires (Fig. S4). Broadly, our results mirror what is known only anecdotally, while providing explanatory quantification and future projection potential for such relationships at global scale. This allows: (1) Identifying how and which edge effects may increase fire behaviour in specific locations/biomes, facilitating remediating action; (2) Dynamic forecasting of how projected changes in fragmentation/RD may impact fire behaviour in the future; (3) A first step towards policy assessment of fire risk and social welfare when considering fragmentation-relevant policy directives. The methodology applied here also provides a route for large-scale modelling of other fragmentation or linear-feature effects in earth, ecological^30,34,57,116 and epidemiological sciences^107,117.

Climate warming, population density, and LUC-driven fragmentation will increase in the future, with socioeconomic effects of the greatest magnitude forecast in the tropics¹¹⁸. Fragmentation largely increases tropical fire activity, meaning it may become a major driver of burned area there in the future. This suggests fragmentation could eventually ‘tip’ towards a global net-positive burned area phenomenon with future tropical forest degradation and fire activity, in a potential feedback loop. Ultimately, fragmentation-suppression of wildfire could still cause extreme fires as a direct result¹¹⁹. This may place a greater burden on countries in these regions to balance economic policy with the environmental and welfare consequences of fire risk those policies may entail. With a higher degree of spatial, process, and variable resolution, future iterations of this model format may be useful for assessing the potential fire risks underlying such policy, particularly in ecosystems vulnerable to fire activity and shortening fire regimes.

Methods

Model description

ORCHIDEE-MICT-SPITFIRE integrates dynamic vegetation/fuel with climate, ignitions, and fire physics^73,120,121 and is a participant in the Global Fire Model Intercomparison Project (FireMIP^122,123,124). ORCHIDEE-MICT is a global-scale, grid-resolution model generally employed at 0.5 to 2 degrees, with boreal and permafrost-specific adaptations for high latitude biomes that affect soil, vegetation, hydrological, and thermal processes specific to those latitudes. These process representations are particularly important in the context of this study for the modelling of future fire-vegetation-hydrological interactions. The model is carbon based, in that it ultimately denominates earth system dynamics through their impacts on the C cycle, by which energy, soil, water, and climate drive fluxes of C through the system via vegetation and associated biological and ecological processes. Thus, photosynthetic C is fixed by 11 plant functional types (PFTs), doing so differentially as each PFT is subject to specific primary production, senescence, and C dynamics. The spatial distinction between PFTs can either be forced through an input vegetation map, defining the fractions of each grid cell covered by each PFT, or through the dynamic global vegetation model in ORCHIDEE, which predicts PFT type and allocation according to the biophysical suitability of each PFT to primarily climatic input variables. Fixed C is then allocated to foliage, fruit, roots, above/below-ground sapwood, heartwood, and C reserves, that upon death or senescence are shunted to two reactivity-differentiated litter pools. ORCHIDEE-MICT is hard-coded with an adaptation of the SPITFIRE fire module^{63,73,125,126}, which divides the aboveground vegetation components described above and apportions them to potential fuel type categories differentiated by their potential time to oxidation. Fire ignitions are controlled by a positive linear function of lightning flash density and are an increasing then decreasing function of human population density, with maximum human ignitions occurring at 20 individuals per square kilometre and declining thereafter. Vegetation flammability is determined by fuel and climatic conditions (Nesterov Index and Fire Danger Index). The area burned in an individual fire event is determined by the rate of fire spread and fire duration, as influenced by vegetation flammability. Fire CO₂ emissions depend on vegetation biomass, fire intensity and duration. See Supplement for further model description of ORCHIDEE-SPITFIRE.

Fragmentation representation

Global-scale representation of fragmentation-fire interactions must first overcome three problems. First, fragments occupy a wide range of morphologies that cannot be represented explicitly at the sub-grid scales required by existing model resolutions. Second, although the lack of an extant fragmentation metric might be overcome through a proxy, this proxy must be continuous and operable at sub-grid scale (SI Text S11). Third, the edge-interior characterisation of fragments requires that gradients of properties related to fire susceptibility exist between these two states, raising the problem of how to represent such gradients given patch shape-size heterogeneity, for which predictive relationships with fire specifically do not exist.

Here, these are resolved through the use of roads as a fragmentation proxy and the simplification of fragments to a single ‘average’ shape and size in a grid cell, given that the grid cell’s RD is such that all patches in a grid can be reduced to an average ‘disk’ size. This enables conversion of empirical data on fragment ‘edge effects’ -a transect from fragment length to fragment interior whose length is defined by a gradient in the state of a variable (e.g., soil temperature) -as a function of the patch radius.

In the literature on fragment edge effects, these effects are typically studied and reported in transects along a gradient of distance from fragment edge to interior. Fragments can be of any shape or size, meaning that at grid-scale, such sub-grid edge effects due to shape heterogeneity are extremely difficult to resolve or represent. Because global gridded RD data used here gives us the RL per grid, our method which uses this to calculate the average patch size based on an assumed circular patch shape, and hence ‘Average Edge Distance’ (radius), provides an elegant solution to representing these empirical edge effects: Any distance from the ‘edge’ (circle perimeter) to the interior (anywhere along the radius) can be calculated for all patches and applied to all fragmentation affected variables, thereby integrating the observed edge effects in a consistent and universal way at grid scale.

The average edge distance (AED) per grid (${AE}{D}_{G}$) given per-grid RL sum ($R{L}_{G}$) was solved analytically and is given by the following:

$${{AED}}_{G}=(2 * {{Area}}_{G} * f({Cont}))/\sum \left.({{RL}}_{G})\right)$$

(1)

Where Area_G is the grid area in m², and f (Cont) the fraction of each grid cell area taken up by the continental landmass. The gridded RL dataset in Meijer et al. (2018) gives a global RL estimate that is about 50% lower than that estimated by the World Road Statistics database (~30 million km), and ~300% lower than the estimate provided by the CIA World Factbook. Furthermore, a recent report¹²⁷ showed that the Global Roads Inventory Project (GRIP) database consistently and strongly under-predicted the existence of small roads, leading to large low biases against manually observed road data in the report’s two case study sites in the Congo and Canada. The primary reason hypothesised for these mismatches, which are acknowledged in ref. ⁵⁶ paper, is the under-representation of unofficial and unpaved roads in their source database. GRIP was shown to under-represent total manually measured RL in a grid cell by a factor of over 8 in one area (Fig. 19 of ref. ¹²⁷). For this reason, in Eq. 1, which generates the AED map used as input to ORCHIDEE, we make the assumption that the gridded RL data underrepresent actual RL by a factor of 2, which implies a total global RL roughly in between the WRS and CIA estimates. Further, as river and stream length as well as large topographic discontinuities can reasonably be expected to act as fire breaks in most circumstances, and given that these are excluded from the input data, we take these to be potentially integrated into the factorial AED map. We acknowledge that multiplying RL uniformly by a single factor masks the likely spatial distribution of bias inherent to the GRIP database; however, given that the source bias has not been assessed or quantified, we retain this spatial uniformity assumption for simplicity in this study.

In order to modulate the effects of fire by fragmentation, ORCHIDEE must first be fed a gridded input map containing the AED data. This is derived from⁵⁶, which gives global gridded RL in m km⁻² at 5 arc-minute (~8 km) resolution for a single time period (~2017), downloaded from (https://zenodo.org/record/6420961, accessed 20/11/2022), converted to netcdf format and regridded to this study’s simulation resolution of 0.5° (~50 km) using the conservative interpolation function in the Climate Data Operator (CDO) package¹²⁸. The raw data were provided in five classes of road type: highway, primary, secondary, tertiary, and local. Although we can reasonably expect each of these road classes to represent different scales of fragmentation, each conferring differential effects in their relation with fire phenomena, the paucity of empirical data on what these might be, coupled with the range of impacts that may, as mentioned be contradictory, mean that for the moment we take all road classes to be equal in effect, and as such sum them to a single RL density variable. Eq. 1 is then applied to the dataset to generate a global gridded map of the average circular patch radius associated with each grid cell (${AE}{D}_{G}$).

Next, we assume that spatially extensive fires do not occur on land that can be considered ‘urban’. This assumption is made on the basis that urban areas are characterised by very low fuel densities (compared to, say, a pine forest), large areas of concrete, asphalt and steel, which do not burn easily, and high population densities that strongly increase the probability of successful human fire suppression. Because RD in urban areas is very high, this assumption should also require that the urban proportion of RD in each grid cell is removed from the original RL data, and a corresponding AED map generated. To do so, we download the output data from [ref. ⁵⁵] which gives the urban area fraction (UAF) of grid cells at global 0.125° resolution, and projects this variable globally to 2100 under the Shared Socioeconomic Pathways (SSP) scenario suite: (https://dataverse.harvard.edu/dataverse/geospatial_human_dimensions_data, accessed January 12, 2023). We then plotted a simple linear regression between the 2018 UAF data and the original RL, giving a relationship between the fraction of urban area in a grid cell and the RD of that grid cell (RL = ((2.68∗10⁴)∗UAF) +292; R² = 0.43), where 2.68∗10⁴ = is the regression coefficient (α_UAF, Table 1).

The RL data were split into categories of urban fraction, whereby each grid cell was allocated to one of twelve UAF bins, corresponding to [0–1, 1–5, 5–10, 10–20, 20–30…90–100 percent] and the equation was used to estimate the implied RD at the numerical midpoint of each bin. Thus, on the basis of the RL/UAF regression, a RL per unit UAF was allocated to each of the UAF-based classes, multiplied by the actual UAF of each grid cell given its UAF, and the resulting ‘excess’ RL subtracted from the original RL data, to give an ‘effective’ RD and AED value. The resulting AED ‘fragmentation’ map can be compared to the original, and shows that in removing the impact of urban area roads on the representation of fragmentation, the world’s most fragmented landscapes are no longer found in north-west Europe but in the north-eastern United States and, e.g., Bangladesh. This is likely indicative of extensive non-urban infrastructural sprawl in the former, and a symptom of uniformly high population density and low to medium intensity and highly extensive agricultural land use in the latter, meaning that roads criss-cross large parts of the country (see Fig. 1a). We chose to use UAF bins and calculate the RD at their midpoint instead of direct application of the regression equation because the latter's scatter is substantial, with binning more closely approximating the statistical value envelope.

Description of fire-fragmentation dynamics

Fire size

In ORCHIDEE, total burned area per timestep is given by the product of average individual fire size in a given grid cell, and fire number. Because it has been shown in an anecdotal number of studies³⁸ that for forests, fragmentation leads to decreases in fire size, and at the same time, ref. ⁵⁹ showed that the single strongest negative determinant of burned area at global scale is RD, we first approach fragmentation representation by decreasing the potential size of an individual fire as fragmentation increases. This is done first by assuming that the maximum individual fire size is a multiple (${n}_{{Pat}}$) of a grid cel’'s AED-determined mean patch area. This is because fragmentation may delimit the boundaries of fire spread in many circumstances, the circular AED-derived patch area is itself only an average, and large variations in patch size will be the reality, with some patches much larger than others. In addition, it lends a lower degree of restriction of fragmentation on fire size, allowing for the real-world possibility that fires can spread beyond the borders of the original vegetated patch. ${n}_{{Pat}}$ allows for future refinement of model representation when empirical relations between sub-grid-scale fragment size distribution and propensity for spread become known. In the absence of such data, we set ${n}_{{Pat}}\left({forest}\right)$ =1 and ${n}_{{Pat}}({grass})$ =1.25 (Table 1). We reason this because the observed individual fire size distribution is highly skewed towards small fires when compared to the fragment sizes defined by AED (see Fig. 2d), and because statistical treatment of observations suggests road fragmentation is a strong determinant of lower aggregate burned area⁵⁹. Without any empirical data to work with, we assume that maximum fire size is limited to the fragment size unless the conditions for extreme fire are met. Thus, the relation between fragment size and maximum fire size is equal to, or given a multiplier value of, 1.0. We slightly increased grassland fire size limitation by AED by 25% above above this value (1.25) due to the relative ease fine fuels in grasslands to more easily ignite and be carried over road barriers by wind (see SI Text S5 on Assumptions).

Fire spread thresholds

To introduce added realism and further reduce the restrictiveness of the fragmentation representation, the AED-denominated limit on individual fire size is only applied when separate conditions are met for forests and grasslands. For forests, if the simulated fire intensity and flame height exceed canopy base height, which is the pre-existing condition for canopy scorch in the original version of SPITFIRE⁶³, and the condition for crown fire spread in an upcoming version (Bowring et al., in prep.) then no size limitation is imposed:

$${{{{\rm{FST}}}}}_{{{{\rm{TREE}}}}}={{{\rm{True}}}}.{{{\rm{IF}}}}.\,:{{{\rm{SH}}}} > ({{{{\rm{H}}}}}_{{{{\rm{TREE}}}}}-({{{{\rm{H}}}}}_{{{{\rm{TREE}}}}} *{{{{\rm{CL}}}}}_{{{{\rm{TREE}}}}}))$$

(2)

Where FST_TREE is the fire spread threshold (Table 1), SH is the mean fire scorch height, H_TREE the mean tree height, CL_TREE the mean crown length. This is done to account for the possibility that high-intensity forest fires can’t ‘jump’ over roads through crown spread, particularly if meteorological conditions for doing so are favourable. When this condition is met, fire spread and fire size are calculated as in the original SPITFIRE formulation. Second, over grasslands, ref. ⁷² found that a critical threshold limiting fire spread (FST_GRASS), and hence fire patch size, exists in grasslands, which results from grassland fuel connectivity as given by area-specific fuel mass (tons Ha⁻¹). They showed that if this 2.4 tons Ha⁻¹ grass wet mass threshold is reached, even fuel at 100% moisture was able to burn. Thus, individual fire size limitation due to fragmentation on ORCHIDEE grasslands applies only to instances where the simulated grass fuel mass is below this biomass threshold, and are otherwise allowed to spread freely, as in the original SPITFIRE formulation:

$${{{{\rm{fGrass}}}}}_{{{{\rm{WW}}}}}=\Sigma ({{{{\rm{F}}}}}_{1{{{\rm{hr}}}}}+{{{{\rm{F}}}}}_{10{{{\rm{hr}}}}}+{{{{\rm{F}}}}}_{100{{{\rm{hr}}}}}+{{{{\rm{F}}}}}_{1000{{{\rm{hr}}}}}+{{{{\rm{F}}}}}_{{{{\rm{Live}}}}}) *(1/0.45)$$

(3)

$${{{{\rm{FST}}}}}_{{{{\rm{GRASS}}}}}={{{\rm{True}}}}\,\cdot{{{\rm{IF}}}}\cdot\,{{{{\rm{fGrass}}}}}_{{{{\rm{WW}}}}} > \,2.5{{{{\rm{tHa}}}}}^{-1}$$

(4)

Where fGrass_WW is the summed weight of grass and grass fuel, F_nhr refers to the different ‘hour’ fuel classes in ORCHIDEE, F_Live is live grass and (1/0.45) is the conversion of dry biomass to wet weight. Note that this ensures that the fragmentation model is able to account for the likely increases in extreme fire weather projected by future scenarios of climatic change. In a hot and dry season, a combination of fuel availability, low fuel moisture and high heat will enable an ignited fire to reach fire-high reaction intensities, allowing high fuel consumption and flame heights to exceed those of the canopy and permit crown fire spread between forested patches. Likewise, fuel-limited grassland fires will, in dry seasons preceded by high pre-fire-season grass growth rates, spread when the medium of connectivity (fuel) is sufficient. Conversely, if there is insufficient fuel (i.e., prolonged drought), fire will not be able to spread between patches. Please see SI text S5 for further discussion of these parameterisations and their assumptions.

Human ignitions

Because the characterisation of fragmentation applied here is definitionally anthropogenic, it follows logically that an increment increase in RL in a given area exposes that length to human contact. Human contact, in turn, increases the risk of human ignitions, either through intentional (e.g., arson) or unintentional action (e.g., discarded cigarette butts, machinery, power lines, sunlit beer bottles, etc). In ORCHIDEE, human ignitions are controlled as a non-linear increasing then decreasing function of human population density (Fig. S3b), to reflect the fact that ignitions are more probable, and suppression less likely, when population density is low but not extremely sparse, such that the number of human ignitions ($I{G}_{H}$, Ha⁻¹ d⁻¹) is given by:

$${{IG}}_{H}={PopD} *k({PopD}) *a({Nd})/10000$$

(5)

$$k({PopD})=30 *{e}^{-0.5 *\surd ({PopD})}$$

(6)

Where ${PopD}$ is population density and $a({Nd})$ an observationally-estimated parameter representing ignitions per person per day, set at 0.01^63,73.

Here, we assume that an increase in fragmentation causes an increase in the probability of ignitions in direct proportion to the ratio of edge area: patch area, assuming conservatively that the human interaction with an edge can be characterised by a 1 m edge depth (ED_Humig., i.e. a 1 m increment into the radius of the assumed circle). This 1 m edge depth assumption is equivalent to the depth from the patch edge (i.e., road) which is potentially subject to increased fire ignitions due to human contact (potentially resulting in fires through arson, cigarettes, machinery, etc). The 1 m edge is assumed and low because although human effects on ignition may occur deeper into a patch, the time-averaged edge depth that they do so along the length of fragment edges is likely small, so we hold this parameter at unity.

This transforms the perimeter from a length to an area, allowing us to probabilistically modulate the ignition function directly by the area represented by the total fragmentation edge area present in the grid. We then adjust the human fire ignition function ($I{G}_{H}$) in SPITFIRE⁷³ by the product of the number of patches that fit into a grid's area (${Are}{a}_{G}$) and the cumulative fractional grid area of the ignition surface as defined by the assumed 1 m ignition edge depth to arrive at a fragmentation-affected ignition function ($I{G}_{{HFrag}}$), as illustrated in Fig. S1b:

$${{IG}}_{{HFrag}}={{IG}}_{H}+\left(\right.(({{Area}}_{G}/(\pi *{{AED}}^{2})) *((2\pi *{AED} *1)/{{Area}}_{G})/10,\!000)$$

(7)

Thus, an AED of 20 m yields a potentially increased ignition surface amounting to ~10% of a grid cell’s area. This probability is scaled to the ignitions person⁻¹km⁻²d⁻¹ as a constant (/10,000), and results in significantly increased ignitions at low and high population density when fragmentation is high, which decreases exponentially as fragmentation decreases (AED increases). This is clearest at high population densities, where the suppression effect of high population is counteracted by fragmentation (Fig. S1b). Please see SI Text S5 for further elaboration on the assumptions inherent to this parameterisation.

Fuel wetness

Landscape fragmentation studies across many forested biomes have found that soil temperature and moisture were significantly higher and lower, respectively, at forest patch edge than in the patch interior^{47,48,49,50,51}, with subsequent impacts on fuel moisture and fire ignition and spread probabilities. After a review of the literature of edge-to-interior effects on soil moisture, which measure transects of soil moisture from fragment edges to their interior at different depths in the soil, we find that the distance from the edge at which the gradient is effectively zero average at ~50 m^48,108, increasing to hundreds of metres in deeper soils. For air temperature¹²⁹, find it is at 20 m in Korean temperate forest¹³⁰, at 15 m in the Swiss Jura mountains¹³¹, at <10 m (depending on time-of-day) in a sharp tropical forest fragment edges, around 50 m at Brazilian Amazon transitional edges¹³², while⁴⁸ show that it sits at ~5 m to 75 m in European deciduous forests, depending on the vegetation density and mean annual temperature of the fragment concerned. We did not find any data relating litter or ‘fuel’ temperatures to fragment edge-to-interior gradients. We represent this by simply using the relative areas of patch area and edge area to define the proportion of a grid cell made subject to edge drying. Thus, we calculate the ratio of the edge area to patch area (the edge-to-patch ratio, EPR), and assuming conservatively that the ‘edge-to-interior’ gradient through which temperature and soil effects are significant can be defined as the 20 m from the edge inwards (this is the distance to which edge-interior soil moisture and temperature gradient in the above studies falls to approximately zero). This is then the area subject to increased drying and higher temperatures owing to fragmentation:

$${EPR}=((\pi *{{AED}}^{2})-(\pi *({{AED}-10})^{2}))/(\pi *{{AED}}^{2})$$

(8)

In ORCHIDEE-SPITFIRE, each fuel class in each grid cell is allocated a simulated fuel moisture content (${We}{t}_{{FC}}$). In addition, there is a moisture threshold for each fuel class above which fuel consumption by fire no longer occurs (${Thres}{h}_{F{C}_{{{\mathrm{1,2}}}}}$), where the subscripts refer to the 1 hr and 10 hr fuel classes subjected to edge drying. The 100 hr fuel class is not affected in this scheme, as we assume that the diameter of 100 hr fuel is sufficiently high to preclude edge drying from affecting its sensitivity to ignition. Here, both the calculated wetness and the ignition threshold were used to proxy edge fuel drying, and are both lowered by the product of the fractional edge-to interior moisture gradient with ${EPR}$.

$${{Wet}}_{{FC}}={{Wet}}_{{FC}}-((0.25/2) *{{Wet}}_{{FC}} *{EPR})$$

(9)

$${{Thresh}}_{F{C}_{1,2}}={{Thresh}}_{F{C}_{1,2}}-((0.25/2) *{{Thresh}}_{F{C}_{1,2}} *{EPR})$$

(10)

Whereby 0.25 is the ~25% fractional soil moisture gradient difference between edge and interior found across the field studies cited above. Effect sizes ranged from ~10–40%, with most data-aggregated transects at 15–30% (see also ref. ¹³³). Since we take the edge depth (ED_Moisture) to be 20 m, and assume a linear moisture gradient from 0–20 m, half of the maximum gradient is taken as the average decrease in soil moisture owing to fragmentation over the length of the edge, and total grid fuel wetness is then affected by the fractional area occupied by this edge.

Wind speed and rate of spread

Increasing fragmentation results in an increasing proportion of the landscape subject to a perimeter through which wind can travel with relatively less interruption. In other words, there is less of a barrier to wind at the patch edge local surface roughness is lower, wind speeds are higher, and a larger proportion of the landscape is subject to these higher winds as fragmentation increases (e.g., ref. ⁹). We treat this in ORCHIDEE by reducing the pre-existing model wind speed reduction factors at atmospheric versus ground level by an analytically resolved factor derived from the implicit amount of fragment edge derived from AED. Specifically, we reduce the pre-existing reduction in windspeed due forest coverage in ORCHIDEE by the grid-areal proportion given by a parameterised 16 m mean edge depth (${{ED}}_{{WIND}}$). We based our parameterisation on Davies‐Colley et al.¹³⁴ who showed for forests in New Zealand that differences in the windspeed gradients between fragment edge and interior approached zero somewhere between the 10 m and 20 m mark along their transect (which include 0 m, 5 m, 10 m, 20 m, 40 m, 80 m measurement loggers with respect to distance from fragment edge). For the edge depth of wind infiltration, we settled on an ‘in between’ value of 16 m. Effective ${{ED}}_{{WIND}}$ is actually 4 m, since at any time in any patch, we assume the wind can only come from one of four idealised wind directions so that at the grid-scale average, ${{ED}}_{{WIND}}$ is divided by 4 in model implementation. We then reduce the fixed forest wind reduction factor (${WRF}=0.4$) in SPITFIRE proportional to the areal coverage of the fragment perimeter given by effective ${{ED}}_{{WIND}}$.

$${f}_{{EDGE}}={{Area}}_{{patch}}/{{Area}}_{{edge}}$$

(11)

$${WRF}={WRF}-{{ED}}_{{WIND}}$$

(12)

Increases in windspeed due to fragmentation in turn affects the fire ROS in areas that are considered substantially fragmented, leading in principle to increased burned area within the patch area and (with the increase in fuel combustibility as a function of dryness and Fire Danger Index), potentially greater area-specific total combustion, fire intensity, and C emissions, potentially decoupling burned area from ECO2 (Fig. 1b). The fragmentation-wind relation was not applied to grasslands, because, firstly, wind has been shown to not increase grassland ROS and burned area⁷², and secondly, because the relative exposure differential of grass height and ground height compared to forest areas was assessed to be minimal. Please see SI text S5 for further discussion of these parameterisations and their assumptions.

Simulation protocol

The resulting model was spun up for 40 years to allow for vegetation to reach a quasi-equilibrium biomass state. This was done by forcing the model with the vegetation, climate and atmospheric CO₂ of 1901–1910, looped over that period of time, then looped again for 40 years over 1990–2000 forcing data, to bring the model to an equilibrium consistent with the near-present day. Principal and ‘control’ simulations were run over the period 2000–2013. Vegetation was imposed and not predicted using ORCHIDEE’s dynamic global vegetation model to reduce uncertainties associated with its output. Climate forcing data for all runs came from the CRU-NCEP v8 dataset¹³⁵, and vegetation imposed on the model from the ESA-LUH2 suite of projections with 13 plant functional types¹⁴.

A number of additional output variables were also implemented to ease assessment of the effects of fragmentation on fire behaviour. Thus, a ‘counterfactual’ burned area variable, giving the burned area that would have been simulated without the fragmentation code, is written to history along with fragmentation-affected burned area, to enable tracking of fragmentation's effects. Likewise, differential burned area between the fire size and human ignitions fragmentation functions, assuming they are both activated, allows the user to track the relative burned area if either only the human ignitions or fire size -fragmentation flags were activated. This could not be done across all fragmentation-fire adaptations because of a necessarily large duplication of code and simulation runtime inefficiencies that would result.

Sensitivity analysis

We created synthetic maps of factor-two levels of homogenous global AED levels to assess the global change in burned area for each biome type (tropical, temperate, boreal) resulting from a factor-2 change in fragmentation level. AED (not RD, which would cause differential AED because of grid area heterogeneity) was homogenised globally at 2-factor levels [of ${{{\rm{AE}}}}{{{{\rm{D}}}}}_{{{{\rm{f}}}}2}$ =39.0625, 78.125, 156.25, 312.5, 625, 1250, 2500, 5000, 10,000, 20,000 metres], permitting analysis of the biome-scale effects of fragmentation on fire independent of historical fragmentation trajectory, by calculating the global average change in burned area for each homogenised AED bin and biome. The model was run over a three-year period (2001-2003 inclusive) for each ${{{\rm{R}}}}{{{{\rm{D}}}}}_{{{{\rm{f}}}}2}$ leve. This period was chosen because it incorporates a mixture of moderate El Niño and La Niña years, to limit its signal in simulated fire behaviour to be averaged out in annualised postprocessing. We initially maintained the existing global population distribution for the simulated years to gauge whether population density may cause a change in sign of sensitivity, and hence warrant further factorial analysis. Sensitivity was evaluated as the fractional change in burned area ($\Delta {fB}{A}_{F2}$) per grid cell due to a two-fold increase in fragmentation (halving of AED):

$${\Delta {fBA}}_{F2}=(({{BA}}_{{{AED}}_{F2[1/2]}})-({{BA}}_{{{AED}}_{F2[1]}}))/{({{BA}}_{{{AED}}_{F2[1]}})}_{{GRID}}$$

(13)

Where $B{A}_{{AE}{D}_{1/2}}$ is the burned area at an AED of half the value of $B{A}_{{AE}{D}_{F2[1]}}$. For each of the ten sensitivity simulations, biomes were assigned to each grid cell by identifying the PFT in each grid that contributed the maximum amount of simulated fire CO₂ emissions within that grid cell. This was done to identify the actual vegetation that burned in a grid cell, and hence the fire-relevant vegetation type, as opposed to using the maximum value between vegetation fractions of each PFT assigned to a grid cell, given that within a grid, certain vegetation types may have a fractionally higher propensity to burning than their areal coverage. At the global scale, the individual PFTs were then aggregated into tropical, temperate, boreal, C3, and C4 grassland/savannah bins. BA in ORCHIDEE-SPITFIRE is not PFT-disaggregated. However, CO₂ emissions from burning are. This gives a reasonable proxy of what vegetation is burning in a grid cell. Each grid cell was assigned a PFT identity according to that PFT, which produced the highest fire CO₂ emissions over the course of each sensitivity simulation; global biome-specific masks were then created by aggregating boreal tropical and temperate forest types, and $\Delta {fB}{A}_{F2}$ calculated for biome.

Analysis

RD was recently estimated in a statistical generalised linear modelling study to be a strong negative predictor for burned area globally⁵⁹. We evaluated the statistical relationship between burned area and RD that emerges from our simulations to compare with the same regression performed by ref. ⁵⁹. We transform these two variables by taking the square root of RD and applying the logit-link function to monthly burned area. The latter requires reducing a variable (burned area) to a probabilistic value, which in this case means a conversion to fraction of grid cell area (p). The logit function is then given by:

$${Logit}\left({BA}\right)={Ln}(p/1-p)$$

(14)

To estimate fragmentation-fire behaviour at biome scale, we found the maximum PFT-type that burned the most in carbon terms over the simulation period in each grid cell, by iteratively searching out the maximum value of time-aggregated CO₂ emissions per PFT in each grid. This was done because burned area in SPITFIRE is not output in PFT-specific fractions, while CO₂ emissions are, and informs us of what biome fire activity is most prevalent over time in each grid cell, such that these grid cells are collectively used to characterise global biome (PFT) -scale fire behaviour. All tropical, temperate and boreal PFTs were bundled into single biome bins to simplify explanation and analysis. Fig. 4a was produced by assigning Boolean numeric values to simulation average changes in burned area and ECO2, then combining these to assign coupled/decoupled direction-of-change.

Data

UAF was obtained from ref. ⁵⁴. Fire size data used in Fig. S4 is sourced from FRYv2.0¹³⁶, updated from FRYv1.0¹³⁷ with single ignition point polygons delineation from re. ¹³⁸, based on pixel information MCD64A1 and FireCCI51, as recently used in ref. ¹³⁹. Long-term burned area data for South-east Asia from^97,98 was obtained from https://climate.esa.int/es/odp/#/project/fire (accessed 05/06/2023), while deforestation and pre-and post 2000 average tree plantation grid data were obtained from refs. ^99,100. Fragmentation and fire data for Brazil in Fig. 3a were provided by ref. ⁹⁵ and upscaled using CDO’s conservative remapping function from 10 km to 0.5 degree grid resolution. All other datasets above were interpolated bilinearly in CDO to 0.5 degree resolution. Postprocessing was performed using NCL, Panoply, CDO and R, with R maps created including the following packages: ncdf4, ggplot2, raster, maptools, rgdal, rgeos, maps, ggpubr, sp, geosphere, rColorBrewer, ggmap, lattice, dplyr, tidyr, plyr.

Figure generation

Figure 2c: Here, we briefly explain how we isolated grid cells where fragmentation explicitly decreased fire size in simulations: In SPITFIRE model code, we created diagnostic variables to analyse the effect of the fragmentation representation on BA. In the case of individual fire size restriction due to fragmentation (blue and red datapoints in Fig. 2c), we created a ‘dummy variable’ -a version and value of a given variable that is not what is finally output, but is temporarily saved to allow for the calculation of another variable. This dummy variable calculated daily burned area without fragmentation-limiting effects on fire size. This required running most of the SPITFIRE model code and saving this ‘dummy’ fire size value, and then looping the same code to include the fire limiting fragmentation effects on BA, giving ‘actual’ fire size values. Where actual < dummy fire size, the fire size limitation of fragmentation as represented here has actually had a constraining impact on fire size, and the difference is saved, as are the locations. The values in the red and blue scatters of Fig. 2care thus those areas where fire size is on average constrained by the patch size, but includes the aggregate impact of fragmentation on BA (it can still cause either increase or decreases in BA).

Figure 4b: Fig. 4b shows the inverse of the average effect of fragmentation on fire outcomes, across a suite of sensitivity experiments in which fragmentation is varied at fixed levels equally and globally. We say ‘inverse’ because on the average, across these levels of fragmentation in conjunction with contemporary human population density levels and vegetation distributions, the impact of increasing fragmentation on fire is negative (a decrease in BA), almost everywhere in the world. However, in the jump from one level of fragmentation to another, depending on the fragmentation level, certain biomes and grid cells will show an increase in fire activity. We average across this suite of nine simulations to indicate that: where fragmentation caused the smallest decrease in BA (hence the inverted scale) is therefore also where fragmentation is likely to cause the greatest increase in susceptibility to fire. By contrast, areas where decreases in BA due to fragmentation were, on average, very high are places that have the lowest susceptibility to increased fire due to fragmentation. The scale on this diagram is derived from a continuous fractional change in burned area scale averaged over results of our sensitivity runs, but we have removed the values and made the result qualitative to facilitate representation and interpretation of the locations rather than the precise quantities whereby fire susceptibility to fragmentation may be highest. This was done to reflect how some areas and biomes are more or less fire-buffered by fragmentation than others, across a broad suite of possible fragmentation levels.

Figures S7 and S10: To generate the burned area anomaly and model-data agreement Figure for this portion of Southeast Asia, we used a (highly uncertain) long-term burned area dataset, and data that gives the onset (timing) of plantations and other concessions. We then overlaid grid cells in the region where the fraction of these concessions had increased with grid cells in which observed burned area had increased (the shading in the Figure refers to burned area anomaly magnitude). We compared these grid cells to those in which modelled burned area increases due to fragmentation, to see if there was a correlation between locations. Generally, this correlation was high (‘simulation-observation agreement’), although observed positive BA anomalies occurred in more grid cells than that predicted by the model. This model/data disagreement (dark blue in the figure) occurred mostly in areas of Borneo/Kalimantan underlain predominantly by peat. As peat is not represented in this version of ORCHIDEE, we are not able to represent the increases in fire activity that have been widely linked to peat burning as a result of concessionary clear-cutting. Although simple, this exercise nonetheless provides strong suggestive support for the idea that (a) fragmentation and RD are directly correlated; (b) fragmentation is a strong driver of fire activity in tropical biomes. The same approach was used to build Figure S10.
