Introduction

Color centers, which are defects in crystals, enable single-photon emission, holding significant potential for quantum information technology1. Among these, color centers in transition metal dichalcogenides (TMDCs) garner intense interest due to their tunable emission properties, high photon extraction efficiency, and seamless integrability2,3. Extensive research has focused on enhancing color centers in WS2, WSe2, and MoS2 through methods like strain engineering and helium ion irradiation4,5,6,7,8. Two types of quantum emitters in TMDCs have been proven: strain-induced localized excitons and transitions involving localized defect states (donor or acceptor levels induced by chalcogen or transition metal vacancies) within the bandgap9. However, the utility of these defect emitters is hindered by spectral instability, including spectral diffusion, blinking, and bleaching10,11,12. Establishing the correlation between the atomic structure origin of color centers and stable defect emission in TMDCs is demanded for their effective use in quantum technologies.

Identifying color-center origins and optimizing their optical performance is challenging. Photoluminescence (PL) spectroscopy offers high-energy resolution but limited spatial resolution due to diffraction limit13,14,15,16. Super-resolution optical techniques like scanning near-field optical microscopy (SNOM) and photoactivated localization microscopy (PALM) localize radiative emission but lack direct correlations with structural characteristics like strain or defect configuration17,18. High-angle annular dark-field (HAADF) and integrated differential phase contrast (iDPC) imaging in a scanning transmission electron microscope (STEM) has advanced defect structure characterization in MoS2 and WS219,20,21,22. These atomic-resolution images distinguish individual defect structures in low-dimensional materials. However, many transmission electron microscopes (TEMs) lack optical detection capabilities, limiting the correlation of optical signatures with structural properties.

Cathodoluminescence (CL), a technique for mapping luminescence in spatial dimensions, has recently been integrated into electron microscopy. Most CL is performed in scanning electron microscopy (SEM), but it faces spatial limitations due to beam broadening and probe size23,24,25. STEM-CL significantly improves spatial resolution, enabling nanoscale imaging26. The use of a cryogenic stage in this system further minimizes thermal quenching effects, enhancing the CL signal yield and achieving an energy resolution of 0.5 meV. In two-dimensional materials, STEM-CL has been reported to examine the effects of interfaces such as wrinkles and bubbles on optical properties27,28. It has also facilitated the establishment of correlations between quantum emission and strain in hBN29, providing valuable nanoscale insights into microstructure-property relationships.

In this study, STEM-CL and machine learning were employed to further investigate the atomic structural origins of color centers. Monolayer WS2, recognized for its potential as a single-photon emitter30,31,32, was chosen and sandwiched between two 20-nanometer thick hexagonal boron nitride (hBN) sheets. This setup enhanced the CL yield by leveraging the quantum well structure (Methods)27,33. The resulting heterostructure was placed on a cryogenic STEM-CL sample stage. The STEM electron beam was utilized simultaneously for three purposes: producing color centers, achieving atomic-level resolution imaging of color centers, and exciting color centers. Concurrently, exciton spectra were collected through CL spectroscopy for in-depth in situ analysis (Methods). During these experiments, hundreds of defect emission spectra, along with their corresponding atomic structures, were collected. This data was subsequently fed into a machine learning algorithm, facilitating a nuanced distinction between color-center configurations that are beneficial or detrimental to the luminescent properties of defects.

Results

Defect emitters in monolayer WS2

The experimental setup is illustrated in Fig. 1a (Methods). STEM images were captured using a high-angle annular dark-field (HAADF) detector. Depth-sectioning HAADF imaging was employed to locate the position and capture the atomic structure of monolayer WS2 encapsulated in hBN sheets (Supplementary Fig. 1). The thus focused incident 80 kV accelerated electron beam excites the monolayer WS2, resulting in the emission of CL spectra. The initial monolayer WS2 sample exhibits a flawless crystalline lattice and an intrinsic edge-band exciton (A0) peak at 620 nm without notable defects (Supplementary Fig. 2). By intentionally positioning the focused electron beam on different regions of the WS2 and varying the dwell time, defects were deliberately introduced due to radiolysis effect (Methods).

Fig. 1: Correlated optical and structural characterizations of defect emitters in hBN | WS2 | hBN heterostructures.
Fig. 1: Correlated optical and structural characterizations of defect emitters in hBN | WS2 | hBN heterostructures.
Full size image

a Schematics of the scanning transmission electron microscopy cathodoluminescence (STEM-CL) experiment setup. Electron beam excites the heterostructure to emit CL which is reflected by two parabolic mirrors to optical fibers. The transmitted electron beam is collected by the segmented detector (inner) or high-angle annular dark-field (HAADF) detector (outer). b CL spectrum mapping of an electron-beam radiated hBN|WS2 | hBN heterostructure with a wavelength window of 650–675 nm, showing the position of color centers formed with varying electron-beam radiation durations. The white dotted line circles the suspended area of a hBN|WS2 | hBN heterostructure on a TEM grid. c CL spectrum of region I, II, III in b. The red boxes in c indicate the wavelength window of 650–675 nm. A0 denotes the peak position of intrinsic edge-band exciton, while XL signifies the peak position of the localized defect exciton. d High-magnification STEM-HAADF image of monolayer WS2 in region I, II, III in c overlapped with tungsten atom distance mapping, showing atomic-resolution structural origins of the defect emission. Only distorted areas are marked in the mapping. e High-magnification STEM-HAADF images of the emerging defects and corresponding tungsten atomic distance mappings of monolayer WS2 in b, showing seven types of defects arising due to long-time continuous electron beam radiolysis. f Schematic diagram of data analysis using machine learning, where the input consists of 101 sets of defect emission spectra and corresponding atomic structures. g Machine learning output results, indicating that the impact of sulfur-vacancy pairs on the optical properties of defect emissions differs from other color centers. Defects are overlaid with tungsten atom distance mapping.

Subsequent CL spectral mapping of these defects, after filtering out the intrinsic band-edge luminescence, clearly illustrates the location of the in situ-generated color centers, as depicted in Fig. 1b. Figure 1c shows the emission spectra corresponding to different regions in Fig. 1b. Clearly, the unirradiated region I exhibits a neutral exciton (A0) peak at 620 nm, which is consistent with the reported bandgap of monolayer WS2 (2.0 eV), as shown in region I in Fig. 1c. In contrast, regions II and III, which were irradiated, exhibit new peaks labeled as XL at 668 nm and 663 nm, respectively, each with a full width at half maximum (FWHM) of approximately 35 meV. Notably, region III, which received the mostly radiation, shows significantly enhanced CL emission with a much larger intensity ratio of XL/A0.

It is worth noting that defect emissions within the visible frequency range, spanning from 540 to 735 nm, have been reported active in hBN at room temperature due to deep defect states29,34,35. In contrast, defect-induced emissions in WS2 have only been observed at cryogenic temperatures9. To affirm the source of the observed exciton emission, temperature-dependence CL measurements were conducted. The appearance of the XL emission peak at 660 nm, observed with decreasing temperature in the hBN|WS2 | hBN heterostructure, in contrast to the persistently dark hBN area, conclusively confirms that the defect emission here does not originate from hBN (Supplementary Fig. 3). Furthermore, the current electron beam irradiation does not induce carbon doping as reported in previous studies, and the observed peak positions differ from those in carbon-doped hBN36, consistently corroborating that the experimentally observed spectra originate from WS2.The effect of dielectric screening due to hBN encapsulation should also be considered, as it shifts emission energy37, causing a redshift in TMDC defect emission peaks and affecting neutral exciton and trion peaks15. We extracted the difference between the defect and neutral exciton peaks to decouple from the peak shifts induced by hBN encapsulation.

The in situ HAADF images further show the structural origin details of the color centers (Fig. 1d). In the Z-contrast HAADF micrographs, the bright spots correspond to the position of the W atom (Z = 74), while the S columns remain invisible due to their lower atomic number (Z = 16) and thus lower scattering power. Intriguingly, distinct lattice distortions were observed at the color centers, as evidenced by a reduction in the spacing between W atoms to 3.03 Å, in contrast to the unaltered pristine lattice, which aligns with the single-crystalline value of 3.18 Å. For added clarity, the W atomic distance mapping was measured and superimposed onto the HAADF image (Supplementary Fig. 4). As shown in Fig. 1d, several instances of lattice shrinkage, approximately 4.7% in magnitude (highlighted by blue triangles), are discernible at the color centers. Through the quantitative analysis of W atom distortions in the subsequent sequential HAADF images, seven types of arising defects induced by electron-beam irradiation were classified, as shown in Fig. 1e. Data comprising defect types and quantities, extracted from the HAADF images along with the corresponding defect emission spectra, were then integrated into the machine learning framework. This integration was employed to elucidate the atomic structural origins of distinct color centers, as documented in Fig. 1f, g.

Fabrication and identification of defects

To verify the repeatability of the atomic defect configuration caused by electron beam irradiation, we used in situ iDPC imaging with full-element atomic resolution to record the defect generation process in a free-standing monolayer WS2 for comparison, as shown in Fig. 2.

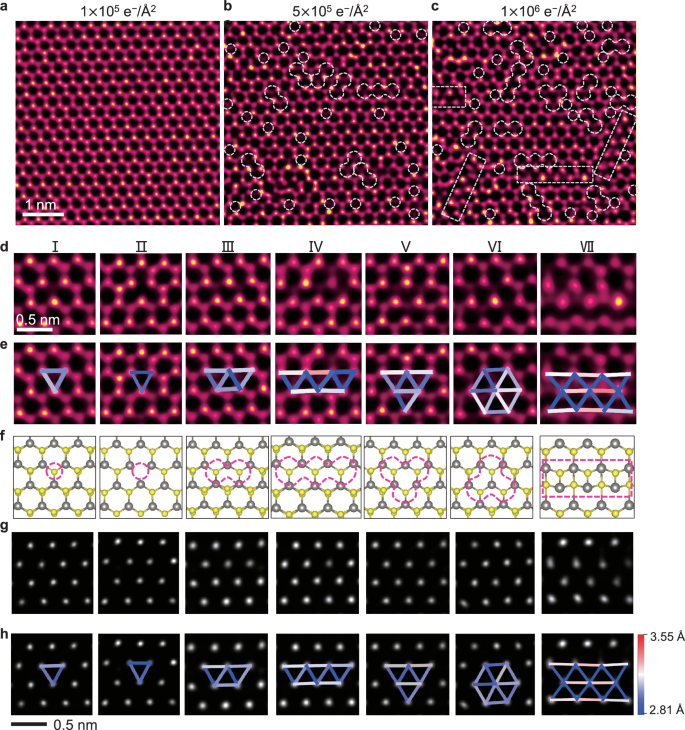

Fig. 2: Fabrication and scanning transmission electron microscopy integrated differential phase contrast (STEM-iDPC) imaging of atomic defect configurations in free-standing monolayer WS2.
Fig. 2: Fabrication and scanning transmission electron microscopy integrated differential phase contrast (STEM-iDPC) imaging of atomic defect configurations in free-standing monolayer WS2.
Full size image

a–c Sequential STEM-iDPC image of a free-standing monolayer WS2. Defects introduced due to beam radiolysis are marked by white dashed lines. d High-magnification STEM-iDPC images of all defect species arising due to electron beam probing. In a left-to-right sequence, I: single sulfur vacancy (v1S); II: disulfide vacancy (v2S); III: paired-sulfur vacancy; IV: triplet sulfur vacancy; V, VI: two types of sulfur vacancy cluster; VII: sulfur vacancy chain. e Lattice measurements of d. f Corresponding atomic structure model of defect configurations in e. Sulfur vacancies are marked by dashed circles. g, h Simultaneous STEM-HAADF images of all defect configurations in free-standing WS2, along with corresponding lattice distortion measurements, showing agreement with iDPC images and experimental results for encapsulated monolayer WS2.

Figure 2a presents an atomic-resolution iDPC image of a pristine monolayer WS2, showcasing well-connected W-S hexagonal rings devoid of any defects. As the cumulative electron beam dose increases during continuous iDPC imaging, radiolysis-induced sulfur vacancies become apparent. This is attributed to the energy transferred to sulfur atoms by high-energy electrons, surpassing the 2.1 eV knock-on displacement threshold19. Consequently, Fig. 2b reveals four distinct defect configurations, delineated by white dashed lines, including single sulfur vacancies (V1S, Type I), disulfide vacancies (V2S, Type II), sulfur vacancy pairs in immediate proximity (Type III), and three linear adjacent V1S configurations (Type IV).

The accumulation of electron radiolysis during in situ imaging led to the increased aggregation of sulfur vacancies in WS2, as illustrated in Fig. 2c. This aggregation resulted in the formation of inverted triangles (Type V), right triangles (Type VI), and chains (Type VII), each composed of sulfur vacancies in adjacent rings. Utilizing the atomic configurations of defects obtained during in situ fabrication, we conducted a quantification analysis of the corresponding lattice distortions, specifically focusing on the tungsten atomic spacing. The in situ STEM-iDPC images of the monolayer WS2 in Fig. 2d show the emergence of seven defect species due to electron beam radiolysis, consistent with in situ STEM-HAADF imaging of encapsulated WS2. The corresponding lattice distortions were established, as depicted Fig. 2e. Both the distortion magnitude and shape of the defect species are identical to those observed in encapsulated monolayer WS2 and in free-standing monolayer WS2 observed by HAADF imaging (Fig. 2f–h and Supplementary Fig. 5), elucidating a similar defect formation scenario for both encapsulated and free-standing monolayer WS2 under electron beam radiolysis.

Theoretical calculations were conducted to further investigate the influence of hBN encapsulation on defect formation and evolution in monolayer WS2 under electron beam radiolysis (Methods, Supplementary Table 1, Supplementary Fig. 6). Our findings indicate that the formation energy of sulfur vacancies in free-standing monolayer WS2 is 3.34 eV. In hBN-encapsulated WS2, this energy converges to 3.43 eV when the encapsulation thickness exceeds two layers, resulting in a difference of 0.09 eV. Additionally, Monte Carlo (MC) simulations indicate that at a temperature of T = 102 K and an energy difference of 0.09 eV, defects are generated 10,000 times more slowly in the hBN-encapsulated WS2 compared to free-standing WS2 under the same electron beam irradiation conditions (Supplementary Fig. 7). This finding qualitatively aligns with our experimental observations. Given the exponential dependence of the formation rate ratio on energy and temperature, fluctuations in the electron beam dose and temperature during different experiments may cause variations in the reaction rate ratio for the same defect formation.

The variations in defect distortions within the surrounding lattice ranged from 4.7% (Type I) to 16.3% (Type VII) for different defect species. Thus, a straightforward and unequivocal atomic-resolution correlation emerged between the defect configuration and lattice distortion across different scales. This, in turn, provides compelling and distinctive evidence for distinguishing between different defect configurations in our experiments. Accordingly, we delved into exploring the relationship between the defect structure and the optical properties of radiolysis-fabricated color centers in monolayer WS2.

Correlated optical properties and atomic configurations

The in situ, real-time generation of defects, along with the concurrent collection of CL spectra and HAADF images, is detailed in Fig. 3. As depicted in Fig. 3a, four distinct optical signatures emerged sequentially: XL emission, spectral diffusion, emission with exceptional color purity, and spectral bleaching. The corresponding CL spectral evolution in Fig. 3b further shows the defect emission peak shift with varying intensity and FWHM, implying the influence of defect intensity and species diversity on the emission properties. The time evolution of the central peak positions and the intensities of both the neutral exciton and defect emission peaks are depicted in Fig. 3c. The simultaneously acquired HAADF images in Fig. 3d reveal the respective defect structures, with each type marked with distinct colors, based on atomically measured lattice distortions using tungsten atomic coordinates.

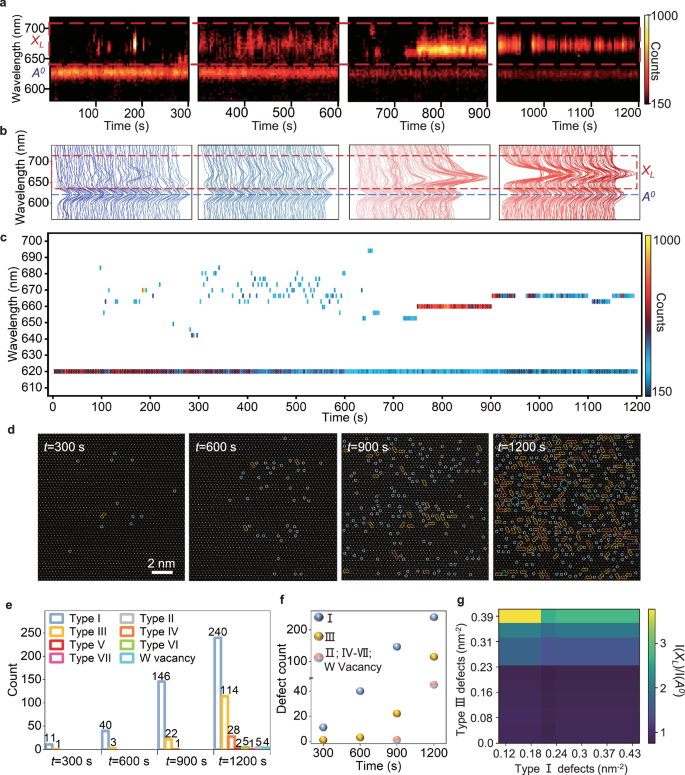

Fig. 3: Evolution of optical properties and the corresponding color-center configurations in hBN | WS2 | hBN heterostructures.
Fig. 3: Evolution of optical properties and the corresponding color-center configurations in hBN | WS2 | hBN heterostructures.
Full size image

a Real-time in situ tracking of defect luminescence in a hBN|WS2 | hBN heterostructure with a 3-second interval over four 300-second periods. Evolution of defect emission in optical properties: emergence, spectral diffusion, stable and bright emission, and blinking and bleaching. b Corresponding CL spectra in a. The red dashed box indicates the peak position range of defect exciton (XL) emissions, while the blue dashed line represents the peak position of neutral exciton(A0) emissions. c The plot of peak position and peak intensity of A0 emission and XL emission as a function of irradiation time in a. d Simultaneous in situ sequential atomic-scale STEM-HAADF images of the WS2 sample with the measurement timing noted as in a and b. Different defect types are marked with distinct colors. e Defect types and quantity statistics in c at four different time points: t = 300 s; 600 s; 900 s; and 1200 s. f Evolving defect concentrations statistics in d. g Machine learning generated heatmap illustrating the joint effects of Type I & III defect counts on the relative emission intensity I(XL)/I(A0).

When comparing the spectrum with the real-space defect quantification image, it becomes evident that in the initial stage, with isolated sulfur vacancy defects present, the exciton state exhibits sporadic luminescence accompanied by spectral diffusion, ranging from 642.3 nm to 694.1 nm, and the integral defect emission intensity is lower than the A0 peak. Previous studies proposed that localized emission in TMDCs results from excitons trapped in anion vacancies15,16,30,38,39. Our findings show that emissions linked to isolated sulfide vacancies display significant emission diffusion and structural instability. Discrete single vacancies have been reported and also observed in our experiments to be mobile under the electron beam illumination, supported by theoretical calculations (Supplementary Figs. 6 and 8)19,40. The hopping behavior of V1S would lead to local fluctuating electromagnetic fields and a variational dielectric environment, which is responsible for spectral diffusion11. This energy instability hinders photon coherence, affecting the quality of two- or multiphoton entanglement and, thus, their utility in quantum information science.

Remarkably, a high concentration of type III defects, specifically paired-sulfur vacancies in WS2 (t = 900 s), yields a stable and brilliantly bright XL emission at 660 nm with high color purity. This emission exhibits a narrow FWHM of 22 nm and an intensity 2.4 times stronger than the A0 peak. In contrast, the emergence of disulfide vacancies (V2S, Supplementary Fig. 9), triadic sulfur vacancies, sulfur vacancy chains, and tungsten vacancy defects (t = 1200 s) results in blinking and bleaching of the emitted light, commonly observed in previous studies. The defect peak shifts to 666.5 nm with a slightly increased FWHM of 26 nm. Due to the appearance of blinking and bleaching phenomena, the intensity peak ratio I(XL)/I(A0) decreases to 1.4. Blinking is reported due to nonradiative recombination, caused by one or both of the excited carriers escaping to the surface12, while spectral bleaching results from photochemical reactions or material degradation41,42. Given these characteristics, defects belonging to Types II, IV–VI demonstrates their adverse impact on emission properties.

The statistical analysis of the sequential emergence of defects in monolayer WS2 is presented in Fig. 3e. In the order of their appearance, the quantities of Type I defects, Type III defects, and the cumulative quantity of the remaining six defect types are plotted over time in Fig. 3f. Clearly, in the presence of type III defects, particularly sulfur vacancy pairs in the immediate vicinity, emissions are bright and stable, highlighting their advantageous role as color centers in hBN-encapsulated WS2. This finding is further supported by the comparison of STEM-CL results for samples with similar sulfur vacancy densities but varied proportions of Type I and Type III defects. The results show that samples with a higher proportion of Type III defects exhibit better defect luminescence, indicated by a higher XL/A0 ratio. (Supplementary Fig. 10).

By means of electron beam irradiation, the modulation of defects in monolayer WS2 results in the inevitable generation of isolated sulfur vacancies. As the defect density increases, the proportion of sulfur vacancy pairs rises, accompanied by the generation of more types of aggregated sulfur vacancy complexes. (Supplementary Fig. 11). In order to comprehend complex, non-linear relationships and interactions among multiple defect types, which can significantly influence luminescence properties, a machine learning model was trained on direct experimental data. Our dataset comprises over one hundred independent experimental measurements of defect CL emission and corresponding W atomic coordinates. Utilizing the number of distinct defect types extracted from W atomic coordinates in STEM images as input features, we trained an XGBoost model to predict the emission intensity peak ratio I(XL)/I(A0) (Methods). The predictions of our trained model are illustrated in Fig. 3g, covering typical defect counts for Types I & III. Given the dominance of Types I & III defects, we omitted the contribution of other defects in this analysis. The results clearly indicate that Type III defects favor a larger intensity ratio, while Type I defects tend to disrupt the defect spectrum peak I(XL).

It is noteworthy that the increase in defect density in the initial stages of defect formation leads to a decrease in neutral exciton peak intensity while enhancing defect emission in WS2, consistent with previous studies43,44. Our in situ STEM-CL quantifications indicate a defect density of 8.58 × 1013 cm-2 in monolayer WS2 encapsulated by hBN, demonstrating optical defect emission characterized by the maximum proportion of sulfur vacancy pairs.

Additionally, it has been reported that nanoscale strain in 2D materials influences their CL emission29. It is therefore essential to consider the impact of strain as defect density increases. In our study, defects with inherent local atomically distortion, evenly and gradually generated in monolayer WS2 encapsulated in hBN nanosheets, introduce evenly distributed atomically localized strain. This results in distinct behaviors of strain distribution and defect emission compared to systems with uneven strain distribution and associated emission (Supplementary Fig. 12).

Band structure and transition elements of WS2 color centers

Based on the identified defect atomic configurations, first-principles calculations of 7×7×1 supercells were performed to investigate the electronic band structure of different color centers in WS2. The pristine monolayer WS2 (Fig. 4a), displays a direct bandgap at the high-symmetry K-point (Fig. 4b,  4c), which corresponds to the experimental neutral exciton emission (A0) at 2 eV. The introduction of type III defects (Fig. 4d) creates four unoccupied defect states within the gap, referred to as CD1, CD2, CD3, and CD4 (Fig. 4e). The shallowest defect state, CD4, located at 0.11 eV below the conduction band minimum (CBM), closely aligns with the experimental 0.13 eV peak separation between the bright XL emission and the A0 emission. This suggests that transitions between CD4 and the valence band maximum (VBM) of type III defects are responsible for the stable and bright XL emission at 660 nm, in agreement with experimental results.

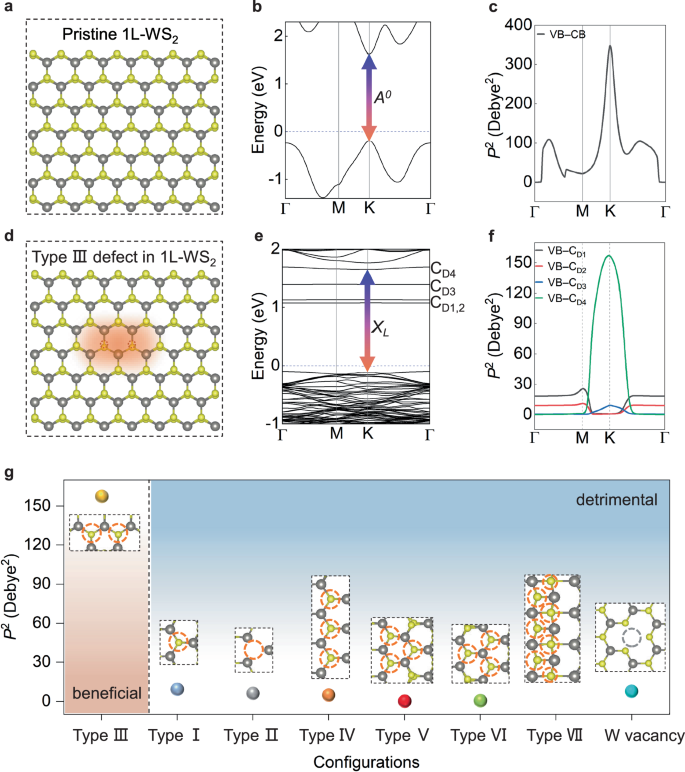

Fig. 4: Calculated electronic band structure and corresponding transition matrix elements (P2) of different color-center configurations in monolayer WS2.
Fig. 4: Calculated electronic band structure and corresponding transition matrix elements (P2) of different color-center configurations in monolayer WS2.
Full size image

a Top view of a 7×7 supercell of pristine monolayer WS2. b, c Computed electronic band structures of pristine WS2 (b) and corresponding transition matrix elements from the valence band (VB) to the conduction band (CB) across the Brillouin zone (c). d Top view of a 7×7 supercell with one sulfur vacancy pair. Sulfur vacancies are marked by orange dashed circles. e Calculated electronic band structures of d. Defect states are labeled as CD for unoccupied states. f Transition matrix elements from the valence band to CD. The inset arrows in b and e represent the transition with the highest probability, as determined through the analysis of the transition matrix element. g Dependence of P2 value on color-center configurations for the transition between the localized defect state (nearest to the conduction band) and the valence band maximum at the K point. The inset shows corresponding defect configurations. Sulfur vacancies are marked by orange dashed circles, and W vacancies are marked by gray dashed circles. The orange-shaded areas highlight defect configurations that are favorable for stable and bright luminescence, whereas the blue-shaded areas represent detrimental color centers.

Transition matrix element calculations reveal that at the K-point, the VB–CD4 transition probability is significantly higher than the transition probability to the other three defect states (CD1, CD2, CD3), as depicted in Fig. 4f. The combined linear contribution of the squares of transition matrix elements and electronic density to luminescence intensity provides additional confirmation that sulfur-vacancy pairs are the structural origin of stable and bright defect luminescence in monolayer WS2 (Methods, Supplementary Fig. 13, Supplementary Table 2).

It is noted that, for single sulfur vacancy configuration (Type I), primary transitions occur from the VB to the CB, not the defect states. Similarly, two discrete sulfur vacancies lead to four nearly degenerate unoccupied defect states within the bandgap, located at 0.43-0.48 eV below the conduction band. This illustrates that the hybridized states depend on the defect-defect interaction, introducing additional trap states via the hybridization of individual vacancy levels45. Transition matrix element calculations further show the primary transitions for discrete sulfur vacancies continue to be dominated by VB–CB transitions, demonstrating weak defect emission (Supplementary Fig. 14).

The band structure and transition matrix elements for other experimentally observed defect configurations are detailed in Supplementary Fig. 15. In particular, transition matrix elements between the localized defect state (closest to the conduction band) and the valence band maximum at the high-symmetry K-point, for all configurations, except type III, consistently remain below 10, indicating the dominance of band-edge transition, as illustrated in Fig. 4g. Configurations involving three or more clustered sulfur vacancies result in the splitting of defect impurity levels, creating multiple deep unoccupied defect states that trap carriers46, negatively impacting radiative recombination. In contrast to sulfur vacancies, tungsten vacancies introduce acceptor energy levels. However, transitions involving defect states are still limited, with a predominance of transitions between the VB and CB. Sulfur-vacancy chains (Type VII), which possibly cause WS2 degradation, narrow the bandgap to 0.2 eV, adversely affecting emission properties. These findings align with experimental observations of bleaching.

Optical characterization of defects luminescence

PL results indicate that the color centers fabricated in WS2 exhibit both brightness and stability. However, under electron radiation, the formation of sulfur-vacancy pairs consistently occurs in conjunction with the presence of sulfur vacancies. Consequently, the attainment of a pure and isolated paired-sulfur vacancy defect has proven to be unattainable. This limitation is evident in photon measurements, where g2(0) = 1 shows the random characteristics of the emitted photons (Supplementary Fig. 16). Further investigation into refined preparation methods holds the potential to facilitate controlled single-photon emission in the future.

The engineering of color centers inevitably gives rise to a diverse array of defect species, with some exhibiting optical activity, while others do not luminesce but rather alter the local dielectric environment, thereby influencing emissions. In this study, we harnessed in situ STEM-CL, machine learning, and DFT calculations to unequivocally unveil, at the atomic scale, the distinct spectral origins and roles of defect species in monolayer WS2. Our research unambiguously demonstrates the pivotal role of sulfur-vacancy pairs in WS2 as the stable color centers. Conversely, various other defect types, such as single sulfur vacancies, triadic sulfur vacancies, sulfur vacancy chains, and tungsten vacancies, have been identified as detrimental sources of spectral instability. Our work provides atomic-scale insights into the structural origins of defect excitons, offering a pathway for the identification of defect emitters and enabling their application in single-photon sources for quantum technologies through the intentional design and precise atomic-scale engineering of defects.

Methods

Sample preparation

A modified dry transfer technique using polypropylene carbonate (PPC) is carried out to fabricate the hBN|WS2 | hBN heterostructure47. The PPC film was used to first pick up the 20nm-thick hBN flake that exfoliated from hBN bulk crystals (Shanghai Onway Technology), then the monolayer WS2 exfoliated from WS2 bulk crystals (HQ graphene), and subsequently the 20 nm-hBN flake under 40 °C in sequence. After annealing at 200 °C on silicon substrate for 8 h, the heterostructure sample was released on a TEM copper grid at 130 °C. The sample was further sequentially cleaned by acetone, isopropanol, and nitrogen gas annealing to remove the residues and increase the adhesion between the sample and the TEM grid.

STEM-CL characterization

The JEOL JEM-ARM300F transmission electron microscope (TEM) was operated at an electron-accelerating voltage of 80 kV. The microscope is equipped with a Gatan Vulcan cathodoluminescence (CL) system for simultaneous STEM and CL measurements. The Gatan Vulcan CL holder featured two miniature elliptical aluminum mirrors positioned both above and below the sample, allowing for light collection at an angle of up to 7.2 steradians. These elliptical mirrors couple the light to two optical fibers directed toward a photomultiplier tube (PMT) or charge-coupled device (CCD) for detection. Simultaneously, scattered electrons from incoherent interactions with the materials are collected by the HAADF detector for real-space imaging. Software drift correction (after every 20 pixels) was on during the collection to address potential drift issues. All STEM-CL characterization experiments were conducted at 102 K, except for the temperature-dependent experiments shown in Supplementary Fig. 3. Data collection and analysis were performed using a Digital Micrograph.

Extrinsic defect fabrication

Color centers were fabricated by parking transmitted STEM electron beam spot on different regions of WS2 in the prepared hBN|WS2 | hBN heterostructures with different dwell times in few seconds’ range. The incident electron beam current was used at 0.73 nA (1c).

Subsequently, the incident electron beam of the microscope was then converged to 0.14 nm with a convergence angle ~18 mrad with 30 µm condenser lens aperture to scan the sample and stimulate the CL signal. The incident electron beam current is 0.285 nA (4c), corresponding to the electron beam dose of 2.73 × 105 e-/Å2.

Radiolysis effect

The maximum transferred energy Emax from 80 kV incident electrons to the sulfur atom is calculated to be 6 eV. This calculation utilizes the following formula48,49,50:

$${{\rm{E}}}={{{\rm{E}}}}_{\max }{\sin }^{2}\left(\frac{\theta}{2}\right)$$
(1)
$${{{\rm{E}}}}_{\max }={{{\rm{E}}}}_{0}\left(1.02+\frac{{{{\rm{E}}}}_{0}}{{10}^{6}}\right)/\left(465.7A\right)$$
(2)

Where E0 represents the incident electron energy in electronvolts (eV), A is the atomic mass number, and θ is the electron deflection angle. In the case of collision with the nucleus, \(\theta=180^\circ\) and thus \(E={E}_{\max }\).

STEM-depth-sectioning imaging

STEM-depth-sectioning technique51 was utilized to image the monolayer WS2 encapsulated in hBN nanosheets. The STEM probe, with a depth of field of 8.33 nm, was adjusted for sectional-depth scanning imaging of layers at different depths. Using this depth-sectioning serial imaging, the location of the monolayer WS2 encapsulated in thick hBN layers was pinpointed for further in situ STEM-CL experiments.

W atom distance mapping

The position of W atoms in HAADF images was determined using a two-dimensional Gaussian peak-fitting method through a custom MATLAB code52. Subsequently, the distances between these W atom columns were calculated from their pinpointed positions using a custom Python script52. A W-distance mapping was superimposed on the HAADF image, with line colors denoting the distance values between the W atom. To highlight defects, we depicted the W atomic distance mapping with triangles where the mean length of the three sides was less than 3.03 Å (W atom distance of a single sulfur vacancy).

STEM-iDPC experiments

The sample for DPC characterizations was prepared by transferring monolayer WS2 onto the TEM grid (Quantifoil) using the polymethyl-methacrylate-based transfer method. The DPC images were acquired using an eight-segment annular detector, coupled to JEOL ARM300F TEM operated at 80 kV, using a STEM probe current below 23 pA. Images were acquired with a camera length of 20 cm, convergence semi-angle of 22.4 mrad, and collection semi-angle ranging from 0 to 27 mrad. The DPC-STEM techniques were used to image the in-plane displacement of the transmitted electrons, while the images were approximately proportional to the projected potential STEM-iDPC. iDPC images were calculated using a custom MATLAB program. Poisson noise was removed using the Bandpass filter.

Image simulations

We utilized xHRTEM™ ver. 4.4, a commercial software, to simulate high-angle annular dark-field (HAADF) images using the multi-slice method. For the simulation of integrated differential phase contrast (iDPC) images, the QSTEM software was employed53. The simulated images were convolved with a Gaussian function having a full width at half maximum of 0.8 Å to account for the probe size. Relaxed structures of monolayer WS2 with seven distinct defect configurations were considered. The simulations were conducted under experimental conditions at 80 kV, with a set convergence angle of 22 mrad and a collection angle ranging from 54 to 220 mrad.

Machine learning regression of emission intensity ratio

To generate the training data, we carried out graph clustering analysis on the W sites with defect (extent of lattice distortion greater than 4.7%), and counted the size of each separate cluster. This allows us to generate an input vector for each structure with 3 features: (type I counts, type III counts, and counts for other type defects). The output data for each structure is the ratio of two CL intensity peaks I(XL)/I(A0).

For the training process, we implemented the XGBoost model with scikit-learn package54,55. We built a model with 100 estimators along with L1 regularization α = 0.5 to ease over-fitting, and we used 85% of the data for training and 15% for testing. The mean squared error loss is optimized on log I(XL)/ I(A0) for better performance.

Computational methods

Our density function theory (DFT) calculations were performed based on the Vienna ab initio simulation package (VASP). The exchange-correlation effect was described within the generalized gradient approximation (GGA) in the Perdew–Burke–Ernzerhof (PBE) functional, together with the projector augmented wave (PAW) potentials. The kinetic energy cutoff was set to 500 eV, and the total energy convergence criterion 10−6 eV was used. A vacuum space along the c direction is larger than 15 Å to avoid spurious interactions. In our simulation, to determine the influence of the vacancy intensity, we used a 7 × 7 × 1 supercell with W49S98 to calculate the electronic and optical properties. The optimized convergence criterion for atomic coordinates was less than 0.01 eV/Å for forces on each atom, and the output structure is visualized using VESTA56. The dielectric function is defined as \(\varepsilon (\omega )={\varepsilon }_{1}(\omega )+{\mbox{i}}{\varepsilon }_{2}(\omega )\), where \({\varepsilon }_{2}(\omega )\) is the image part, and \({\varepsilon }_{1}(\omega )\) is the real part of the dielectric function, respectively. We calculated the transition dipole moment (TDM) to analyze the electron excited ratio from the Valence bands (VBs) to the Conduction bands (CBs), which is defined:

$${d}_{{nm}}=\int {\varPsi }_{n}^{*}\hat{{{\boldsymbol{d}}}}{\varPsi }_{m}{d}^{3}r=\left\langle {\varPsi }_{n}\left|\hat{{{\boldsymbol{d}}}}\right|{\varPsi }_{m}\right\rangle$$
(3)

Linear correlation between the squares of transition matrix elements and luminescence intensity is given by the equation57:

$$I\left({{\hslash }}\omega \right)=\frac{{n}_{D}{\omega }^{3}}{3{\varepsilon }_{0}\pi {c}^{3}{{\hslash }}}{{|}{\vec{\mu }}_{{eg}}{|}}^{2}{{\sum}_{m}\left|{\chi }_{{gm}}\right|\left.{\chi }_{e0}\right|}^{2}\delta \left({E}_{{ZPL}}-{E}_{{gm}}-{{\hslash }}\omega \right)$$
(4)

I (ℏω) represents luminescence intensity, and \({\vec{\mu }}_{{eg}}\) represents transition dipole moment between the excited and the ground state. nD is the refractive index; χgm and χe0 are vibrational levels of the excited and the ground state.

The minimum energy path and the migration energy barrier are calculated using the climbing image nudge elastic band (CI-NEB) method58,59. 5 intermediate images are inserted on the transition path of defect migration, and relaxed convergence criterion is less than 0.03 eV/Å for forces on each atom.

For the analysis of the effects of hBN encapsulating layers on the WS2 monolayer, we stacked an ideal 5×5 WS2 supercell layer between two 6×6 hBN supercells. The distance between the WS2 and hBN layers is set to 3.3 Å, and the hBN supercell is strained by less than 10% to match the supercell size of WS2. Both hBN layers are fixed during structural relaxation, and we implemented the DFT-D3 van der Waals correction to describe the interlayer interactions60. The structure was visualized using VESTA. All DFT calculations were performed using the VASP package. Within this established model, a sulfur atom is removed, and the structure is relaxed to obtain a model with a vacancy. From this model, the total energy of the system with sulfur vacancy was calculated. We took molecular eight-membered alpha-sulfur (S8) as the sulfur reservoir to determine the chemical potential of the ejected S atom61. The alpha-sulfur structure was optimized using DFT based on data from the Materials Project62, yielding the total energy of the α-sulfur ring.

Thus, the formation energy of a single sulfur vacancy Ef is obtained as

$${E}_{f}=E({{\rm{vac}}})+1/8E({{{\rm{S}}}}_{8})-E({{\rm{ini}}})$$
(5)

where E(vac) is the total energy of the system with sulfur vacancy, E(S8) is the total energy of the α-sulfur ring, and E(ini) is the total energy of the pristine system without defects63.

Monte Carlo simulations

A Monte Carlo (MC) simulation was conducted to investigate the time evolution of defect density subjected to an external electron-beam energy source. This simulation takes into account both the defect formation energy (Ef) and the input energy (Ein) delivered by an external electron beam, which affects the dynamics of defect formation. The system is modeled as a lattice comprising 2,500 sites where defects can occur.

The transition rates for defect formation are determined using an Arrhenius-type expression, which accounts for the temperature dependence of the reaction rates:

$${\Gamma}=v({E}_{{in}})\exp \left(-\frac{{E}_{f}}{{{{\rm{k}}}}_{{{\rm{B}}}}T}\right)$$
(6)

Specifically, the attempt frequency ν(Ein) is enhanced in accordance with

$$\nu ({E}_{{in}})={\nu }_{0}\exp ({E}_{{in}}/{{{\rm{k}}}}_{{{\rm{B}}}}T)$$
(7)

where ν0 is the intrinsic attempt frequency constant, kB is the Boltzmann constant, and T is the temperature. The simulation progresses through a series of Monte Carlo steps, during which the probability of defect formation at each site is determined, and the lattice is updated accordingly.

In this study, the difference in defect formation rates for monolayer WS2 and hBN-encapsulated structures was examined. To achieve this, the formation rate ratio of λ was investigated:

$${\lambda }=\frac{{\Gamma}_{{\mathrm{freestanding}}}}{{\Gamma}_{{\mathrm{hBN}}-{\mathrm{encapsulated}}}}=\exp \left(-\frac{E_{f,{\mathrm{freestanding}}}-E_{f,{hBN}-{\mathrm{encapsulated}}}}{{k}_{{\rm{B}}}T}\right)$$
(8)

At a temperature of T = 102 K and with Ef, freestanding -Ef, hBN-encapsulated = −0.09 eV, the estimated value of λ is approximately 10−4. The Monte Carlo simulation was carried out based on the standard rejection MC algorithm64. In each trial step, the time step is recorded inversely proportional to the reaction rate Qk. Simulations consisting of 20,000-time steps each to achieve ideal defect saturation on the lattice were conducted.
