Introduction

Hydrogen (H2) is considered an ideal alternative to substitute traditional fossil fuels and is also a key feedstock for key industrial products because of its high energy density and zero carbon emissions, which meet the requirement of global carbon neutrality1,2,3,4,5,6. The electrocatalytic hydrogen evolution reaction (HER) is one of the most attractive and economical methods of high-quality H2 production7,8,9. The Pt-based nanomaterials are widely reported as the most efficient electrocatalysts10,11,12. Owing to the similar electronic structure and the high abundance, Pd-based catalysts as the alternatives have attracted great attention13. However, the strong binding between Pd and H is not conducive to H2 desorption, resulting in inferior HER performance14,15. Therefore, constructing advanced HER electrocatalysts is highly desirable, yet challenging for a green hydrogen economy.

Insights on the catalytic HER mechanism of catalysts are of great significance for maximizing the efficiency of electrocatalysts. Currently, the acid HER pathway typically involves the Volmer step, which generates adsorbed hydrogen intermediates (H*) by electrochemical reduction, generally followed by either the charge-transfer Heyrovsky process (\({{\mbox{H}}}^{*}+{{\mbox{e}}}^{-}+{{\mbox{H}}}^{+}\to {{\mbox{H}}}_{2}\)) or a Tafel recombination process (\({{\mbox{H}}}^{*}+{{\mbox{H}}}^{*}\to {{\mbox{H}}}_{2}\)) to produce H216,17. The efficiency of HER electrocatalysts under an acidic medium depends largely on the balance of hydrogen adsorption/desorption behavior on the catalyst surface. Based on the Sabatier principle, an ideal HER electrocatalyst presents near-zero hydrogen adsorption-free energy (∆GH*)18. Too strong or too weak of hydrogen binding ability can result in either poisoning of active sites or inefficient proton supplement, greatly decreasing the reaction kinetics of HER19,20. Moreover, the hydrogen adsorption and desorption in single-phase catalysts usually happen at a single active site according to the traditional HER mechanism, which makes it hard to overcome the limitations of the Sabatier principle. Consequently, exploring advanced electrocatalysts is expected to achieve multiple catalytic sites and break the bottleneck of the existing HER mechanism.

Herein, we proposed a lattice hydrogen-involved mechanism to separate the adsorbing and desorbing sites on β-Pd hydride metallene (β-PdHene) aerogels to boost HER performance in acidic media, which has more favorable thermodynamics than the traditional reaction pathway. In situ differential electrochemical mass spectrometry (DEMS) test and density functional theory (DFT) offer solid evidence for the participation of lattice hydrogen during HER. The neighboring H* migrates and combines with the revitalized lattice hydrogen on the surface into H2, facilitating H2 desorption. Specifically, a notably small overpotential of only 20 mV of β-PdHene aerogels is achieved at 10 mA cm−2, as well as good stability. The distinct roles of lattice hydrogen participation of Pd hydride metallene for HER were revealed, allowing us to better understand the overall HER mechanism.

Results

Synthesis and characterization of β-PdHene aerogels

β-PdHene gels were prepared by the two-step method as schematically illustrated in Fig. 1a. Initially, the Pd metallene (Pdene) gels were synthesized by a CO-mediated gelation strategy. Hydrogen insertion is achieved under solvothermal conditions in dimethylformamide (DMF)21. Subsequently, β-PdHene gels were gained by in situ insertion of hydrogen atoms formed from the decomposition of DMF on Pdene gels at 160 °C. After further purification and supercritical CO2 drying, monolithic β-PdHene aerogels were obtained (inset in Fig. 1b). Scanning electron microscopy (SEM) image reflects the hierarchically porous structure of the resulting β-PdHene aerogels (Fig. 1b). High-angle annular dark-field scanning transmission electron microscopy (HAADF-STEM) and transmission electron microscopy (TEM) images of β-PdHene aerogels display a thin and wrinkled two-dimensional (2D) graphene-like morphology with an average lateral dimension of up to several hundred nanometers (Fig. 1c, d). The selected-area electron diffraction (SAED) pattern shows the polycrystalline structure of the β-PdHene aerogels (inset in Fig. 1d). The thickness of β-PdHene aerogels is measured to about 1.26 nm by atomic force microscopy (AFM), equivalent to 5–6 atomic layers, which further validates the thin feature (Fig. 1e). The high-resolution TEM (HRTEM) image and the corresponding fast Fourier transform (FFT) pattern suggest the β-PdHene aerogels present a (111)-oriented face-centered cubic (fcc) structure. Distinct lattice spacing of 0.237 nm can be attributed to the (111) planes (Fig. 1f)22,23. The surface areas and porosity features of Pdene and β-PdHene aerogels were evaluated by the Brunauer-Emmett-Teller (BET) analysis (Supplementary Fig. S1). The surface area of β-PdHene aerogels (48.9 m2 g−1) is slightly smaller than that of Pdene (64.7 m2 g−1), which may be caused by the subsequent in situ insertion of hydrogen atoms at 160 °C. The wide existence of micropores, mesopores, and macropores within β-PdHene and Pdene aerogels was observed, which facilitates mass/electron transfer. The α-PdHene and mixed-phase PdHene aerogels were also obtained by a similar method at 120 °C and 140 °C, respectively. Pdene, α-PdHene, and mixed-phase PdHene aerogels show similar highly porous three-dimensional networks and few-layer thin nanosheet morphology (Supplementary Figs. S2–S4). The metallene feature of α-PdHene and mixed-phase PdHene aerogels can be also measured by AFM, which exhibits a thickness of 1.24 nm and 1.3 nm in Supplementary Fig. S5, respectively. As shown in Fig. 1g, the average lattice distance in the β-PdHene aerogels is measured to be 2.37 Å, which is much larger than those of Pdene (2.26 Å), α-PdHene (2.34 Å) and mixed-phase PdHene (2.35 Å). The expanded lattice distance also shows that the alloyed hydride metallene is successfully prepared. The X-ray diffraction (XRD) pattern shows that the more negatively the diffraction peaks shift, the more hydrogen atoms are inserted with the reaction temperature increasing from 120 °C to 160 °C (Fig. 1h). In addition, according to Eqs. 2–4, the lattice parameters and compositions of Pdene and different phases of PdHene aerogels are displayed in Supplementary Table S1. The H and Pd ratio in the α-PdHene, mixed-phase PdHene, and β-PdHene aerogels is calculated to be 0.08, 0.28, and 0.43, respectively. The interaction between Pd and hydrogen atoms was analyzed by X-ray photoelectron spectroscopy (XPS) valence band spectra in Supplementary Fig. S6. The narrowing of the half-band width (from 4.53 eV to 4.14 eV) manifests the electronic structure changes owing to a larger Pd-Pd distance in the hydride24,25,26. Importantly, the β-PdHene aerogels own good storage stability and can be stored for at least 12 months in an air environment without damaging the structure (Supplementary Fig. S7).

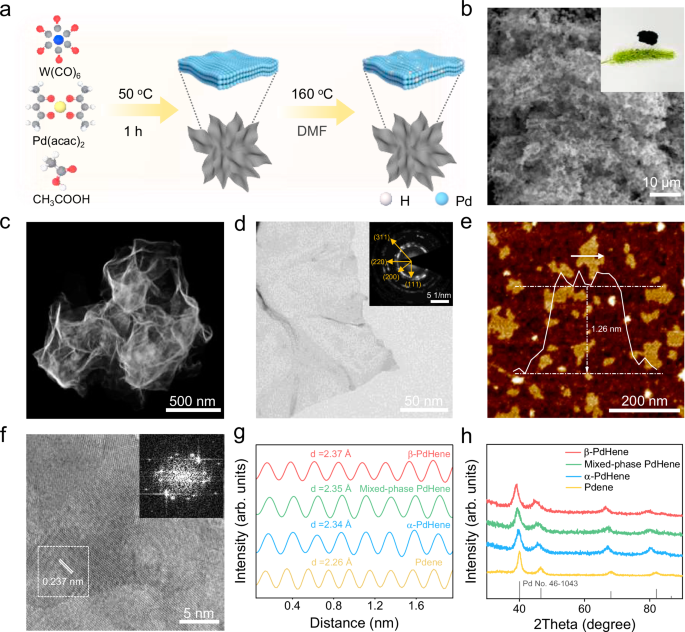

Fig. 1: Synthesis and characterization of β-PdHene aerogels.
Fig. 1: Synthesis and characterization of β-PdHene aerogels.
Full size image

a Schematic illustration for the synthesis of β-PdHene gels. b SEM image, (c) HAADF-STEM image, (d) TEM image, (e) AFM image and corresponding height profiles, and (f) HRTEM image of β-PdHene aerogels. Inset in b, d, and (f) shows the digital photo, SAED pattern, and corresponding FFT pattern of β-PdHene aerogels, respectively. Integrated pixel intensity profiles (g) and XRD patterns (h) of Pdene and different phases of PdHene aerogels. Source data for Fig. 1 are provided as a Source Data file.

Electrocatalytic HER performance

The electrocatalytic HER activity of Pdene, different phases of PdHene aerogels, and commercial Pt/C was estimated at a rotating disk electrode under 1600 rpm with N2-saturated 0.5 M H2SO4 as electrolyte (Fig. 2a and Supplementary Fig. S8). Surprisingly, β-PdHene aerogels possess overpotentials of only 20 and 66 mV at the current density of 10 mA cm−2 and 50 mA cm−2 (Fig. 2b), which are lower than those of Pdene (η10 = 56 mV, η50 = 131 mV) and commercial Pt/C (η10 = 32 mV, η50 = 87 mV). Moreover, the overpotential of β-PdHene aerogels at different current densities shows a much smaller value than those of mixed-phase PdHene aerogels (η10 = 36 mV, η50 = 95 mV) and α-PdHene (η10 = 52 mV, η50 = 120 mV). As depicted in Fig. 2c, the Tafel slope of β-PdHene aerogels is 37.8 mV dec−1, surpassing Pdene (97.6 mV dec−1), Pt/C (40.5 mV dec−1), mixed-phase PdHene (52.7 mV dec−1) and α-PdHene aerogels (68.9 mV dec−1), revealing the fast HER kinetics on the surface of the β-PdHene aerogels follows a Volmer-Tafel mechanism in the acid conditions. Such a phenomenon demonstrates that interstitial lattice hydrogen has a significant role in enhancing HER performance, endowing β-PdHene aerogels as one of the most effective noble metal-based HER electrocatalysts (Supplementary Fig. S10 and Supplementary Table S2). In addition to the electrocatalytic activity, the stability of β-PdHene aerogels also needs to be considered to evaluate the practical application potential. The β-PdHene aerogels also suggest remarkable cycling and long-term stability, which are assessed by the electrochemical accelerated durability test (ADT) and chronoamperometric (CA) test. The HER performance of β-PdHene aerogels displays a negligible positive shift of only 3 mV after ADT of 5000 cycles, while Pdene and commercial Pt/C attenuates 20 mV and 5 mV, respectively (Fig. 2d and Supplementary Fig. S11). In contrast, the overpotential is decreased by 15 mV and 13 mV after ADT for α-PdHene and mixed-phase PdHene aerogels, respectively (Fig. 2e). Furthermore, there is almost no loss of the current density for β-PdHene aerogels after 12 h of the CA test (Fig. 2f). The β-PdHene aerogels still maintain the initial morphology and hydride structure after the ADT and CA tests (Supplementary Figs. S12, S13 and Table S3). All the evidence shown above implies that the β-PdHene aerogels can act as an ideal candidate for HER electrocatalysis in practical applications.

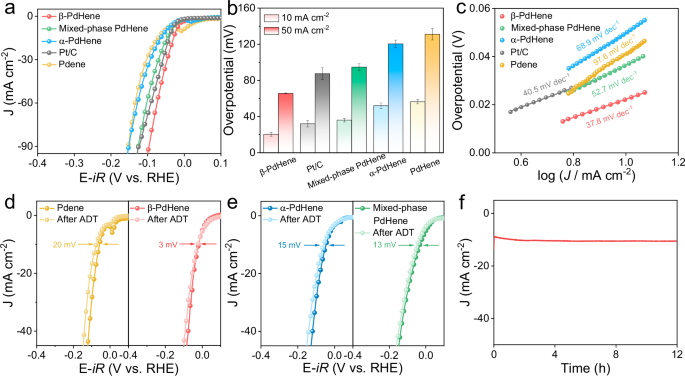

Fig. 2: Electrocatalytic HER performance.
Fig. 2: Electrocatalytic HER performance.
Full size image

a LSV polarization curves in 0.5 M H2SO4 solution, (b) Overpotentials at different current densities, and (c) Tafel plots of different electrocatalysts (the catalyst loading is 0.14 mgPd cm−2, the electrode surface area was 0.196 cm2, the pH of the 0.5 M H2SO4 electrolyte is 0.42 ± 0.1, scan rate is 5 mV s−1, rotation rate is 1600 rpm, the resistance is 6.42 ± 0.16 Ω, and temperature is 25 °C). The non-iR correction polarization curves were provided in Supplementary Fig. S9. d, e LSV polarization curves of Pdene and different PdHene aerogels on carbon paper measured before and after 5000 potential cycles (the catalyst loading is 0.14 mgPd cm−2, the carbon paper electrode surface area is 1 cm2, the pH of the 0.5 M H2SO4 electrolyte is 0.42 ± 0.1, scan rate is 5 mV s−1, rotation rate is 1600 rpm, the resistance is 2.22 ± 0.22, and temperature is 25 °C). f CA test of β-PdHene on carbon paper under static overpotential of 20 mV (the catalyst loading is 0.14 mgPd cm−2, the carbon paper electrode surface area is 1 cm2, the pH of the 0.5 M H2SO4 electrolyte is 0.42 ± 0.1, and temperature is 25 °C). The error bars represent the standard deviation of three independent measurements. Source data for Fig. 2 are provided as a Source Data file.

Hydrogen adsorption and desorption behavior of different catalysts

To further understand the significant role of lattice hydrogen for different phases of PdHene aerogels, a series of electrochemical measurements were conducted. The hydrogen adsorption kinetics was carried out by operando electrochemical impedance spectroscopy (EIS) measurement on Pdene and different phases of PdHene aerogels at different overpotentials (Fig. 3a and Supplementary Fig. S14). A double-parallel equivalent circuit model was simulated by the obtained Nyquist plots. As listed in Supplementary Table S4, Rs corresponds to the uncompensated solution resistance27. All electrocatalysts disclose comparable Rs during the HER process. The parallel components T and R1 reflect the double-layer capacitance and catalytic charge transfer resistance28. Moreover, the values of R1 of β-PdHene aerogels are smaller than those of other electrocatalysts, thus enabling rapid kinetics for HER. The second parallel component Cφ and R2 represents the hydrogen adsorption pseudo-capacitance and resistance on the surface of catalysts, respectively29. Owing to the potential-dependent R2 for these electrocatalysts, plotting logR2 vs overpotential and corresponding the EIS-derived Tafel slopes under Ohm’s law can estimate the hydrogen adsorption kinetics30. Comparatively, the EIS-derived Tafel slopes of β-PdHene aerogels are significantly increased, indicating that the hydrogen adsorption kinetics slows down (Fig. 3b). To explore the hydrogen desorption behavior, the operando CV tests of Pdene and different phases of PdHene aerogels were determined. The hydrogen desorption peak is positively shifted with an increment in the scan rate (Fig. 3c and Supplementary Fig. S15)31. Therefore, plotting the hydrogen desorption peak position vs the scan rate was employed to compare the fitting slopes, which is logical to quantify the hydrogen desorption kinetics32. The declined slope of β-PdHene aerogels exhibits its drastically enhanced hydrogen desorption kinetics (Fig. 3d). Thus, the significantly boosted HER activity on β-PdHene aerogels can be ascribed to the rapid H2 desorption. Furthermore, the kinetic isotope effects (KIEs) experiment was utilized to investigate hydrogen or proton transfer kinetics behavior. The LSV curves and corresponding KIE values (\({J}_{{{{\rm{H}}}}_{2}{{\rm{O}}}}/{J}_{{{{\rm{D}}}}_{2}{{\rm{O}}}}\) at −0.3 V vs RHE) are obtained in 0.5 M H2SO4/H2O and 0.5 M D2SO4/D2O electrolyte. It is known that the presence of KIE (KIE > 1) is inferred as a descriptor of the hydrogen or proton transfer rate affecting the rate-determining step for all electrocatalytic reactions33. The HER performance of β-PdHene aerogels is significantly lower in 0.5 M D2SO4/D2O electrolyte compared to that in β-PdHene in the 0.5 M H2SO4/H2O electrolyte by a factor of about 1.50–1.61 (KIEs = 1.50–1.61) within the selected potential range (Fig. 3e), suggesting that the hydrogen or proton transfer is indeed evolved in the rate-determining step. Specifically, the KIE value of β-PdHene is 1.50 at −0.3 VRHE, which is lower than those of Pdene (1.97), α-PdHene (1.94), and mixed-phase PdHene aerogels (1.61), verifying that rapid hydrogen or proton transfer rate (Fig. 3f and Supplementary Fig. S16)34.

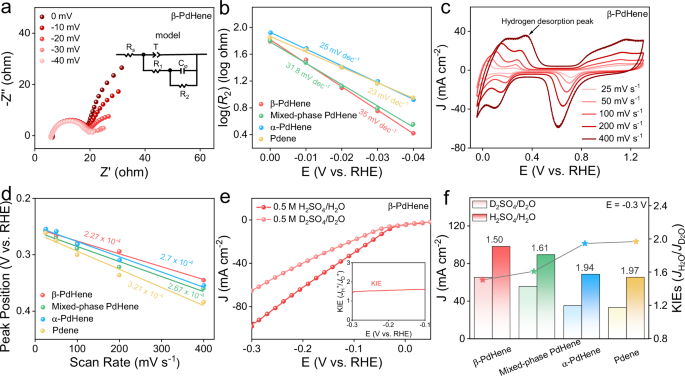

Fig. 3: Hydrogen adsorption and desorption behavior of different catalysts.
Fig. 3: Hydrogen adsorption and desorption behavior of different catalysts.
Full size image

a Nyquist plots for β-PdHene aerogels at various HER overpotentials. Inset in a shows a simulated equivalent circuit. b EIS-derived Tafel plots of Pdene and different phases of PdHene aerogels obtained from the hydrogen adsorption resistance R2. c CV curves of β-PdHene aerogels with the scan rate from 25 mV s−1 to 400 mV s−1 in N2-saturated 0.5 M H2SO4. d Plots of hydrogen desorption peak position vs scan rates of Pdene and different phases of PdHene aerogels. e LSV polarization curves without iR correction of β-PdHene aerogels in 0.5 M H2SO4/H2O and 0.5 M D2SO4/D2O solution. Inset in e shows corresponding KIE values plotted against potential. f KIE values of H/D over Pdene and different phases of PdHene aerogels at −0.3 V vs RHE. (The catalyst loading is 0.14 mgPd cm−2, the electrode surface area was 0.196 cm2, the pH of the 0.5 M H2SO4 electrolyte is 0.42 ± 0.1, the scan rate is 5 mV s−1, the rotation rate is 1600 rpm and temperature is 25 °C) Source data for Fig. 3 are provided as a Source Data file.

Investigation of the reaction mechanism

The surface electronic structure of Pd in the Pdene and different phases of PdHene aerogels was performed by XPS in Fig. 4a. The Pd 3d XPS spectra show that Pd in all metallene materials exists in the metallic state35,36. With the introduction of more interstitial lattice hydrogen, the peak position of Pd0 3d5/2 and Pd0 3d3/2 is shifted to higher binding energies compared to that of Pdene. Specifically, Pd 3d peaks of β-PdHene show more positive shifts of 0.3 eV than that of Pdene, suggesting the stronger electronic interaction of Pd and H and ultimately resulting in more electron transfer37,38,39. The average energy of the d-band center (εd) is considered evidence to describe the binding ability between the reaction intermediate and electrocatalysts. The surface valence band spectra analysis verifies that β-PdHene owns the lowest εd position based on Eq. 5 (Fig. 4b). Therefore, introducing more interstitial lattice hydrogen to Pdene accelerates the H2 desorption, beneficial for the reaction kinetics of HER. The temperature-dependent HER kinetic analysis was also carried out in the temperature range of 298–338 K. The thermodynamic HER activation energy is calculated according to the Arrhenius equation based on the current density at −0.05 V vs RHE. The β-PdHene shows that the activation energy is only 7.3 kJ mol−1, which is about 1/3 of that for Pdene (21.1 kJ mol−1), suggesting a significant enhancement in HER kinetics due to the introduction of lattice hydrogen (Supplementary Figs. S17 and 18). The radar map further visually and comprehensively evaluates the good performance of β-PdHene aerogels (Fig. 4c). Currently, it has been reported that lattice hydrogen in Pd hydride is involved in electrochemical reactions, such as nitrogen reduction reaction, but the involvement of lattice hydrogen during HER have rarely been studied40. The reaction mechanism was further revealed by the pH-dependent HER (Fig. 4d, e and Supplementary Fig. S19). The reaction order of 1.6 for the Pdene catalysts is close to the theoretical value of 2 for the traditional HER pathway, which is larger than that of β-PdHene (1.1), suggesting the participation of lattice hydrogen. To further prove the involvement of lattice hydrogen, in situ DEMS with isotope labeling tests was conducted in 0.5 M D2SO4/D2O electrolyte (Fig. 4f). Initially, the Pdene and β-PdHene catalysts are supported on a porous Au-coated polytetrafluoroethylene (PTFE) film as working electrodes and subjected to five consecutive cycles. The mass signal of the HER gaseous product of Pdene and β-PdHene was measured. The m/z = 4 signal from D2 is the strongest for the Pdene electrocatalyst, followed by the m/z = 3 and m/z = 2 signals from DH and H2, respectively (Fig. 4g). Since a trace amount of H remains in 0.5 M D2SO4/D2O, the weak signals of DH and H2 appear. A similar signal trend was also observed on β-PdHene (Fig. 4h). Among them, the D2 signal is over 3.5 fold than that of Pdene. Moreover, the DH and H2 signals of β-PdHene are approximately 8.3 fold and 8.2 fold than those of Pdene, respectively (Fig. 4i). Impressively, the increase of DH and H2 signals is significantly greater than the increase of the D2 signal, which unambiguously demonstrates the engagement of lattice hydrogen during HER.

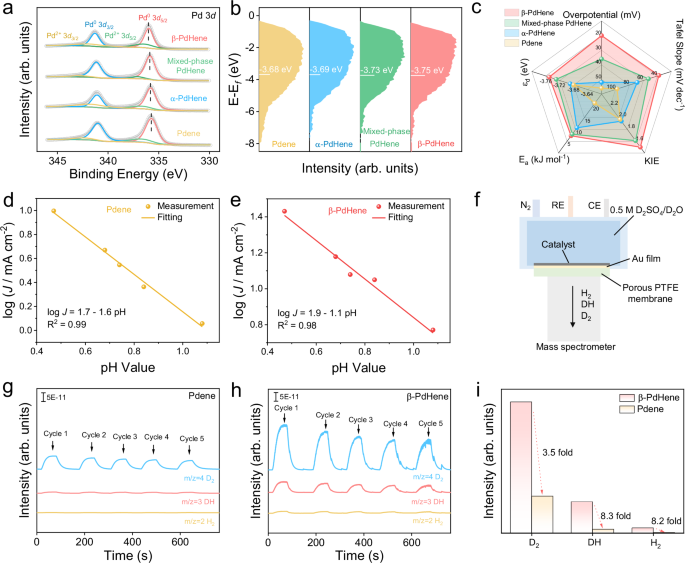

Fig. 4: Investigation of the reaction mechanism.
Fig. 4: Investigation of the reaction mechanism.
Full size image

a Pd 3d XPS spectra, (b) XPS valence band spectra, and (c) the radar map of performance assessment of Pdene and different phases of PdHene aerogels. Plots of log J at −0.09 V (vs RHE) vs pH for Pdene (d) and β-PdHene catalysts (e). f Schematic illustration of the in situ DEMS. DEMS signals at m/z = 2, 3, and 4 in 0.5 M D2SO4/D2O solution of Pdene (g) and β-PdHene (h). i Histogram of the generated D2, DH, and H2 over Pdene and β-PdHene for the fifth cycle during the in situ DEMS test (the catalyst loading is 0.016 mgPd cm−2, the working electrode area is 0.5 cm2, and temperature is 25 °C). Source data for Fig. 4 are provided as a Source Data file.

DFT calculations

Such a significant improvement of high HER activity of β-PdHene was also unveiled by DFT calculations. According to the above catalyst characterization, the (111) surface models of β-PdH and Pd were constructed and the optimized structure is shown in Supplementary Data 1, Supplementary Figs. S20a and S21a. The 2D slice of electron density difference was calculated to identify the electron transfer ability during the H* adsorption process. As shown in Fig. 5a, the stronger electron depletion of Pd (red color) on β-PdH (111) was obvious in comparison to that of Pd (111). Meanwhile, β-PdH presents a longer Pd–H* bond (1.816 Å) than that of Pd (1.810 Å). These results suggest weakened electron interactions with the introduction of interstitial lattice hydrogen. This point is further confirmed by the results of the projected density of states (PDOS). The results show that the H contributes little to the total density of the state, but affects the Pd d orbital to increase the DOS of β-PdHene near the Fermi level in Fig. 5b. The εd of β-PdH (−2.12 eV) shows an obvious downshift relative to that of Pdene (−1.88 eV) away from the Fermi level (Ef) in Fig. 5c, revealing that the εd is far away from the Ef after the introduction of the interstitial lattice hydrogen. The electronic interaction can be regarded as the coupling between the adsorbate valence states and the metal d states, resulting in the generation of separated bonding and antibonding states41. Such a downshift of the εd will make more electrons occupy antibonding orbitals due to the lower antibonding energy states, further weakening the Pd–H interaction and promoting H2 desorption. The above phenomenon is consistent with the experimental results. The Tafel slope of β-PdHene presents that HER occurs by the recombination of two H atoms. For the traditional HER pathway, β-PdH possesses the most desirable ΔGH* of −0.54 eV, which is better than that of Pd (−0.67 eV) (Fig. 5d and Supplementary Figs. S20b and S21b). Additionally, the HER process assisted by lattice hydrogen species is systematically studied. In particular, for the lattice hydrogen-involved pathway, H* on-site 1 experiences an H-transfer to adjacent site 2. As a result, H2 can be facilely generated with lower energy barriers (0.02 eV) in comparison to the traditional pathway, indicating the key effect of interstitial lattice hydrogen on β-PdH on tuning reaction pathway to improve the HER activity (Supplementary Fig. S21c and d). Thus, a lattice hydrogen-involved mechanism catalyzed by β-PdHene aerogels is proposed following the above experimental and theoretical results (Fig. 5e). Proton in an acid electrolyte initially couples with an electron on the surface by the Volmer step to form an adsorbed H*. Two nearby H* undergo the Tafel step to generate H2. Adsorbed H* migrates and combines neighboring reactive lattice hydrogen into H2 is thermodynamically favorable. The hydrogen vacancy state can be eliminated by the fast hydrogen transfer to supply hydrogen, thus achieving the closed loop of the whole catalytic reaction.

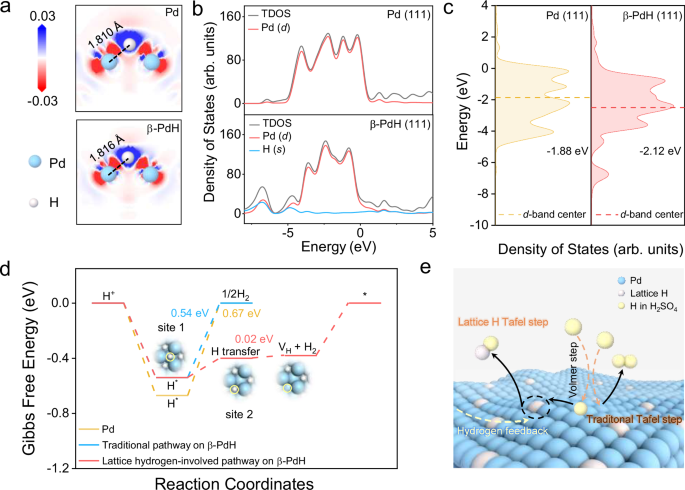

Fig. 5: DFT calculations.
Fig. 5: DFT calculations.
Full size image

a The 2D electron density difference after H* adsorption on Pd (111) and β-PdH (111) (site 2) for a slice passing along the plane through the Pd–H bond. Red and blue colors represent the depletion and accumulation of electrons, respectively. b The total PDOS and (c) PDOS diagrams of Pd 3d orbitals of Pd (111) and β-PdH (111). d Gibbs free energy of HER on the Pd (111) and β-PdH (111) via different reaction pathways. e Schematic illustration of the proposed lattice hydrogen-involved mechanism on β-PdHene aerogels. Source data for Fig. 5 are provided as a Source Data file.

Discussion

In summary, an efficient lattice hydrogen-involved mechanism is proposed to separate adsorption and desorption sites on β-PdHene to enhance HER performance in an acidic media, which is preferred energetically over conventional reaction pathways. The direct evidence of lattice hydrogen involvement was confirmed by in situ DEMS experiments and theoretical calculations. The adsorbed H* can migrate and recombine the surrounding lattice hydrogen to generate H2 molecular via the Tafel step, accelerating the H2 desorption. The β-PdHene aerogels show enhanced HER activity with a low overpotential (20 mV) at 10 mA cm−2 and remarkable long-term electrocatalytic stability. Therefore, our work offers a promising method to design high-performance HER electrocatalysts by the favorable lattice hydrogen participation reaction pathway.

Methods

Reagents

Palladium (II) acetylacetonate (Pd(acac)2, 99.95%, Macklin), Nafion perfluorinated resin solution (5 wt% in a mixture of lower aliphatic alcohols and water, contains 45% water, Macklin), Tungsten hexacarbonyl (W(CO)6, 99%, Macklin), Platinum on graphitized carbon (Pt/C, 20 wt% Pt loading, Aldrich), Deuterated sulfuric acid (D2SO4, 96% in D2O, Aladdin), Deuterium oxide (D2O, 99.9 at.% D, Meryer), N,N-DMF (≥99.5%, Sinopharm Chemical Reagent Co., Ltd.), Acetic acid (CH3COOH, ≥99.5%, Sinopharm Chemical Reagent Co., Ltd.), sulfuric acid (H2SO4, 95–98%, Sinopharm Chemical Reagent Co., Ltd.), Deionized water (18.25 MΩ·cm).

Characterization

X-ray diffraction (XRD) characterization was carried out by a D8 ADVANCE (Bruker, Germany). The transmission electron microscope (TEM) was performed from a Tecnai G2 F20 (FEI, USA). The scanning electron microscopy (SEM) was performed from TESCAN MIRA LMS. Supercritical CO2 drying was conducted using an SPI-Dry™ critical point drying apparatus (SPI Supplies, USA). Atomic force microscopy (AFM) was performed in Multimode8 (Bruker, Germany). The element contents were obtained by inductively coupled plasma mass spectrometry (ICP-MS) (Thermo iCAP RQ). X-ray photoelectron spectroscopy (XPS) measurements were performed by a Thermo Scientific K-Alpha (Thermo Fisher, USA). The specific surface area was determined by N2 adsorption-desorption on Micromeritics ASAP 2460 instrument.

Synthesis of the β-Pd metallene hydrides (β-PdHene) aerogels

10 mg of Pd(acac)2 and 8 mg W(CO)6 were introduced in 10 mL of CH3COOH by ultrasonication. The solution was bubbled in a CO flow for 10 min and was then heated at 50 °C. Pdene gels were acquired at the bottom for 1 h. By adding 10 mL DMF, the vial was maintained at 160 °C for 16 h to acquire β-PdHene gels. The α-PdHene and mixed-phase PdHene gels were heated at 120 °C and 140 °C, respectively. Afterward, the corresponding aerogels were obtained by supercritical CO2 drying.

Electrochemical measurement

All electrochemical tests were performed on a CHI 660E electrochemical workstation. The hydrogen evolution reaction (HER) measurements in acidic media were conducted in a standard three-electrode system electrochemical cell (Pine Research Instrumentation) including a rotating ring-disk electrode (RDE, diameter 5 mm, 0.196 cm2, Pine Research Instrumentation) as the working electrode, a saturated calomel electrode (Hg/Hg2Cl2, SCE) as reference electrode, and graphite rode as the counter electrode, respectively. The preparation of 0.5 M H2SO4 electrolyte is as follows: 6.793 mL of concentrated H2SO4 (about 18.4 M) is added to a five-compartment electrochemical glass cell containing 243.207 mL of deionized water, and then configured into a solution of H2SO4 with a concentration of 0.5 M (pH = 0.42 ± 0.1). The electrolyte is an N2-saturated 0.5 M H2SO4 solution, which is freshly prepared before the electrochemical measurement and stored sealed at 25 °C. The 2.0 mg catalysts and 8.0 mg Cabot carbon black were dispersed in 1.21 mL isopropanol, 1.21 mL deionized water, and 80 μL 5 wt.% Nafion solution to obtain ink by sonication. Then 34.3 μL ink was transferred onto the electrode and dried at 50 °C. The Pd loading is therefore 34.3 × 10−3 mL × 0.8 mgPd/mL/0.196 cm2 = 0.14 mgPd cm−2.

The HER activity of as-prepared catalysts was investigated by linear sweep voltammetry (LSV), which was conducted at a sweeping rate of 5 mV s−1, and a rotational rate of 1600 rpm. Tafel slopes were determined by plotting the overpotential vs the logarithm of current density (log J). Electrochemical impedance spectra (EIS) investigations were conducted by using an AC voltage with 5 mV amplitude in the frequency range of 100 kHz–0.1 Hz at various HER overpotentials. The long-term stability was evaluated using the chronoamperometric (CA) test under a static overpotential of 20 mV. The accelerated durability test (ADT) of catalysts was conducted through continuous potential cycling ranging from −0.05 V to 0.05 V vs RHE for 5000 cycles at a scan rate of 100 mV s−1. The calibration of the Hg/Hg2Cl2 electrode was carried out in a highly pure saturated hydrogen electrolyte with Pt wire as the working electrode and Pt plate as the counter electrode. The difference between the H+/H2 equilibrium potential and the Hg/Hg2Cl2 reference electrode is established by identifying the center points of the two potential values associated with zero current on the CV curve. All potentials in this work were calibrated to the RHE using the equation:

$${{\mbox{E}}}_{{\mbox{RHE}}}={{\mbox{E}}}_{{\mbox{SCE}}}{\mbox{+}}0.252 \, {\mbox{V}}$$
(1)

DEMS measurements

In situ DEMS experiments were carried out using a QAS 100 device (Linglu Instruments, Shanghai). A gold-sputtered PolyTetraFluoroEthylene (PTFE) membrane was used as a working electrode substrate (thickness: 40 μm, pore size: ≤20 nm, porosity: ≥50%), in which the PTFE membrane was from Linglu Instruments. The 10 μL catalyst inks (0.8 mgPd/mL) were added onto the Au-sputtered PTFE membrane (working area: 0.5 cm2) and dried at room temperature to form a uniform layer with a loading of 0.016 mgPd cm−2. The electrochemical cell is a typical three-electrode system. A Hg/HgCl2 electrode and graphite rode were employed as the reference and counter electrode, respectively. The electrolyte used for in situ DEMS measurements is N2 saturated 0.5 M D2SO4/D2O, and the volume is 2 mL. Then, five consecutive cycles at the potentiostatic process at −28 mV vs RHE were applied. The gaseous products were pumped into a mass spectrometer and the signal with the mass-to-charge ratio of 2, 3, and 4 could be collected.

Calculation of the lattice hydrogen atoms

$${{\rm{d}}}=\frac{\lambda }{2{\mbox{Sin}}{{\rm{\theta }}}}$$
(2)
$${{\rm{d}}}_{{\rm{hkl}}}=\frac{{\rm{a}}_{0}}{\sqrt{{{\rm{h}}}^{2}+{{\rm{k}}}^{2}+{{\rm{l}}}^{2}}}$$
(3)
$$\frac{3\times ({{\rm{a}}}_{{\mbox{PdH}}}-{{\rm{a}}}_{{\mbox{Pd}}})}{{\rm{x}}\times {{\rm{a}}}_{{\mbox{PdH}}}}\,{\mbox{=}}\,0.19$$
(4)

Where λ is the wavelength (0.154 nm), θ is the angle, {hkl} is the face plane of Pd, a0 is the lattice constant, and x is the number of hydrogen atoms.

Calculation of the d-band centers

The εd was calculated based on the following Equation42,43,44.

$${{\it{\varepsilon }}}_{{\it{d}}}=\frac{\int {\it{N}}\left({\it{E}}\right){\it{EdE}}}{\int {\it{N}}({\it{E}}){\it{dE}}}$$
(5)

Where N(E) is the density of states or intensity of photoelectron spectra after Shirley background correction.

Computational methods

All the calculations are conducted in the CASTEP module of Materials Studio by the plane-wave pseudo-potential method45. The generalized gradient approximation (GGA) with ultrasoft pseudopotentials based on the Perdew–Burke–Ernzerhof (PBE) function was employed to handle the exchange-correlation effects46. The supercell composed of a 4 × 4 unit with a (111) surface was constructed with a vacuum layer of 15 Å to isolate the periodic unit cell. For the optimization process, the top layer was allowed to relax and the other two layers were fixed. The Monkhorst–Pack k-point was 3 × 3 × 1 and the cut-off energy was set as 400 eV. The convergence tolerance energy was 10−6 eV/atom and the max force was 0.03 eV/Å. The adsorbed energy ∆EH was presented by Eq. 647.

$$\Delta {E}_{{\mbox{H}}}={E}_{{{\mbox{H}}} \ast} -({E}{*}+{{\rm{E}}}_{{\mbox{H}}})$$
(6)

Where EH*, E*, and EH are the H adsorption energy on the substrates, the bare substrates, and the half energy of H2 gas.

The Gibbs free energy profiles were represented by:

$$\Delta {G}=\Delta {E}+\Delta {ZPE}\,-\,{T}\Delta{S}$$
(7)

Where ∆E, ∆ZPE, and T∆S are adsorption energy, the difference of zero-point vibrational energy, and the difference of entropy at 298.15 K before and after adsorption.

The electron density difference is defined by Eq. 8:

$$\Delta \rho={\rho }_{{H@slab}}-({\rho }_{{H}}+{\rho }_{{slab}})$$
(8)

where ρH@slab, ρH, and ρslab are the electron densities of the adsorbed H on the slab, the adsorbed H atom, and the clean slab. The 2D electron density difference was obtained for a slice passing along the plane through the Pd–H bond.
