Fig. 3: Seismic reflection profiles in the East Asia marginal seas.

From: South China Sea records Late Miocene reorganization of western Pacific deep circulation

Fig. 3

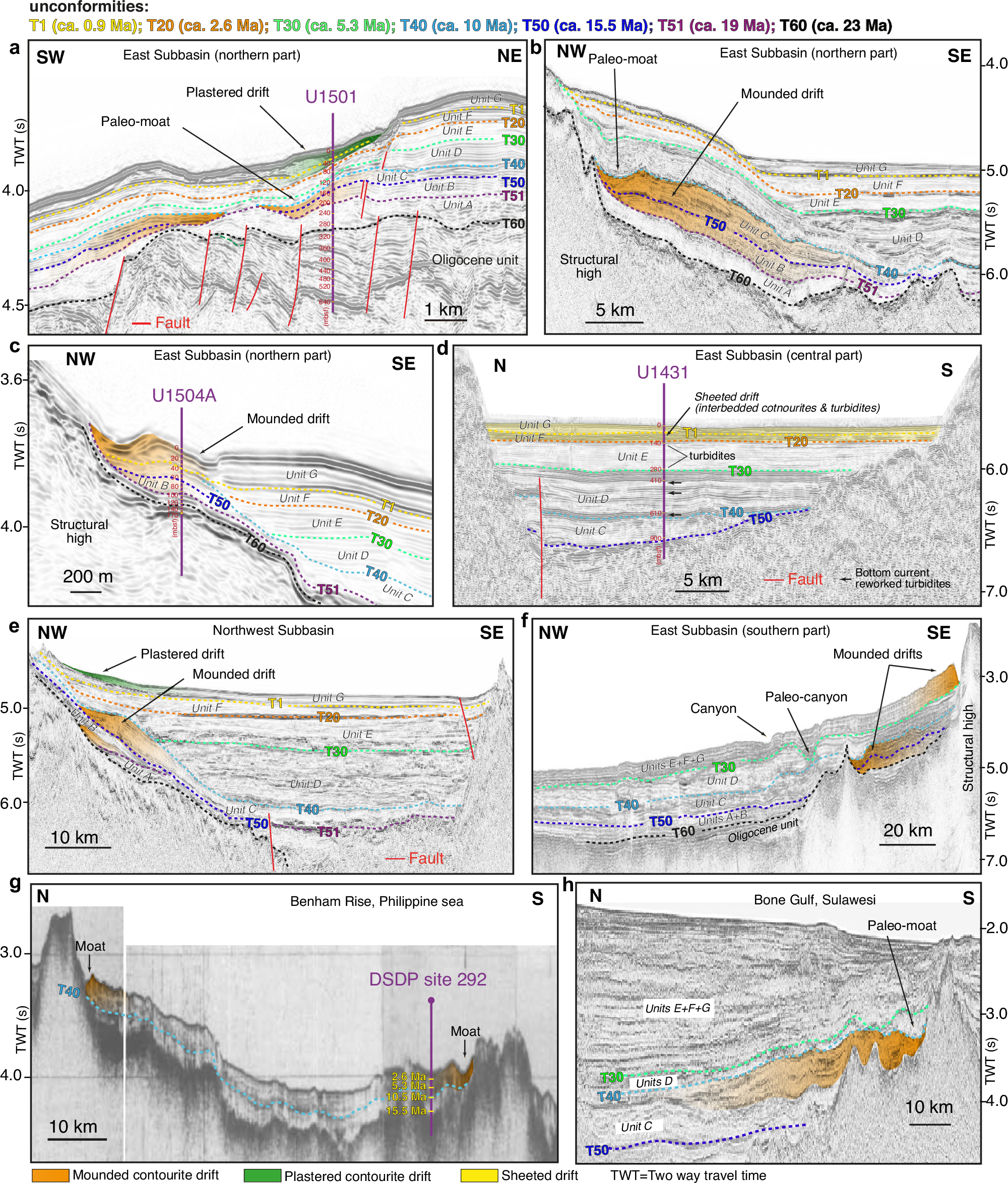

a–f Interpretations of seismic units and contourite features in the South China Sea deep basins. g Contourite features of Benham Rise (Philippine Sea)41,42. h Buried contourite features of Bone Gulf (Offshore Sulawesi)63. Seismic discontinuities were correlated to previous chronostratigraphic studies15,27,59,60. Locations of seismic lines are indicated in Fig. 1c.
